GMA400-700E Grout Mixer

Model : 400L MIXER
Rated capacity : 400 liter
Acceptable W/C ratio: ≥0.5:1
Mixing time: 3 min
Power : 7.5kw
Weight: 400 kgs

We're here to help:

Easy ways to get the answers you need.

(※ Click this button to inquiry)

download:

Share with:

Description
Application
Features
Technical data

■ Description

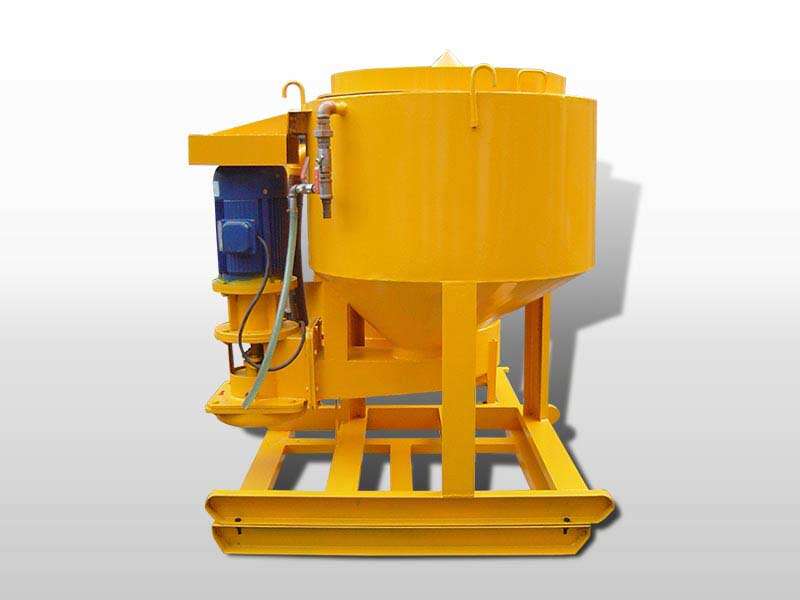

GMA400-700E cement mixer & agitator is a combination of mixer and agitator, it is specially design for continuous cement mixing and grouting in ground/underground engineering. It can fast mix water, cement and additive, then the mixed slurry can be stored into a 700 liters agitator, thus the mixing work can continuously be done.

Inquiry >>

info@gaodetec.com86-371-55951660

Products you need :
Your name :
Your tel :
* Your mail :
Your company :
Your country :
* Inquiry :	Please enter your inquiry

PRODUCT CATEGORIES

Shotcrete Machine

GZ-7 Dry Mix Concrete Shotcrete Machine GSZ3000 Wet Shotcrete Machine GZ-9 Dry-mix Concrete Spraying Machine GPS-7A Wet Shotcrete Machine GZ-5 Dry-mix Gunite Machine GZ-3 Dry-mix Shotcrete Machine GDS2000G Shotcrete Pump HSC-3016 concrete sprayer shotcrete system with shotcrete arm HSC-2008 shotcrete machine with spray arm HSC-2513 concrete spray shotcrete system with robotic arm HSC-2515 concrete sprayer shotcrete system HSC-2815 concrete spray shotcrete system HSC-2815B robotic shotcrete machine GPS5-15S hydraulic pump wet concrete spray shotcrete machine YSC5-15S vehicular hydraulic pump concrete spray wet shotcrete machine GDS1500 Wet Shotcrete Machine GSZ3000V Wet Gunite Machine GPS-7 Wet Spraying Machine GPS10/80 Shotcrete concrete pump

Grouting Equipment

GGP250/700/75PI-E Grout/Inject Station GGP800/1200/200PI-D Grout Station GGP350-800-70PI-E Grout Station GGP400/700/80PL-E Grout Station Automatic Bentonite Turbo Mixer/Pump Plant/Station GGP300/300/75PI-E Grout Plant GGP300/350/85PL-E Grout Station GGP800/1200/130H-E grout plant GGP500/700/100PI-E Grout Station GGP500/700/100 PI-D Grout Plant GGP200/300/100PI-D Grouting Injection Plant GGP400/700/100PL-D Grout Station/Plant GGP250/350/100PI-D Grout Station GGP200/300/100PI-E Grout mixing injection plant GGP220/300/300PI-E grout station Grouting Works Drilling Rig Grouting Recorder

Grouting Pump

GGM50/80PLD-E Double-Plunger Hydraulic Grouting Pump GDH75/100 High Pressure Vertical Grouting Pump GGP10-40-E grout pump GDH70&GDH90 High-Pressure Grouting Pump GDM130/20 Medium-Pressure Grouting Pump GDM60/40 Medium-Pressure Dual- slurry Grouting Pump GH-H Series Hydraulic Grouting Pump GH-HD Series Dual Slurry Hydraulic Grouting Pump GP Series Pneumatic Grout Pumps GHG-10 Grouting Cement Small Grout Pump GE Series Hydraulic Grout Pumps GDB Series Grouting Pump Mortar concrete grout pump XPB-10 Low Pressure Large Output Grouting Pump XPB-50 High Pressure Grouting Pump XPB-90 Series High Pressure Grouting Pump Dual slurry grouting injection pump

Grouting Mixer and Agitator

GMA850/1500E Bentonite cement grout mixer and agitator GMA750/1500E Grout turbo mixer/agitator GMA500-1000E Cement grout mixer/agitator GMA400-700E Grout Mixer GMA300-650E/D cement mixer & agitator GMA360 high speed diesel grout mixer/agitator GM300E high shear grout mixer (Colloidal type)GM400E high shear grout mixer (wing shaft type)GM400D high speed grout mixer GMA250-700E Grout Mixer

Refractory Gunning Machine&Mixer

GZ-3E-R Refractory Shotcrete Machine GRM Refractory Pan Mixer GZ-3A-R Refractory gunning machine GZ-5E-R Refractory gunning machine GD-BJ Switch-plate Type Refractory Gunning Machine GD-BP Fluidifying Semi-dry Refractory Concrete Spraying Machine GD-SL Metallurgical Furnace Used Screw Pump GWR Wet gunning refractory pump

Peristaltic Pump

GCP40H-E Hose Type Concrete Pump GCP20H-E Hose Type Concrete Pump Customize GH76-770B Hose Pump for Grouting Cement GH76-915B Squeeze Hose Grouting Pump for TBM GH100-1050B Hose Pump for Filter Press Machine GH89-610C Squeeze Hose Pump for TBM Industrial Peristaltic Pump GH100-915B Peristaltic Pump for Pumping Foam Concrete Special GH76-770B Peristaltic Pump for Pumping Oil Sludge and Slurries GH32-330B explosion proof peristaltic squeeze hose pump

Concrete Equipment

HBT-E series electric concrete pump machine JBT30 P2 small portable concrete pump with mixer GMP735D Small Concrete Pump with Diesel Engine GCP40H-E Hose Type Concrete Pump Mini Portable Concrete Pump GCP20H-E Hose Type Concrete Pump HBT-D series diesel concrete pump machine JBT40 P2 electric concrete mixer pump JBT40 L1 Trailer concrete pump with forced mixer JBT40 L2 Trailer concrete pump with forced mixer JBT40 P1 portable concrete mixer and pump JBC40 L1 Truck mounted Concrete mixer pump JBC40 L2 Concrete pump mixer JBC40 P1 Concrete mixer pump Coal Mine Concrete Pump JS series Forced Type Concrete Mixer CM-D series portable mini diesel power concrete mixer GCM-130 Gas Mixer Machine GCM-120 Mortar Mixer Machine Gasoline Mixer Machine Portable Mini Cement Sand Concrete Mixer Machine Portable Cement Mixer Machine

Plaster Pump

Double piston mortar spraying pump Full Automatic Screw Type Mortar Spraying Pump Machine GH32H Mortar Spraying Machine GMP35/30 Mortar Spray Pump GMP40/10-H Mortar Plaster Pump GMP50/40 Mortar Spraying Machine GD-N5 Wall Putty Spray Machine GH38ME mortar pump GD-N2 Plastering Machine GD-N1 Wall Putty Spray Machine Hydraulic Mortar Pump Electric Mortar Transfer Pump Machine GEC-SUB8.0 High Pressure Mortar Spraying Pump

Foam Concrete Machine

GM2000 15-20m3/h CLC Foam Concrete Mixer GP30 30m3/h Lightweight Foam Concrete Pump GF5 foaming concrete brick machine GW30B Foam Concrete Block Wire Cutting Machine GM1000 Foam Concrete Block Making Machine GF10 Lightweight Foam Concrete Machine for Floor Heating GF10A Cement foam concrete unit GF15 cellular lightweight concrete machine GF25 Lightweight Foam Concrete Unit GF30 Cellular Lightweight Concrete Making Machine GF35A Cement Foam Concrete Unit GF35B Cement Foam Concrete Unit GF40 Cement foam concrete unit

Anchor Equipment and Tools

100 Ton Double Acting Hydraulic Plunger Jack RC Series of Single Acting Hydraulic Plunger Jack RRH Series of Double Acting Hollow Hydraulic Cylinder for Lifting Customized RCH Series of Single Acting Hydraulic Hollow Cylinder Electric Oil Pump 2.2Kw Single acting Electric Oil Pump Used for Lifting Hydraulic Jack EP-142 Light Weight Manual Hydraulic Oil pump GJP-63D Pump station with diesel driven Prestressed PC Strands Pusher Machine for Bridge and Railway GYM Prestressed Concrete Anchors GBM15(13) Flat Anchor QYC Front-end Mono Strand Hydraulic jack YDC Series of Tension Hollow Hydraulic Jack Metal Ducts Making Machine Oil Pump Prestressed Concrete Cable GYJ Extrusion Machine

Slurry Pump

BW Series Slurry Pump BW-160/10 Slurry Pump BW200 Mud Pump BW-850-2 Mud Pump GDD Series Mud Pump GDF Series Slurry Pump

Filter Press

Hydraulic Automatic Filter Press Membrane Filter Press Hydraulic pressure filter press Multi-layer stainless steel frame filter Manual Jack Filter Press

Drilling Rig

DTH drilling machine for blast-hole in quarry XL-50 Jet Grouting Drilling Rig GL-4000 Full Hydraulic Crawler Jet Grouting Anchor DTH Drilling Rig GL-6000 Full Hydraulic Multifunctional Jet Grouting Anchor Engineering Drilling Rig XDQ-1200 Full Hydraulic Portable Diamond Wireline Core Drilling Rig XY-44B Core Drilling Rig XDL-1800/1200 Crawler Full Hydraulic Core Drilling Rig GSD-I trailer mounted water well drilling machine GSD-Ⅱ diesel water well drilling rig GSD-III truck mounted water well drilling rigs GSD-IIA water well drilling machine GD-370 hydraulic drilling machine GD-380T split type air kinetic energy DTH drilling machine GD-X5 powerful hydraulic DTH hammer drilling rig with dust collector

Soil Spraying Machine

GEC Slope Protection Machine PB Series Soil Spraying Machine ZYP series hydroseeder machine Soil Sieving Machine

Road Marking Machine

GD-D390 Marking Removal Machine GD320 Hand push thermoplastic road marking machine GD800 GD1200 Hydraulic Double Cylinders Thermoplastic Kettle GD18L Hand Push and Truck-mounted High Pressure Airles Cold Paint Road Marking Machine GD18L-2 Double Cylinder and Pump Cold Paint Truck-mounted Road Marking Machine GD160 Hand-push Thermoplastic Road Marking Machine GD320S Self Propelled Thermoplastic Road Marking Machine GD Vibration Marking Machine GD300 Mechanical Single Cylinder Thermoplastic Kettle GD600 Mechanical Single Cylinder Thermoplastic Kettle GD400 Hydraulic Single Cylinder Thermoplastic Hot Melt Kettle GD6L Cold Painting Machine GD Vehicle Booster GD High Pressure Road Surface Cleaning Machine GD High Pressure Road Surface Blower GD Series Assistant Equipment for Index Line Construction

Hydraulic Pump Station

GHPP20/30-15E electric hydraulic power pack GHPP16/50-18.5E electric hydraulic power pack GHPP14/68-30D diesel hydraulic power pack GHPP14/68-22D diesel hydraulic power pack GHPP13/50-14D diesel hydraulic power pack

400L MIXER
Rated capacity	400 liter
Acceptable W/C ratio	≥0.5:1
Mixing time	3 min
Power	7.5kW
Weight	400 kgs
Overall Dimension	1500x1100x1500mm
700L AGITATOR
Rated capacity	700 liter
Rated Rev.	35rpm
Power	3kW
Weight	200 kgs
Overall Dimension	1300x1200x1350mm
