The fluid end of pump adopt the assembly body and the transmission of the power end is the ball bearing with low noise and low temperature, which can keep working continuously for 24 hours.

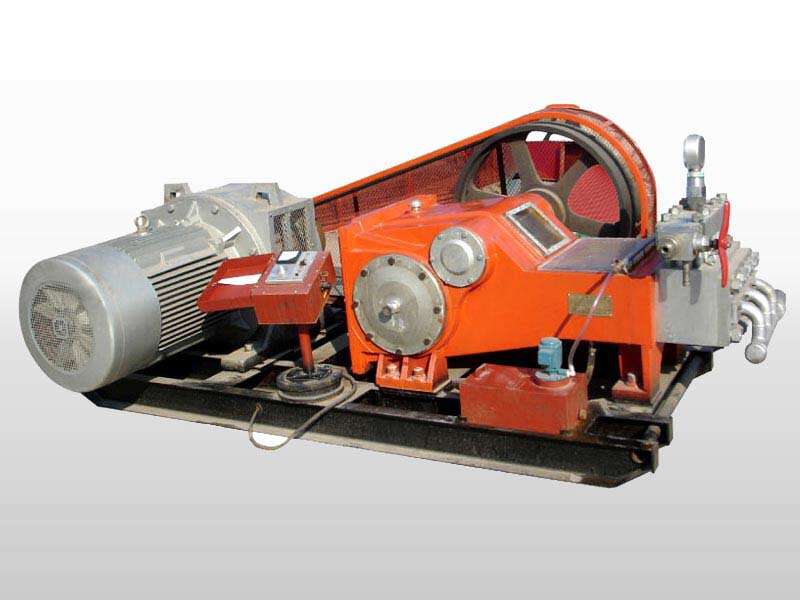

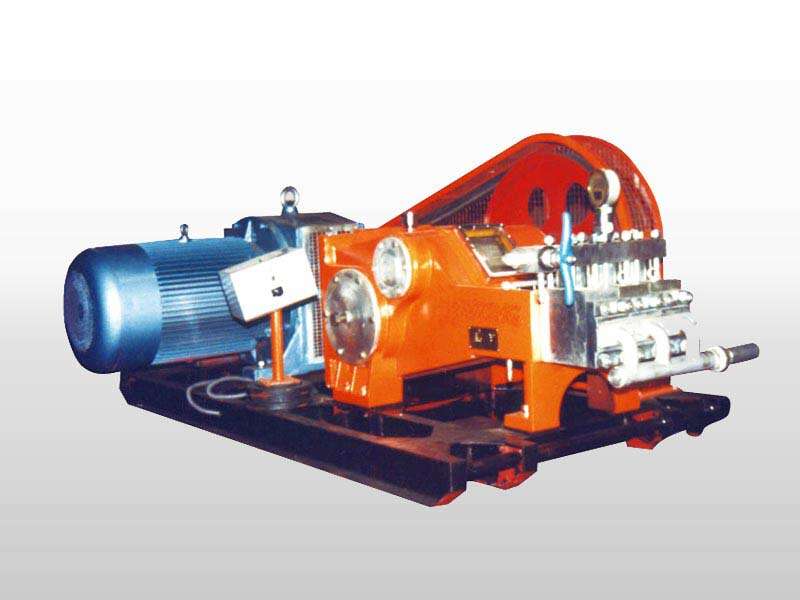

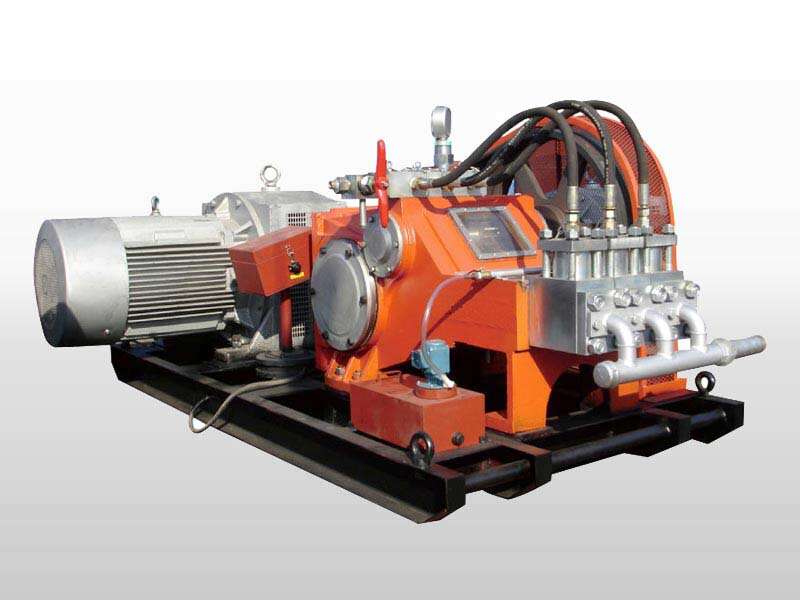

XPB-90 high pressure grouting pump mainly applied for high pressure rotation grouting for ground work treatment, curtain grouting, blocking leakage at the mine, anchor at the slope and so on.

Low noise
can keep working continuously for 24 hours
Simple maintenance and Long life

XPB-90D
Max.motor speed				1340r/min		Plunger stroke					120mm
Theoretical output				Motor power							Plunger diameter
				55kw		75kw			90kw
M³/h		L/min		Rated output pressure(Mpa)
7.5		125		22		32			38		50mm
6		100		28		39			45		45mm
4.8		80		33		45			55		40mm
XPB-90E
Max.motor speed			1320r/min		Plunger stroke							80mm
Theoretical output			Motor power									Plunger diameter
			55kw		75kw		90kw	110kw		132kw
M³/h	L/min		Rated output pressure(Mpa)
13	217		12		17		20	25		30		80mm
11	188		14		19		23	28		34		75mm
9.9	165		16		22		26	32		39		70mm
8.6	141		18		25		31	38		45		65mm
7.1	119		22		30		37	45		50		60mm
6	100		26		37		44	53		56		55mm
5	83		32		44		53	60		60		50mm
