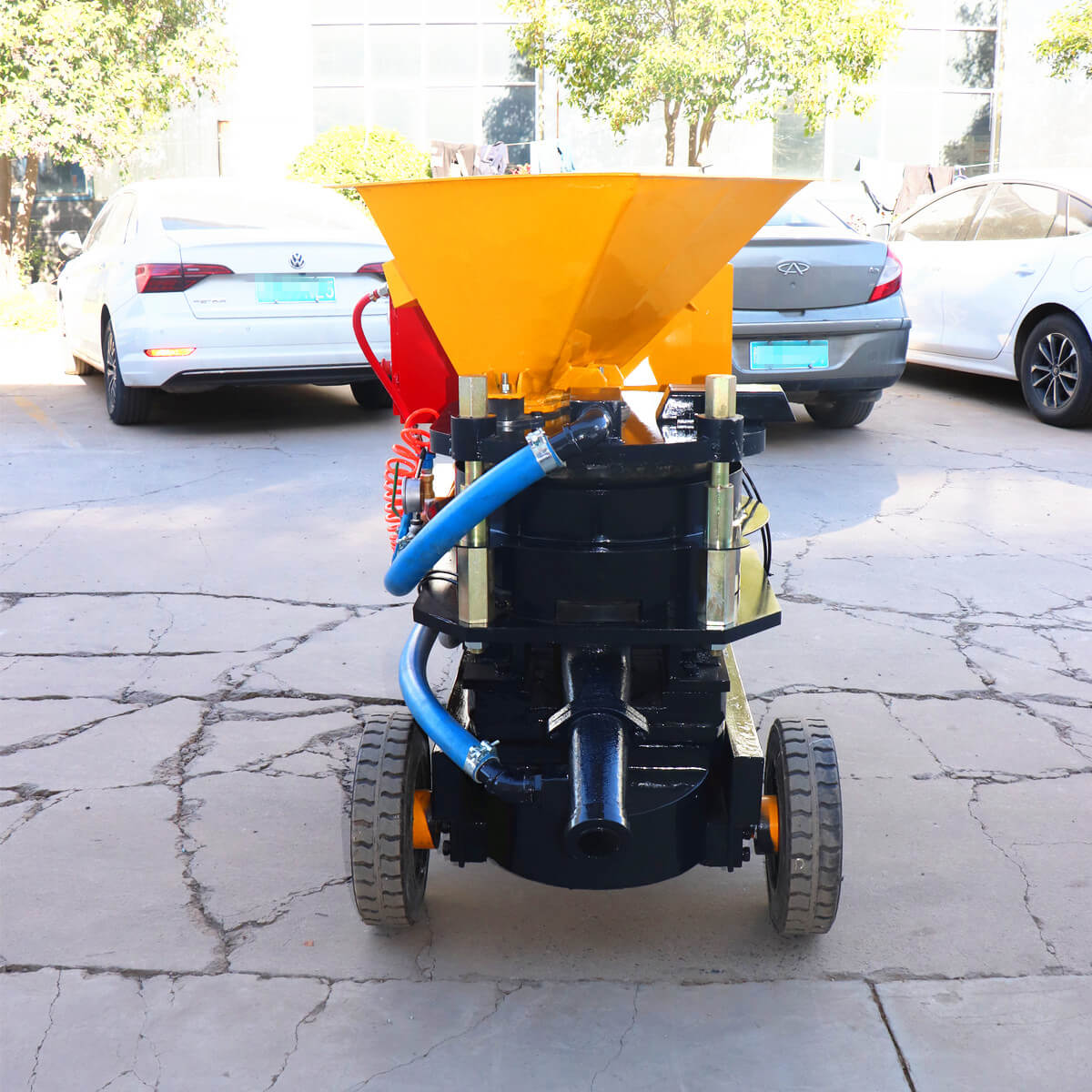

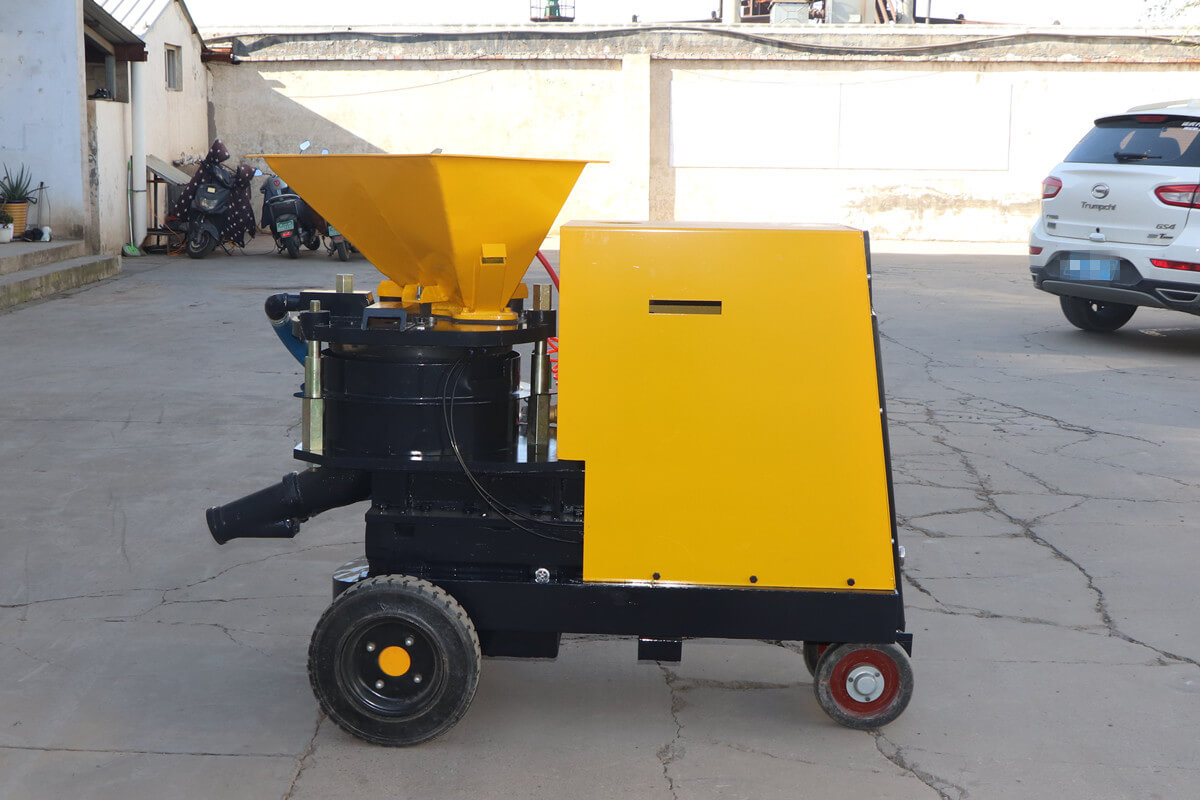

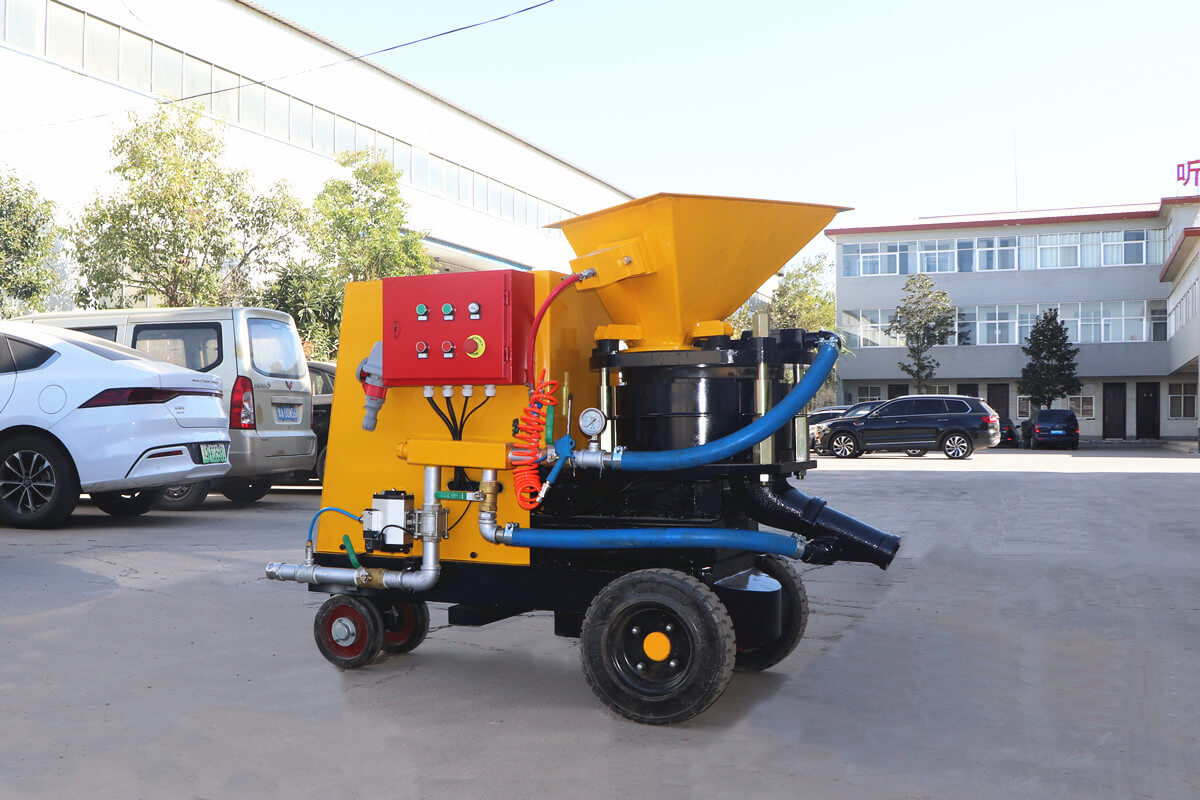

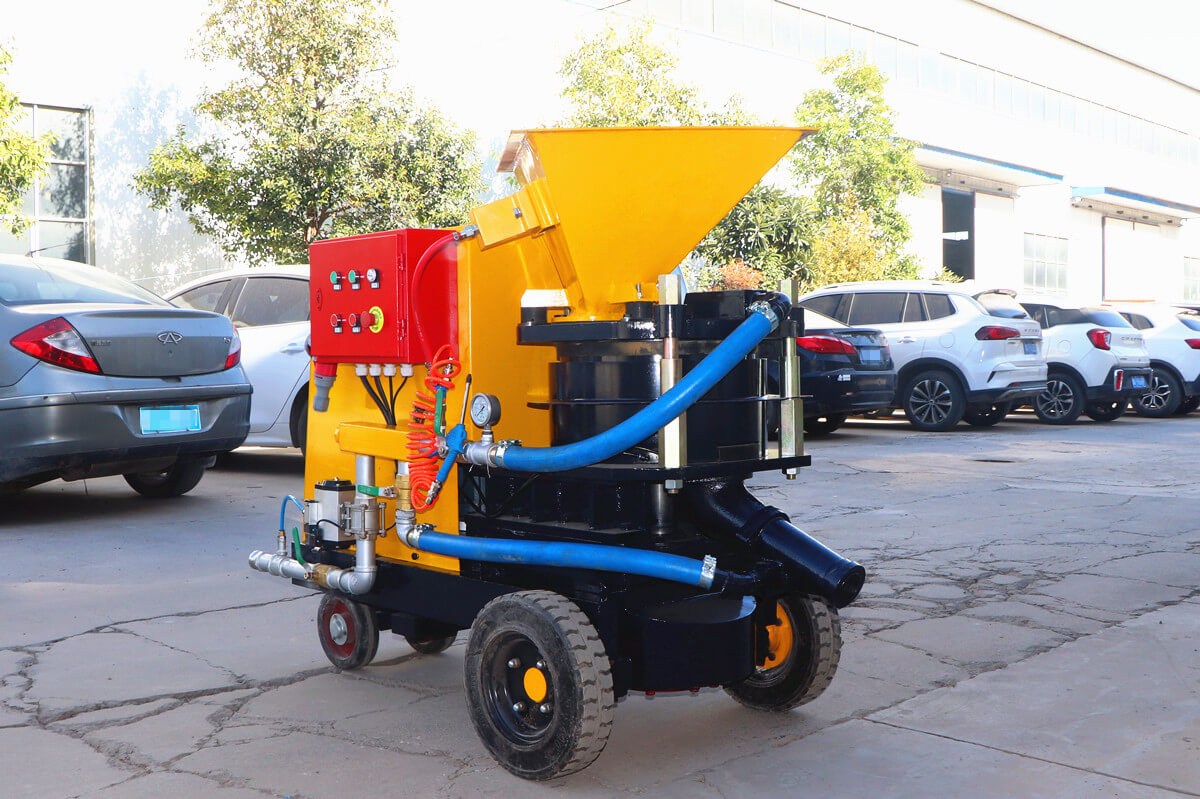

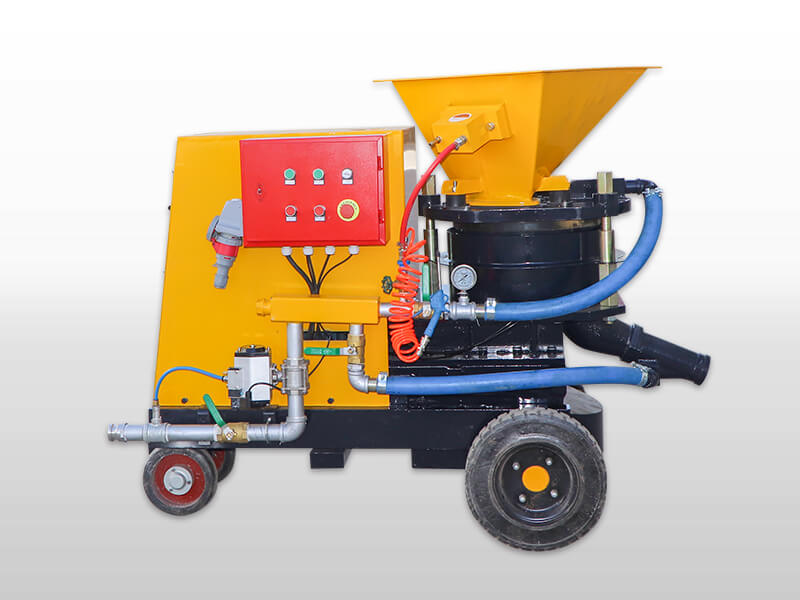

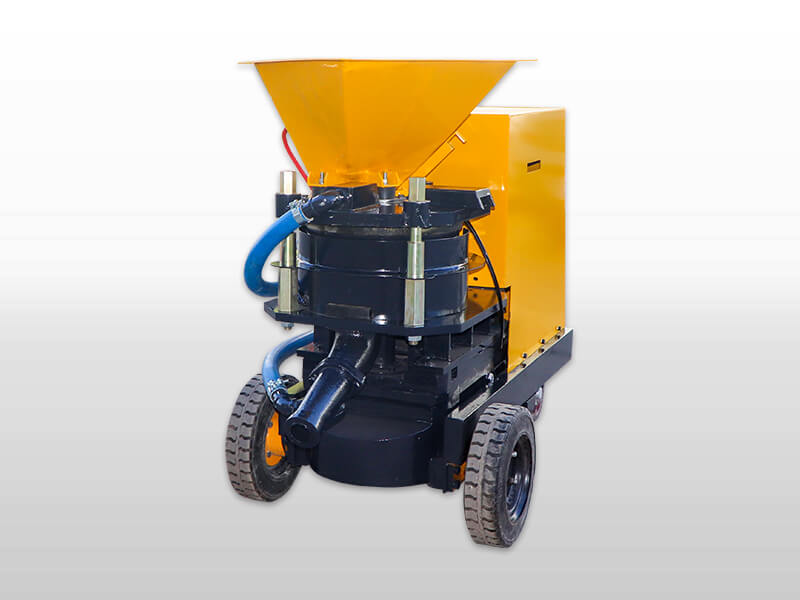

GSZ-10S/E Electric shotcrete machine (dry and wet) is a multifunctional rotor type machine for wet and dry spraying and conveying. The materials that can be sprayed and conveyed are concrete, mortar, refractory, sand, pea gravel and crushed stone.

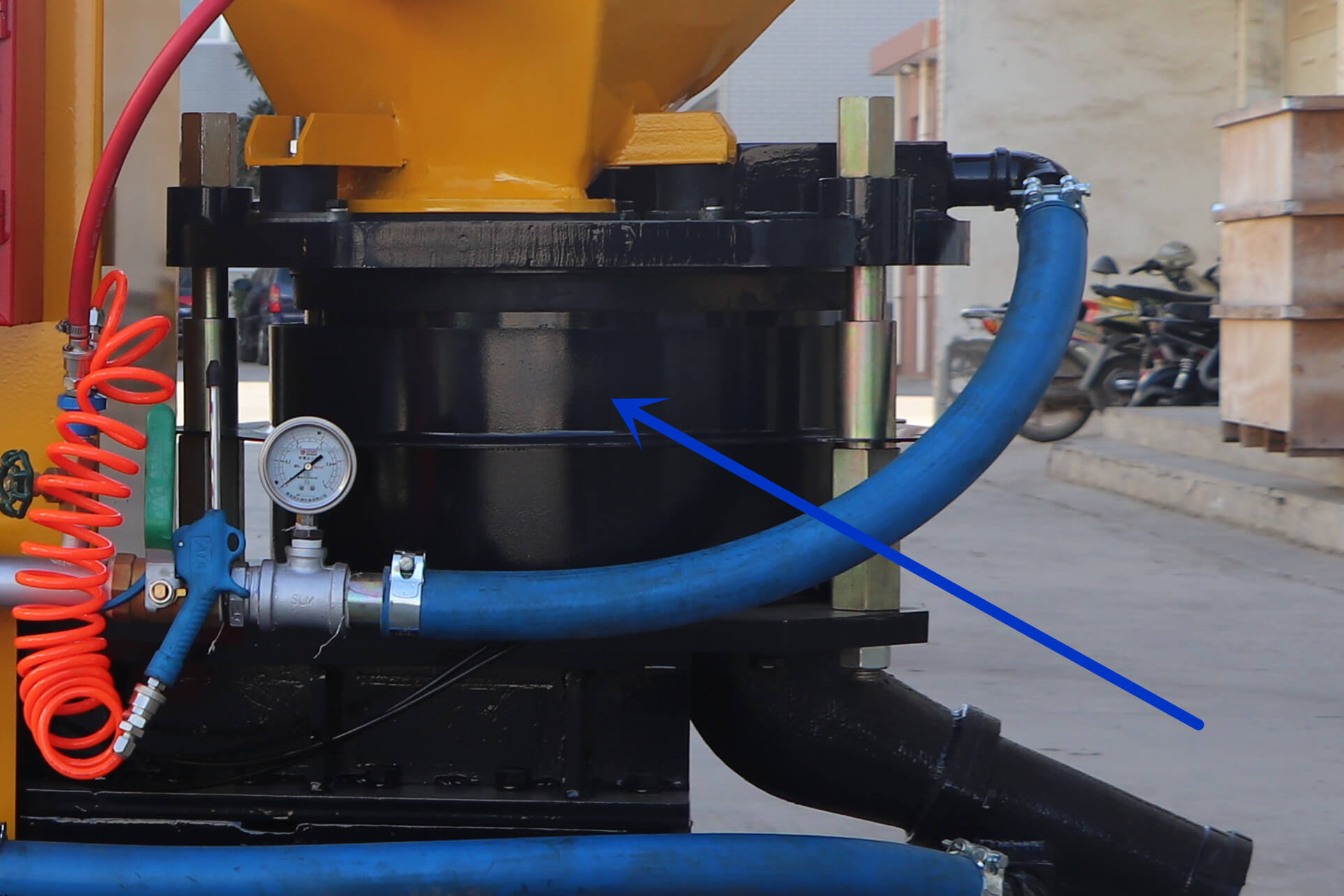

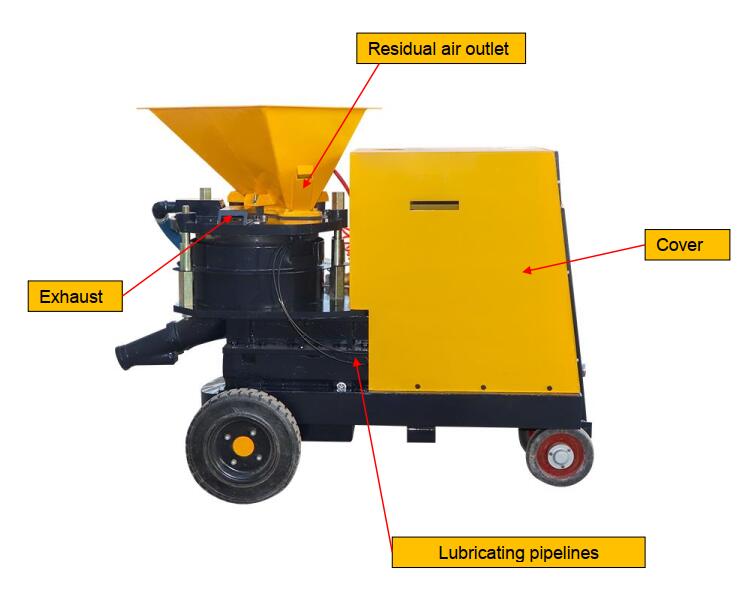

Compared with traditional shotcrete machines, GSZ-10S/E has the advantage of being lighter and more compact. In addition, GSZ-10S/E is equipped with a rubber sealing plate lubrication system, which can effectively reduce the wear of rubber plates, longer service life and better sealing effect.

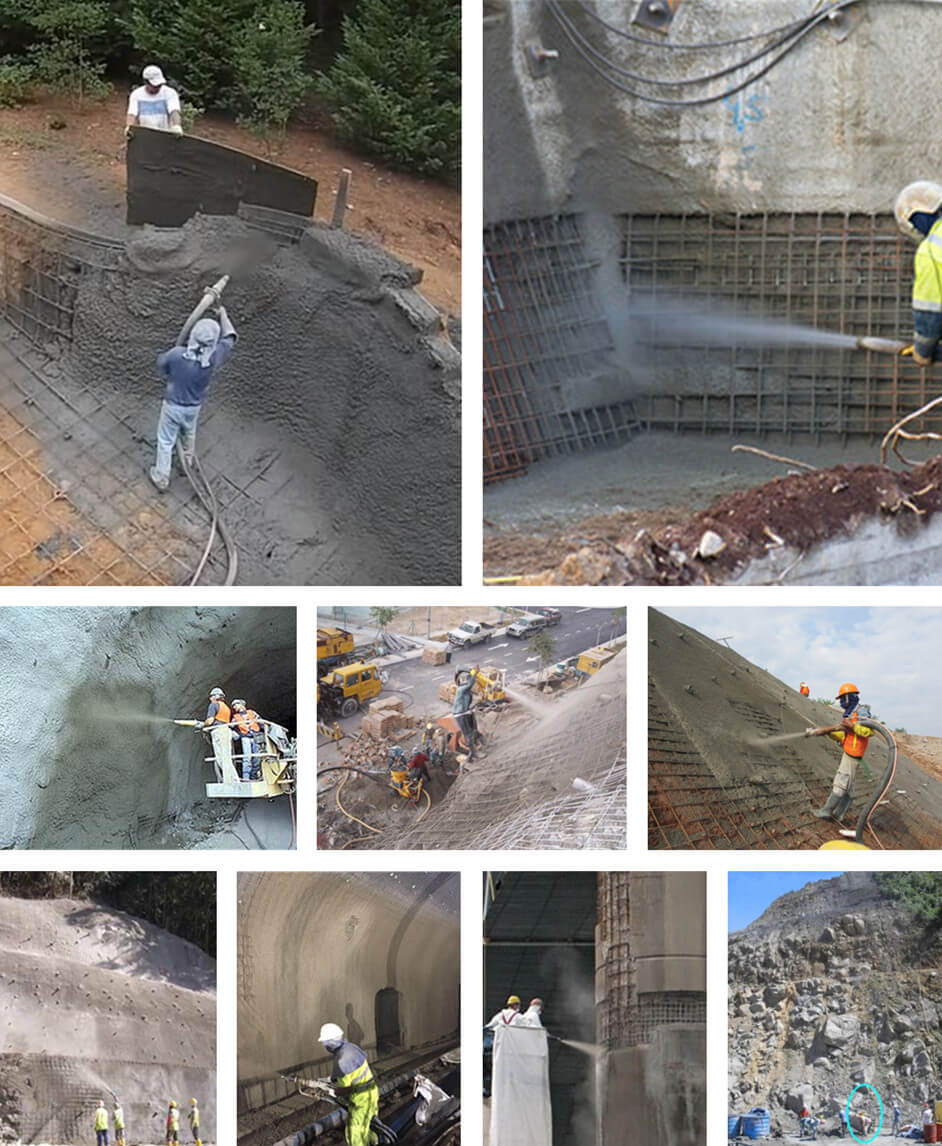

GSZ-10S/E Electric shotcrete machine (dry and wet) can be used for concrete repair, slope stabilization, excavation support, or mining.

1. Theoretical displacement can be adjusted.

Name	Data
Machine type	GSZ-10S/E electric shotcrete machine
Power supply	AC380V 50Hz three-phase
Motor power	7.5kw
Air consumption	10 m3/min
Working  pressure	0.2Mpa
Rotor speed	12.3rpm
Rotor size	14.5 liters
Theoretical output①	10m3/h
Recommended hose size	D64mm
Max. aggregate size	20mm
Max. conveying distance horizontal/vertical	Dry: 200m/100m
	Wet: 40m/15m

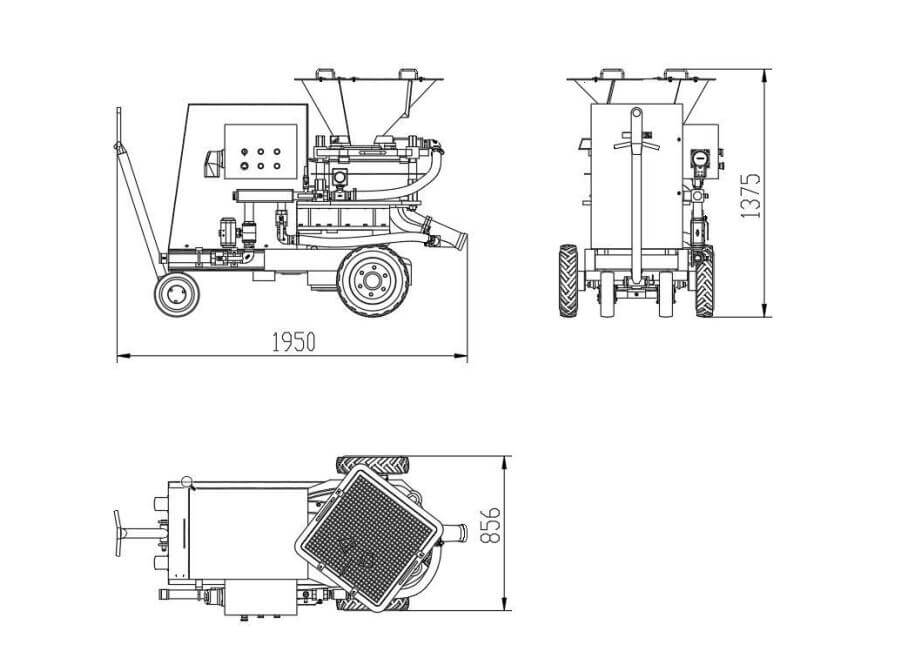

Dimensions	Length	1950mm
	Height	1375mm
	Width	856mm
Weight	1000Kg
① Based on a theoretical filling level of 100%. Prior to use or processing, always consult the current product data sheet of the products used.
