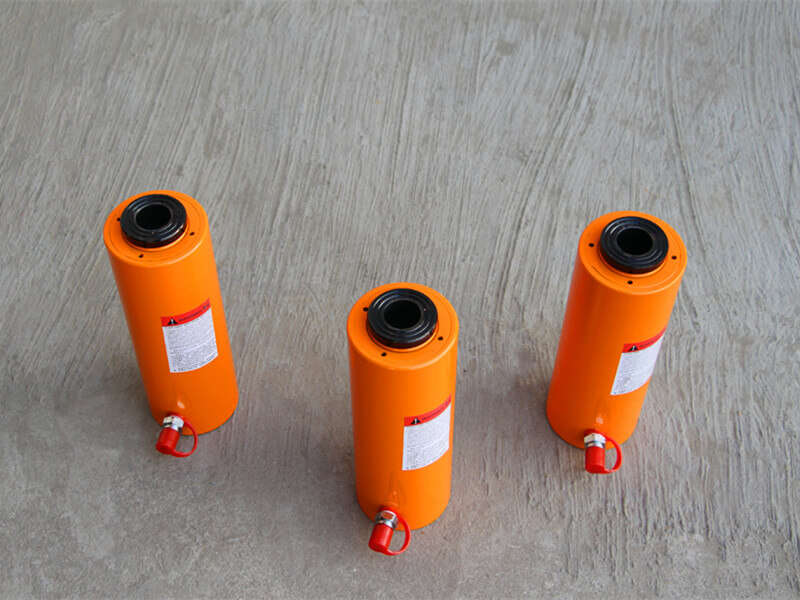

Single acting hollow hydraulic jack

Model : RCH-1003
Capacity ton: 100(980) KN
Stroke : 76mm
Efficiency area: 133.1cm2
Capacity of hydraulic oil: 1012cm3
Own height A : 254mm

We're here to help:

Easy ways to get the answers you need.

Send E-mail Leave A Message

Description
Application
Features
Technical data

■ Description

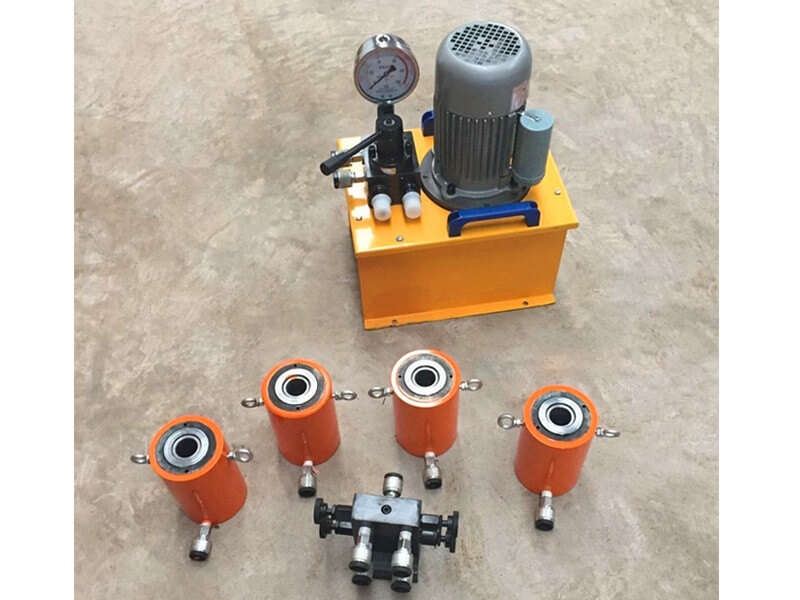

Single acting hollow hydraulic jack is single outlet, high-low pressure pump, parallel type hydraulic power pack, high-low pressure pump supply oil at the same time when low pressure, single acting hollow cylinder can get the large output flow; low pressure pump automatically unloading back the oil via control valve when high pressure, it can reduce the consumption of electric motor and heat of oil, it has the function of stop machine to protect pressure, single oil-way backing oil and etc.

■ Technical data

Model	Capacity (KN)	Stroke(mm)	Efficiency area (cm2)	Capacity of hydraulic oil(cm3)	Height A (mm)	Extend height B (mm)	OD D (mm)	Center hole Y (mm)	Weight(Kg)
RCH-120	12(128)	8	17.9	14	56	63	70	19.6	1.5
RCH-121		41	17.9	73	121	162	70	19.6	2.8
RCH-1211		41	17.9	73	121	162	70	19.6	2.8
RCH-123		76	17.9	136	184	260	70	19	4.4
RCH-202	20(196)	51	30.5	156	162	213	99	26.9	7.7
RCH-206	20(196)	155	30.5	473	306	461	99	26.9	14.1
RCH-302	30(294)	63	46.6	294	179	242	127	33.3	10.9

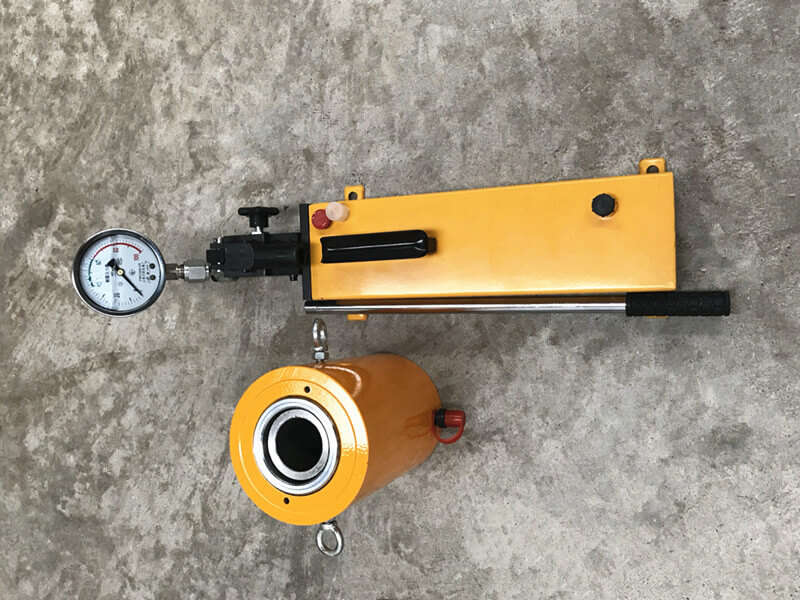

RCH-306	30(294)	156	46.6	727	330	486	127	33.3	21.8

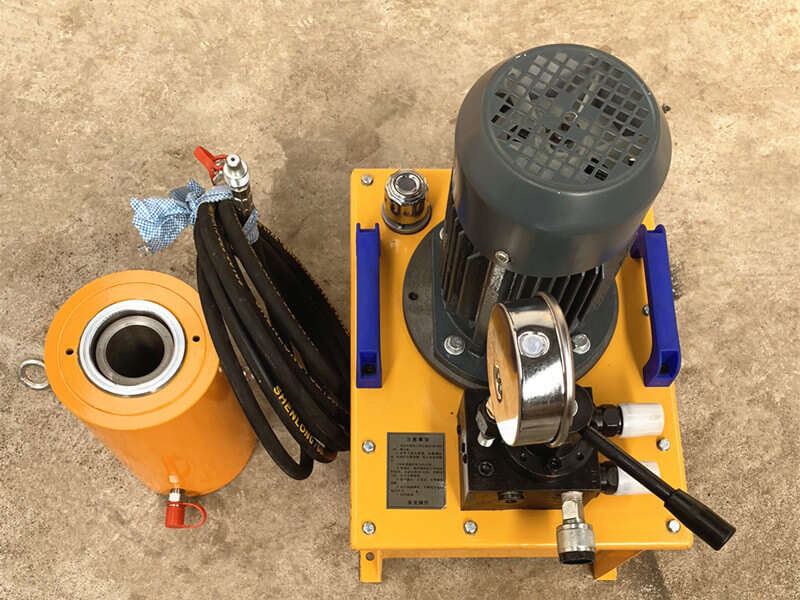

RCH-603	60 (588)	76	82.2	625	248	324	159	53.8	28.1
RCH-606	60 (588)	152	82.2	1249	324	476	159	53.8	35.4
RCH-1003	100(980)	76	133.1	1012	254	330	213	79	59.9
