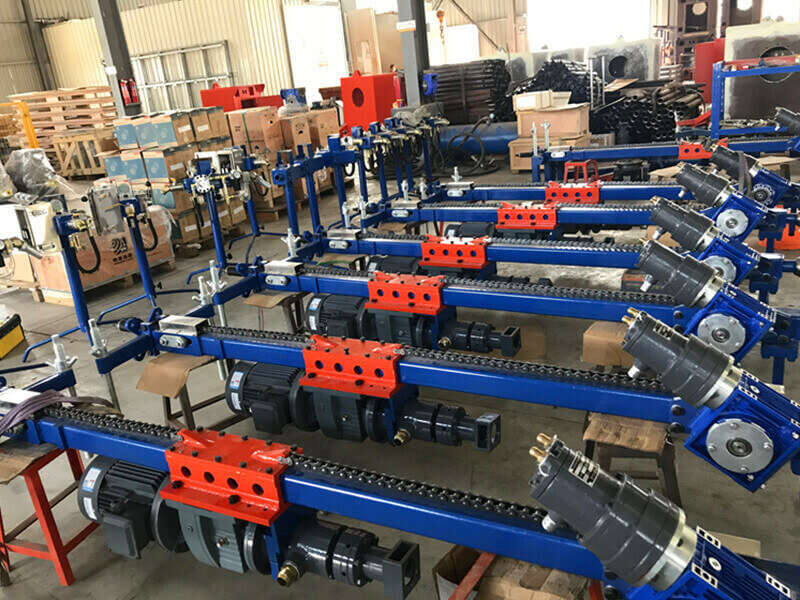

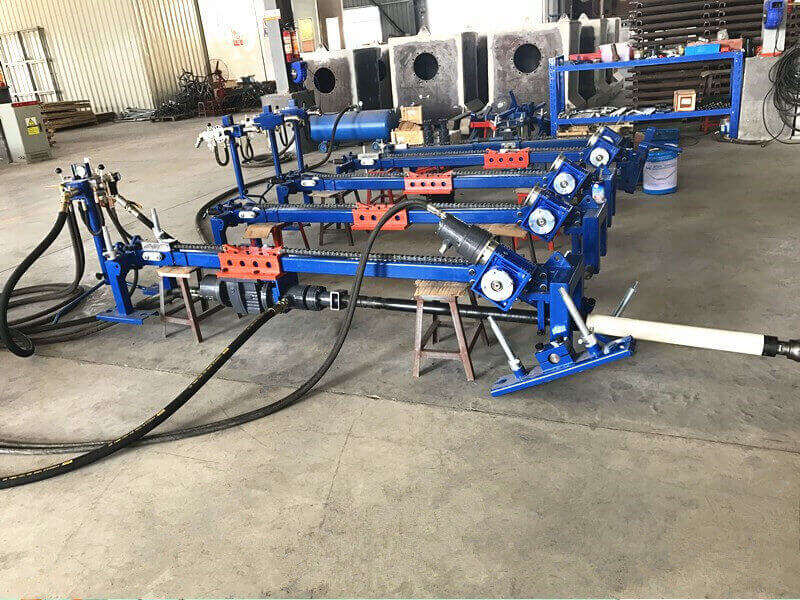

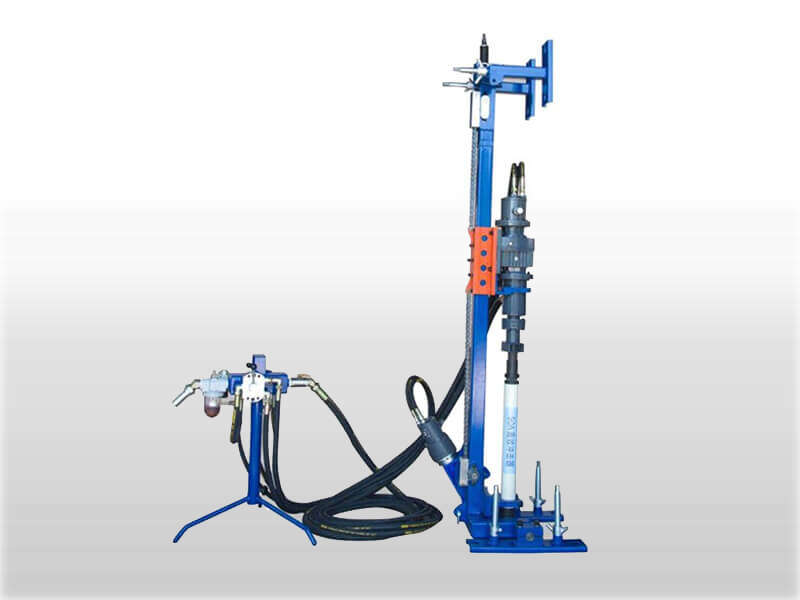

The DTH drilling machine is used for drilling large diameter horizontal, vertical and slant holes during stone quarrying. This portable DTH drilling machine is necessary assistive equipment to two wire saw machine during the stone quarrying. The machine is controlled jointly by compressed air or electric motor and compressed air. And the pneumatic DTH drilling machines are high quality standard.

DTH drilling machine is used for hard rock blast-hole, slope-protection etc. projects. It is ideal tool in quarry project.

1. Low compressed-air consumption, high drilling efficiency, light in weight, easy operating and installing, etc.
2. The particular screwing and discharging mechanism of tube devices reduces the intensity of laber.
3. The portable drilling machine has the particular design for guiding drilling.

Model	Full pneumatic	Electric and pneumatic
Diameter of drill hole	90~110mm	90~110mm
Depth of drill hole	30m	30m
Speed of drilling	6~8m/h	6~8m/h
Min. Air pressure	0.6~0.7Mpa	0.6~0.7Mpa
Air consumption	8~10m3/min	7~8m3/min
Single feeding distance	1m	1m
Drilling direction	Any angle	Any angle
Net weight	600kg	600kg
