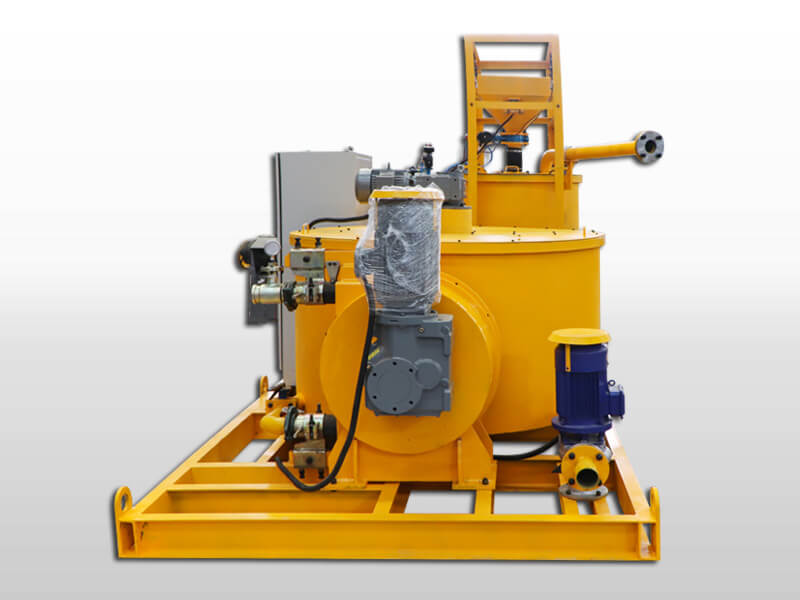

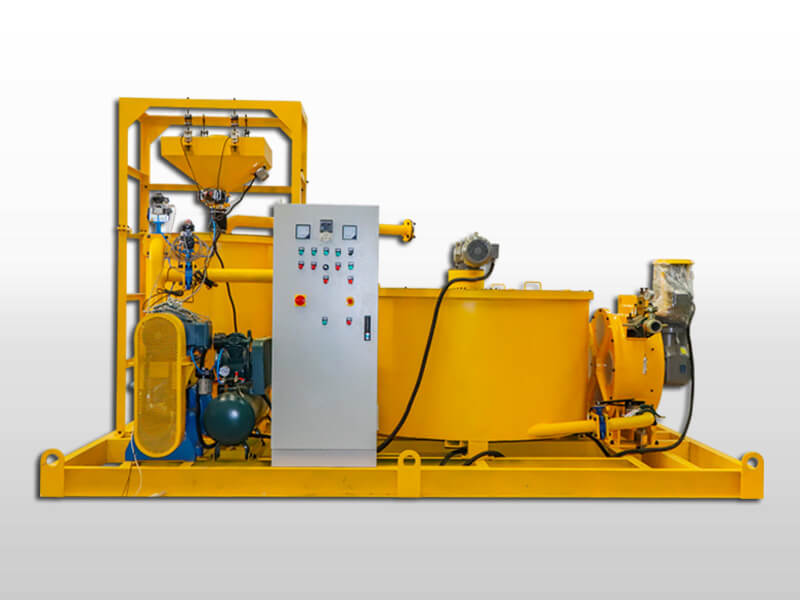

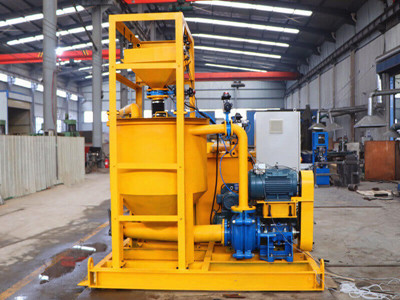

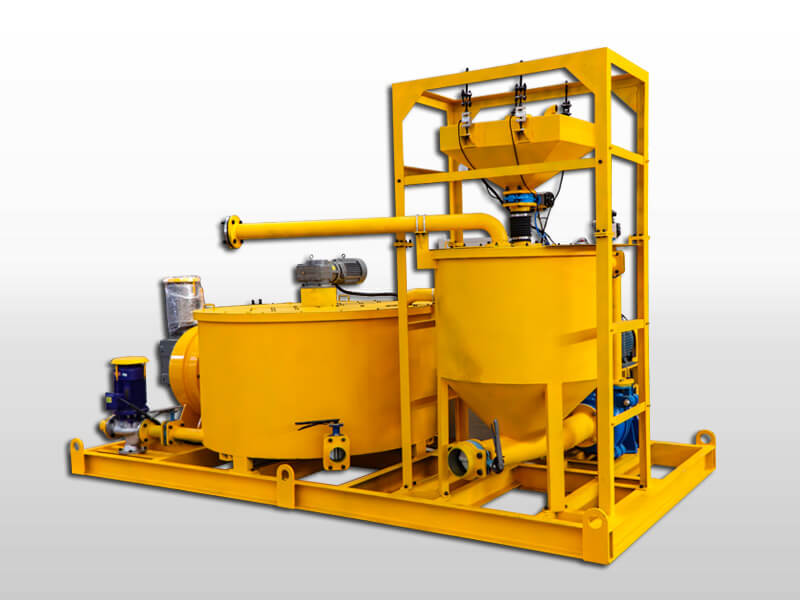

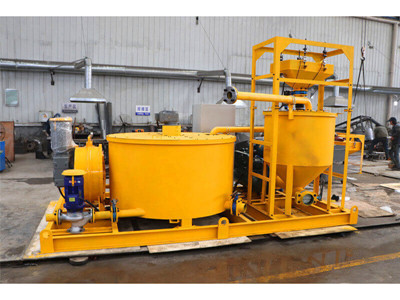

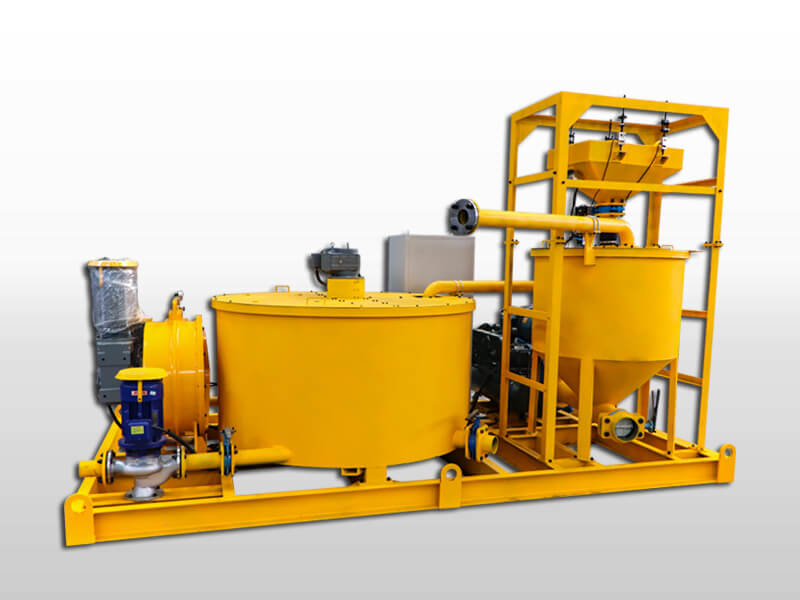

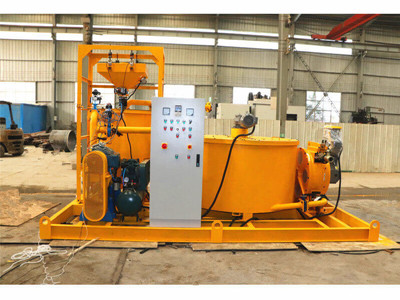

GGP500/2000/165H-E Grout mixing and pumping system is a combination of automatically batching weight system, PLC control system, mixer, agitator and grouting pump in one plant system. The GGP500/2000/165H-E grout plant system is mainly used to mix cement, bentonite slurry for grout and backfill grout injection in ground and underground construction or TBM tunnel construction, such as highways, railways, water and electricity, construction, mining etc. Compared with our company's conventional grouting plant system,engineers changed the traditional operation mode and set up two kinds of material output pipes: connecting directly to the hose pump for direct operation, connecting to the water pump for secondary processing. Most importantly, the grout equipment has added weighing modules and PLC control system, which can be started with one button to achieve automatic operation.

GGP500/2000/165H-E Grout mixing and pumping system is with weigh 200Kg, mixer volume 500L, agitator volume 2000L, hose pump displacement 165L/min, it has large volume suitable for large projects. If you have cooperation intentions in mixing, grouting and grouting technology, Gaodetec will be your best choice. We will sincerely welcome to cooperate with you with high quality products, best prices, and considerate service!

The superiority of Gaodetec lies in producing a variety of standard and customized grouting mixing and pumping system to handle a variety of materials and capacities from 10L/min to 1700L/min, and pressure from 10bar to 500bar. According to customer requirements, the high pressure pump can be up to 500 bar. The power system of mixing and pumping system can be diesel engine or electric motor. The auxiliary system can be manual control, hydraulic control, or pneumatic control. Regarding as the choice of power supply, we can customize production according to your needs.

GGP500/2000/165H-E Grout mixing and pumping system is suitable for all grouting applications with cement and ultra fine cement, bentonite suspensions for micro tunnelling, pipe jacking and directional drilling. The grout mixing and pumping system is mainly used for ground and underground construction, such as highways, railways, water and electricity, construction, mining etc.
More details about GGP500/2000/165H-E grout mixing and pumping machine:

1. The grout pump of GGP500/2000/165H-E grout mixing and pumping system is a heavy duty industrial hose pump.
2. The grout plant is gigh turbulence mixing.

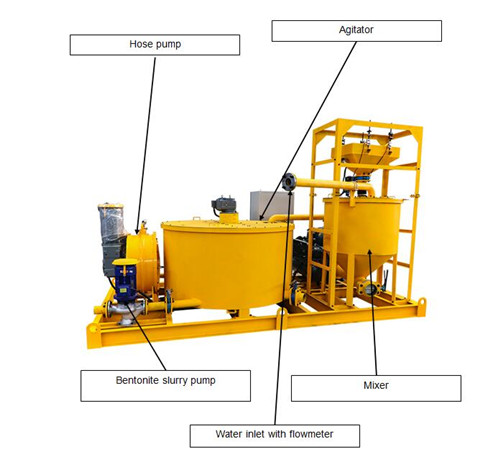

3. Grout mixer, grout agitator, grout hose pump in one frame base, it is compact size.

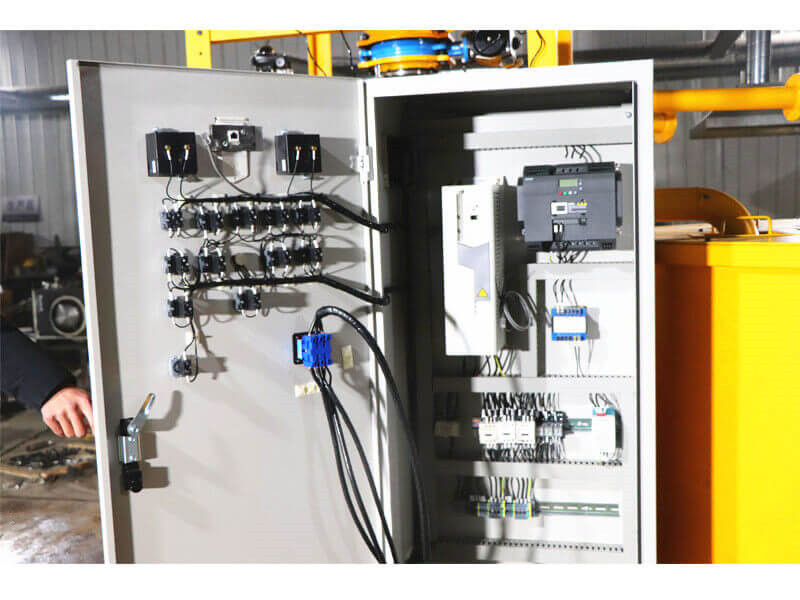

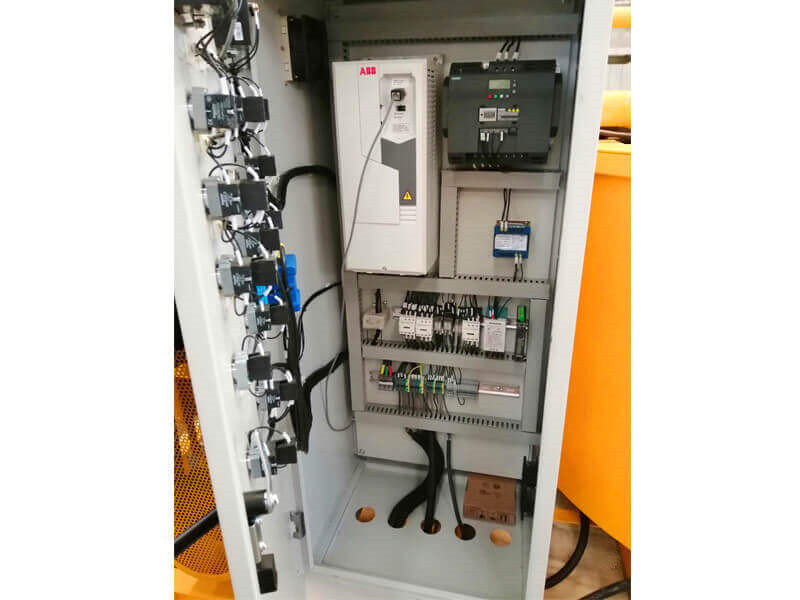

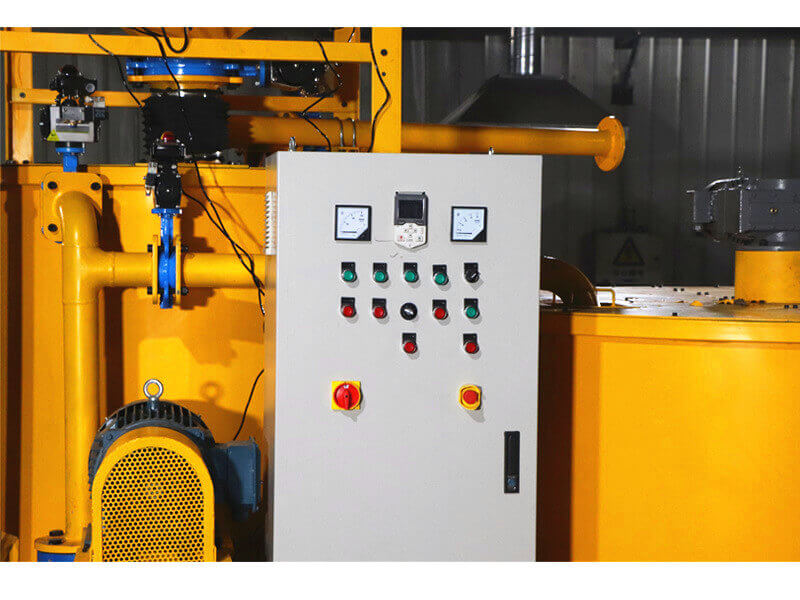

4. PLC control system, operation mode can be operated automatically and manually.
5. GGP500/2000/165H-E grout mixing and pumping system is with automatically batching and automatically mixing system.

Type		GGP500/2000/165H-E Grout mixing and pumping system
Weighting	Sensor	S-type tension pressure sensor
	Load	200Kg
	Output Signal	Current signal
	Vibration Motor	24V, 4KN, 0.37Kw
Mixer	Volume	500L
	Slurry Pump Power	11Kw
	Output	80m3/h
Agitator	Volume	2000L
	Geared Motor Power	3Kw
	Speed	45rpm
	Water Pump Output	15m3/h
	Water Pump Power	5.5Kw
Hose pump	Output	165L/min
	Pressure	1.0MPa
	Power	7.5Kw
Air compressor		2.2Kw
Power supply		220V(380V, 415V Multiple choices)
Dimension		4100×2100×2500mm
Weight		3200Kg
We could also customize grout mixing and pumping system according to your demands.
