The GDS2000G shotcrete pump is a lightweight shotcrete pump run by a highly-reliable direct drive planetary gearbox and hydraulic power pack. This sturdy workhorse is made better with the added improvement of a direct drive to the carousel. This pump could be used for dome- building, swimming pool etc. projects.

1. For pumping/grouting/spraying mortar/plaster;
2. For pumping cellular light weight concrete;
3. For pumping of wet normal concrete, acceptable max. aggregate size is 10mm.

1) Highly-reliable direct drive planetary gearbox;
2) Infinite speed variation;

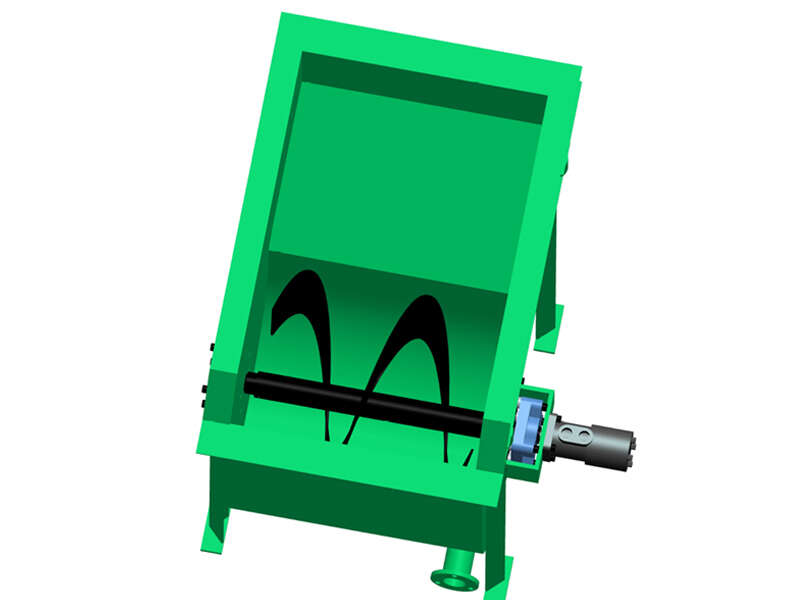

3) Specially hopper/ agitator stir design;
4) Honda GX390 and GX630 gasoline engine for option;
5) Easily operating on site work;
6) Standard spare part supply.

Item	Description
Working Pressure	1.5 Mpa (Chinese Hose)/3.5 Mpa (Trelleborg Hose)
Output	6-8m3/h
Max. Aggregate	10mm
The Squeeze Hose	ID 50mm
Conveying Hose	ID 50mm
Pump head	GH50-680
Power	Honda GX390 Gasoline Engine (low pressure)
	Honda GX630 Gasoline engine(high pressure)
Hopper volume	240 Liter
Hopper rated rev.	76r/min
Oil tank	130 Liter
Requested air compressor	6m3/min, 0.6Mpa Pressure
Vertical Conveying Distance	15 m (Chinese Hose)/30 m (Trelleborg Hose)
Horizontal Conveying Distance	40 m (Chinese Hose)/80 m (Trelleborg Hose)
Weight	900kg
Overall Dimension	2350x1250x1450mm

Note: We have diesel engine or electric motor shotcrete pump is for optional.
