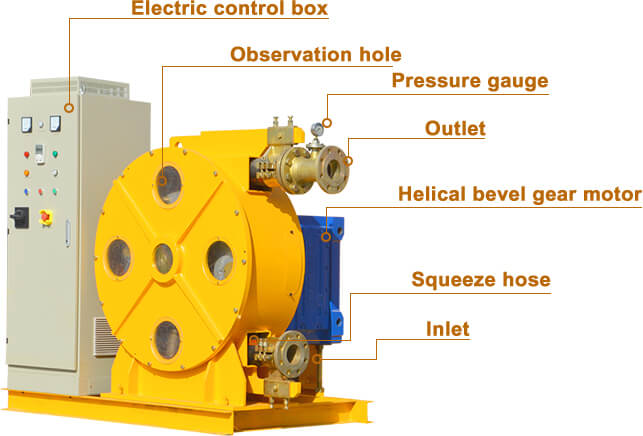

Hose pump consists mainly of pump house, rotor, roller, idle roller, squeeze tube and driving unit. The squeeze hose is U-shape in pump house, when rotor drives roller to rotate, hose is deformed. After the roller rotate, the deformed hose recover by its elasticity. Thus the negative pressure in this hose is generated, sucking slurries, and discharging through outlet under roller’s push, finally forms pressure conveying of slurries.

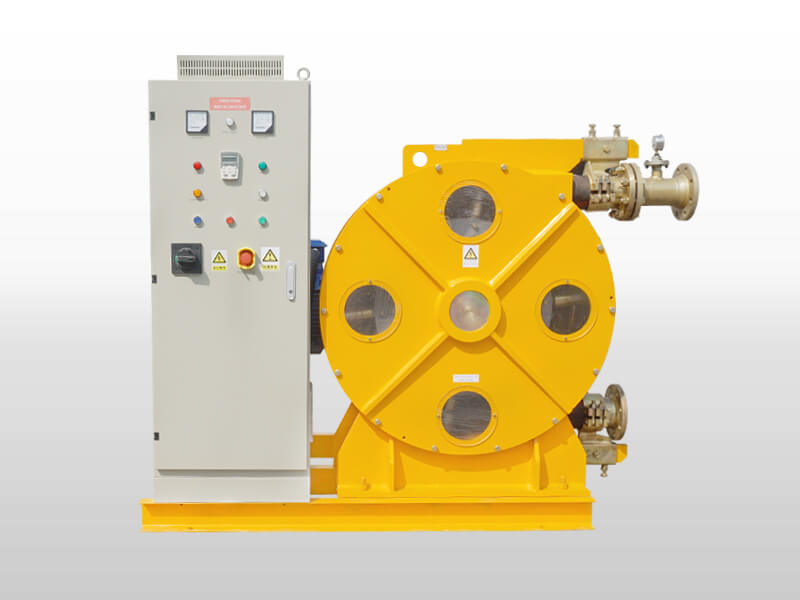

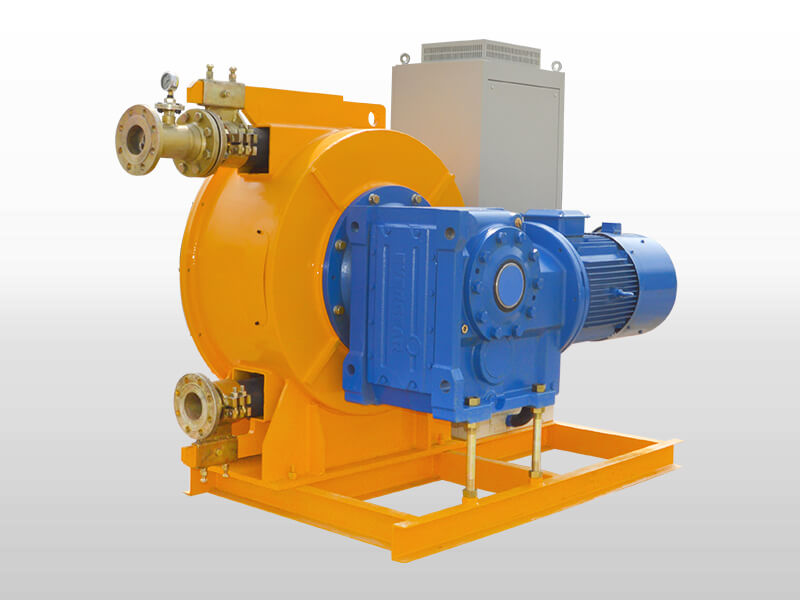

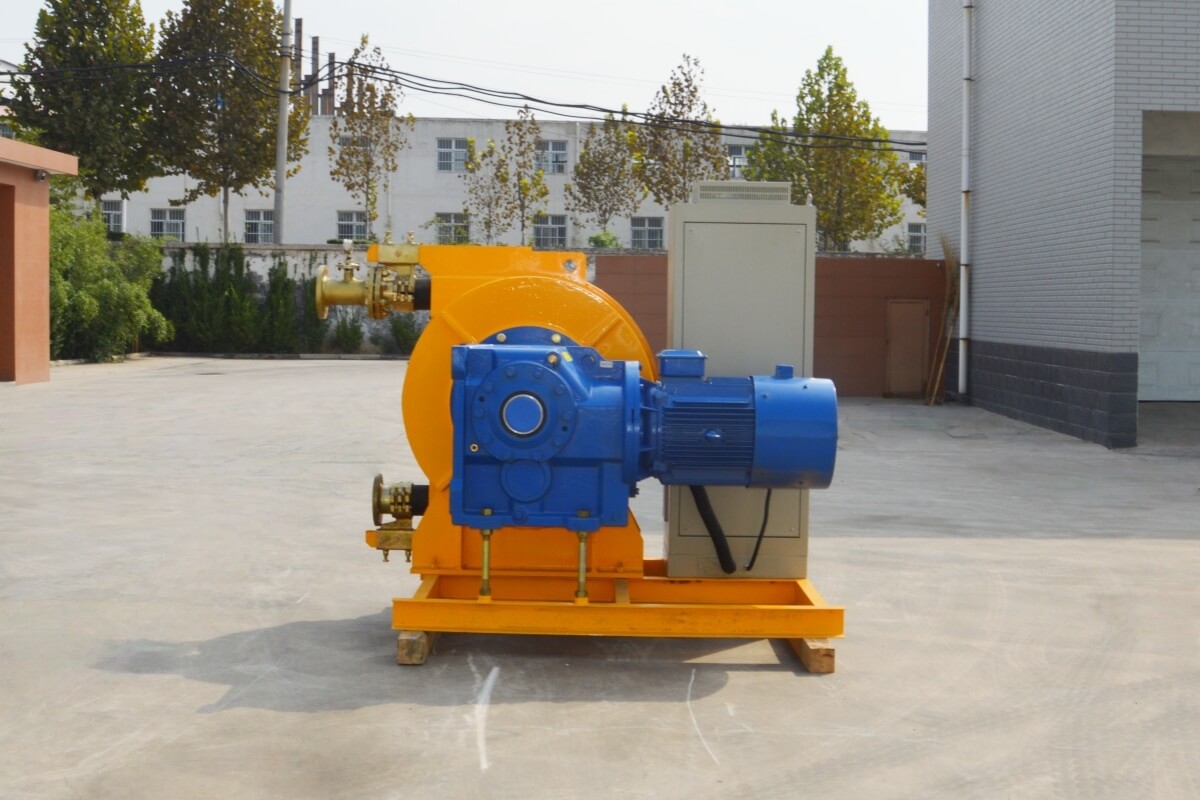

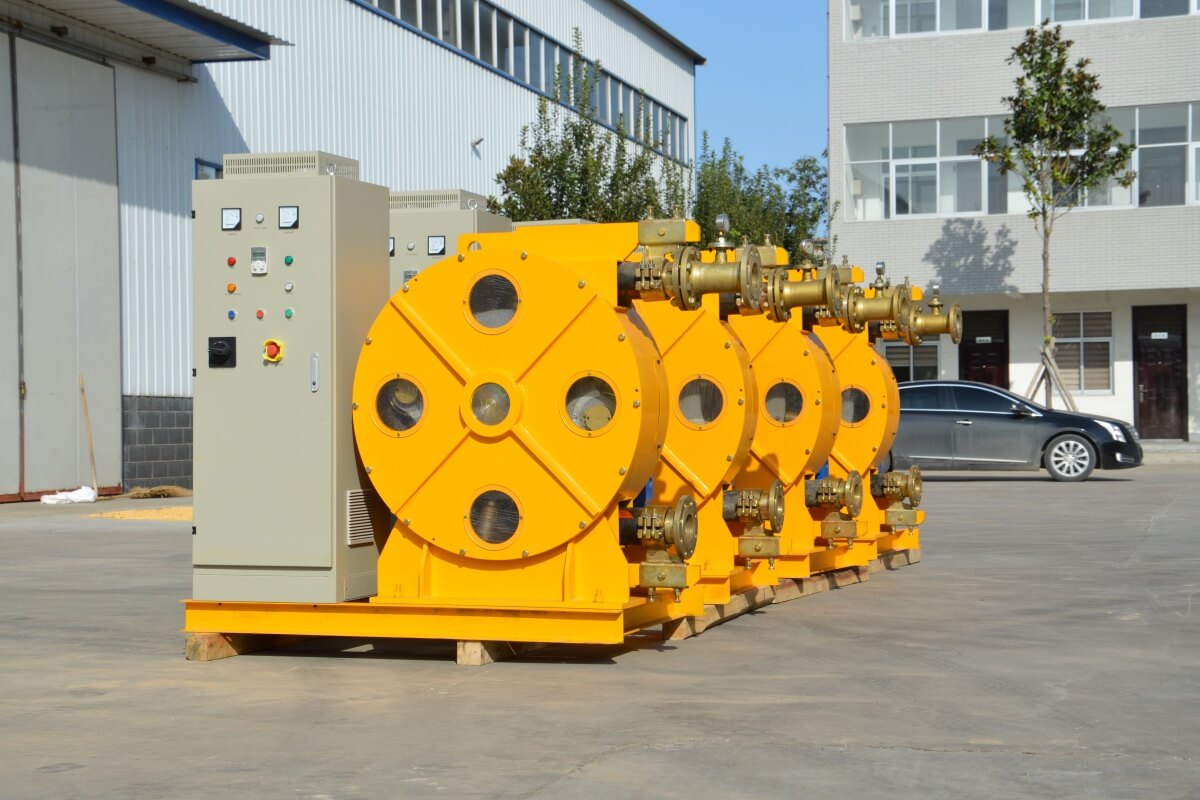

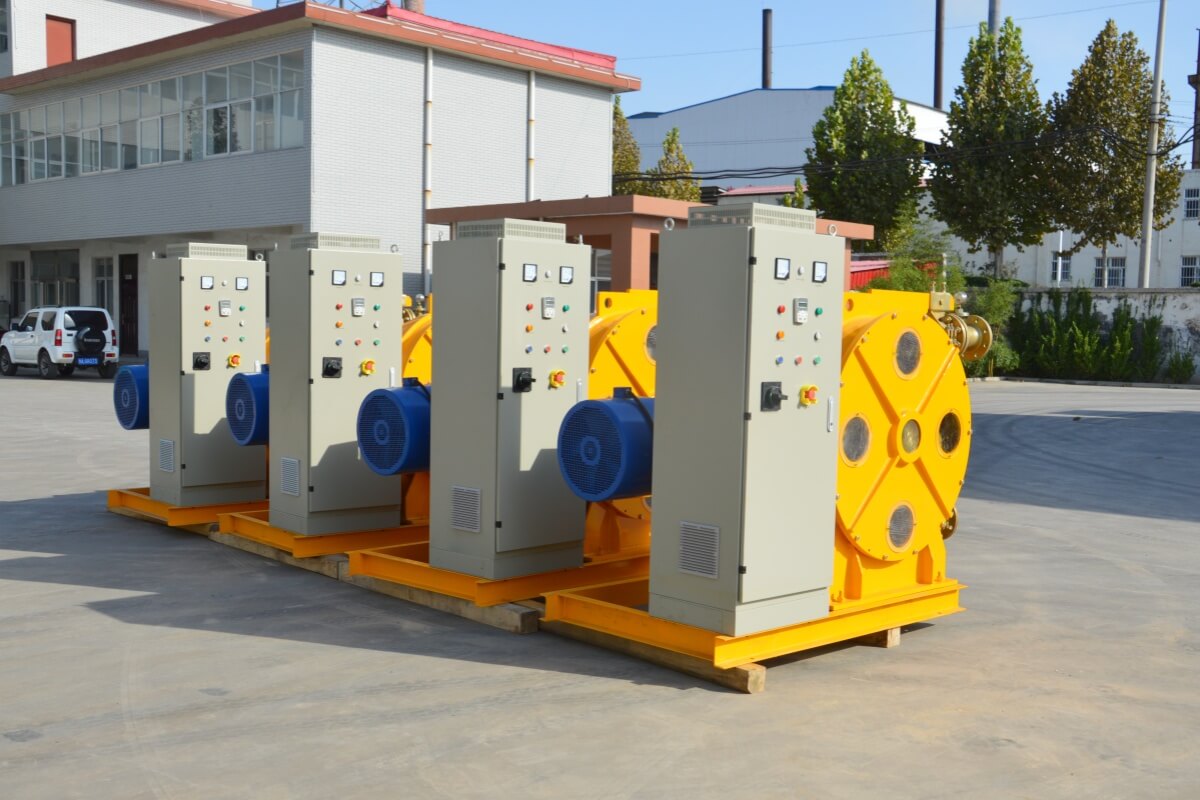

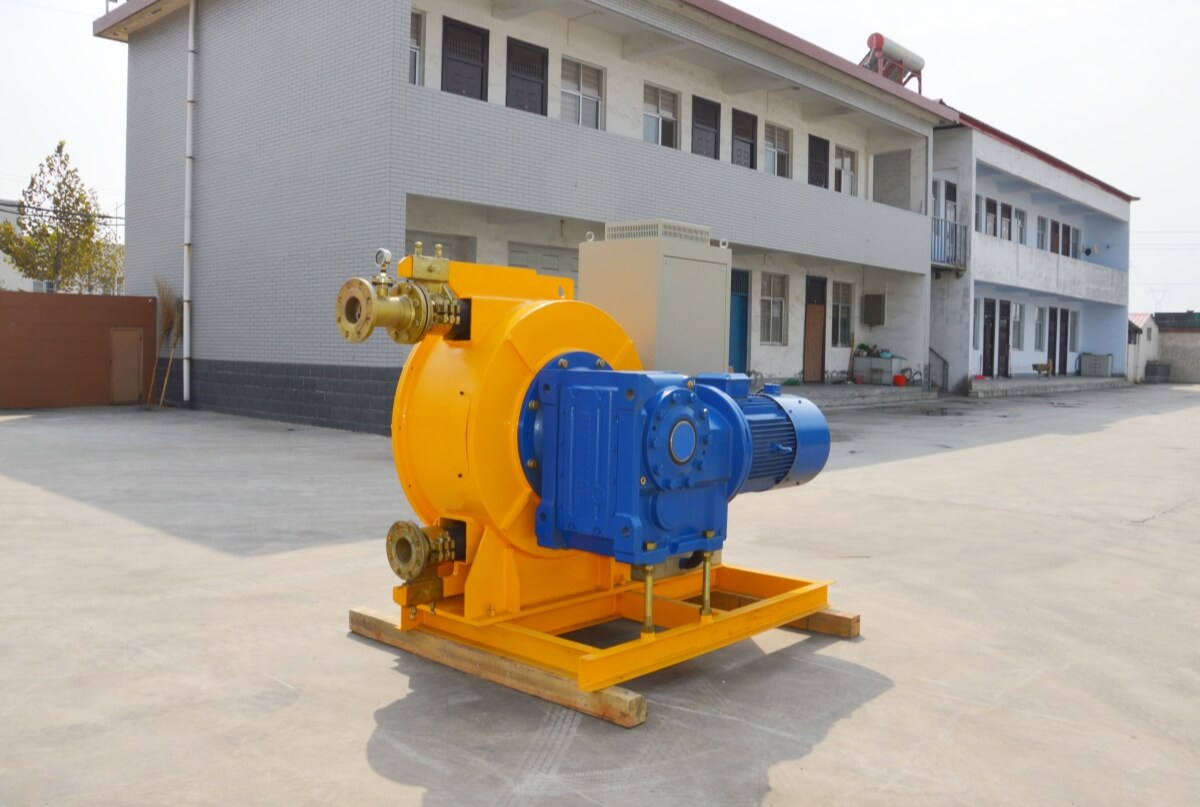

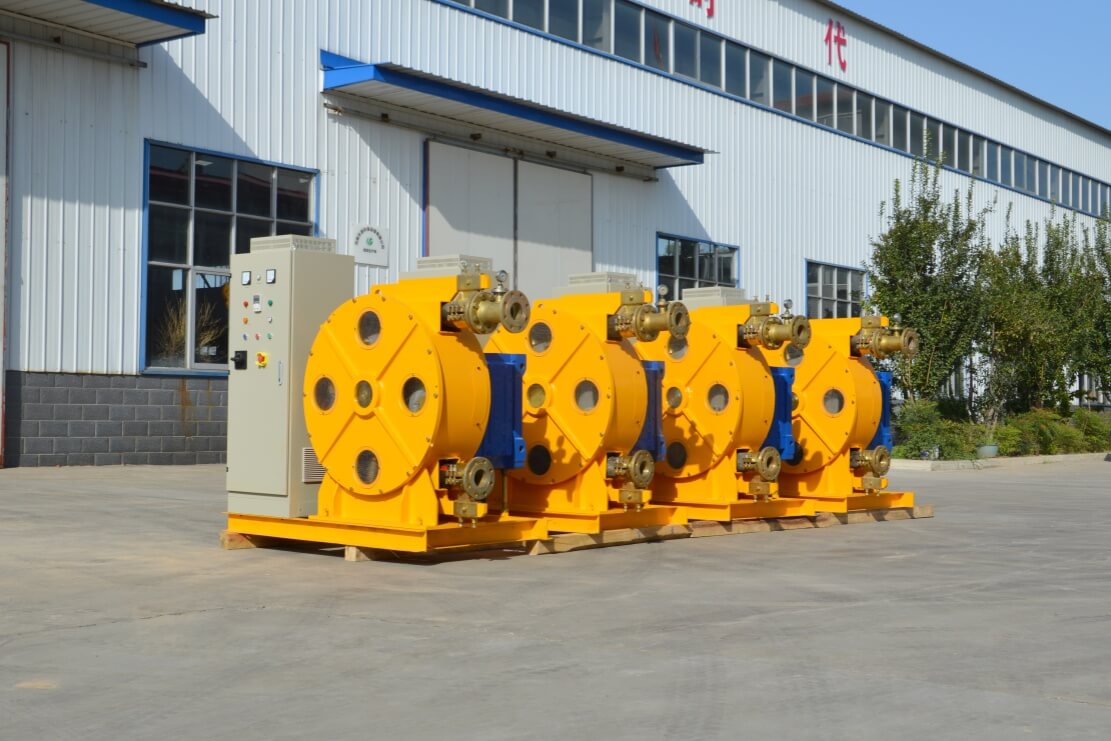

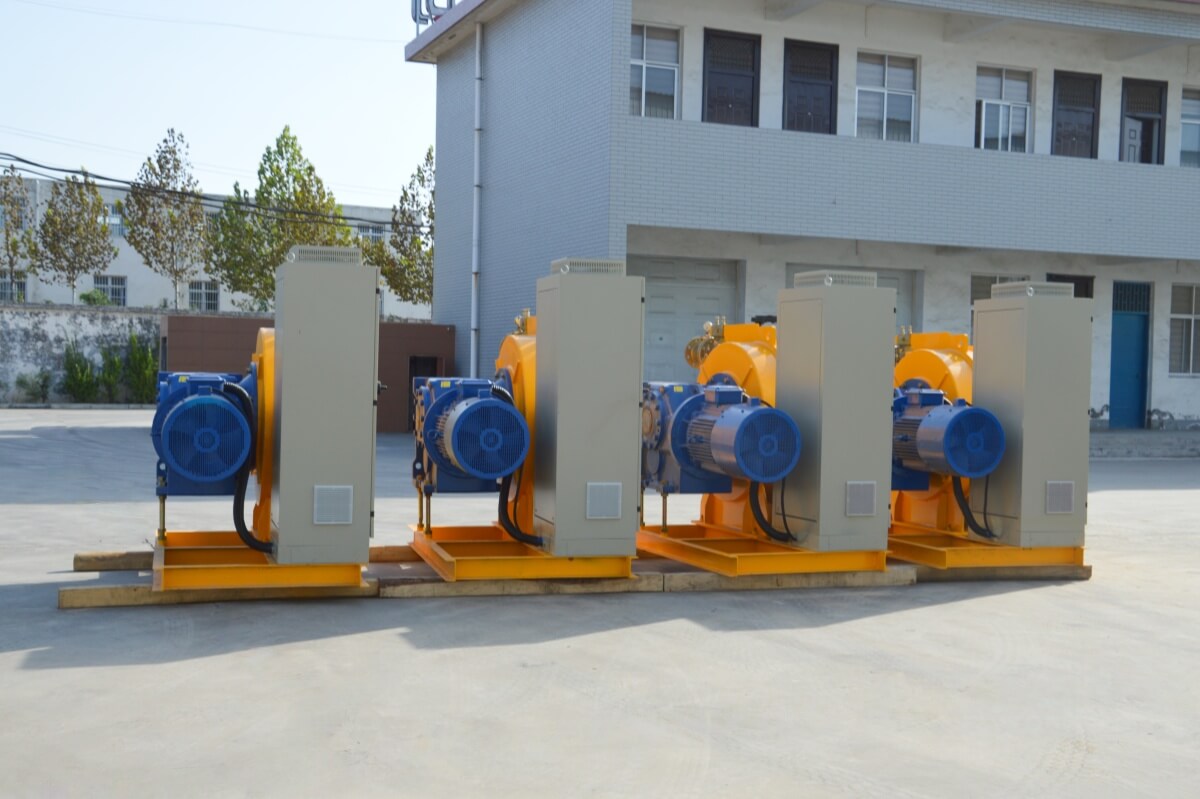

GH100-915B super high pressure hose pump adopts special process squeeze hose, working pressure could be up to 26bar.
GH100-915B high pressure hose pump is used for construction, pharmacy, textile mill, dye making, water treatment, paper making, mining, ceramic, brewery and beverage, underground engineering, etc. It’s perfect to pump corrosive, abrasives, shear sensitive fluids, high viscosity fluids, high density fluids, large solids, metering(±1%), high pressure(3Mpa).

★Easy maintenance, low-cost, short down time.

Output	32m3/h
Max. Pressure	25bar
Squeeze Hose ID	100mm
Revolution Speed	32rpm
Max. Aggregate Size	20mm
Max. Suction Lift	5m
Motor Power	45Kw
Weight	1750kg
