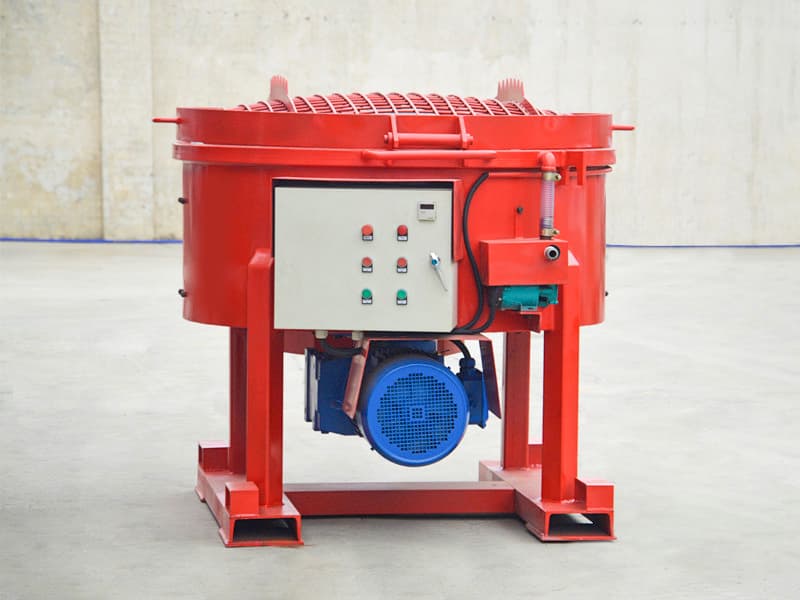

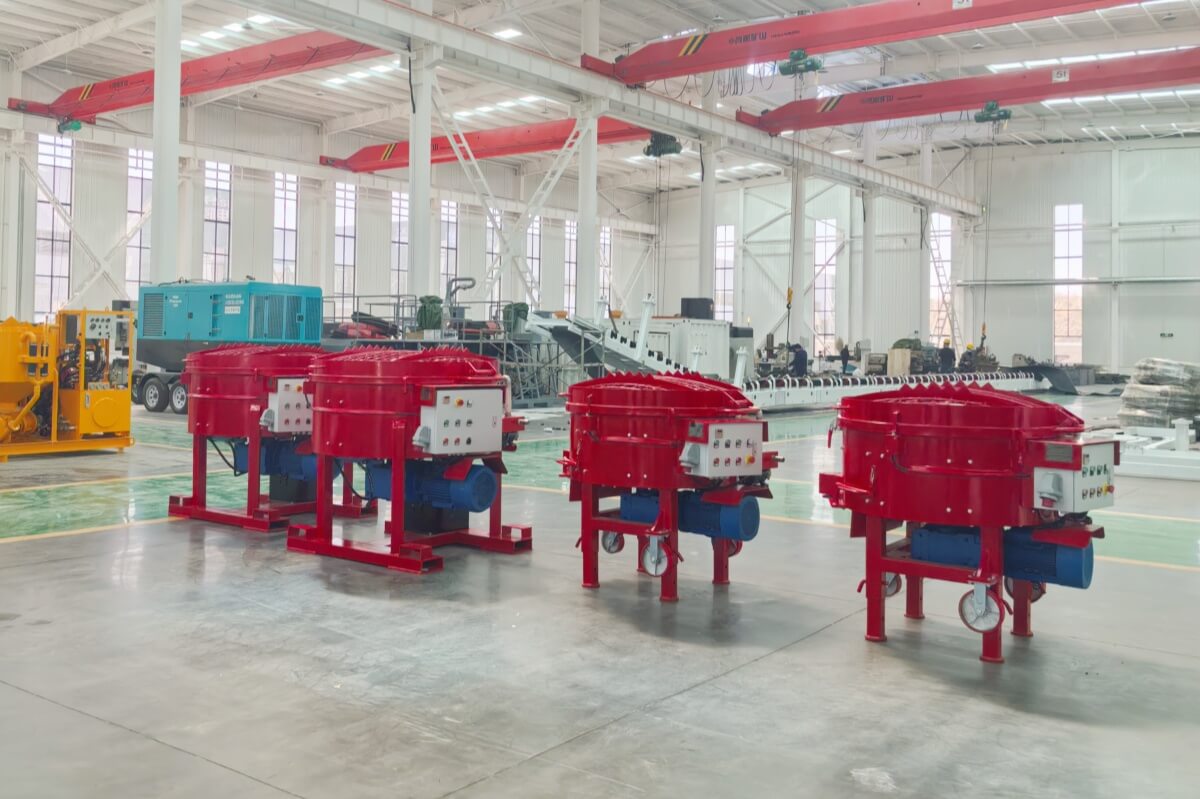

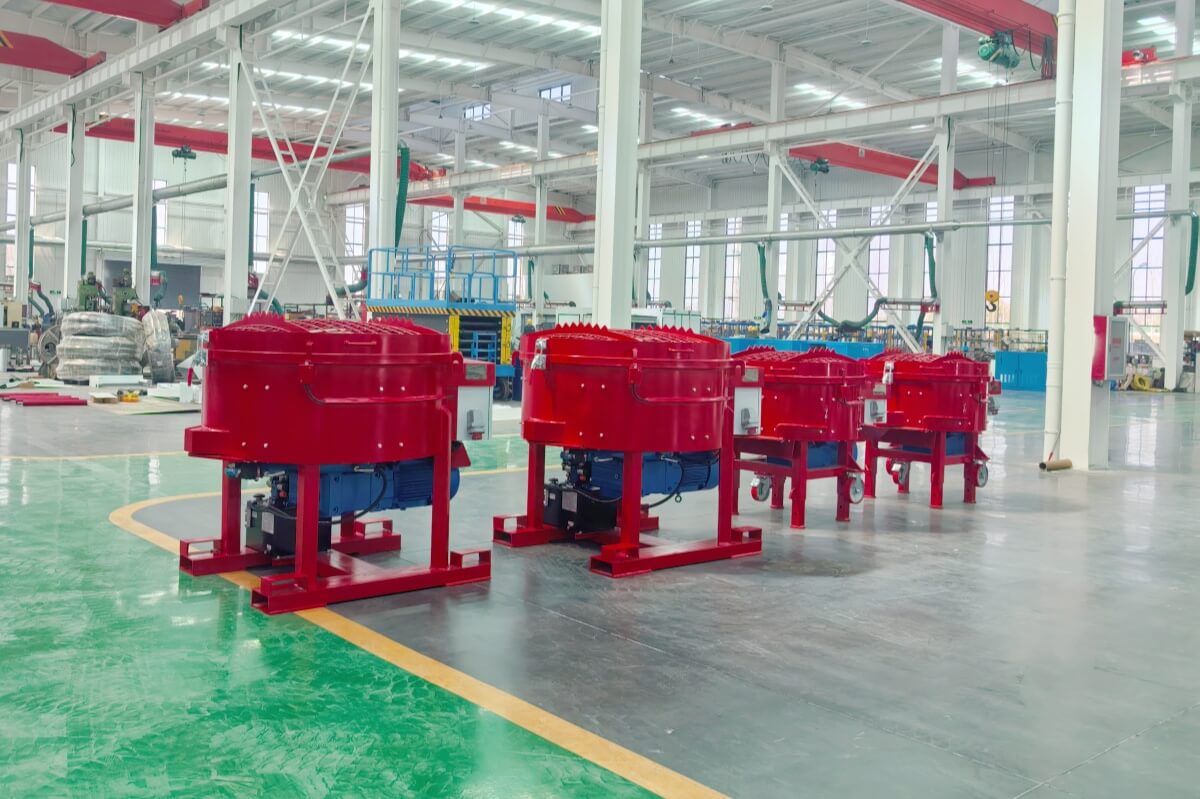

GRM refractory pan mixer is used to mix raw materials. Material obtained in the pan blenasonable, beautiful appearance, easy operation and made full mixing, thereby enhancing the mixing uniformity. Using novel rotor structure, so that the minimum gap between the rotor and the housing can be adjusted to be close to zero, effectively reducing the amount of residual material.

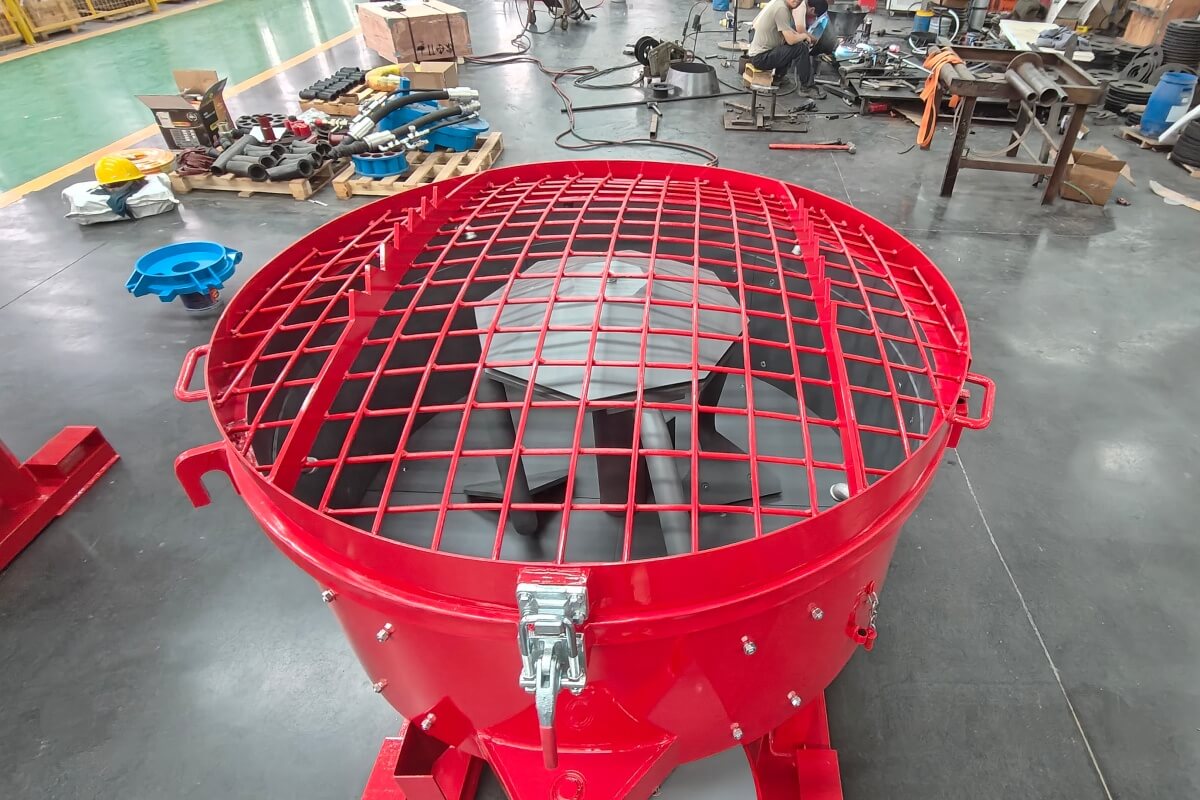

Pan plate lined with polypropylene or stainless steel, and therefore not easy to stick material, wear resistance, the use of cycloid motor with a compact, easy to operate, stir, convenient discharge conveyor and so on. The overall structure is more reintenance. GRM refractory pan mixer all the work body fixed on the rack. The machine frame is made of quality carbon steel plate, channel steel welded together. And adopted a rigorous product certification and specific technical requirements to achieve the purpose of use.

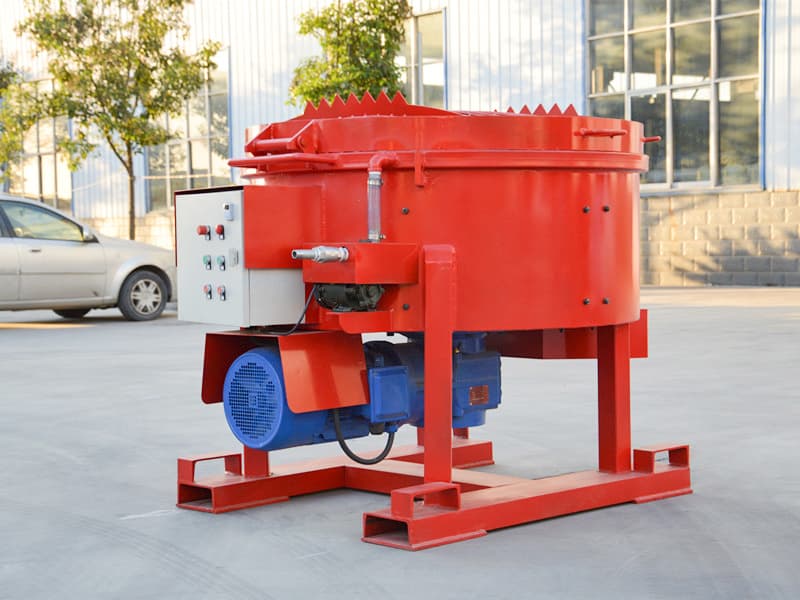

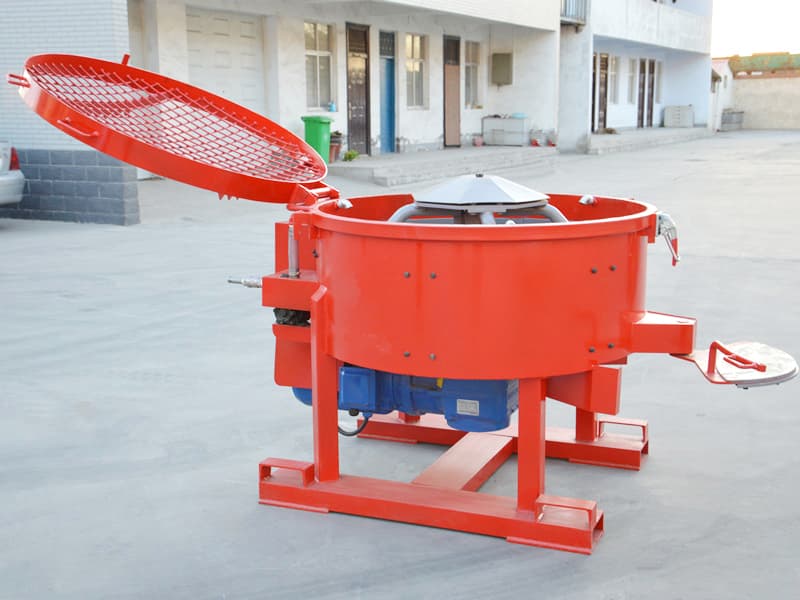

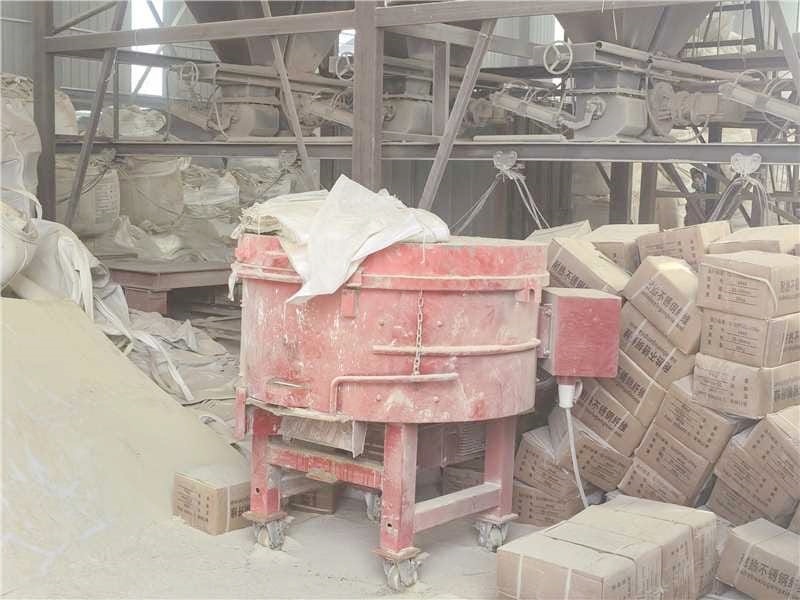

GRM 100kg 250kg 300kg 500kg refractory pan mixer is used for mixing refractory materials, friction materials, chemical materials, precast concrete, mortar, aggregate mixing and glass materials, etc.

1. Pan mixer;

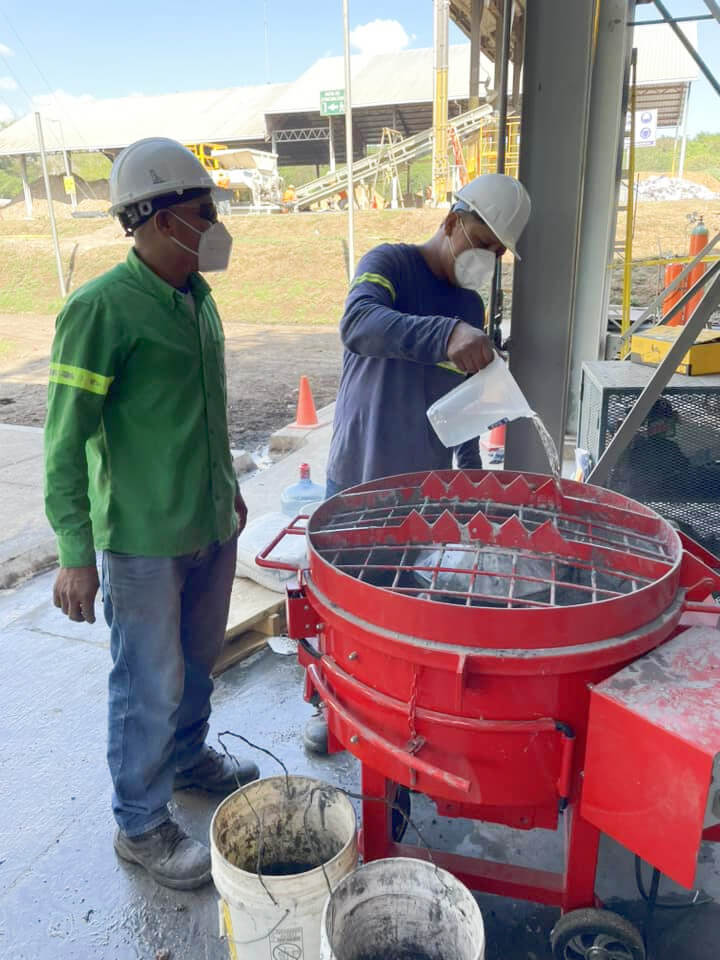

2. Special designed for site operation;
3. Fast mixing speed and homogenous;
4. Compact structure;
5. Comfortable feeding height;
6. Easy to move;
7. With bag breaker;
8. Water spray nozzles;
9. Low maintenance cost.

Item	GRM100	GRM250	GRM500	GRM800	GRM1000
Mixing capacity	100kg	250kg	500kg	800kg	1000kg
Rotating speed	33rpm	34rpm	36rpm	39rpm	39rpm
Motor Power	4kw	7.5kw	11kw	22Kw	37Kw
Feeding Height	1100mm	1200mm	1300mm	2500mm	2100mm
Dimensions (mm)	1400x1300x1100	1480x1380x1230	1700x1250x1350	2800x1880x2640mm	1600x1500x2140mm
Weight	550kg	650kg	1010kg	1350kg	1680Kg
Note: Technical data of GRM Refractory Pan Mixers may change due to technical progress, subject to modification without notice.
