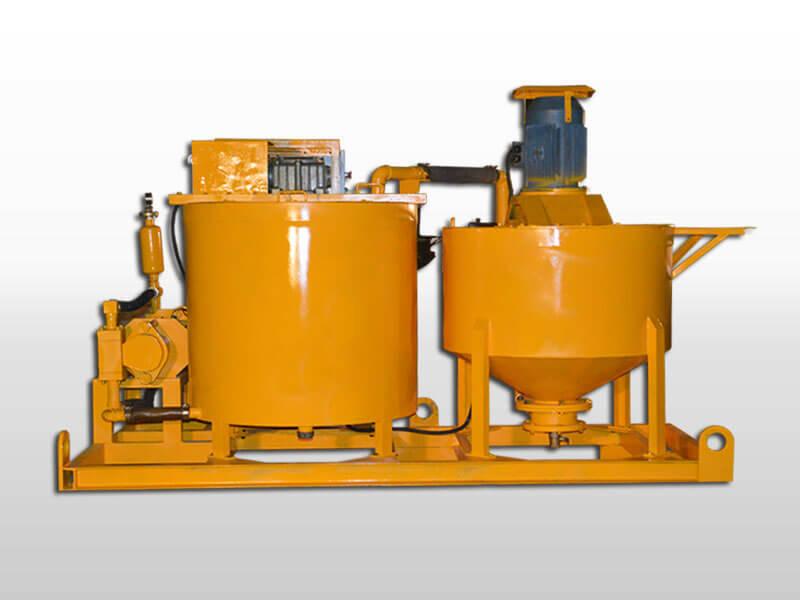

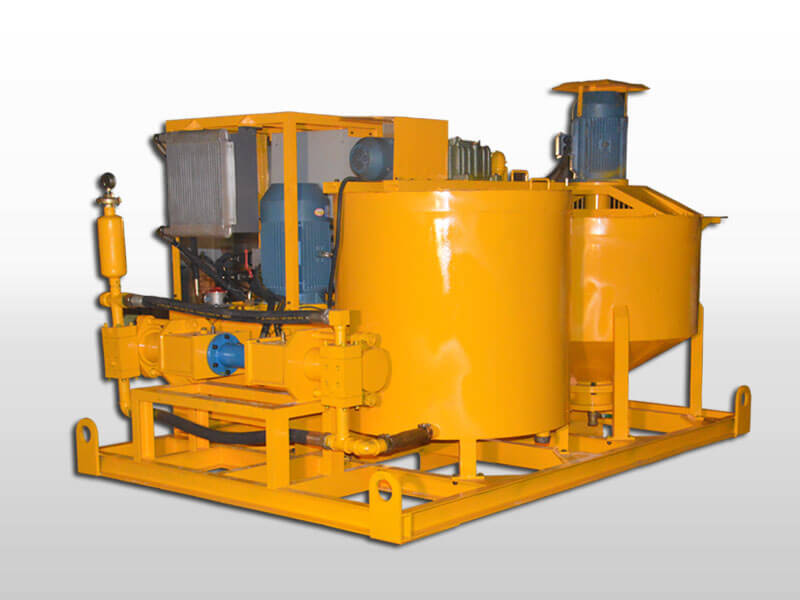

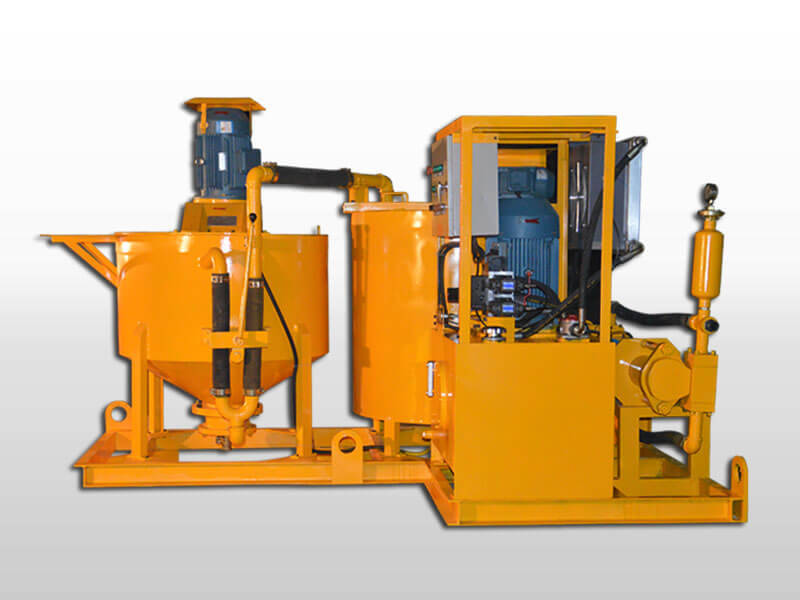

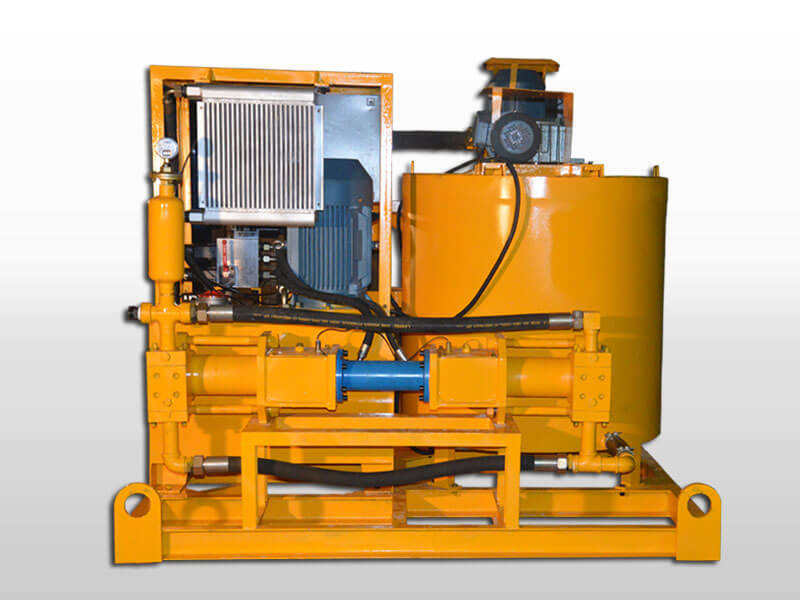

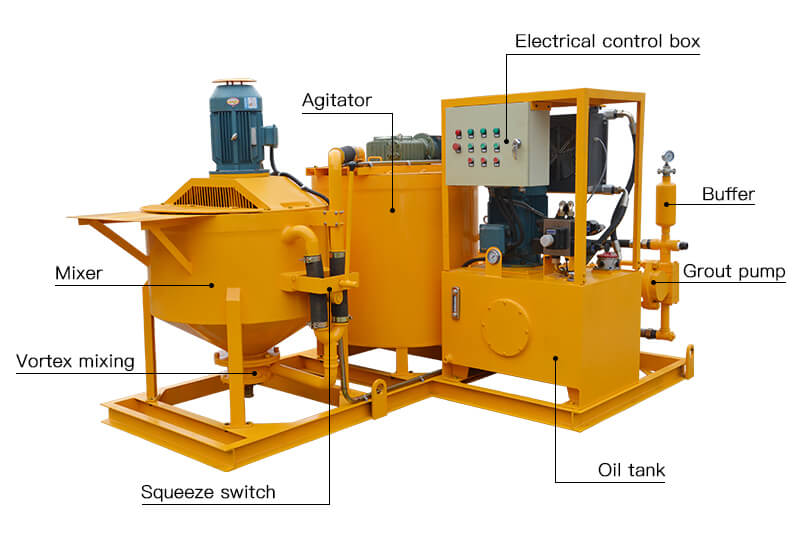

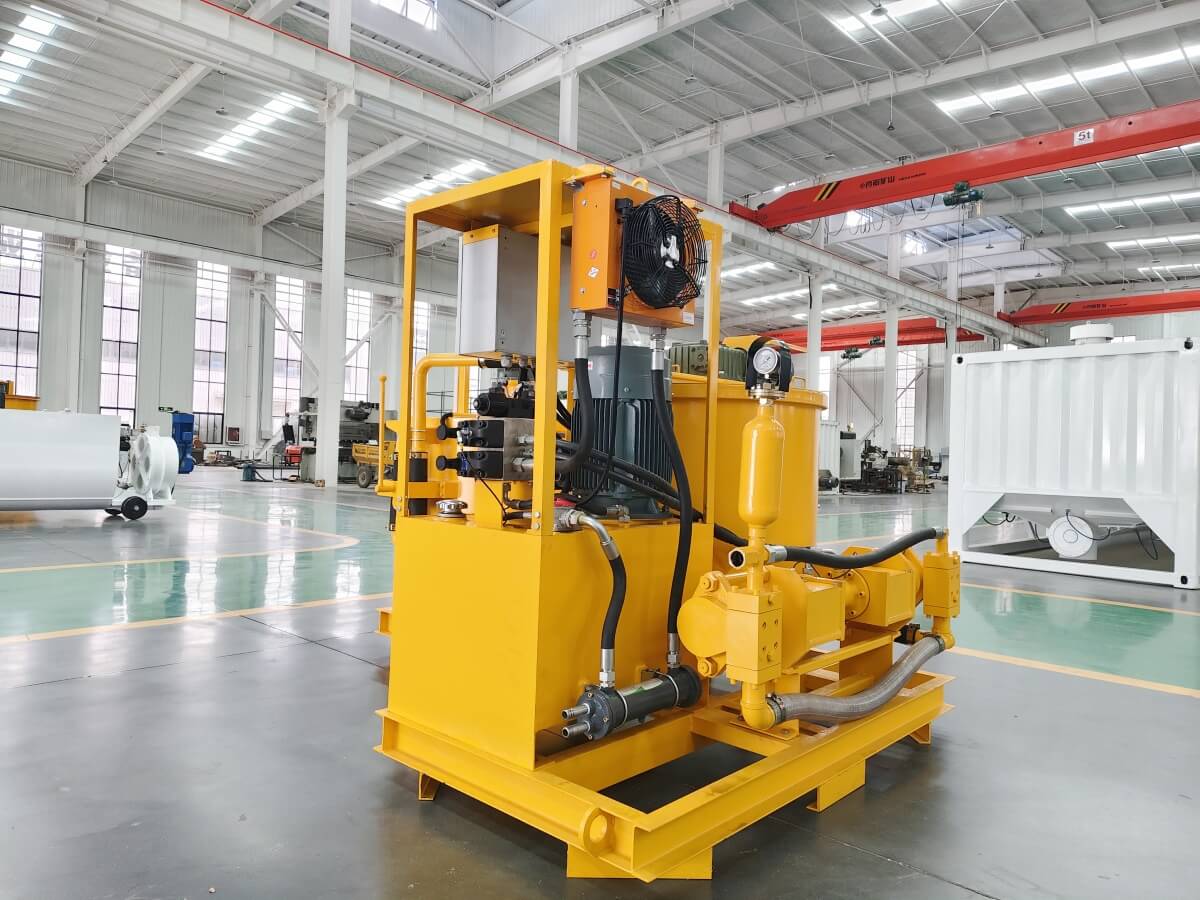

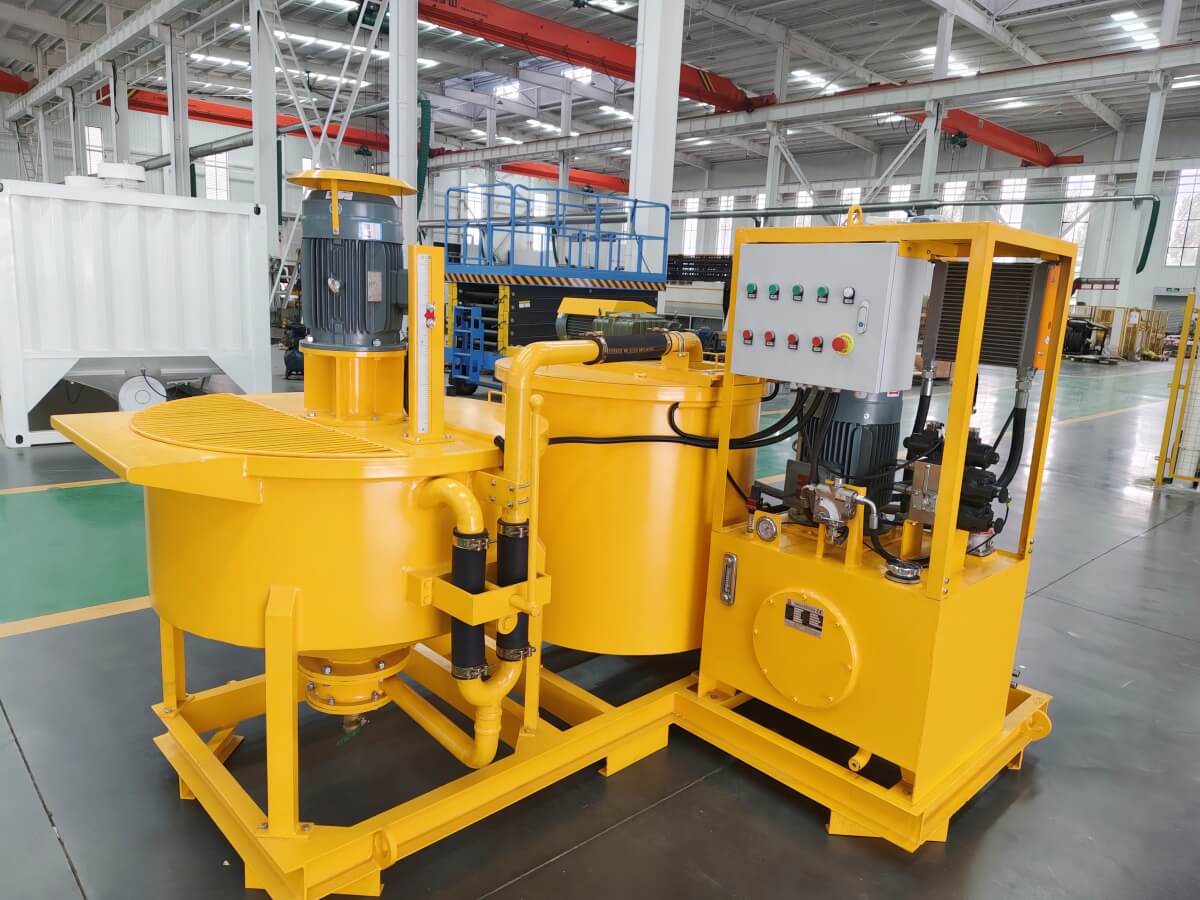

GGP500/700/100PI-E grout station is a combination of mixer, agitator and grout pump in one plant. It is mainly used in highway, railway, hydropower, construction, mining and other ground and underground construction. High speed vortex mixer ensures mix quickly and evenly. Water, cement and other media are quickly mixed into a homogeneous slurry. Then the mixed slurry was delivered to the agitator. Grout pump injects from the mixing drum (storage tank). This ensures a continuous mixing and grouting operations. The grouting pump is hydraulic drive. Grouting pressure and displacement is stepless adjustable. Compact size and it is easy to operate. It also takes up a small space.

1. Civil engineering - dam, tunnel, subway, mine, soil nailing wall, curtain, anchor, cable trench and anchor grouting;
2. Building structure - building and bridge repair, foundation reinforcement, slope support, soil compaction, terrg grouting;
3. Engineering - underwater foundation, offshore platform, coast foundation grouting reinforcement;
4. Mine application - roadway reinforcement, backfill, waterproof grouting.

1. Grouting pressure, displacement is stepless adjustable;
2. Simple structure, light weight, easy maintenance;
3. Double grouting cylinder, continuous output with small pulse;
4.  Less spare parts ensure low maintenance costs;
5. High speed vortex mixer ensures mix quickly and evenly;
6. Mixer and agitator switch by using squeeze handle, it is safe, reliable and easy to operate;
7. The motor has an overload protection function. Hydraulic system with oil temperature overheating protection;
8. With CE, ISO certification.

Type	GGP500/700/100PI-E
Dimensions	2700×1750×1650mm
Weight	1440kg
Mixer
Capacity	500L
Output	7m3/h
Power	7.5KW, 1450rpm, 50HZ, 380V
Rated Rev	1450rpm
W/C ratio	≥0.5:1
Agitator
Capacity	700L
Rated Rev.	36rpm
Power	1.5KW, 50HZ, 380V
Pump
Output	0-100L/min
Pressure	0-5MPa
Power	15KW, 50HZ, 380V
