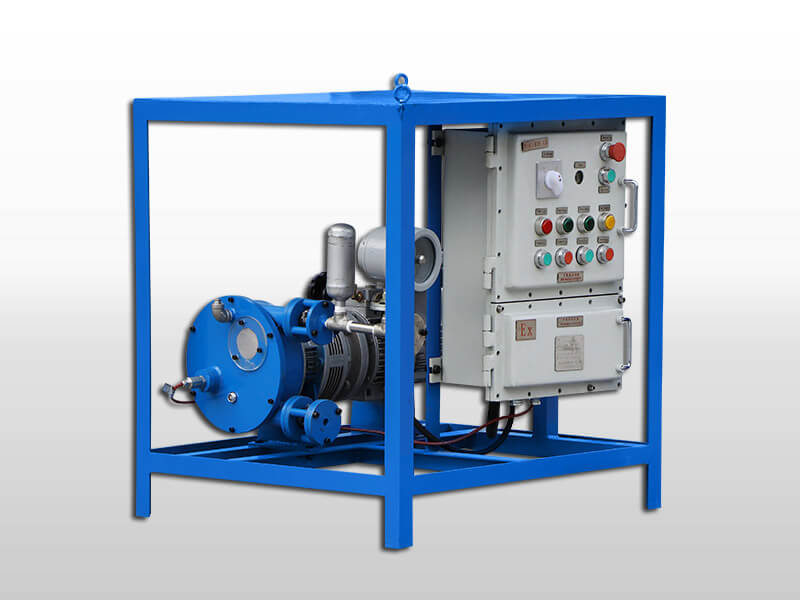

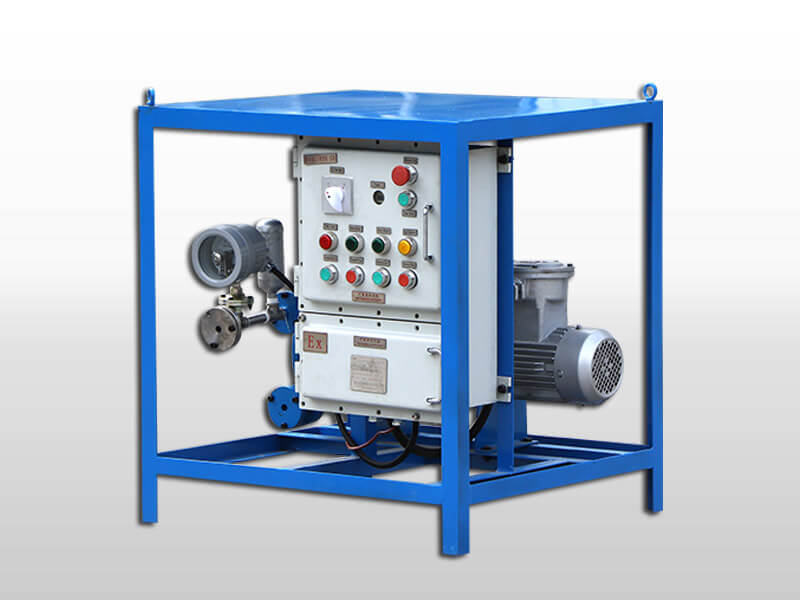

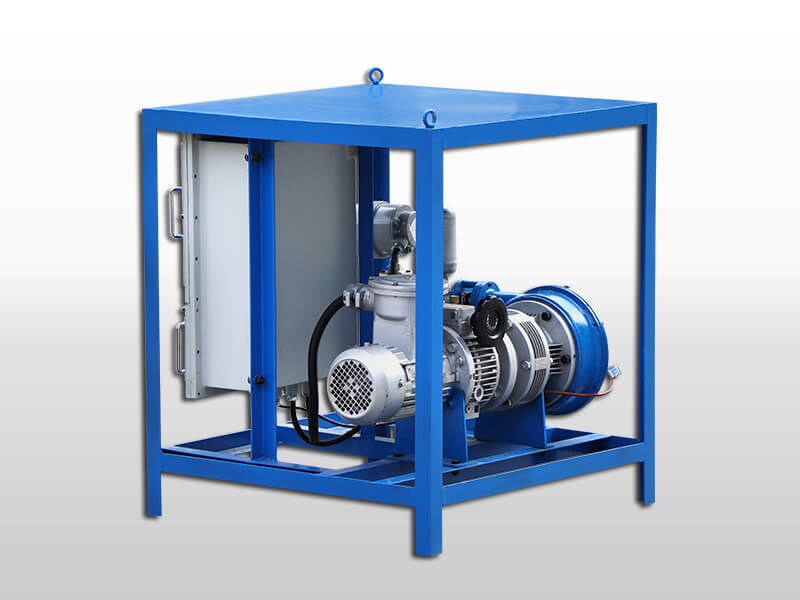

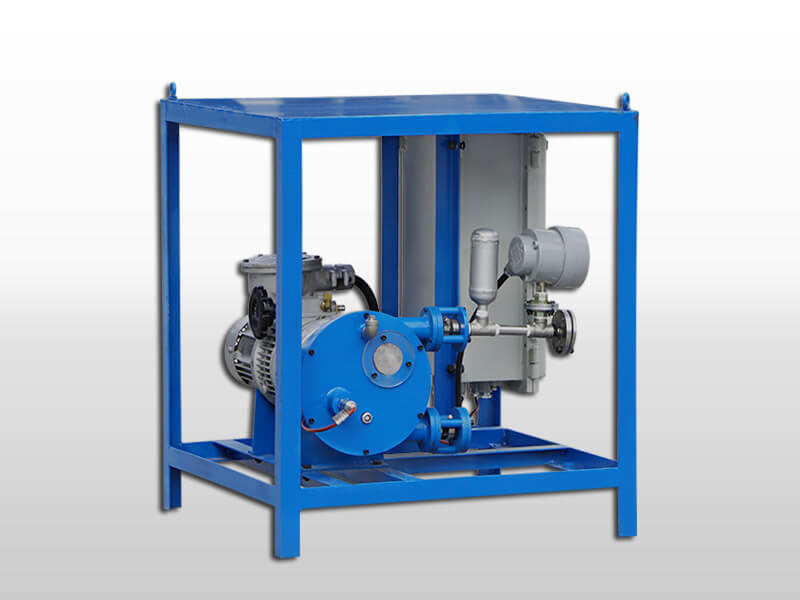

GH15-200 series dosing hose pump consists mainly of pump house, pressure shoes, driving plate, motors, variable speed gear box, reinforced hose etc. The squeeze hose is U-shaped in the pump house, by pressure shoe squeeze hose formed pressure to achieve slurry transport; Dosing pump has simple structure, easy to maintain, dry-run without damage, low speed, no noise. Flow rate of GH15-200 dosing hose pump can be adjusted by speed control handle, flow stability accuracy can up to ± 1%, it is especially suitable for viscous slurry dosing and pumping etc.

GH15-200 dosing hose pump details:

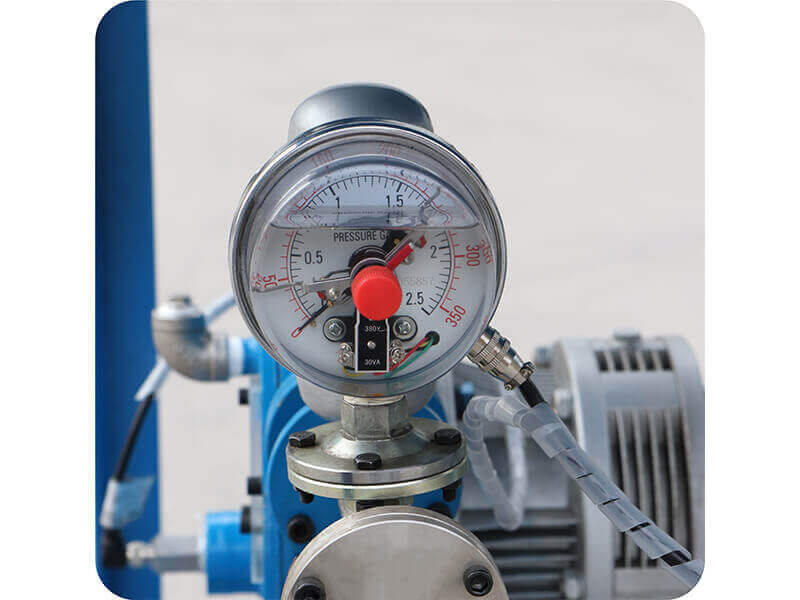

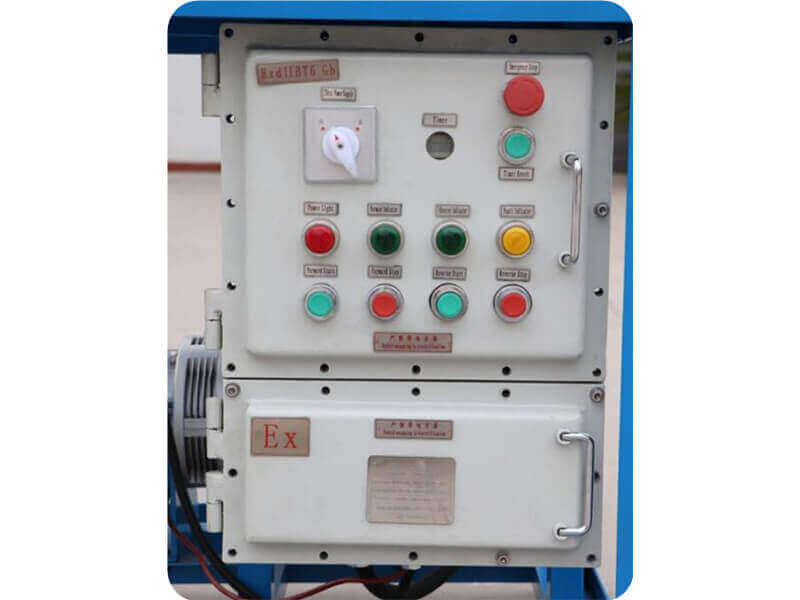

Electric contact pressure gauge	Explosion proof electric control box

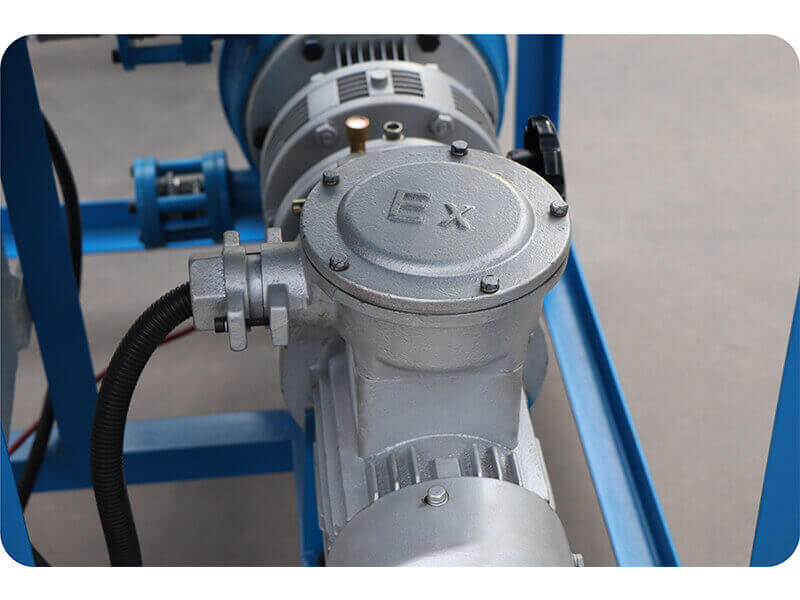

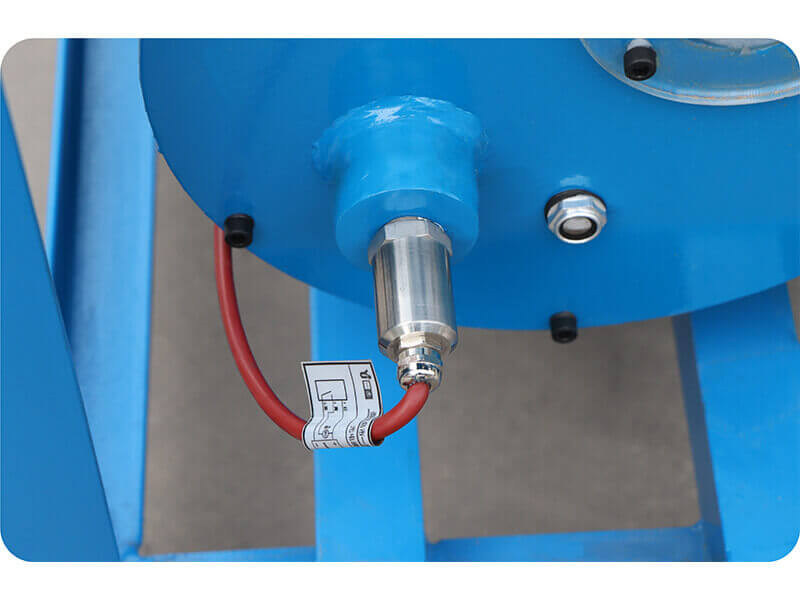

Explosion proof motor for option	Hose leak detection device

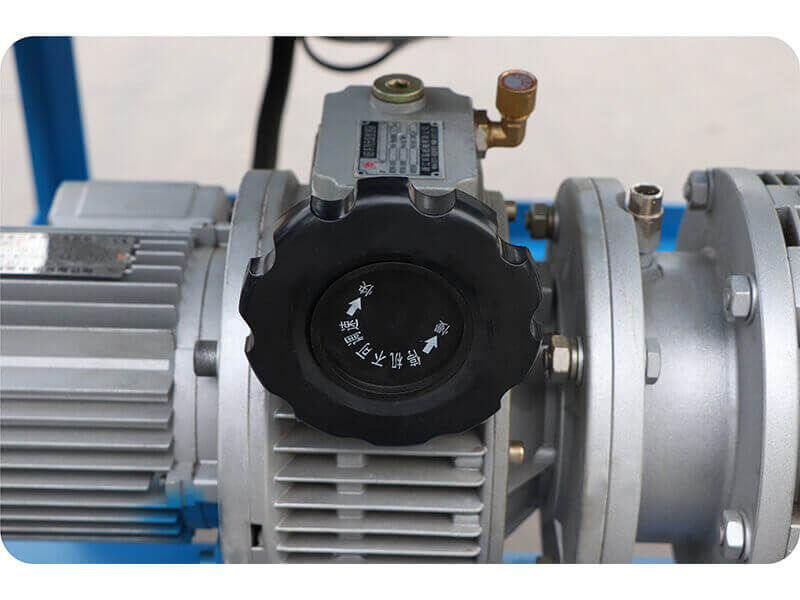

Pressure shoe structure	Speed control handle

GH15-200 series dosing hose pump application:
1. Dosing hose pump is suitable for water treatment: silt mud, lime etc.
2. Dosing pump used for paper industry: pulp, sulphur pulp conveying.
3. Ceramic industry, ceramic glaze slurry etc.
4. Construction industry: cement mortar conveying.
5. Petrochemical: drilling mud and previous delivery.
6. Food industry: oil material and beverage conveying.
7. Pharmaceutical industry: all kinds of material liquid drug delivery.
8. Chemical industry: acid, alkali, phosphate slurry and inorganic materials such as titanium dioxide.
9. Hose dosing pump is used for mining, metallurgical industry, gold mining, gold smelting of filling materials in the pulp in the process of the transportation.
10. Waste, electrolytic slag, slag metal liquid, paint, coatings, adhesives, glue, rubber latex, refractory fiber pulp and all other tightly seal requirements, more liquid viscosity, particle content delivery.

Product Feature of GH15-200 series dosing hose pump:
★ Hose leak detection, quickly detect hose failure.
★ Electric contact pressure gauge, ensure that hose pump could stop working automatically once the pressure is too high.
★ Speed control handle, adjusted stepless.

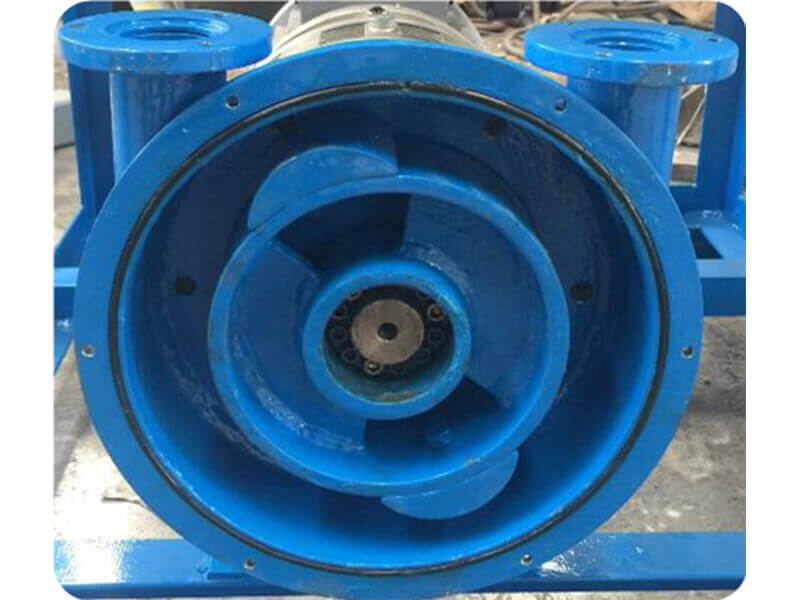

★ Pressure shoe structure, like Bredel hose pump.
★ Explosion proof motor and electric control box for option.

Product Specification:

Description	Item
Dosing Pump	GH15-200B	GH15-200B (EX)
Speed	60rpm	60rpm
Output	300L/h	300L/h
Pressure	15bar	15bar
Squeeze Hose ID	15mm	15mm
Power	0.75Kw	0.75Kw (explosion proof motor)
Overall Dimension	800×750×800mm	800×750×850mm
Weight	101kg	162kg
