GGH Series hydraulic drive grouting pump is a universal high-pressure grouting pump. This hydraulic grouting pump is used for grouting in soil nails, foundation stabilization, tunnel lining, dam foundation, cable and rock bolts, earth anchors, slope line grouting and void fillings etc. Our hydraulic drive pump is ideal for grouting-process in underground and civil applications.
Gaodetec Equipment is a professional manufacturer of grouting pump, our engeers have strong ability for designing and manufacturing the grouting pump acorrding your requirement, if you are interested in our high-pressure grouting pump, please tell us clear about your detailed requirments:
1. What is the project you want to use the grouting pump do?
2. What's pressure and flow of the pump you need?
3. What is water cement ratio, any sand in?
4. About the power: hydraulic, electric (voltage and frequency) or diesel or air motor? If electric motor, please let us know your local voltage.

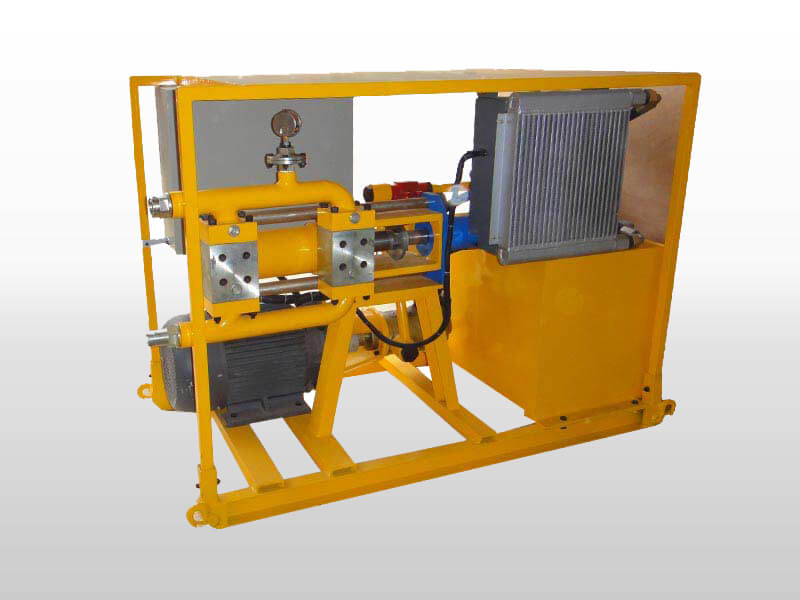

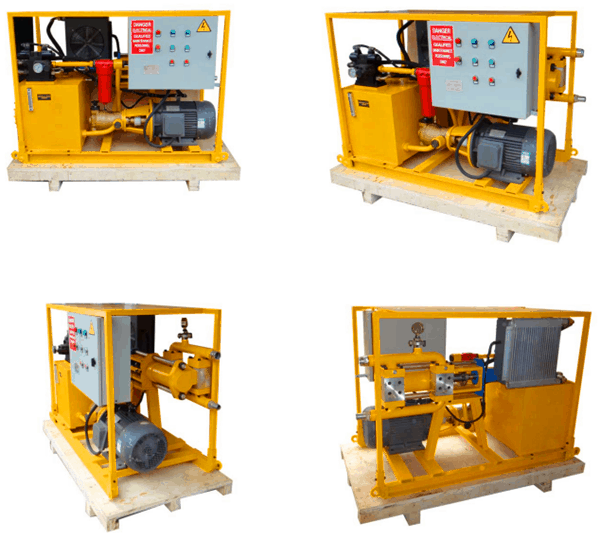

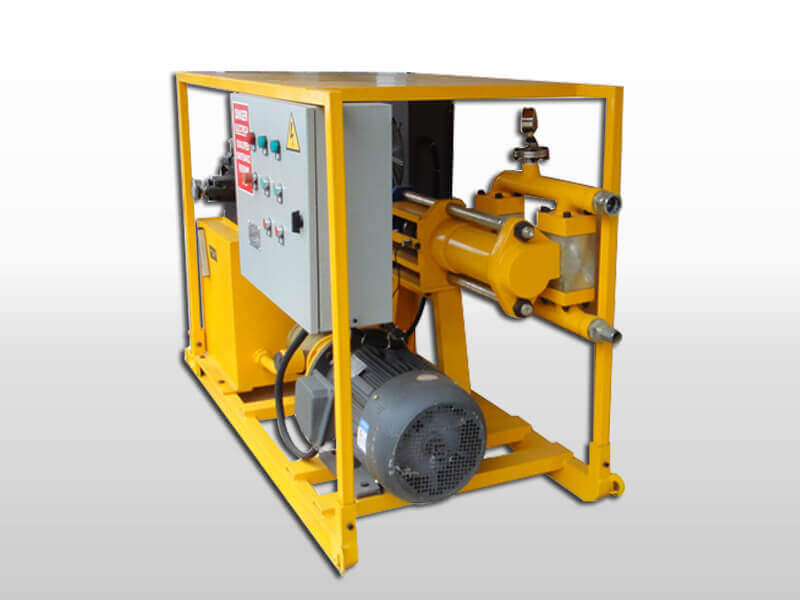

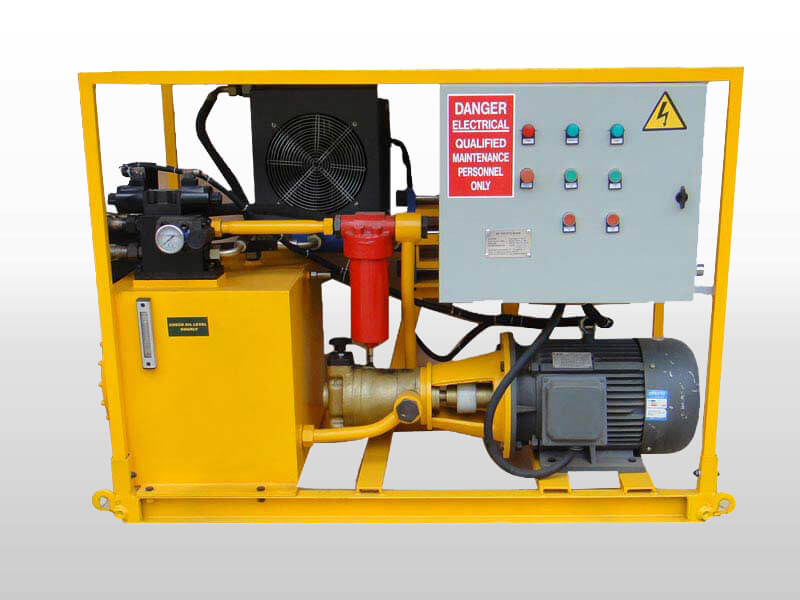

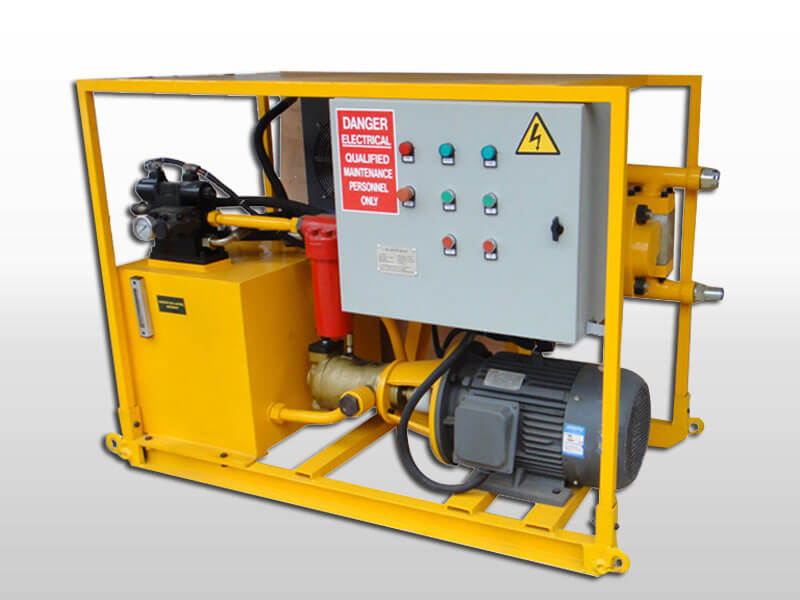

GGH Series hydraulic drive grouting pump details photos:

GGH Series high pressure grouting pump is used for grouting in soil, earth foundation stabilization, waterproofing, tunnel lining, underwater foundations, bridge decks, deep well casing, slope line grouting, etc. projects.

1. GGH Series hydraulic drive grouting pump has single piston with double-acting.
2. High-pressure grouting pump with hydraulic drive
3. Compact structure
4. Ball valve

Item	GGH70/100PI-E	GGH100/100PI-E
Rated Output	0-70 L/Min	0-100 L/Min
Rated Pressure	10MPa(1450PSI)	10MPa(1450PSI)
Cylinder Dia.	110mm	110mm
Stroke/Minute	31	45
Inlet Dia.	38mm	38mm
Outlet Dia.	32mm	32mm
Power Unit	7.5kW	11kW
Transmission	Hydraulic drive	Hydraulic drive
Chassis	Skid	Skid
Weight	450Kg	580Kg
Overall Dimension	1505x770x1110mm	1505x770x1110mm
Note: Single or Double Passageway are optional; Chassis: Skid or Tyre
