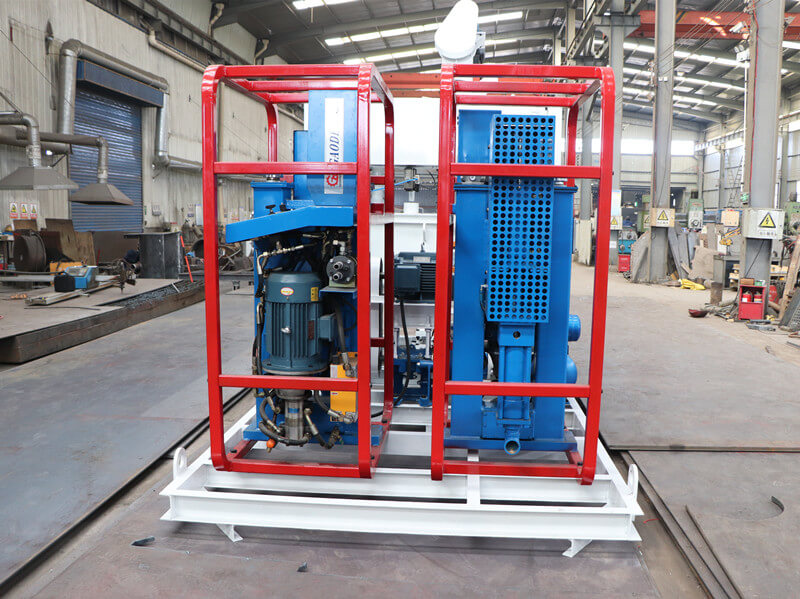

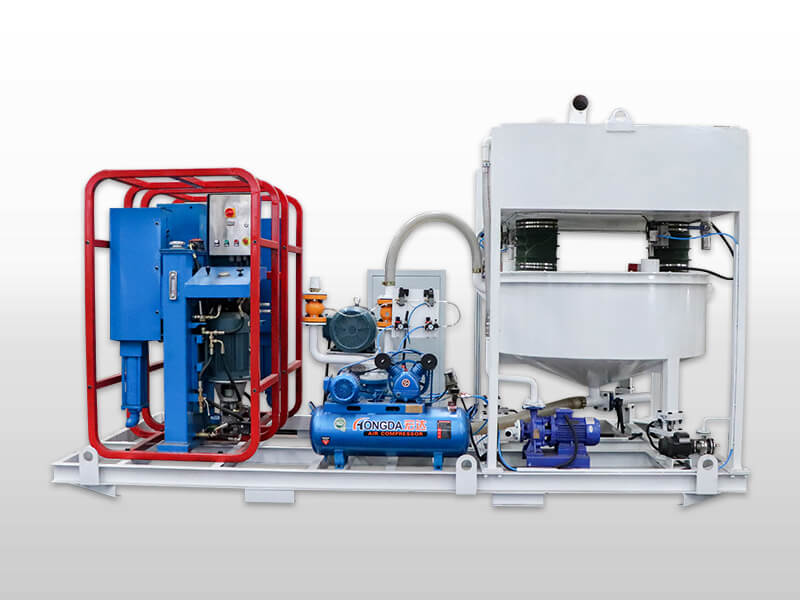

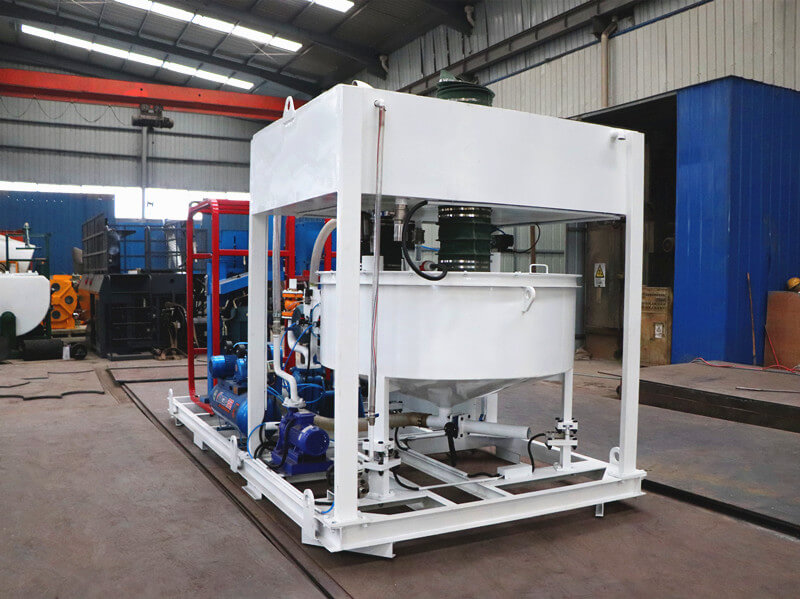

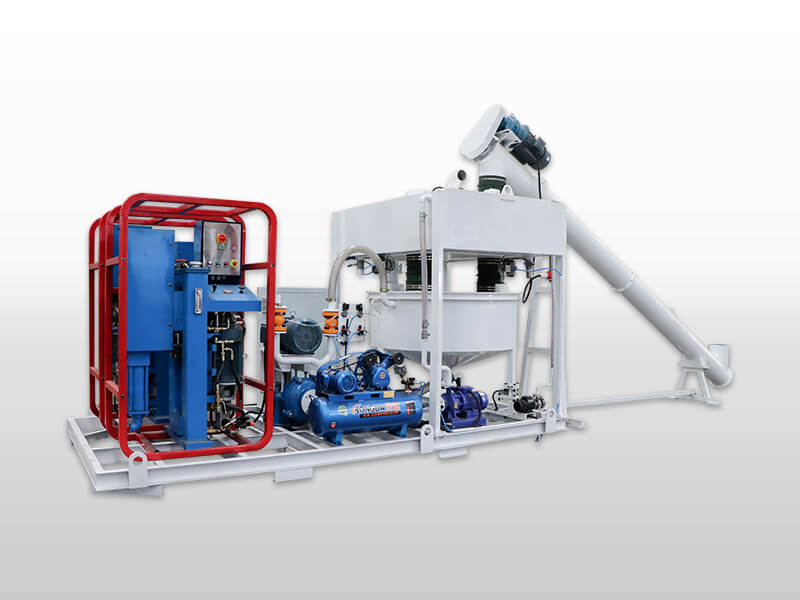

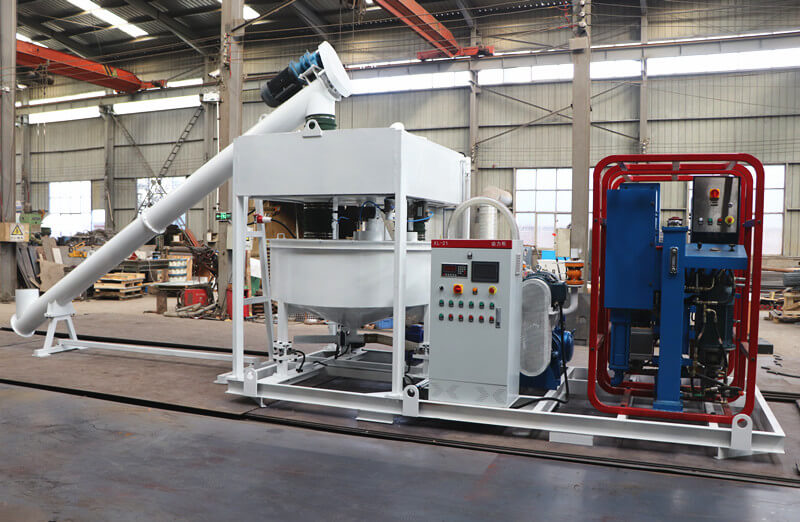

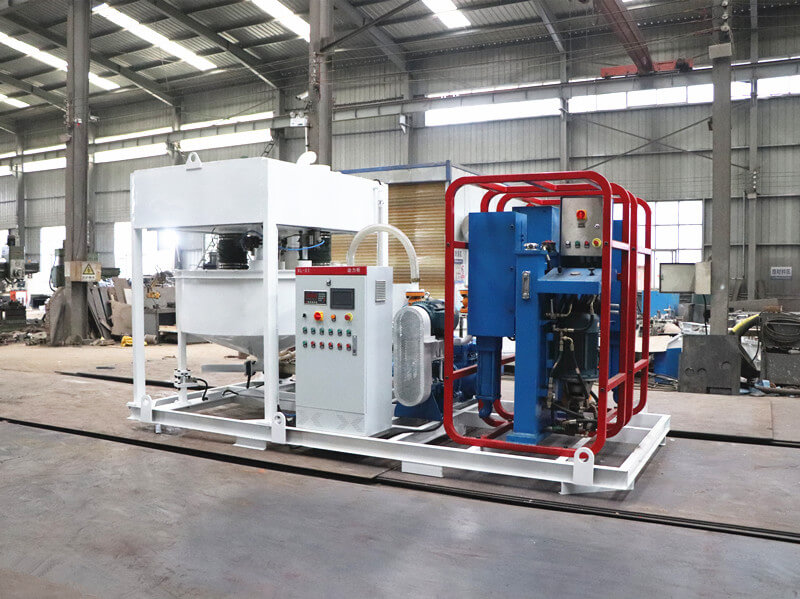

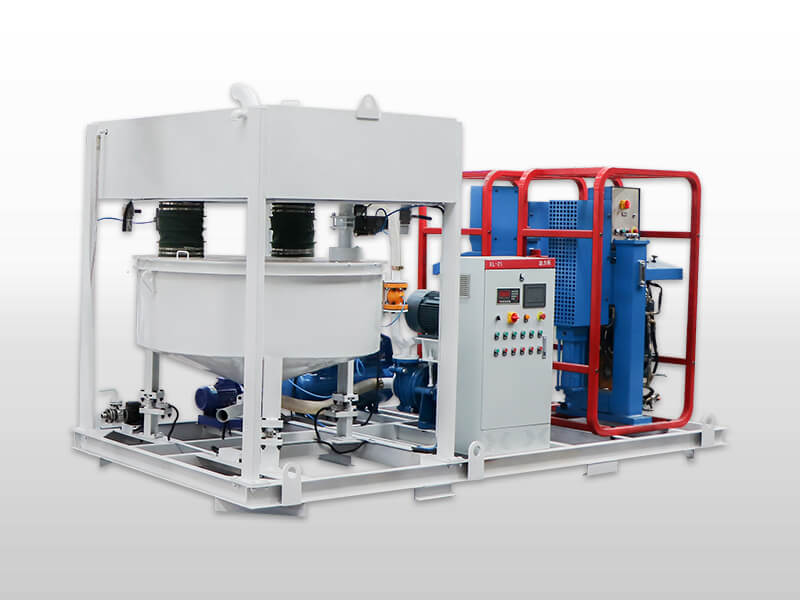

GGP1000/2X75/100PI-E automatic grouting station is a combination of mixer, circulating pump and grouting pump. It is mainly used for making cement slurry, etc., which is applied to surface/underground construction, such as highway, railway, hydropower, construction, mining, etc.

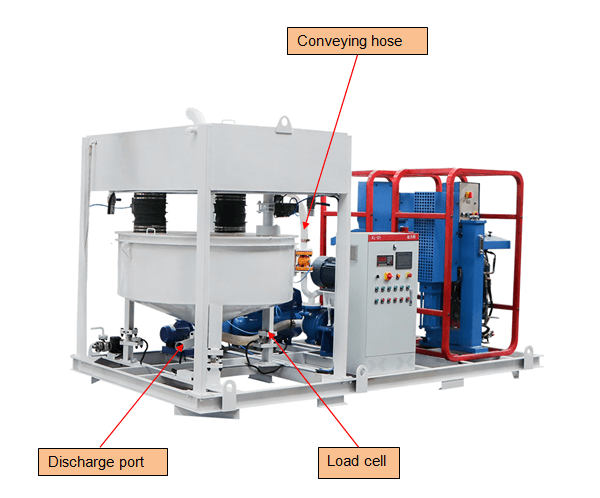

High speed eddy current mixer ensures fast and even mixing. Water, cement is quickly mixed into a uniform slurry. The grout is then transferred to the grouting pump, which ensures continuous mixing and grout operations. The automatic grout mixing station is integrated with the load cell, PLC, can freely adjust the proportion of water, cement, additives, can be set according to the formula of automatic configuration of materials, greatly improve the work efficiency.

GGP1000/2X75/100PI-E Automatic Grout Station is mainly used to be made and grouted the cement slurry in the highway, railway, hydropower, construction, mining and other ground and underground construction applications.

Features of GGP1000/2X75/100PI-E Automatic grouting mixing station:

Name		Data
Type		GGP1000/2X75/100PI-E Automatic Grouting station
Max. Mixing Capacity		10m3/h
Grouting Pump		2X75L/min@5MPa
Mixer	Capacity	1000L
	W/C ratio	0.5~1
Circulating Pump	Power	15KW
	Rate Rev.	1800r/min
	Flow	1100L/min

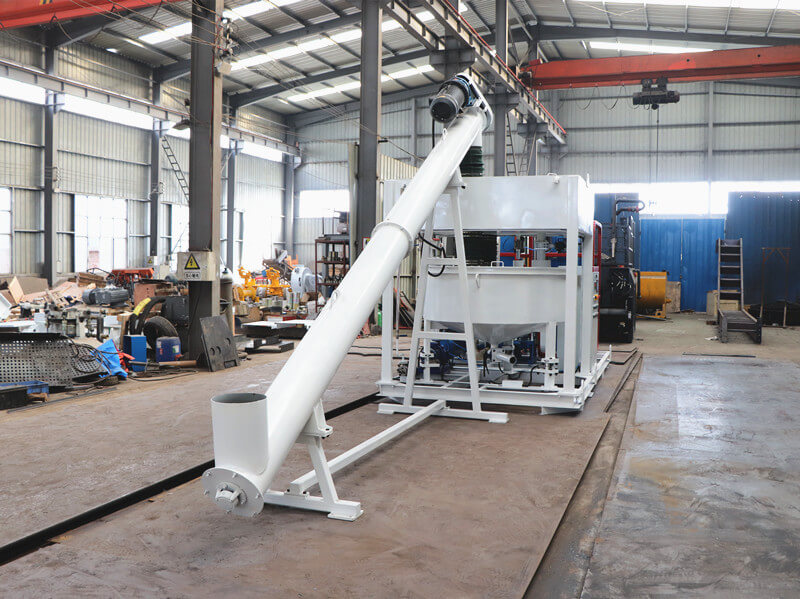

Screw feeder	Power	7.5KW
	Delivery volume	50t/h

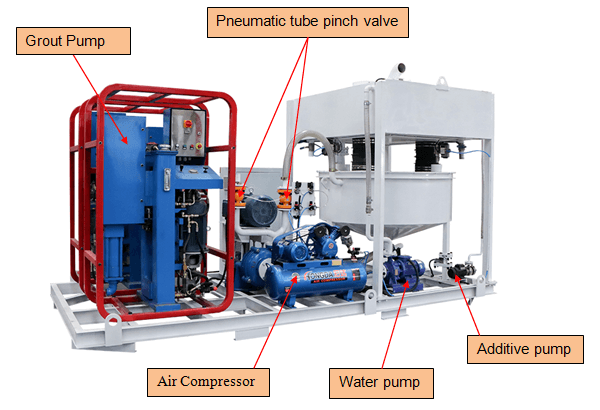

Water pump	Mode	ISW50-160(2.2KW)
	Flow@head	8.3m3/h@30.2m
Additive pump	Mode	ISW50-125(0.25KW)
	Flow@head	2m3/h@10m
Air compressor	Mode	VA80-3KW
	Exhaust volume	0.3m3/min
Power requirements		Voltage 3 Phase 380V,50Hz
Dimension		3600×2060×2520mm
		(Screw feeder is not included)
Weight		2820Kg
Note: We can customize automatic compact grouting station according to your requirements

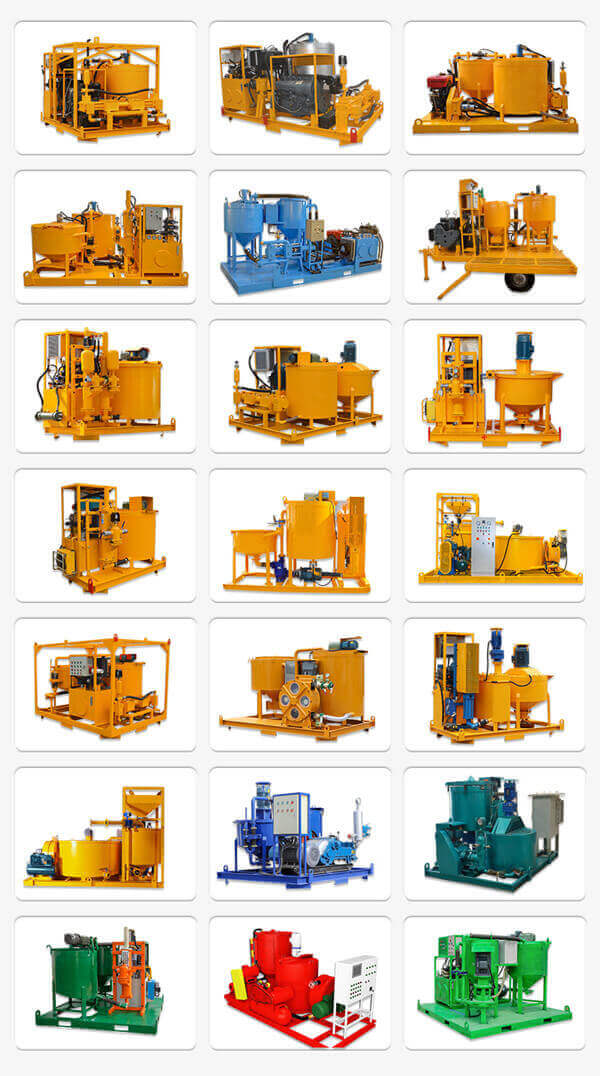

More types of compact grouting pump stations:
