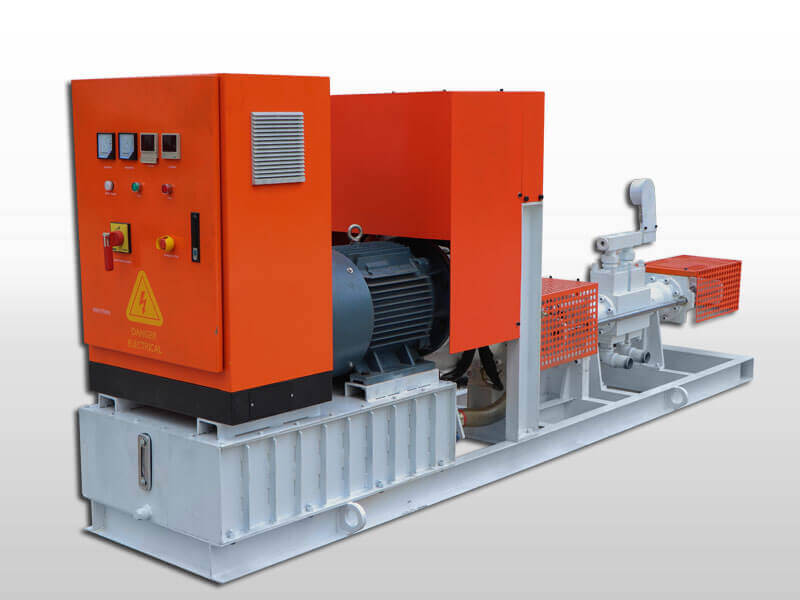

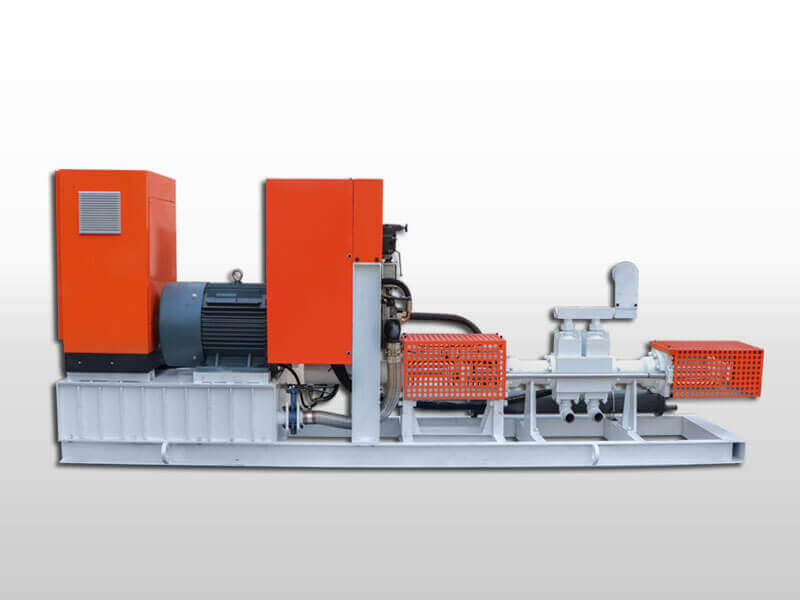

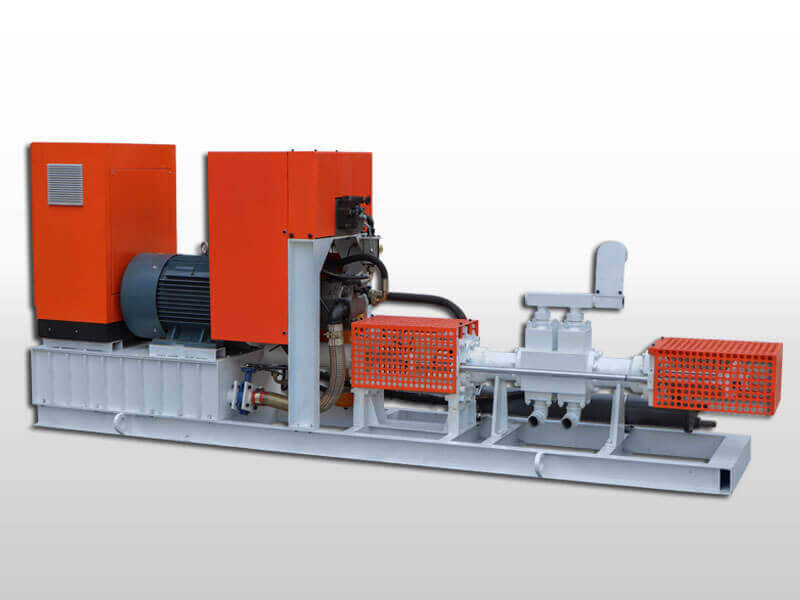

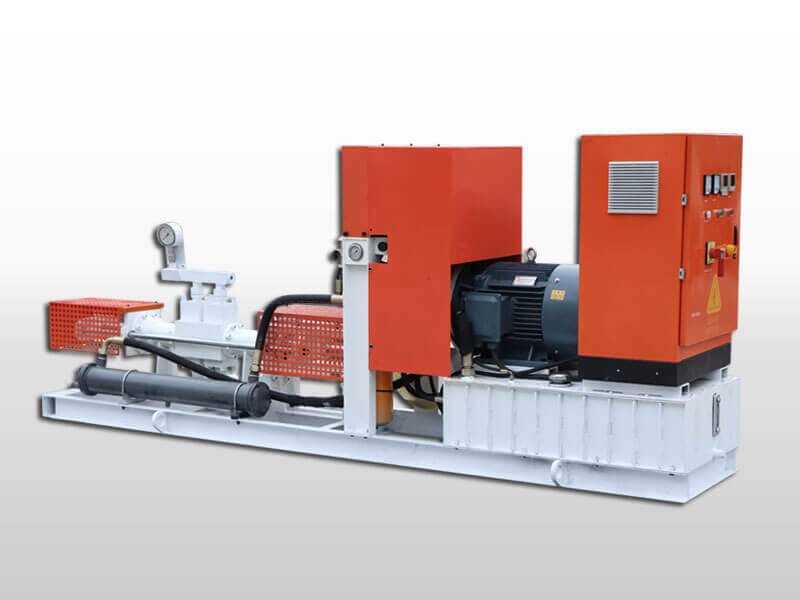

GGH95/165PL-E High Pressure Grout Pump is a horizontal hydraulic pump used for pumping fluid mixtures, such as cement slurry or bentonite slurry, etc. For injecting in the sub-soil for soil consolidation, piling or even for long transport of material. The equipment adopts two pieces of high pressure plungers to stabilize the consistency of the grouting flow. Grouting pressure and displacement is step-less adjustable. Compact size and it is easy to operate. It also takes up a small space.

GGH95/165PL-E Pressure Grout Pump is used for injecting in the sub-soil for soil consolidation, piling or even for long transport of material. The electric high pressure grout pump adopts two pieces of High Pressure Plungers to stabilize the consistency of the grouting flow. Grouting pressure and displacement is step-less adjustable.

1. Grouting pressure, displacement is step-less adjustable;
2. Simple structure, light weight, easy maintenance;
3. Double grouting plungers, continuous output flow with less pulse;
4. Less spare parts ensure low maintenance costs;
5. With the function of record and display grouting pump reciprocating times by a counter;
6. The motor has an overload protection function. Hydraulic system with oil temperature overheating protection;
7. Electric motor and hydraulic driven. Anytime, overpressure occurred, the hydraulic safety protection will be worked.

Description	Data
Type	GGH95/165PL-E High Pressure Grout Pump
Plunger diameter	85mm
Plunger stroke	300mm
Adjustable pressure	0-16.5Mpa
Adjustable flow rate	0-95L/min
Discharge pipe size	G1 1/4＂
Inlet pipe size	G2＂
Oil tank	200L
Power Unit	37Kw, 3-400V, 50Hz
Max. grain size	2mm
Working pressure	16.5Mpa
Weight	1400kg
Overall dimensions	3760x1480x750mm
We also could according to your demands to customize.
