GM2000 15-20m3/h CLC foam concrete mixer, production capacity of this foam concrete mixer is 15-20m3/h, output volume is 1500L, the GM2000 foam concrete mixer specially designed for the foam concrete mixer is an advanced lightweight insulation material. And the material has many closed holes. With the help of the foaming system of the foaming machine, the foaming agent can foam fully and mechanically. Then mix the foam and the mud evenly. Next, the mixture will be drawn from the pumping system, cast in place or molded. After natural conservation, foam concrete is formed. Professional foam machine manufacturer Gaodetec can provide you with high-quality foam mixers.

Of course, foam concrete has the advantages of light weight and environmental protection, and is widely used in the field of construction. At the same time, foam concrete has high fire resistance, high insulation, low density and high strength and water resistance characteristics. In addition, foaming concrete has a long service life and is easy to maintain. However, it can only be made with a concrete foaming machine.

Foam concrete mixer, also known as concrete foaming machine or foam mixer, is a new advanced concrete mixer designed specifically for foam concrete. The design of the concrete foam also has the advantages of high stirring quality, stable performance, low energy consumption, good sealing, short discharge time. As a professional foam mixer manufacturer, Gaodetec is absolutely available to provide you with high-quality foam mixers.

On the basis of taking advance of the principle of the structure from advanced facility abroad and seek the user's advice widely. According to China's actual situation, rely on our rich experience in design and manufacturing the hydraulic equipment, we take the innovation and have a distinct personality characteristics as well as completely independent intellectual property rights.

The use of double cylinder hydraulic pump water bodies push mud, exports of high pressure, can meet the needs of high-rise ratio of the various ingredients used in automatic control, The density foam cement adjust easily selected using the homemade quality matching components, reliable guaranteed after-sales service can use the high-quality home-foaming agent, lower construction cost with running. Round and Universal Wheels, Mobile and place convenient and flexible.

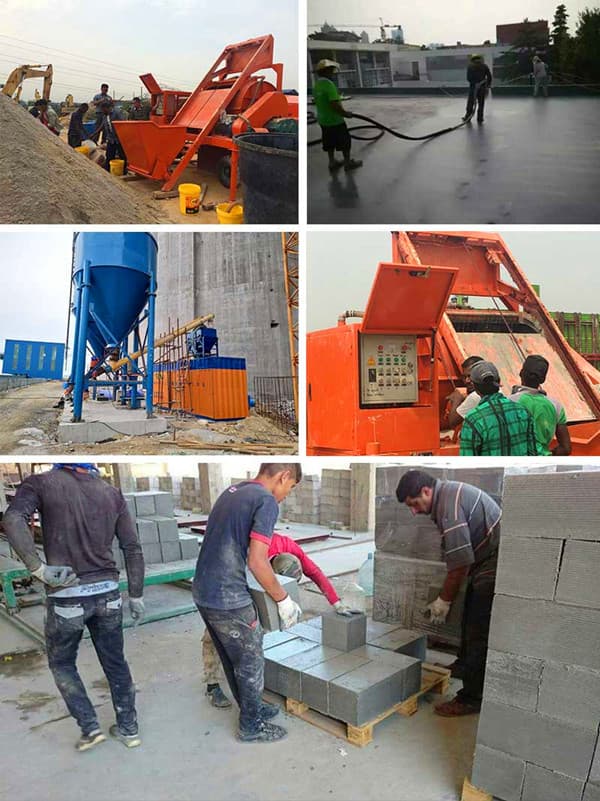

Application of Foam Concrete Mixer:
1.Cast-in-situ wall
2.External wall thermal insulation
3.Thermal insulation roofing
4.Thermal flooring
5.Upstanding beam foundation ditches filling
6.Sound insulation and fire protection walls
7.Playground and track construction
8.Sound insulation layer, tunnel lining filling
9.Cellar, basement and arch filling
10.Sewers and Drains filling
11.Horizontal floor heightening
12.Water tank and fuel tank building
13.Platform filling and mending
14.Garden and rockeries
15.Foam concrete block
16.Foamed concrete precasting, hollow wallboard casting

1. The foam blending fast, blowing foam uniformly.
2. Without suspended matter, without the declining, it’s good for steady pouring.
3. Little loss ratio of foam maintain the foam proportion in the foam concrete to make the products with stability density.
4. No dead angle design, mixing the material toughly, storage in its bottom is less than 10mm, no material left on the four walls internal the mixing drum.
5. Foam Concrete Mixer could mixing variable materials, such as cement, fly ash, sand pulp, sand stone, perlite, and slag etc.
6. Variable speed mixing and internal structure alteration make its installation easy and mixing frequency high, it saves energy.

Model	GM2000 Foam Concrete Mixer
Production Capacity	15-20 m3/h
Output Volume	1500 L
Material Input Volume	2000 L
Main Shaft Revolution	32 r/min
Hopper Lifting speed	22 m/min
Mixing Motor	11 kW
Winding Motor	5.5 kW
Water Pump Motor	1.1 kW
Vibrating Motor	0.55 kW
Foaming System	5.5 kW
Max. Moving Speed	15 km/h
Total Weight	3200 kg
Overall Dimension	2600x2250x3000 mm
