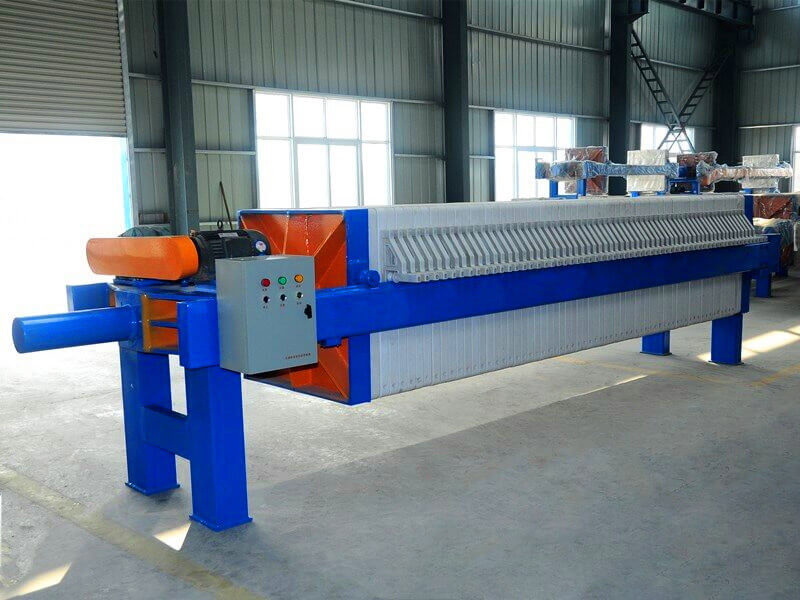

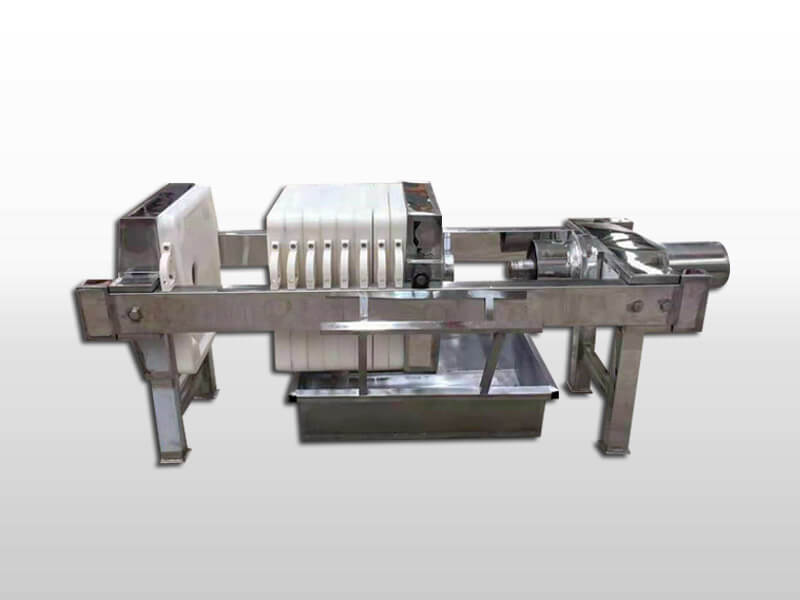

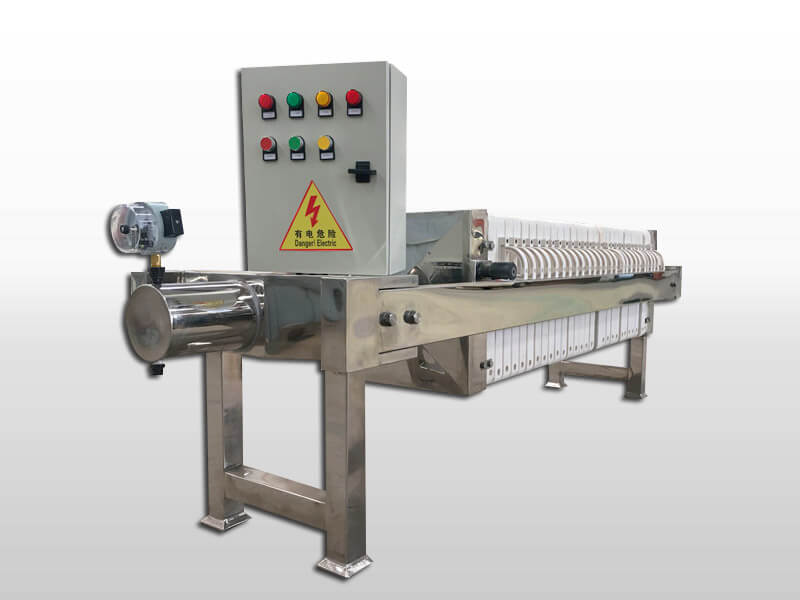

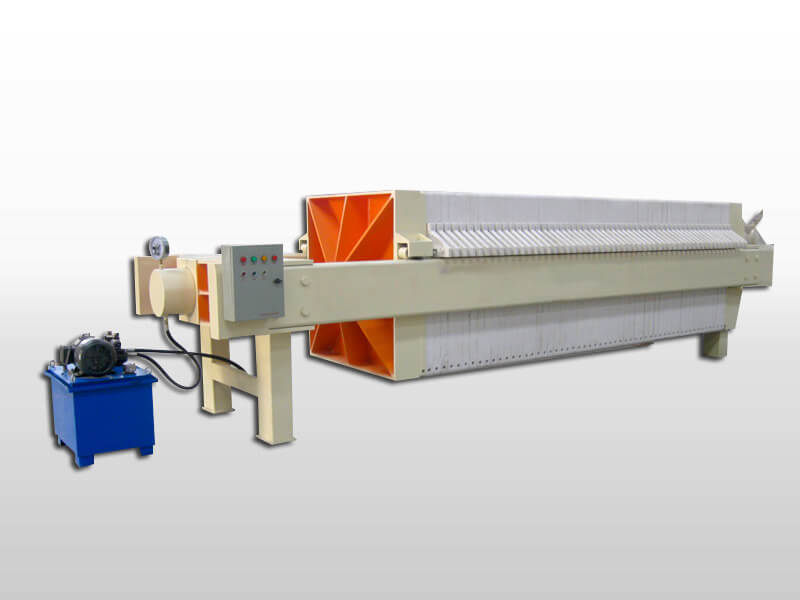

Hydraulic pressure filter press an important role in the filtering process of a filter press. Hydraulic pressure filter press uses electric contract pressure gauge to maintain pressure, esay operation, stable, reliable structure, suitable for larger filtration area filter press. It is widely applied in mining, petroleum, chemical, metallurgy, environmental protection, food, beverage, pharmaceutical, sugar, starch, paper, coalwashing, ceramics, mineral processing and various sewage treatment industries’ separation the solid-liquid.

Hydraulic pressure filter press manufacturer and supplier from China:

Application of hydraulic pressure filter press:

1. Mineral: coal industry solutions, kaokin industry solutions, tailing solutions.
2. Food: mash filter solutions, oil fractionation solutions.

3. Biomedical: biomedical industry solutions.

4. Smelting: alumina industry solutions, smelting industry solutions and so on.

5. Precious metal slurry.
6. Chemical Industry: silica solutions, titanium dioxide solutions, calcium carbonate solutions, petrochemical industry solutions (explosion proof).
7. Hydraulic pressure filter press is used for environment protection: municipal sludge dewatering solutions, steel plant wastewater solutions, printing and dyeing, tannery wastewater solution, papermaking wastewater solution, san and water solutions, river dredging sludge dewatering solutions, tap water sludge treatment solutions, desalination solutions.

1. Pressure filter press is low operation cost.
2. High filtering accuracy.
3. Rigid structure, smooth operation and low noise.
4. High productivity, energy-saving and high efficiency.
5. Purified filtrate with a high enough standard in the case of producing a liquid.

Plate and frame type
Model	Filter area (m2)	Plate size (mm)	Cake thickness (mm)	Filter chamber volume (L)	Plate NO. (pcs)	Number frame (pcs)	Filtration pressure  (Mpa)	Motor power (Kw)	Weight (kgs)	Size (L*W*H mm)
BMY4/450-30U	4	500*500	30	60	9	10	≤0.5	2.2	860	2080*800*900mm
BMY6/450-30U	6			91	14	15			910	2380*800*900
BMY8/450-30U	8			121	19	20			960	2680*800*900
BMY10/450-30U	10			151	24	25			1010	2980*800*900
BMY12/450-30U	12			182	29	30			1060	3280*800*900
BMY15/450-30U	15			225	36	37			1130	3700*800*900
BMY16/450-30U	16			243	39	40			1160	3880*800*900
BMY15/630-30U	15	700*700		226	18	19			1725	2840*1000*1100
BMY20/630-30U	20			297	24	25			1993	3200*1000*1100
BMY30/630-30U	30			452	37	38			2360	3980*1000*1100
BMY40/630-30U	40			595	49	50			2788	4800*1000*1100
BMY30/890-35U	30	890*890	35	524	23	24			2580	3740*1385*1300
BMY40/890-30U	40			677	30	31			2925	4220*1385*1300
BMY50/890-35U	50			852	38	39			3318	4880*1385*1300
BMY60/890-35U	60			1027	46	47			3712	5440*1385*1300
BMY70/890-35U	70			1021	54	55			4106	6000*1385*1300

Chamber type
Model	Filer area (m2)	Filter size (mm)	Filter chamber volume (L)	Plate NO. (pcs)	Number plate (pcs)	Filteration pressure (Mpa)	Motor Power (Kw)	Weight (kgs)	Size (L*W*H mm)
XMY4/450-30U	4	500*500	60	9	.	≥0.6	2.2	860	1950*700*900
XMY6/450-30U	6		91	14	.			910	2200*700*900
XMY8/450-30U	8		121	19	.			960	2450*700*900
XMY10/450-30U	10		151	24	.			1010	2700*700*900
XMY12/450-30U	12		182	29	.			1060	2950*700*900
XMY15/450-30U	15		225	36	.			1130	3300*700*900
XMY16/450-30U	16		243	39	.			1160	3450*700*900
XMY15/630-30U	15	700*700	226	18	.			1725	2640*900*1100
XMY20/630-30U	20		297	24	.			1993	2940*900*1100
XMY30/630-30U	30		452	37	.			2360	3500*900*1100
XMY40/630-30U	40		595	49	.			2788	4300*900*1100
XMY30/800-30U	30	800*800	460	28	.			2170	3700*1200*1200
XMY40/800-30U	40		595	38	.			2450	4300*1200*1200
XMY50/800-30U	50		749	47	.			2700	4840*1200*1200
XMY60/800-30U	60		902	57	.			2980	5440*1200*1200
XMY70/800-30U	70		1056	67	.			3250	6040*1200*1200
XMY30/870-30U	30	870*870	460	23	.			2580	3330*1400*1300
XMY40/870-30U	40		595	30	.			2925	3420*1400*1300
XMY50/870-30U	50		748	38	.			3318	4260*1400*1300
XMY60/870-30U	60		902	46	.			3712	4700*1400*1300
XMY70/870-30U	70		1056	54	.			4106	5140*1400*1300
XMY80/870-30U	80		1210	62	.			4561	5580*1400*1300
