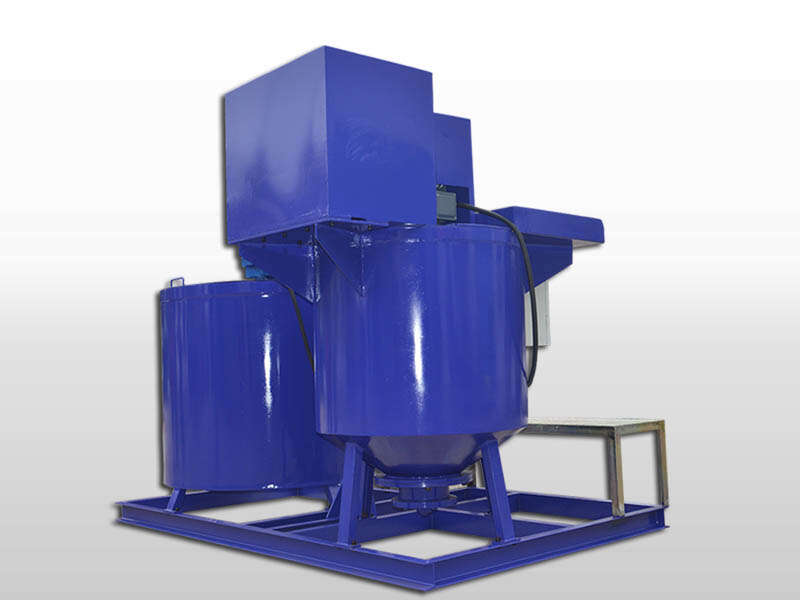

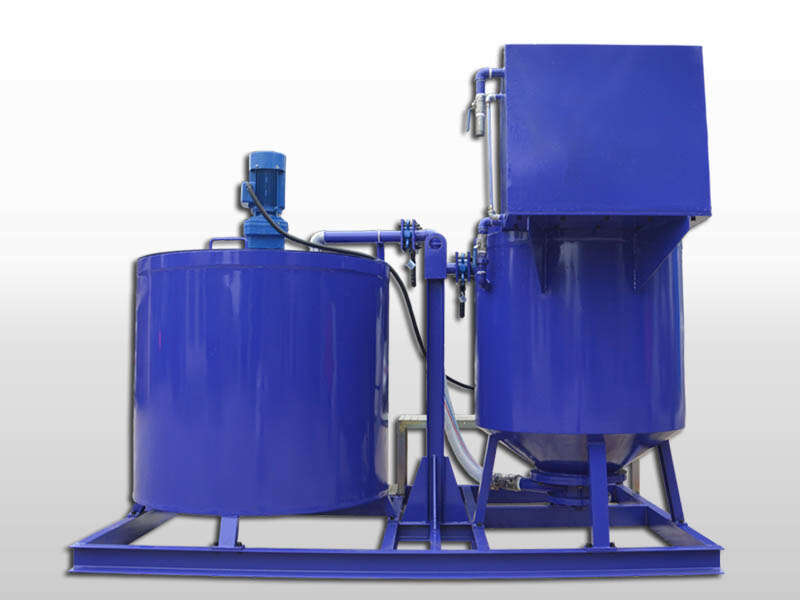

GMA500-1000E Cement grout mixer with agitator is a combination of mixer and agitator, it is specially design for continuous cement mixing and grouting in ground/underground engineering. It can fast mix water, cement and additive, then the mixed slurry can be stored into a 1000 liters agitator, thus the mixing work can continuously be done.

GMA500-1000E Cement grout mixer can produce various types of grout, such as water, cement, bentonite and additive could be mixed in the 500L mixer machine, then the mixed slurry can be stored into a 1000 liters agitator, thus the mixing work can continuously be done.

1. One-man operation;
2. Extremely fast mixing;
3. No seals to wear out from grout;
4. Simple grout transfer from mixer to agitator.

500L MIXER
Rated capacity	500 liter
Acceptable W/C ratio	≥0.5:1
Rated Rev.	1500rpm
Power	7.5kW
Pump Pressure	＞0.2Mpa
Water tank	250L
1000L AGITATOR
Rated capacity	1000 liter
Rated Rev.	35rpm
Power	1.5kW
MIXER&AGITATOR
Dimension	2500*1920*2280mm
Weight	980kg
