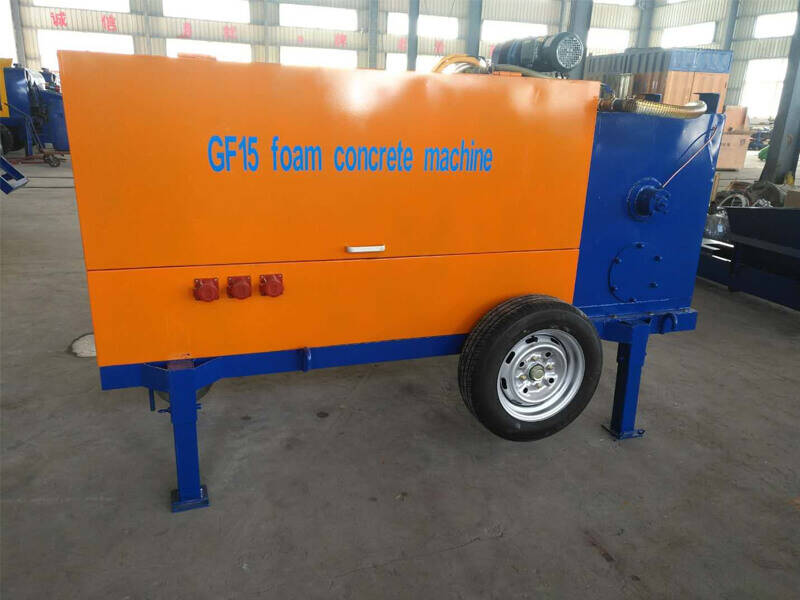

GF15 cellular lightweight concrete machine is our most hot sale all-in-one foam concrete machine, including mixing system, foaming system and pumping system. This machine adopts peristaltic pump, which is much better than screw pump and piston pump. The additional foam amount can be adjusted accurately. The capacity of this cellular foam concrete machine is 15 m3 per hour.

1. Cellular lightweight concrete machine used for providing insulating layer on the floor. It can adjust the density according the mix design from 250-1600kg/m3.
2. Cement foam concrete machine used for roof insulation of refrigerated storage space. Besides, it can be used for filling tunnel and mined.
3. Lightweight foam concrete machine used for producing foam concrete panel and CLC block.

1. Cellular foam concrete machine with simple structure, small volume, light weight, easy operate;
2. Pumping speed of foam concrete mixer is adjustable;
3. Foaming agent ratio is adjustable easily;
4. both remote control and close control are available;
5. Cellular lightweight concrete machine is high cost-performance.

Name	Unit	Parameter
Foam cement throughput	m³/h	10-15
Max convey height	m	80
Max convey level	m	500
Motor power of mixer	kw	1.5
Motor power of pump	kw	4
Volume of mixer tank	m³	0.4
Weight	kg	1400
Dimension	mm	1850*1000*1400
