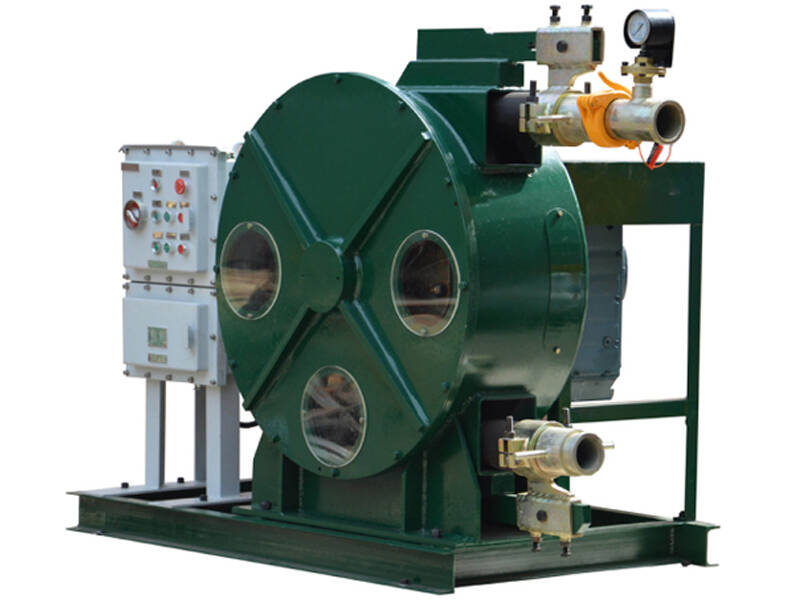

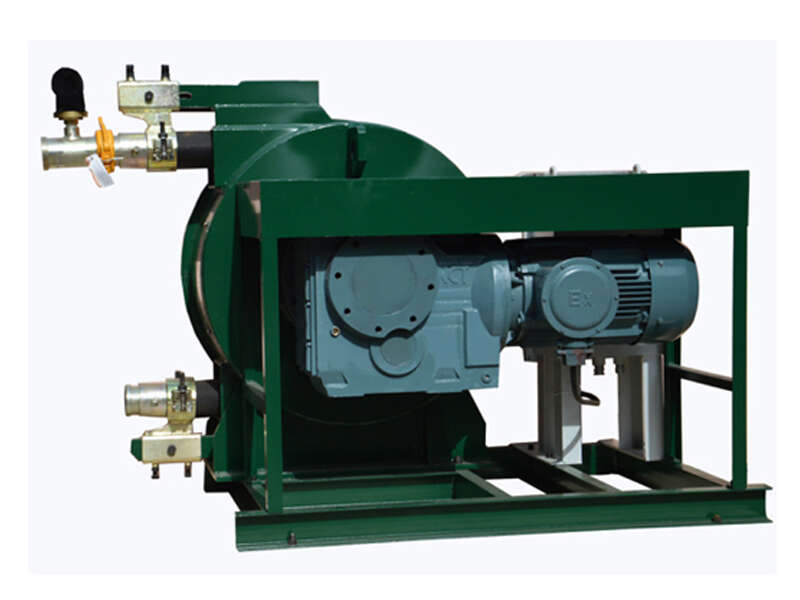

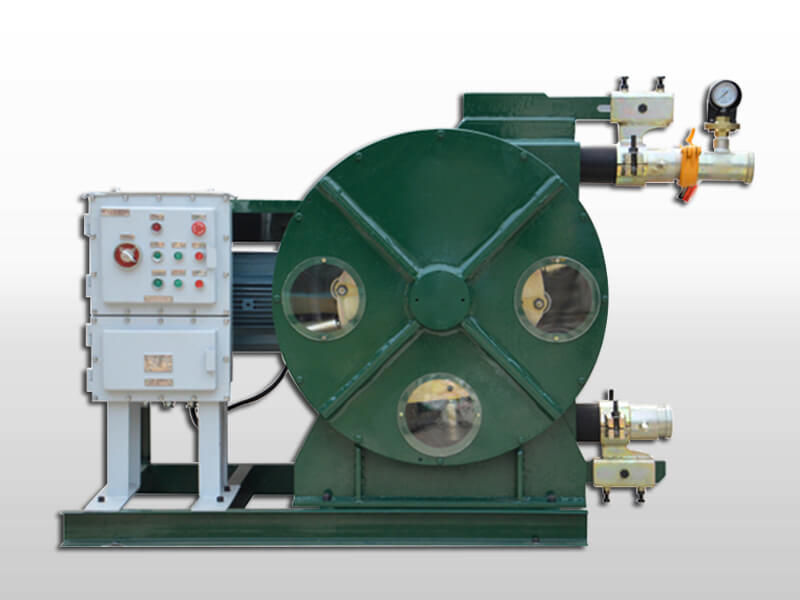

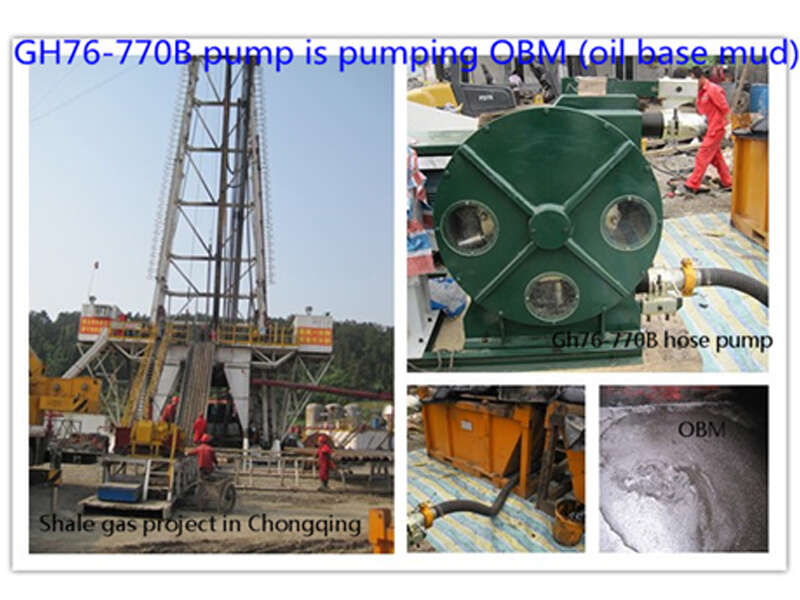

Special GH76-770B Peristaltic Pump for Pumping Oil Sludge and Slurries

Rotation: 38RPM
Squeeze hose ID: 76mm
Max. pressure: 1.5Mpa
Voltage: 3phase, 380V, 50HZ anti-explosion electic motor
Power : 18.5KW
Output Capacity: 18m3/h

We're here to help:

Easy ways to get the answers you need.

Description
Application
Features
Technical data

■ Description

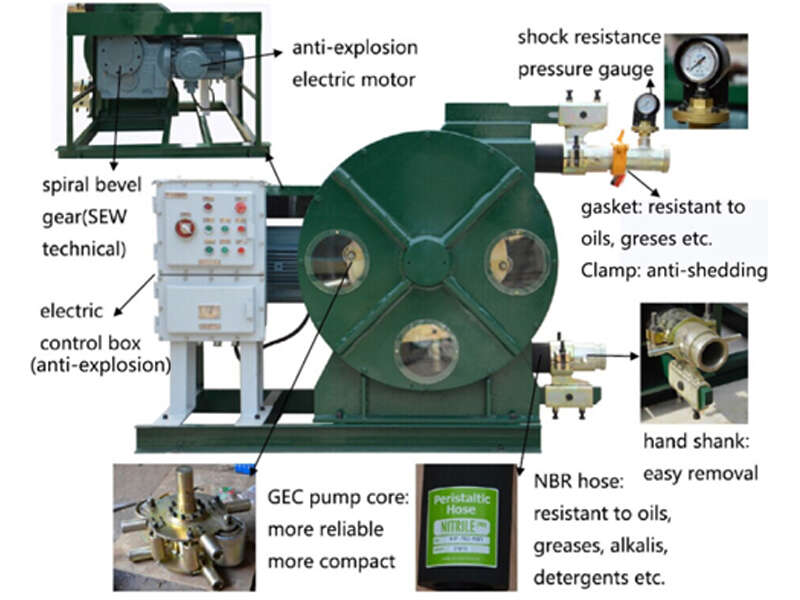

GH76-770B industrial hose pump (squeeze pump) peristaltic pump for pumping oil sludge and slurries consists mainly of pump house, rotor, roller, idle roller, squeeze tube and driving unit. The squeeze hose is U-shape in pump house, when rotor drives roller to rotate, hose is deformed. After the roller rotate, the deformed hose recover by its elasticity. Thus the negative pressure in this hose is generated, sucking slurries, and discharging through outlet under roller’s push, finally forms pressure conveying of slurries.
