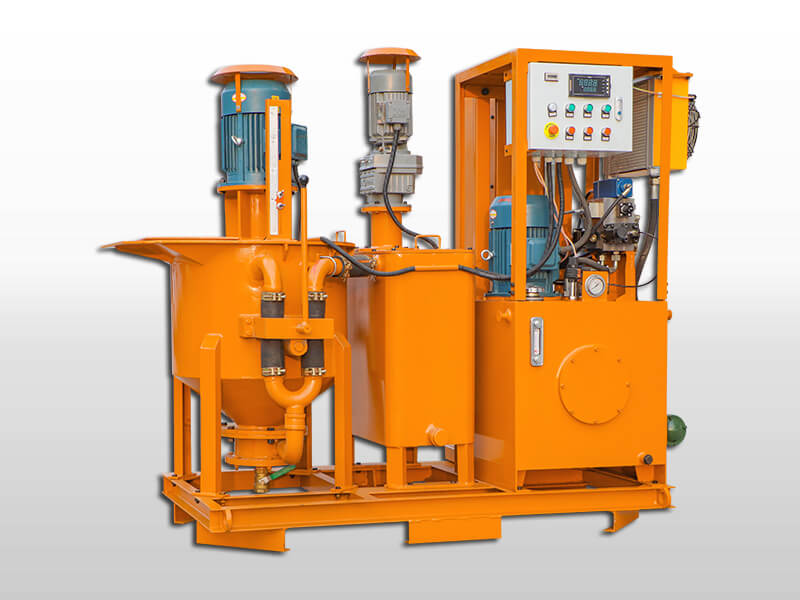

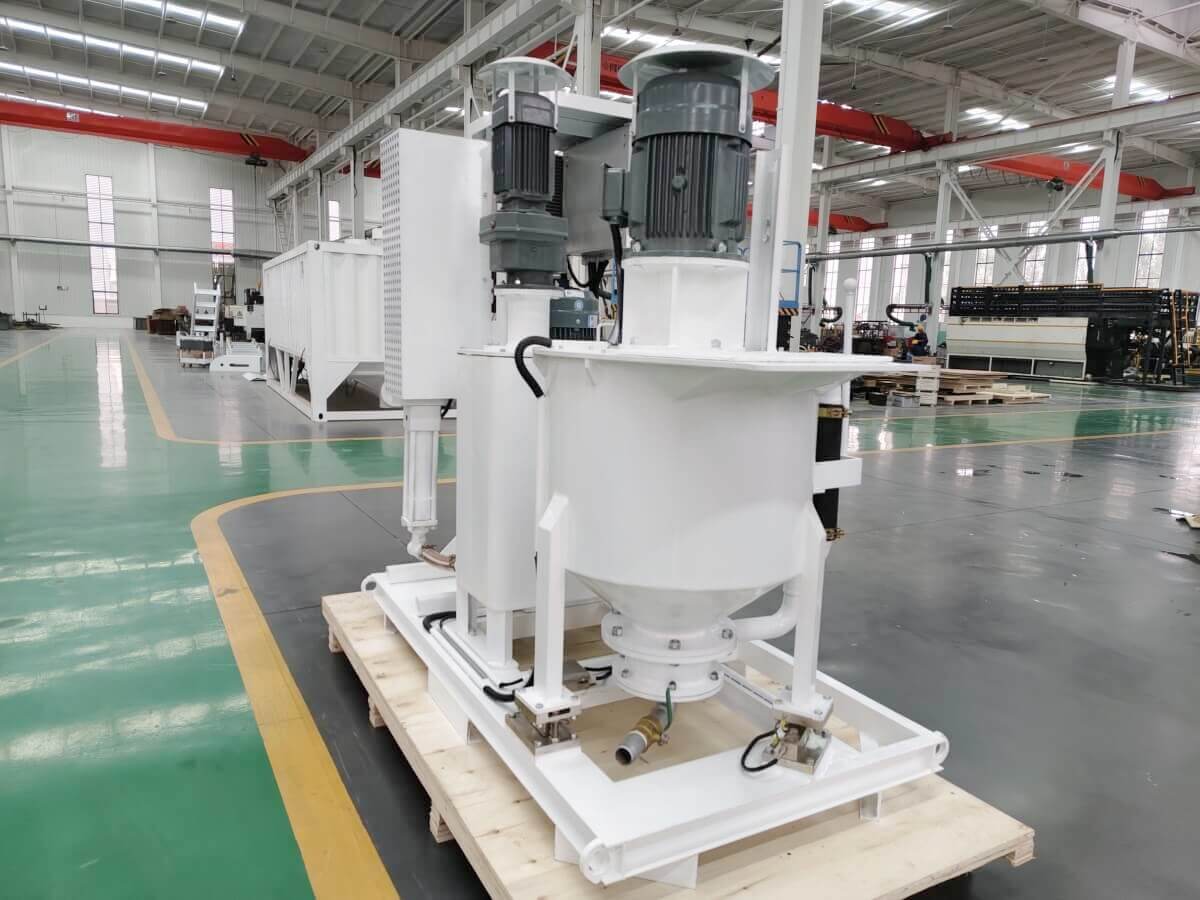

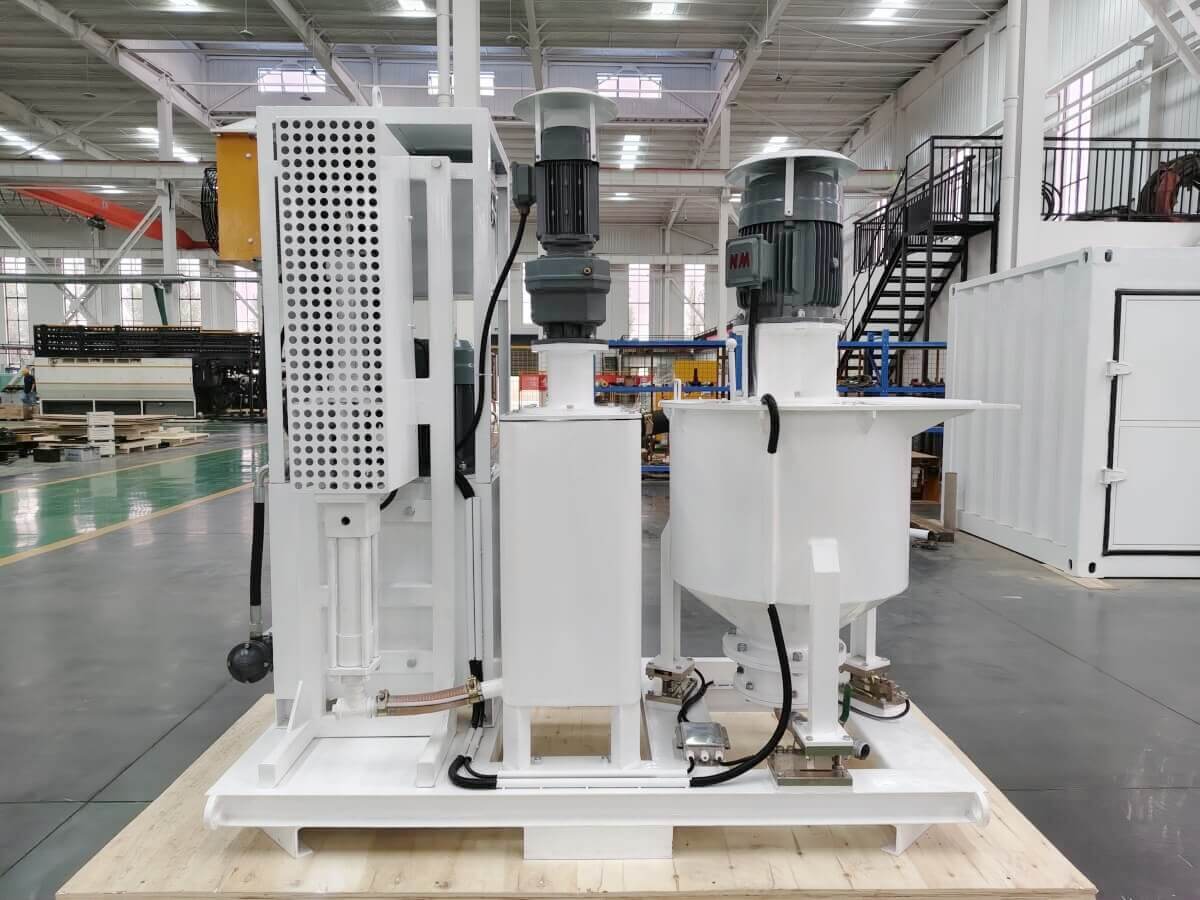

GGP100/150/20PI-E TBM backfill grout plants consist of of grout mixer, agitator and grout pump in one base frame. It is suitable for all grouting applications with cement and ultra fine cement.

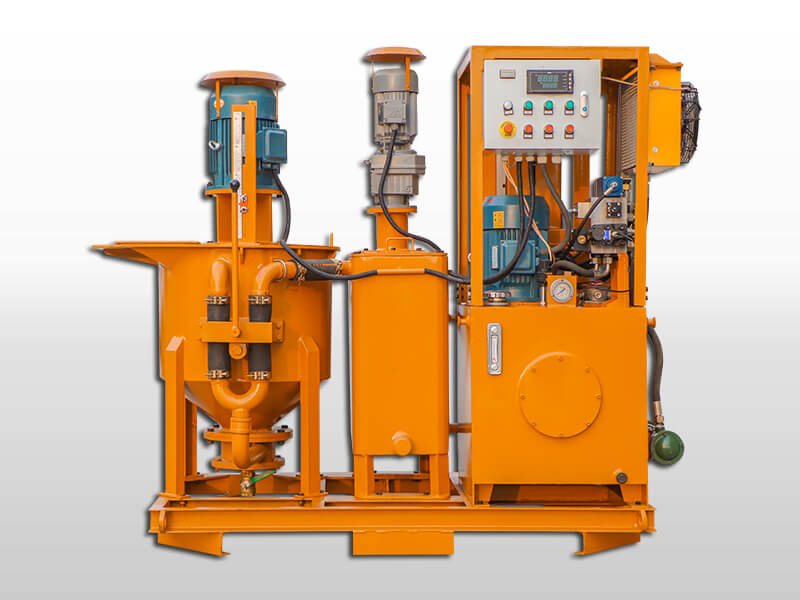

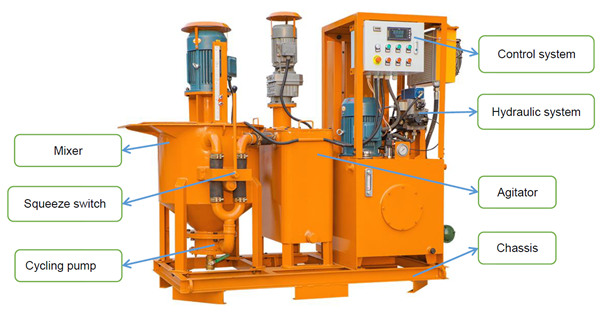

GGP100/150/20PI-E All in one grout plant:

High-speed, high-shear colloidal mixer causes a vortex flow to ensure mix quickly and evenly. Water, cement or bentonite is quickly mixed into homogeneous slurry. Then the mixed slurry was delivered to the agitator. Grout pump injects from the mixing drum (storage tank). This ensures a continuous mixing and grouting operations. The grouting plant is hydraulic drive with electric motor. Grouting pressure and displacement is adjustable.

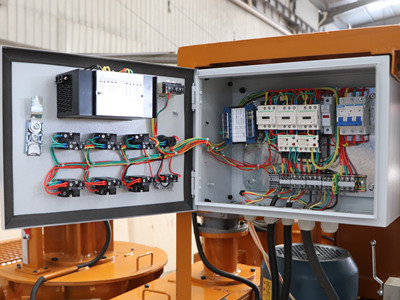

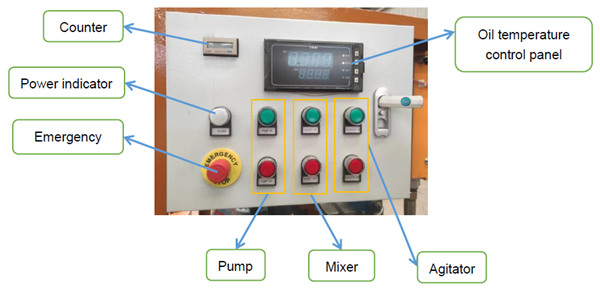

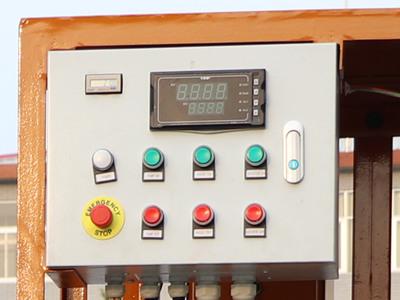

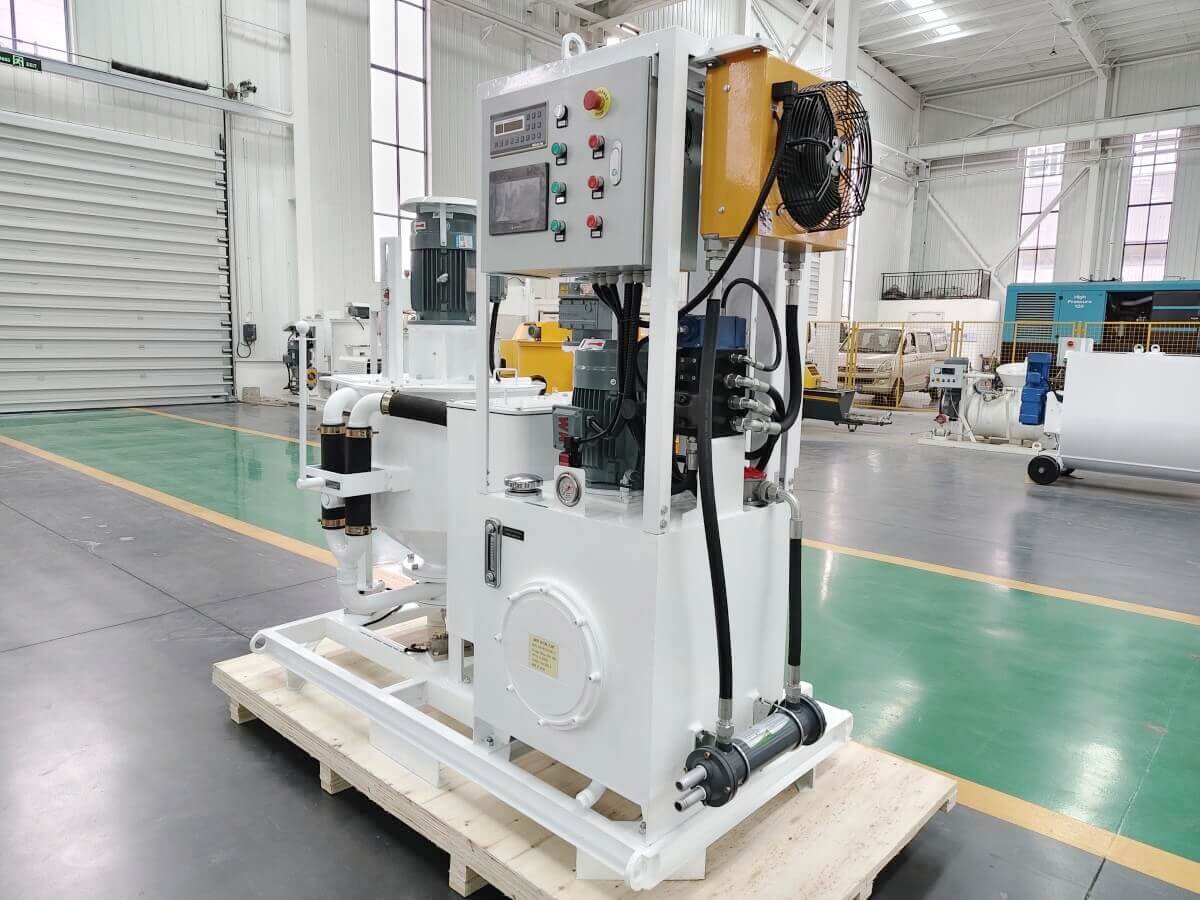

Introduction of electric control box of GGP100/150/20PI-E TBM grout plant:

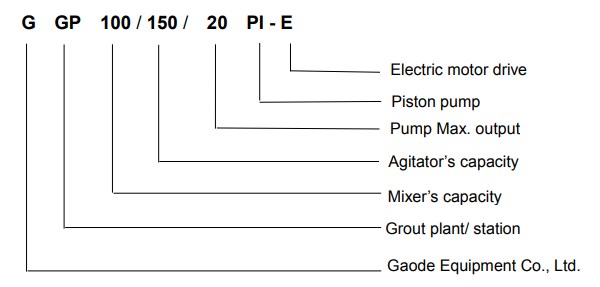

Model Definition of GGP100/150/20PI-E TBM backfill grout plant:

GGP100/150/20PI-E grout plant is suitable for a wide range of applications such as anchoring, sleeve pipe, contact, and TBM backfill grouting.

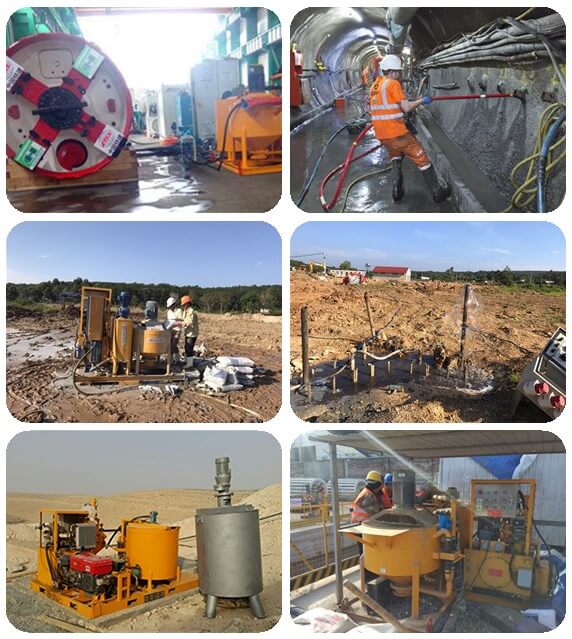

Typical applications of grouting plant: For higher outputs and increased quality control, we can provide you with customized services.

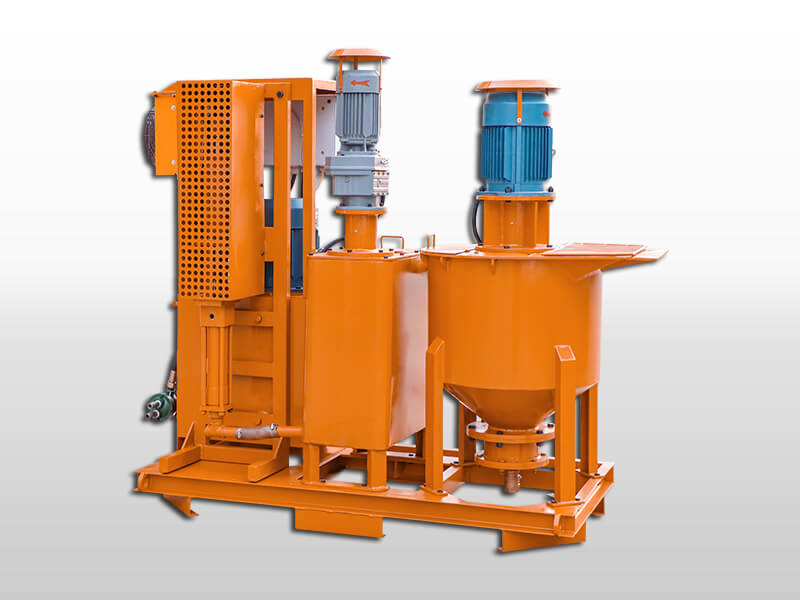

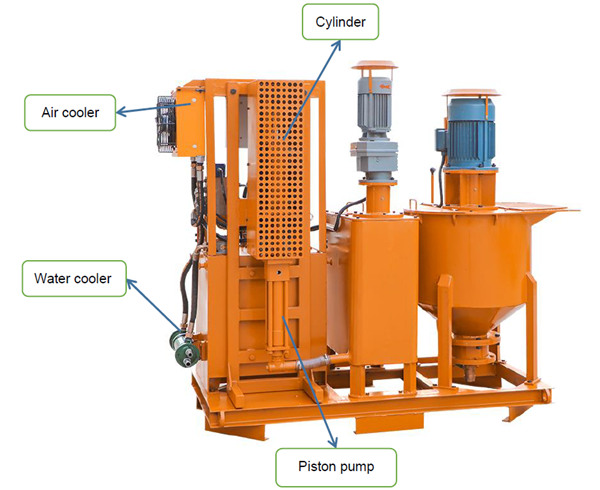

Features of GGP100/150/20PI-E grout plant for TBM:
1. GGP100/150/20PI-E TBM backfill grout plant is with vertical pump with compact size.
2. Ball valve.
3. Low flow pressure surge system. Lower charging material height for mixer.

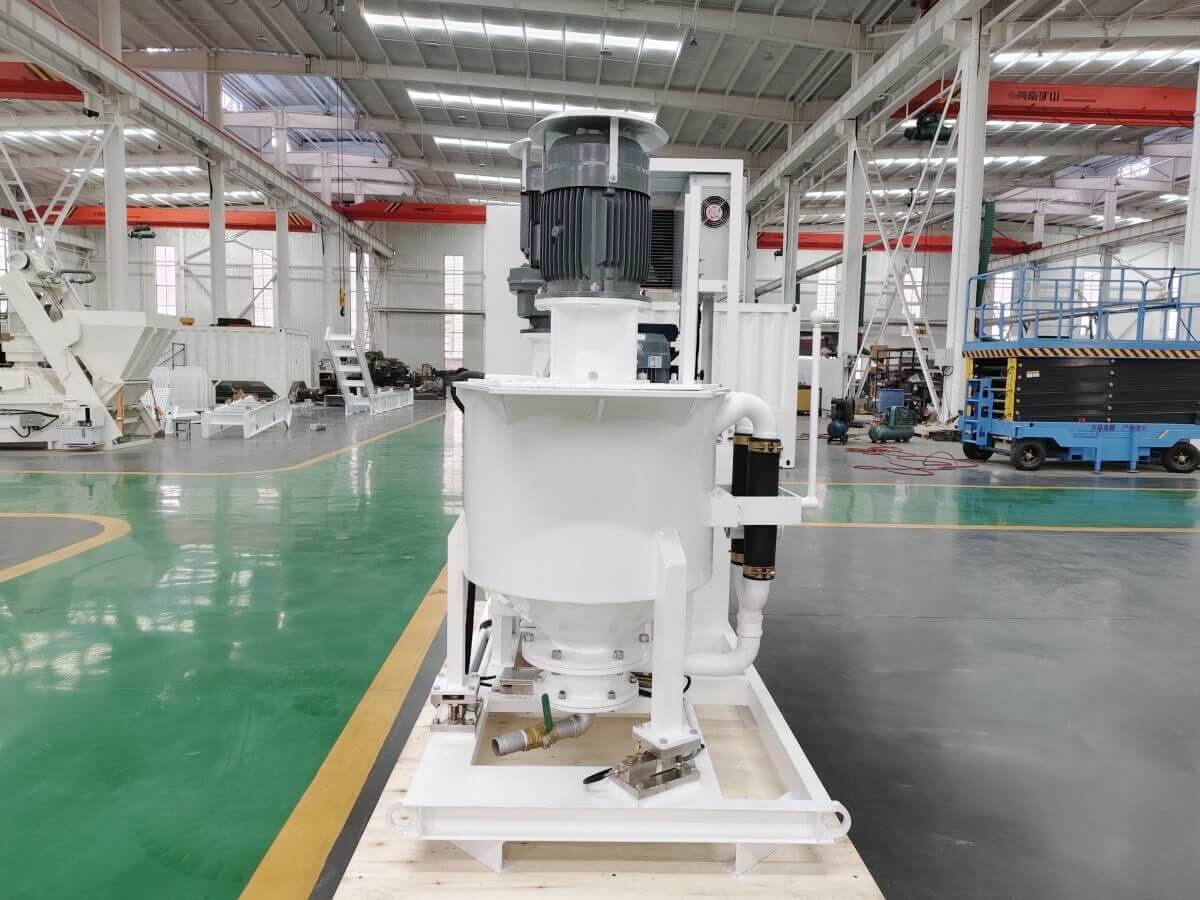

4. GGP100/150/20PI-E grout plant for backfill with high-speed colloidal grout mixer.

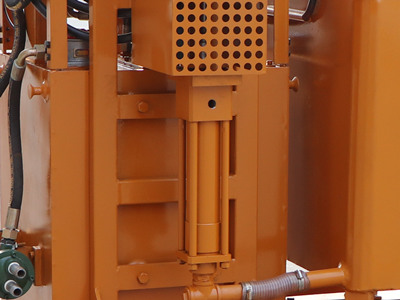

5. Single piston and two-acting, by our special design to get the same volume in both rod and no rod chamber.

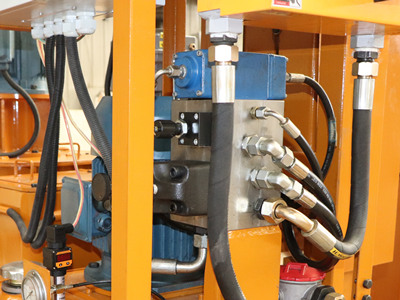

6. Hydraulic drive, safely releasing pressure when pumping block.
7. GGP100/150/20PI-E grout plant for TBM has small size and easy to operate. It also takes up very little space.
8. Up to 5mm particle size.
9. One and two-oil gear pump to get large output and high pressure in the same grout pump.

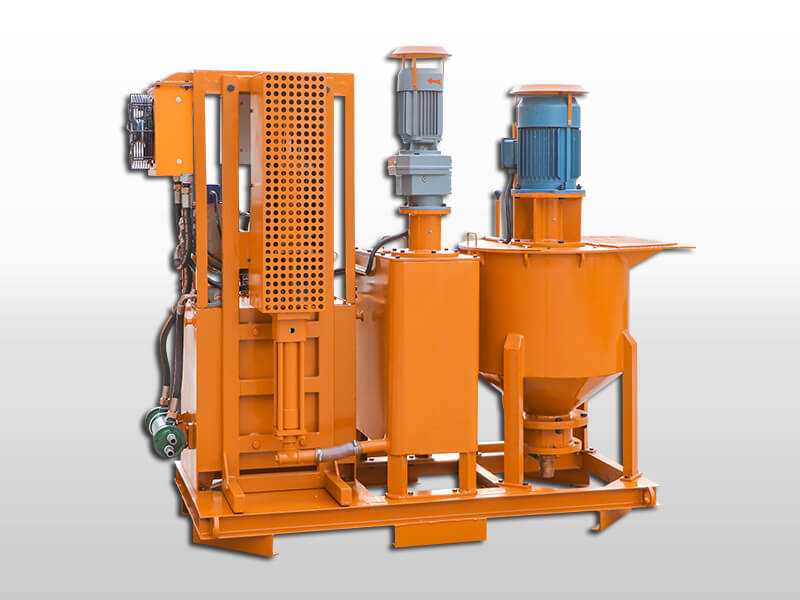

Details of GGP100/150/20PI-E TBM backfill grout plant:

Name		Data
Type		GGP100/150/20PI-E TBM backfill grout plant
Mixer	Volume	100L
	Speed	1500rpm
	Motor power	5.5kw
Agitator	Volume	150L
	Speed	36rpm
	Motor power	1.5kw
Grouting pump	Pump pressure and output	20L/min @ 43bar
		10L/min @100bar
	Motor power	5.5kw
Dimension	Dimension	2200×1000×1850mm
	Weight	900kg
