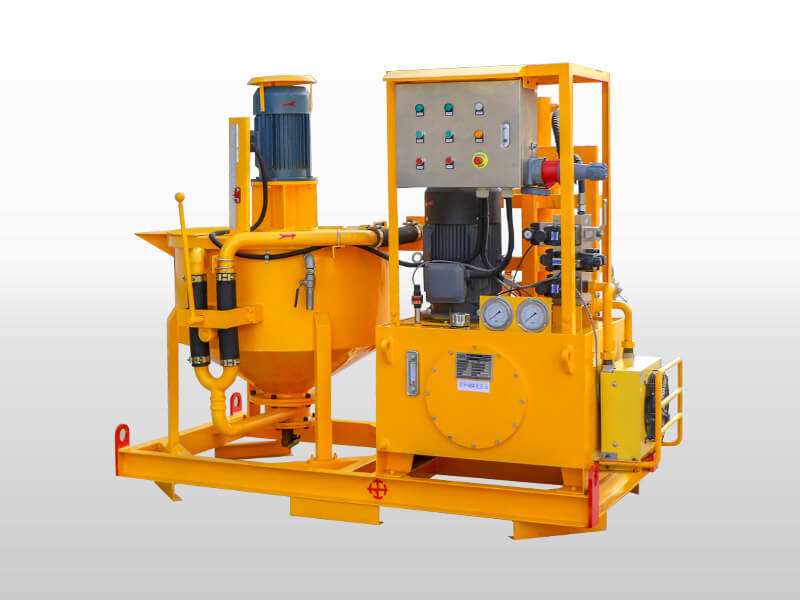

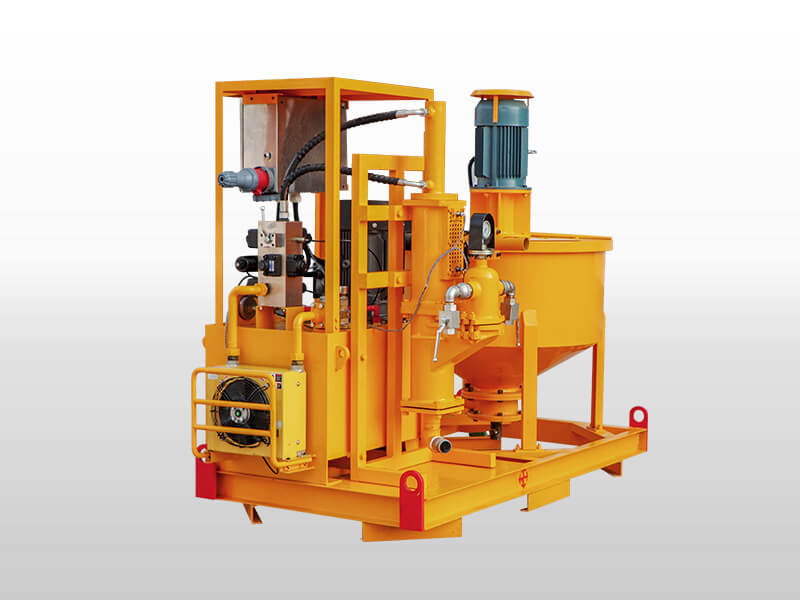

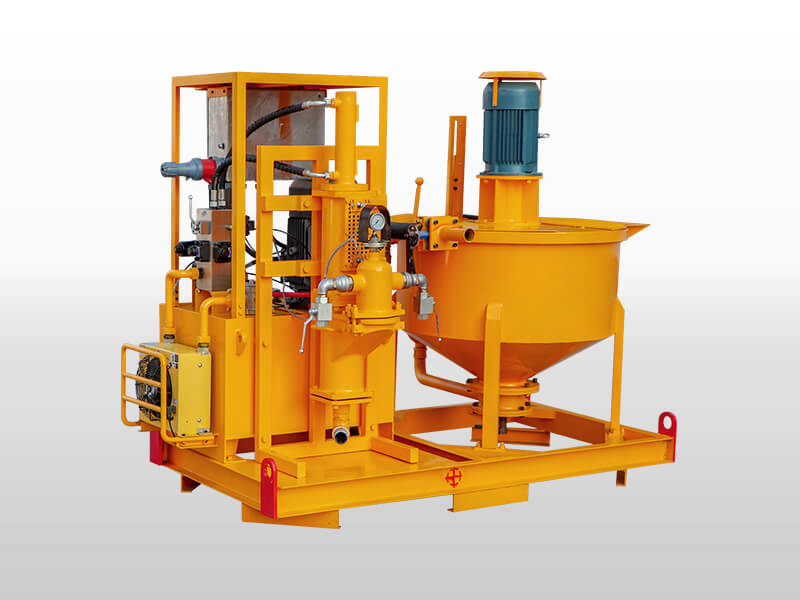

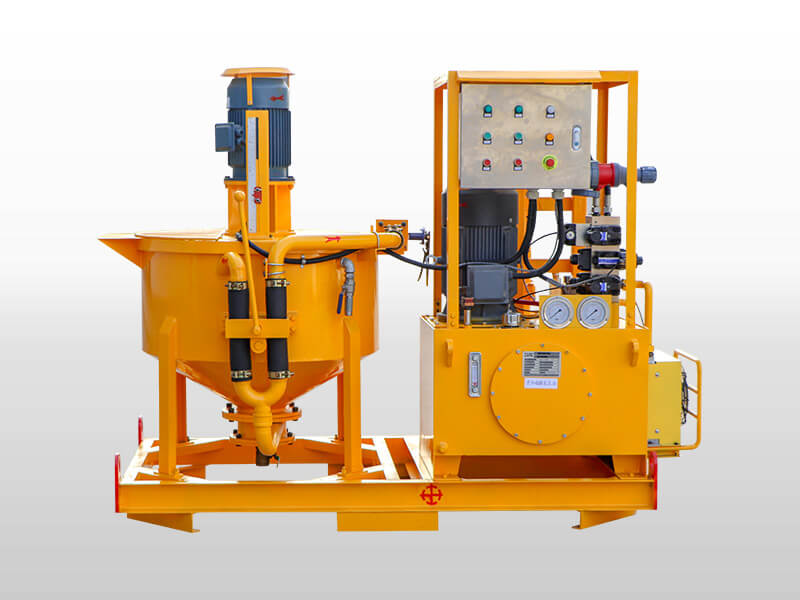

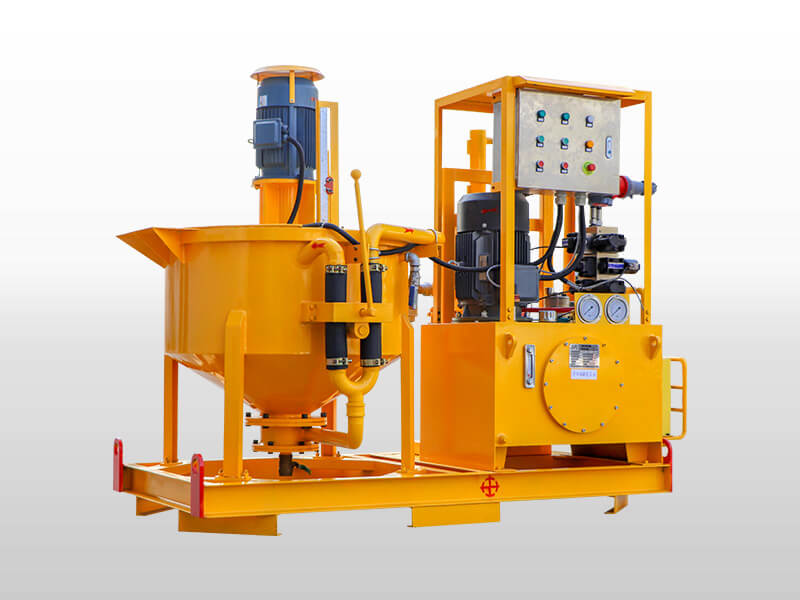

GGP400/80PL-E bentonite injection plant is a combination of high shear mixer and grout pump in one base frame. It is mainly used to be made bentonite slurry, cement slurry, etc., in the application highway, railway, hydropower, construction, mining and other ground and underground construction.
High speed vortex mixer ensures mix quickly and evenly. Water, cement or bentonite is quickly mixed into a homogeneous slurry. Then the grout pump injects from the mixer drum. This ensures a continuous mixing and grouting operations. The injection bentonite plant is driven by an electric motor. Grouting pressure and displacement is adjustable. Compact size and it is easy to operate. It also takes up a small space.We are bentonite injection plant manufacturer and bentonite injection plant supplier for many years.

GGP400/80PL-E Bentonite injection plant application areas:

1. Up to 5mm particle size.
2. Ergonomic, space saving
3. This bentonite grout plant is easy to operate and maintain.
4. Suitable for all grouting applications with cement and ultra fine cement
5. Grouting pressure and displacement is adjustable.

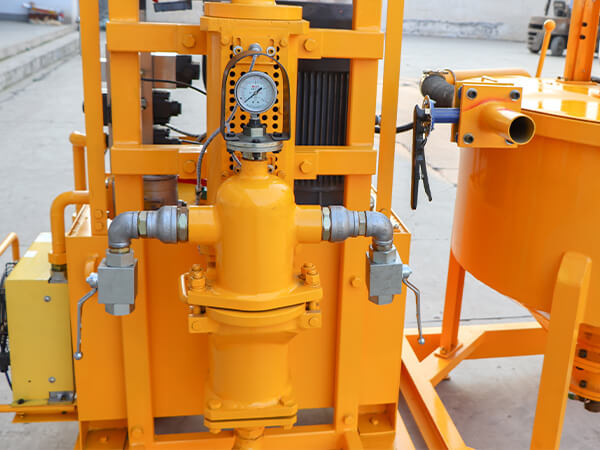

6. The vertically plunger pump is a universal application for grouting.

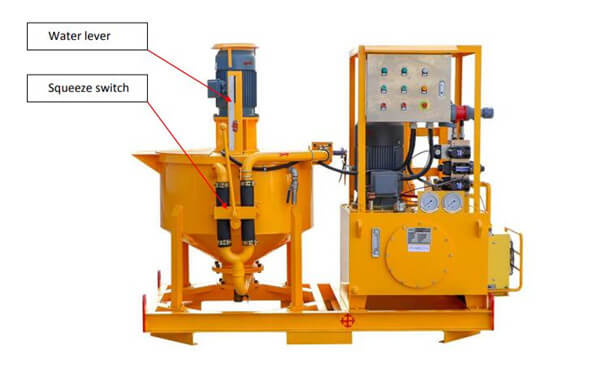

7. The function switch between mixer and grout pump is realized by using squeeze switch.

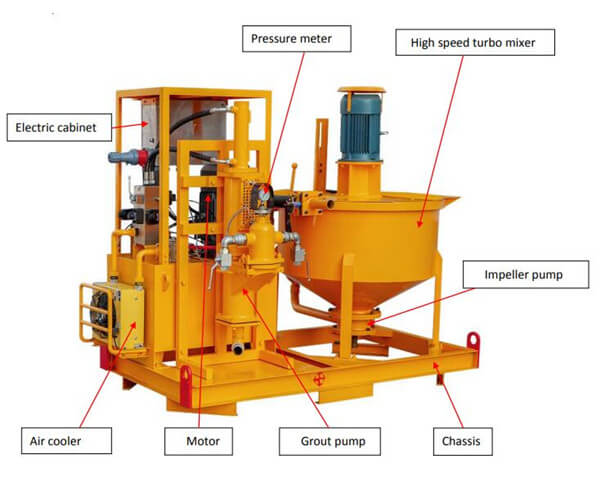

Details of GGP400/80PL-E Bentonite injection plant:

Name		Data
Type		GGP400/80PL-E Bentonite Injection Plant
Mixer	Volume(L)	400
	Speed(rpm)	1450
Grouting pump	Stroke (mm)	220
	Cylinder diameter (mm)	120
	Flow(L/min)	80	60
	Pressure(MPa)	2.4	5
	Power(KW)	15
Dimension	Dimension(mm)	2450×1200×1750
	Weight(KG)	980
