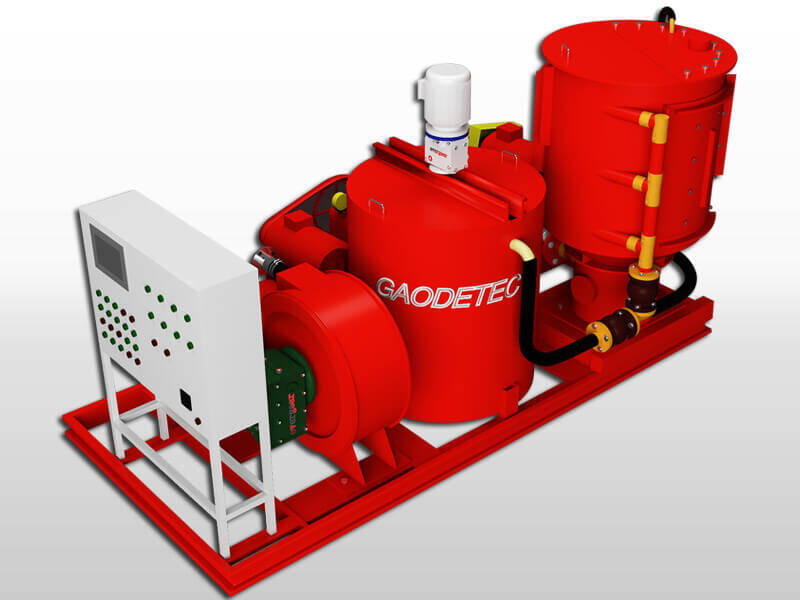

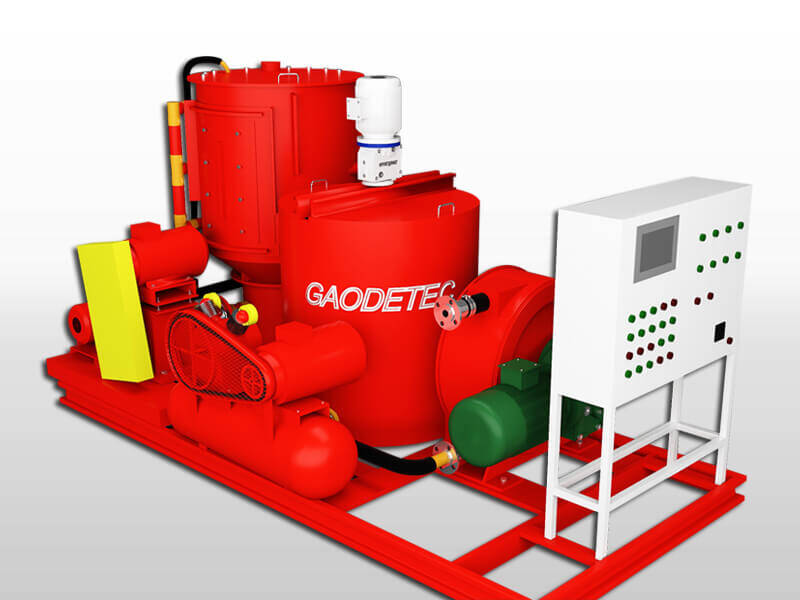

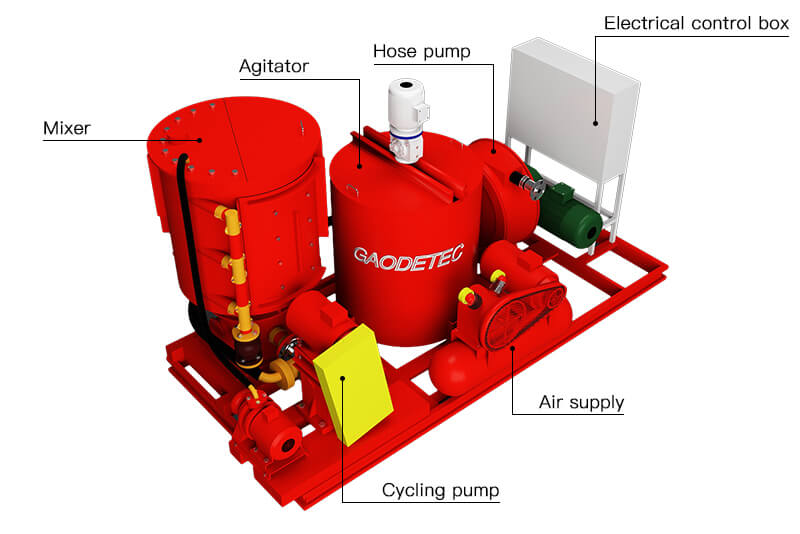

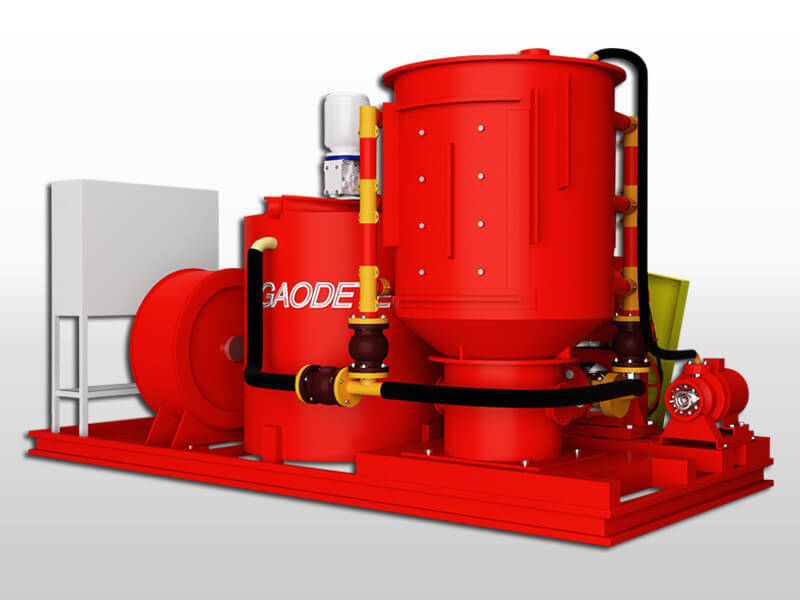

The GBP series of Automatic Bentonite Turbo Mixer/Pump Plant consists of a steel sheet cylindrical tank, set-up on a strong base frame, the pump and the motor. The muds are mixed through a high speed vortex produced by a special pump which, after sucking the material from the bottom of the tank, sends it back tangentially into the same tank in order to get highest possible efficiency.

Through a time controlled operation of the pneumatic pipe clamp valve of the system, the pump can bring the mud to a storage container or directly to the area of use.
By this process it is possible to obtain homogeneous colloidal and high quality mixtures within a very short period of time.
At the same time, GBP system would be used for the mixing and pumping of the water, cementitious powders, pozzolans and admixtures.

1. Mining - tunnel lining, contact grouting, shaft waterproofing;
2. Construction - pavement under sealing, slab jacking and slab raising;
3. Marine - underwater foundations, piers, breakers, shoreline foundations;
4. Utilities - encasements, waterproofing, slope line grouting;
5. Geotechnical - deep well casing, monitor wells, well sealing and abandonment;
6. Civil Engineering - dam foundations, tunnels, mining, soil nails, tiebacks, earth anchors, cable and rock bolts;
7. Structural - building and bridge restoration, foundation stabilization, foundation raising, soil compaction grouting; soil & rock grouting;

1. Grouting pressure and output are step-less adjustable;
2. Using rectangular agitator, makes the plant has compact structure, small size;
3. With the function of record and display grouting pump reciprocating times by a counter;
4. Hydraulic reversing and Hydraulic drive for Vertical grouting pump;
5. With a air cooler and a water cooler, to adapt to different working environment temperature;
6. Mixer and agitator switch is a squeeze handle that is easy to operate and reliable;
7. Grouting pump has high speed and low speed by rotating ball valve switch;

Description	Data
Model	GBP1000/1600/20HP-E
Dimensions	4300*2250*2200mm
Weight	2600kg
Mixer
Tank Capacity	1200L
Output	18-20m3/h
Cyclic Pump	1350L/min
Power	15KW, 50Hz, 380V
Rated Rev.	1450rpm
Agitator
Capacity	1600L
Rated Rev.	40rpm
Power	2.2KW, 50Hz, 380V
Hose Pump
Output	20m3/h
Max. Pressure	1.5MPa
Power	18.5KW, 50Hz, 380V
