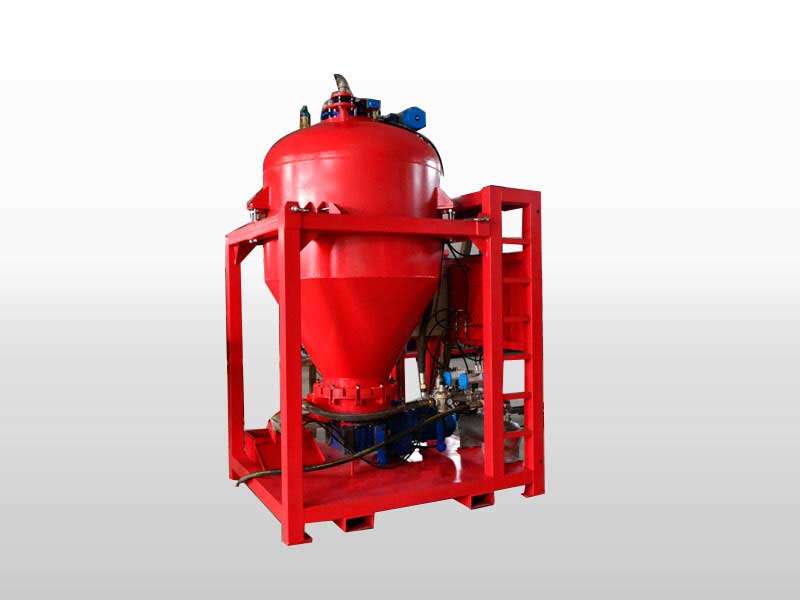

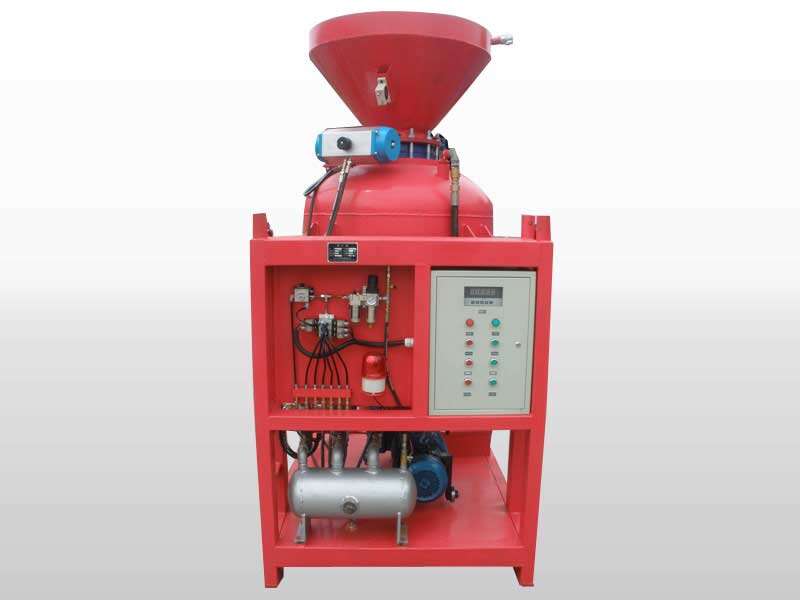

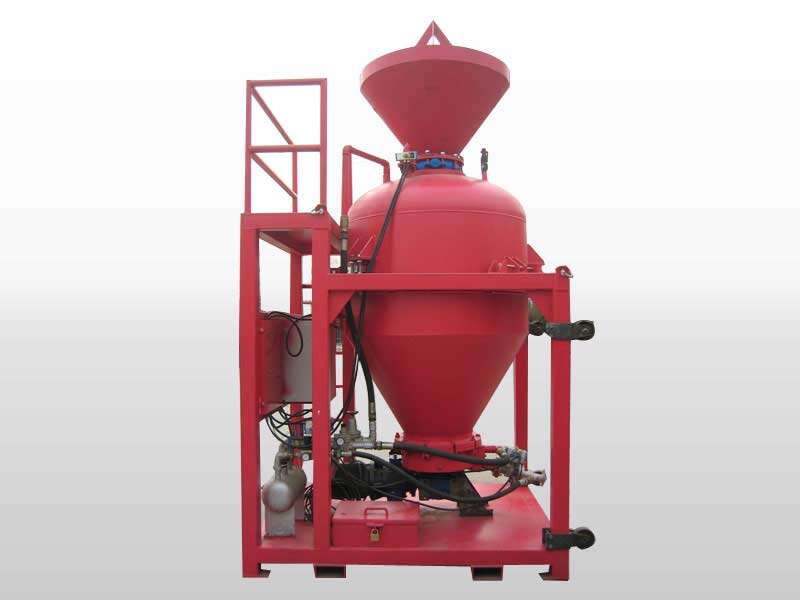

GD-BJ switch-plate type refractory gunning machine is a multi-function high efficiency machine which is used for gunning, dusting and spraying complete equipment in metallurgical industry, the technology imported from Japan and has much improvement in these years.
Note:
1.Tank is designed according to our country pressure vessel design standard and issue pressure vessel survey report.
2.According to customers’ requirement if bunker or hopper has wheels for movement, air control and electronic control system have manual control, hand and electronic compound control, PLC control three types. The power of electric motor is 4-7.5kw.
3.Working condition: compressed air: pressure ≥0.4Mpa, Pipe diameter≥32mm, Flow≥5m³/min. Power:380V,≥5kw.(415V is optional)

The GD-BJ refractory gunning machine is widely used for gunning maintaining of carbon injection furnace lining, gunning maintaining of converter lining and thermal spraying of blast furnace lining.

GD-BJ refractory gunning machine adopt switch-plate machine feeding. Switch-plate machine have six specifications for choice, smallest switch-plate feeding amount is from 5kg to 20kg per minute, largest switch-plate feeding amount is from 60kg to 200kg per minute, and the feeding is even and stable.

Model	tank capacity(m³)	charge  amount  (kg)		discharge amount (kg/min)		Max. aggregate (mm)	Conveying distance(m)		switch- plate diameter (mm)
		C powder	gunning material	C powder	gunning material		Horizontal	Vertical
GD-BJ0.39	0.39	250	600	5～20	10～30	≤5	200	40	200,300
GD-BJ0.75	0.75	500	1200	5～30	10～50	≤5	200	40	300,400
GD-BJ1.0	1.0	650	1500	10～40	20～80	≤5	200	40	400,500
GD-BJ1.5	1.5	1000	2500	20～50	30～120	≤5	200	40	400,500
GD-BJ2.0	2.0	1300	3000	25～60	60～200	≤5	200	40	400,500
