JS series concrete mixer is dual horizontal shaft concrete mixer, which can work independently and it can be applicable to large, medium and small precast concrete products factory and roads, railways, bridges, water conservancy, civil construction project. And it can mix dry and hard concrete, plastic concrete, concrete, light aggregate concrete and all kinds of mortar. It is one kind of high efficiency, widely used construction machinery, it owns reasonable design, and its mechanical accessories used industry standard parts, and its maintenance is quite easy.

JS concrete mixers for sale can be used on all kinds of precast plants, highways, industrial and civil construction, roads, railways, bridges, water conservancy and harbors. JS concrete mixers have a wide range of usages. It can be used as a separated mixing machine or used as the supporting machine of the ready mix concrete plant. When working with PLD series aggregate batcher, it can form a concrete batching plant and a simple mixing plant.

a) Good quality materials and strict manufacture technique ensure durability.
b) Easy to operate with lower maintenance cost.
c) High productivity, low energy consumption and lower noise.
d) Even mixing effect and durable performance.
e) Reasonable design, easy to operate and woke stably.
f) It is environmentally friendly, high mixing quality, high productivity and short mixing time. Double-spiral-belt continuous mixing blades, instead of traditional shovel mixing blades. Then can be shorten the mixing time at least 50% and the mixing evenness can improve 15%.
g) It has top-level automatic lubricating pump. Centralized lubrication supplying ensures the shaft end sealing more durable.
h) The electrical system adopts import component, form those world famous exporter which are reliability and have good performance.
i) The height of discharge: 1.5m, 3m or 3.8m (adjustable).

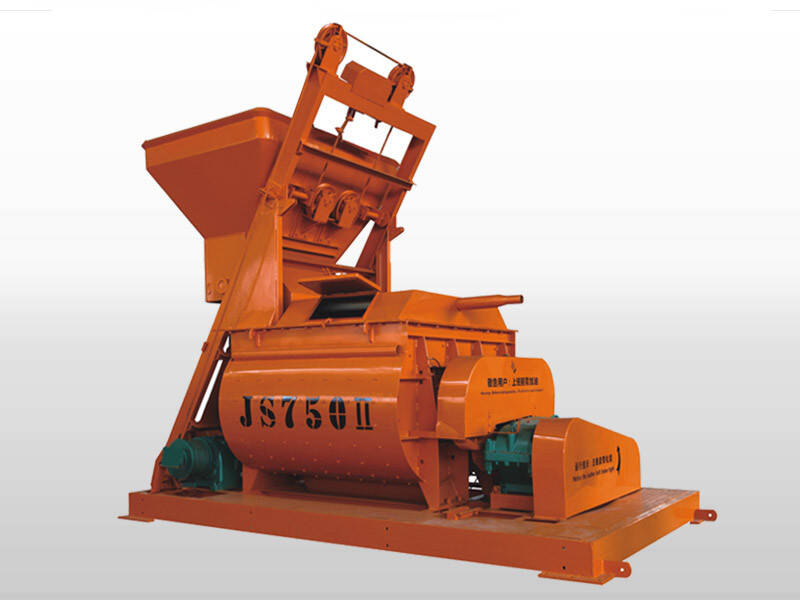

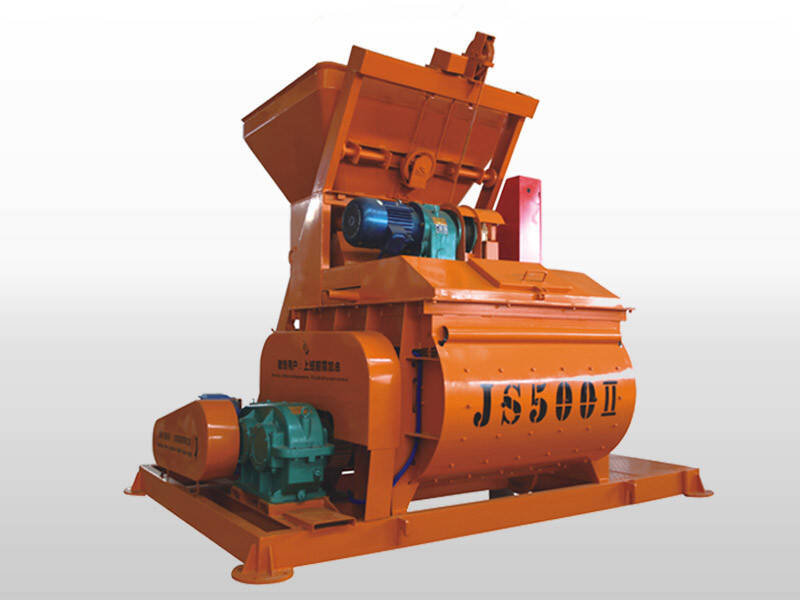

Model		JS500II		JS750II		JS1000IIc	JS1000IIb
Charging volume		500L		750L		1000L	1000L
Discharge volume		800L		1200L		1600L	1600L
Aggregate sizes (Less than)		80mm		80mm		80mm	80mm
Working circle		52s		52s		52s	52s
Productivity (more than)		25m3/h		35m3/h		60m3/h	60m3/h
Power		1*18.5KW		1*30KW		1*37KW	2*18.5KW
Stand voltage and frequency (can Customized)		AC380V/50HZ		AC380V/50HZ		AC380V/50HZ	AC380V/50HZ
Electromagnetic directional valve voltage		/		/		/	AC220V/DC24V
Motor speed		1450rpm		1450rpm		1450rpm	1450rpm
Main shaft Speed		36rpm		28rpm		32rpm	28rpm
Dimensions (L x W x H)		2160*1790*1160mm		2460*1880*1400mm		2830*2050*1535mm	2760*1950*1530mm


Note: Working circle time means sum of lifting time and mixing time and discharge time.

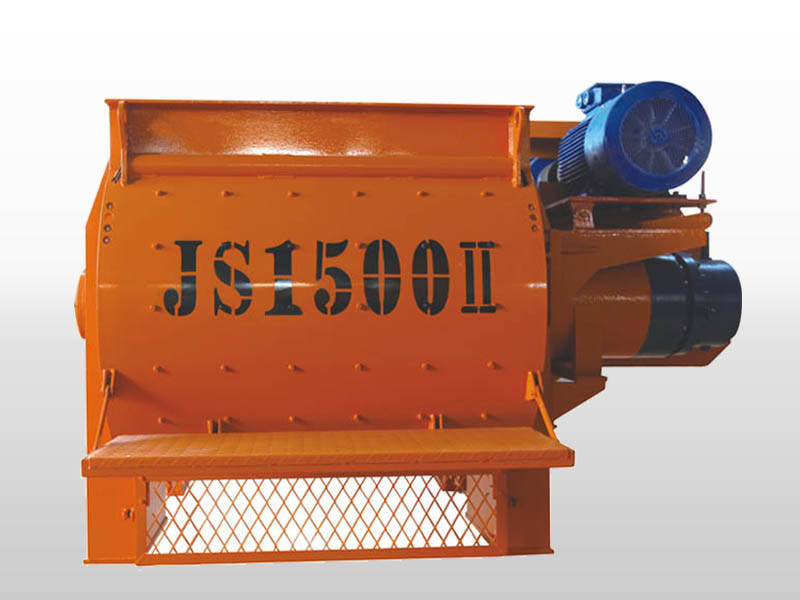

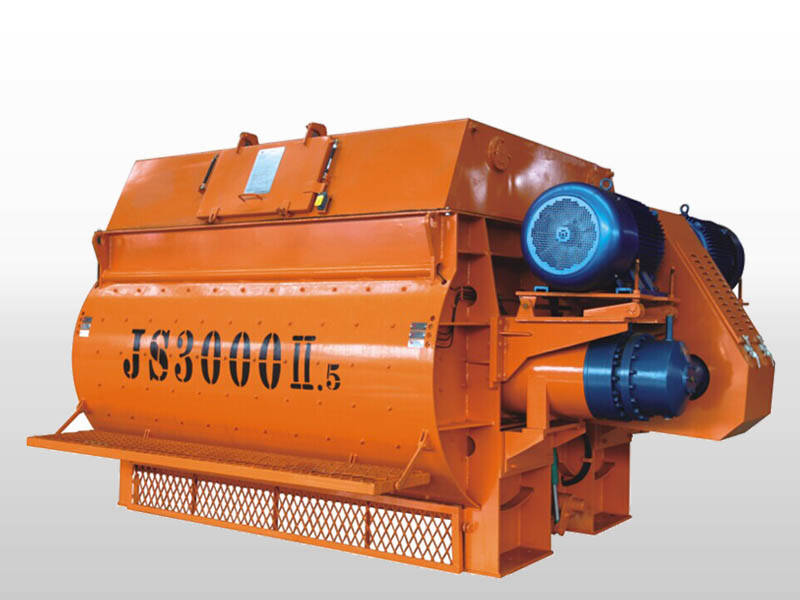

Model		JS1500II		JS2000II		JS3500II.5
Charging volume		1500L		2000L		3000L
Discharge volume		2400L		3200L		4500L
Aggregate sizes (Less than)		80mm		80mm		80mm
Working circle		52s		52s		52s
Productivity (more than)		90m3/h		120m3/h		180m3/h
Power		2*30KW		2*37KW		2*55KW
Stand voltage and frequency (can Customized)		AC380V/50HZ		AC380V/50HZ		AC380V/50HZ
Electromagnetic directional valve voltage		AC220V/DC24V		AC220V/DC24V		AC220V/DC24V
Motor speed		1450rpm		1450rpm		1450rpm
Main shaft Speed		26rpm		26rpm		26rpm
Dimensions (L x W x H)		2750*2310*2100mm		3165*2310*2100mm		4150*2480*2150mm


Note: Working circle time means sum of lifting time and mixing time and discharge time.
