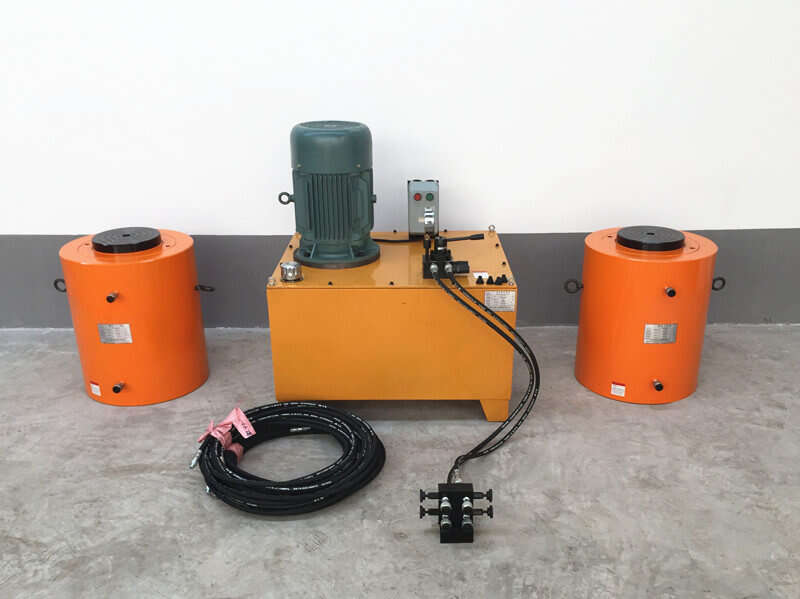

Synchronous Control Hydraulic Jack is powered by ZB series of high pressure electric oil pump, the function for oil pressure rebound, overflow, it is designed a safe protect pressurizer, it can protect emergent over pressure, especial construction can protect cylinder. Hydraulic cylinder can bear partial loading is 5% of rated pressure. High pressure alloy cylinder is very durable, especially in the larger project, it is easily to be operated and control. It can be used for lifting heavy machine, bridge project, hydraulic engineering, harbour construction and other equipment. It has large output, light weight, remote control and other advantages, it can match with our high pressure oil pump, it can reach jack, push, pull and extrusion and kinds of working.

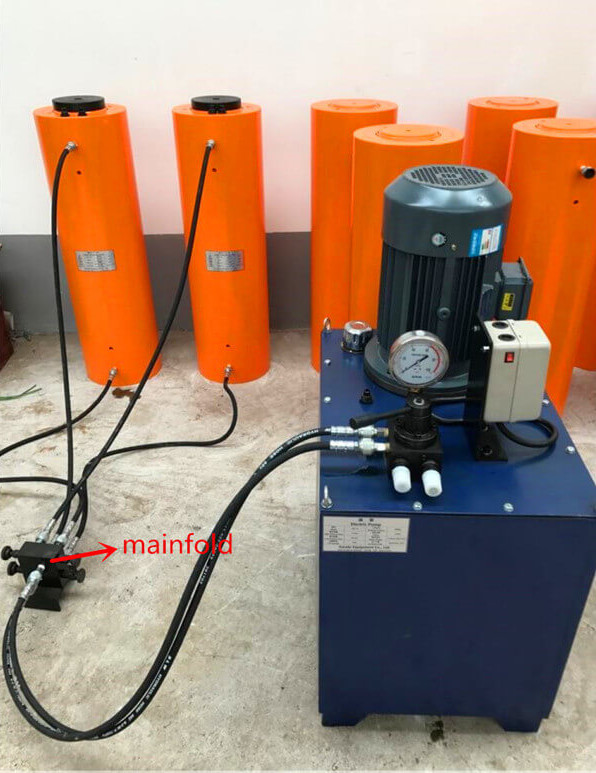

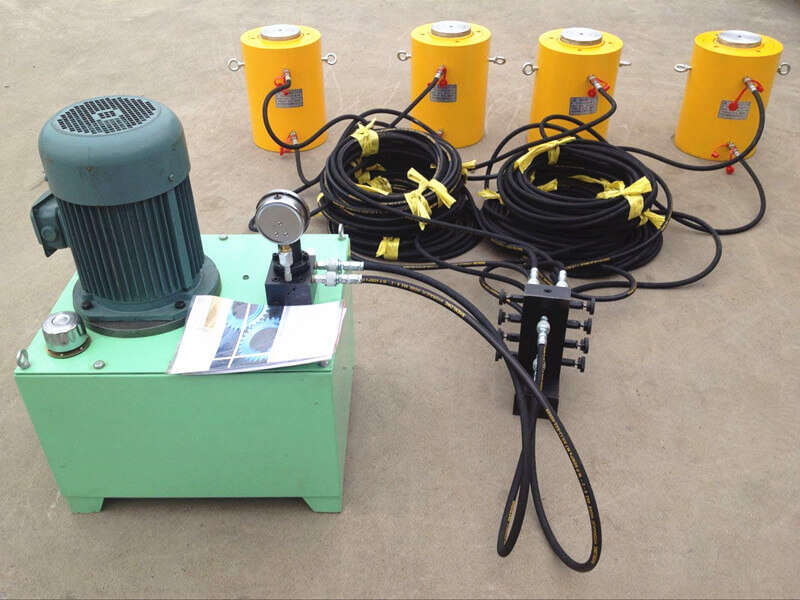

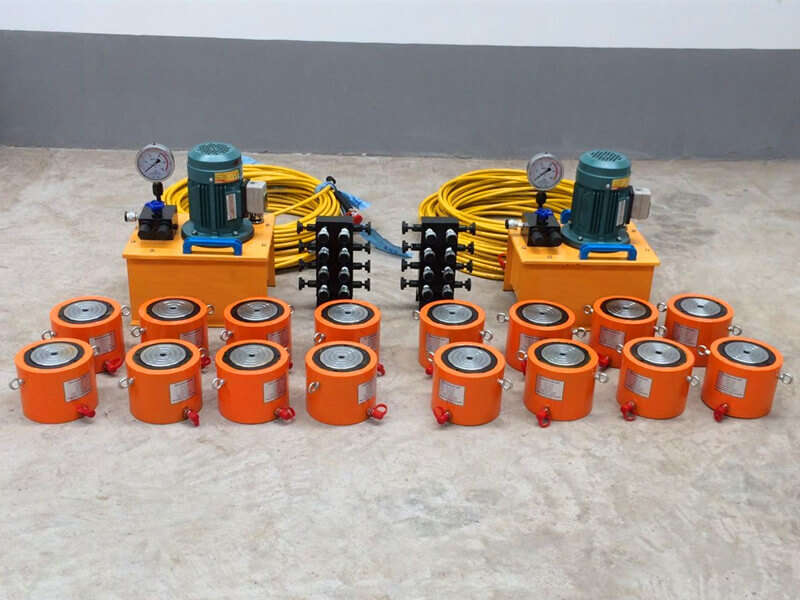

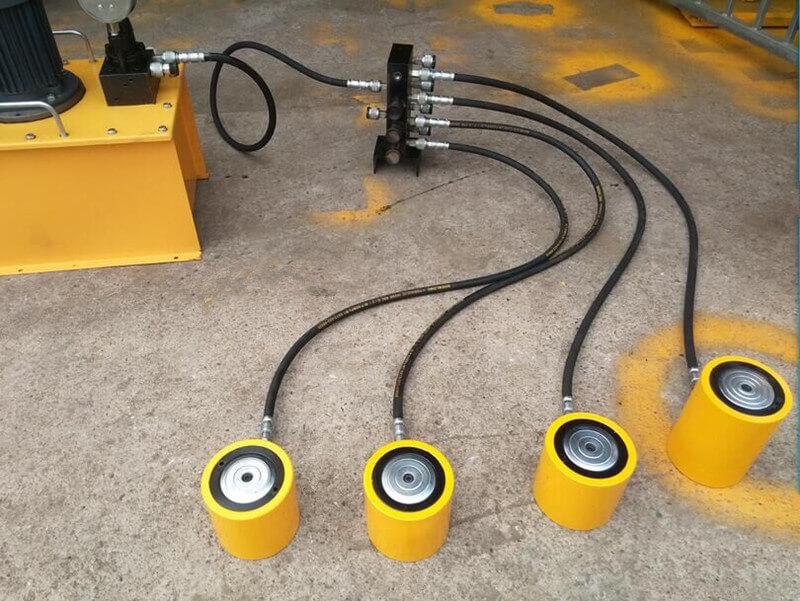

Specification: one pump with two jacks, one pump with four jacks, one pump with six jacks, one pump with eight jacks, one pump with ten jacks, one pump with twelve jacks, one pump with fourteen jacks, one pump with sixteen jacks;

Tonnage: 10tons、20 tons、30 tons、50 tons、100 tons、150 tons、200 tons、320 tons、500 tons、630 tons、800 tons、1000 tons;

Power of pump station: 1.5kw、3kw、4kw、5.5kw、7.5kw、11kw、13kw.

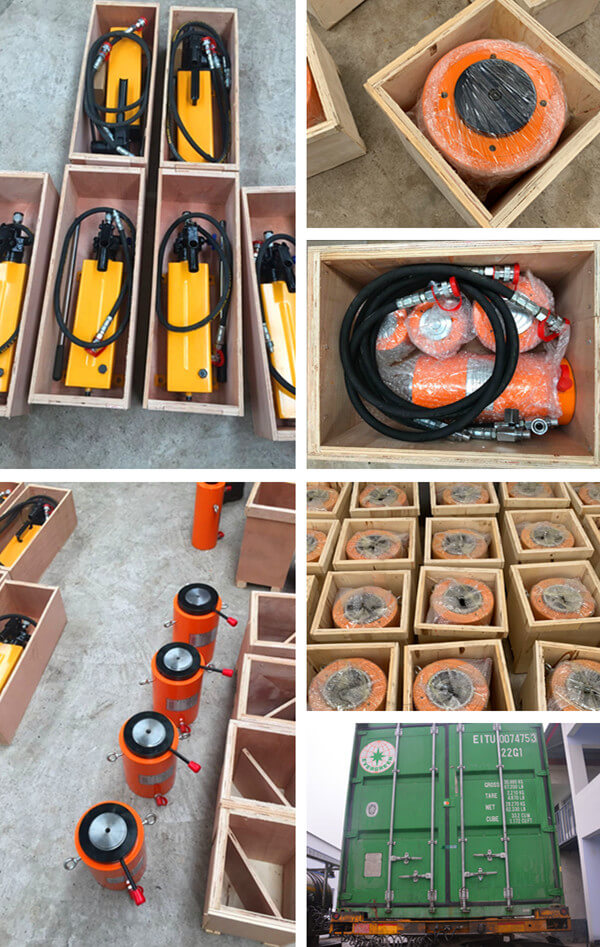

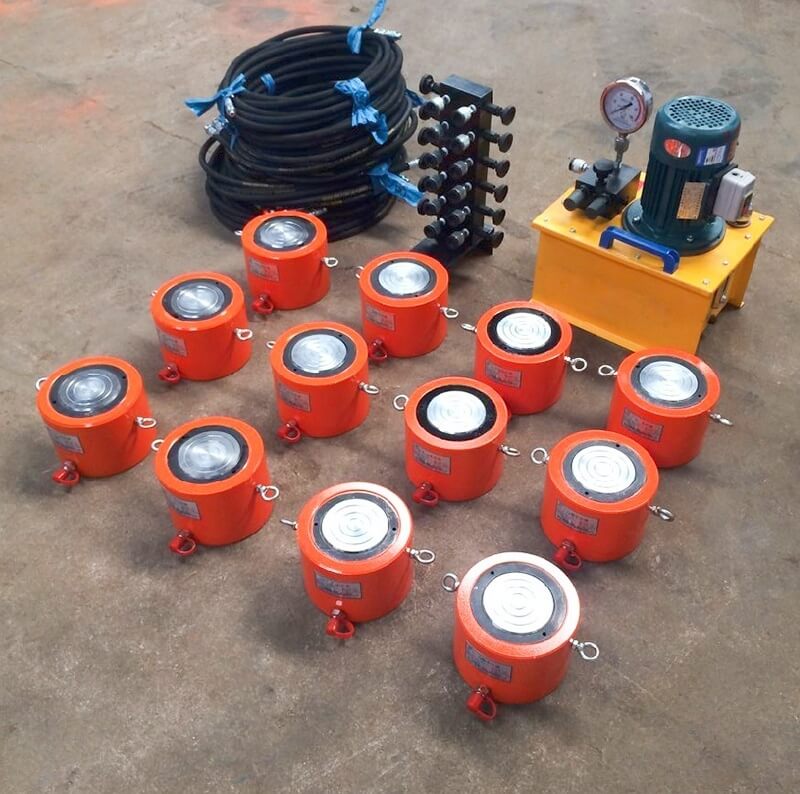

Packaging of synchronous hydraulic jack:

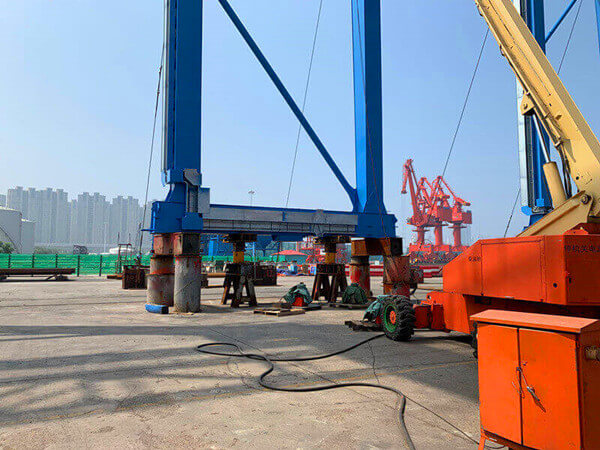

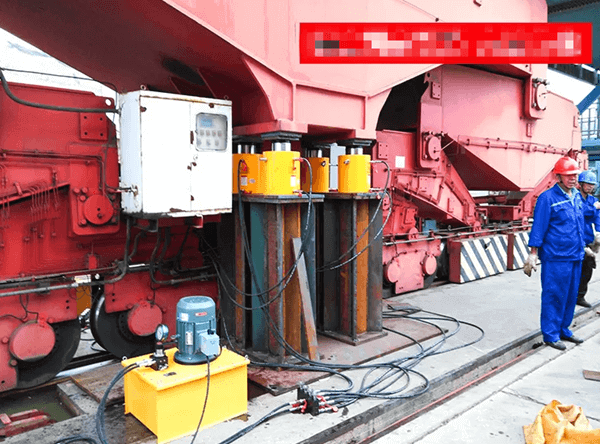

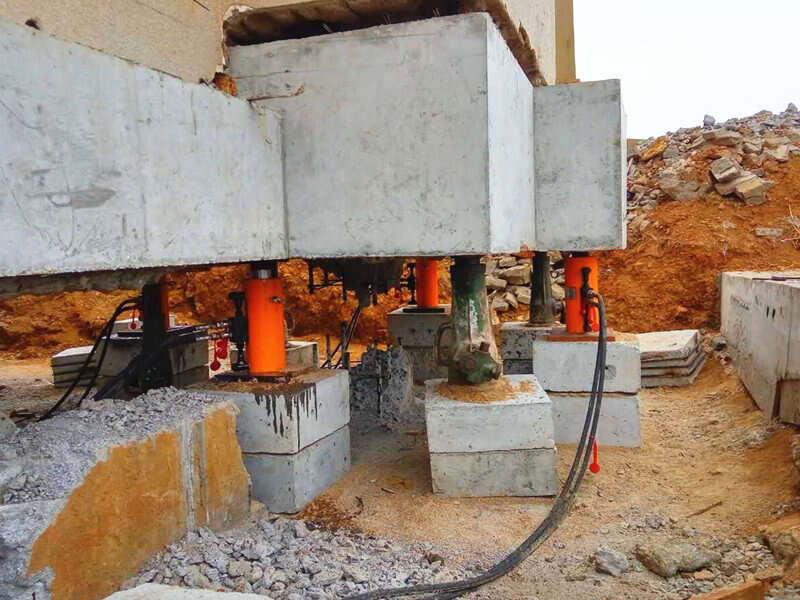

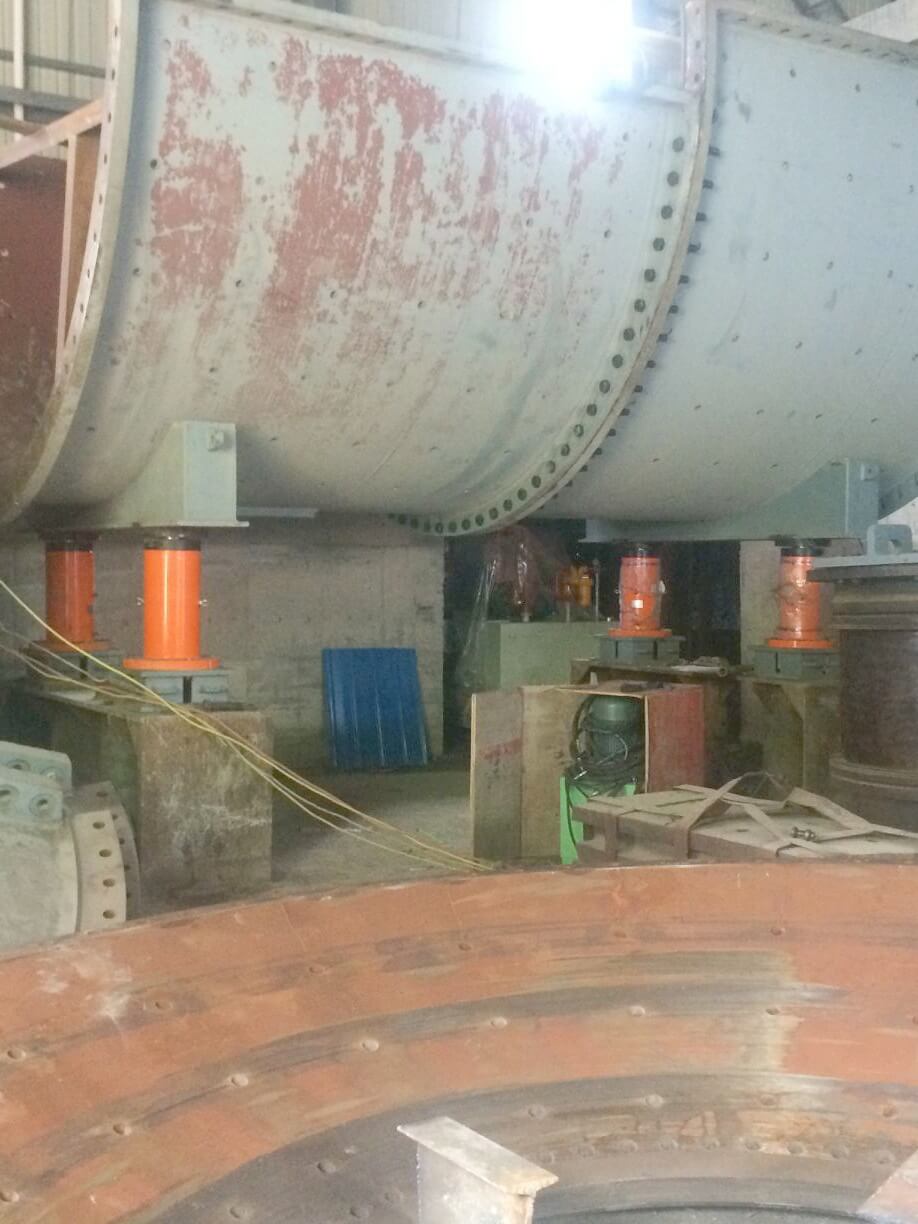

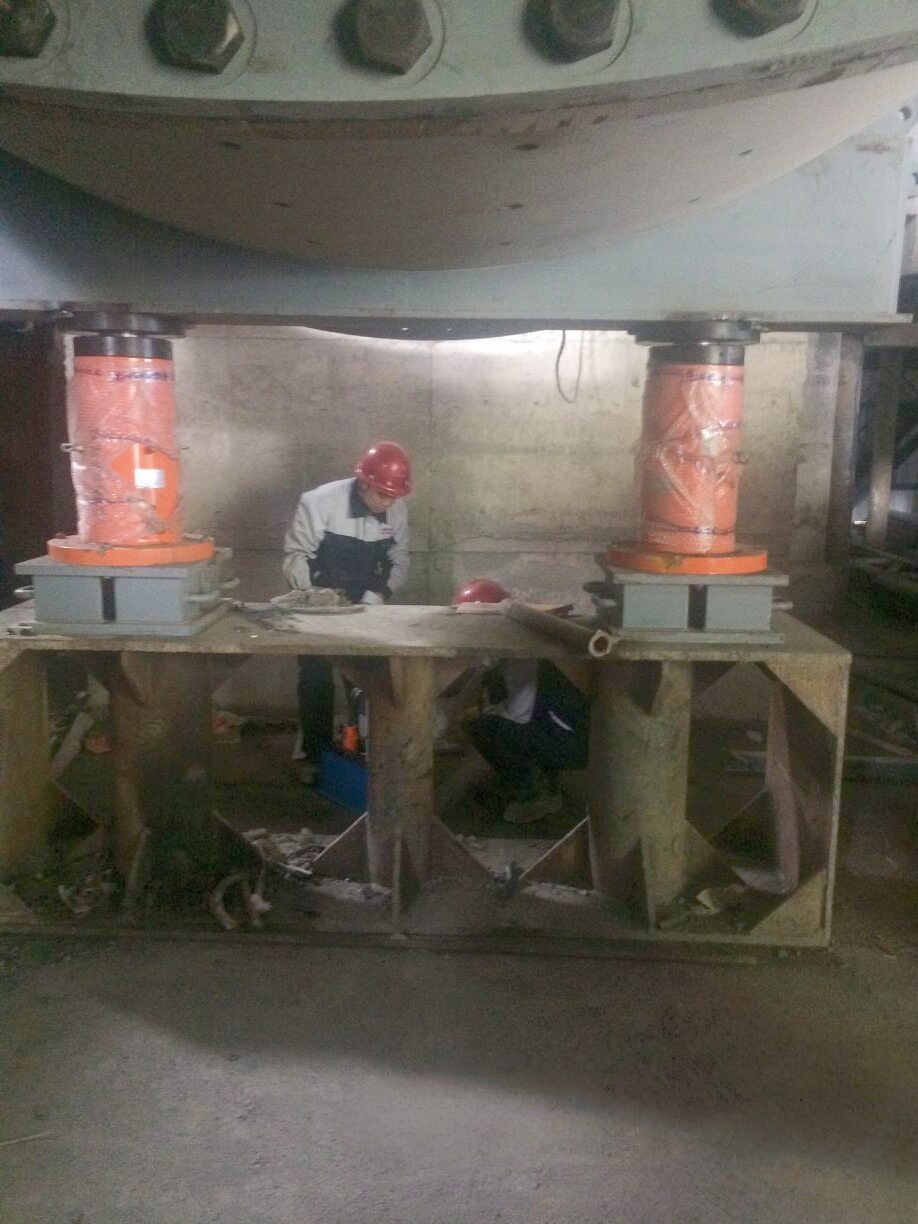

Synchronous control hydraulic jack is mainly used for rising, topping, tear downing in electric power, building, machine manufacturing, mining, railway, bridge, shipbuilding and many industrial.

Synchronous hydraulic jack is easily to be operated and control. It can be used for lifting heavy machine, bridge project, hydraulic engineering, harbour construction and other equipment. It has large output, light weight, remote control and other advantages, it can match with our high pressure oil pump, it can reach jack, push, pull and extrusion and kinds of working.

Model	Tonnage T	Stroke mm	Closed height mm	Extend height mm	OD of oil cylinder mm	Dia. of piston	ID	Weight kg	Pressure
STQ100-100	100	100	250	350	180	100	140	58	63MPA
STQ100-160		160	310	470				63
STQ100-200		200	350	550				78
STQ100-300		300	450	750				96
STQ100-500		500	650	1150				130
STQ150-100	150	100	260	360	219	125	180	58	63MPA
STQ150-160		160	320	480				69
STQ150-200		200	360	560				86
STQ150-300		300	460	760				103
STQ150-500		500	660	1160				255
STQ200-100	200	100	285	385	240	150	200	96	63MPA
STQ200-160		160	345	505				103
STQ200-200		200	385	585				116
STQ200-300		300	485	785				161
STQ200-500		500	685	1185				221
STQ320-100	320	100	310	410	330	180	250	196	63MPA
STQ320-160		160	370	530				240
STQ320-200		200	410	610				258
STQ320-300		300	510	810				311
STQ320-500		500	710	1210				456
STQ400-100	400	100	355	455	380	200	290	198	63MPA
STQ400-160		160	415	575				231
STQ400-200		200	460	660				264
STQ400-300		300	555	855				367
STQ400-500		500	755	1255				456
STQ500-100	500	100	360	460	430	200	320	323	63MPA
STQ500-160		160	420	580				330
STQ500-200		200	460	660				420
STQ500-300		300	560	860				581
STQ500-500		500	760	1260				599
