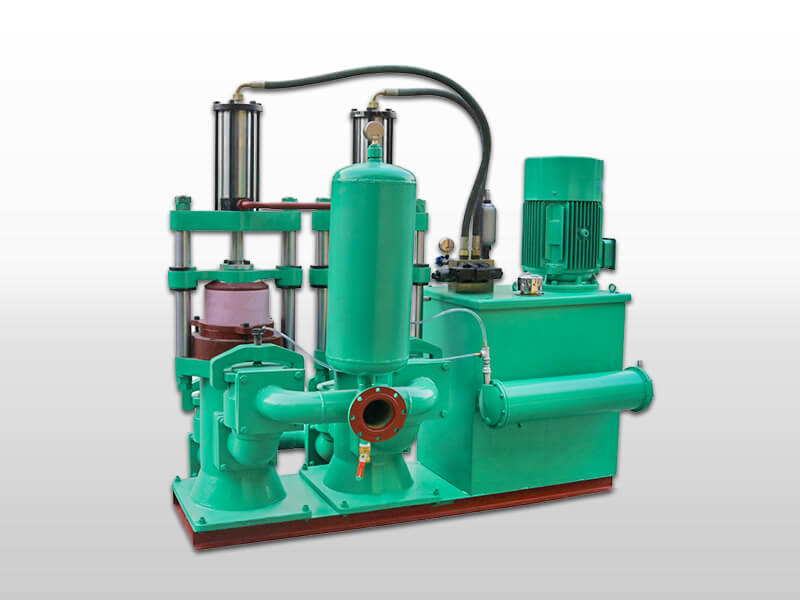

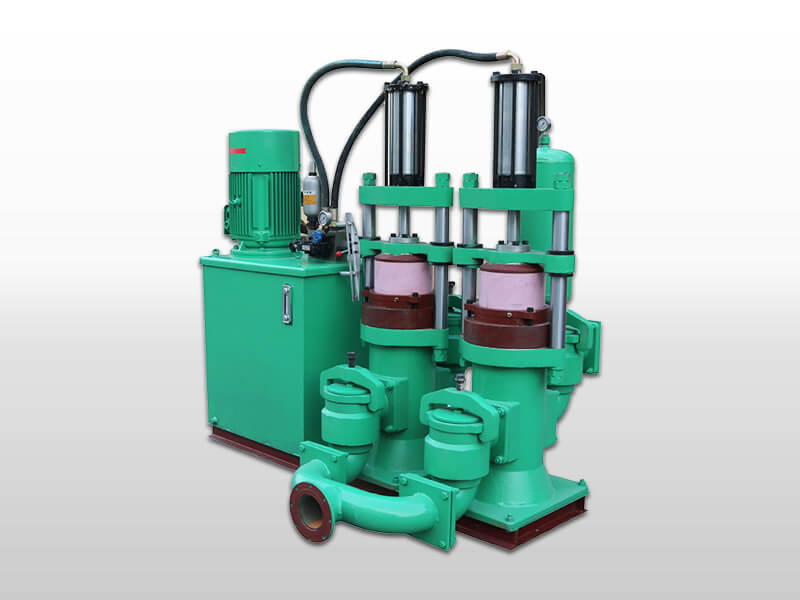

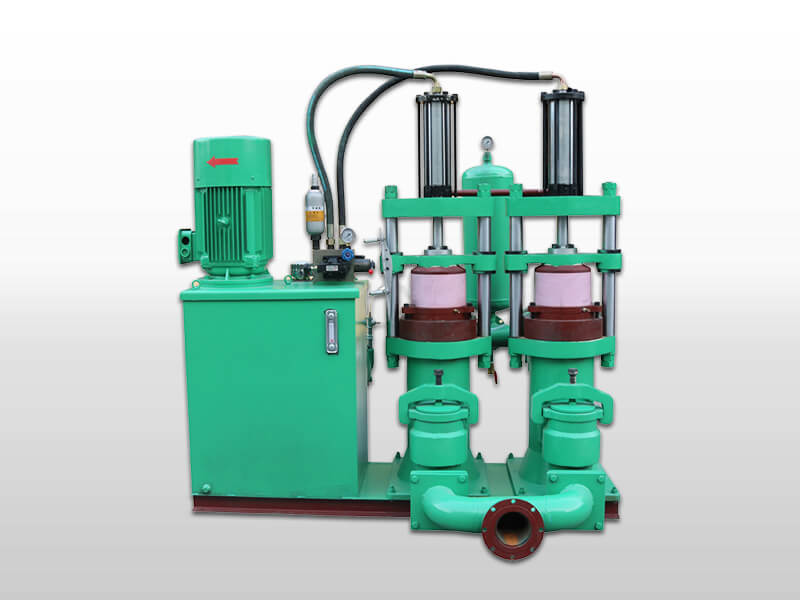

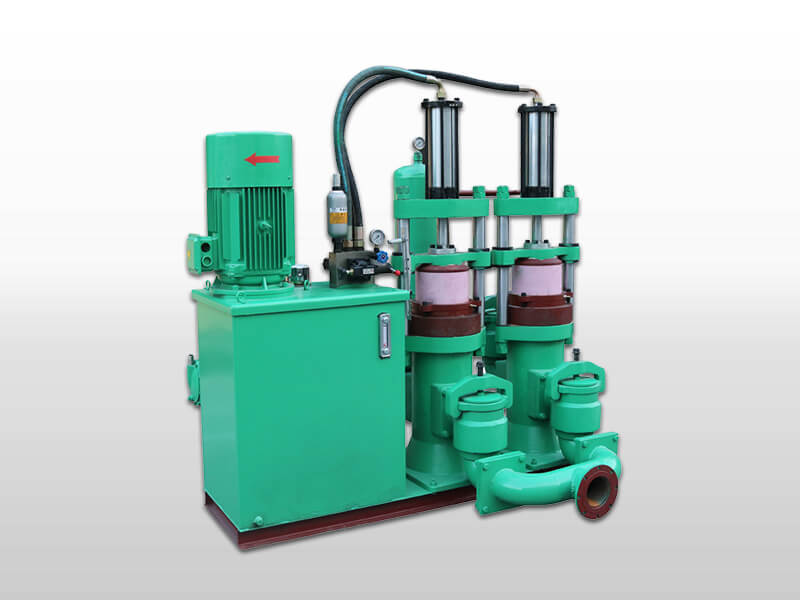

Hydraulic ceramic piston pump

Model: YB250 ceramic plunger pump
Flow rate (m³/h): 35
Pressure (MPa): 0-2.0
Max. Pressure (MPa): 2.5
Power(kw): 22
Weight(kg): 1750

We're here to help:

Easy ways to get the answers you need.

Send E-mail Leave A Message

download:Catalogue

download:

Description
Application
Features
Technical data

■ Description

YB series Hydraulic ceramic piston pump is a hydraulic displacement parallel pump double acting volume type pump. Using α-type alumina as the plunger, it has extremely high wear resistance and corrosion resistance. The Hydraulic ceramic piston pump for sale has stable and reliable operation, high output pressure and accurate measurement, low pressure fluctuation, low noise, acid and alkali resistance, easy operation and maintenance, and use Long life and other characteristics, used with filter press is the most ideal product for various types of solid-liquid separation.

YB series hydraulic ceramic plunger mud pumps have nearly 20 models in seven series, YB85, YB140, YB200, YB250, YB300, YB350, YB400, and the flow rate can range from 0-120m3/h. The maximum pressure of commonly used pumps can reach 2.5MPa, the rated pressure is 2.0MPa, the maximum pressure of low-flow high-pressure pumps can reach 8.0MPa, and the rated pressure is 6.0MPa; the maximum pressure of large-flow high-pressure pumps can reach 3.5MPa, and the rated pressure is 3.0MPa. Low-pressure pump pressure is 1.5MPa, its flow is 10-20% higher than the rated flow of similar pumps.

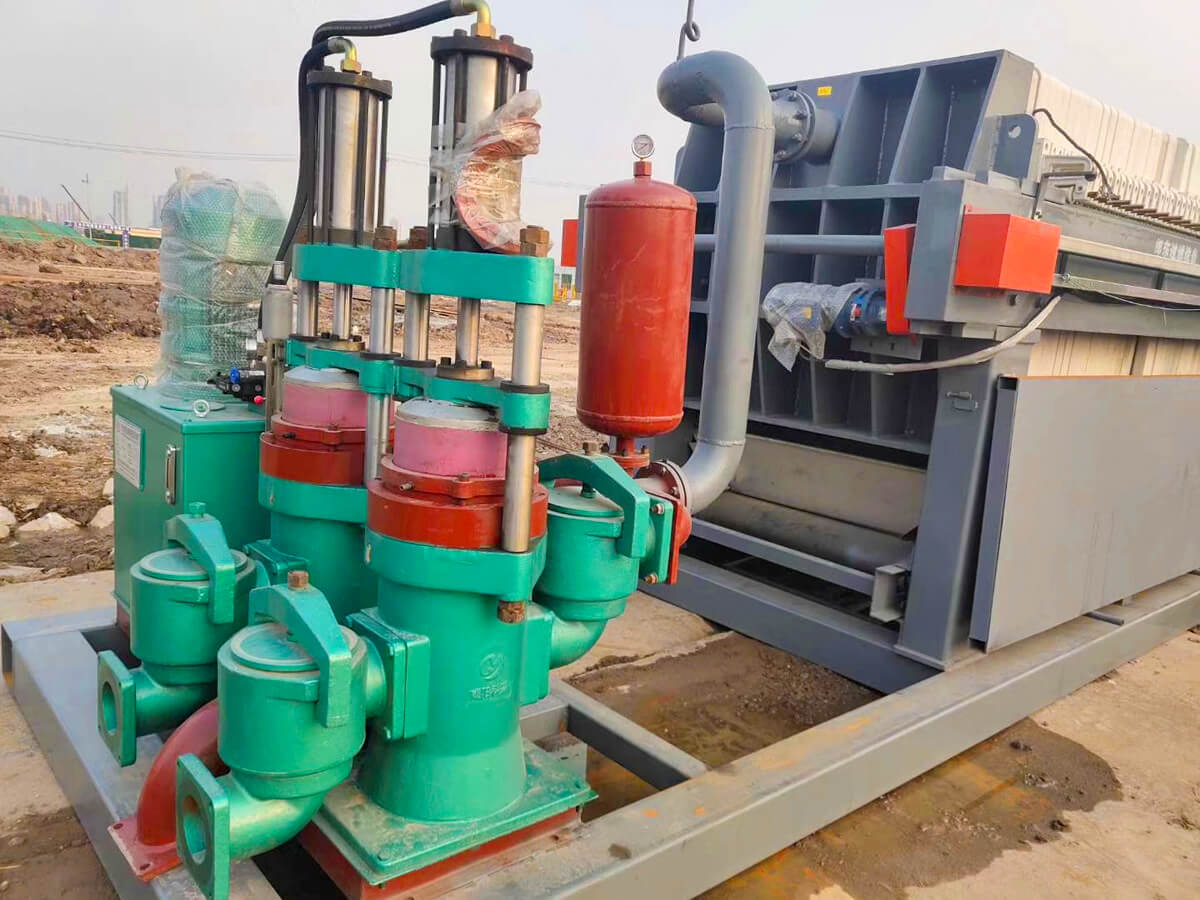

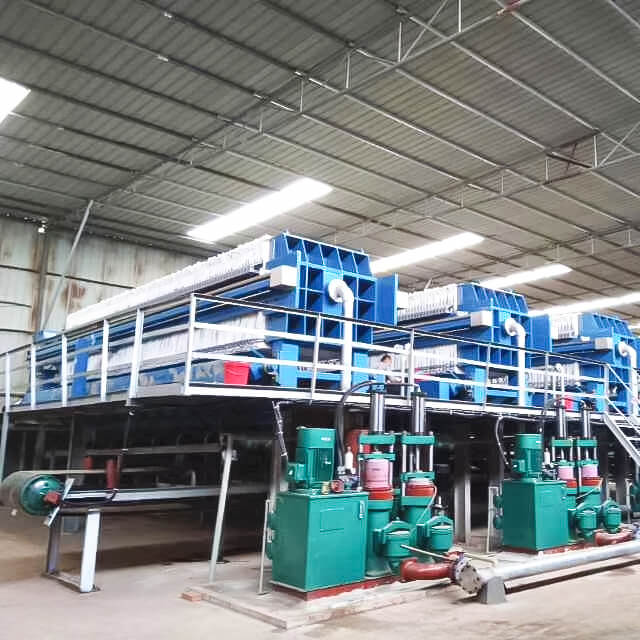

The YB ceramic plunger pump is equipped with a filter press, one can replace 3-4 old-fashioned diaphragm pumps, which not only reduces floor space, but also reduces maintenance costs and power consumption for users.

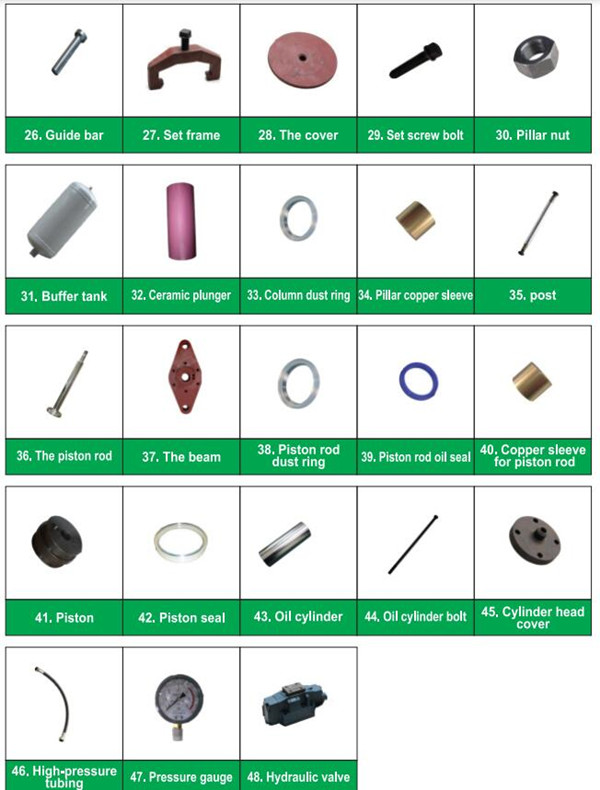

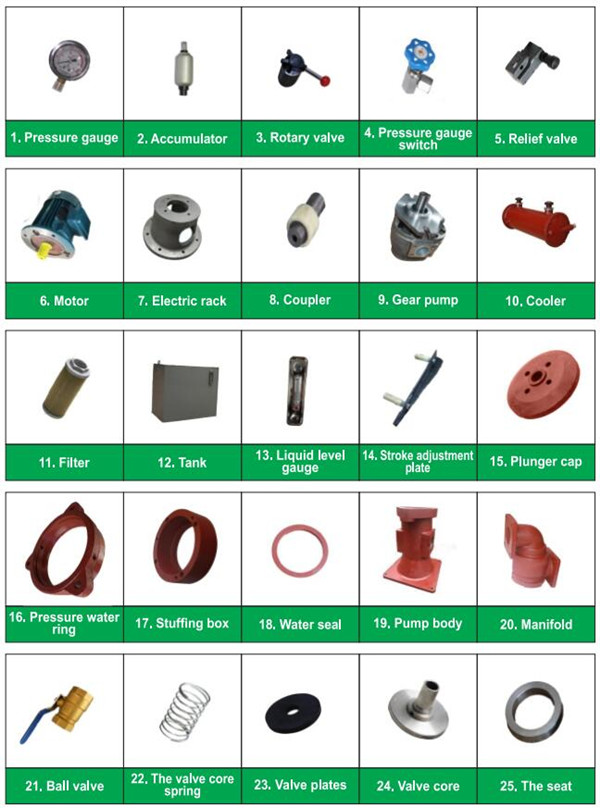

YB series ceramic plunger pump details:

ceramic plunger pump details

Our hydraulic plunger pump only has these two wearing parts, low maintenance cost.

■ Features

Hydraulic ceramic piston pump features:

1. Wear resistance: The plunger is made of alumina ceramics and is finely ground. The hardness is above HLC8.5 and the surface roughness is 0.4um. The plunger and the conveyed materials have no shearing movement. It is suitable for conveying materials with sand and solid particles.

2. Strong self-priming ability: plunger-type vacuuming method, self-priming capacity 4-8 meters (the specific gravity of the material determines the change of the suction range).

3. Adjustable constant pressure automatic variable: the working pressure of the plunger mud pump is adjustable, and it can be adjusted arbitrarily within the range of 0-2MPa. The adjusted pressure will not change due to the change of the pump output flow, and the set pressure will remain unchanged , Even if the outlet of the running pump is shut down, the pressure will not change. (The change cannot exceed the maximum flow rate of the pump, the flow rate can be zero).

4. High pressure and high efficiency: The maximum pressure of ordinary models is 2MPa. When the pressure is ≥0.5MPa and the flow rate is the same, the power of the plunger mud pump motor is 1 to 2 models smaller than other types of pumps.

5. Simple operation: only need to tighten or loosen the pressure regulating valve to adjust the pressure. After the pressure is adjusted, it will be locked, and there is no need to adjust it later.

6. Low cost of use: The vulnerable parts of the pump are valve and plunger seal. The replacement cycle of ceramic slurry is 3-6 months, and the municipal sludge is 6-12 months.

7. Long service life: The service life is at least 15 years.

8. Customized production of mud pump: The company can flexibly configure according to the actual industrial and mining requirements of each user, and customize various plunger mud pumps that are most suitable for the customers' needs.

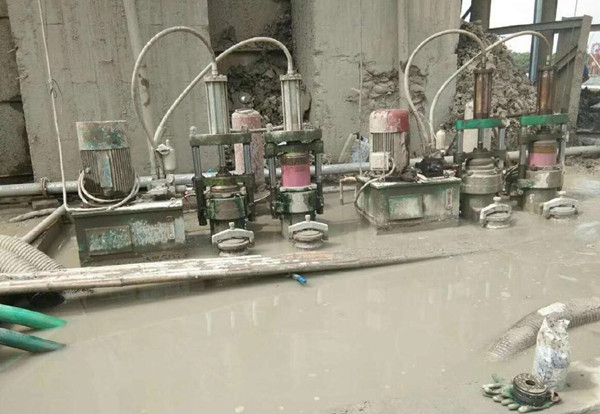

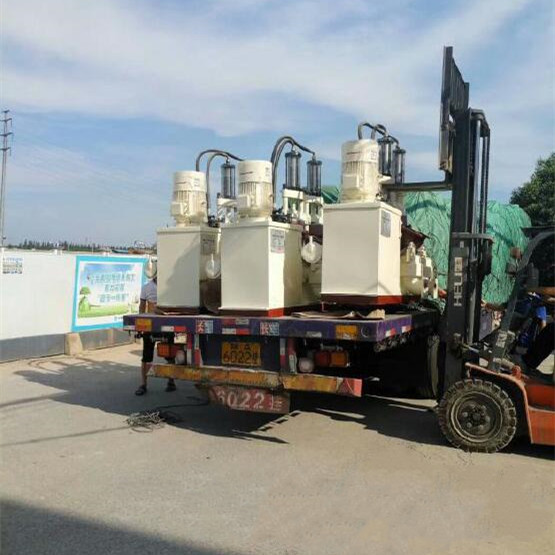

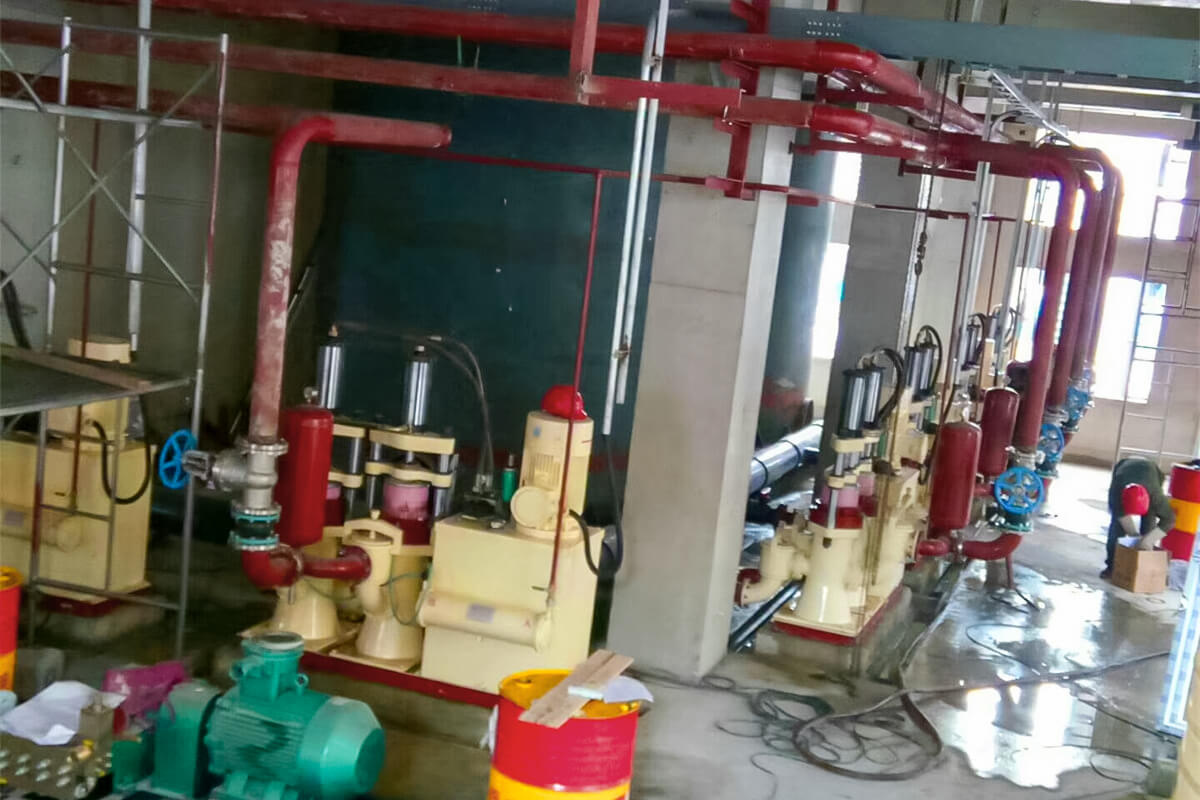

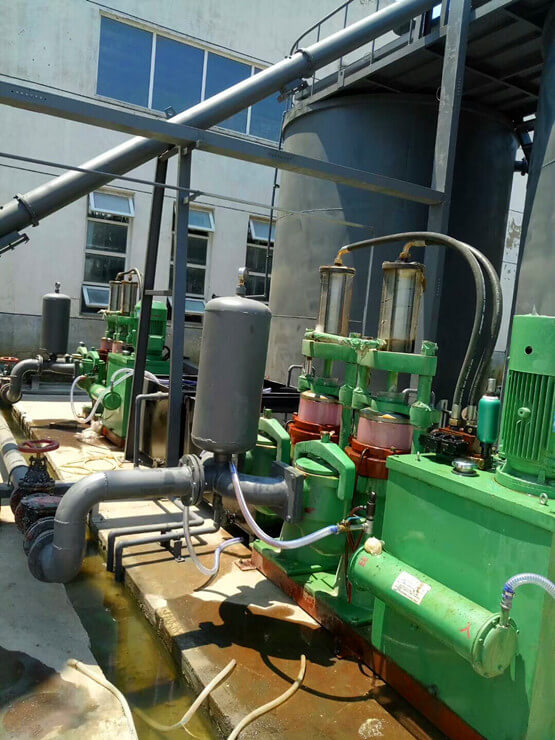

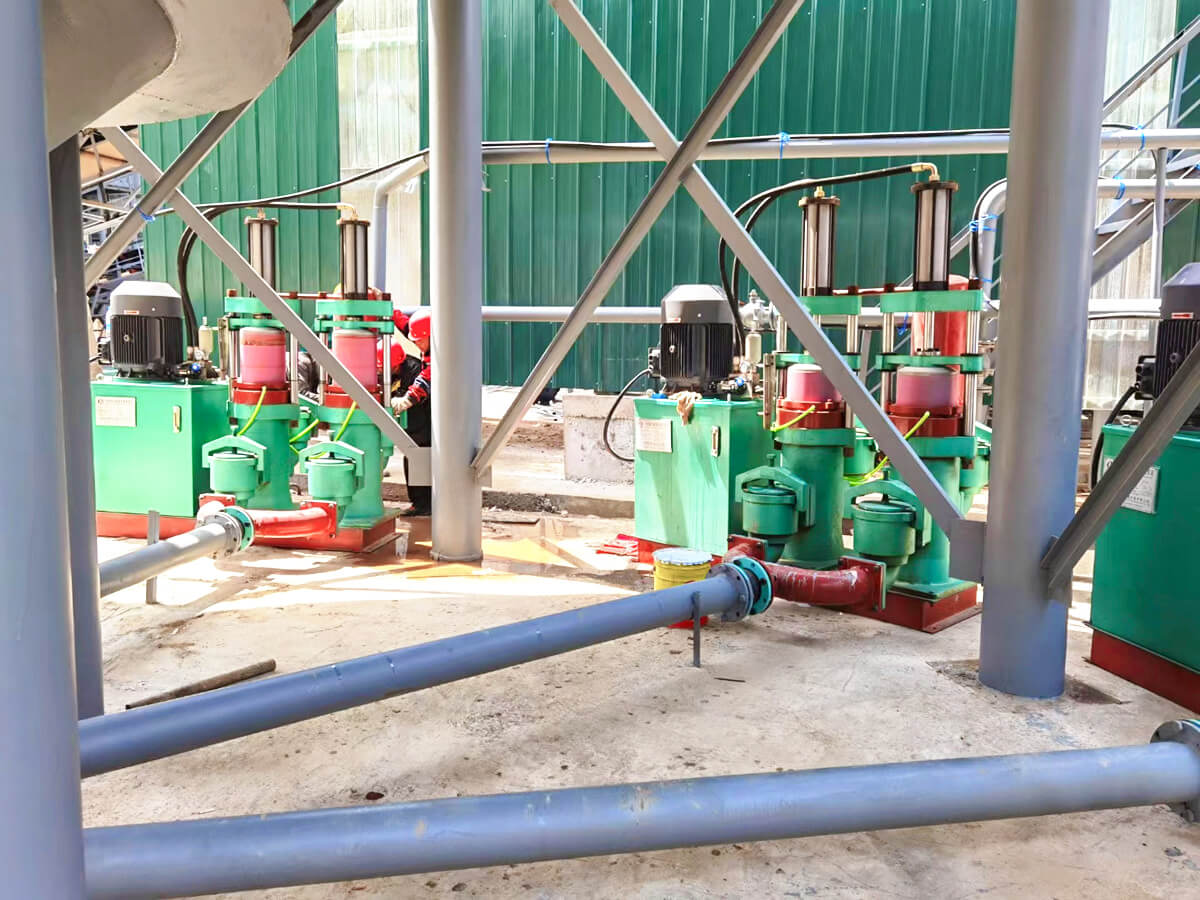

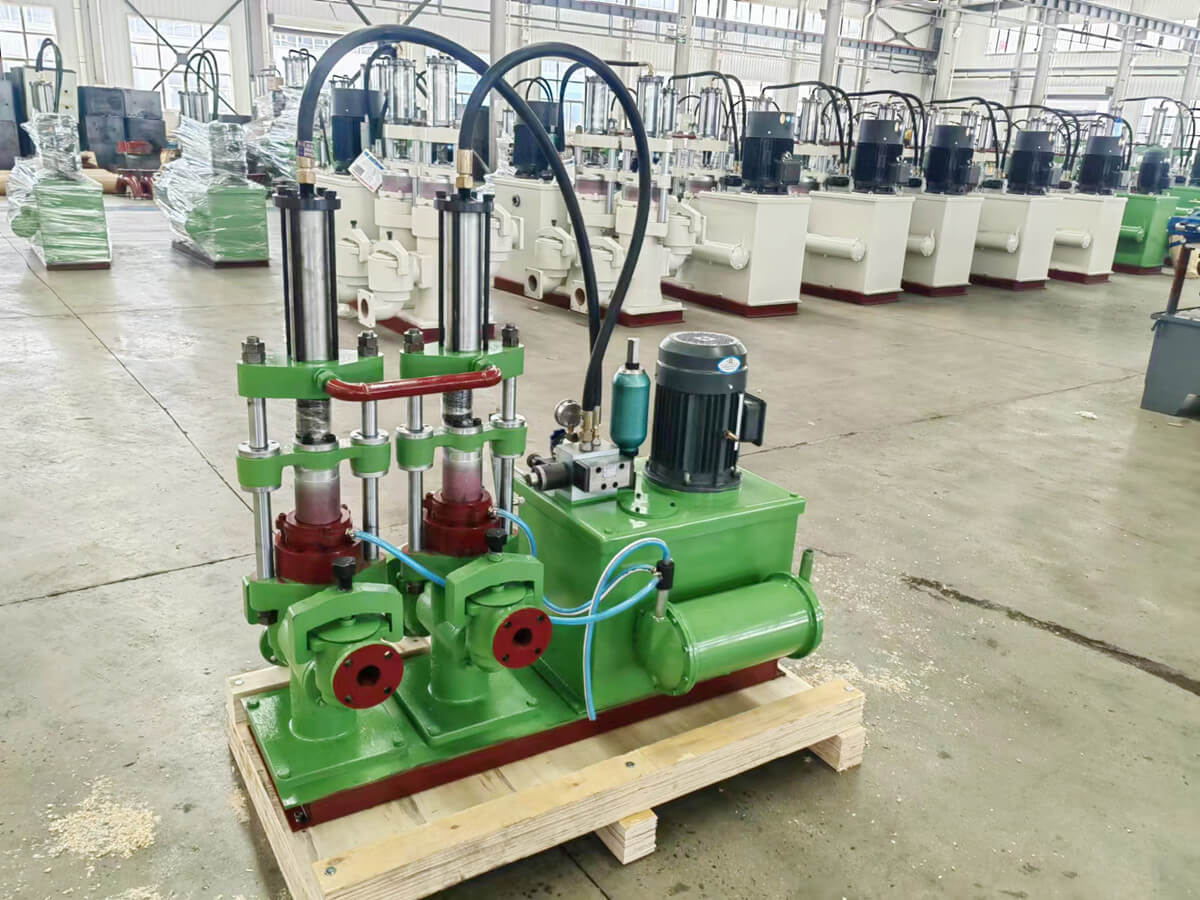

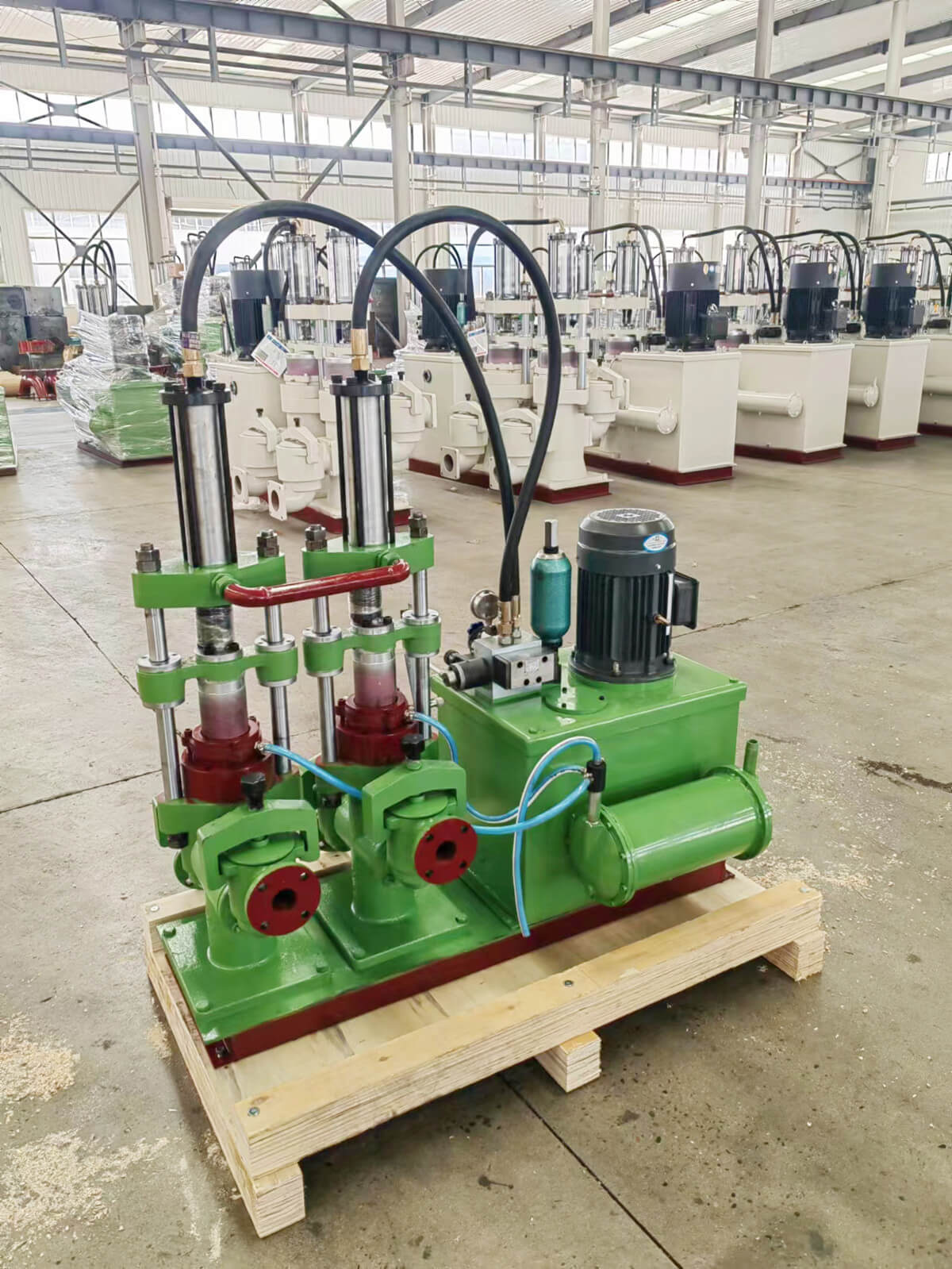

Ceramic plunger pump factory, supplier and manufacturer:

ceramic plunger pump manufacturers

■ Technical data

Model	Flow rate (m³/h)	Pressure (MPa)	Max. Pressure (MPa)	Power(kw)	Weight(kg)	Dimension(mm)
YB85	3	0-2.0	2.5	4	420	13208501500
YB140	10	0-2.0	2.5	15	1000	165010501810
YB200	19	0-2.0	2.5	18.5	1250	180011502050
YB250	35	0-2.0	2.5	22	1750	210014502200
YB300	40	0-2.0	2.5	30	2100	220016002200
YB400	100	0-2.0	2.5	55	3800	240018002300
