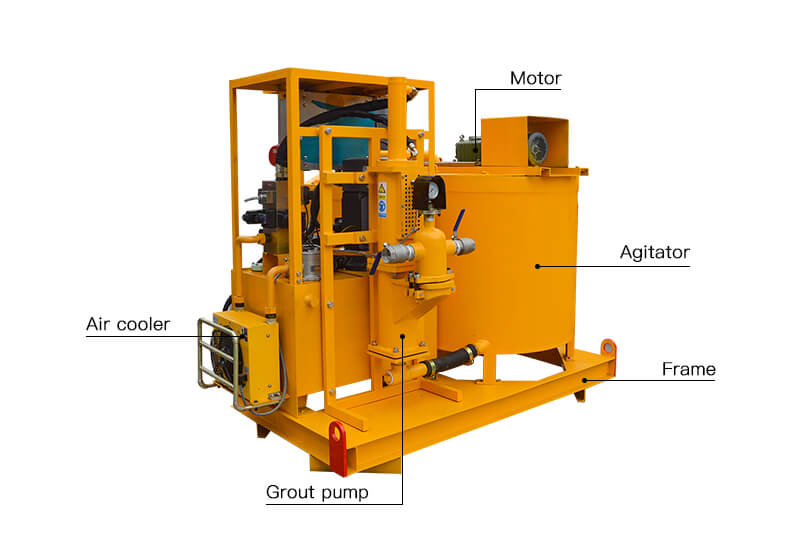

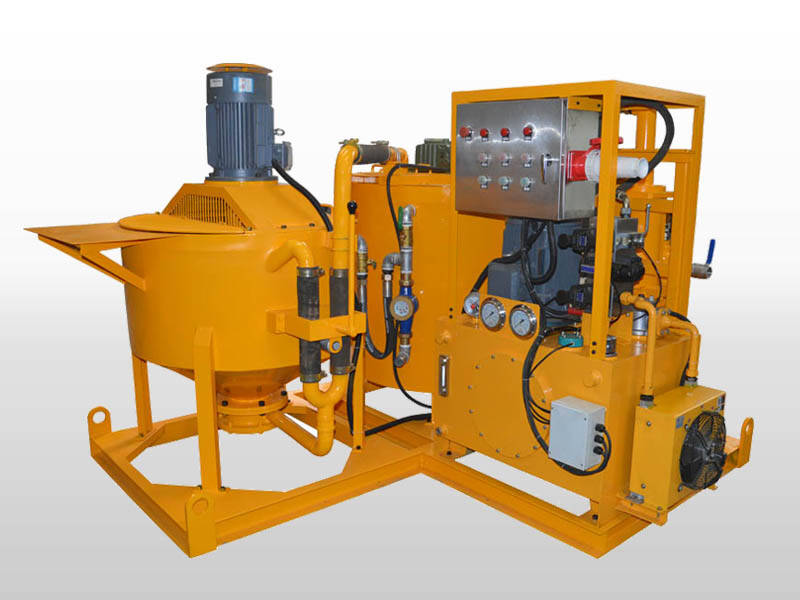

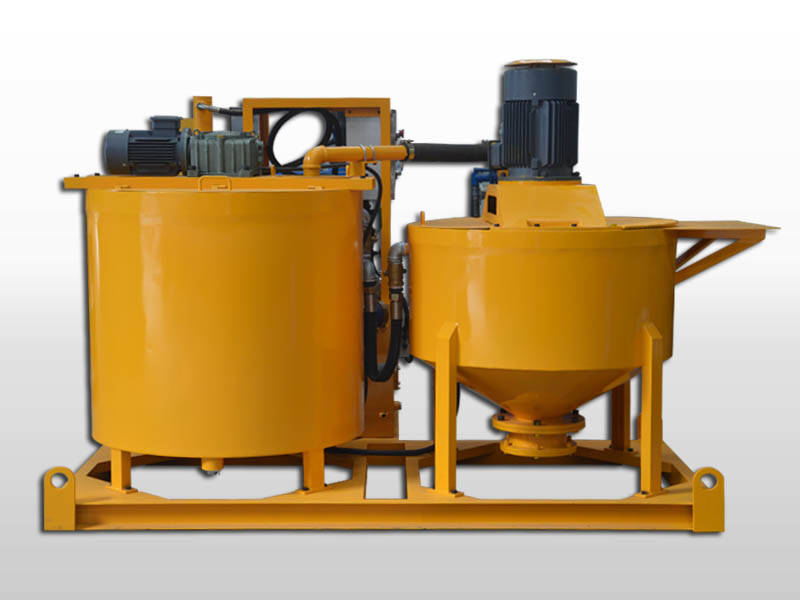

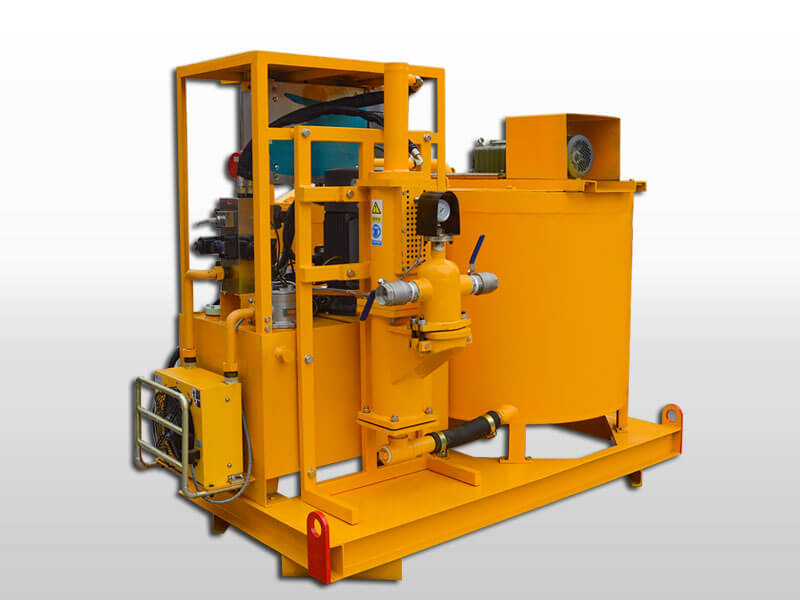

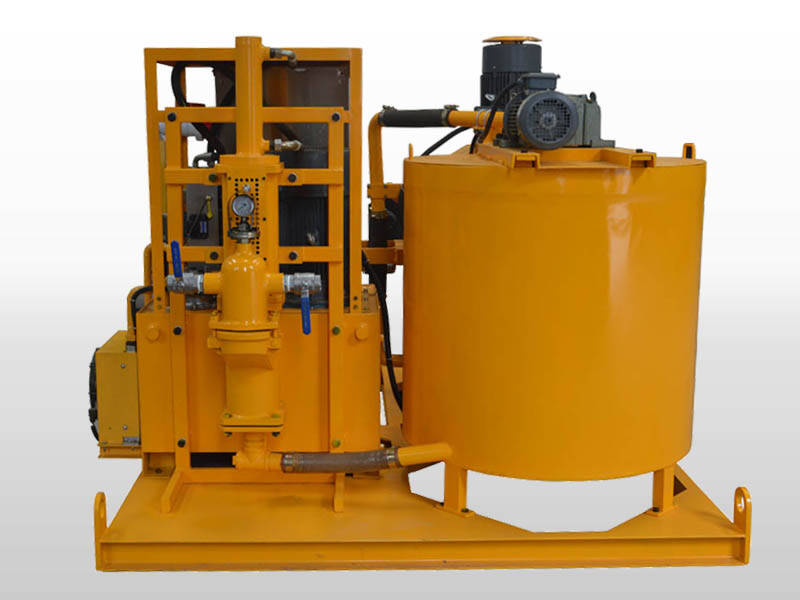

GGP400/700/80PL-E grout station is a combination of mixer, agitator and grout pump in one plant. It is mainly used in highway, railway, hydropower, construction, mining and other ground and underground construction. High speed vortex mixer ensures mix quickly and evenly. Water, cement and other media are quickly mixed into a homogeneous slurry. Then the mixed slurry was delivered to the agitator. Grout pump injects from the mixing drum (storage tank). This ensures a continuous mixing and grouting operations. The grouting pump is hydraulic drive. Grouting pressure and displacement is stepless adjustable. Compact size and it is easy to operate. It also takes up a small space.

1. Civil engineering - dam, tunnel, subway, mine, soil nailing wall, curtain, anchor, cable trench and anchor grouting;
2. Building structure - building and bridge repair, foundation reinforcement, slope support, soil compaction, terrg grouting;
3. Engineering - underwater foundation, offshore platform, coast foundation grouting reinforcement;
4. Mine application - roadway reinforcement, backfill, waterproof grouting;
5. Acted as a grouting plant in the Pipe Jacking Machine.

1. Grouting pressure, displacement is stepless adjustable;
2. Simple structure, light weight, easy maintenance;
3. Continuous output with small pulse;
4. Less spare parts ensure low maintenance costs;

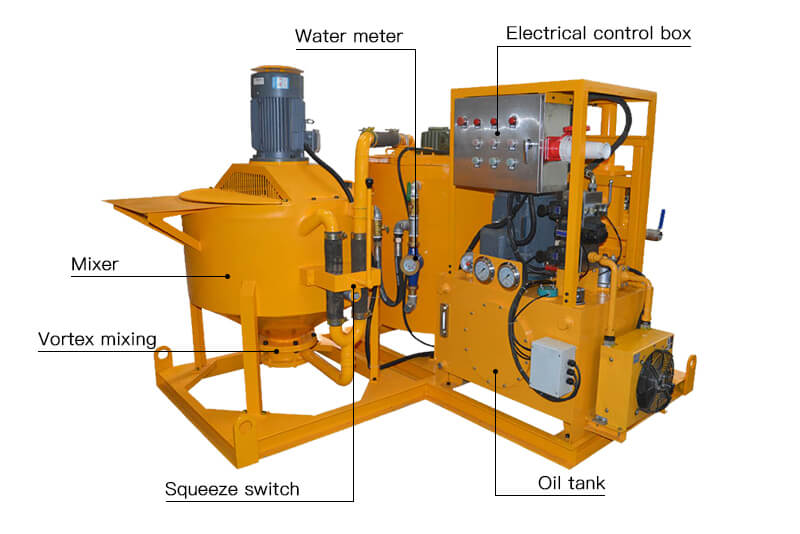

5. High speed vortex mixer ensures mix quickly and evenly;
6. Mixer and agitator switch by using squeeze handle, it is safe, reliable and easy to operate;
7. The motor has an overload protection function. Hydraulic system with oil temperature overheating protection;
8. Grout station is with high-speed, low-speed mode, by using ball valve to achieve two-function switch;
9. With CE, ISO certification.

Description	Data
Grout Station model	GGP400/700/80PL-E
Dimensions	2500x2200x1730mm
Weight	1350kg
Mixer
Capacity	400L
Output	6m3/h
Power	7.5Kw, 1450rpm, 50Hz, 380V
Rated Rev	1450rpm
W/C ratio	≥0.5:1
Agitator
Capacity	700L
Rated Rev.	36rpm
Power	1.5Kw, 50Hz, 380V
Pump
Pressure/Output	High speed: 0-2.5MPa  0-80L/min
	Low speed: 0-4.5MPa   0-58L/min
Power	15kw, 50Hz, 380V
