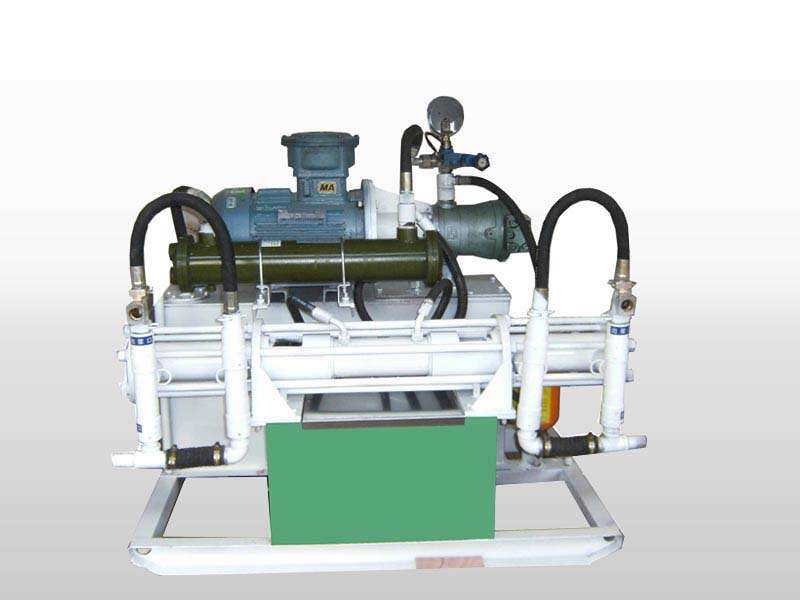

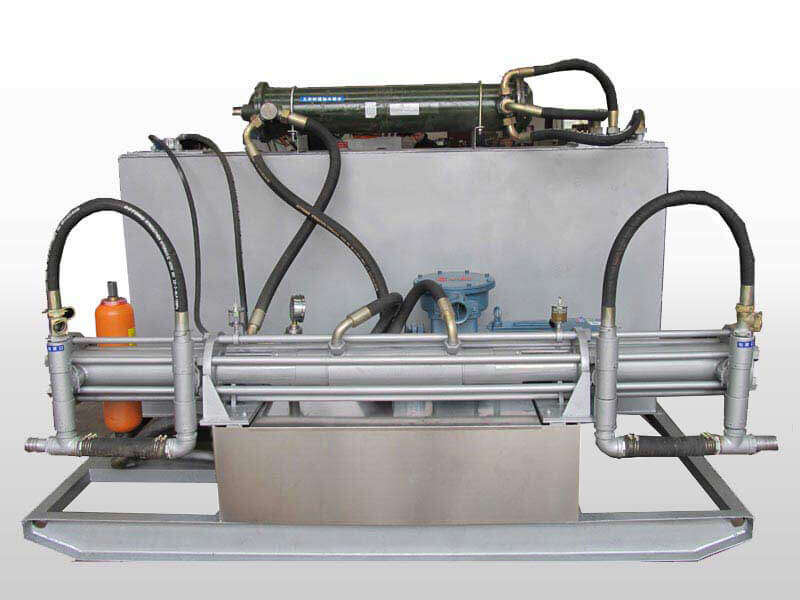

GH-HD series hydraulic grout pump is suitable for grouting plugging project of high pressure and large displacement. This pump transmits pressure signals by working medium (slurry and hydraulic oil) to form closed-loop automatic control function, therefore the pump is simple in structure, can regulate timely and accurately, and has no overpressure problem. This Dual Slurry Hydraulic Grouting Pump can adjust its output and working pressure by continuously variable adjustment, and has the function of automatic regulating output according to the pre-seted grouting final pressure.

GH-HD series hydraulic grout pump can grout simple-liquid, dual-liquid and chemical grout.

The technology originally comes from Japan, and is updated by us, right now, our GH-HD series grout pumps have new characteristics as follows:
1. New technical hydraulic system with smooth shift and reliable work.
2. Volume and weight are about the half of the original Japanese pump.
3. Equipped with large capacity hydraulic accumulator, no impact in shift
4. Equipped with large size water cooler, can work continuously for a long time.
5. Operation and maintenance are simple.
6. The pump is equipped dual-liquid regulator(patented).
7. With ISO, CE certificate

7.5kw High Pressure Grout Pump
Power(kw)		Overall Dimension	Weight（kg）	Aggegate				Pump Slurry Ratio		Hydraulic oil tank
7.5		1.2×0.7×1.1m	360	≤Φ3mm				1:1-1:0.5		100L
Power(kw)		Model	Rated Output					Rated Pressure
			L/min			M3/h		Mpa
7.5		☆GH140/6-7.5HD	140			8.4		6
		GH120/7-7.5HD	120			7.2		7
		☆GH100/9-7.5HD	100			6.0		9
		☆GH80/11-7.5HD	80			4.8		11
		☆GH66/13-7.5HD	66			3.96		13
		GH60/15-7.5HD	60			3.6		15
		☆GH50/18-7.5HD	50			3.0		18
		☆GH40/22-7.5HD	40			2.4		22
Accessories		Suction hose, filter, delivery hose, junction device, tools, sealing parts bit. Optional: thickness slurry hopper, hole plug, mixture ratio regulator, baume gauge.
15kw,18.5kw dual slurry grout pump
Power(kw)	Overall Dimension		Weight（kg）	Aggregate			Pump Slurry Ratio		Hydraulic oil tank
15,18.5	1.4×0.8×1.3m		560,630	≤Φ3mm			0.5:1～1:1(W/C)		200L
Power(kw)	Model		Output				Pressure
			L/Min		M3/h		Mpa
15	GH210/8-15HD		210		12.6		8
	GH190/10-15HD		190		11.4		10
	GH150/12-15HD		150		9.0		12
	GH120/15-15HD		120		7.2		15
	GH100/17-15HD		100		6.0		17
	GH80/24-15HD		80		4.8		24
	GH60/30-15HD		60		3.6		30
18.5	☆GH210/9-18.5HD		210		12.6		9
	☆GH190/11-18.5HD		190		11.4		11
	☆GH150/14-18.5HD		150		9.0		14
	☆GH120/17-18.5HD		120		7.2		17
	☆GH100/20-18.5HD		100		6.0		20
	GH90/23-18.5HD		90		5.4		23
	☆GH80/28-18.5HD		80		4.8		28
	☆GH60/33-18.5HD		60		3.6		33
Accessories	Suction hose,filter, delivery hose, junction device, tools, sealing parts bit. Optional: thickness slurry hopper, hole plug, mixture ratio regulator, baume gauge.



22kw,37kw dual slurry grout pump
Power(kw)	Overall Dimension	Weight（kg）	Aggregate		Pump Slurry Ratio	Hydraulic oil tank
22,37	2.0×1.35×1.5m	1000, 1200	Φ3mm		0.5:1～1:1(W/C)	300L
Power(kw)	Model	Output			Pressure
		L/min		M3/h	Mpa
22	GH320/8-22HD	320		19.2	8
	GH270/9-22HD	270		16.2	9
	GH220/11-22HD	220		13.2	11
	GH180/14-22HD	180		10.8	14
	GH140/18-22HD	140		8.4	18
	GH120/20-22HD	120		7.2	20
	GH100/24-22HD	100		6.0	24
	GH95/28-22HD	95		5.7	28
	GH80/34-22HD	80		4.8	34
37	☆GH320/10-37HD	320		19.2	10
	GH270/12-37HD	270		16.2	12
	☆GH220/15-37HD	220		13.2	15
	☆GH180/18-37HD	180		10.8	18
	GH140/23-37HD	140		8.4	23
	☆GH120/26-37HD	120		7.2	26
	GH100/31-37HD	100		6.0	31
	GH95/37-37HD	95		5.7	37
	☆GH80/45-37HD	80		4.8	45
Accessories	Suction hose,filter, delivery hose, junction device, tools, sealing parts bit. Optional: thickness slurry hopper, hole plug, mixture ratio regulator, baume gauge.



45kw dual slurry grout pump
Power(kw)	Overall Dimension	Weight（kg）	Aggregate		Pump Slurry Ratio	Hydraulic oil tank
45	2.4×1.4×1.5m	1,600	Φ3mm		0.5:1～1:1(W/C)	400L
Power(kw)	Model	Output			Pressure
		L/Min		M3/h	Mpa
45	GH700/7-45HD	700		42	7
	GH500/10-45HD	500		30	10
	GH400/12-45HD	400		24	12
	GH340/15-45HD	340		20.4	15
	GH280/18-45HD	280		16.8	18
	GH220/23-45HD	220		13.2	23
	GH190/26-45HD	190		11.4	26
	GH160/31-45HD	160		9.6	31
	GH140/37-45HD	140		8.4	37
	GH100/45-45HD	100		6.0	45
Accessories	Suction hose, filter, delivery hose, junction device, tools, sealing parts bit. Optional: thickness slurry hopper, hole plug, mixture ratio regulator, baume gauge.



55kw,75kw dual slurry grout pump
Power(kw)	Overall Dimension	Weight（kg）		Aggregate	Pump Slurry Ratio	Hydraulic oil tank
55,75	2.6×1.4×1.7m	1800, 1900		Φ3mm	0.5:1～1:1(W/C)	600L
Power(kw)	Model	Output			Pressure
		L/Min	M3/h		(Mpa)
55	☆GH700/8.5-55HD	700	42		8.5
	GH500/12-55HD	500	30		12
	GH400/14-55HD	400	24		14
	GH340/18-55HD	340	20.4		18
	☆GH280/22-55HD	280	16.8		22
	GH230/27-55HD	230	13.8		27
	☆GH190/32-55HD	190	11.4		32
	GH160/37-55HD	160	9.6		37
	☆GH140/44-55HD	140	8.4		44
75	GH1000/10-75	1000	60
	GH700/15-75HD	700	42		15
	GH500/20-75HD	500	30		20
	GH400/23-75HD	400	24		23
	GH340/26-75HD	340	20.4		26
	GH280/33-75HD	280	16.8		33
	GH210/44-75HD	210	12.6		44
Accessories	Suction hose,filter, delivery hose, junction device, tools, sealing parts bit. Optional: thickness slurry hopper, hole plug, mixture ratio regulator, baume gauge.

Those which marked with " ☆" are commonly grout pump types in coal mine , and have passed MA certificate.
