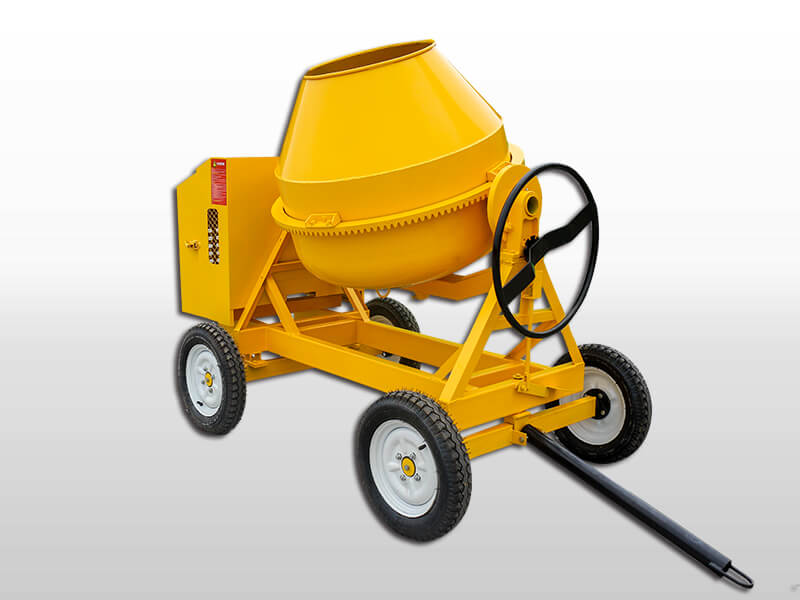

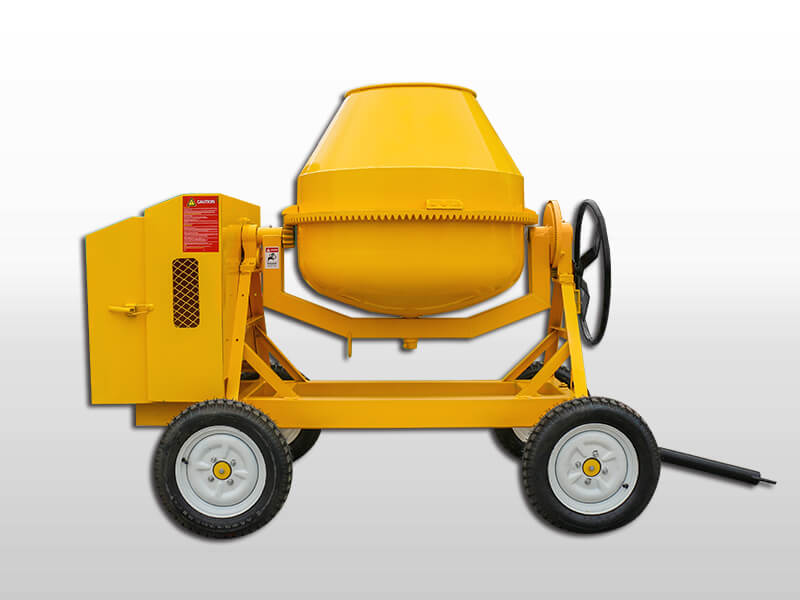

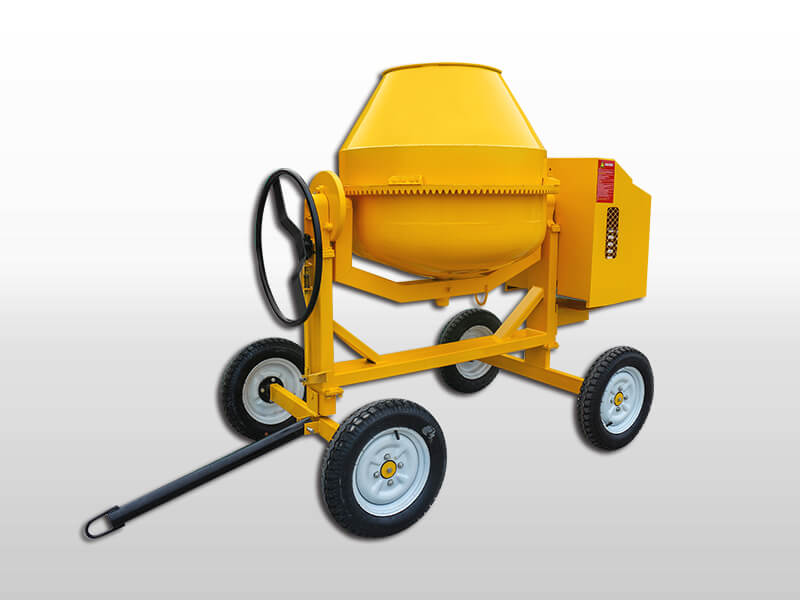

CM-D series portable concrete mixer machine is a mixing machine of tilting drum which discharges concrete by steering wheel, suitable for mixing plastic and semi-dry & hard concrete with the size of aggregate up to 60mm. It is of bigger capacity, self-falling type.

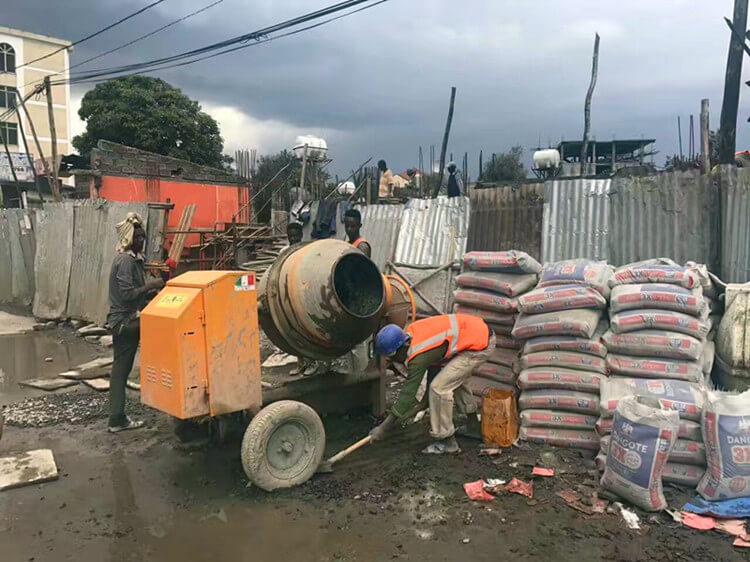

Portable concrete mixer with diesel engine is widely used in building site, road and bridge project, and many other construction sites. It is of bigger capacity, self-falling type. It is suitable for mixing plastic and low-slump concrete.

CM-D series portable mini diesel power concrete mixer for sale from our factory with best price:

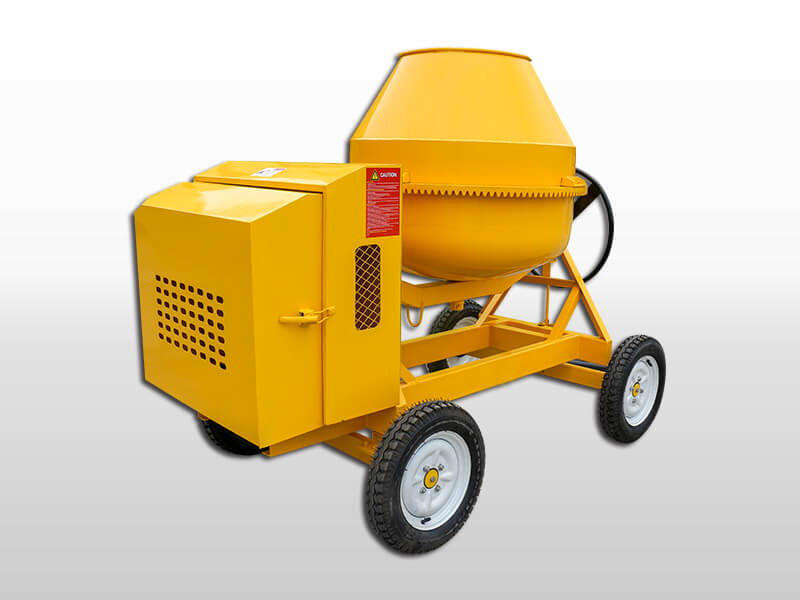

CM-D series portable mini diesel power concrete mixer is mainly used in the field of small-scale architecture and decoration for mixing mortar, and mixing chemicals and feeds, etc.

Features of portable mini concrete mixer:
1. Special casting or steel-sheet gear ring made in one piece;
2. Foldable frame for easy stock and transport;
3. All steel structure of our portable mini concrete mixer provides the ultimate in stability;
4. Large drum diameter for excellent mixing results;
5. Swivels and tilts 360 ° for easy and complete discharge;
6. Driving shaft mounted on sealed ball bearing;
7. Cast iron gear for concrete mixer steady and silent working;
8. Diesel, Gasoline or Electric driven mini diesel concrete mixer solutions, diesel power can also be used in areas without electricity supply.

Details of CM-D series portable mini diesel power concrete mixer:

Engine Option
1). Portable mini concrete mixer is equipped with Diesel Engine: Chinese famous brand CHANGCHAI、CHANGFA as option.  2). Mini diesel concrete mixer is equipped with Electric Motor: 380V, 50HZ, 3-Phase、220V, 60HZ, 3-Phase or according to your request. 3). Portable diesel concrete mixer equipped with Gasoline Engine: International brand HONDA、ROBIN as option.
Mixing Drum
	The mixing drum of diesel power concrete mixer is made of Q235 wear resistant steel plate.The thickness of the drum is 3mm. But the bottom of the drum is made by 4mm steel plate.
Cast Iron Gear Ring
Each gear ring and bevel gear have been processed with a fine lathe finishing.

Model	CM-350D	CM-400D	CM-500D	CM-600D
Diesel Engine Power	6HP	6HP	8HP	8HP
Capacity	350L	400L	500L	600L
Feed volume	210L	250L	320L	380L
Discharge volume	140L	160L	200L	240L
Speed of Mixing Drum	30RPM	30RPM	30RPM	30RPM
Productivity	5m3/h	6m3/h	8m3/h	9m3/h
Weight	315kg	325kg	335kg	355kg
Quantity in 20ft container	12PCS	12PCS	10PCS	10PCS
Quantity in 40ft container	26PCS	26PCS	22PCS	22PCS
