GD320S Self propelled thermoplastic road marking machine adopt Germany intelligent programming controller and Humanized control panel, and match with stepless walking system, which improve the working efficiency. It’s the main equipment for thermoplastic road line marking work, marking line when work with thermoplastic hot melt kettle. This machine adopts specially designed high precision cast iron marking bucket to ensure index line’s even edge, head, thickness and tidy lines. The grounding knife can apply to road surface of different conditions. There is timing and buffering facility in glass beading automatic broadcasting machine, which made this machine has some features such as high efficient, stable performance, easy operation, and convenient maintenance.

It is used for Suitable for all kinds of road conditions. Especially suitable for the ramp construction, greatly reducing the user's labor force, improve the efficiency of construction.

1. GD320S Self propelled thermoplastic road marking machine is high efficient;
2. Self propelled thermoplastic road marking machine is stable performance;
3. Thermoplastic road marking machine is easy operation;
4. Road marking machine is convenient maintenance.

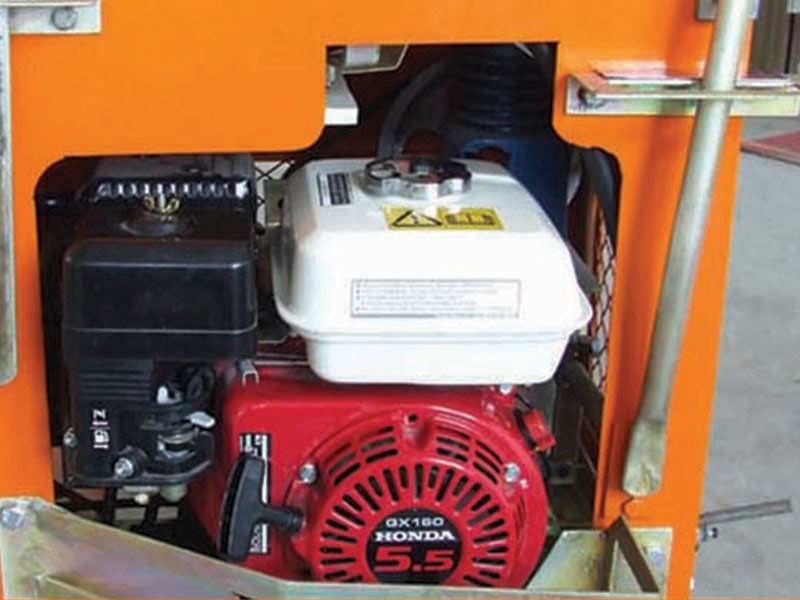

Walk drive mode	Automatic oil and infinitely variable speed
Walk speed	＞400m/h
Max. Gradeability degree	15°
Coating capacity	100KG,two-layer stainless steel holding and heating tank, inserting manual agitating device, demountable device
Glass bead tank capacity	10KG/box
Glass bead broadcasting machine	Synchronizing interface broadcasting, equipped with speeder
Shoe	Made by high-precision ultrathin materials, drag structure, standard positioning 150mm
Grounding knife	Hard alloy, equipped with eccentric sleeve, index line’s thickness can be adjusted from 1mm to 2.5mm
Rubber tire	Lead alloy wheel nave, made by heat resisting rubber, tail pulley equipped with localizer which make the machine walk directly
Marking width	100,150,200,250,300,400,450mm,change shoe of different scales according to the project
Heating method	petroleum liquefied gas
Dimension	1320*820*1000mm
Weight	150KG
