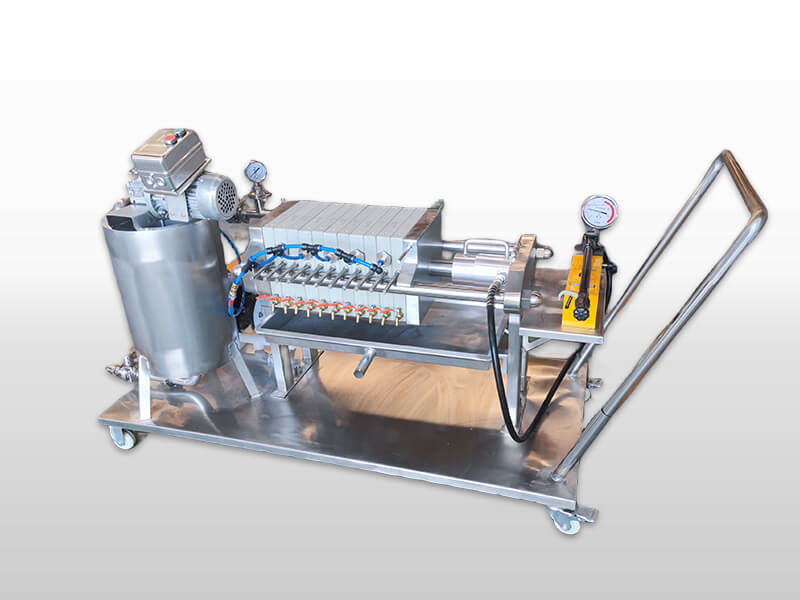

Small type membrane filter press adopts international advanced TPE membrane technology so that it ensures stable performance and long life-span, and widely used for various industries.
Small membrane filter press is especially for viscous materials, it has a unique filtering effect.

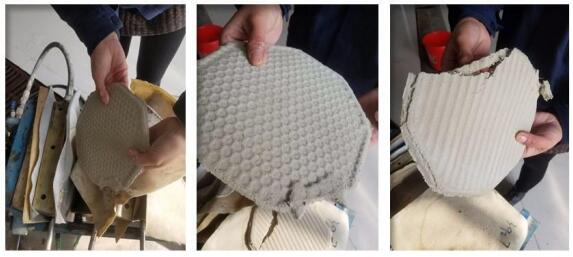

Cake from membrane filterpress can be secondly squeezed under max 1.6Mpa by water to realize the lowest cake residual moisture.

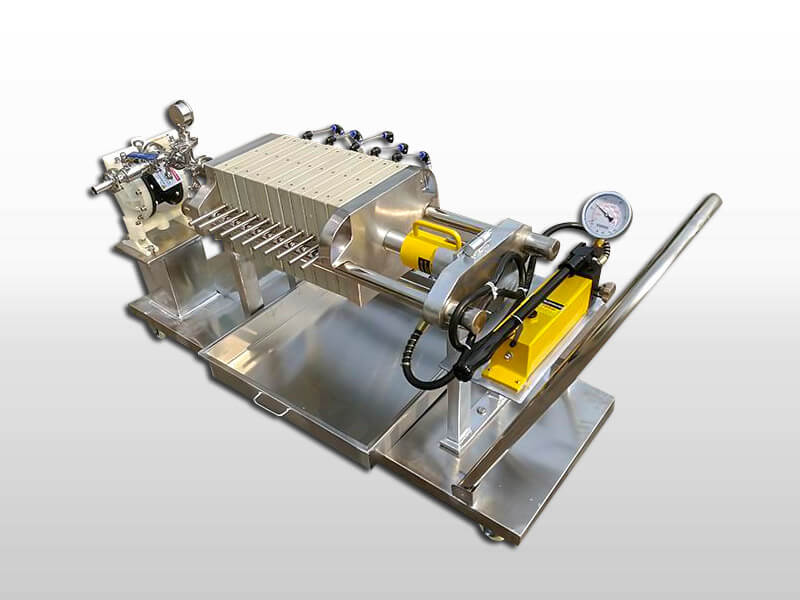

Small test laboratory filter press is one kind filter press that using the membrane filter plates. In the process of operation, in the end of feeding the material, high hydraulic liquid or gas(0.8-2.0mpa) medium can enter into membrane plate, then the whole membrane will expand to compress filter cake, and filter cake will be further dewatered, which is usually called membrane squeeze.

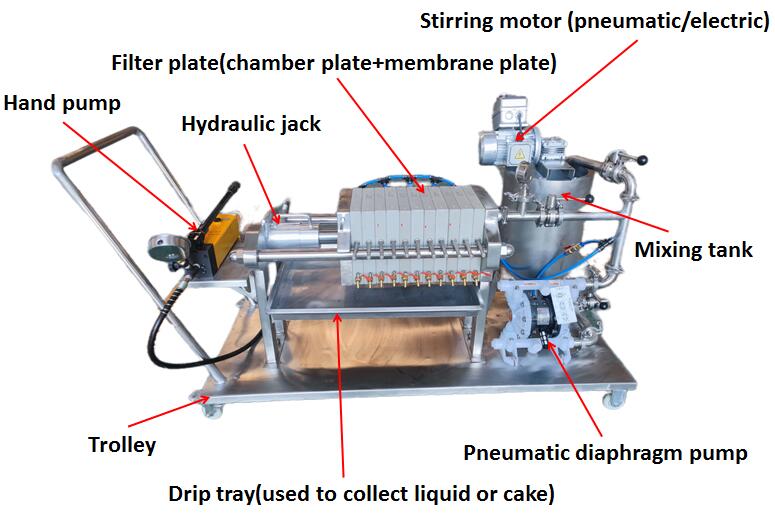

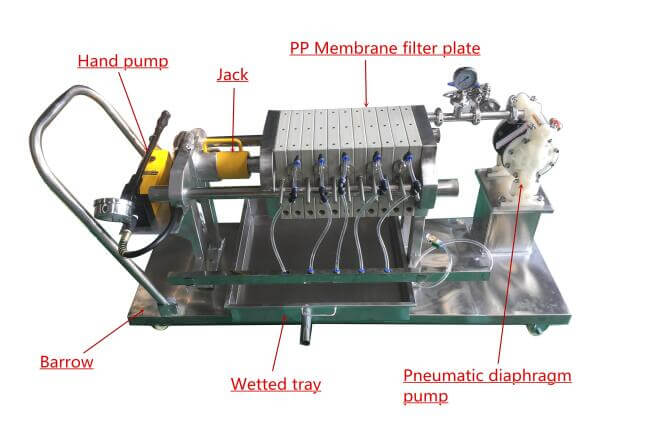

Details of small type membrane filter press:

Recommended pump:

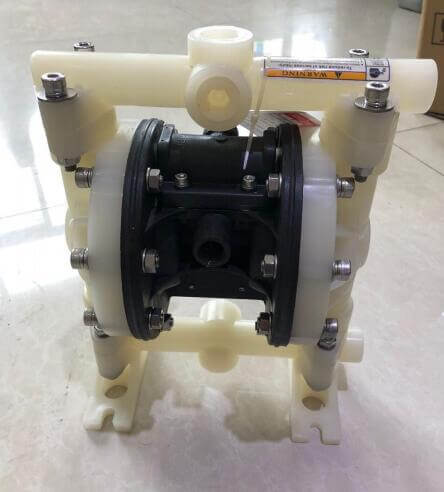

The pneumatic diaphragm pump is a new type of transport machinery, the use of compressed air stram, industrial gas as a power source for a variety of liquids and fluids with particles, colloidal liquide can all pump net absorption.

Model	QBY15
Flow	1m3/h
Lifts	50m
Suction lift	5m
Max. Particles	1mm
Max. air consumption	0.3m3/min

Small-type membrane filter press manufacturer and supplier:

1) Small type membrane filter press for chemical Industry
Coating, paint, silica, caustic soda, soda ash, alkali, salt mud, new, water purification machines (aluminum, aluminum polymerization acetylacetonate, gypsum, insurance, phosphor, lithopone).
2) Sewage Treatment
Printing and dyeing wastewater, sewage, smelting, leather, pharmacy sewage water brew, electroplating wastewater, sewage and waste, chemical electrolysis of water environment.

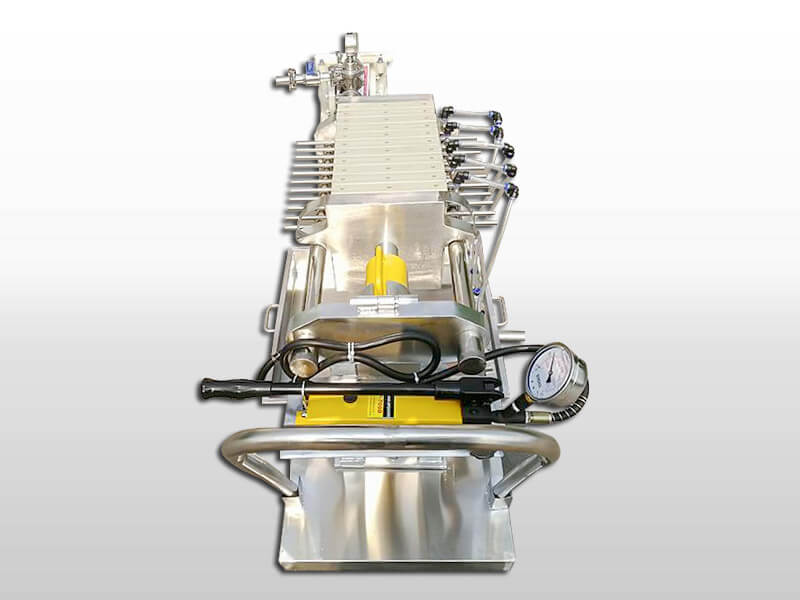

3) Stainless steel plate frame filter press for pottery Clay Industry
Bentonite, electronic ceramic soil, kaolin, active soil, porcelain clay, limestone, granite furnaces.
4) Metallurgy, Coal Industry
Gold, silver, copper, zinc ore mineral powder, etc.
5) Small membrane filter press for food Industry
Vegetable oil, monosodium glutamate, glucose, starch sugar, plant sweet, maltose, starch, maize, rice, Joan, seaweed, kara glue, milk, oral liquid, beer yeast, soy sauce, rice wine, white wine, fruit juice, beverage, plant protein, and so on.
6) Small test laboratory filter press for pharmacy Industry
Phytic acid, calcium, chinese traditional medicine, saccharification, organophosphate etc.

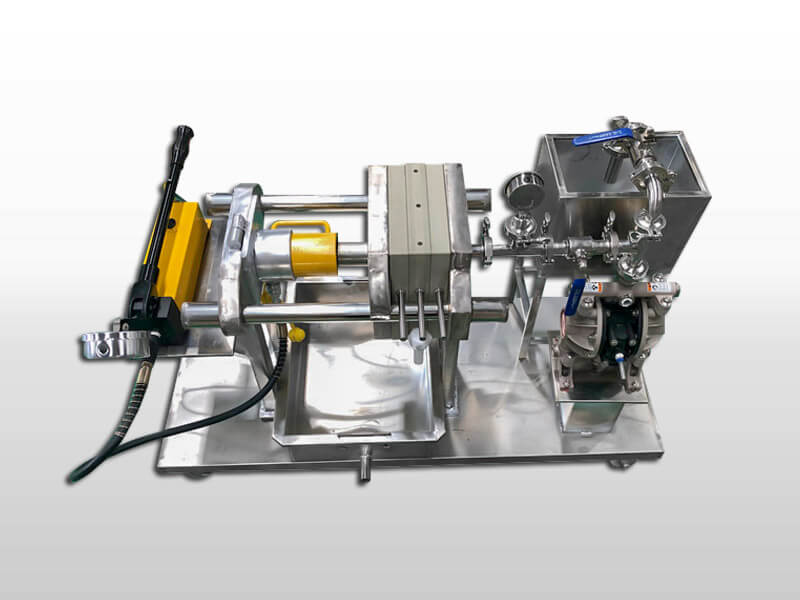

7) Portable type filter press for petroleum
Diesel oil, sesame oil, shortening dewaxing etc.

1. The moisture content is greatly reduced, saving subsequent costs.
2. Strong corrosion resistance, basically suitable for all solid-liquid separation operations.
3. The use of low pressure filtration and high pressure can greatly shorten the entire filtration cycle.
4. Diaphragm filter plate has the characteristics of anti-fatigue, anti-aging and good sealing performance.
5. The material is TPE elastomer, the feeding pressure can reach 1MPa, and the pressing pressure can reach 1.6MPa.
6. Squeeze of small membrane filter press can choose air, inert gas, water, oil and other fluid media to meet the needs of different industries.

Model	XMY1/250 Small type membrane filter press
Filter Area	1m^2
Plate Size	250*250 mm
Cake Thickness	15 mm
Chamber Vol.	8 L
Plate No.	7 pcs
Filtration Pressure	0.6-1Mpa
Machine Material	Carbon Steel, covered with 304 stainless steel
Plate Material	Polypropylene(PP)
