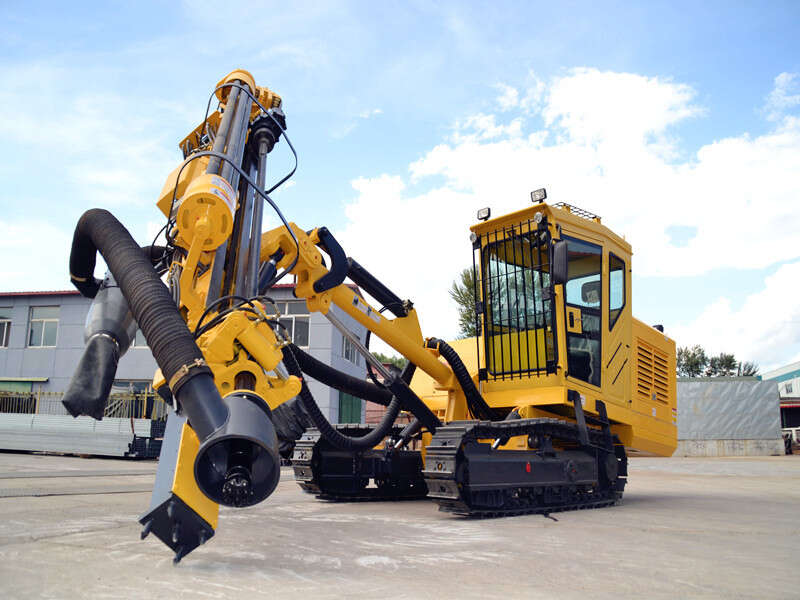

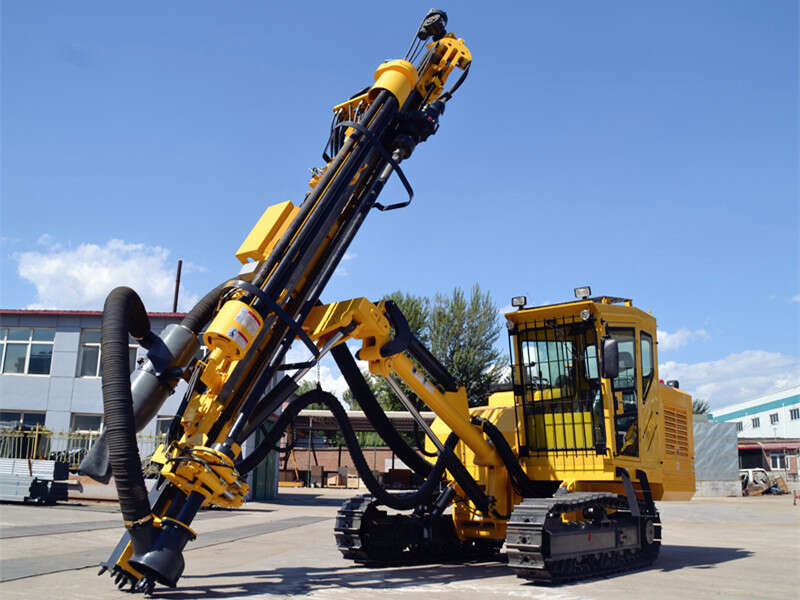

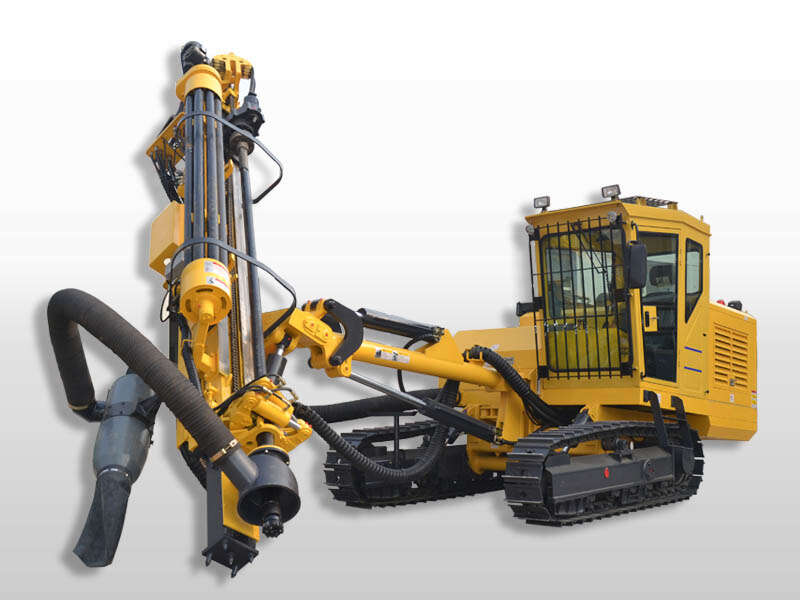

GD-X5 is a new type of high air-pressure drilling rig with automation of drill rods connection for drill rigs. Prototype has passed 3000 hours of operation test and the field experimentation of six different geological environment, and improve the various mechanical holes. It is the combination of technological innovation and practicality.

Suitable for large-scale mining and infrastructural construction.

1. Low labor intensity, efficient automation of drill rods connection for drill rigs
2. The comfortable and safe operating space
3. Equipped with the powerful hydraulic turret and propulsion system
4. The economic and efficient hydraulic system
5. The forceful chassis and reliable breaking system
6. The energetic power and perfect air-inlet, cooling system
7. The dry dust-remover system

Model	GD-X5
Working pressure(Mpa)	1.05-2.46
Drilling diameter(mm)	115-165
Drilling depth(m)	3.6
Grade-ability(°)	30°
One time propulsion(m)	3
Rotation speed(rpm)	0-80
Compensated length(mm)	1000
Hook height(mm)	570
The whole power(kw)	92
The total weight(kg)	9000
The overall dimension(mm)	6750×2185×2700
Sliding frame swing(°)	Pin hole 2: Left 32°/Right 29°
Drill boom swing(°)	Left 35°/Right 35°
Drill boom pitching(°)	Elevation 60°/Depression 23°
Sliding frame pitching(°)	180°
