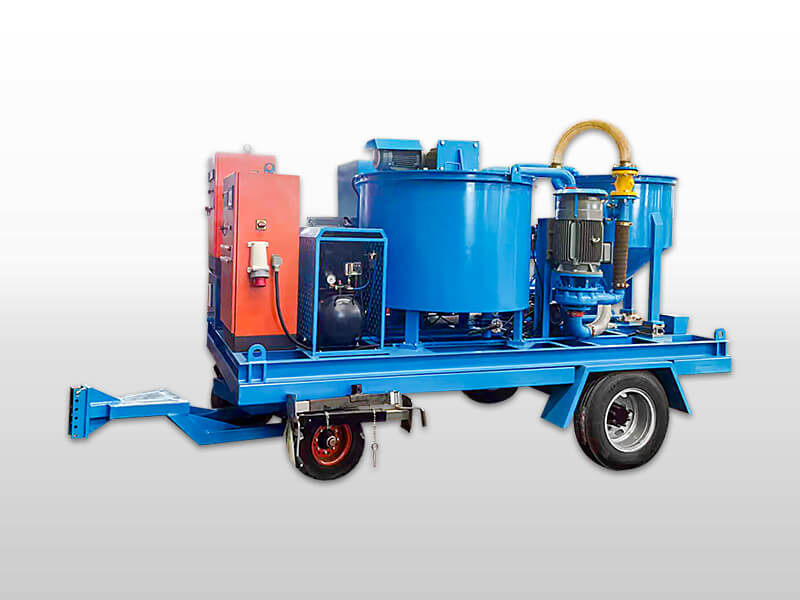

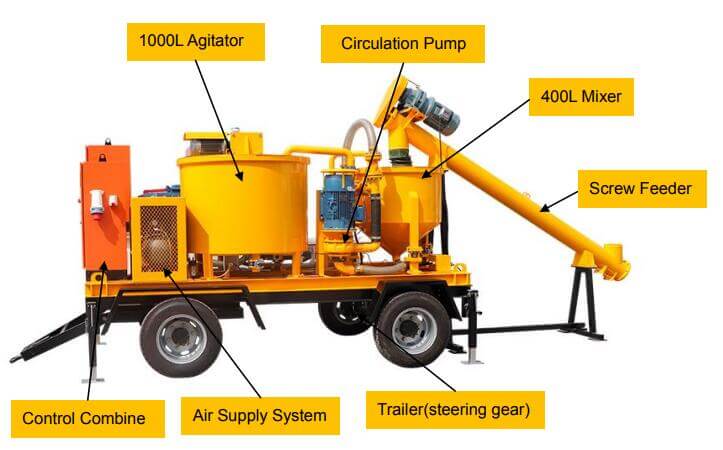

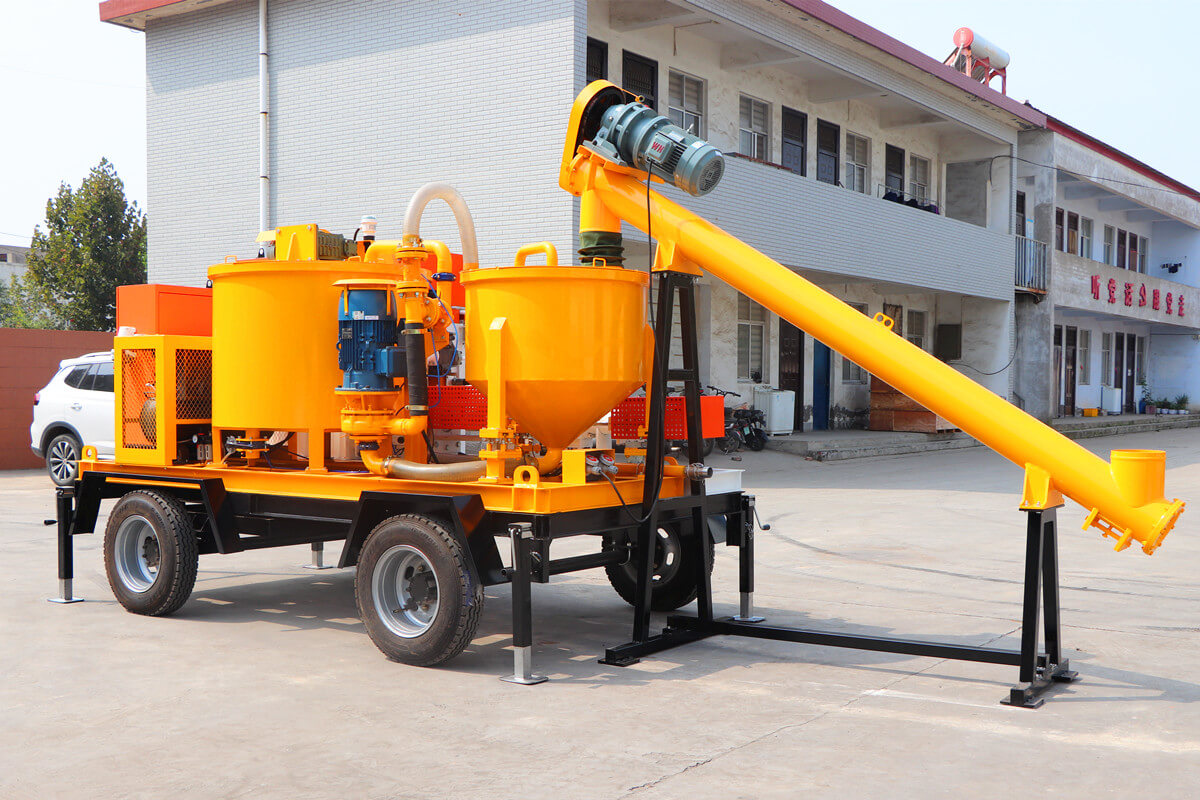

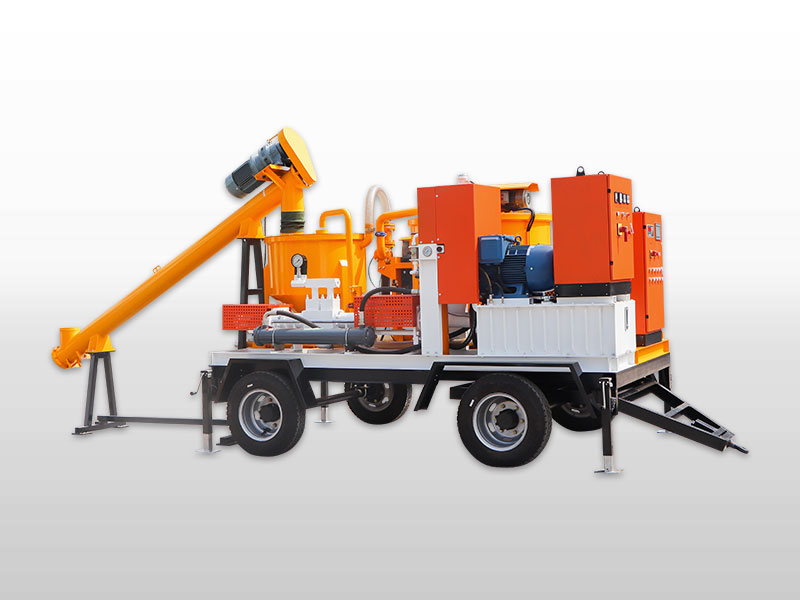

GGP400/1000/95/165DPL-E/A Grout Mixer and Pump are integrated with a screw feeder, a 400L capacity mixer, a 1000L capacity agitator and a horizontal hydraulic grout pump. It is mainly used to be made such as cement slurry or bentonite slurry, etc., for injecting in the sub-soil for soil consolidation, piling or even for long transport of material.

Compared with the traditional grout mixer and pump equipment, GGP400/1000/95/165DPL-E/A Media has several advantages: high-speed, high-shear colloidal mixer causes a vortex flow to ensure mix quickly and evenly; Two pieces of high pressure plungers to stabilize the consistency of the grouting flow; Grouting pressure and displacement is step-less adjustable; Added the automatic operation mode, which greatly improves the working efficiency. Besides, compact size and easy to operate. And it also takes up a small space.

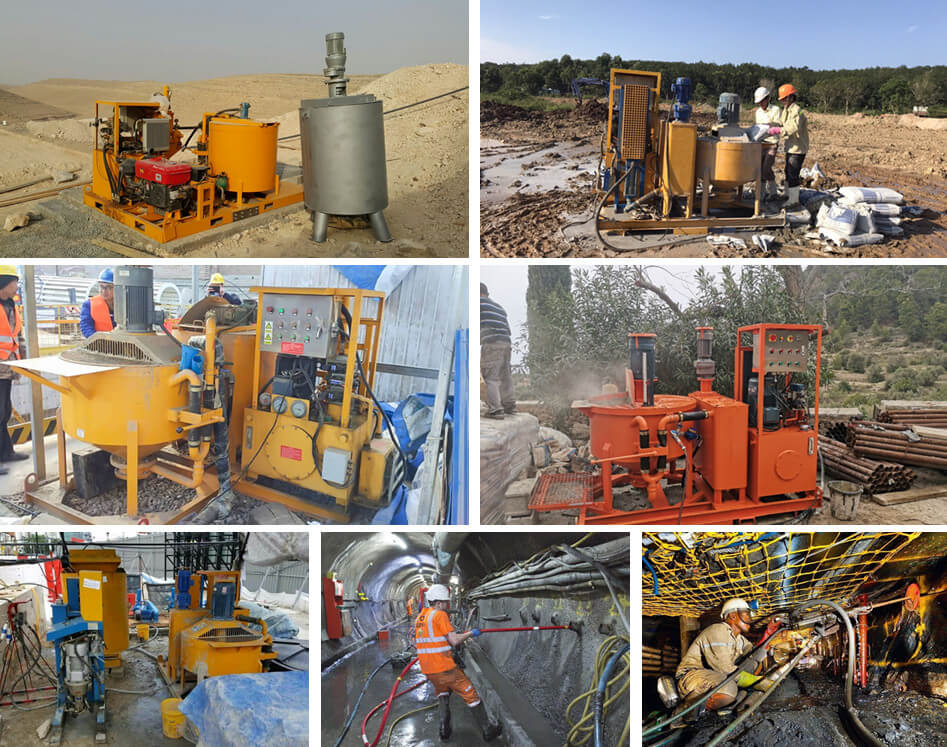

GGP400/1000/95/165DPL-E/A Grout Mixer and Pump is widely used in mines, tunnels, culverts, subways, hydropower projects, underground projects, etc.

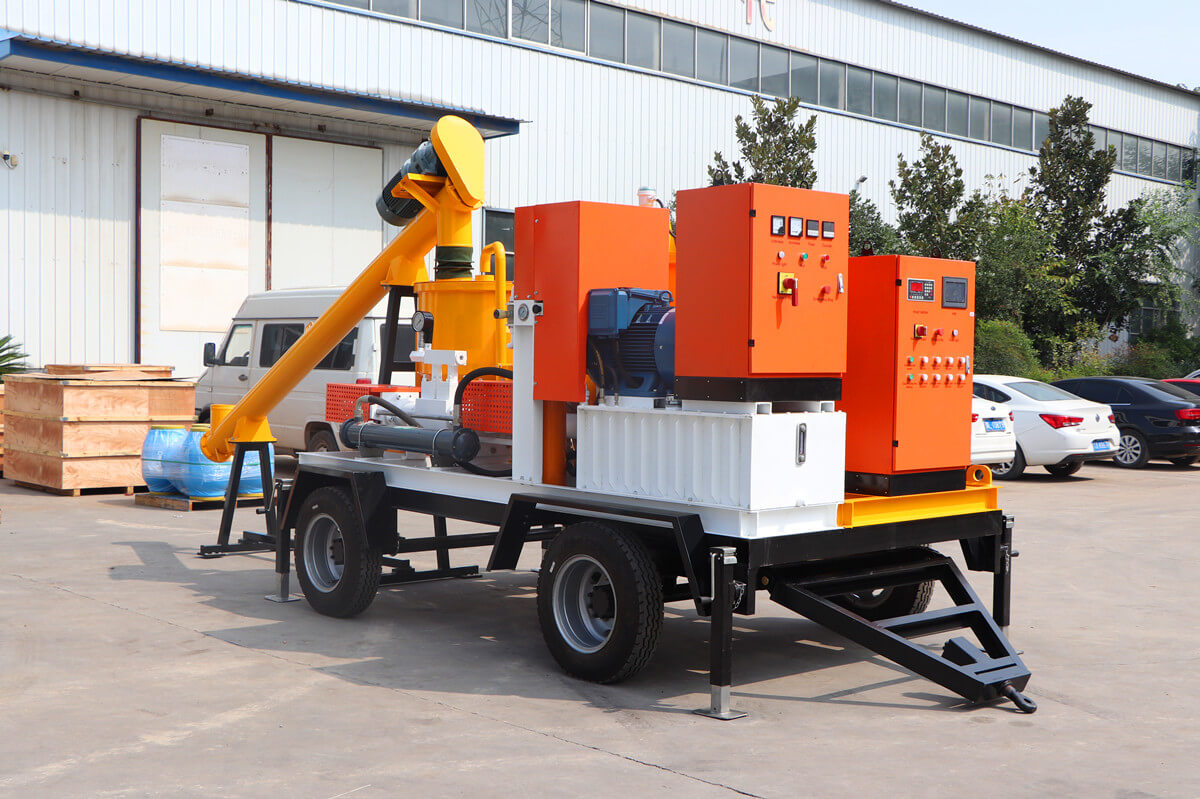

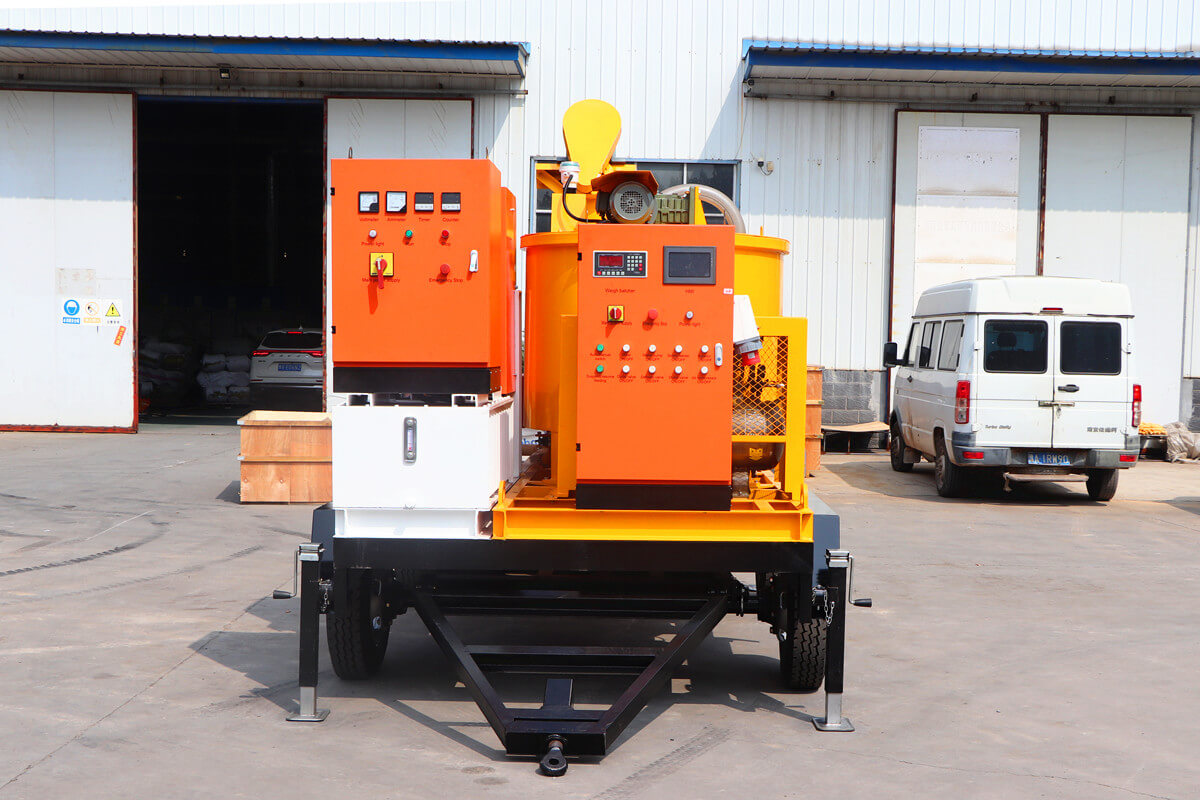

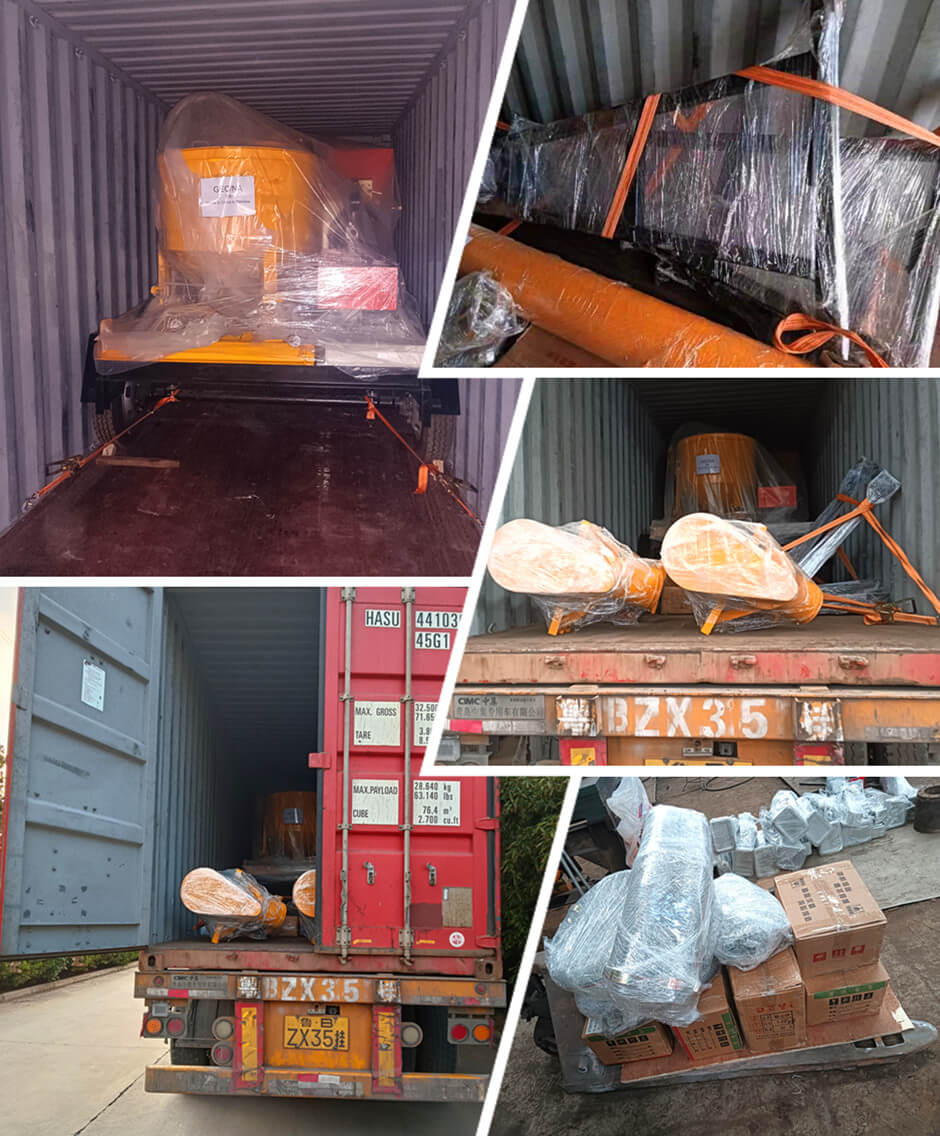

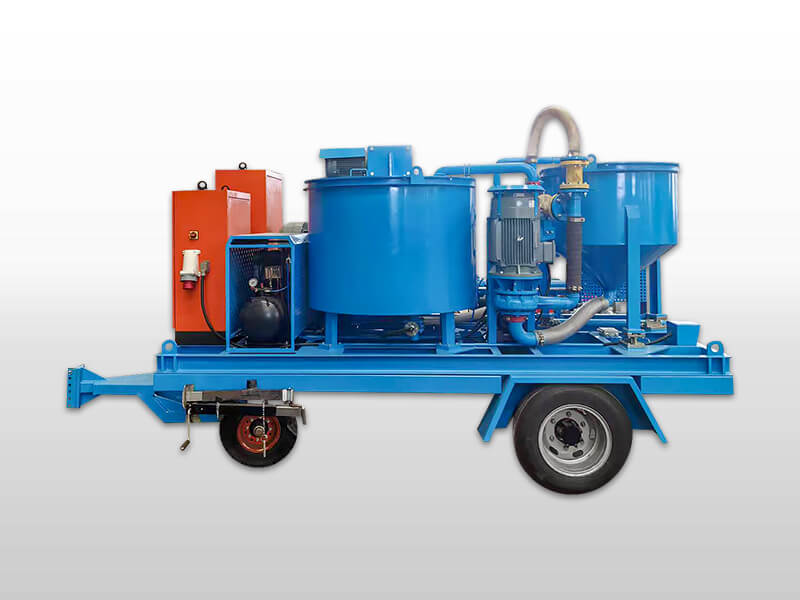

Grout mixer and pump shipment:

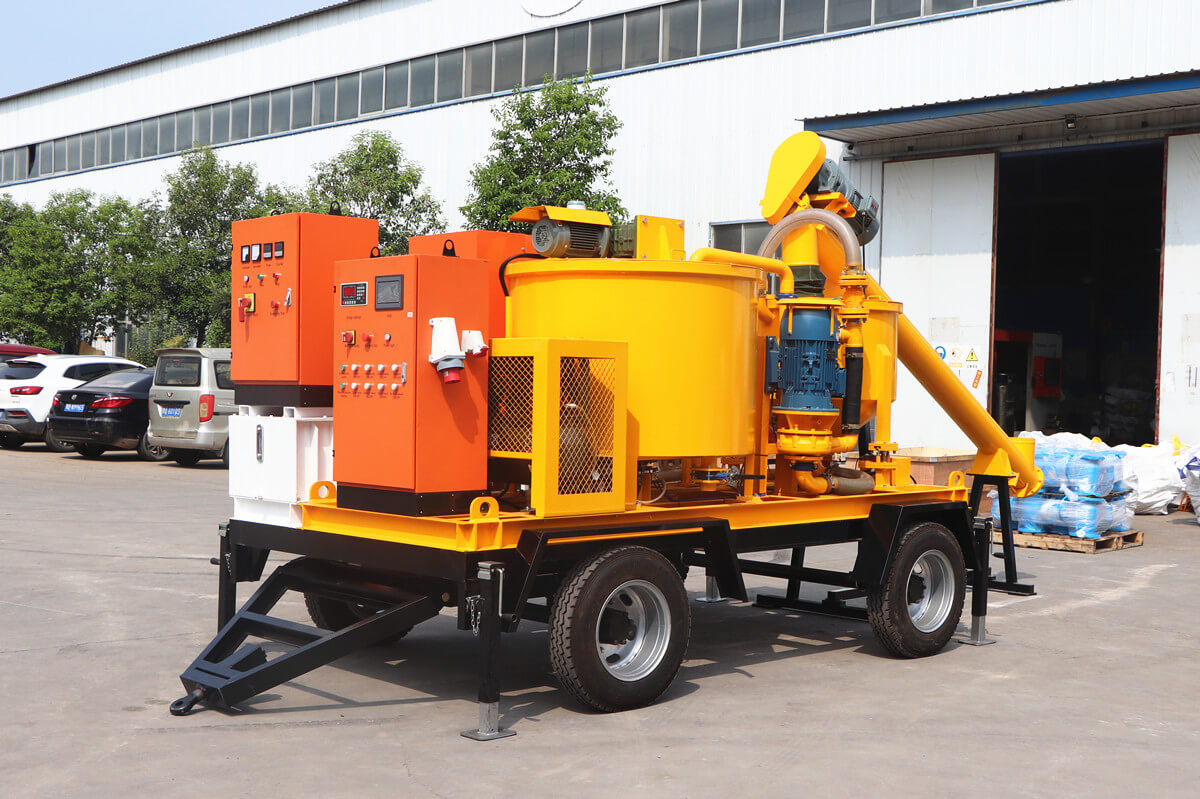

GGP400/1000/95/165DPL-E/A Grout Mixer and Pump is a fully automatic grouting machine.

GGP400/1000/95/165DPL-E/A grout mixer and pump specification (with Electric motor drive):
1. Mixer Station
1.1 Pneumatic Pinch Valve: the slurry flows more smoothly;
1.2 Ultrasound Fluid Level Meter: height of agitator can be accurately measured;

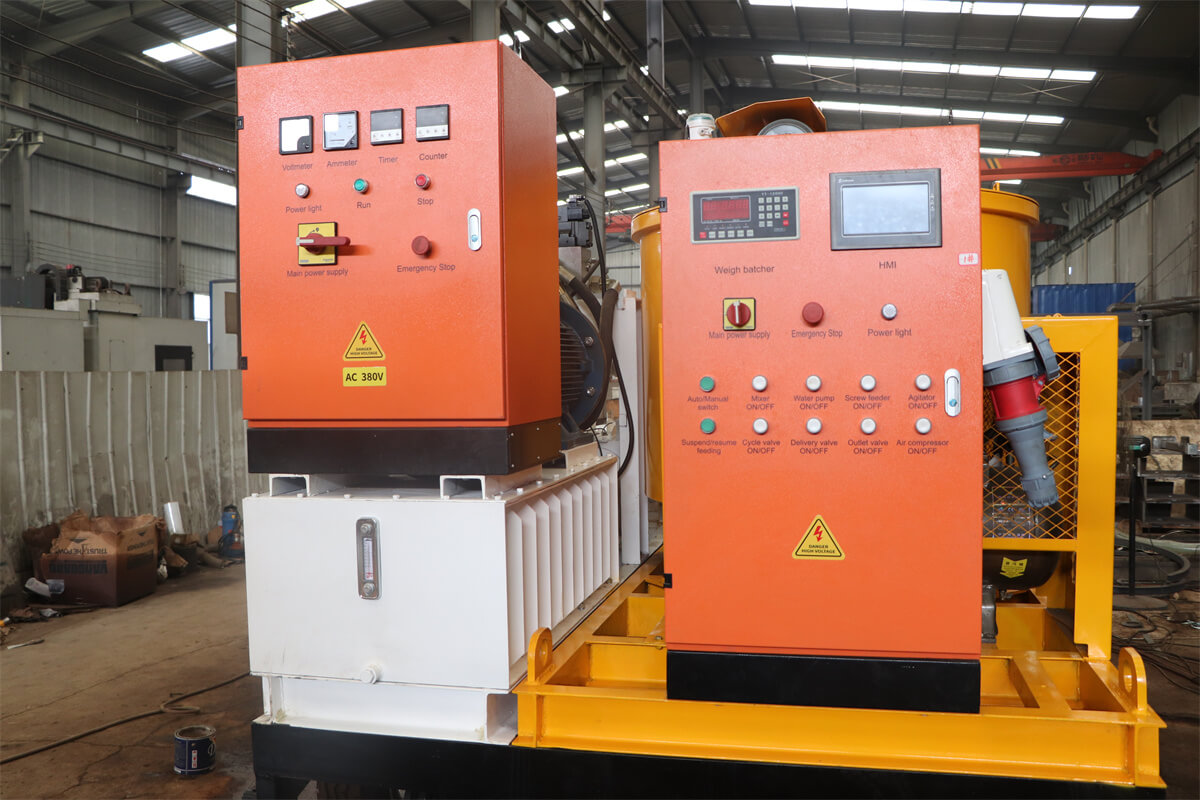

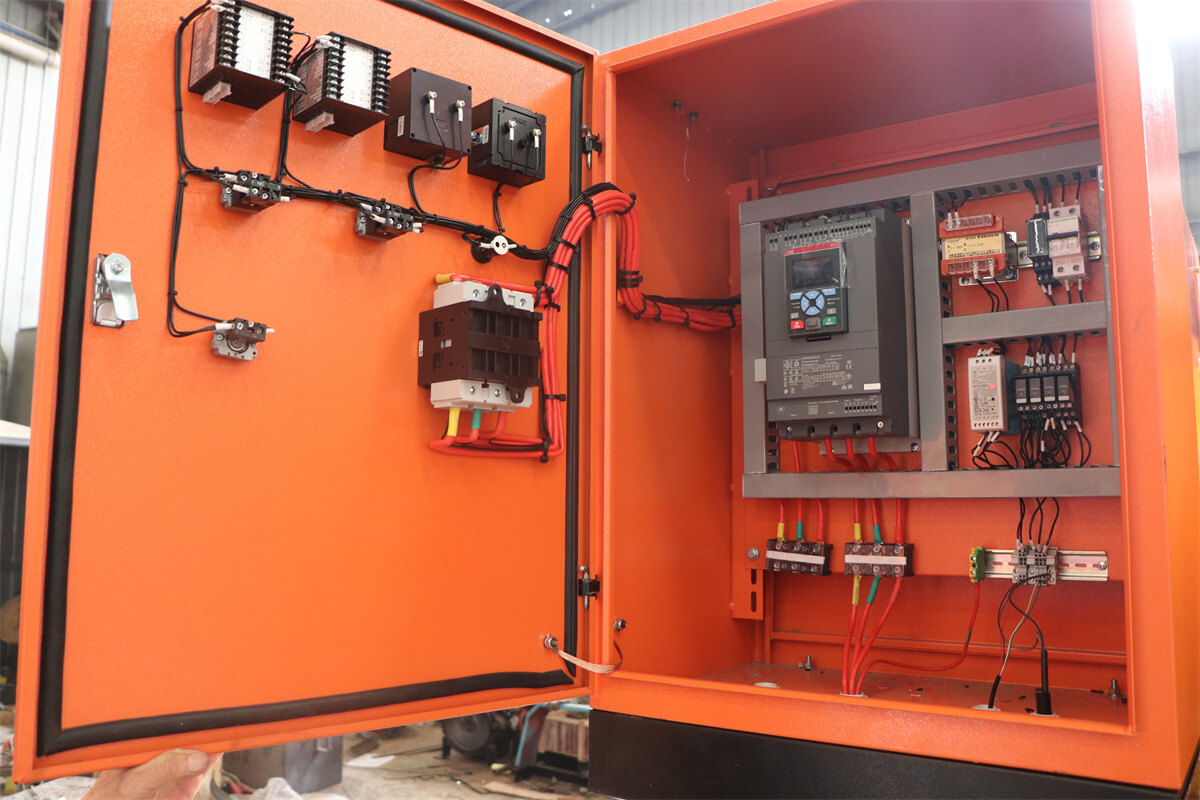

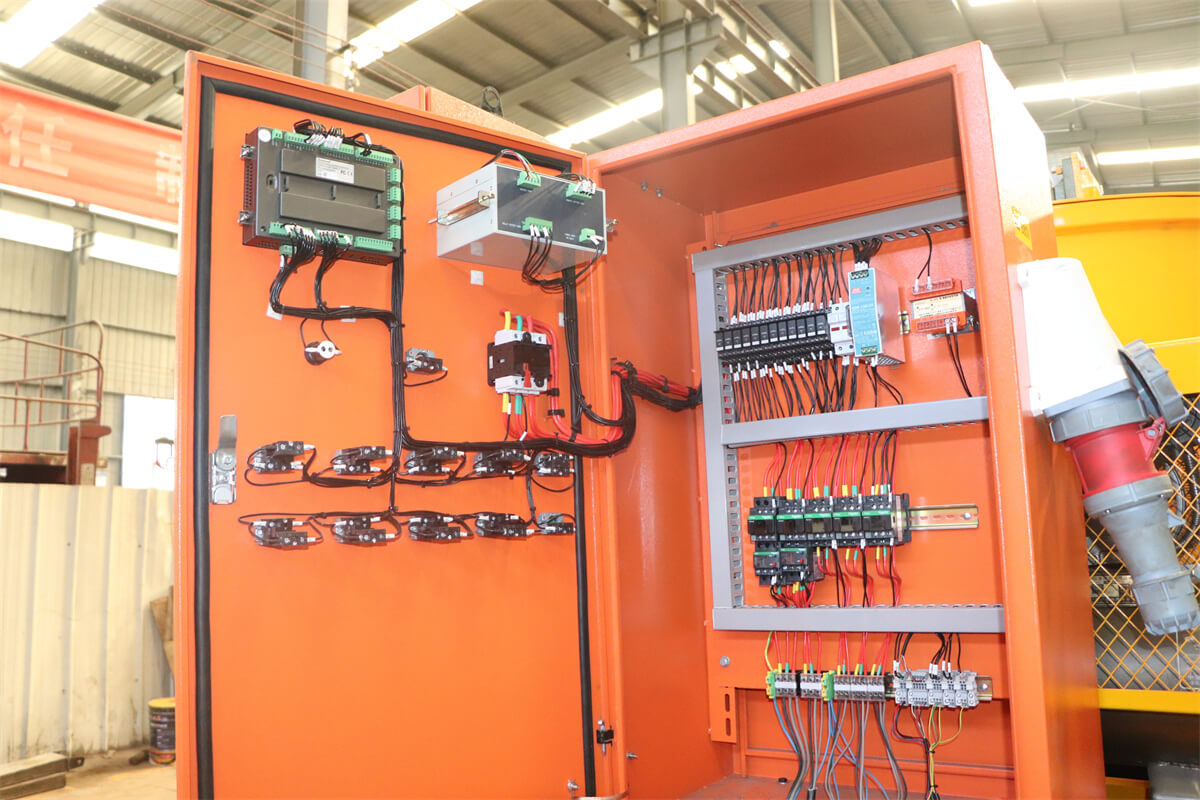

1.3 PLC+Touch Screen: manual mode and fully automatic mode.

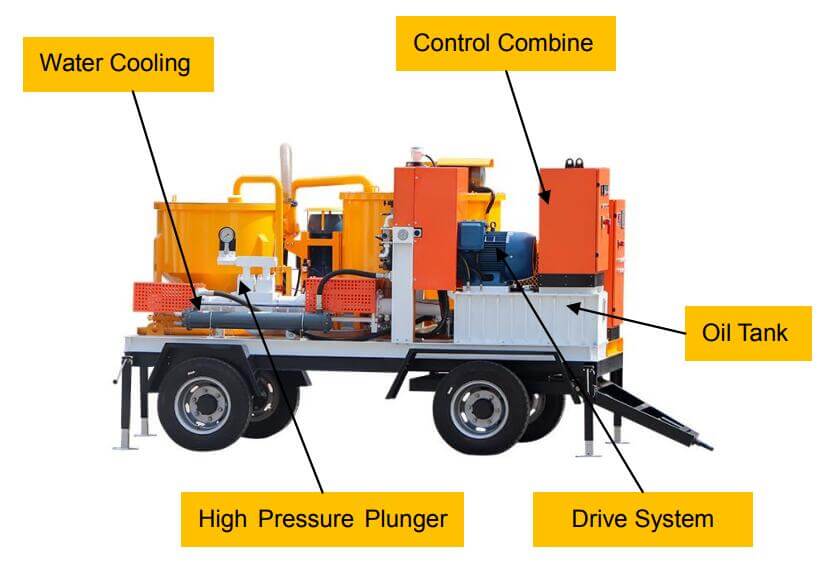

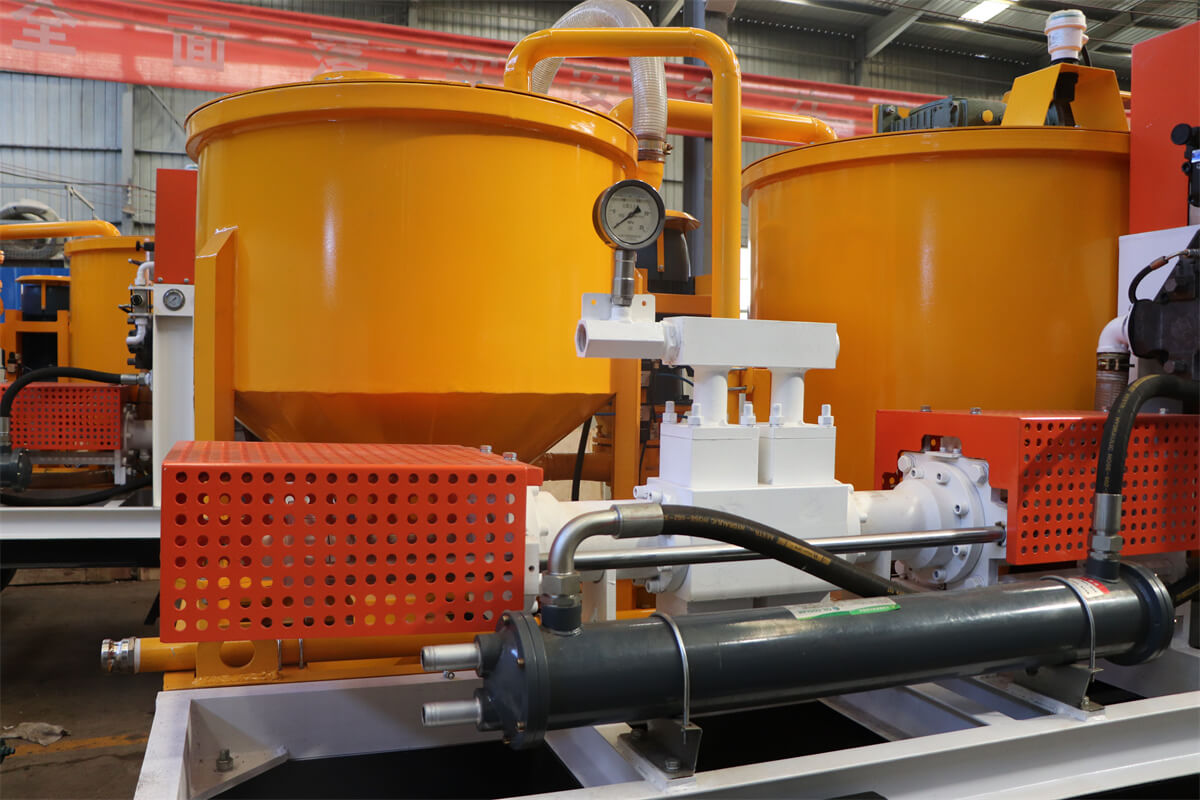

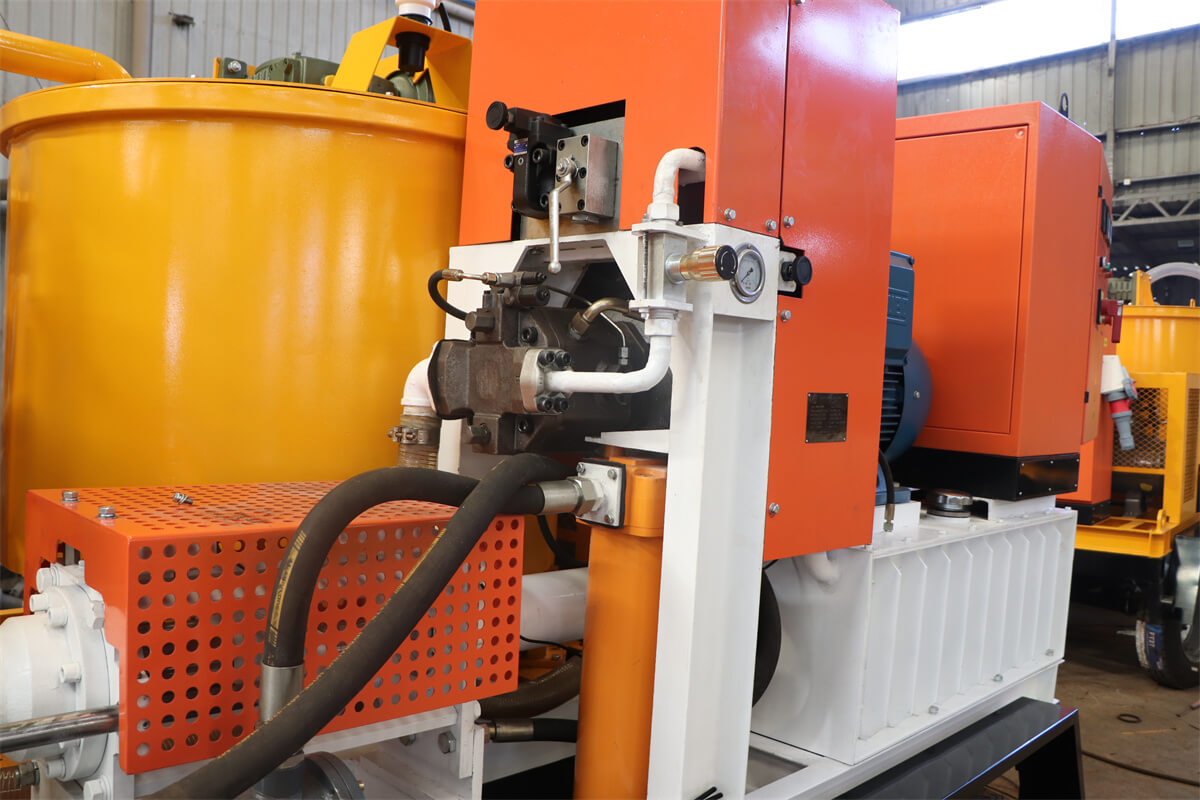

2. Grout Pump Station

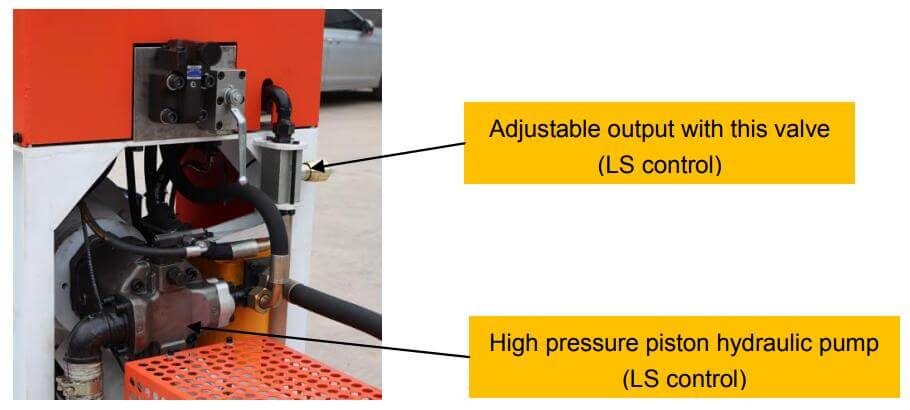

2.1 Grouting pressure, displacement is step-less adjustable;

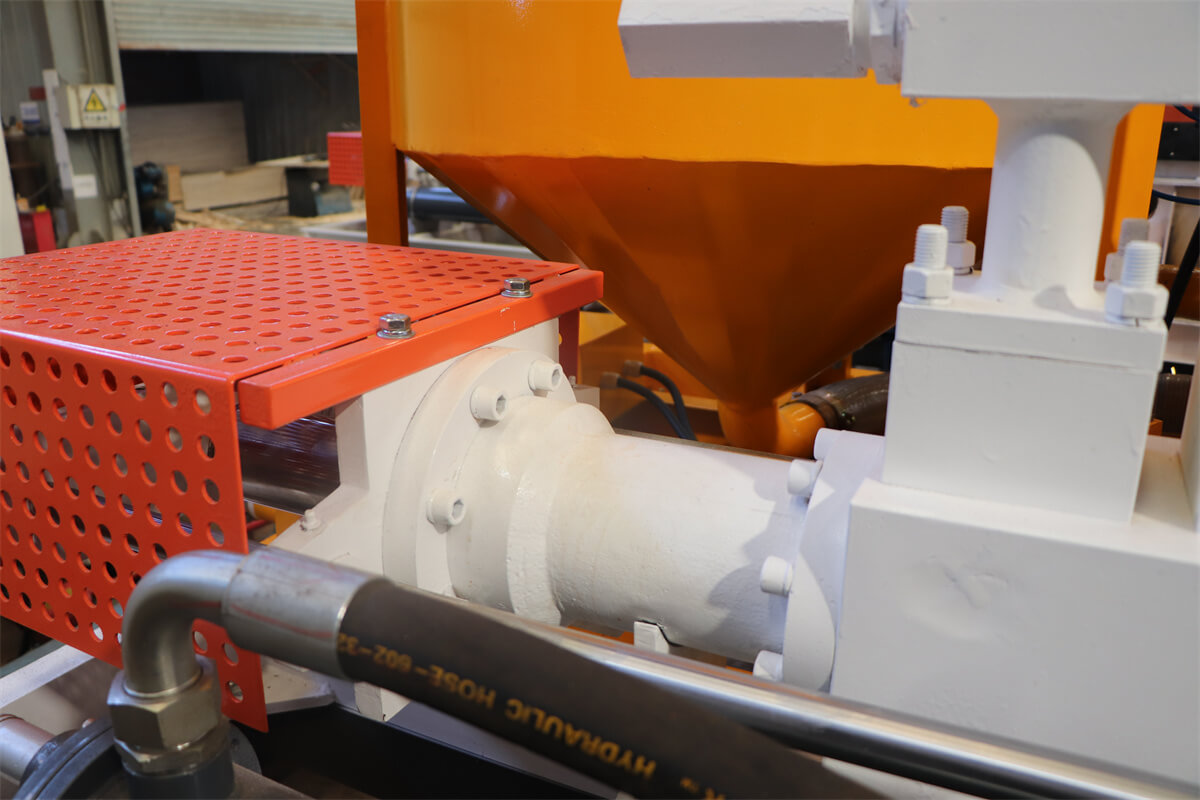

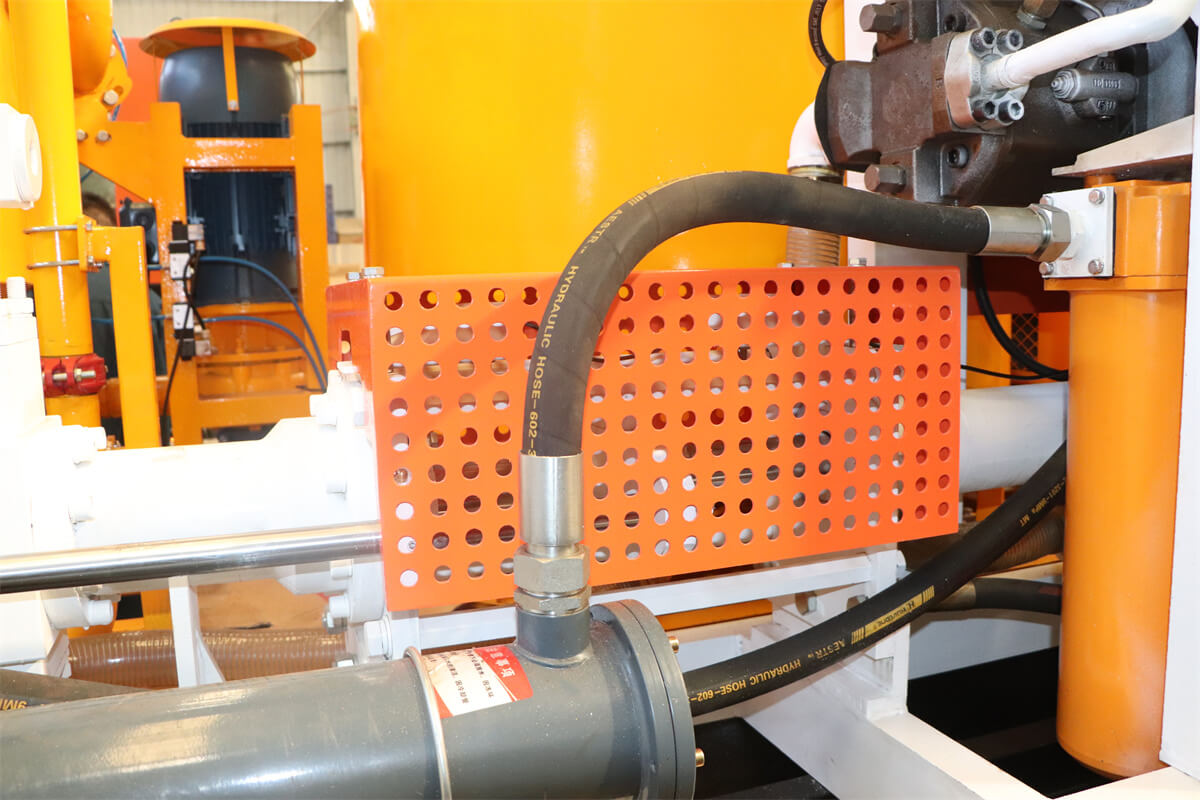

2.2 Double grouting plungers, continuous output flow with less pulse;
2.3 With the function of record and display grouting pump reciprocating times by a counter;
2.4 The motor has an overload protection function;
2.5 Hydraulic system with oil temperature overheating protection;

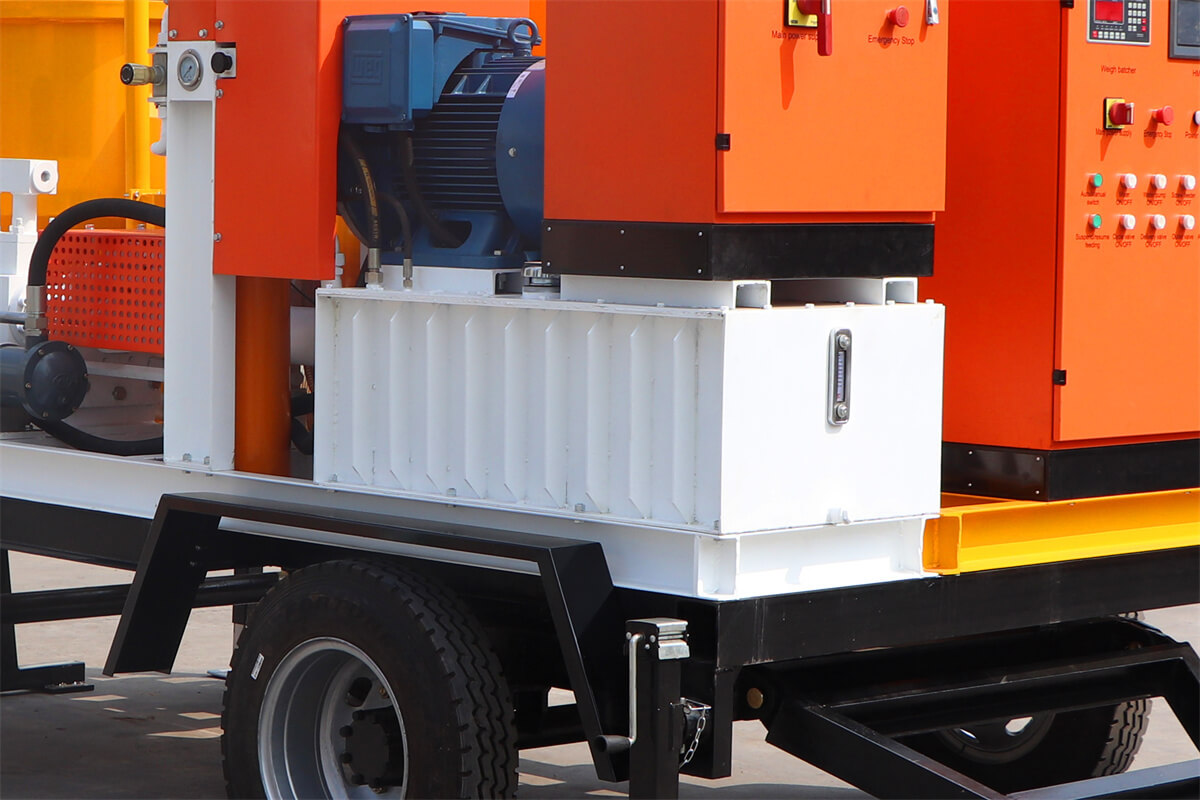

2.6 Electric motor and hydraulic driven. Anytime, overpressure occurred, hydraulic safety protection will be worked.

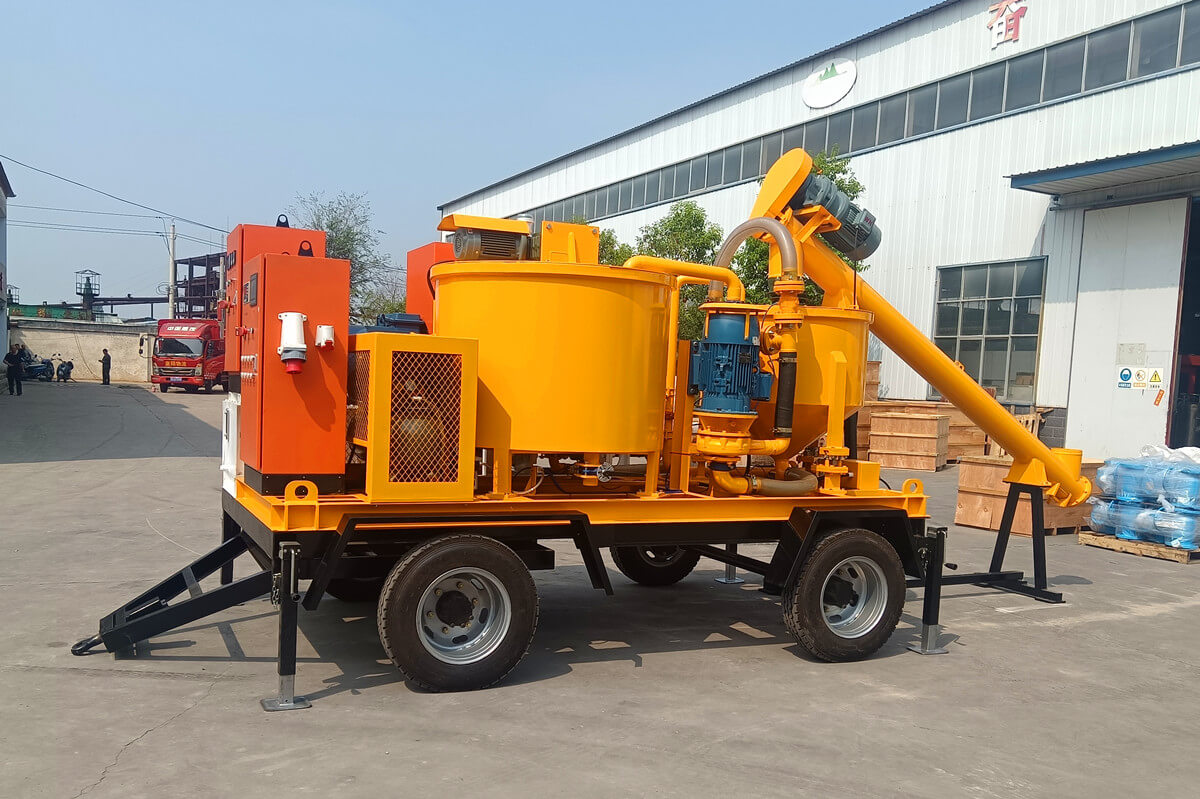

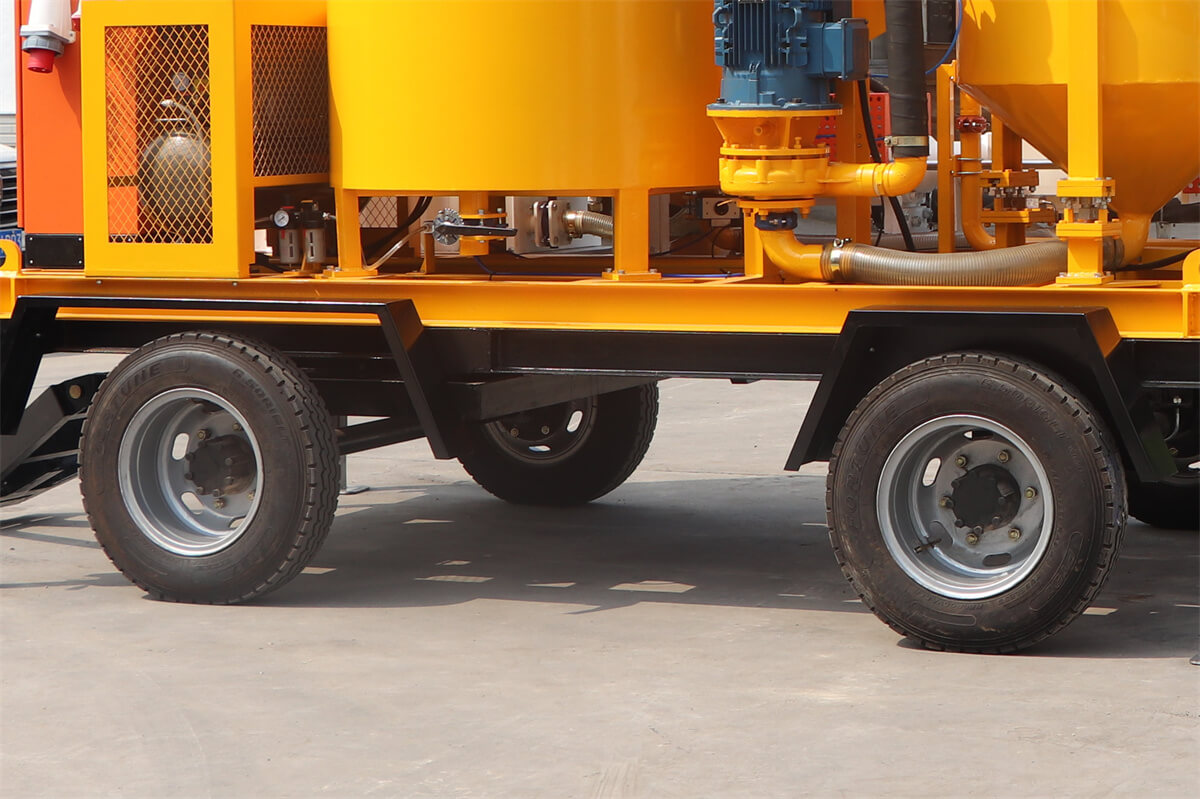

3. Trailer
3.1 With steering function;
3.2 Tripod height is adjustable.

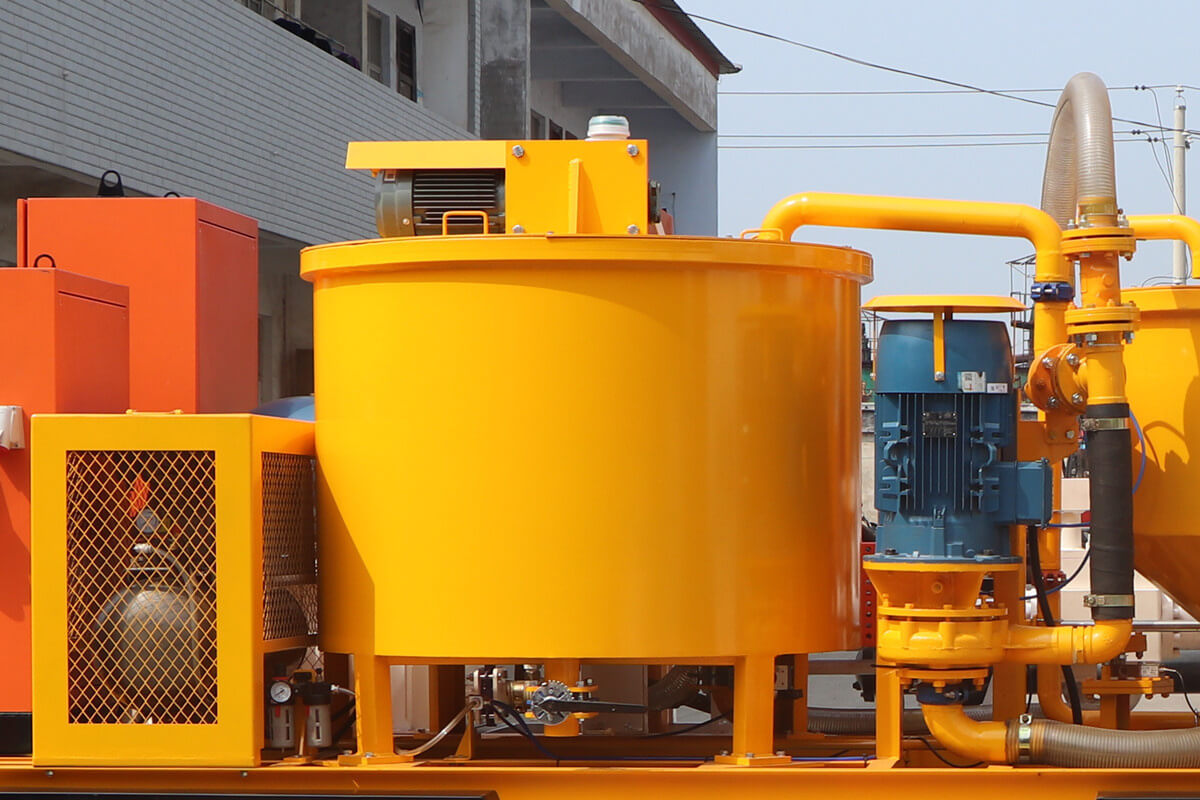

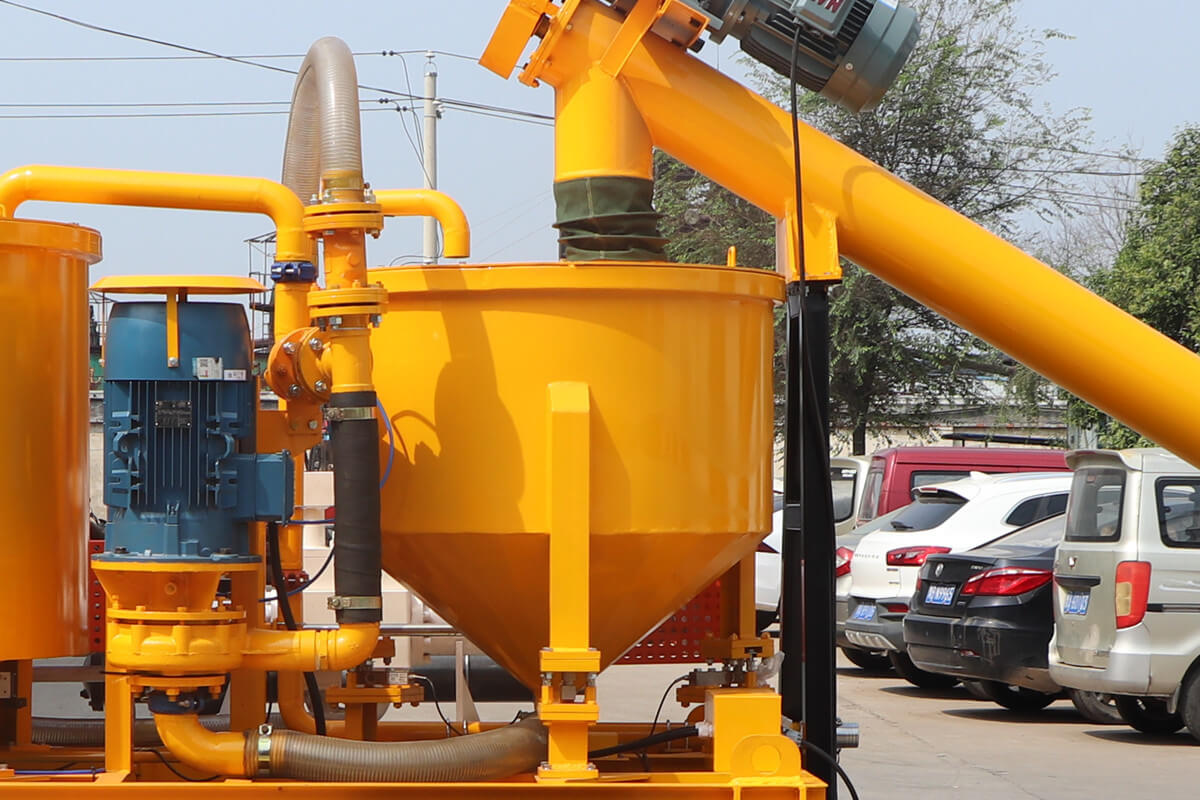

Mixer Station
Mixer	Effective Volume	400 L
	Max. Mixing Capacity	10m³/h
Circulation Pump	Motor Power	11 Kw
	Rotating Speed	1450 r/min
	Circulation Capacity	1000L/min
Agitator	Effective Volume	1000 L
	Motor Power	3.0 Kw
Water Supply System	Motor Power	4.0 Kw
	Displacement	20 m³/h
	Head	30 m

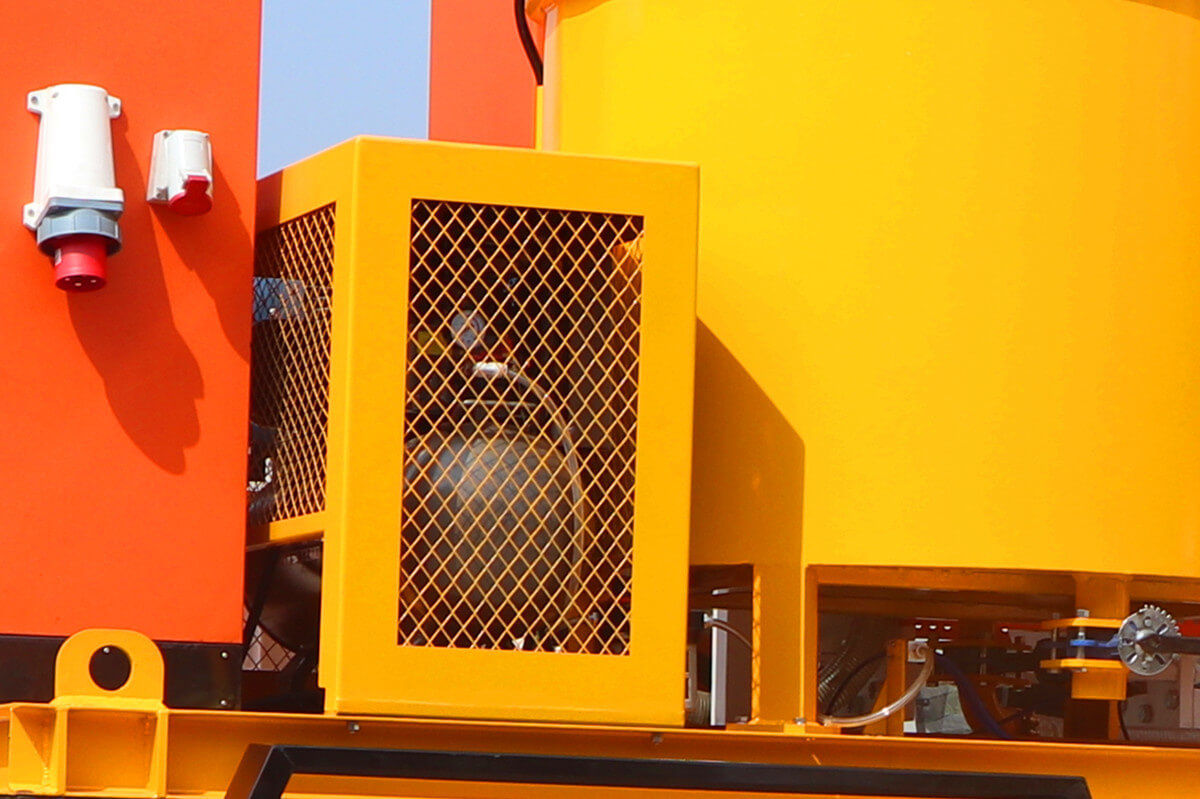

Air Supply System	Motor Power	2.2 Kw
	Displacement	0.25 m³/h
Control System	Mode	PLC
	Power	DC 24V

Grout Pump Station
Plunger Diameter		85mm
Plunger Stroke		300mm
Adjustable Pressure		0-16.5MPa
Adjustable Flow Rate		0-95L/min
Discharge Pipe Size		G1 1/4＂
Inlet Pipe Size		G2＂
Oil Tank		200L

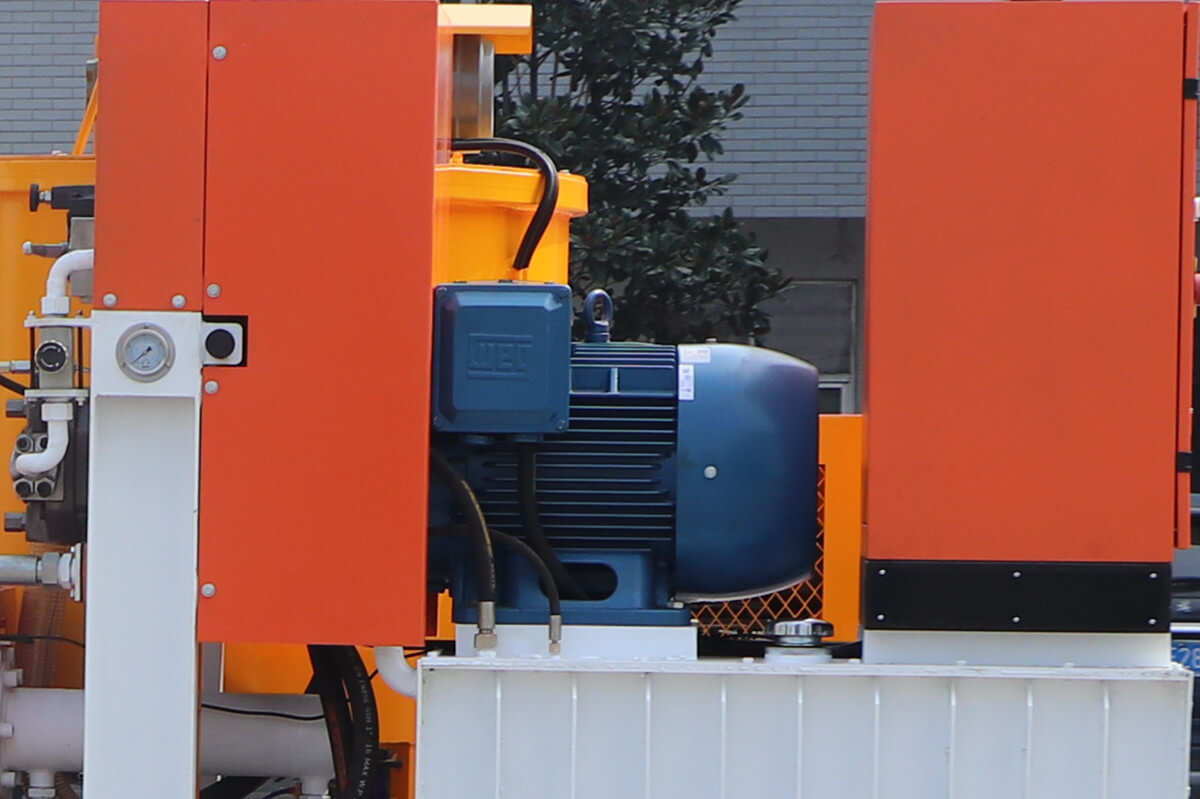

Power Unit		37Kw
Max. Grain Size		2mm
Working Pressure		16.5MPa
Dimension(L×W×H) without Screw Feeder@Weight		3820×2280×2300mm@3750Kg

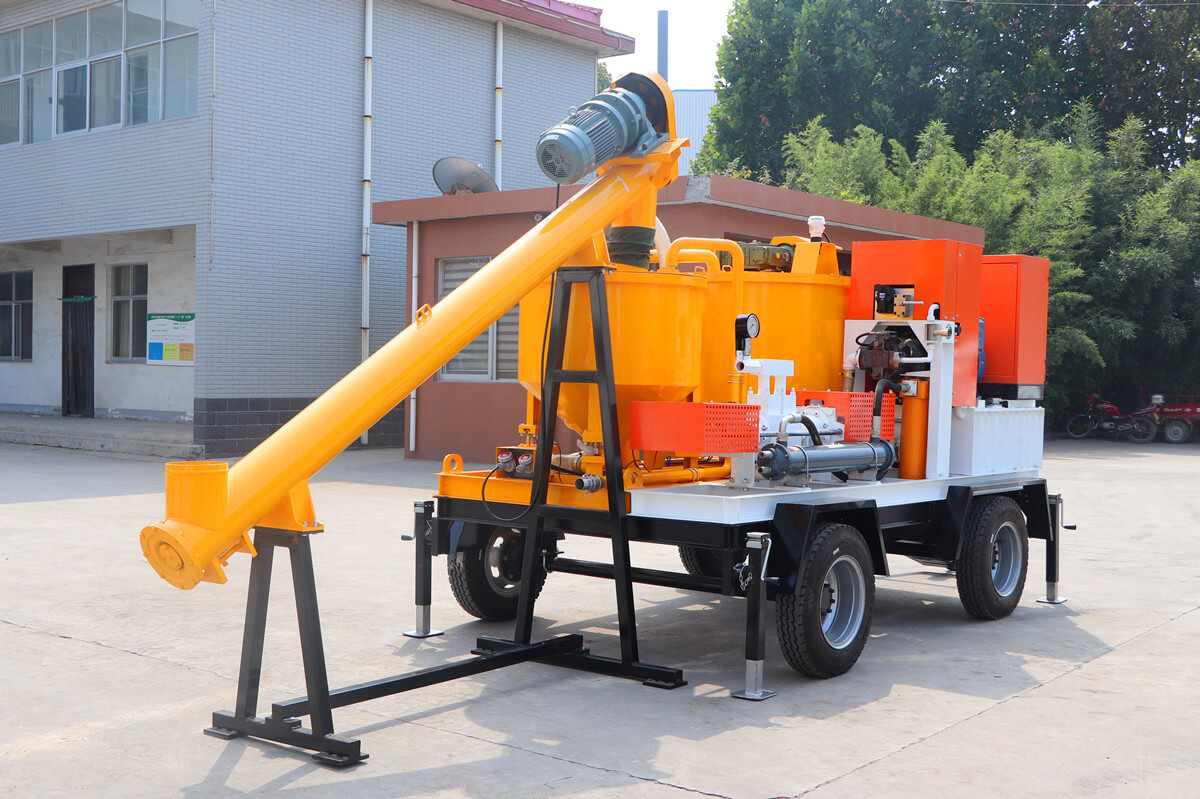

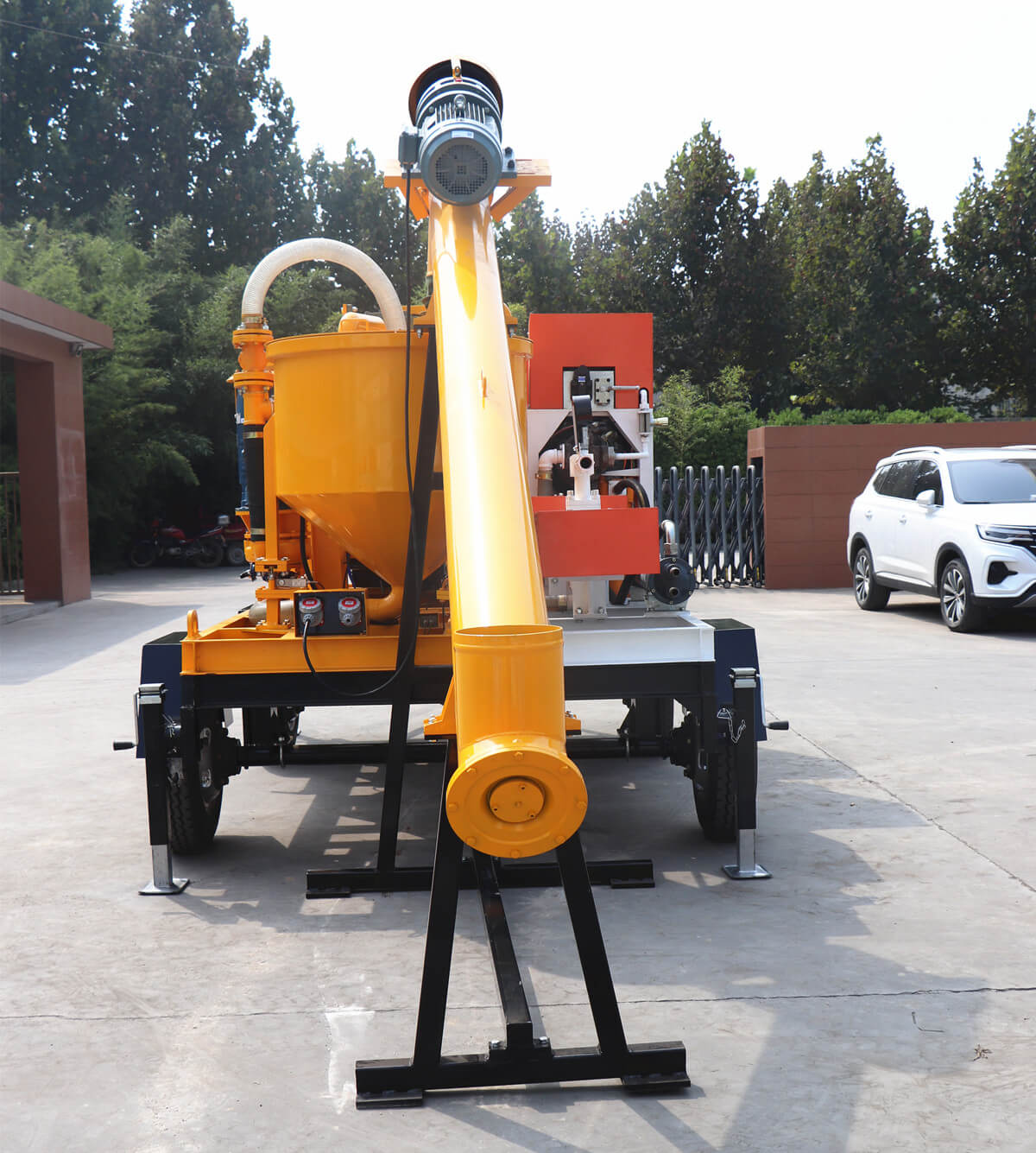

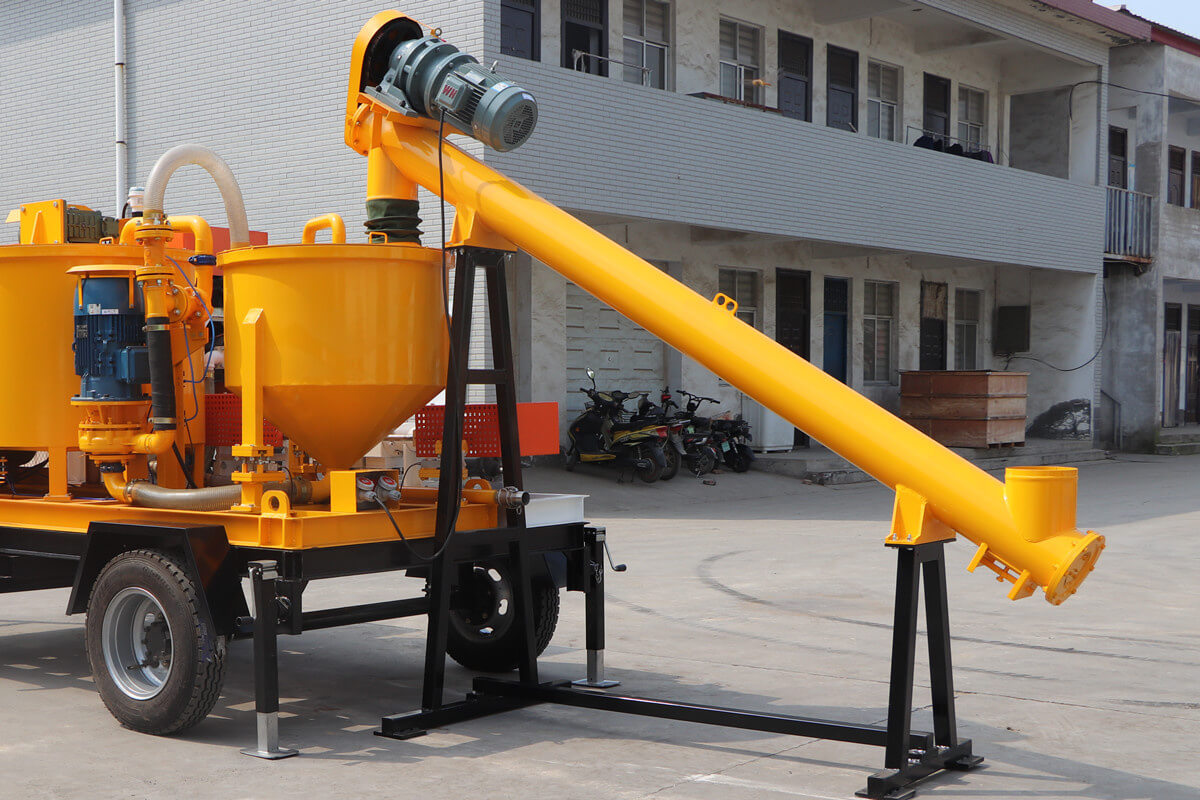

Screw Feeder	Output	30t/h
	Motor	5.5Kw
	Dimension@Weight	3700×600×800mm@280Kg
We also could accord the grout mixer and pump to your demands to customize.
All parameters are obtained by water test.

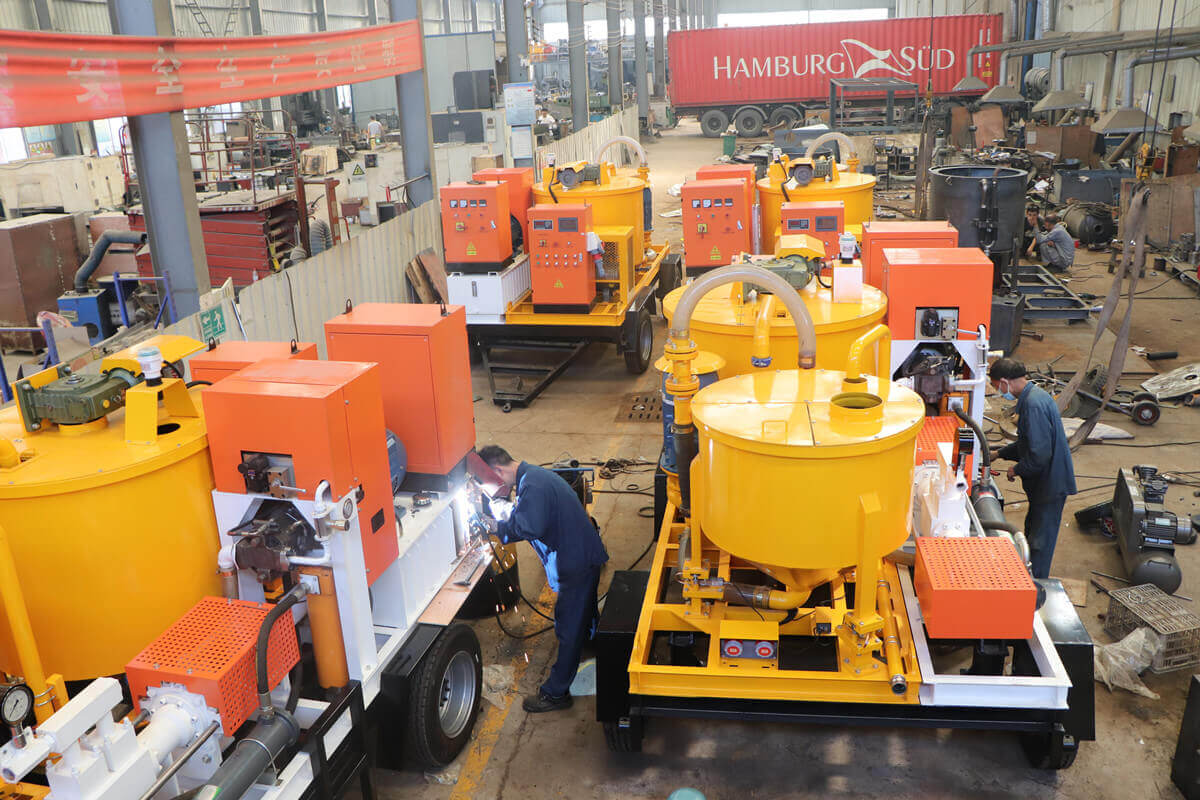

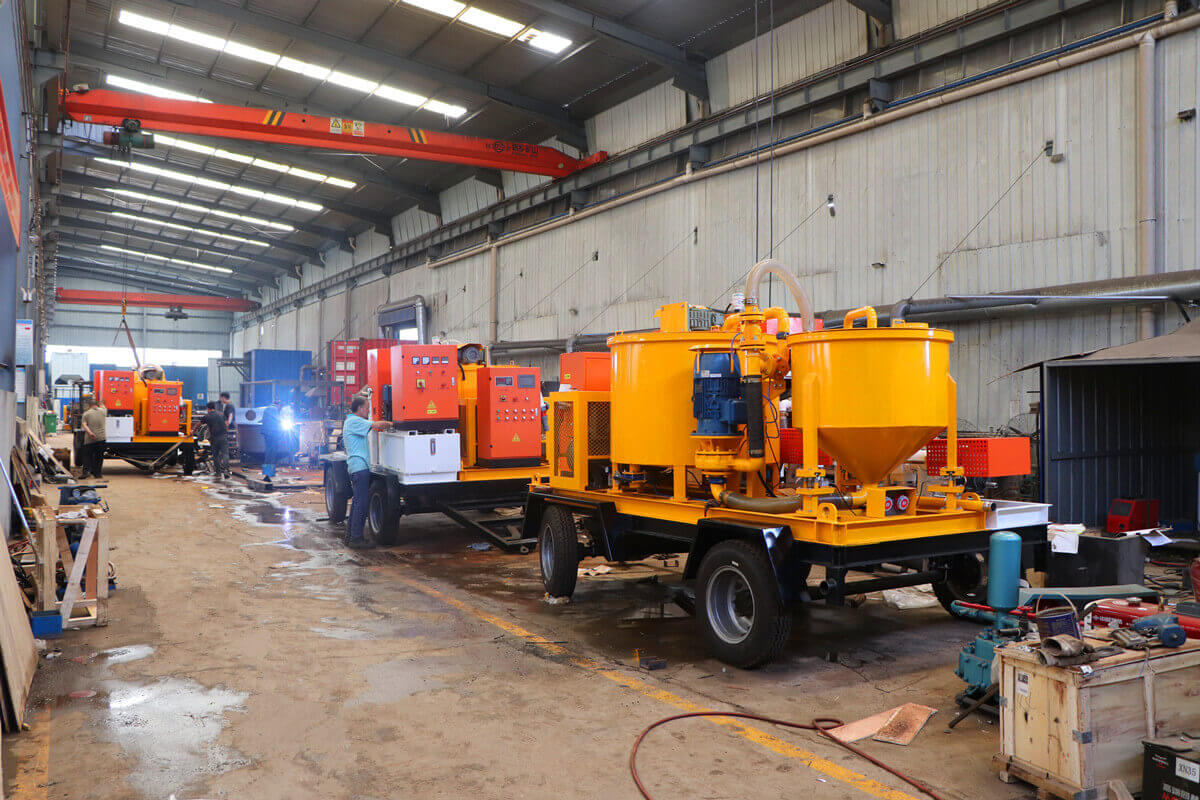

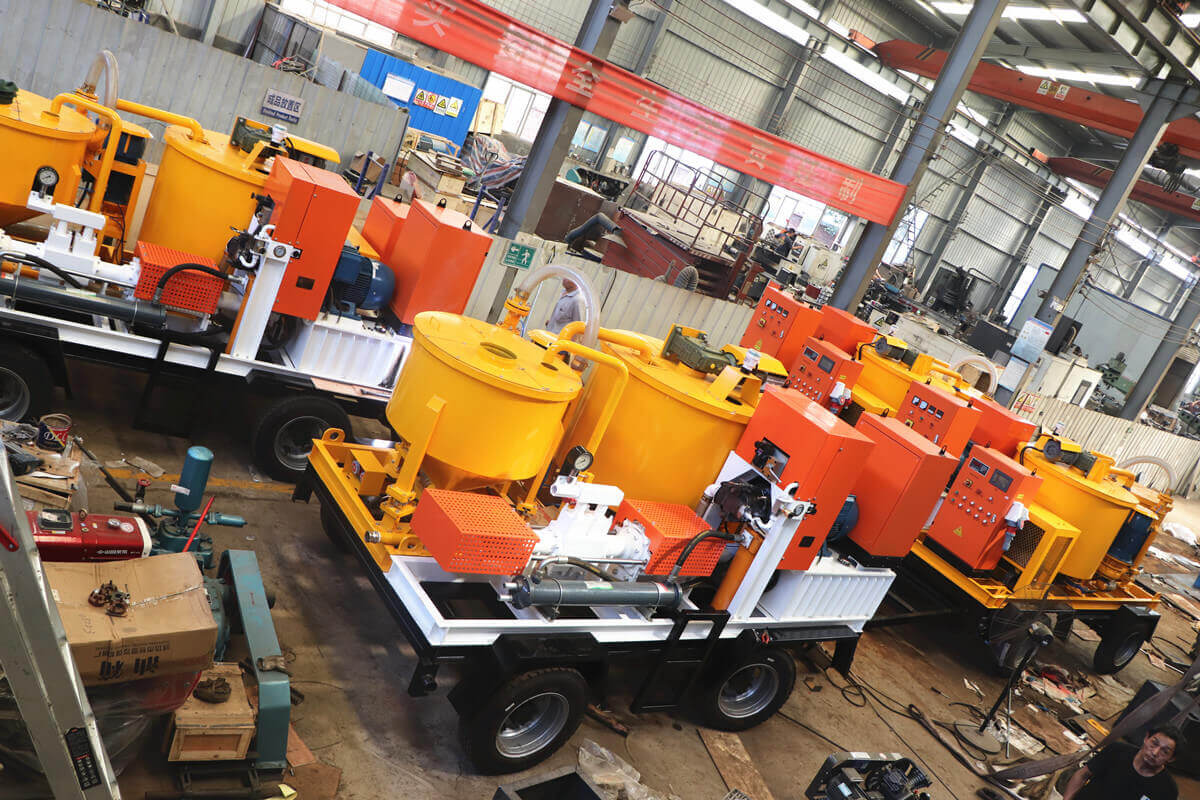

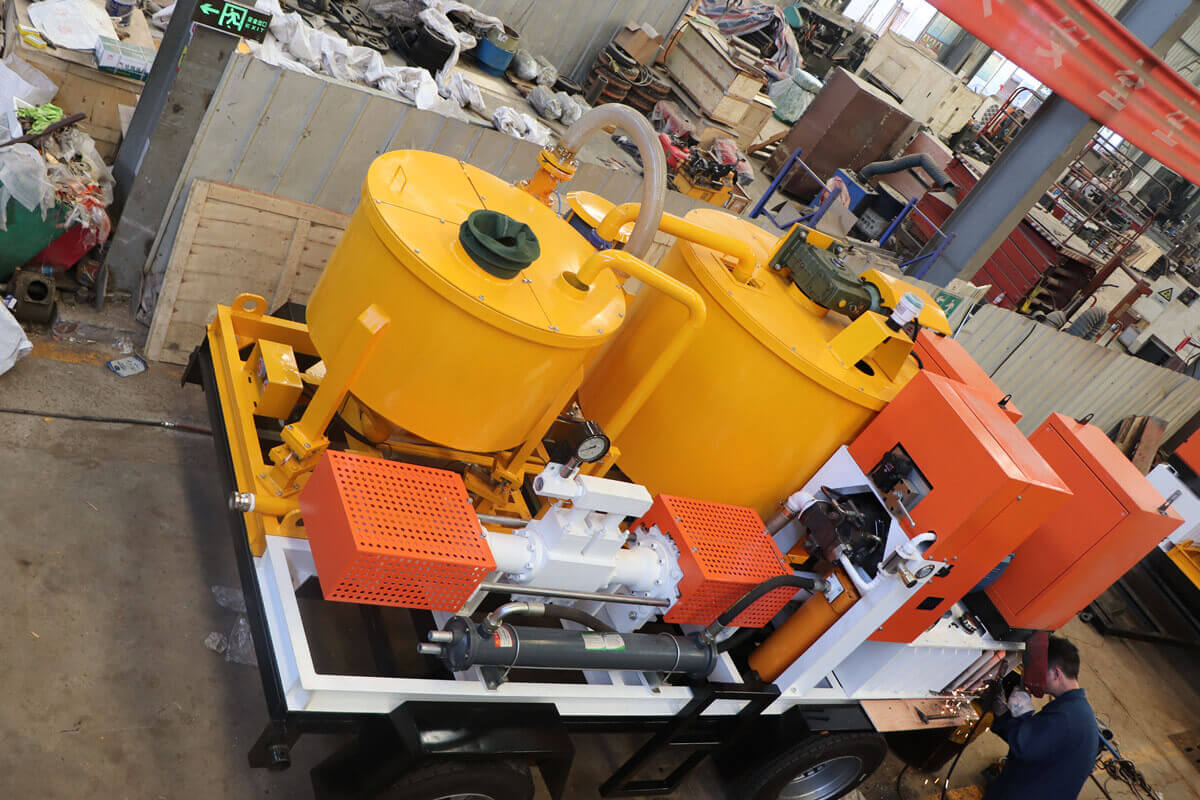

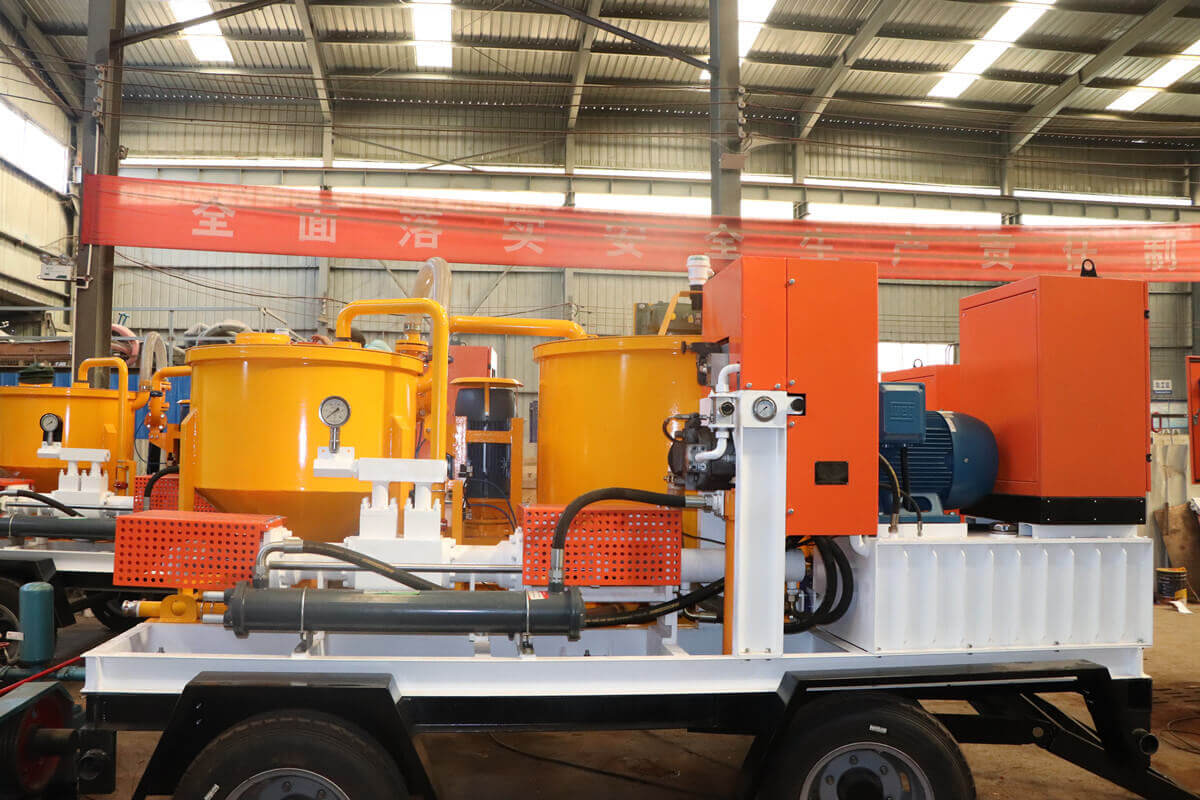

Workshop production drawing of grouting pump with mixers:
