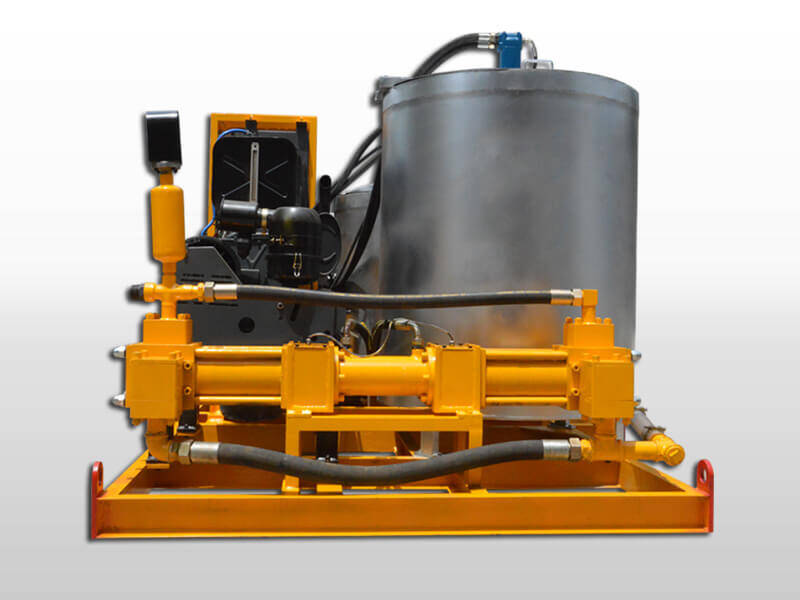

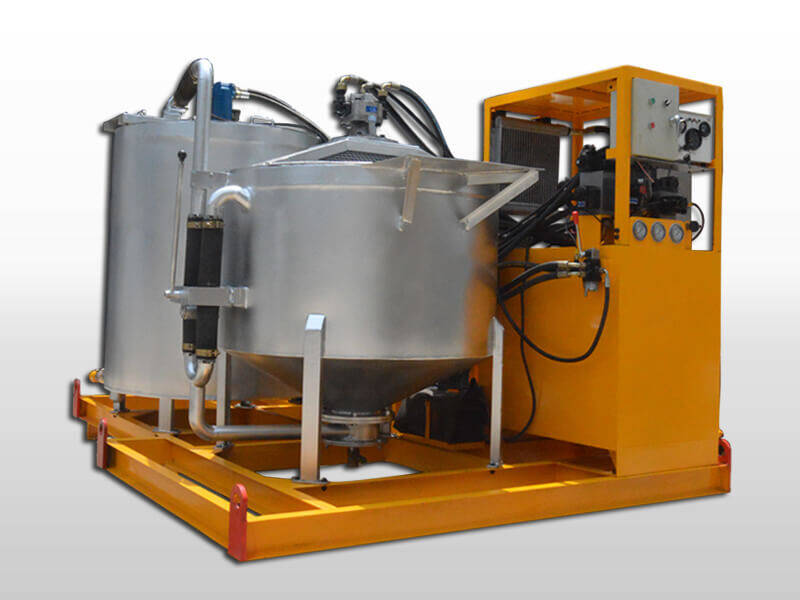

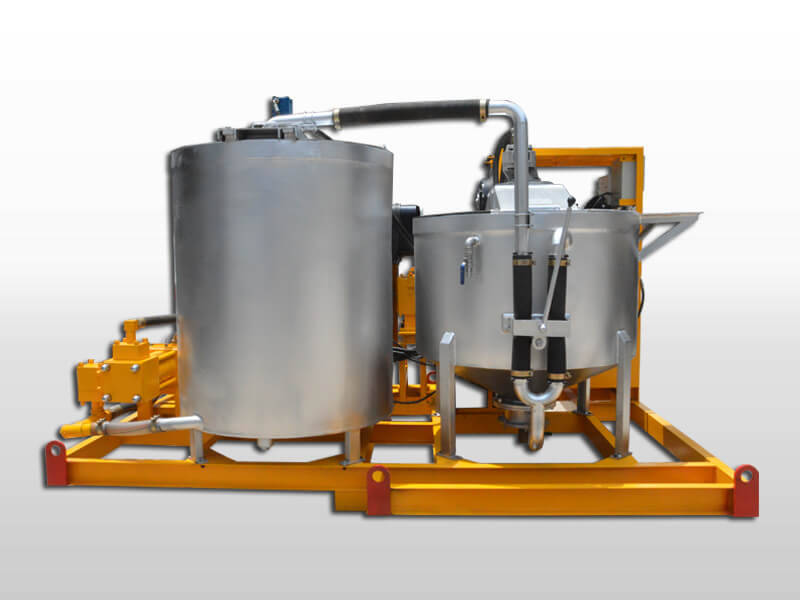

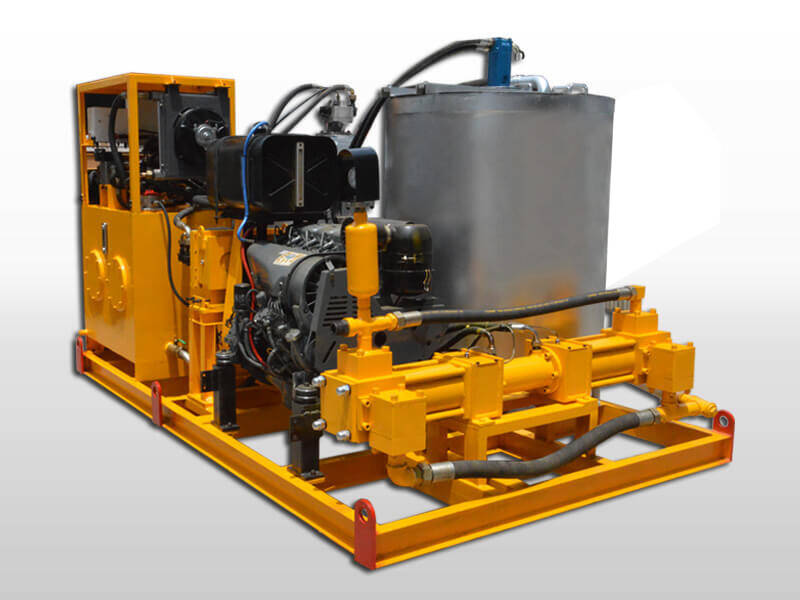

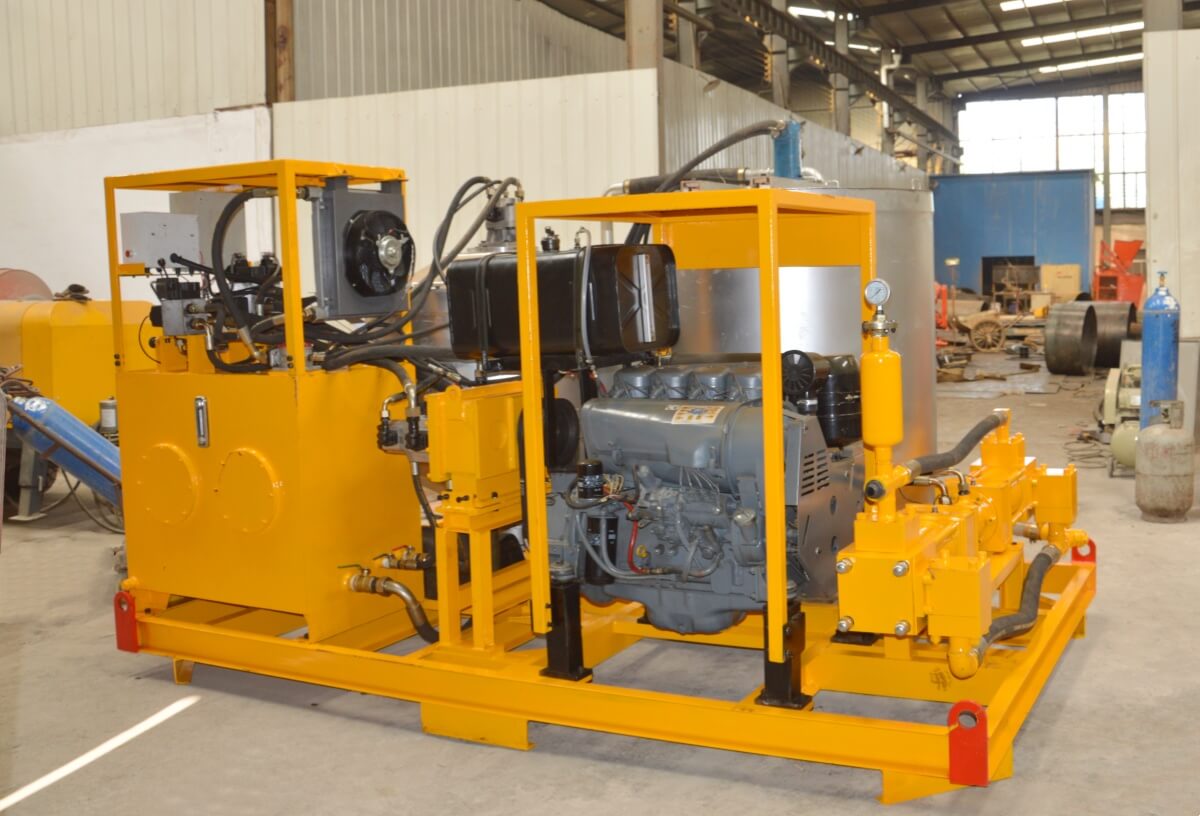

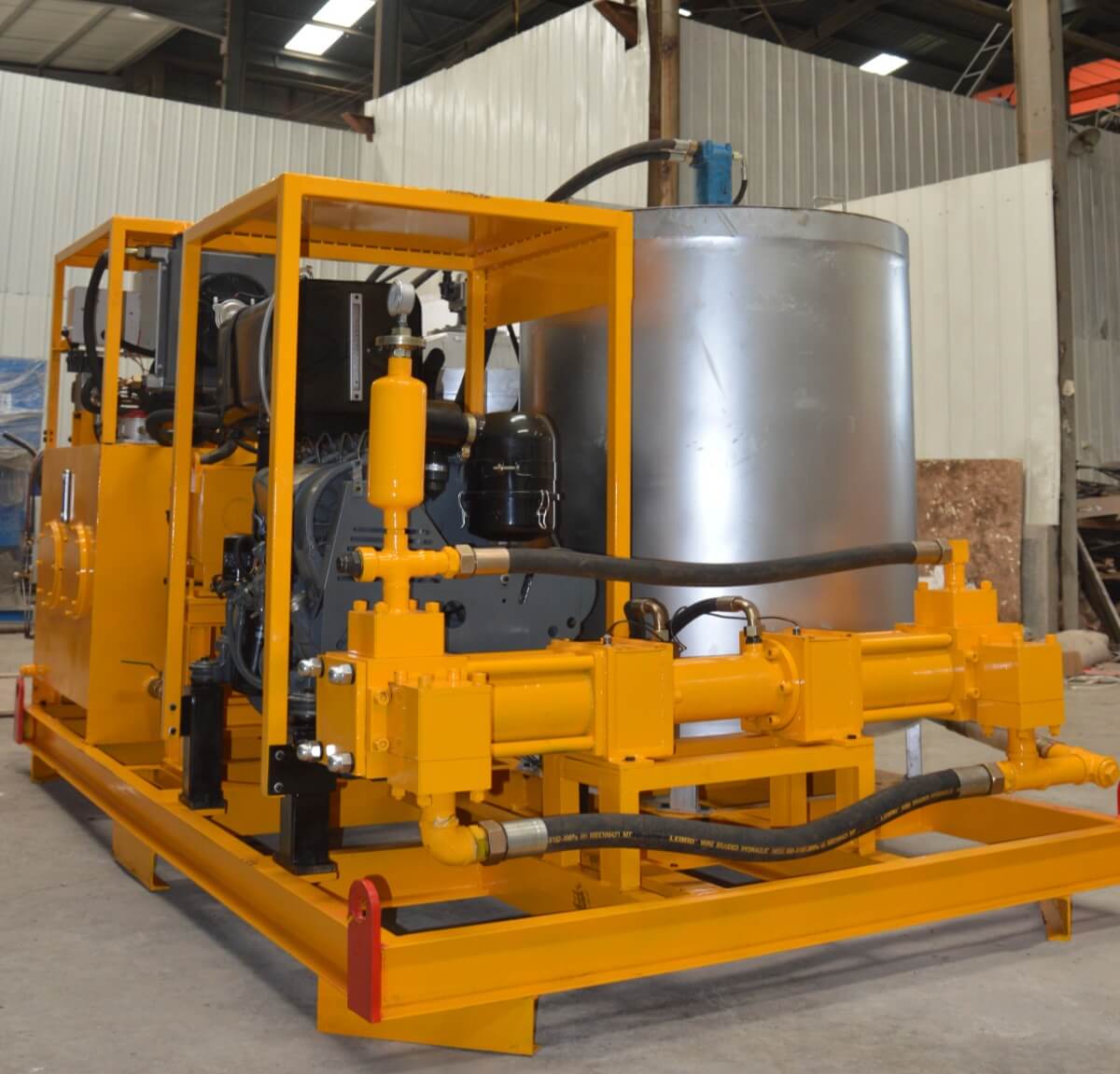

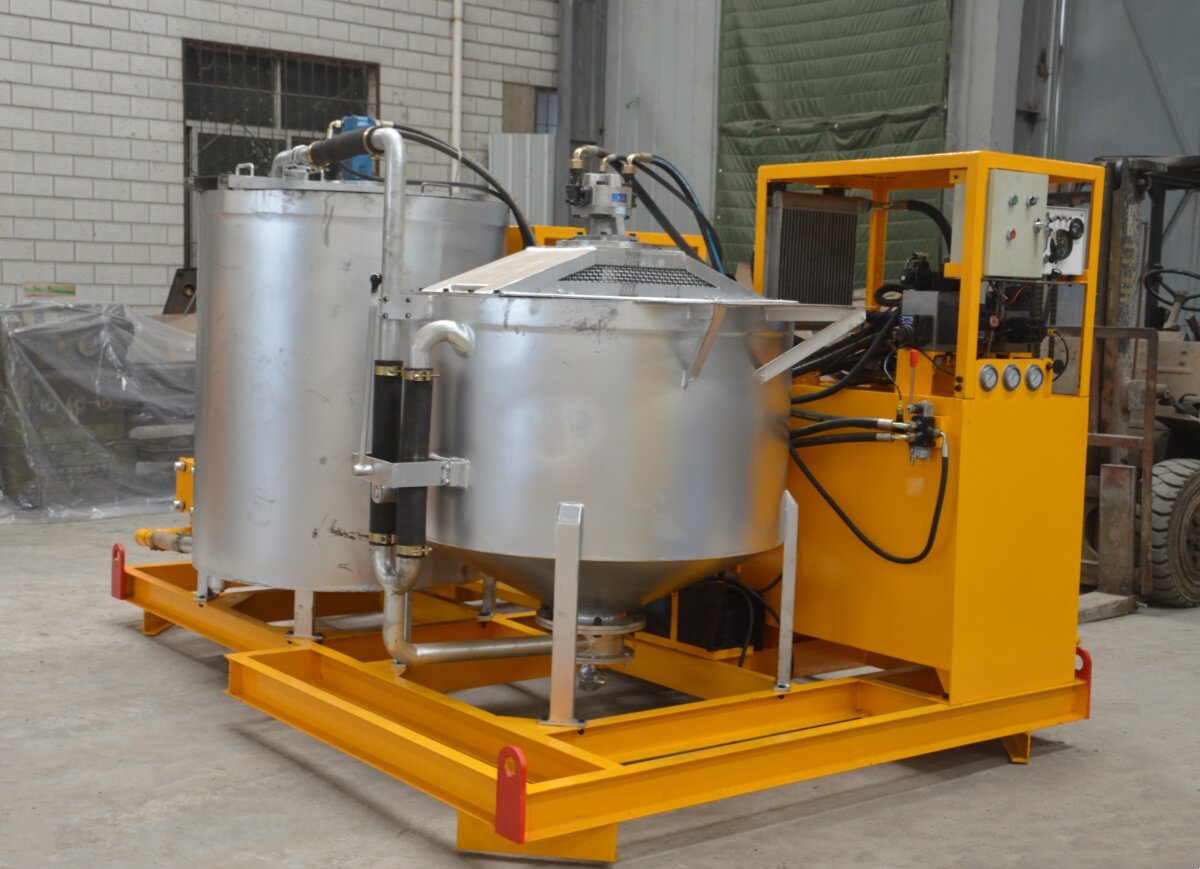

GGP800/1200/200PI D grout station is a combination of mixer, agitator and grout pump in one plant. It is mainly used in highway, railway, hydropower, construction, mining and other ground and underground construction.

High speed vortex mixer ensures mix quickly and evenly. Water, cement or bentonite is quickly mixed into a homogeneous slurry. Then the mixed slurry was delivered to the agitator. Grout pump injects from the mixing drum (storage tank). This ensures a continuous mixing and grouting operations. The grouting plant is full hydraulic drive with diesel engine. Grouting pressure and displacement is step-less adjustable. Compact size and it is easy to operate. It also takes up a small space.

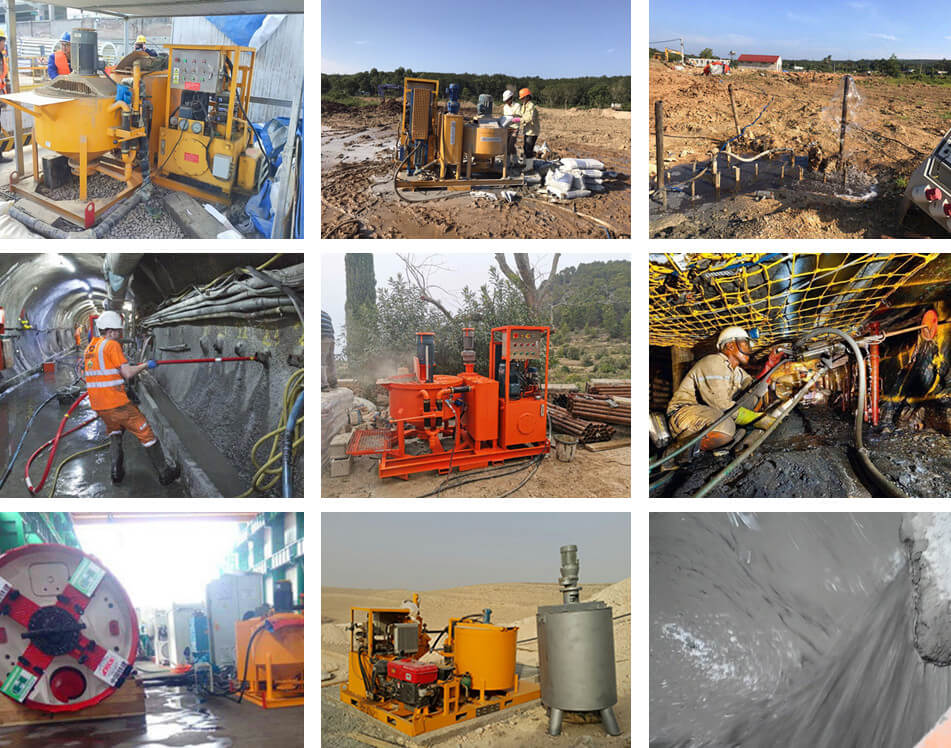

1. Civil engineering - dam, tunnel, subway, mine, soil nailing wall, curtain, anchor, cable trench and anchor grouting;
2. Building structure - building and bridge repair, foundation reinforcement, slope support, soil compaction, rock grouting;
3. Engineering - underwater foundation, offshore platform, coast foundation grouting reinforcement;
4. Mine application - roadway reinforcement, backfill, waterproof grouting;
5. Acted as a grouting plant in the Pipe Jacking Machine.

1. 55KW air cooling diesel engine as the power, it is suitable for field construction;
2. Pump output is 0-200L/min. Pump pressure is 0-5Mpa. All step-less adjustable;
3. Simple structure, light weight, easy maintenance;
4. Double-cylinder and single-acting grouting pump: grouting continuous and pulse small;
5. The latest improvement design of valve chamber: It is quickly convenient cleaning;

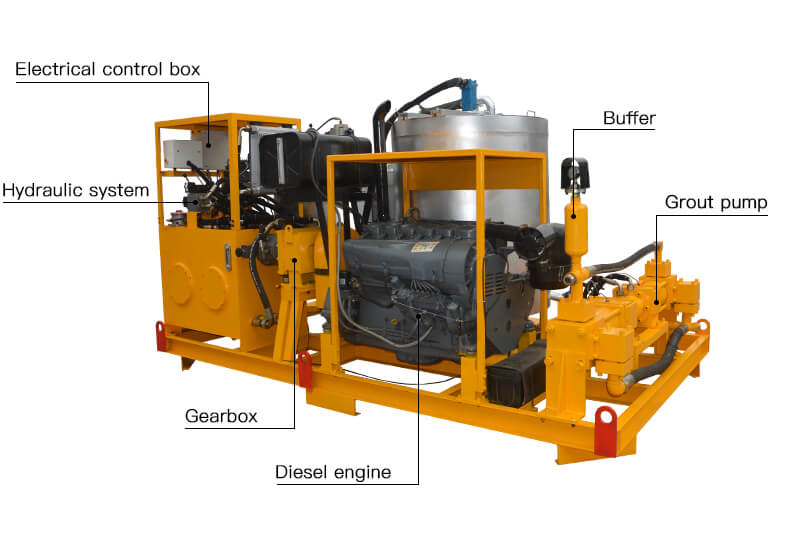

6. Grouting pump outlet is equipped with buffer. This can further reduce the grouting pressure fluctuations;
7. Delivery with special tools. This can ensure change the pistons rapidly, reduce the time of replacing;
8. Less spare parts ensure low maintenance costs;
9. High speed vortex mixer ensures mix quickly and evenly;

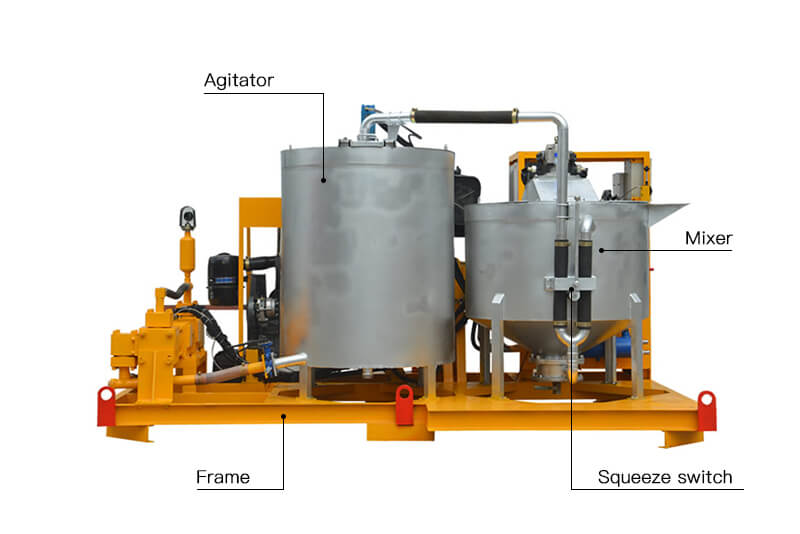

10. Mixer and agitator switch by using squeeze handle, it is safe, reliable and easy to operate;
11. Mixer and agitator tank use Stainless steel material.

Description	Data
Grout Station model	GGP800/1200/200PI-D
Diesel engine (Air cooling, Deutz technology)	55kw, 2500r/min
Dimensions	3200*2200*2000mm
Weight	2460kg
Mixer
Capacity	800L
Output	15m3/h
Suitable water/cement ratio	≥0.5:1
Motor model	CMZ2040
Rated Rev.	1500rpm
Agitator
Capacity	1200L
Motor model	2w-400
Rated Rev.	54rpm
Pump
Output	0-200L/min
Pressure	0-5MPa
