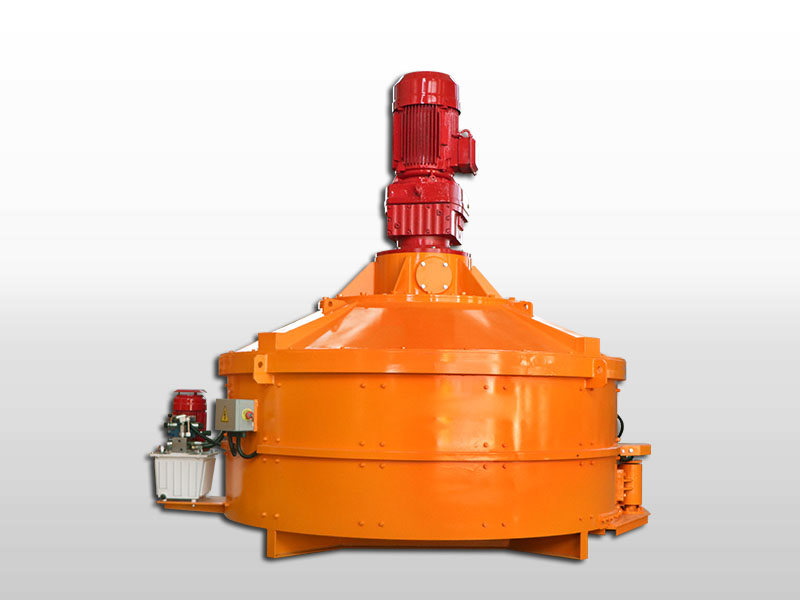

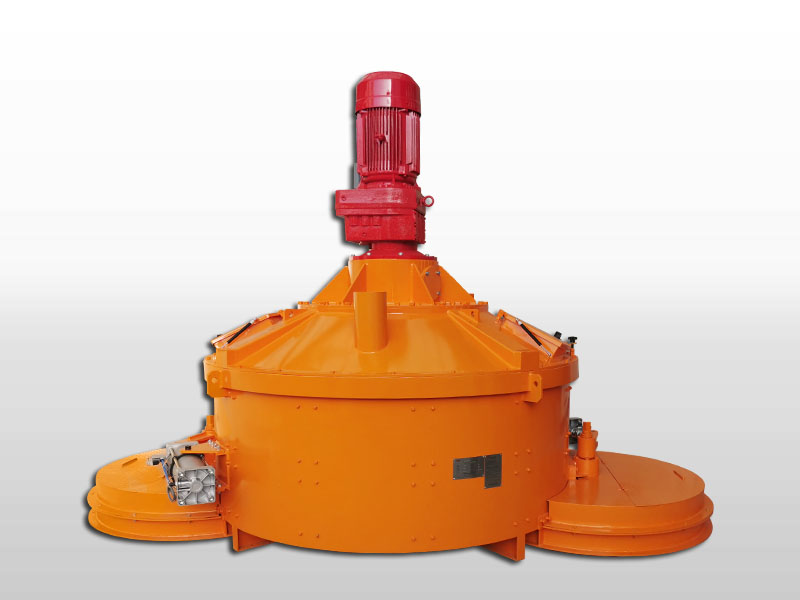

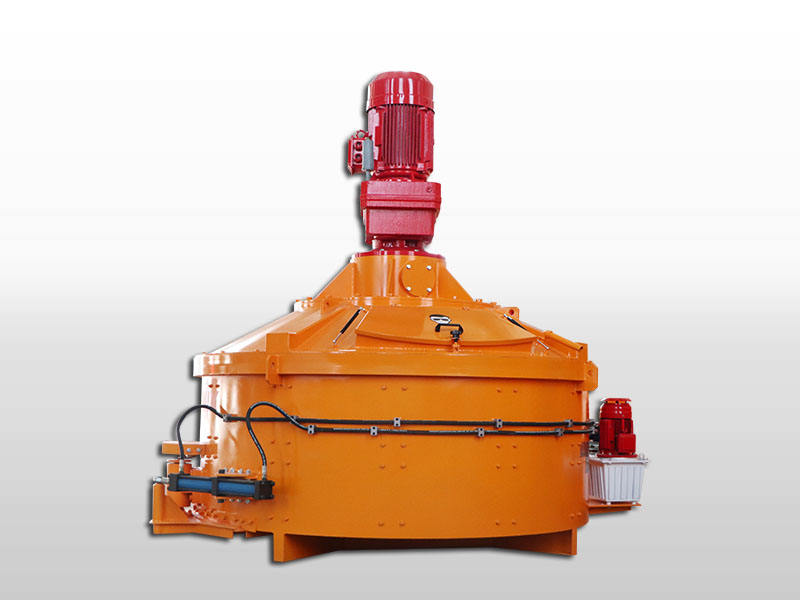

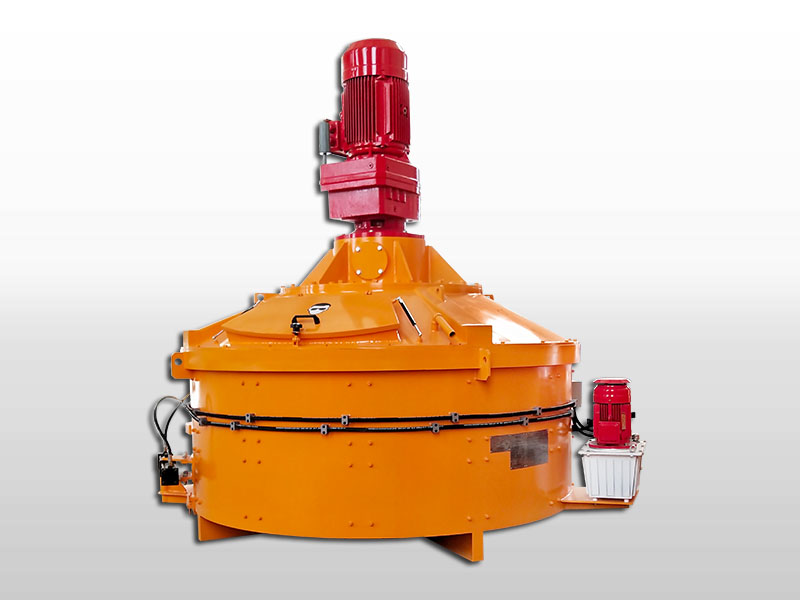

GCPM Counter Current UHPC Planetary Concrete Mixer can mix all kinds of high-quality and high-performance concrete, and which can reach homogenous mixing at shortest time. Refractory planetary mixer can also be widely used for glass, ceramics, refractories, fertilizer and concrete, etc.

Counter-current Gearing System
The rotate direction of mixing stars is reversed with revolution direction, and each mixing star’s direction is also different. The circulation movement and convective movement make the material severely mixing and achieve the uniform distribution.
Convection Mixing Device
★High mixing efficiency, low energy consumption.
★Compared with traditional planetary mixer, the mixing time of GCPM could be reduce 15~20%.
★The no-load current and load current with same material can be 15~20% lower.

Options of UHPC Planetary Concrete Mixer:
Hydraulic coupling (Italy).
Moisture probe (Germany).
High pressure washout system (Italy).

The counter-current gearing system has higher transmission efficiency, excellent mixing result and longer service life.	The counter-current mixing device makes the complex mixing locus and high efficient result. The reasonable load distribution of gearing system gives fast and thorough discharging.

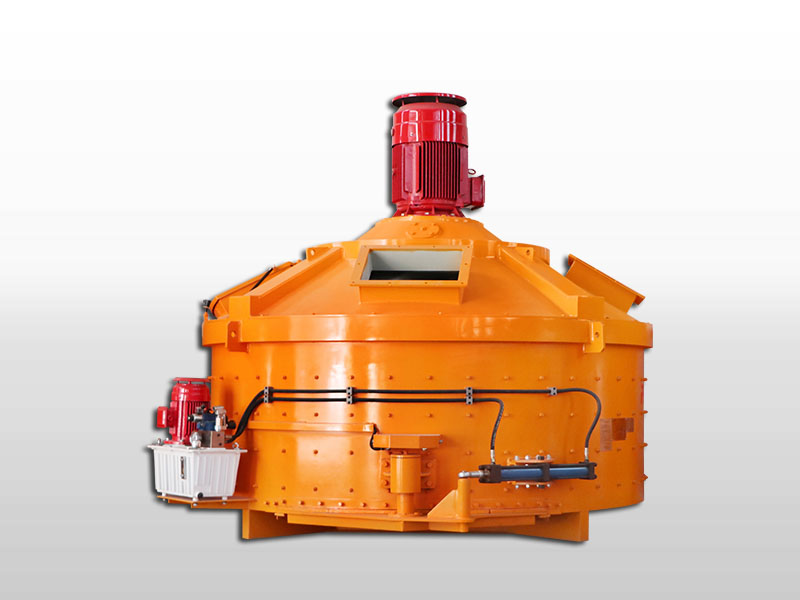

Hydraulic unit equipped with manual pump allows the door be opened in case of electric failure.	Cr-hard alloy cast iron liner and mixing blade.

Why choose Gaodetec?
1. We are Counter Current UHPC Planetary Concrete Mixer factory, not trading company. Which means we can control the producing better and communicate with our clients about the planetary mixer in time.
2. We have a big excellent team to service you. Top design team, sales team, producing team, shipping team and after-sales team.
3. We can supply special design for different requirements. For example, some clients don't have enough space for all machines, we can make a special design and supply a best solution.
4. We confirm the drawing with our concrete counter current planetary mixer clients before producing. Which make sure all details are correct.

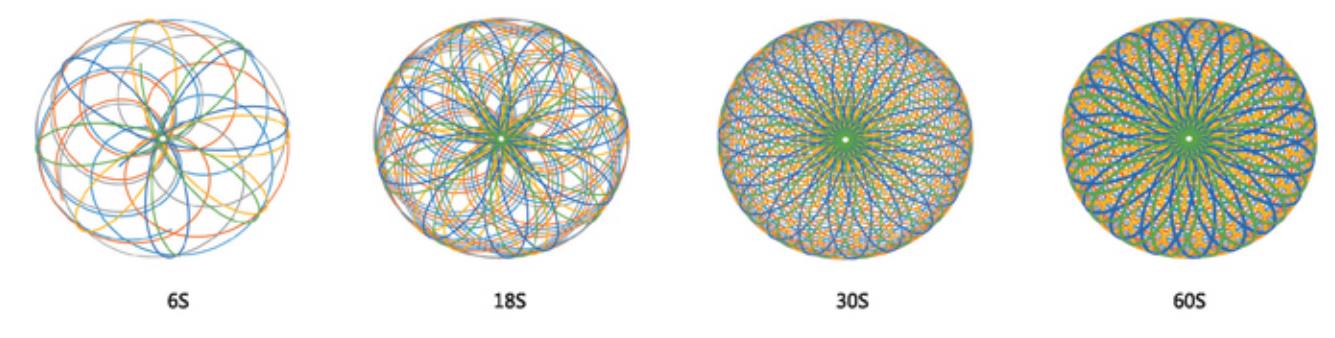

Mixing Locus Diagrams
The diagram show the prefect mixing action of the counter-current planetary mixer from 6 to 60 seconds after materials added. Note that the floor is completely swept by the mixing star’s action every 4 revolutions (6 seconds) and that each zone is covered at regular interval in time.

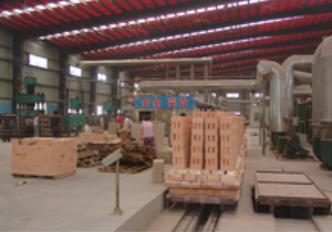

Application of Counter Current UHPC Planetary Concrete Mixer:

Concrete	Other Construction Material	Refractory Materials	Others
Ready-mixed Concrete	Dry Mortar	Shaped refractory	Glass

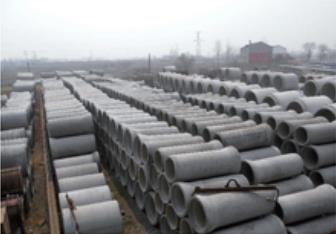

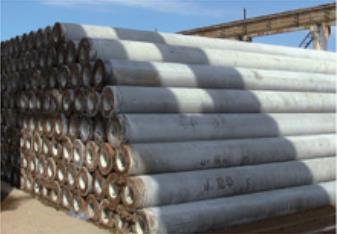

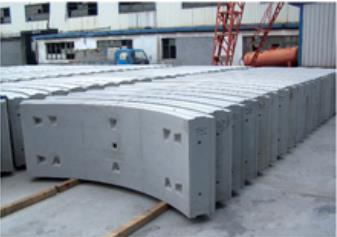

Precast Concrete	Wet Mortar	Unshaped refractory	Fertilizer
Foam Concrete	Gypsum		Water treatment
Ultra High Performance Concrete	Aggregate Mixing		Mine backfill
Light Concrete	Emulsified asphalt
Shotcrete	Cement adhesive

Features of Ultra High Performance Concrete Planetary Mixer:
1. Excellent mixing performance
The rotated direction of mixing stars is reversed with the revolution direction, and each mixing star's direction is also different. The circulation movement and convective movement make the material severely mixing. The counter-current and impact can avoid material agglomeration and make the material thoroughly mixing and achieve the uniform distribution in microcosm.
2. High mixing efficiency, low energy consumption
The new concept of refractory planetary mixer makes the complex mixing locus, severe mixing and high-efficient result. The mixing time can be reduced 15-20%compared with traditional planetary mixer in same condition. New designed power and gearing system has higher transmission efficiency. Optimized mixing device design gives better mixing result. The no-load current and load current with same material can be 15-20% lower than the traditional planetary concrete mixer.
3. Multiple rotated speed configuration
4. Optimized mixing device design
The optimized designed shape, size and installation angle of the mixing blade and the improvement of mixing arms' structure make high-efficient mixing, reasonable load distribution of gearing system and fast and thorough discharging.
5. Improved cover design
Large upper port in the cover can help gearbox out directly, no need to disassemble any feeding device, which can also sharply improve the maintenance space. The huge maintenance gate is convenient for worker's access and wearing parts replacement. The improved cover sealing structure can improve the dust prevention.
6. Great new-designed discharge door (Option)
7. Comprehensive consideration of handling safety
The key-operated emergency stop in the junction box can stop the mixer immediately in case of emergency. Take off the key in maintenance to ensure the safety. The observe port on the maintenance gate can help to observe the mixing condition during mixer running. The high-reliable and high-sensitive safety switch equipped on the maintenance gate, guarantees the motor can not be powered with gate open.
8. Unique gearing system
The new and compact designed gearbox is more sturdy and durable. The gearbox volume is 30% smaller than MP planetary mixer, which can provide more maintenance space in the trough. Improved shaft sealing device and electric greasing pump can increase the gearbox's service life and reduce the routine maintenance.
9. We can offer customized Counter Current UHPC Ultra High Performance Concrete Planetary Mixer for special requirements or applications.

Technical data of Counter Current UHPC Ultra High Performance Concrete Planetary Mixer for sale:

Item	GCPM50	GCPM100	GCPM150	GCPM250	GCPM330	GCPM500	GCPM750	GCPM1000	GCPM1250
Feeding Volume (L)	75	150	225	375	500	750	1125	1500	1875
Feeding Capacity (Kg)	120	240	360	600	790	1200	1800	2400	3000
Output Volume  (L)	50	100	150	250	330	500	750	1000	1250
Mixing Power (Kw)	3	5.5	7.5	11	15	18.5	30	37	45
Mixing Star*Blade	1*2	1*2	1*2	1*2	1*2	1*3	1*3	2*3	2*3
Side Scraper	1	1	1	1	1	1	1	1	1
Discharge Scraper	-	-	1	1	1	1	1	1	1
Discharging Power (KW)	Pneumatic Discharging			2.2	2.23	2.2	3	3	3
Weight (Kg)	750	1000	1300	1500	2000	2400	3900	5500	6000



Item	GCPM1500	GCPM2000	GCPM2500	GCPM3000
Feeding Volume (L)	2250	3000	3750	4500
Feeding Capacity (Kg)	3600	4800	6000	7250
Output Volume (L)	1500	2000	2500	3000
Mixing Power (Kw)	55	75	90	110
Mixing Star*Blade	2*3	3*3	3*3	3*3
Side Scraper	1	1	1	1
Discharge Scraper	1	2	2	2
Discharging Power (Kw)	3	4	4	4
Weight (Kg)	6500	9200	11000	12000
