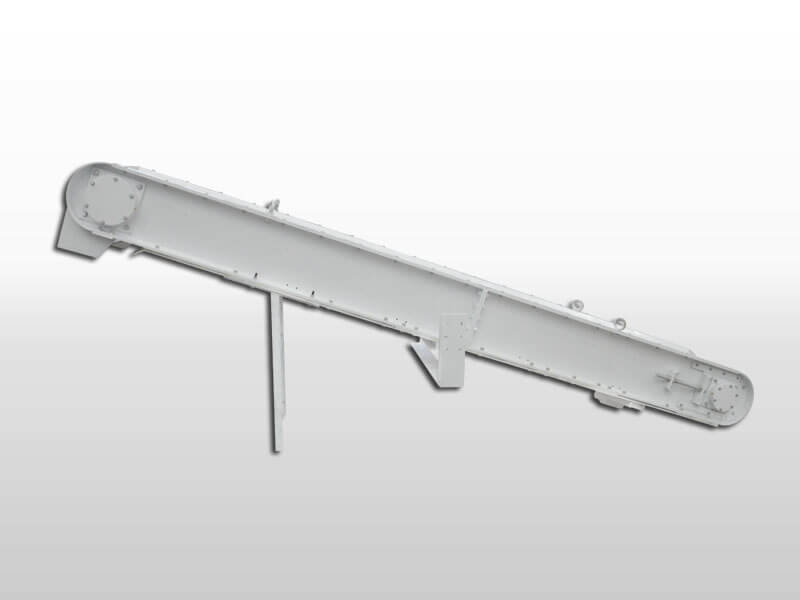

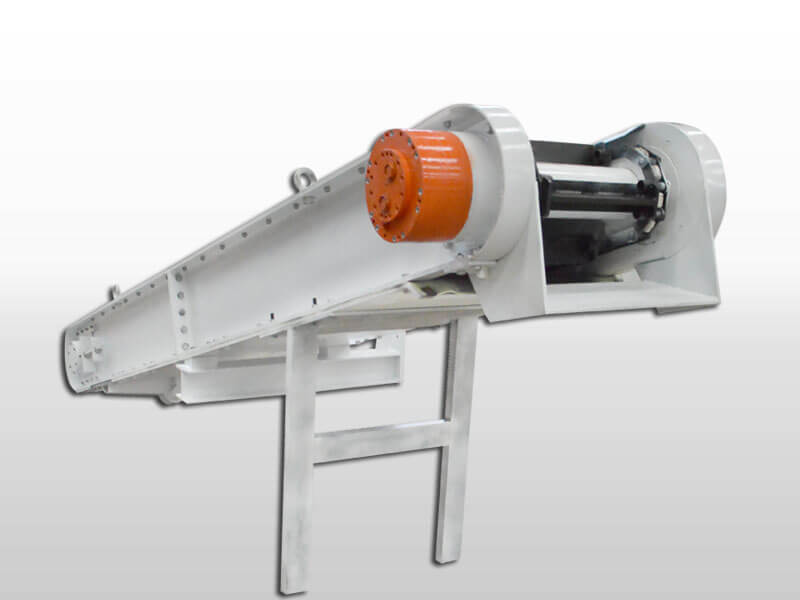

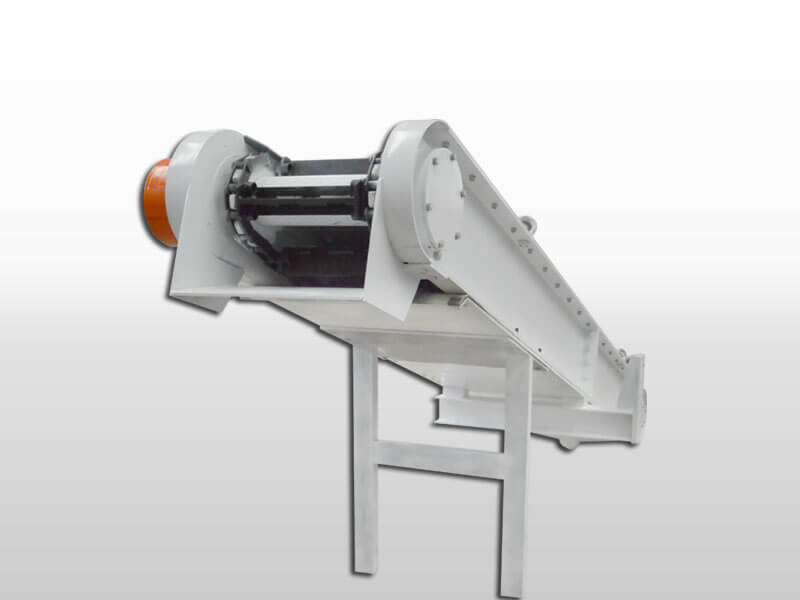

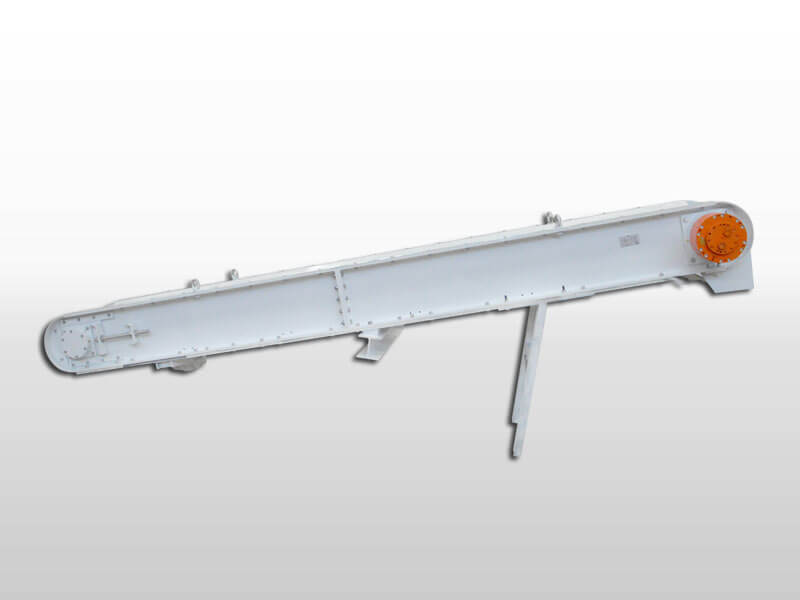

GSC500H is a heavy duty scraper conveyor driven by hydraulic motor. We our specially design it to follow our years experience, it is for bulk material conveying equipment. It is suitable for the transportation of broken materials, ores, slag, stone, slag and other granular and small blocks. It is widely used in mining, construction, tunnel building, underground engineering, water conservancy and hydropower engineering.

GSC500H Scraper Conveyor is suitable for the transportation of broken materials, ores, slag, stone, slag and other granular and small blocks. It is widely used in mining, construction, tunnel building, underground engineering, water conservancy and hydropower engineering.

1. With solid structure, to withstand the shocking, impacting, pounding of the stone, soil, coal, muck, etc.
2. With compact size, to be installed in a small room.
3. To be conveyed with large tilt angle.
4. To insert the conveyor into the material, this equipment can work without the loader.
5. Reverse run.

Model	GSC500H
Output	10~60m3/h
Chain speed	0-0.7m/s
Max.tilt angle	25°
Slot width	500mm
Slot height	340mm
Scraper type	T
Scraper space	266mm
Hydraulic power pack for motor	80L/min,10MPa
Weight	960kg
We reserve the right to change technical specifications without prior notice
