Gaode Equipment Co., Ltd. is a leading gunning machine for refractory material manufacturer in China. Gaodetec is a professional refractory gunning machine supplier for many years which supplies many gunning machine for refractory material to steel industry, construction industry, etc. Our gunite machine for refractory improved as per customer’s feedback and now air motor drive is for your option.

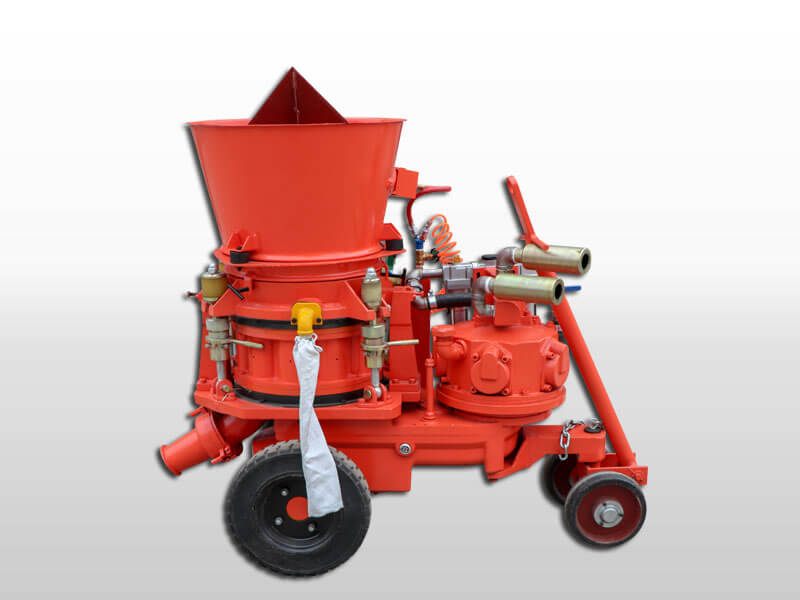

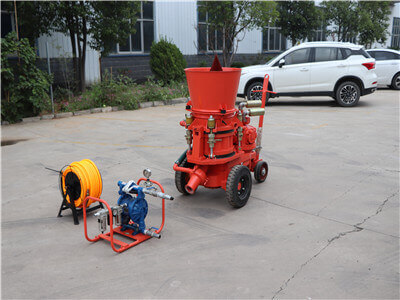

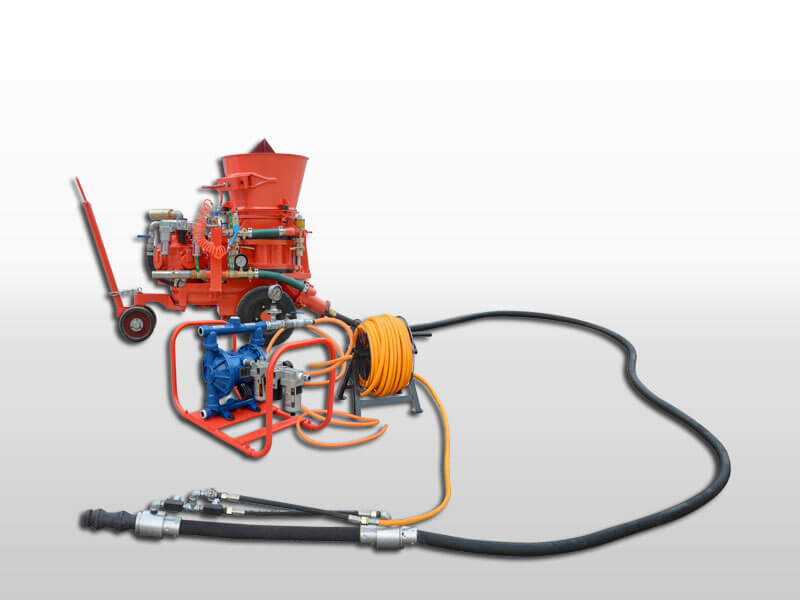

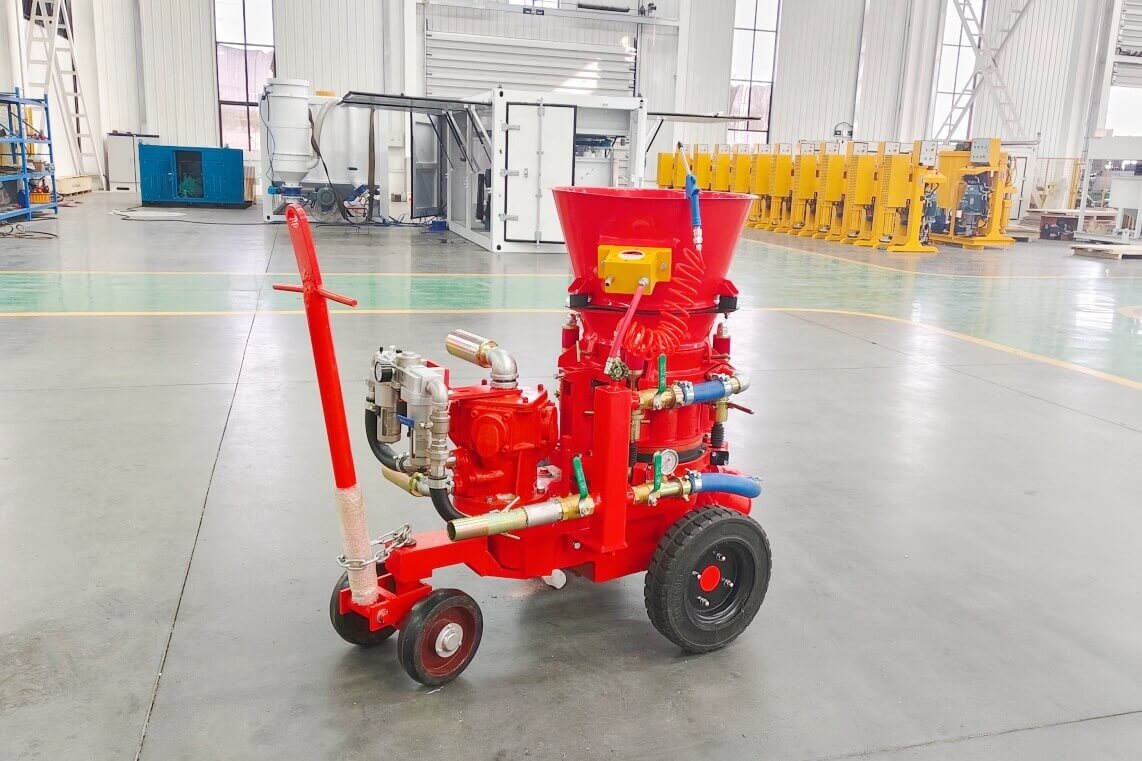

GZ-5AR is air motor full pneumatic straight chamber rotor type refractory gunning machine. Air type 5m3/h gunning machine for refractory is specifically designed for refractory dry-mix shotcrete applications, as well as for concrete shotcrete application. With this powerful, compact and reliable GZ-5AR Gunning machine for refractory, you can get low dust and high performance spraying flow in nozzle.
We also supply electric motor drive gunite machine for steel furnace industry, output from 1-5m3/h(2-10Ton/h), you are also welcome to come up with your customized requirement for the machine, then our professional staff will supply suitable design to you.

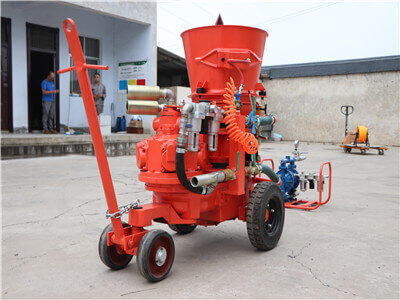

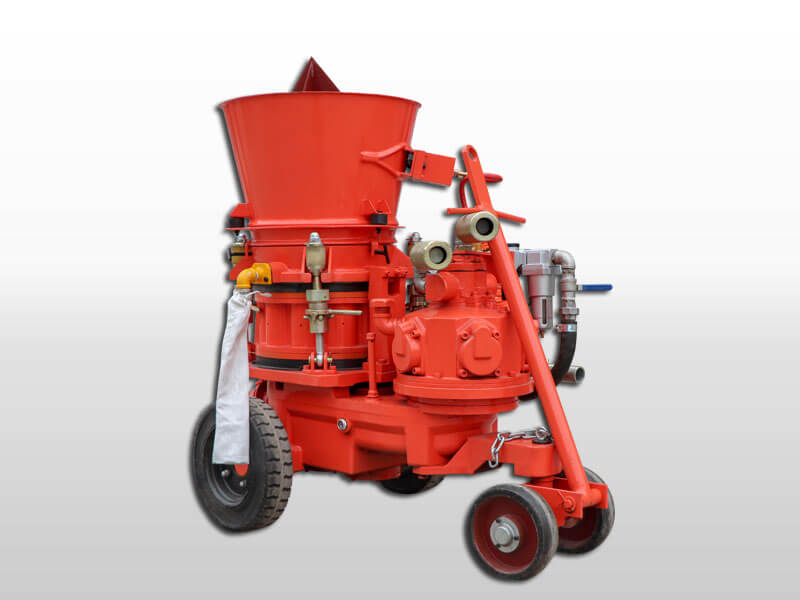

Details of GZ-5AR Gunning machine for refractory:

GZ-5AR Gunning machine for refractory is specifically designed for refractory dry-mix shotcrete applications, as well as for concrete shotcrete application.

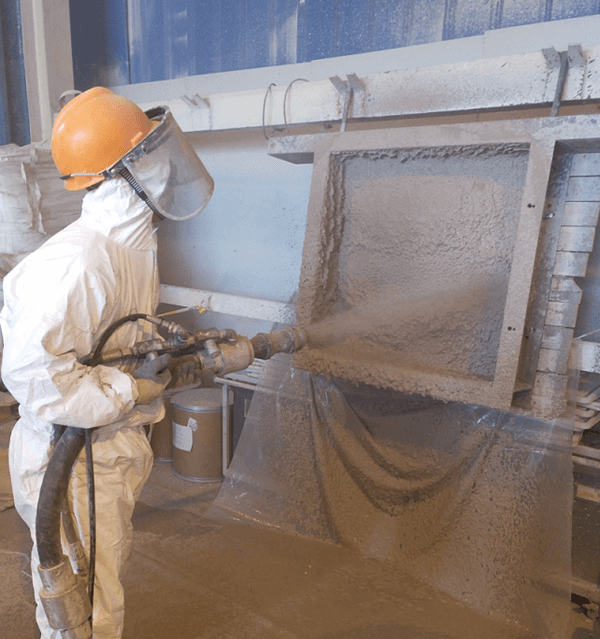

Spraying effect of GZ-5AR refractory gunning machine:

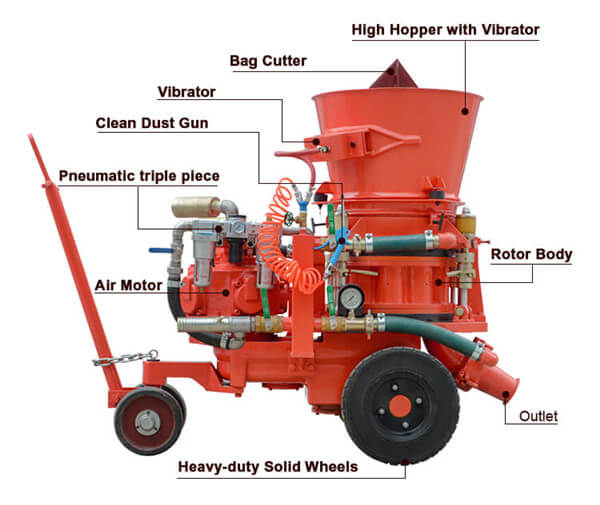

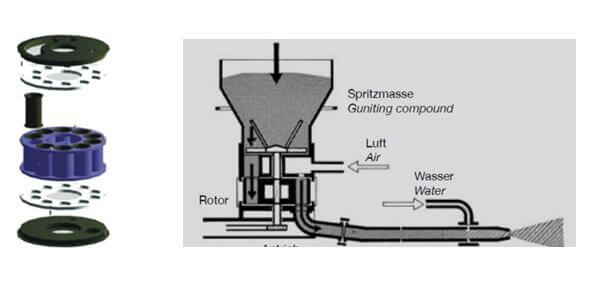

GZ-5AR Gunning machine for refractory is air motor full pneumatic straight chamber rotor type refractory gunning machine.

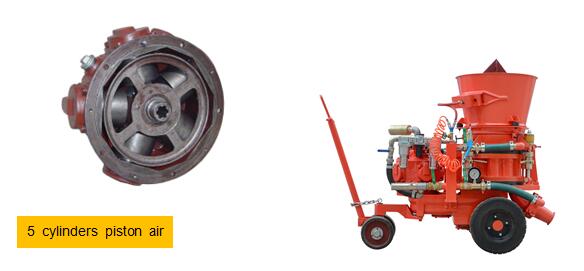

1. 5 cylinders piston air motor, more powerful

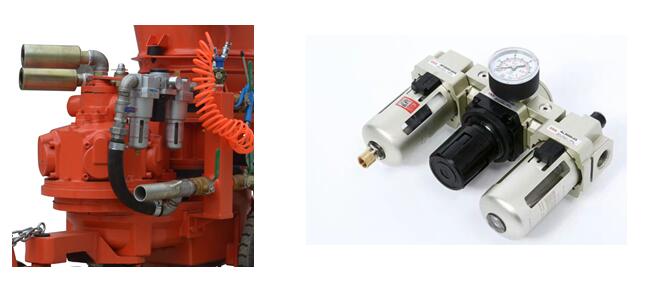

2. Pneumatic transmission system, the pneumatic triple pieces is refers to the air filter, relief valve and oil mist

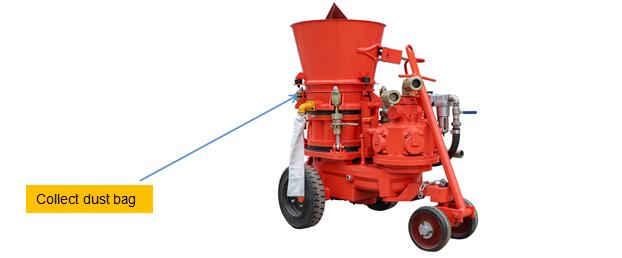

3. Collect dust bag

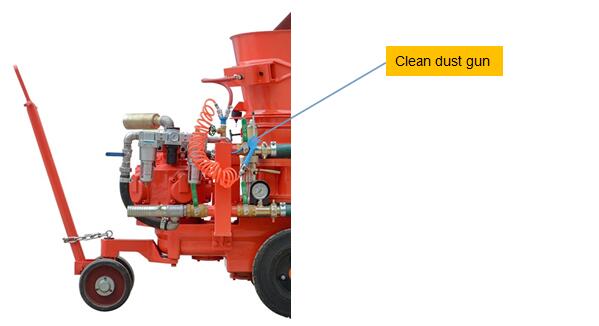

4. Clean dust gun

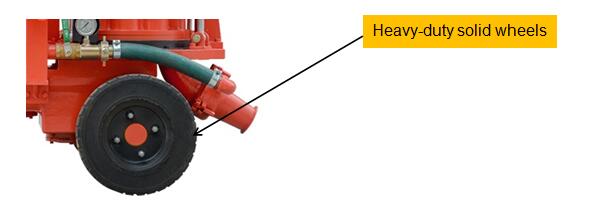

5. Heavy-duty solid wheels

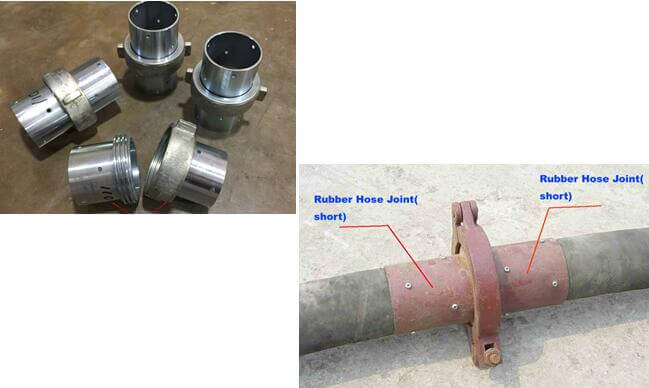

6. Coupling and clamp, the coupling and clamp are optional as below:

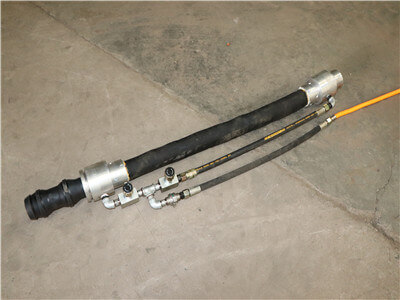

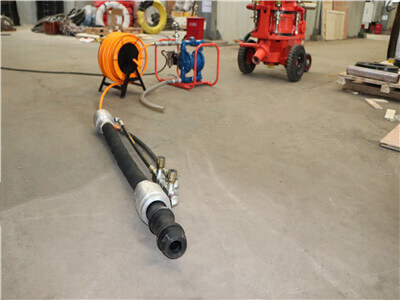

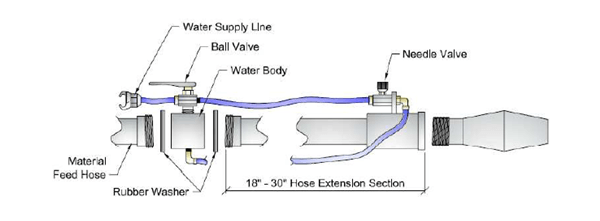

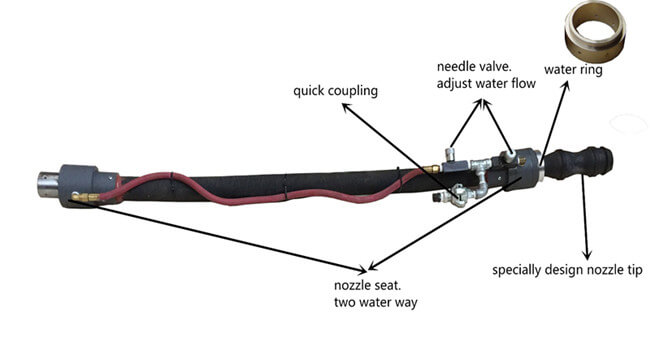

7. Light weight nozzle, new pre-dampening nozzle!

• Low rebound, low dust.
• Reduce additive water amount.
• Improve refractory compactness and strength.

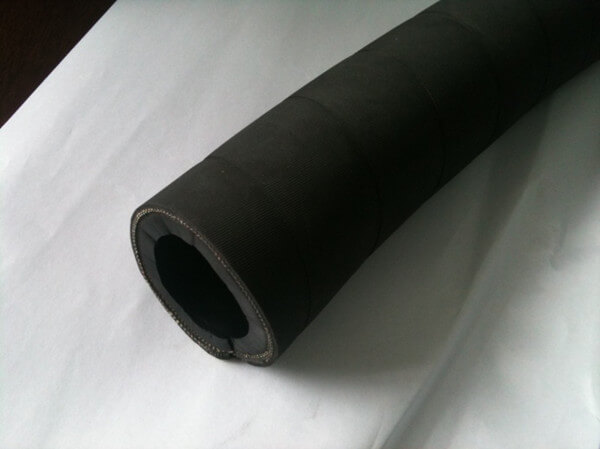

8. Blast rubber hose

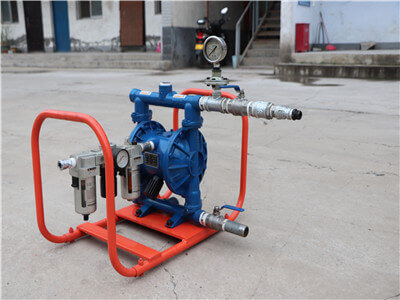

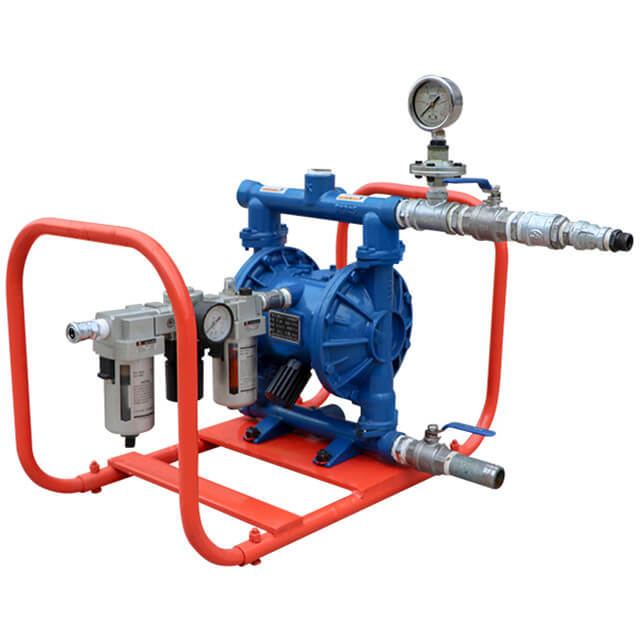

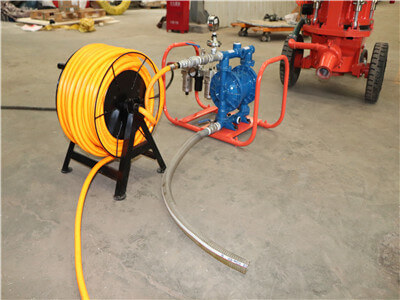

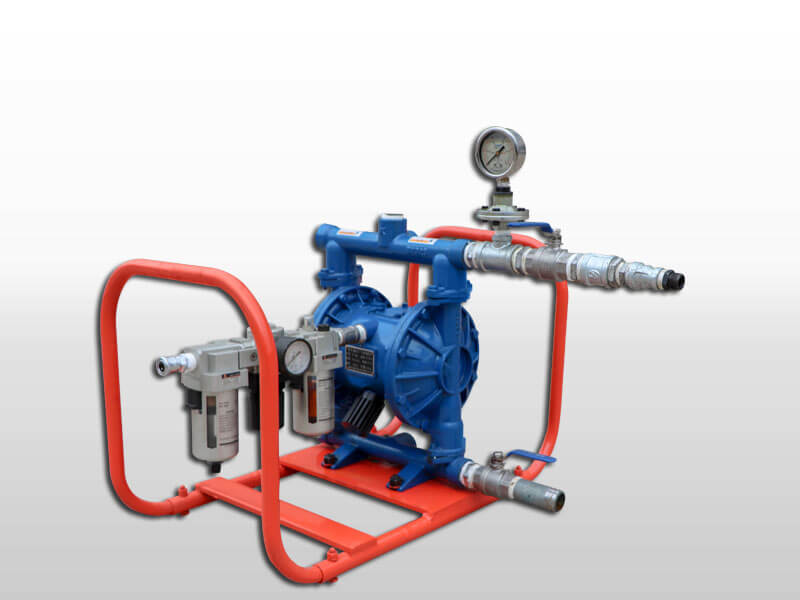

9. High pressure water pump, 6 bar pressure make sure to add water fully atomize, mix evenly



Rated Output	1-5m3/h(2-10Ton/h)
Max. Horizontal Conveying Distance	100m
Max. Aggregate Size	Φ15mm
Conveying Hose Inner Diameter	51mm
Operating Air Pressure	0.2-0.4MPa(29-58PSI)
Air Consumption	8~9m3/min(285-325CFM)
Air consumption for air motor	7.5m3/min
Drive Type	Air motor
Material Charging Height	1.2m
Rotor Speed	0-13.2r/min
Overall Dimension(L×W×H)	1.35×0.75×1.3m
Weight	500kg
