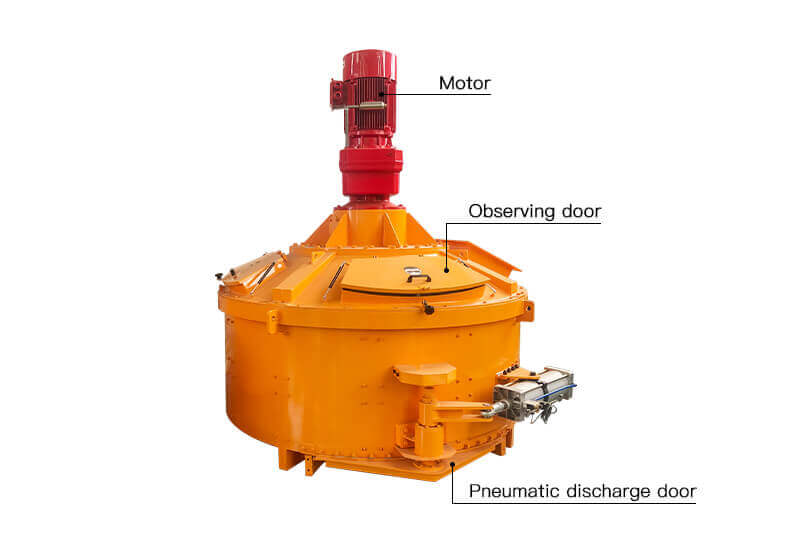

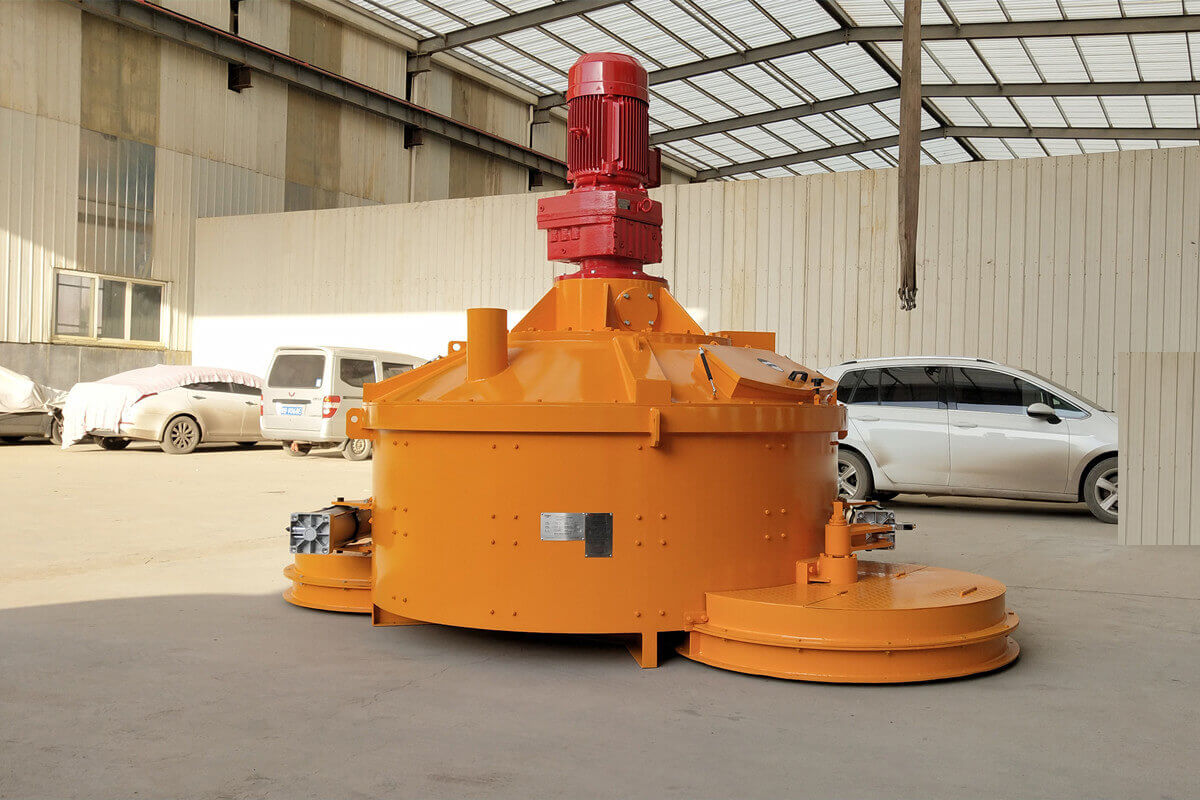

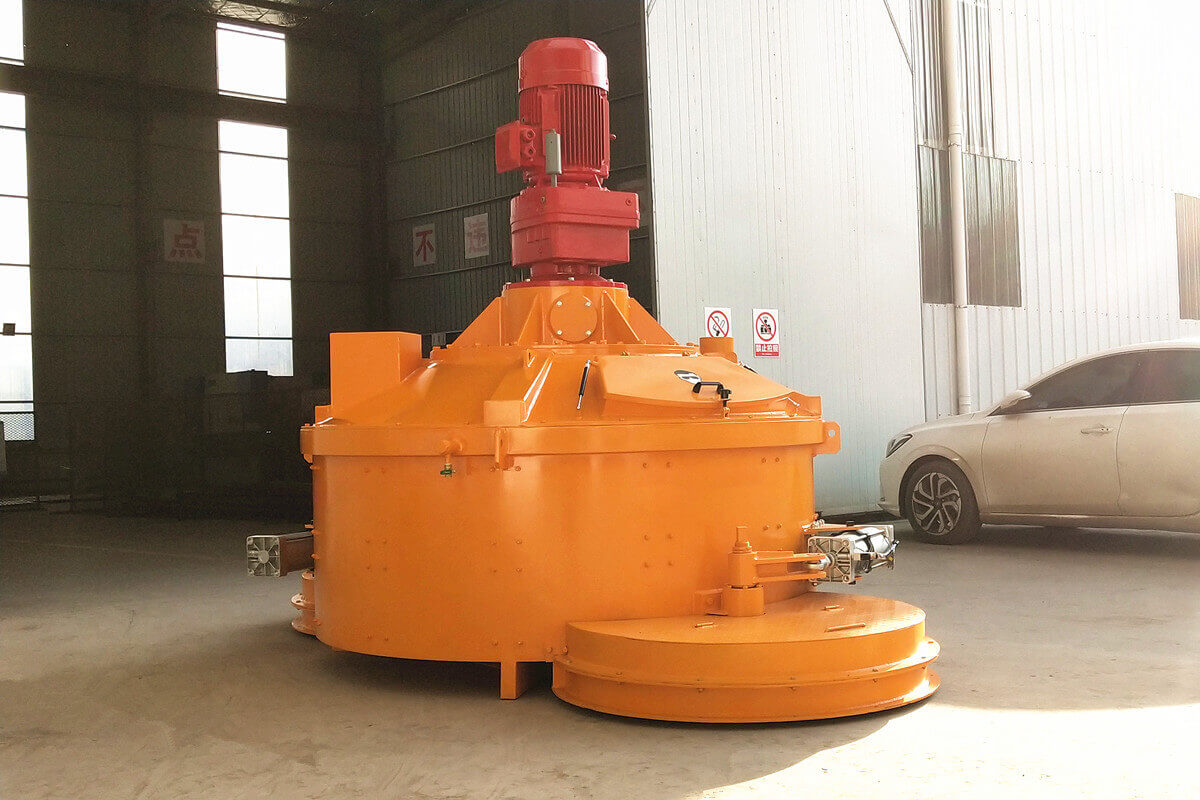

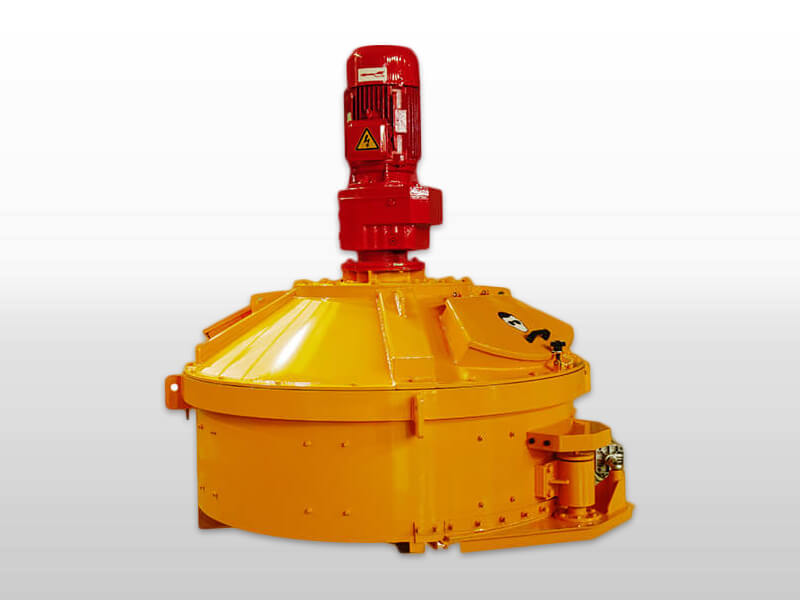

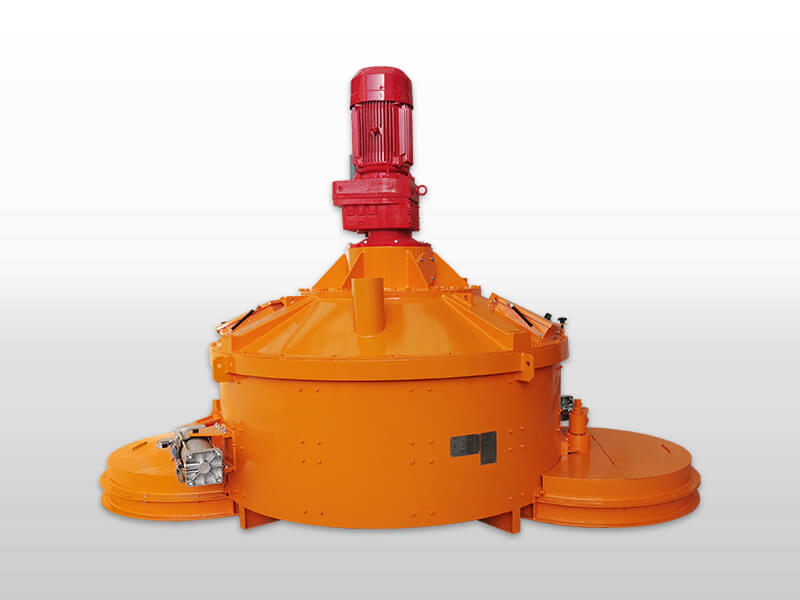

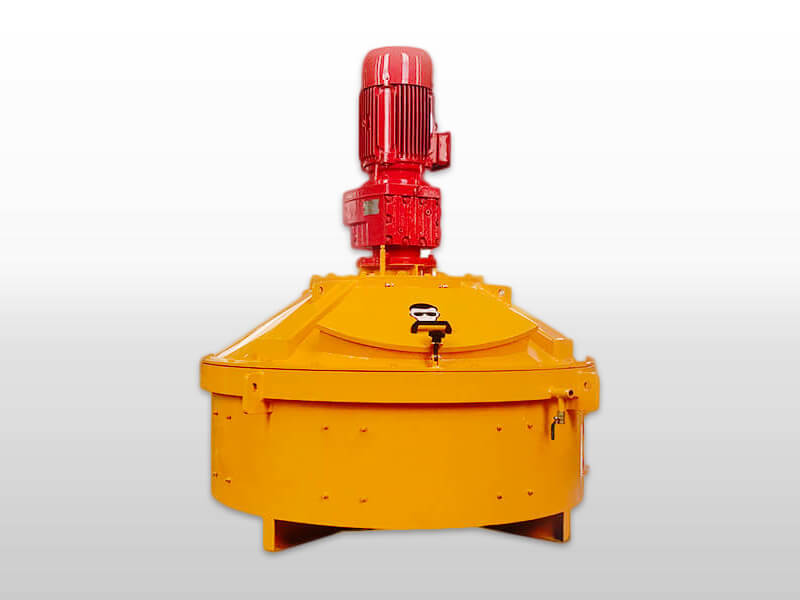

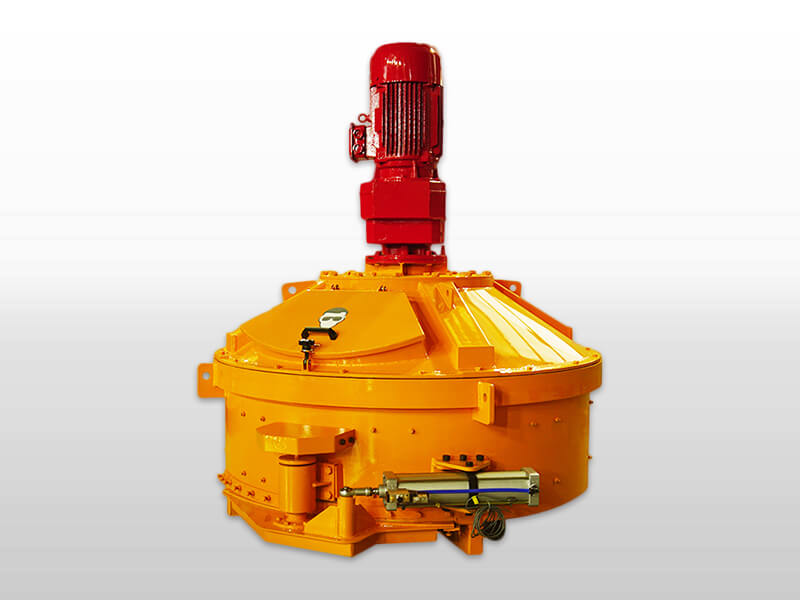

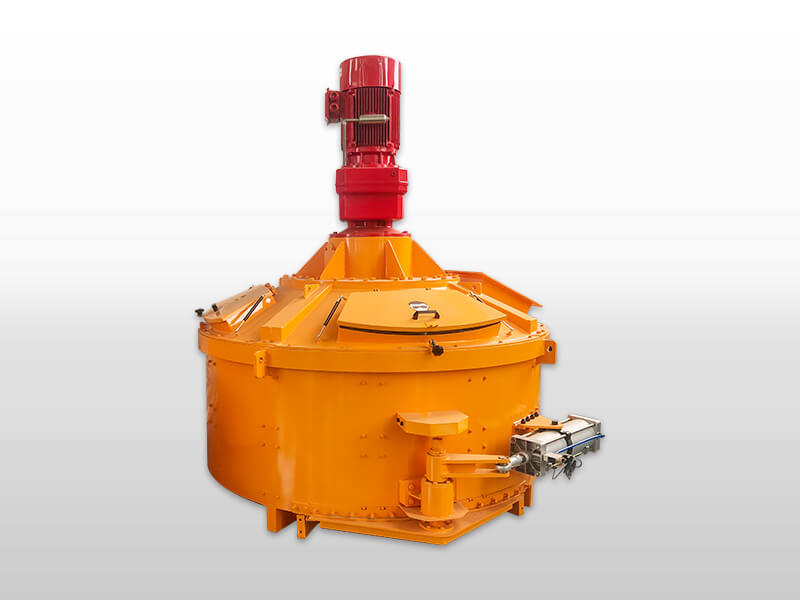

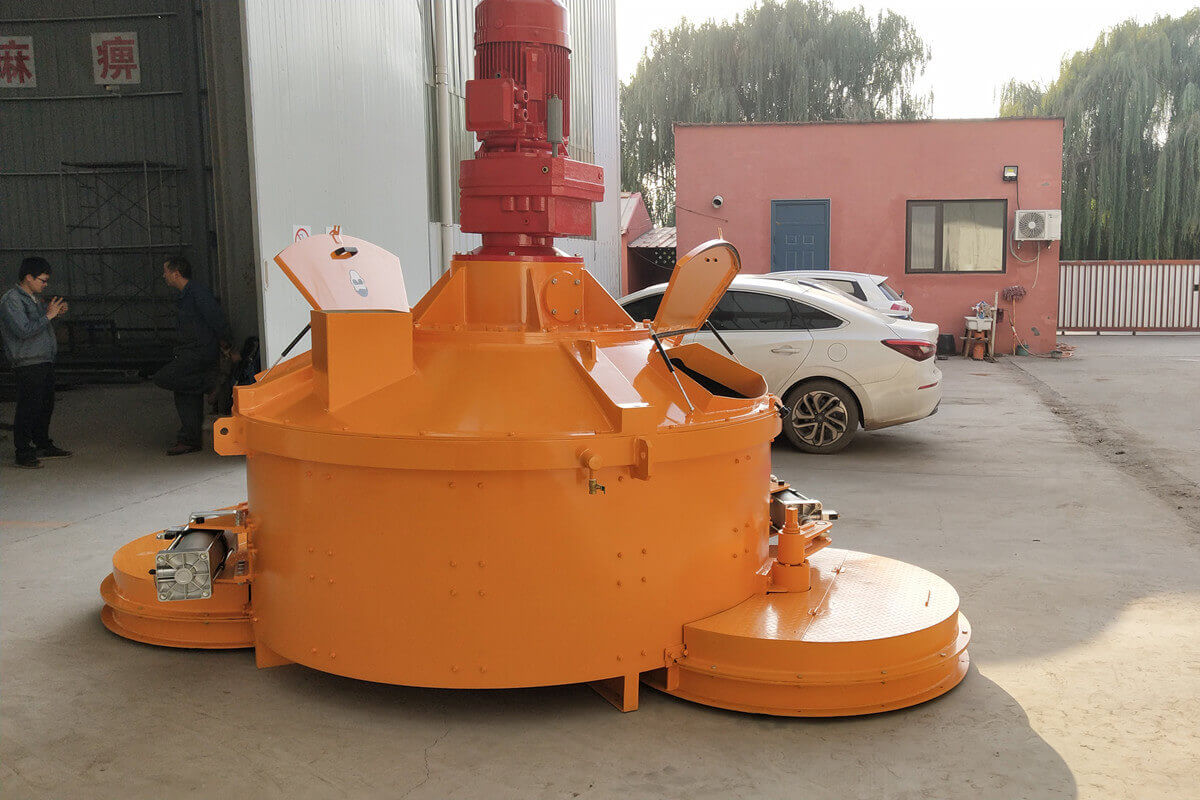

GCPM Refractory castable concrete planetary mixer has a feed capacity of 1125L and a discharge capacity of 750L. Its mixing power is 30KW, and the machine weight is 3900KG. It has a vertical structure with a planetary mixing device, and the mixing effect of the mixing device is rotation and revolution. The movement track of the blades of the 750 mixer is enough to cover the entire mixing barrel after one revolution of the revolution body. It is equipped with a hydraulic discharge door or a pneumatic discharge door.



A hydraulic discharge door utilizes a hydraulic system to open and close the door. This system typically consists of a hydraulic cylinder and a pump that generates the force necessary to operate the door. Hydraulic systems offer smooth and controlled operation, which can be particularly advantageous when dealing with heavy or dense materials that require precise discharge.

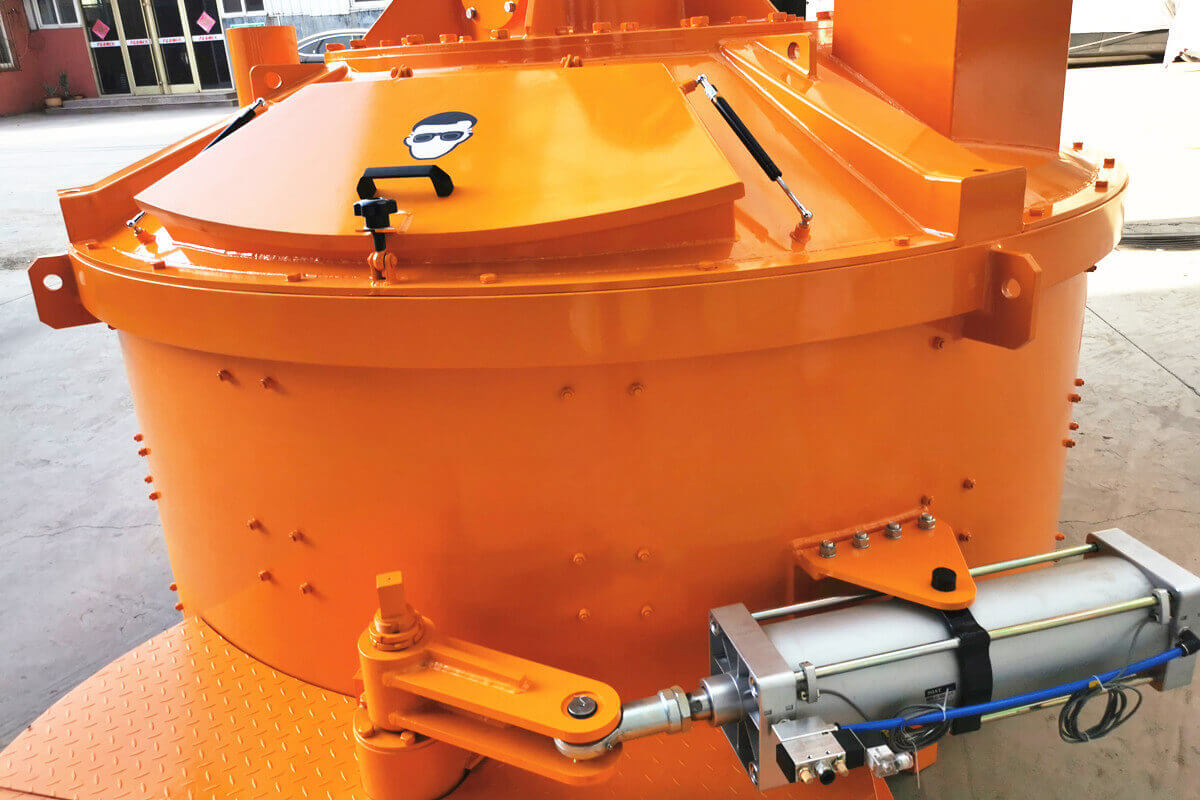

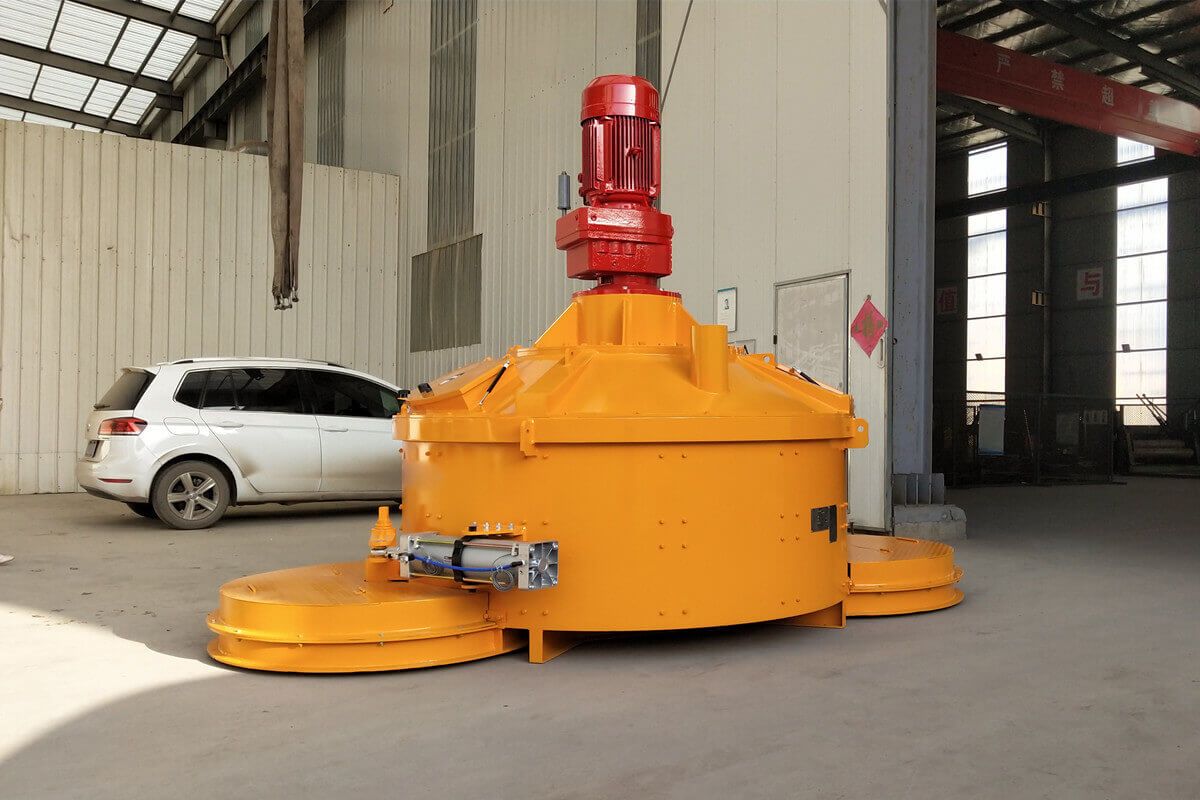

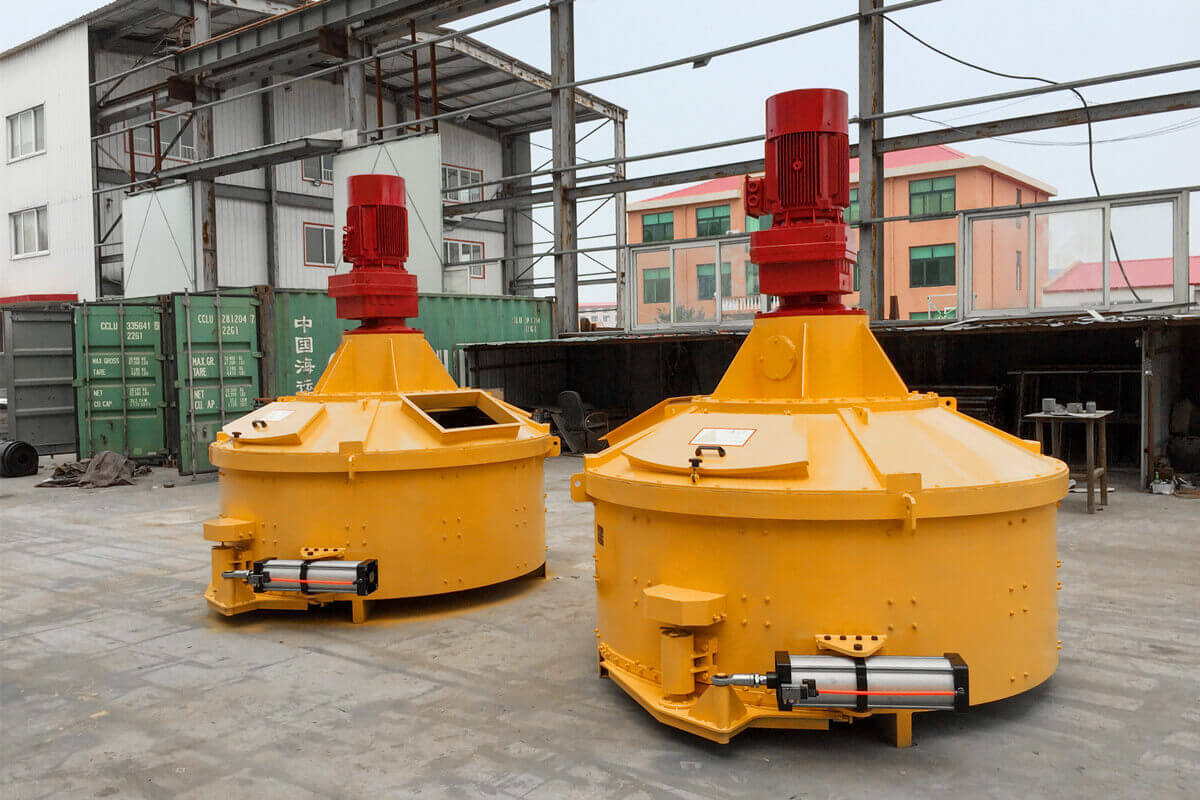

A pneumatic discharge door uses compressed air to operate the door mechanism. This type of system is generally less expensive and easier to maintain than hydraulic systems.

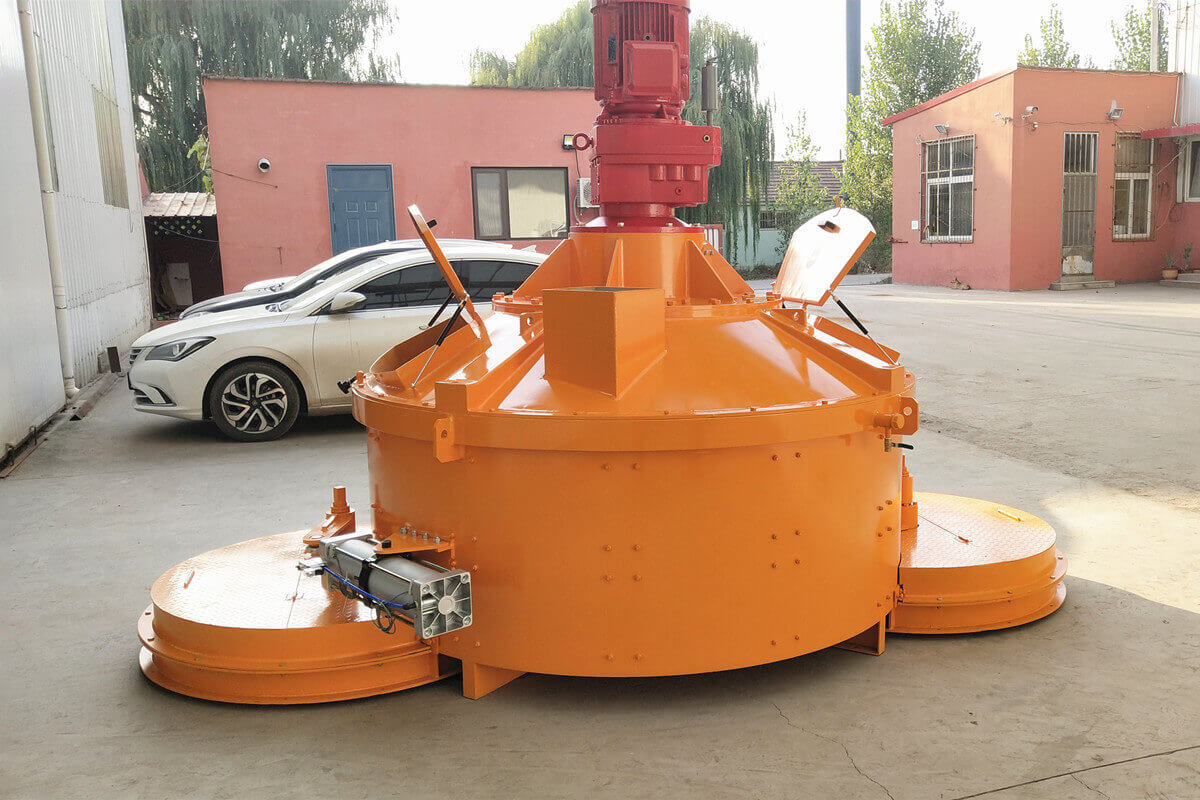

Regardless of the discharge method chosen, the GCPM refractory planetary concrete mixer includes a special sealing device on the discharge door to ensure reliable sealing. This is critical in preventing leaks of refractory castable concrete, maintaining product quality, and minimizing waste during the mixing and discharge process.

GCPM Refractory castable concrete planetary mixer can also be widely used for glass, ceramics, refractory material, fertilizer, prefabricated components of roads or bridges, permeable brick, pavement brick, fiber concrete, cement and concrete, etc.

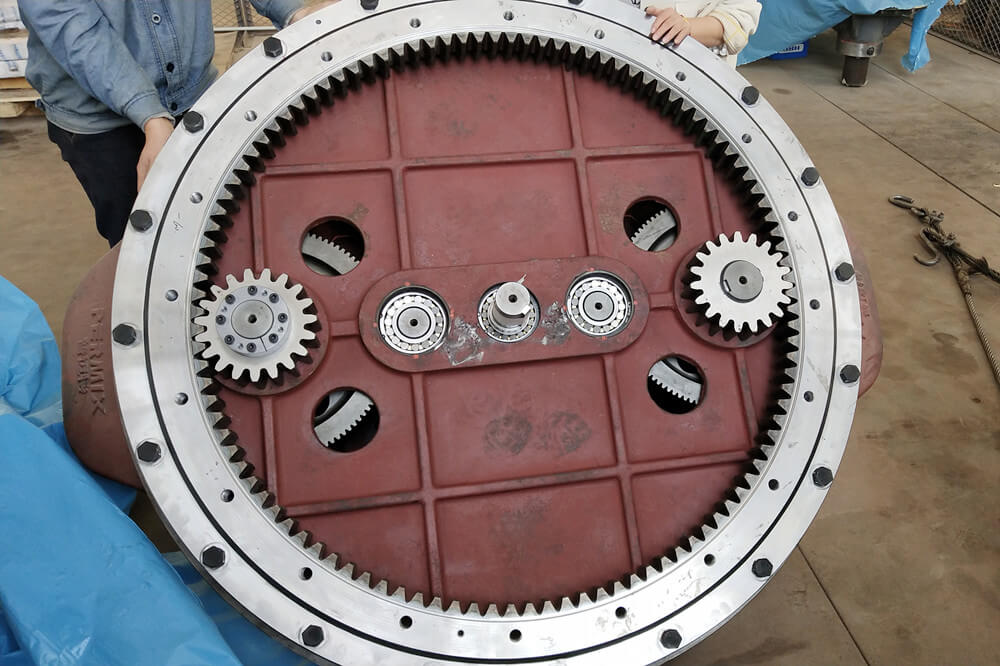

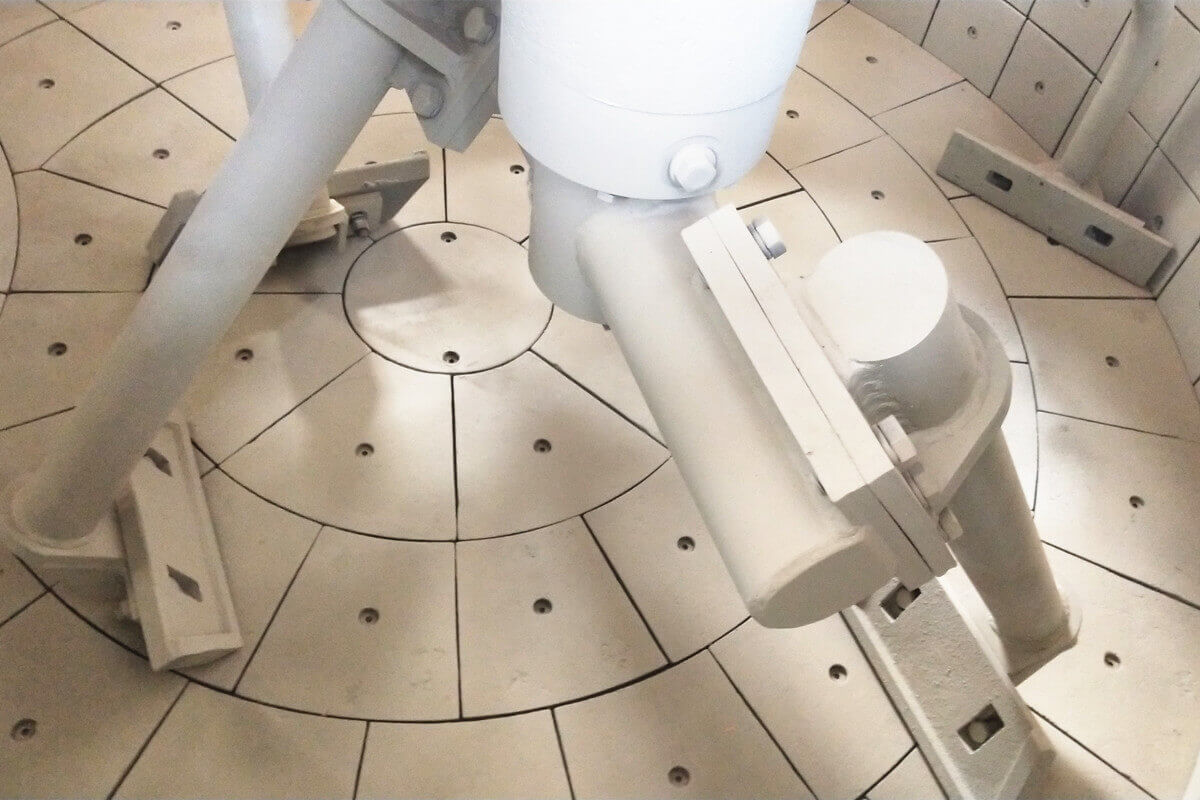

The rotation direction of mixing stars is reversed with the revolution direction, and each mixing star’s direction is also different. The circulation movement and convective movement make the material severely mix and achieve uniform distribution.



★High mixing efficiency, and low energy consumption.

★Compared with a traditional planetary mixer, the mixing time of GCPM could be reduced by 15~20%.

★The no-load current and load current with the same material can be 15~20% lower.

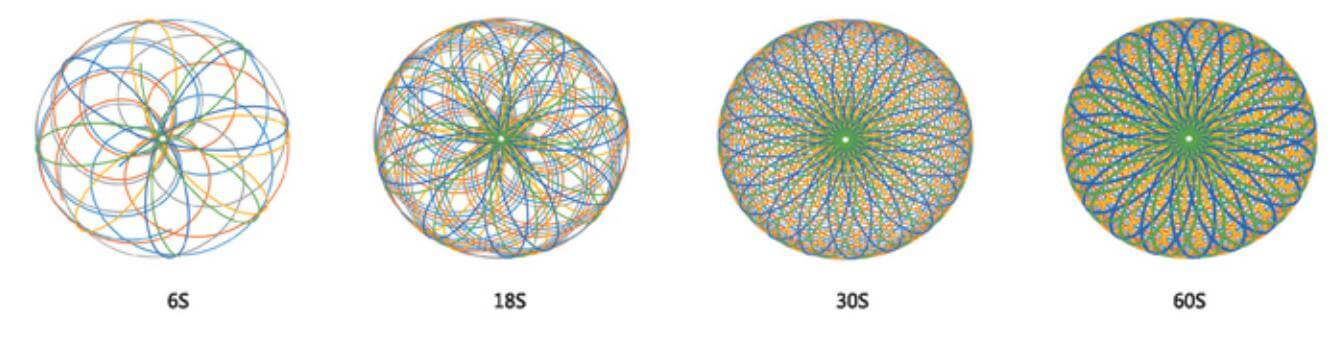

The diagram shows the perfect mixing action of the counter-current planetary mixer from 6 to 60 seconds after materials are added. Note that the floor is completely swept by the mixing star’s action every 4 revolutions (6 seconds) and that each zone is covered at regular intervals in time.
