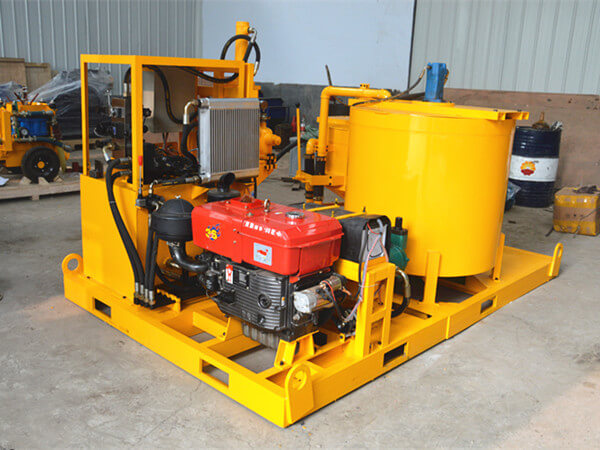

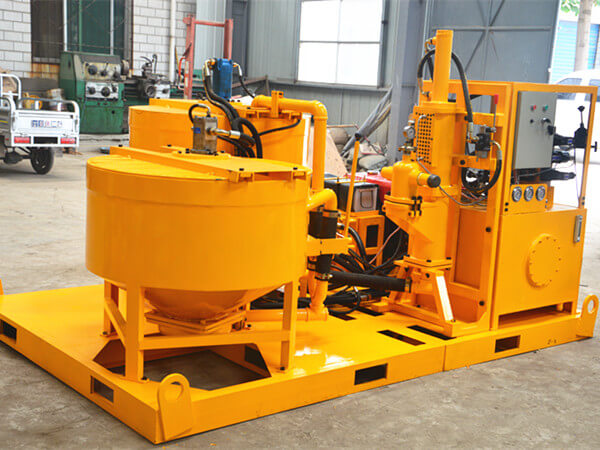

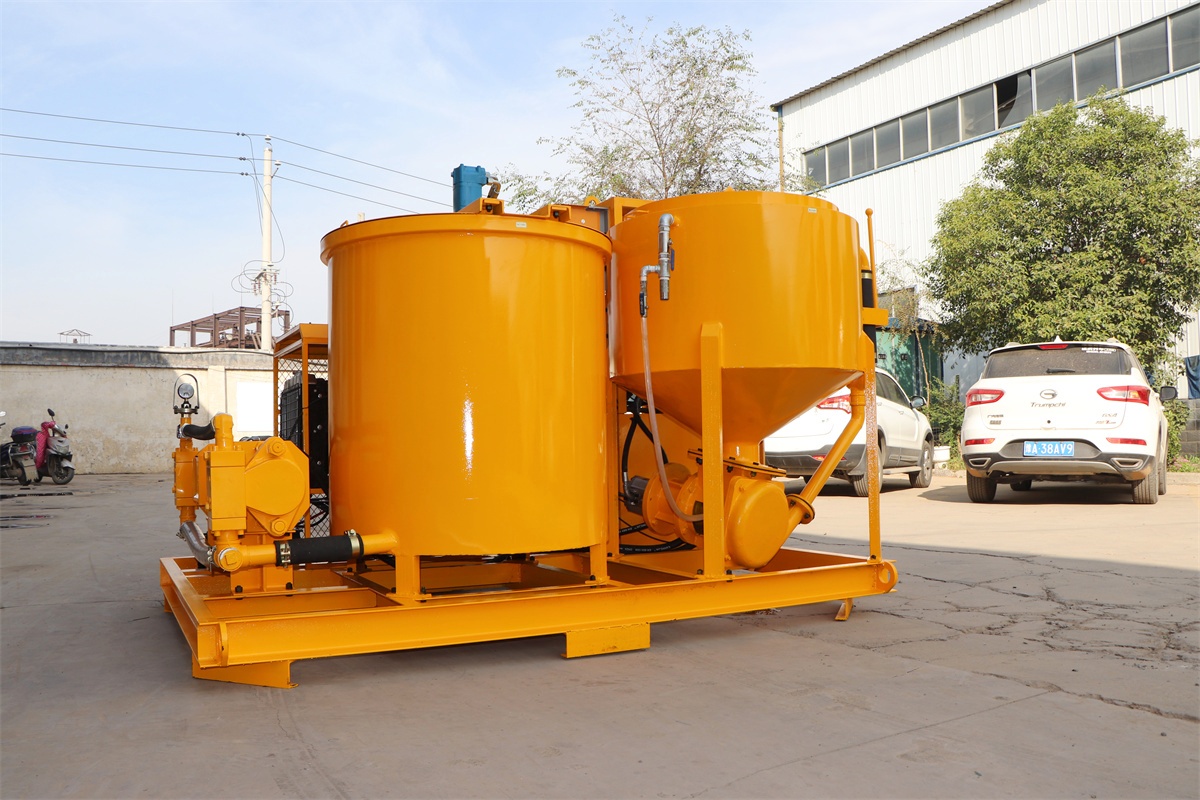

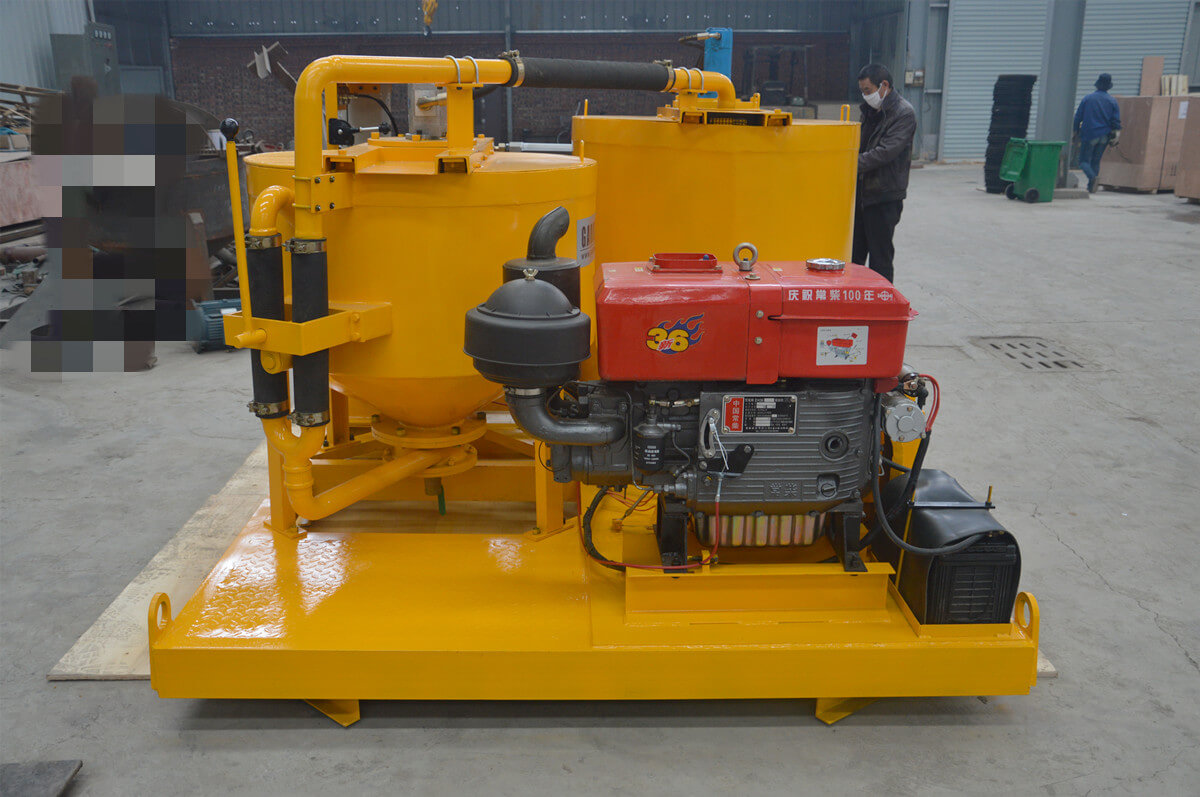

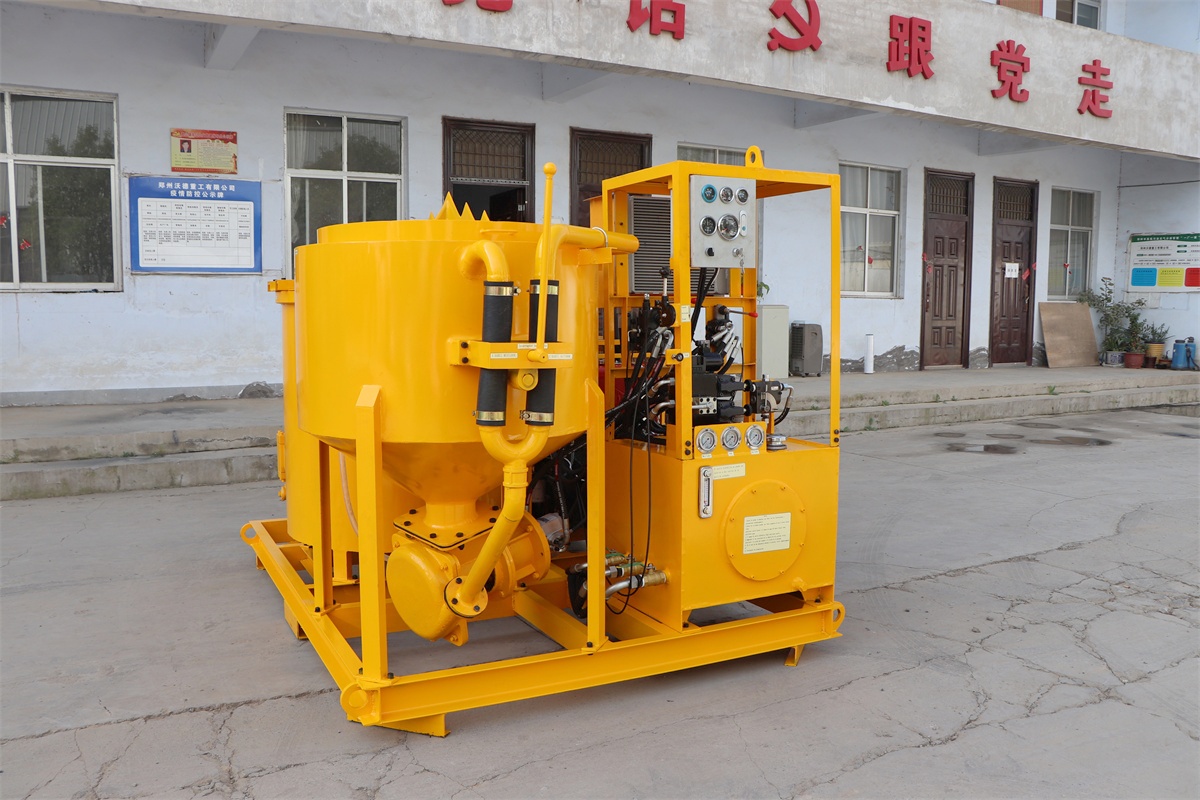

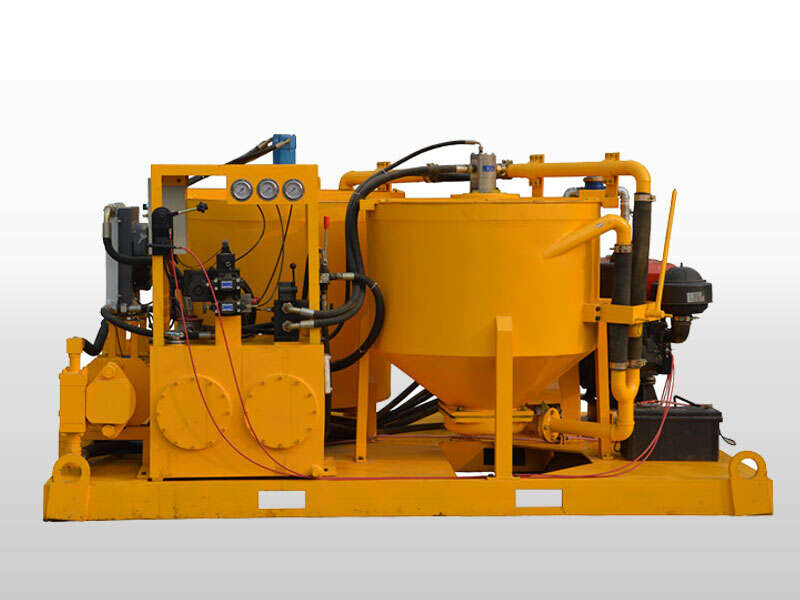

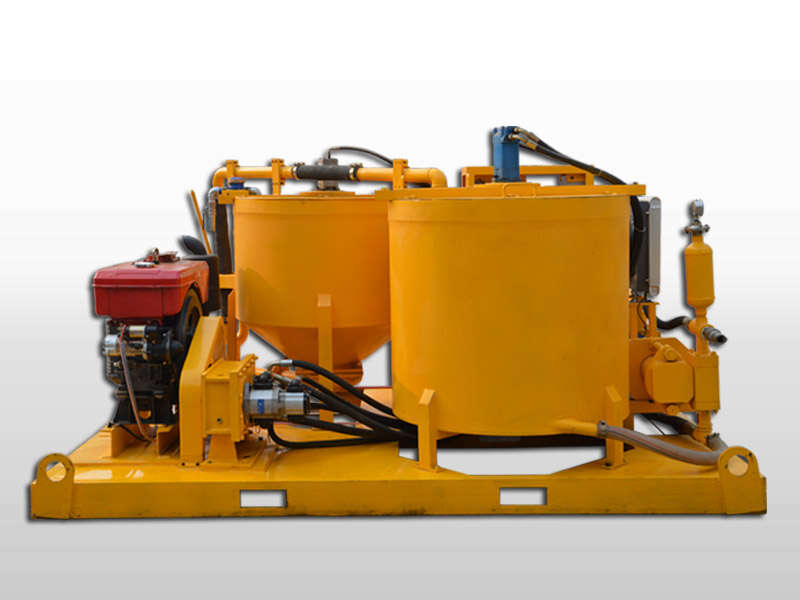

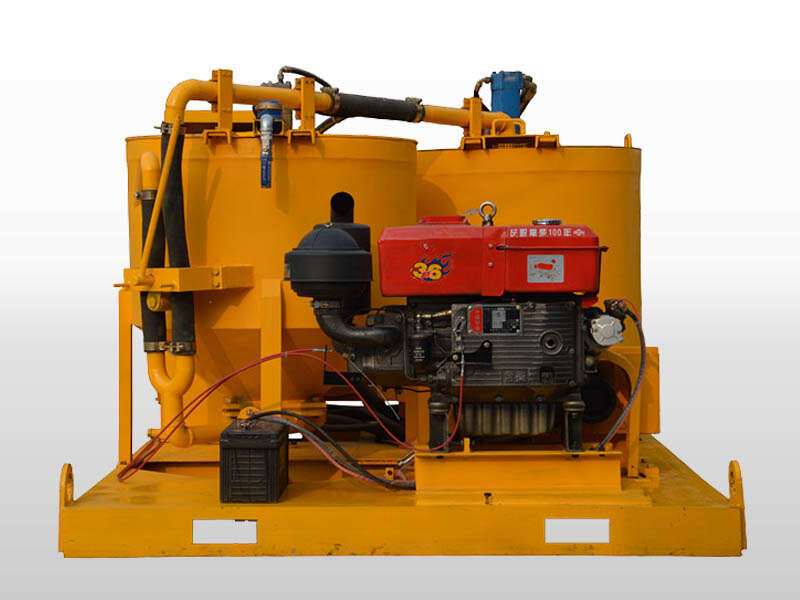

The GGP500/700/100PI-D grout plant is combination of mixer, agitator and hydraulic piston grout pump in one plant. It’s mainly used for ground and underground engineering such as highway, railway, hydropower, construction, mining.

After the slurry is completely mixed by mixer, then is pumped into agitator. And the pump suction is connected to the outlet of agitator. To turn on this grout pump, then to start to grout. Due to this station is combination of mixer, agitator and grout, so the continuous grout is available.
The plant is hydraulic drive with compact structure, convenient operation, less space occupation. The output is stepless variable.

Structure and Working Principle of grout injection plant

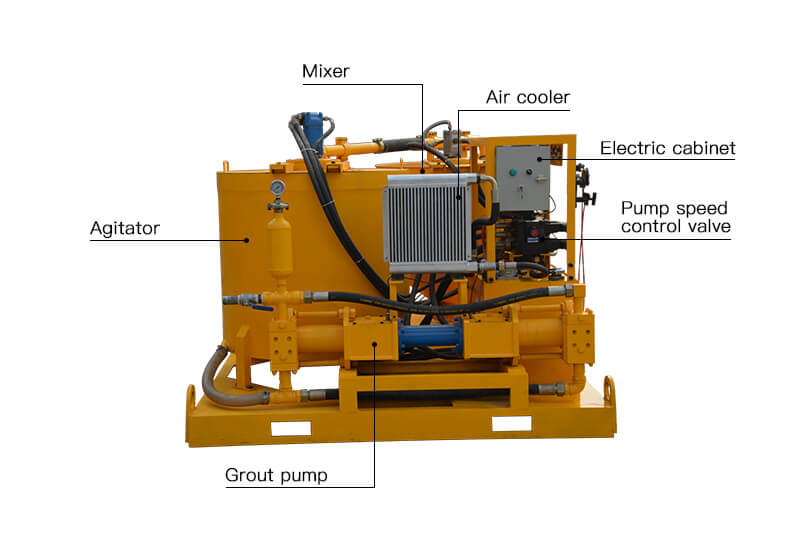

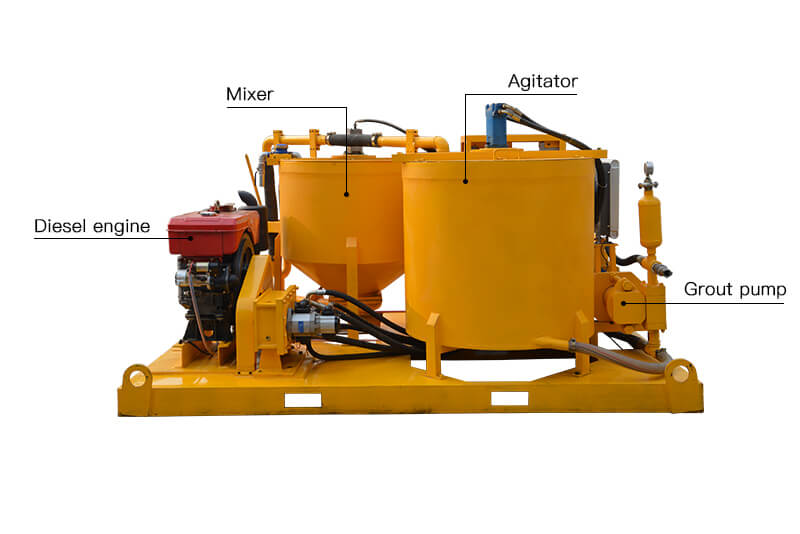

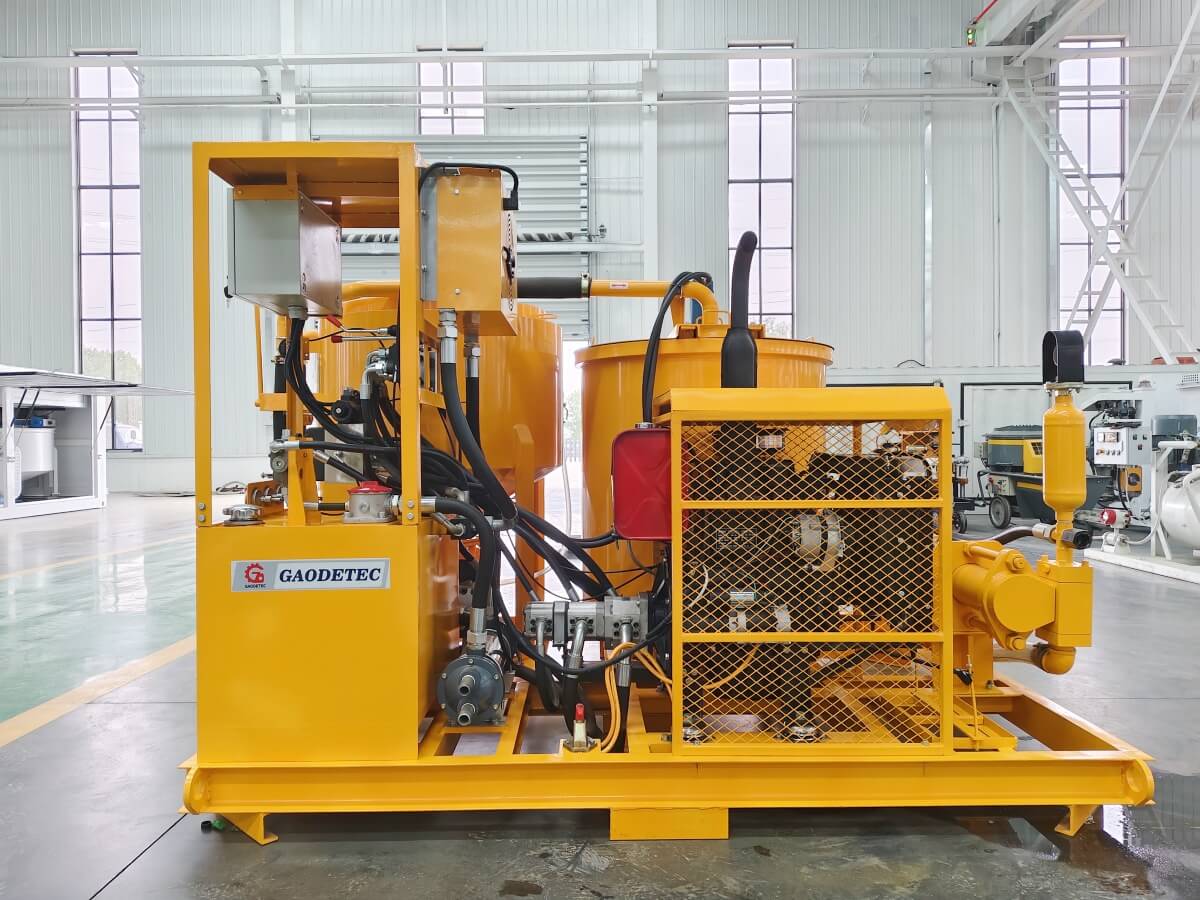

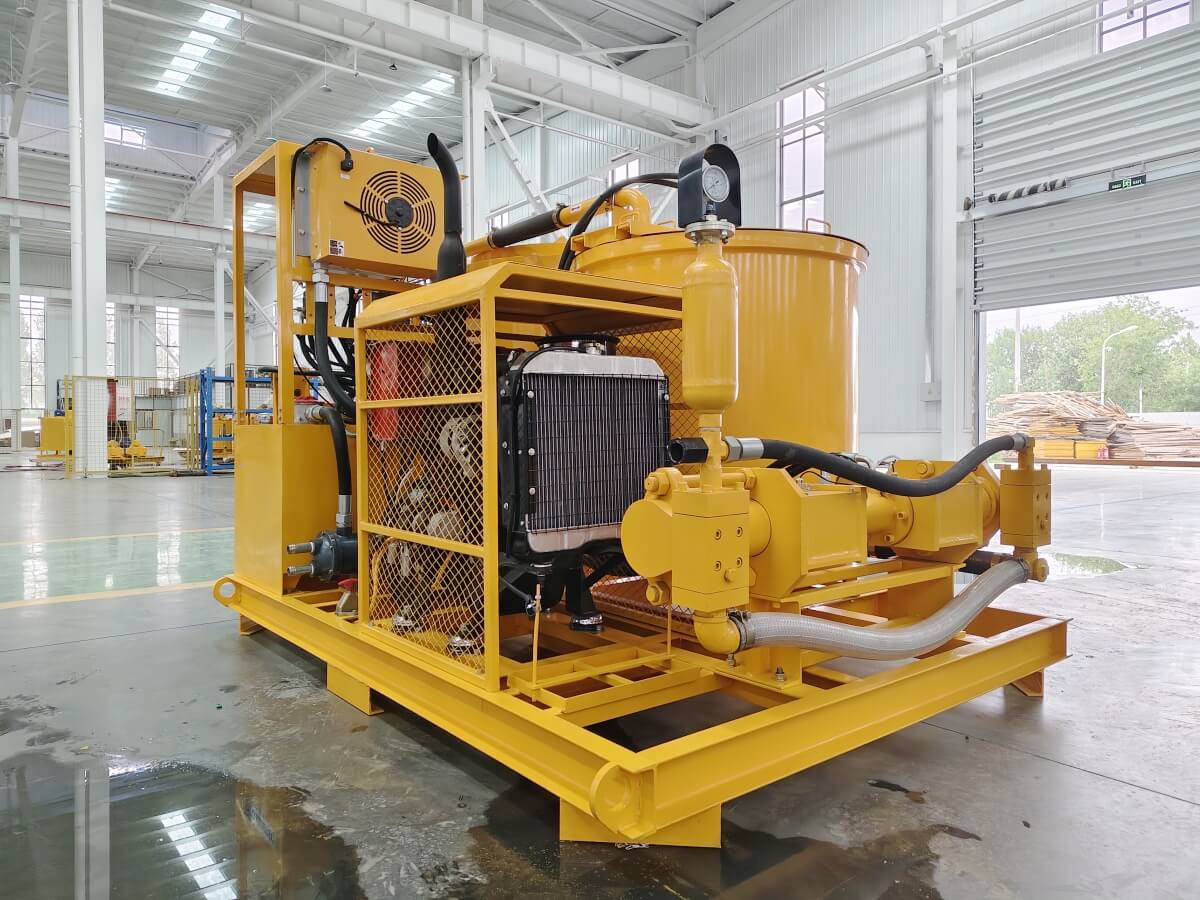

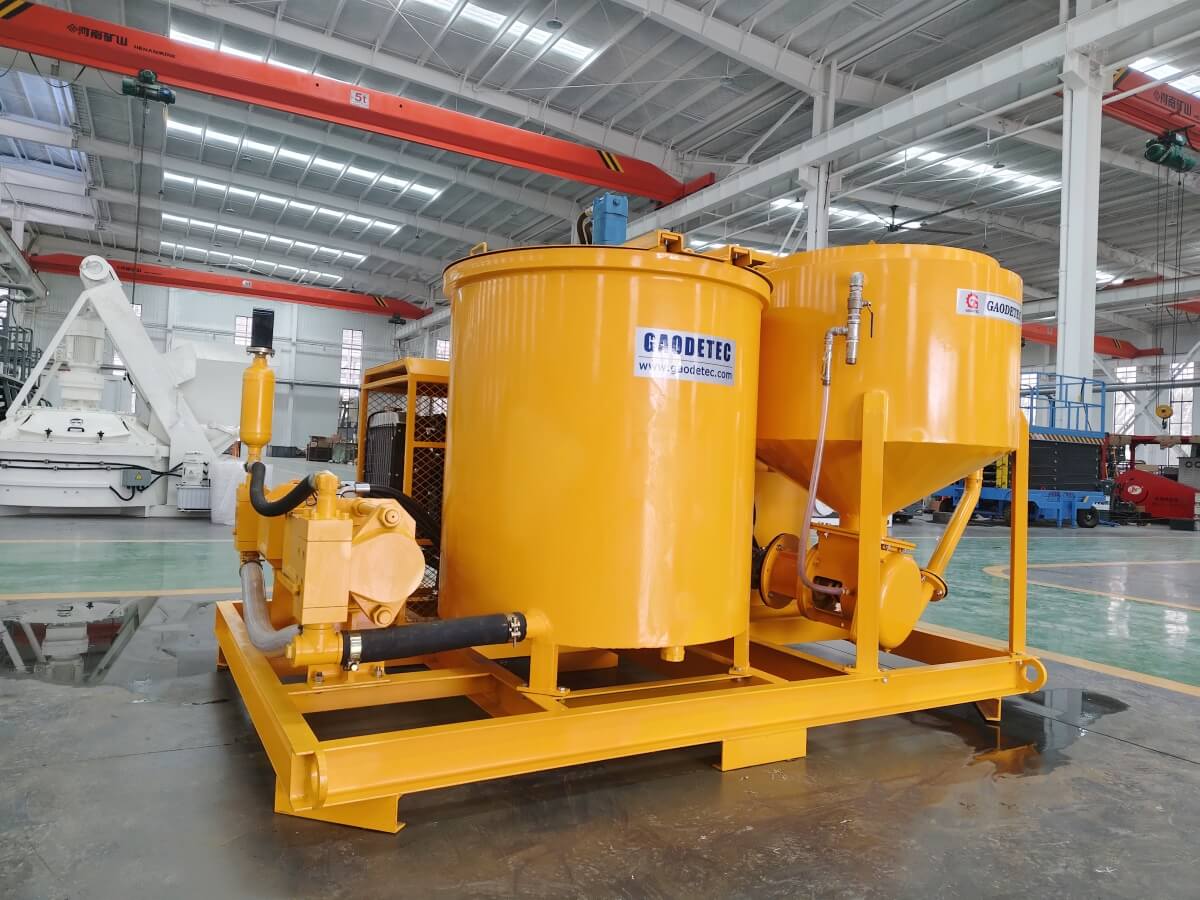

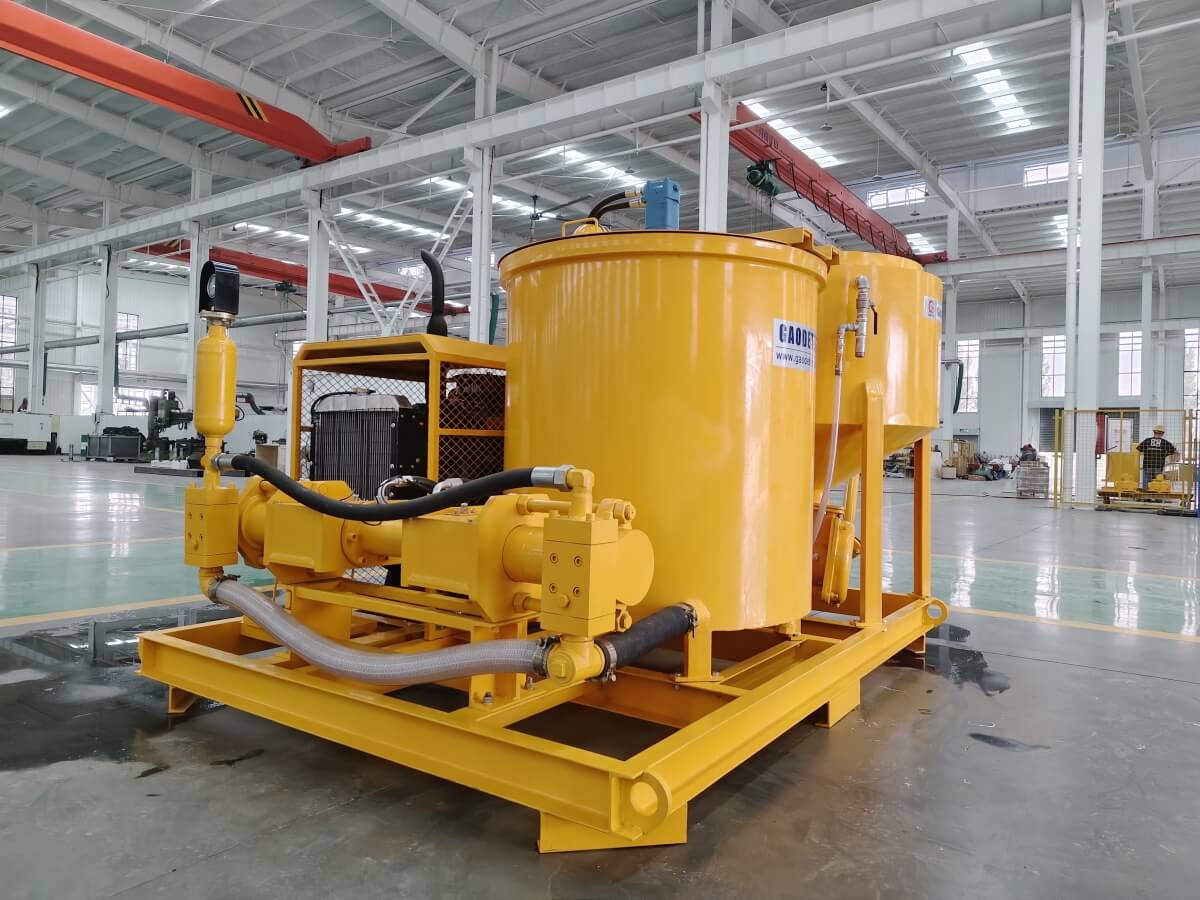

This cement grout plant is combination of mixer, agitator, grout pump, hydraulic power pack, diesel engine, electric control, squeeze handle, etc. The worldwide famous brand hydraulic elements ensure the safety. The diesel is Changchai EH36 diesel which ensure the power supply.

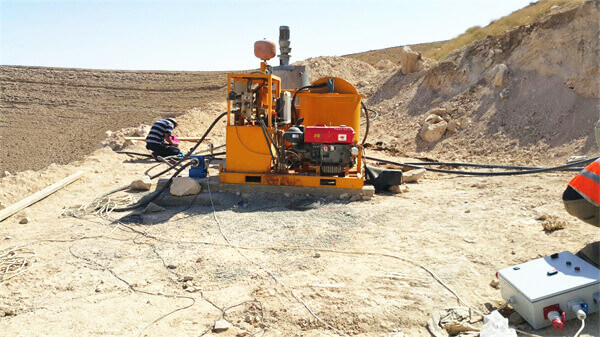

This grout plant can be used for grouting in soil,earth foundation stabilization, waterproofing, tunnel lining, underwater foundation, bridge decks, deep well casing, slope line grouting, etc

1. Compact size, grout injection plant is combination of mixer, agitator and piston grout pump in one base frame;
2. Yuken relief valve and directional valve for hydraulic system of grout pump;
3. Butterfly valve of mixer and agitator;
4. Oil temperature gauge can automatically control cooler fan working in normal temperature range, if temperature is too high, the machine will stop work automatically;
5. Operation and maintenance are simple;
6. Cement grout plant is with ISO, CE certificate.

Model	GGP500/700/100PI-D Grout Plant
Diesel engine	25kw/36HP
Rotating speed of engine	2200r/min
Dimensions	2900*1960*1550mm
Weight	1790kg
Mixer
Capacity	500L
W/C ratio	0.5-1
Rated Rev.	1500rpm
Agitator
Volume	700L
Rated Rev.	36rpm
Pump

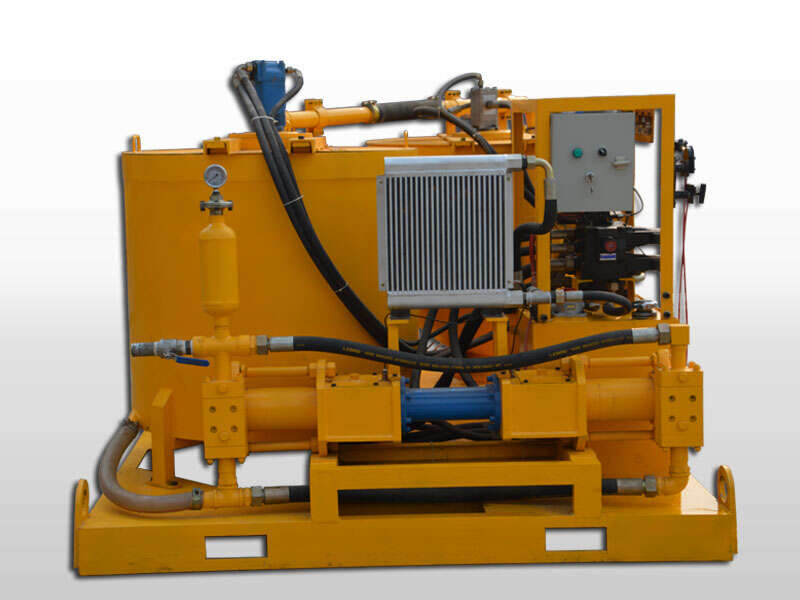

Type	Hydraulic Two Cylinder Piston Pump
Pressure	0-50bar
Output	0-100L/min

We could also customize grout plant according to your demands.
