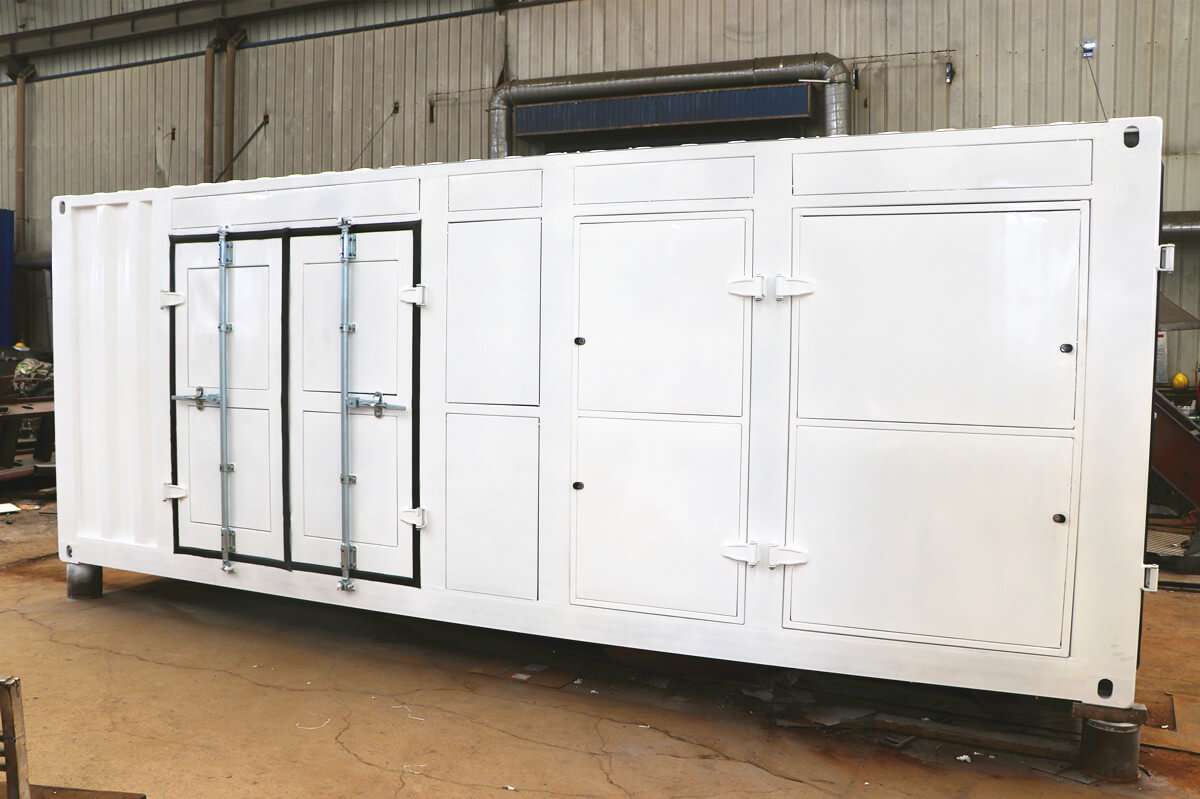

GMA2X300/1000 Container type grout mixing machine

Model: GMA2X300/1000
NO. 1 Mixer Capacity: 300L
NO. 2 Mixer Capacity: 300L
Agitator Capacity: 1000L
Dimension: 5700×2170×2160mm
Weight: 3250Kg

We're here to help:

Easy ways to get the answers you need.

Send E-mail Leave A Message

download:Catalogue

Click to view :

Description
Application
Features
Technical data

■ Description

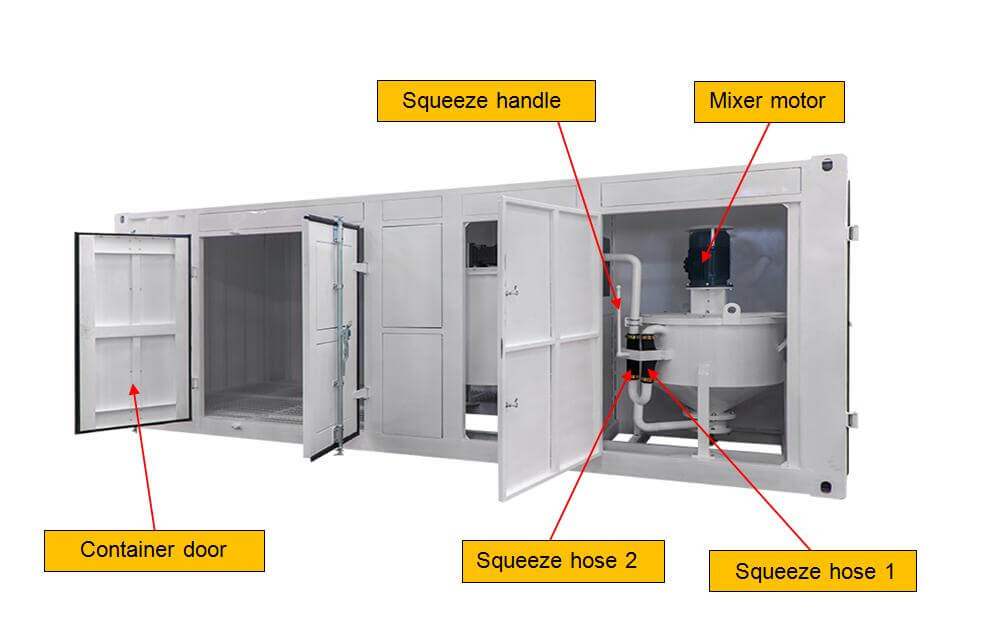

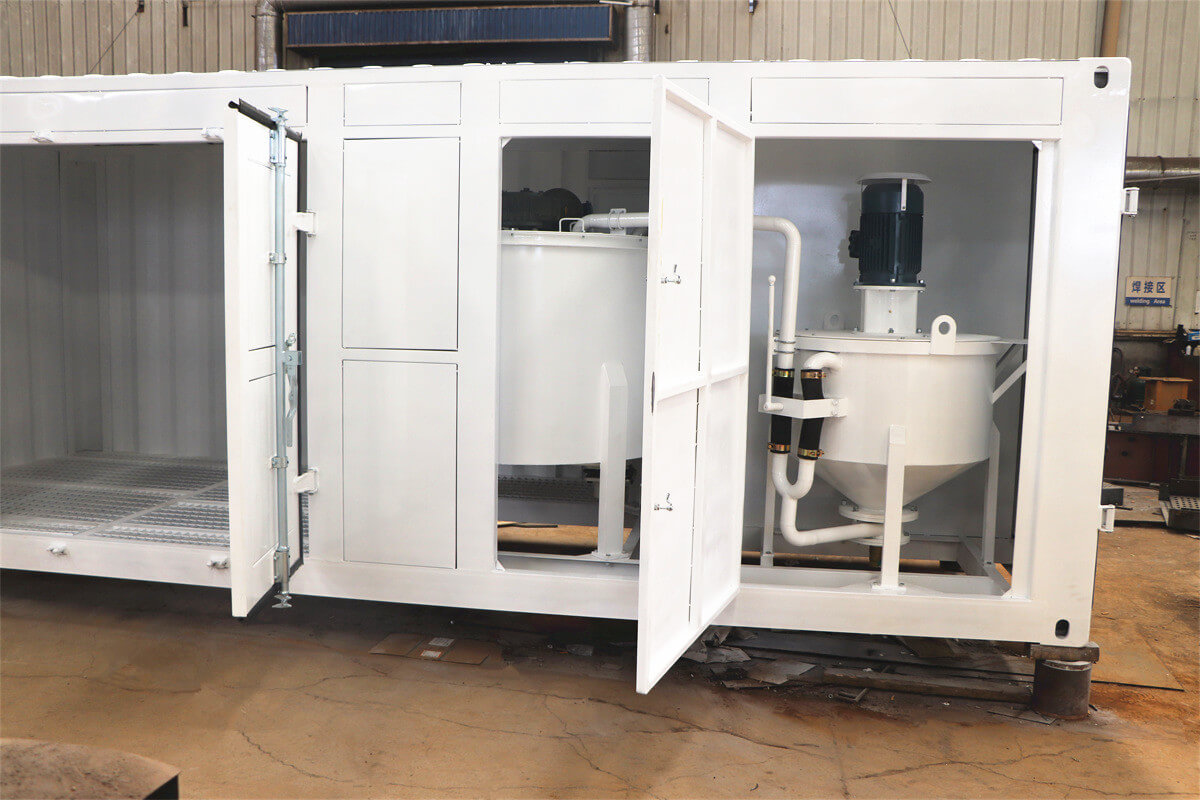

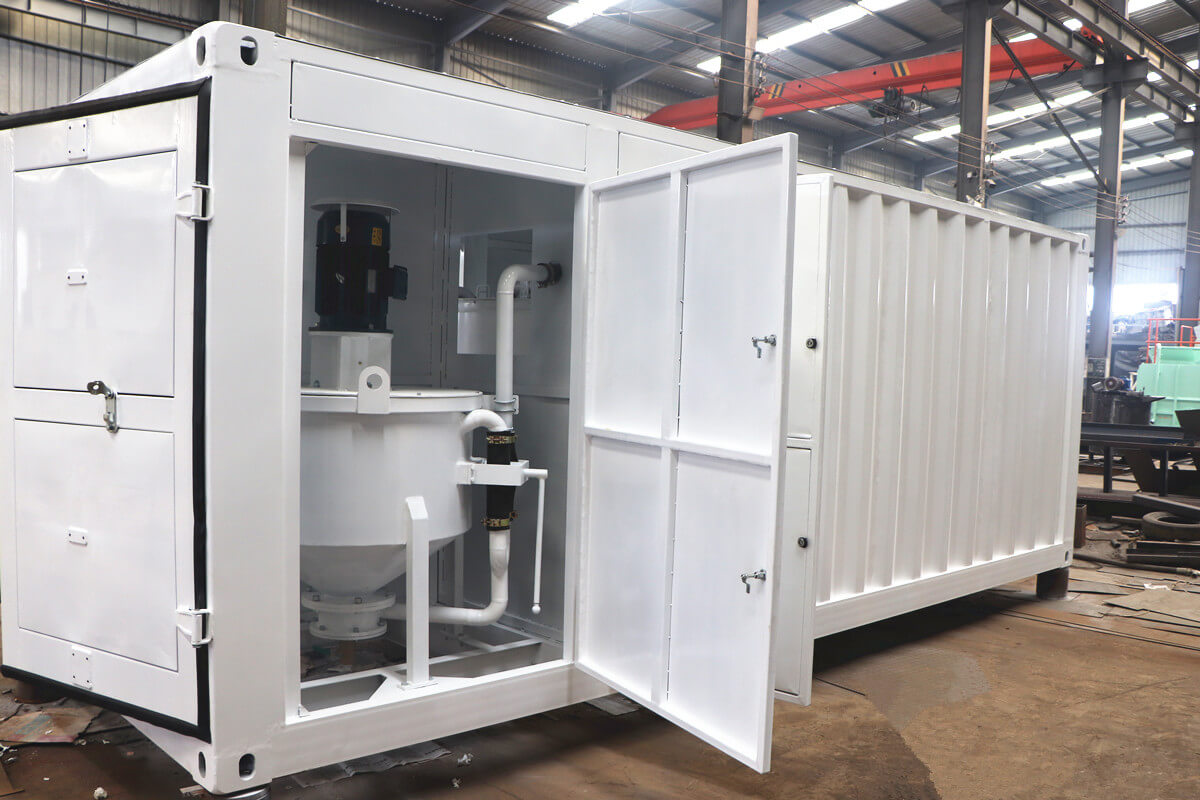

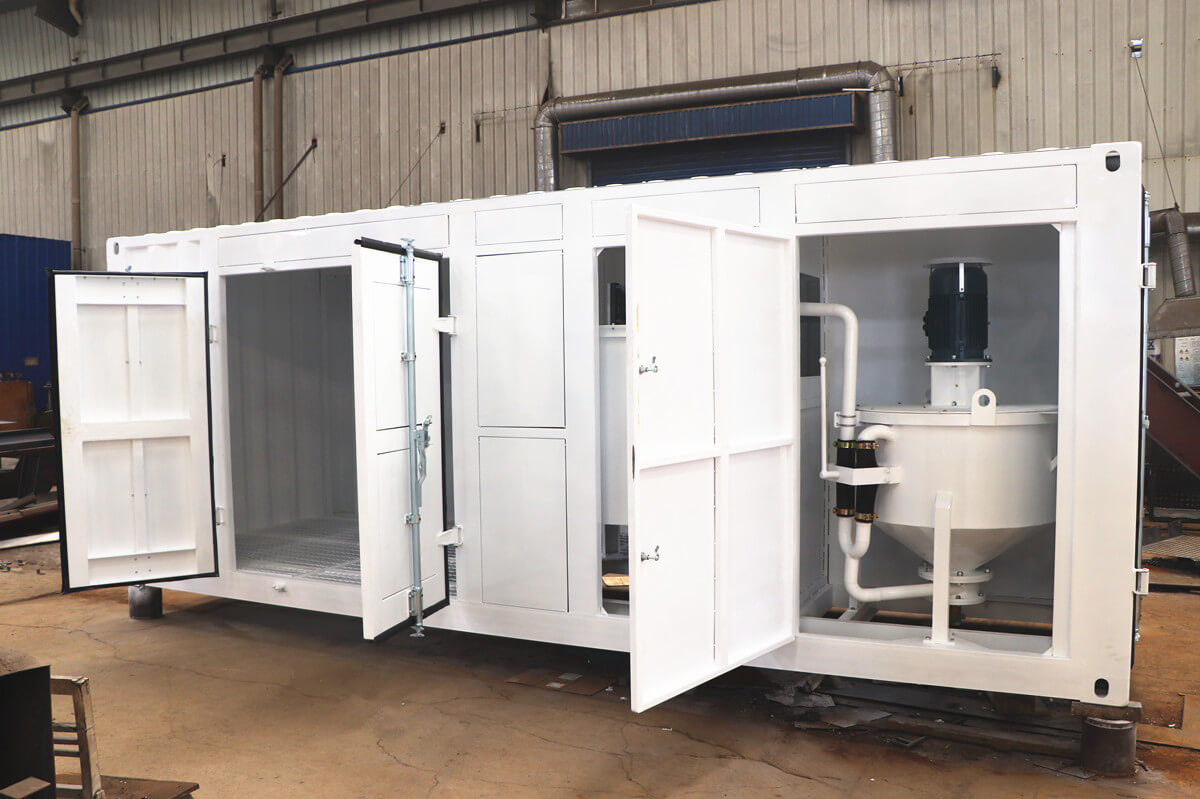

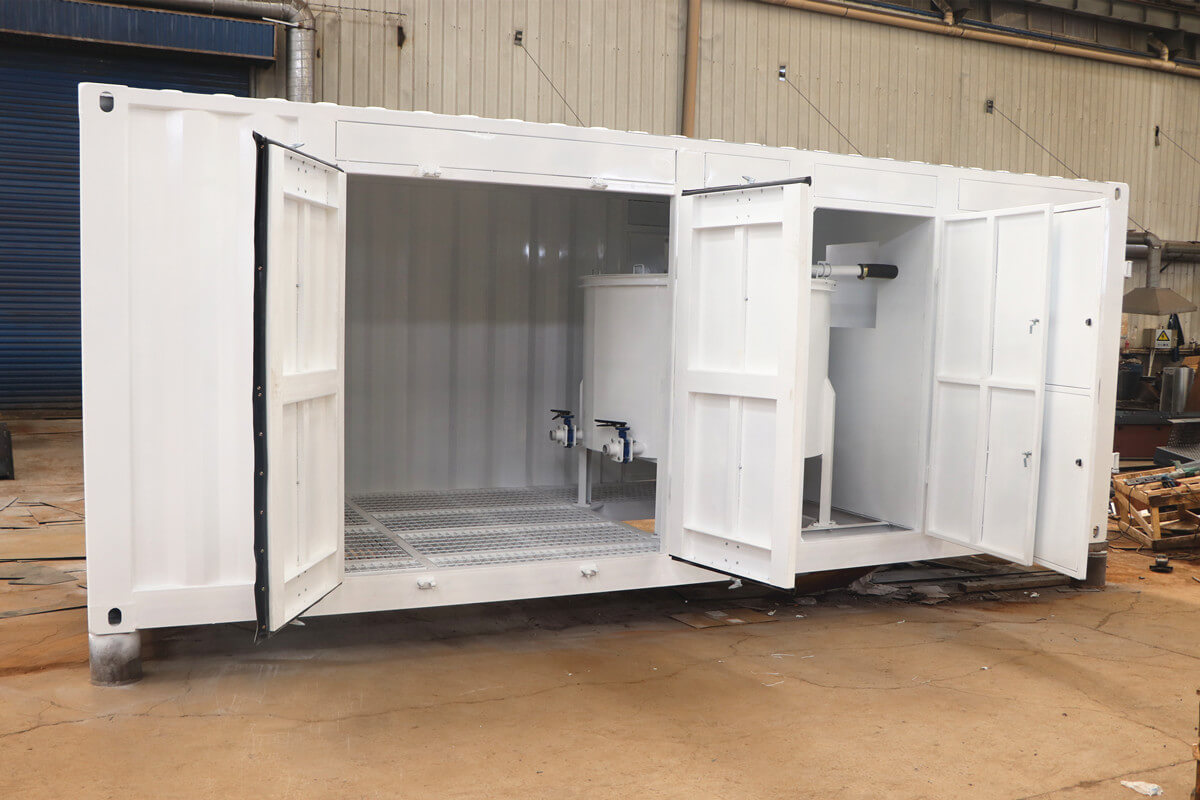

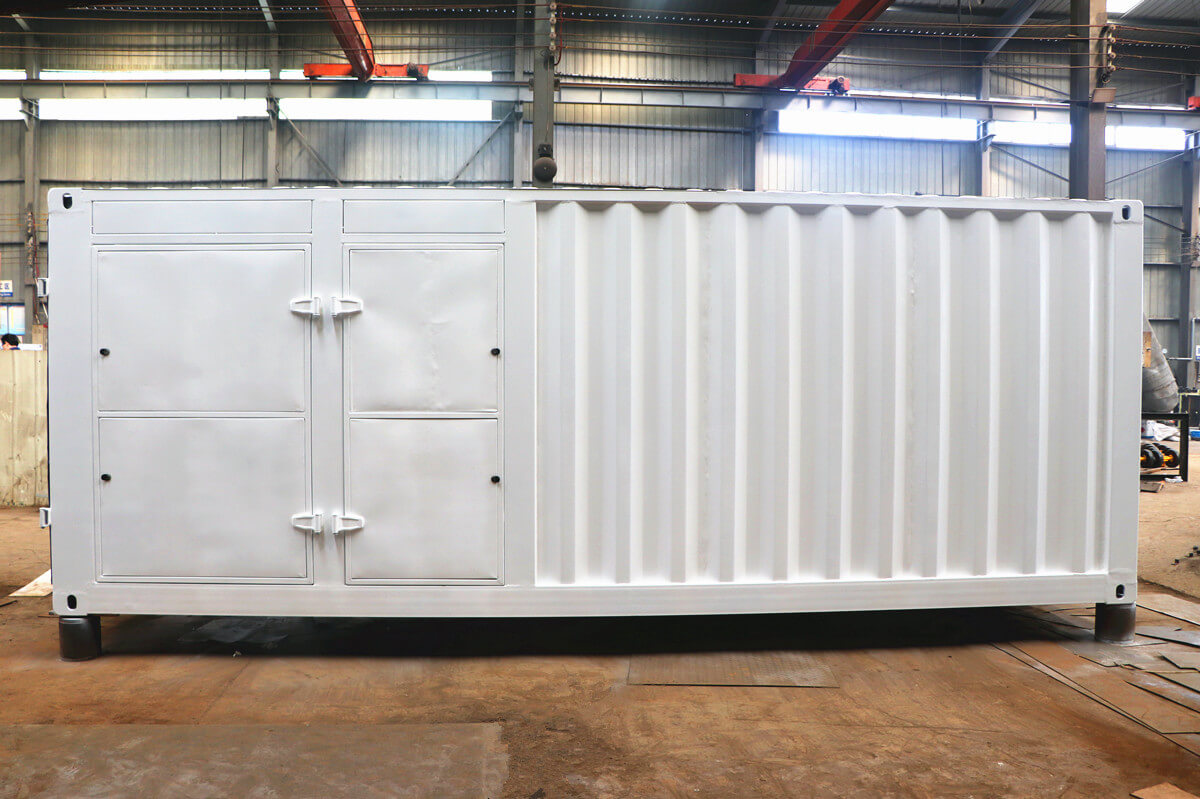

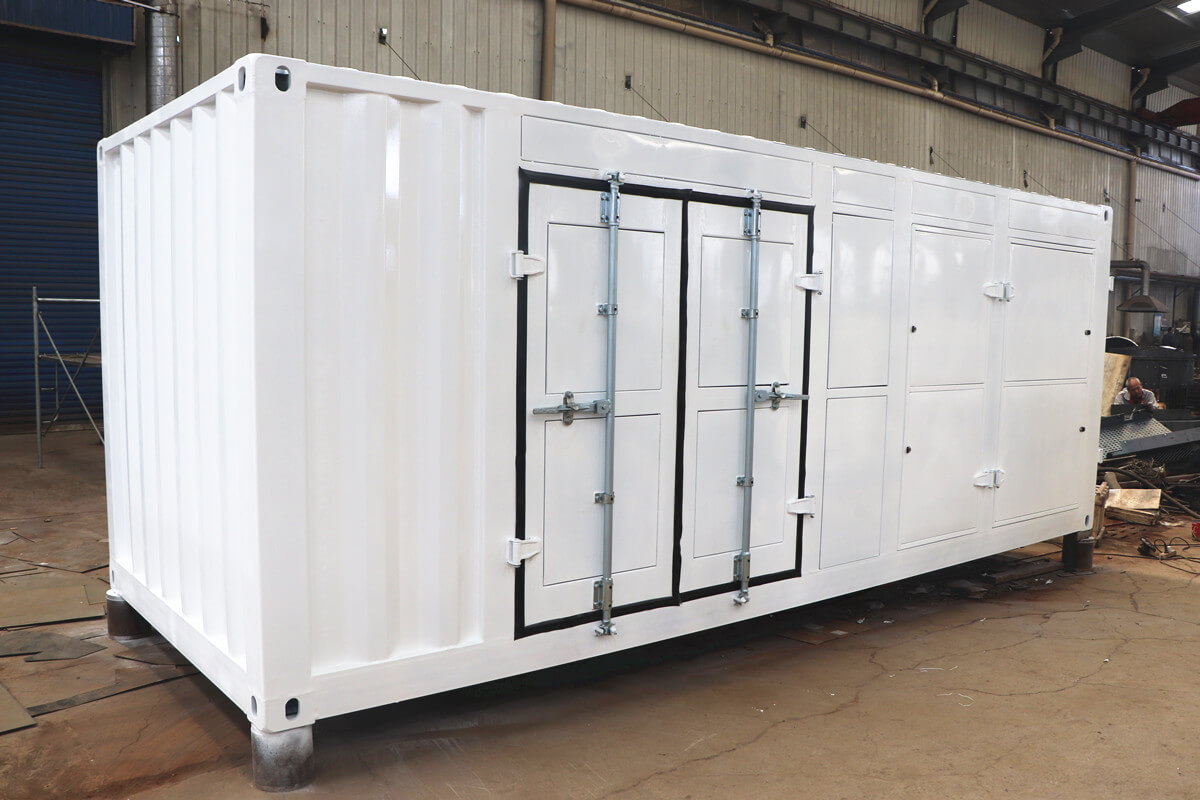

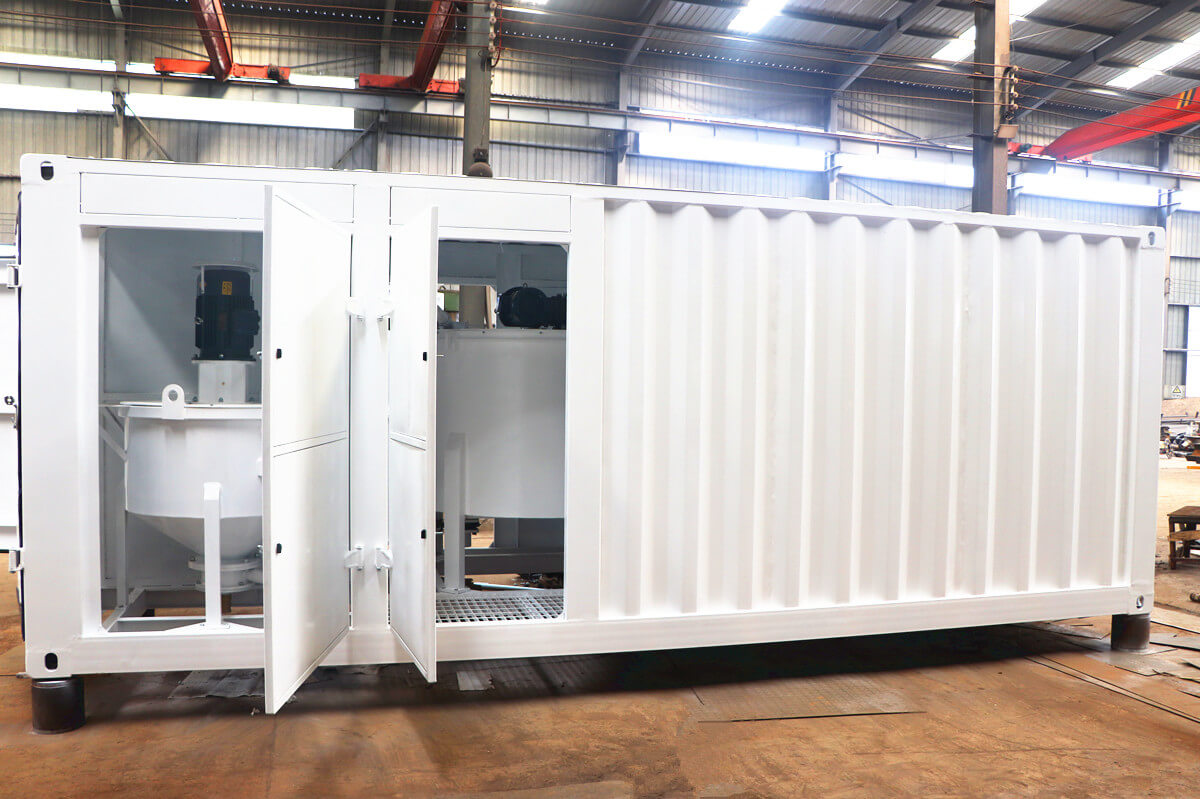

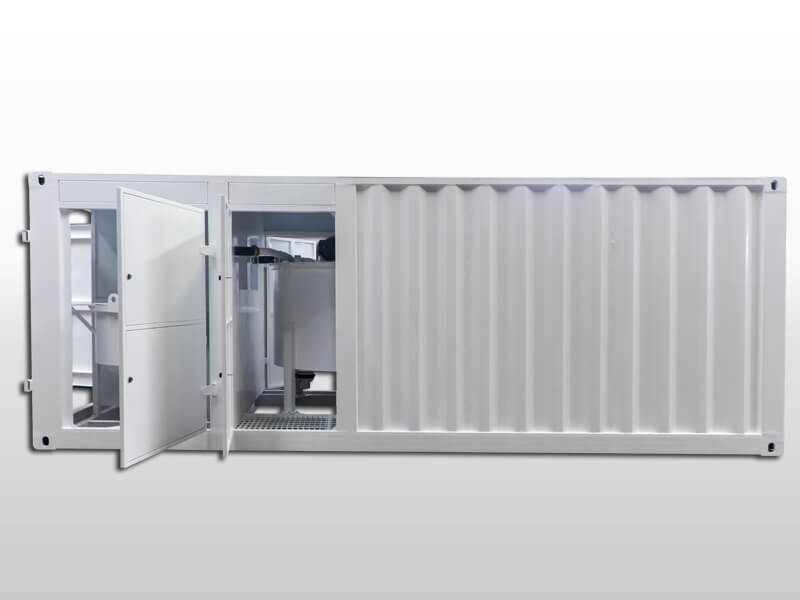

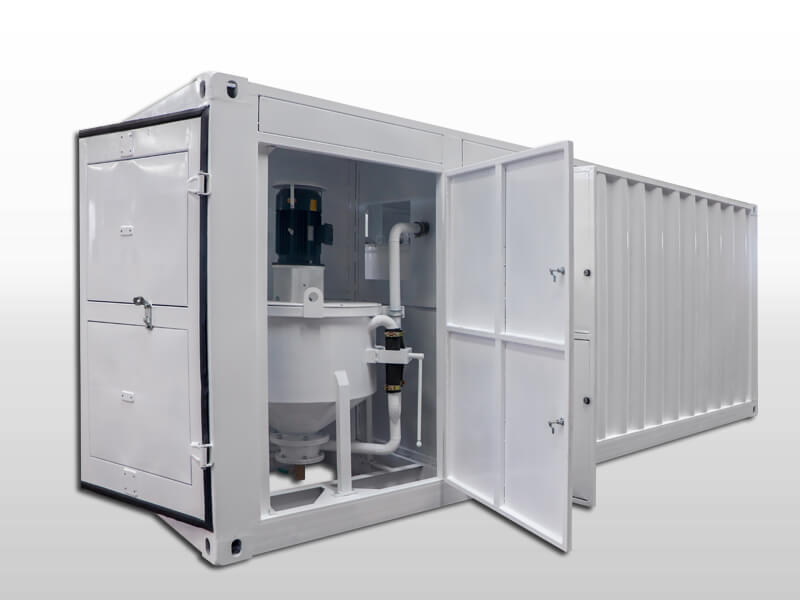

GMA2X300/1000 Container type grout mixing machine integrated 2 mixers and 1 agitator in one container. It is used for mixing grout materials include cement, water, additive and bentonite.

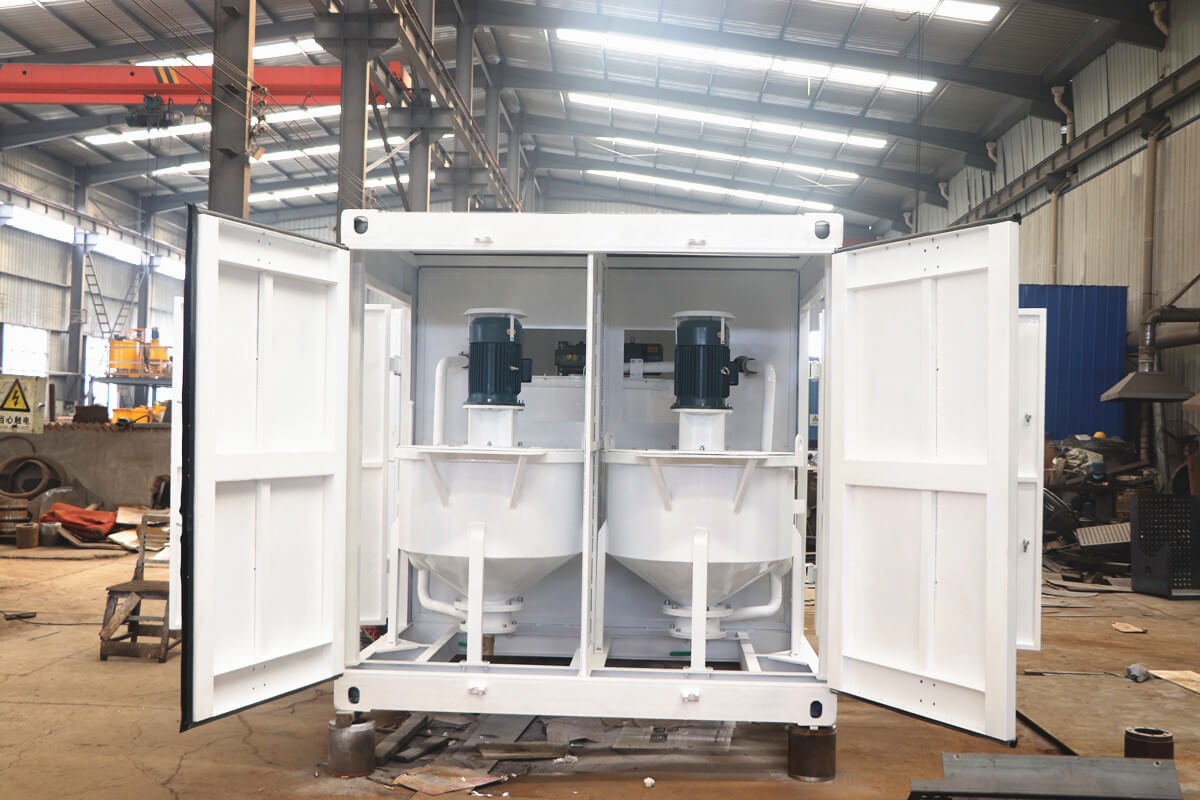

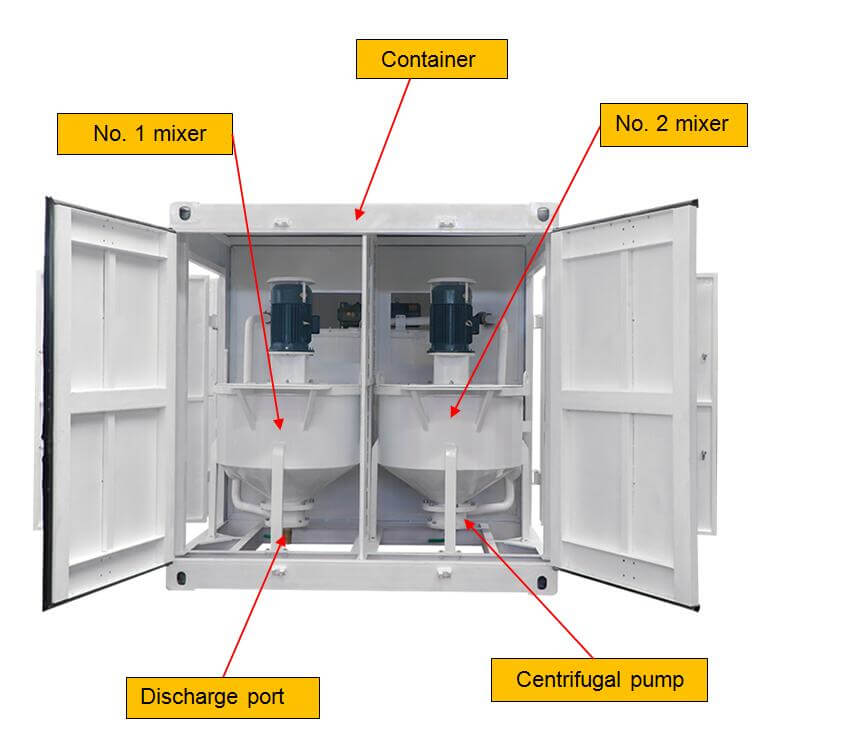

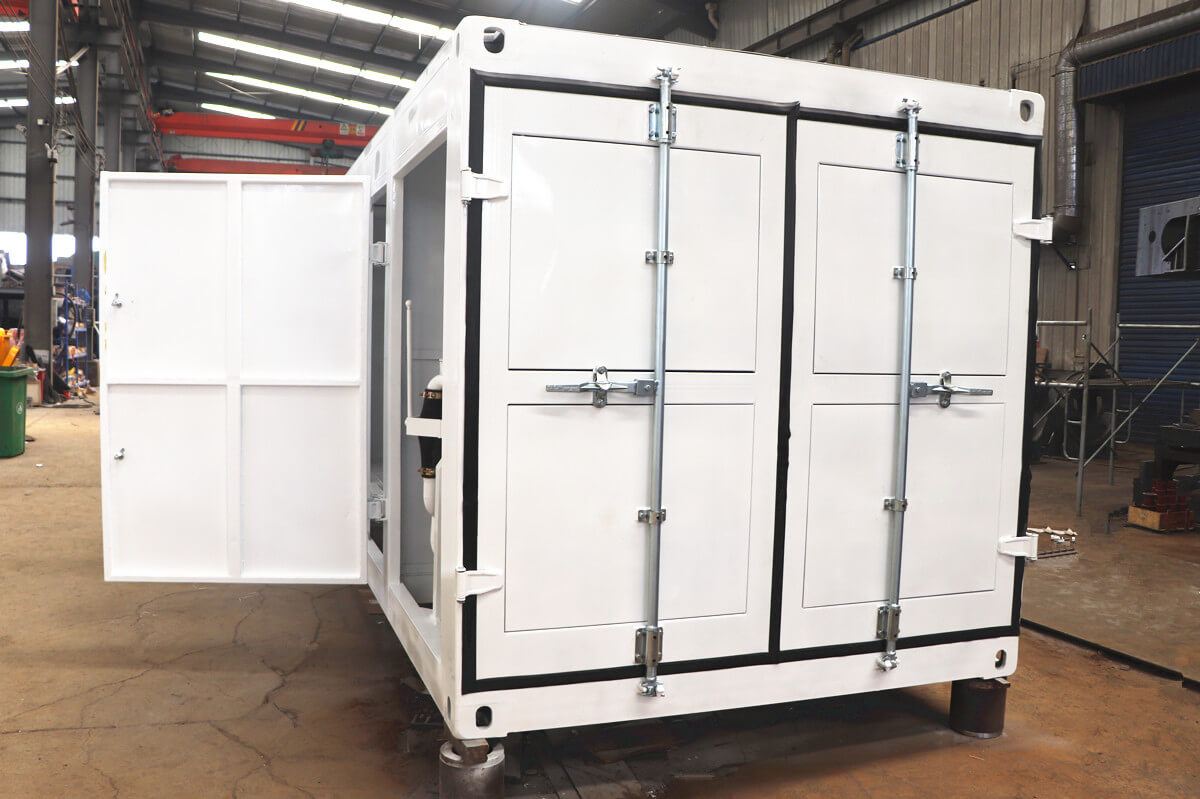

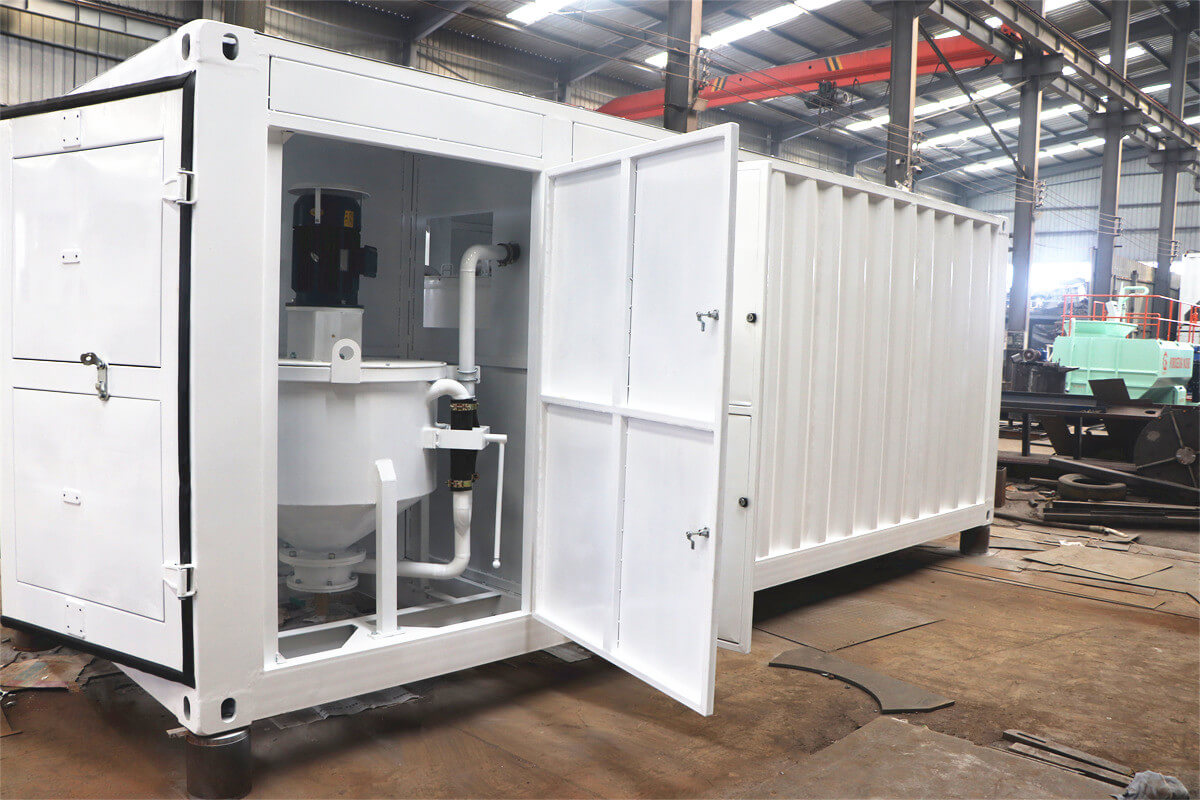

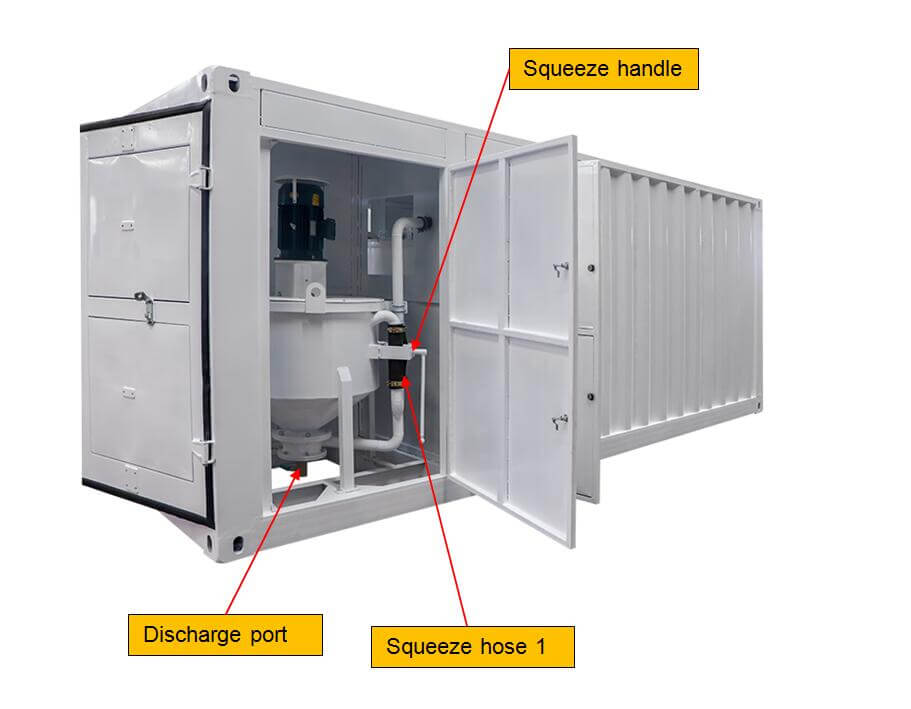

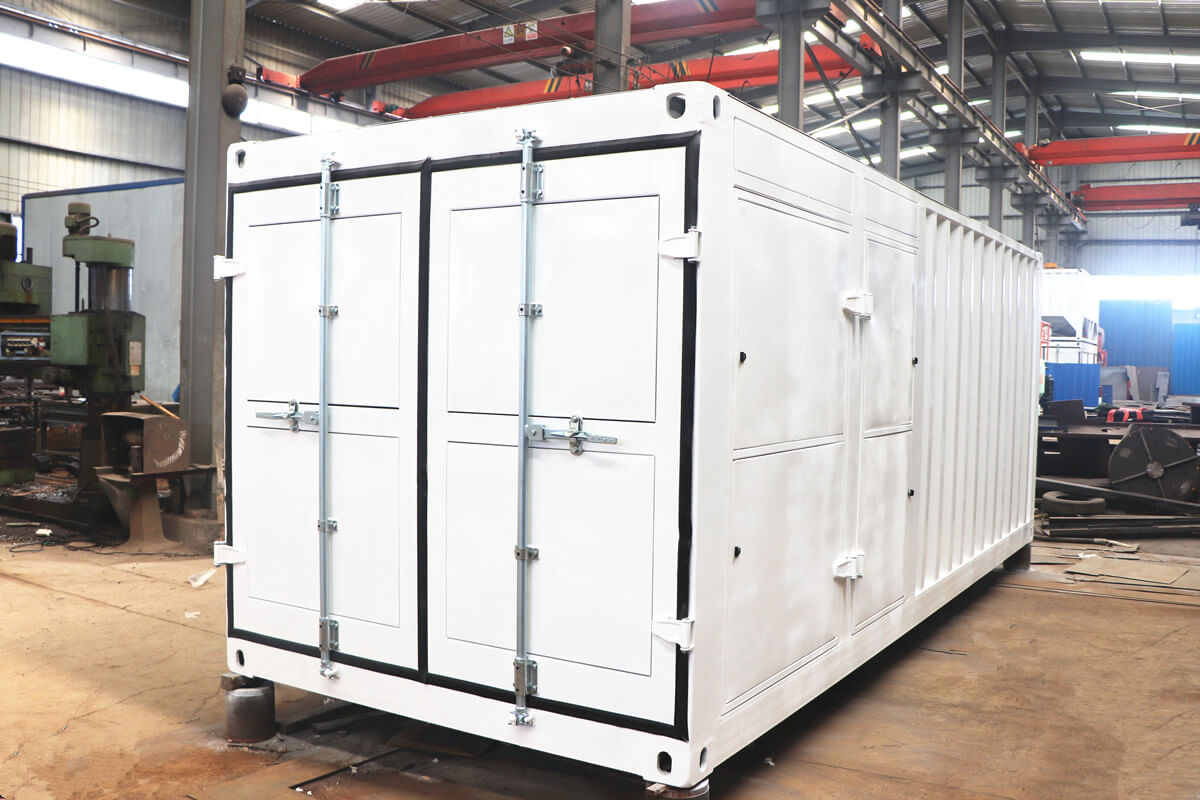

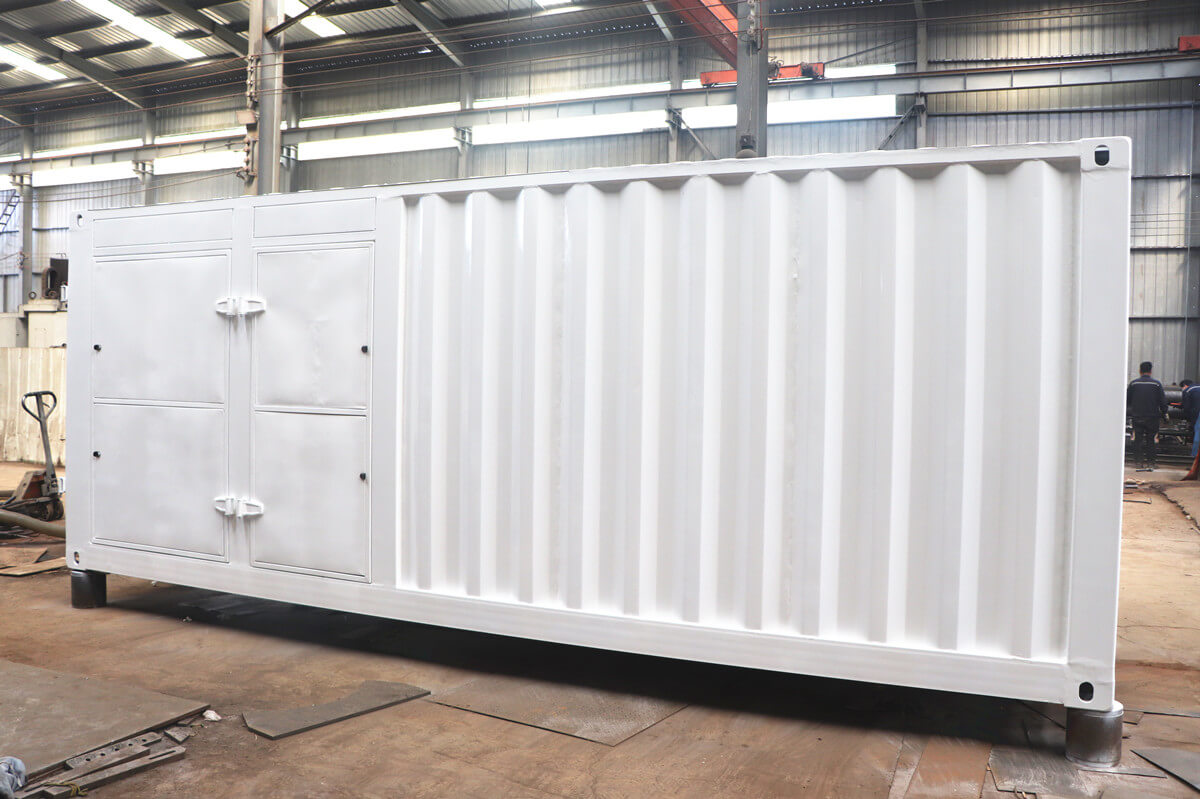

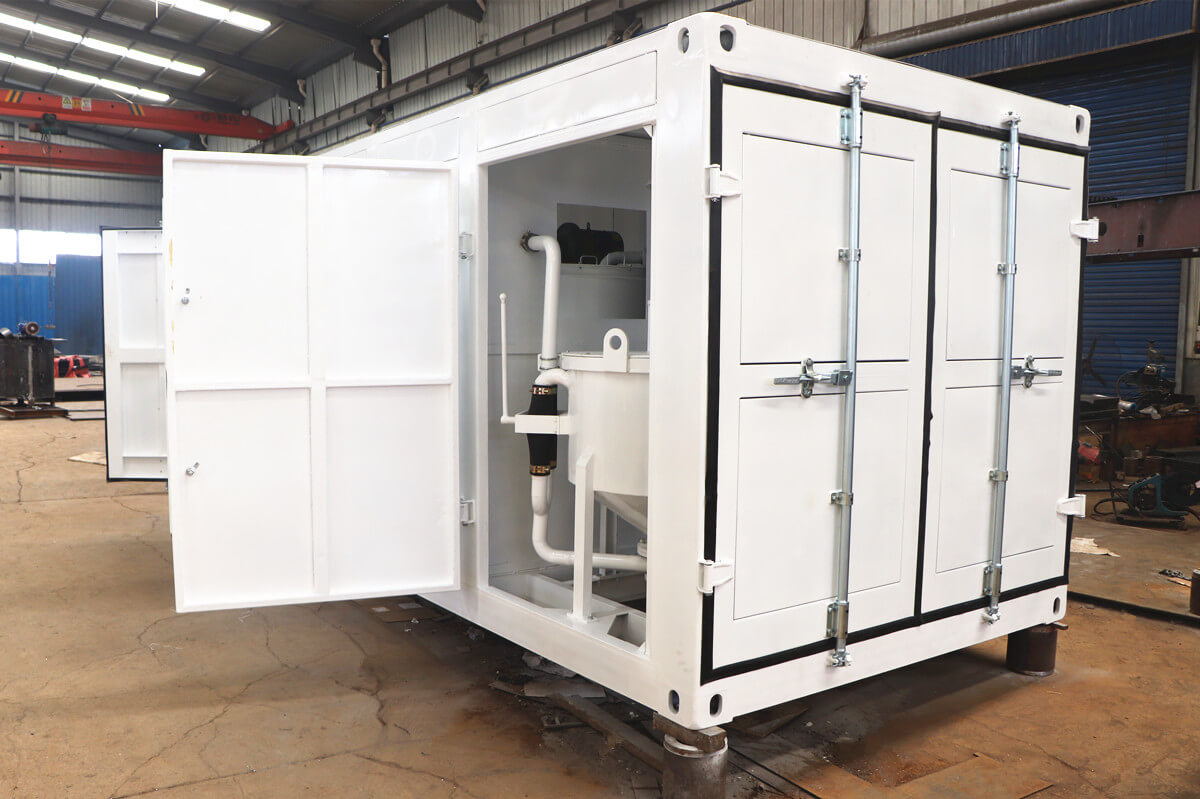

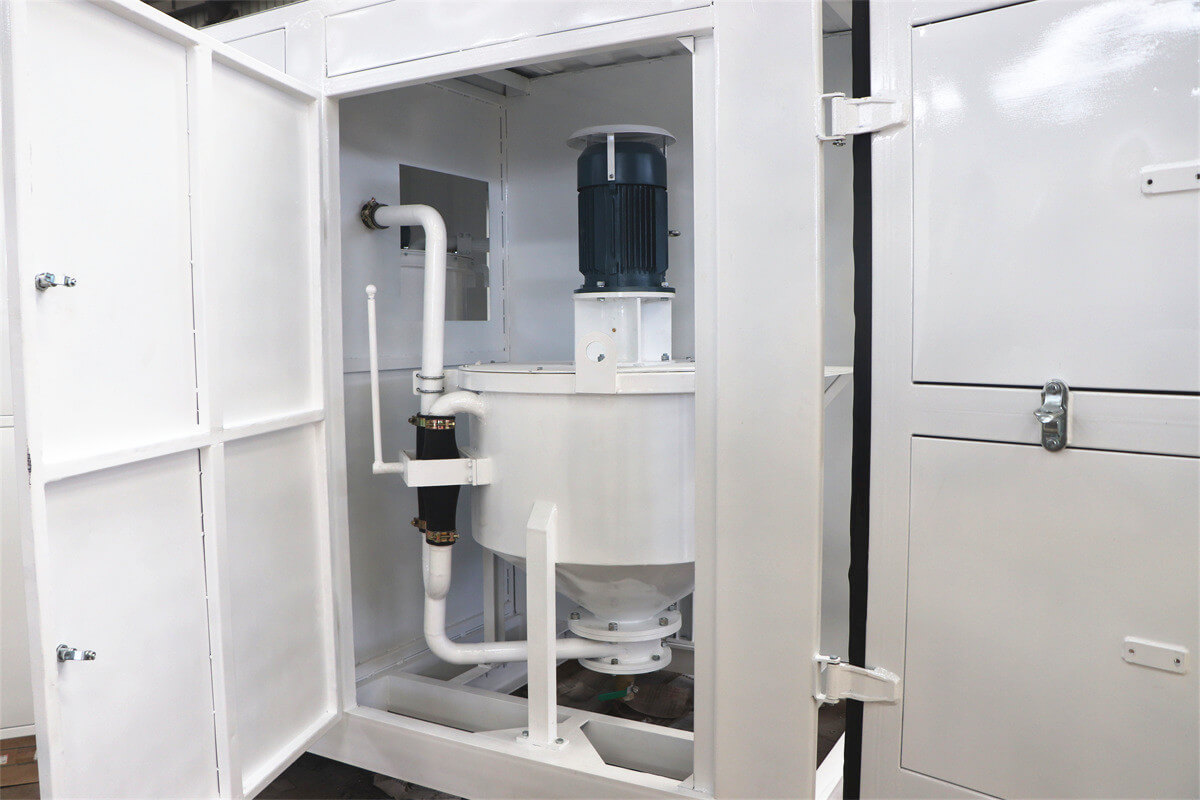

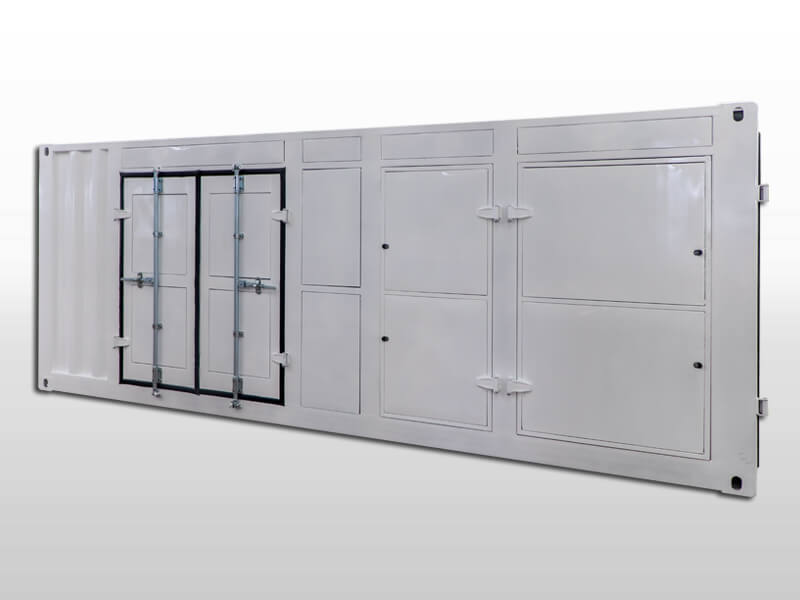

High-speed eddy current mixer ensures fast and even mixing, water and cement are quickly mixed into a uniform slurry. The entire machine is installed in a container, the structure is compact, and the transportation is very convenient. Under the harsh work conditions in the wild, the container can protect the machine and bring a better experience.

■ Technical data

Model		GMA2X300/1000 container type grout mixer
NO. 1 Mixer	Capacity	300L
	W/C ratio	0.5~1
	Rate Rev.	1450 rpm
	Power	7.5Kw
NO. 2 Mixer	Capacity	300L
	W/C ratio	0.5~1
	Rate Rev.	1450 rpm
	Power	7.5Kw

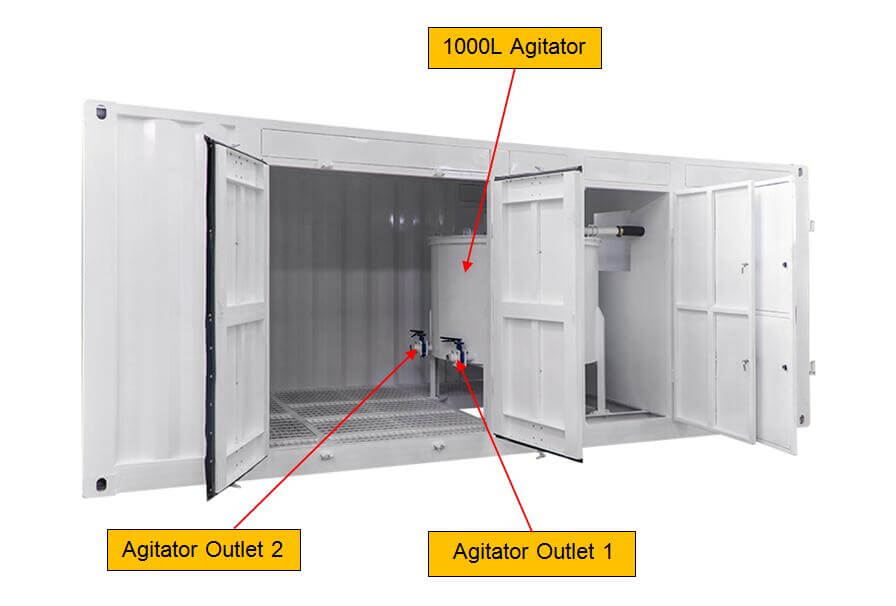

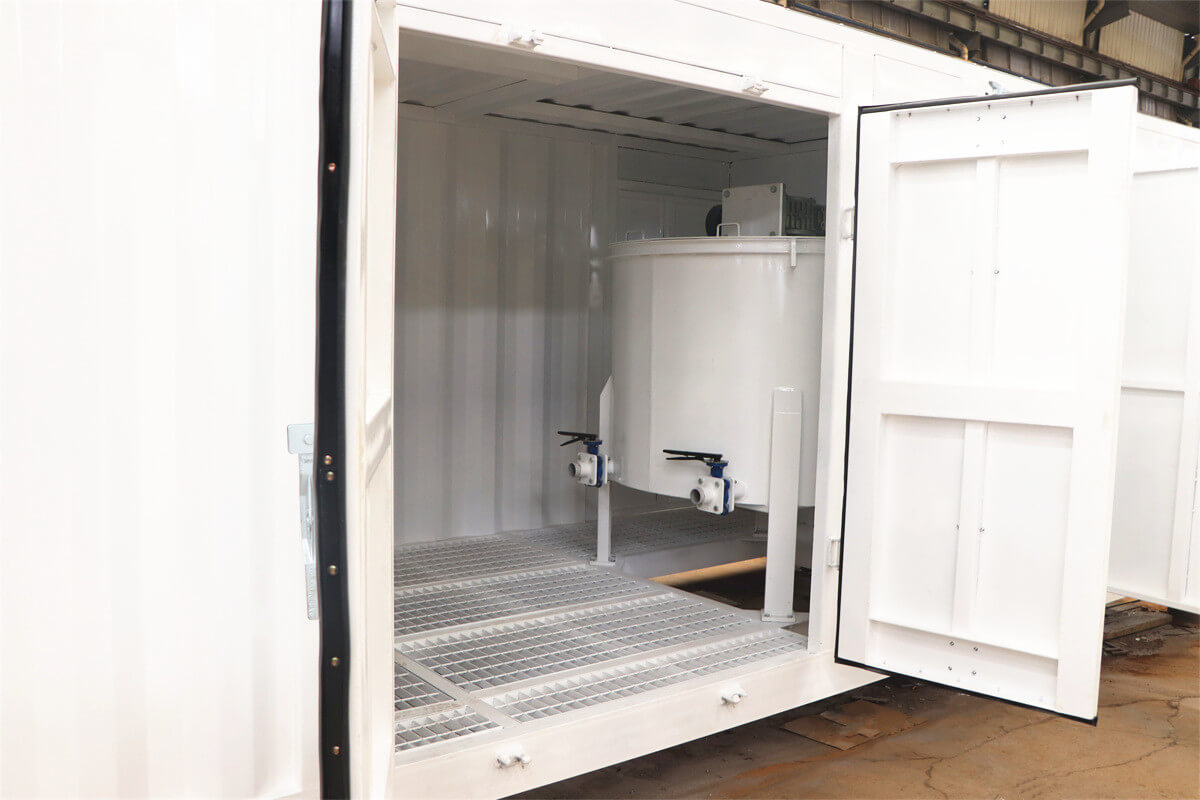

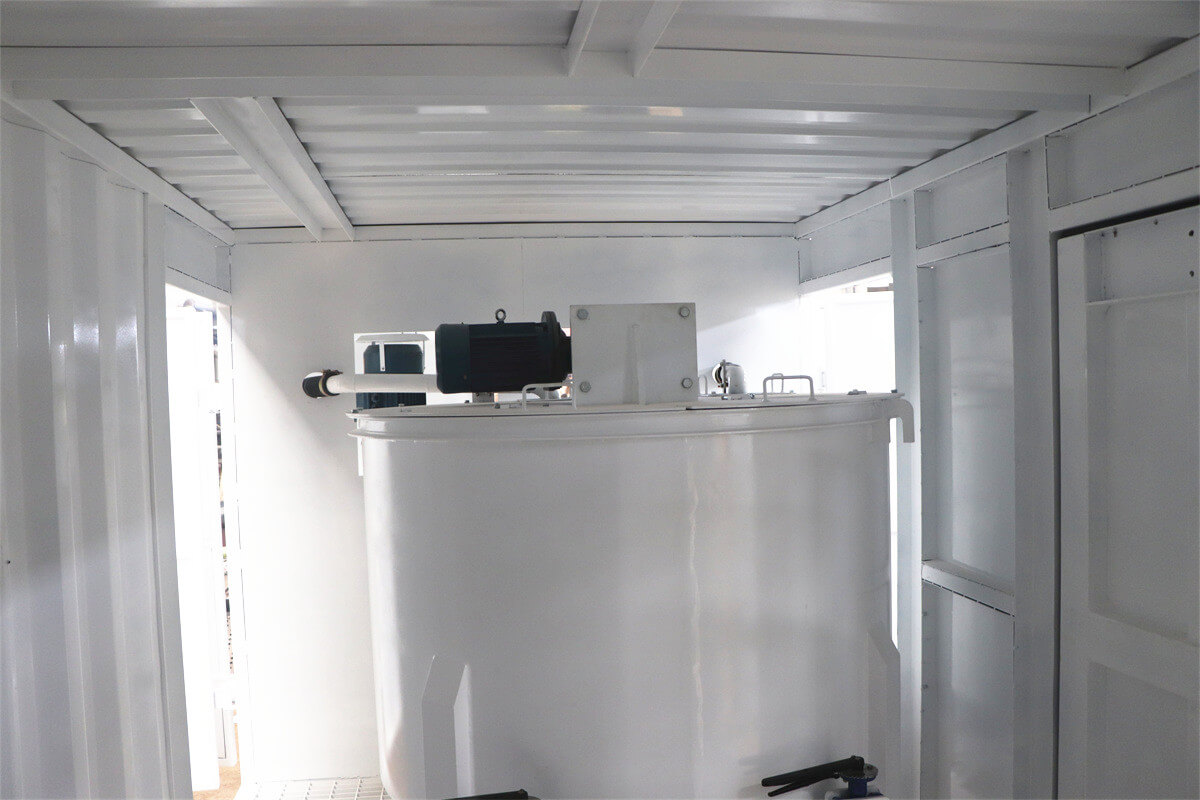

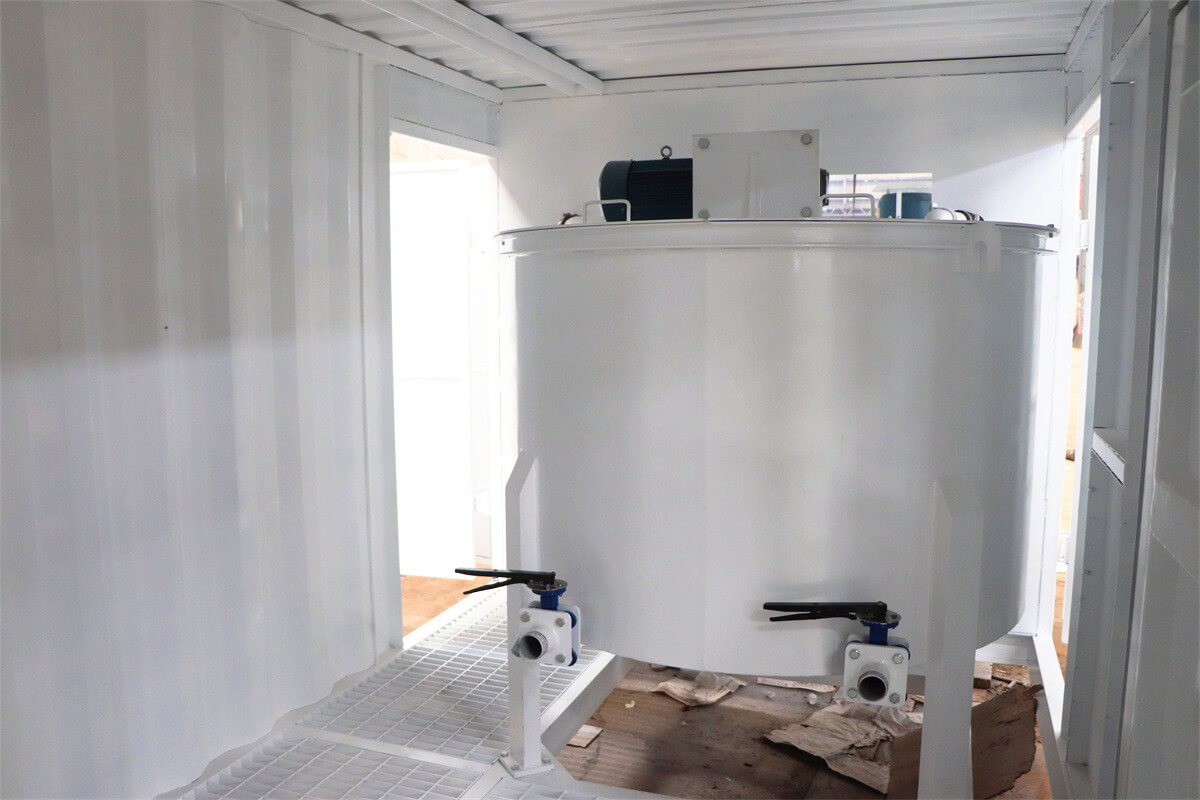

Agitator	Capacity	1000L
	Rate Rev.	36 rpm
	Power	3Kw
Power requirements		Voltage 3 Phase 380V, 60Hz
Dimension		5700×2170×2160mm
Weight		3250Kg

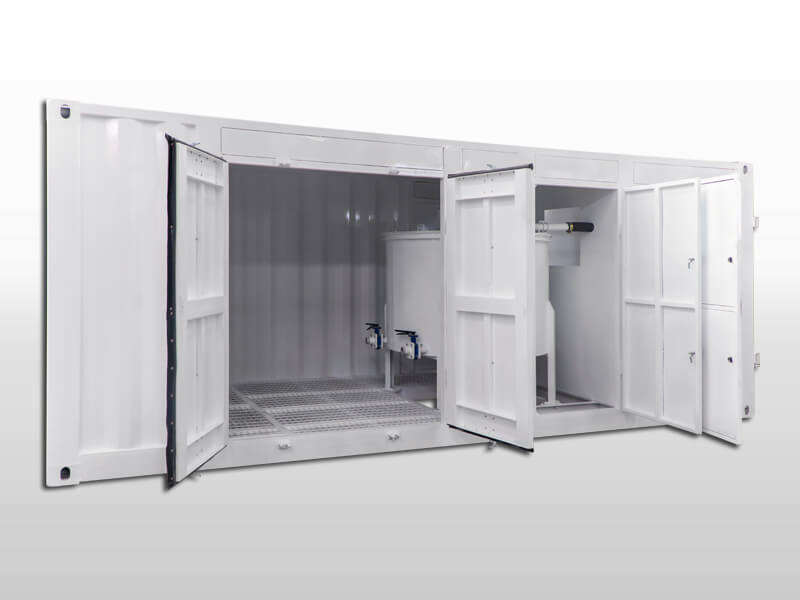

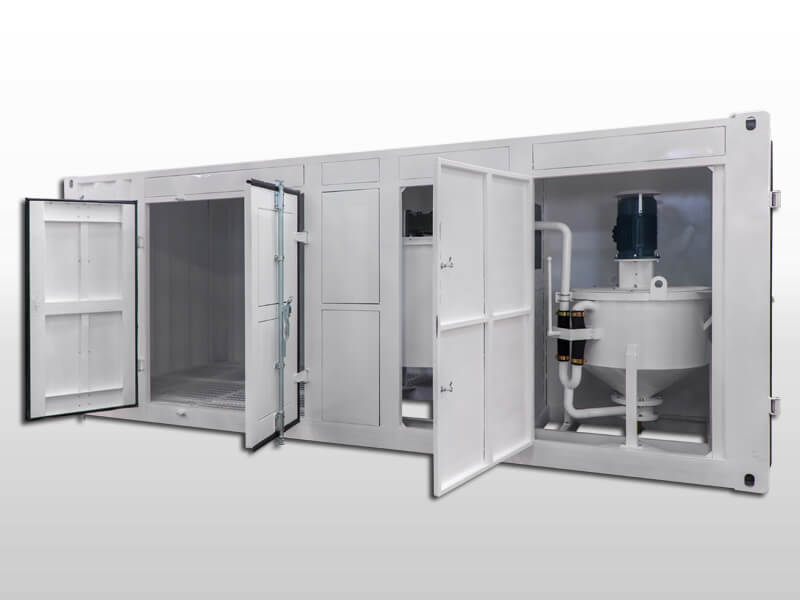

We can also customize the standard container type grout mixer plant according to your needs.
