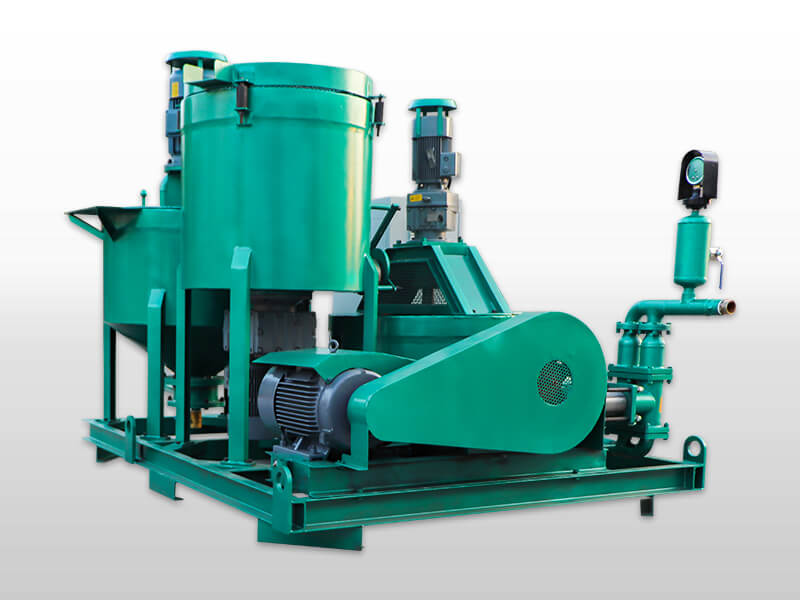

GGP300/300/300/70/80PI-E mortar grout plant is a combination of mixer, agitator, mortar pump in one plant. This mortar grout mixing plant is driven by electric motor, mechanical plunger type injection pump. It has compact size, easy to operate and also takes small place. Grout pump adopts frequency control, so the flow is step-less adjustable.

GGP300/300/300/70/80PI-E mortar cement slurry grout mixing plant is suitable for making cement mixture and mortar cement mixture.

Working principle of model of mortar grout plant:
Evenly mixed slurry convey to No. 1 agitator. Add sand to No. 1 agitator and mix. Evenly mixed mortar cement mixture flows into No. 2 agitator through discharge outlet. Grouting pump sucks mixture from No. 2 agitator and finish the grouting, gunite and backfilling etc. project. Grouting, while the next round of mixing can be carried out, thus the cement slurry grout unit achieves continuous work.

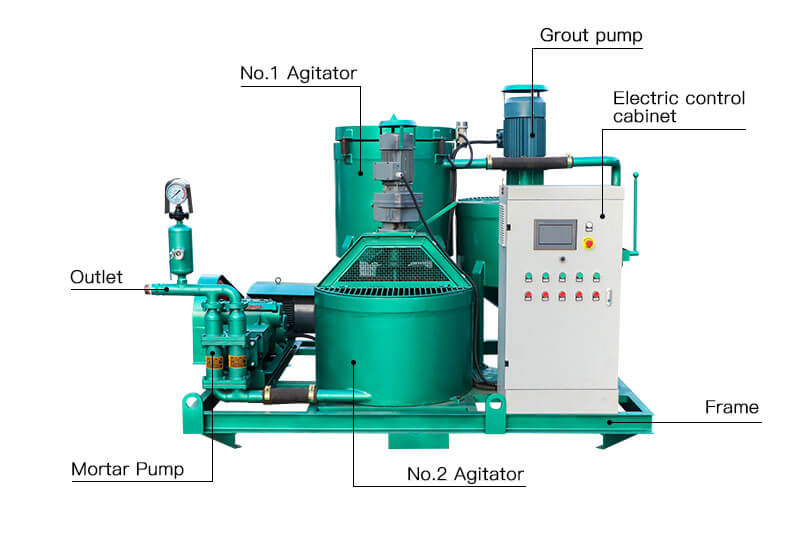

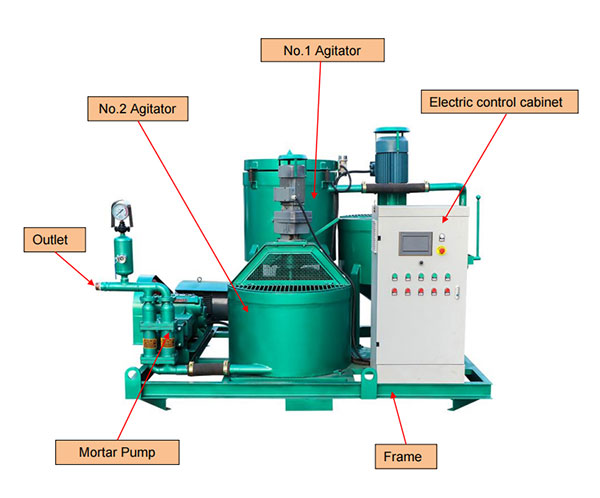

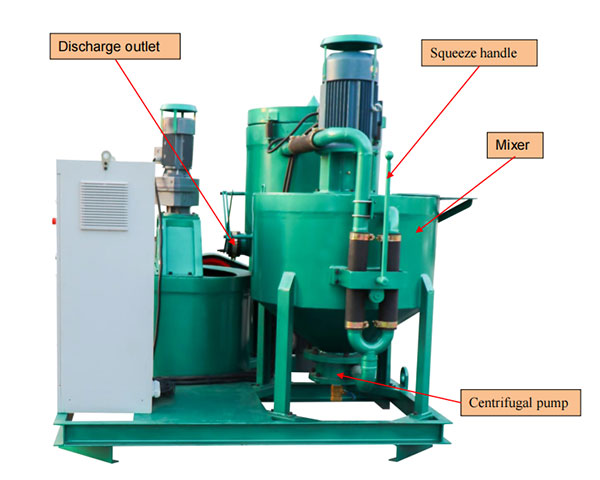

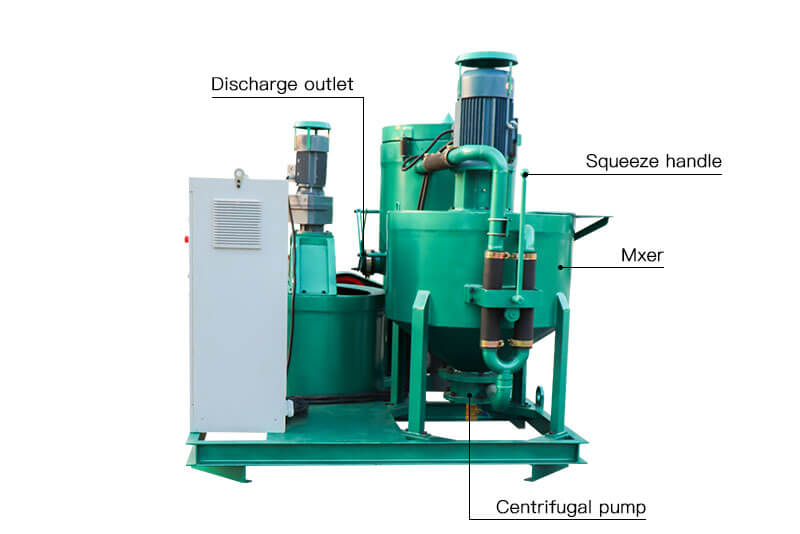

Detail part of GGP300/300/300/70/80PI-E mortar grout plant:

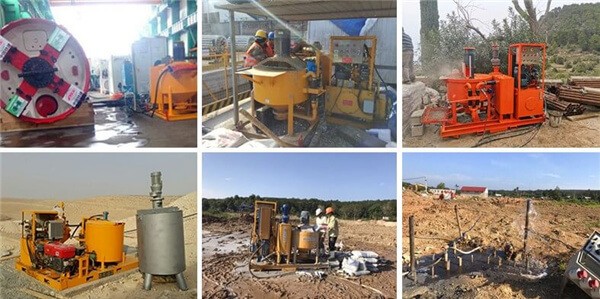

GGP300/300/300/70/80PI-E mortar grout plant is mainly used for ground/underground construction , such as highways, railways, water and electricity, construction, mining etc.

Features of GGP300/300/300/70/80PI-E Mortar Grout Plant:
1. Our mortar grout mixing plant is with CE, ISO certification.
2. Grouting pressure, output is stepless adjustable.
3. Continuous output with small pulse mortar grout mixing plant.
4. Simple structure, light weight, easy maintenance mortar grout unit.
5. Less spare parts ensure low maintenance costs cement slurry grout plant.
6. HMI interface, flow and pressure can be visualized.
7. Flameproof electric cabinet, protection grade IP56.
8. Cement slurry grout mixing plant has high speed vortex mixer that ensures mix quickly and evenly.

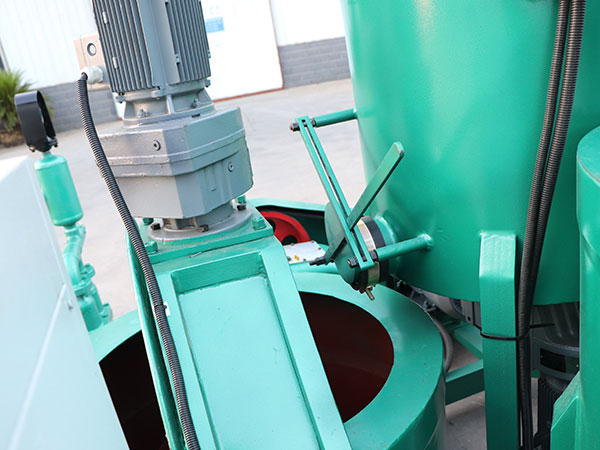

9. Grout mixer and agitator switch by using squeeze handle, it is safe, reliable and easy to operate.

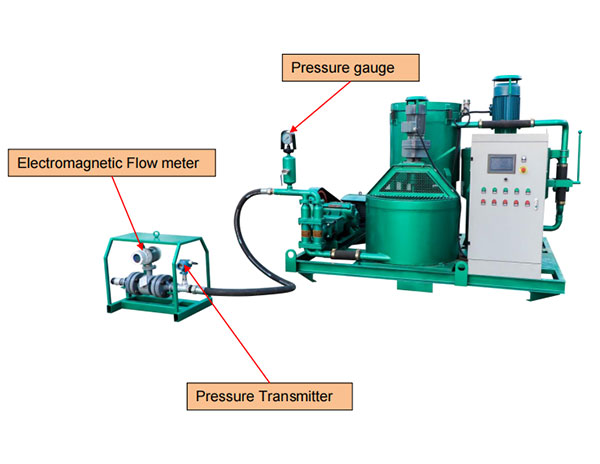

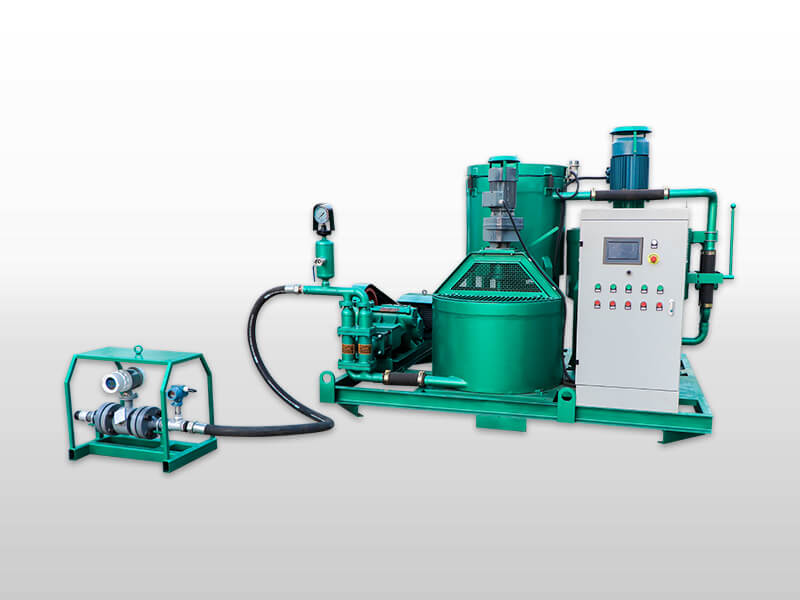

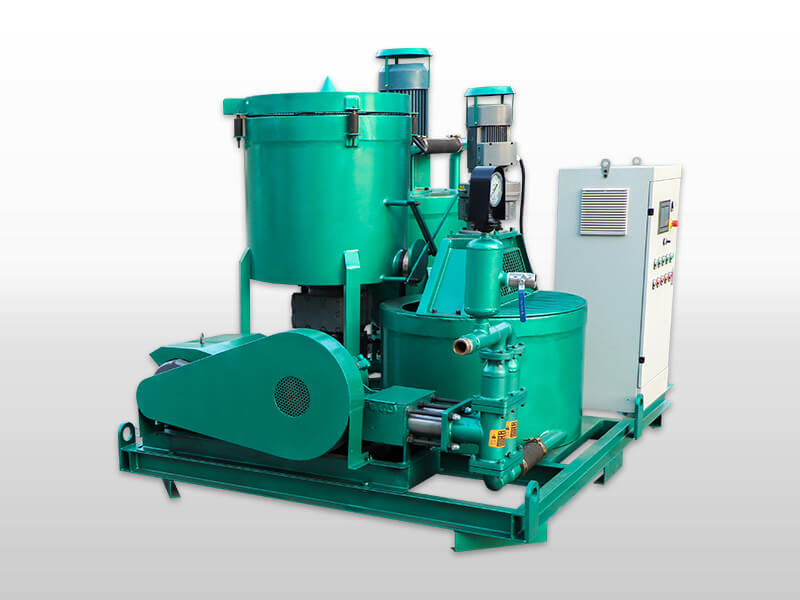

Detail images of GGP300/300/300/70/80PI-E Mortar Grout Plant:

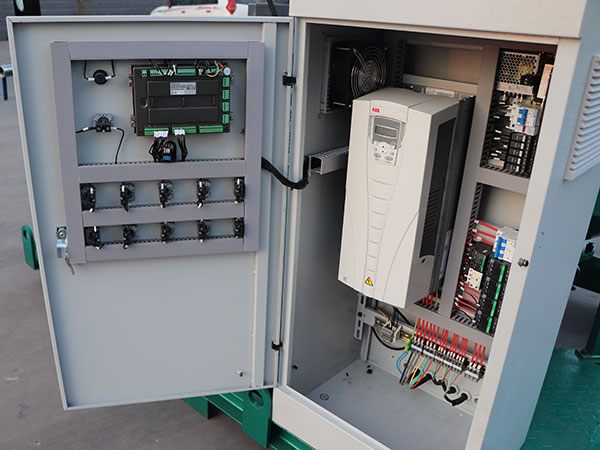

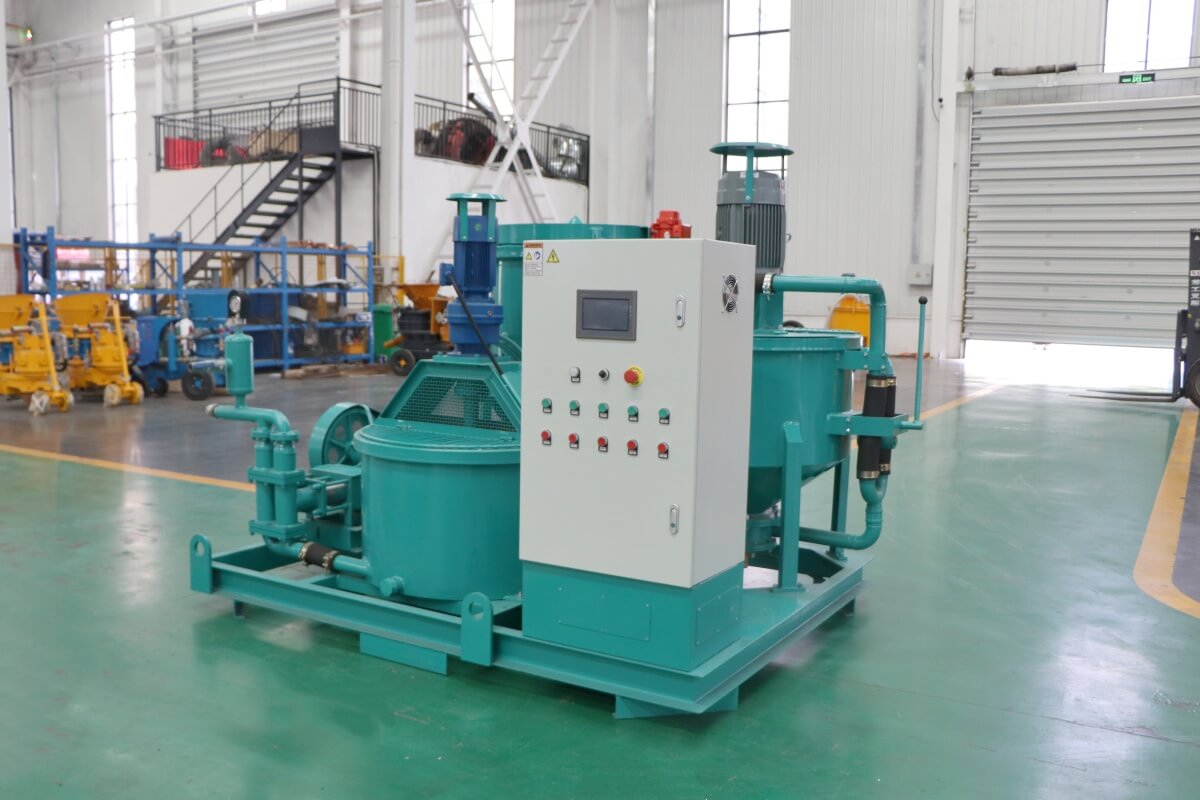

Electric control cabinet of mortar grout plant

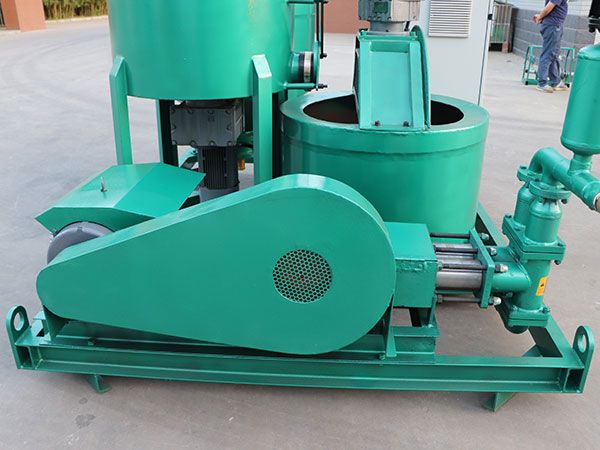

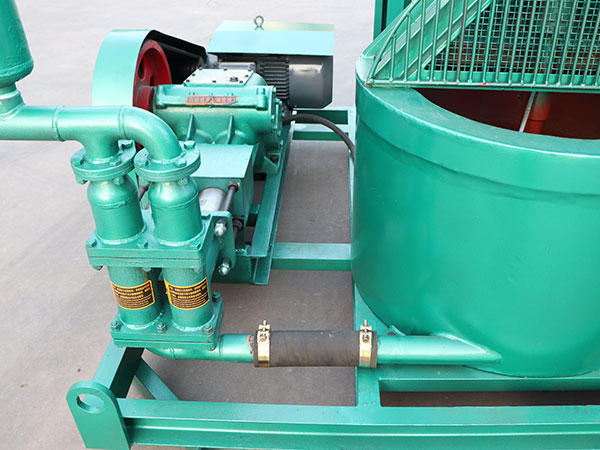

Mortar pump

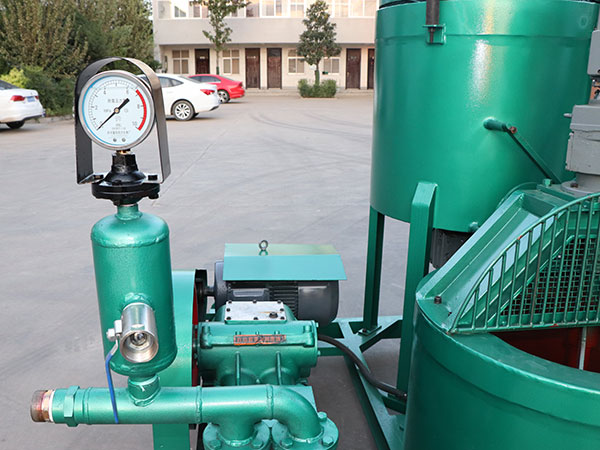

Pressure gauge

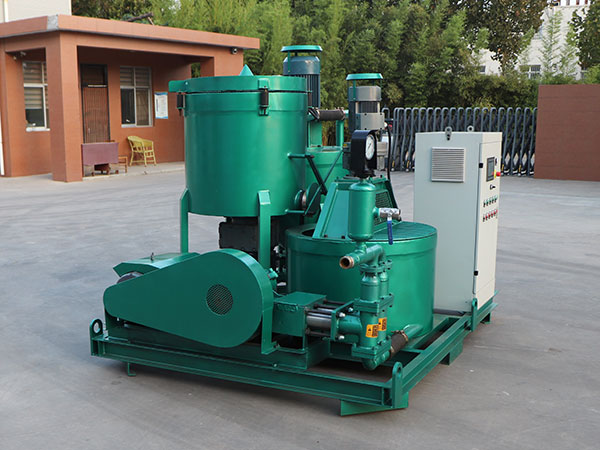

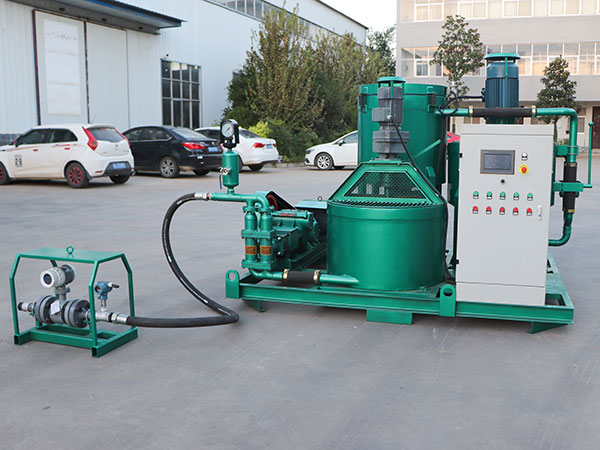

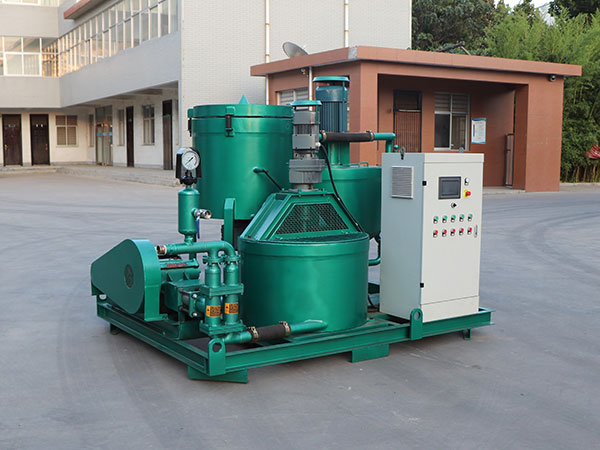

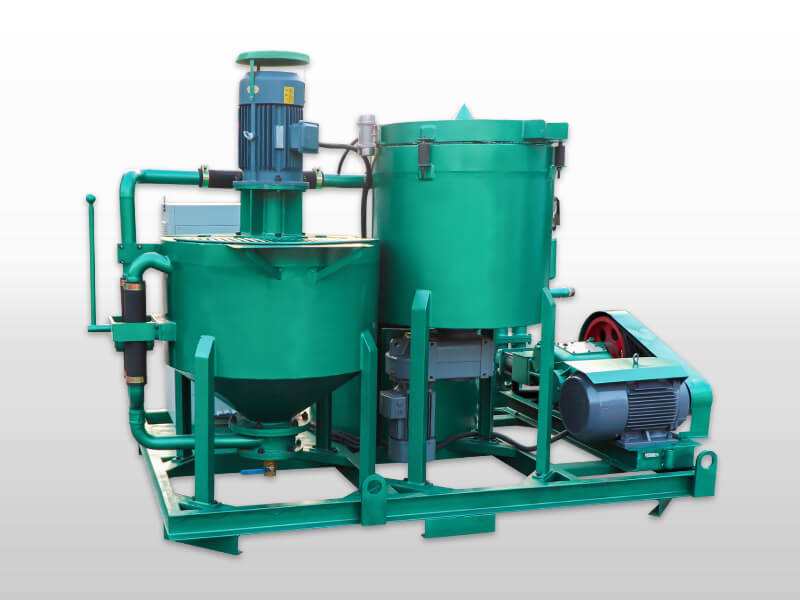

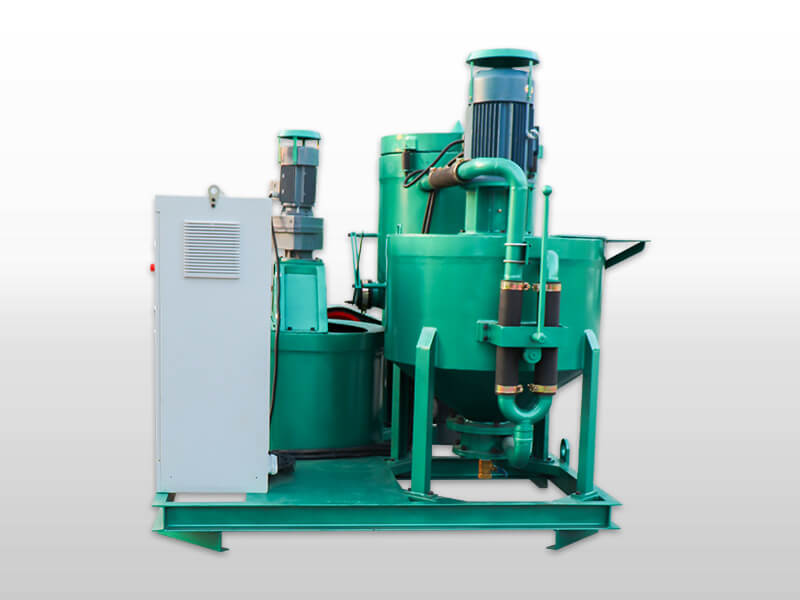

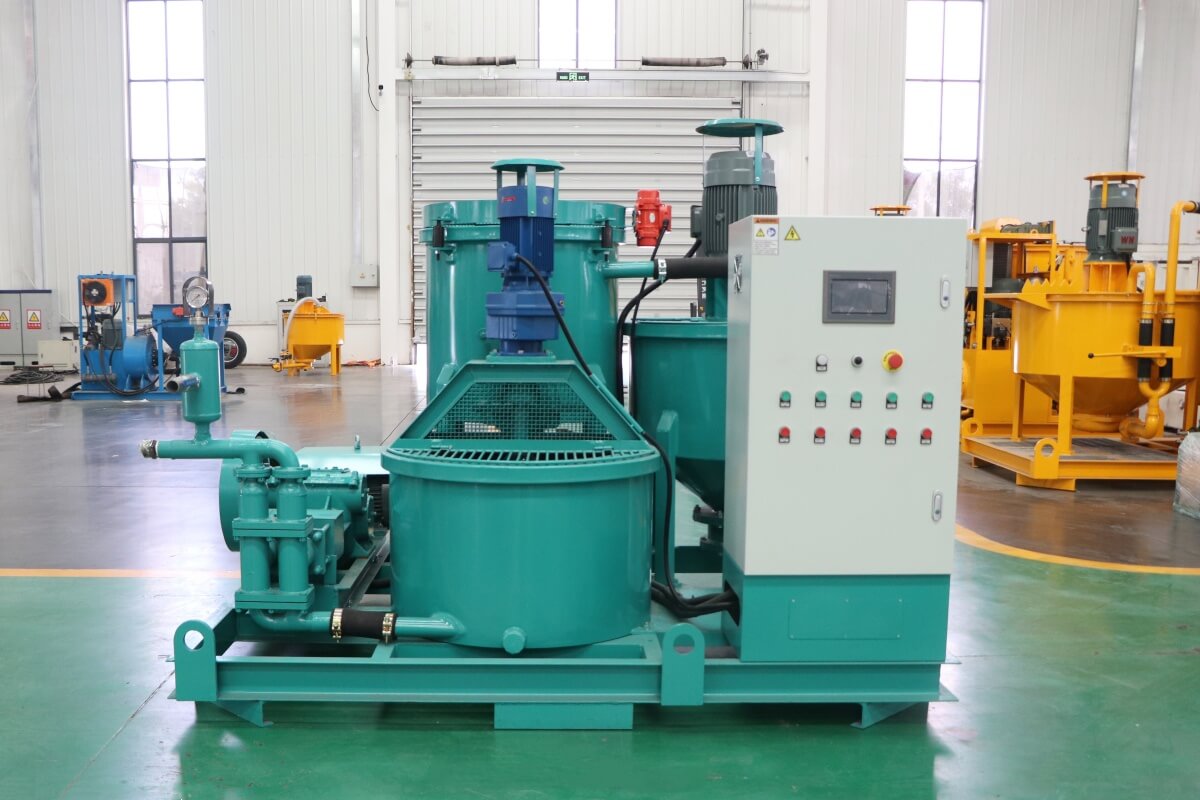

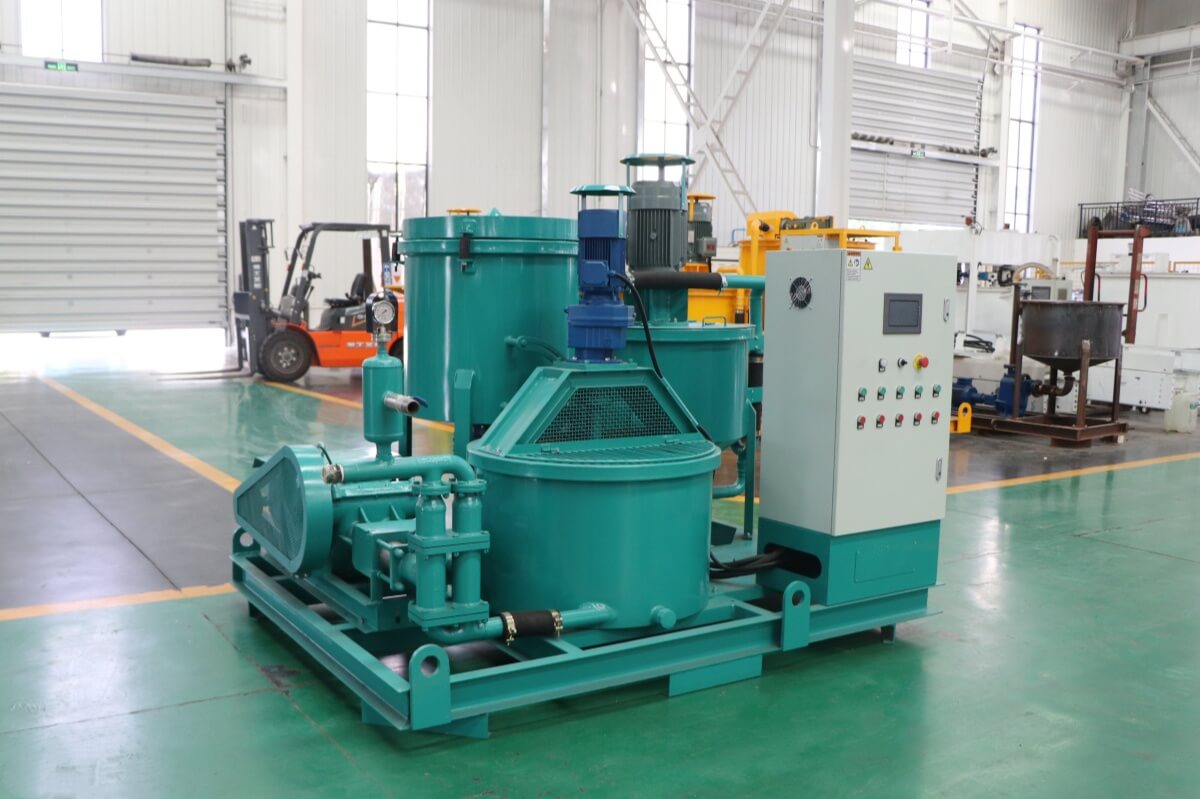

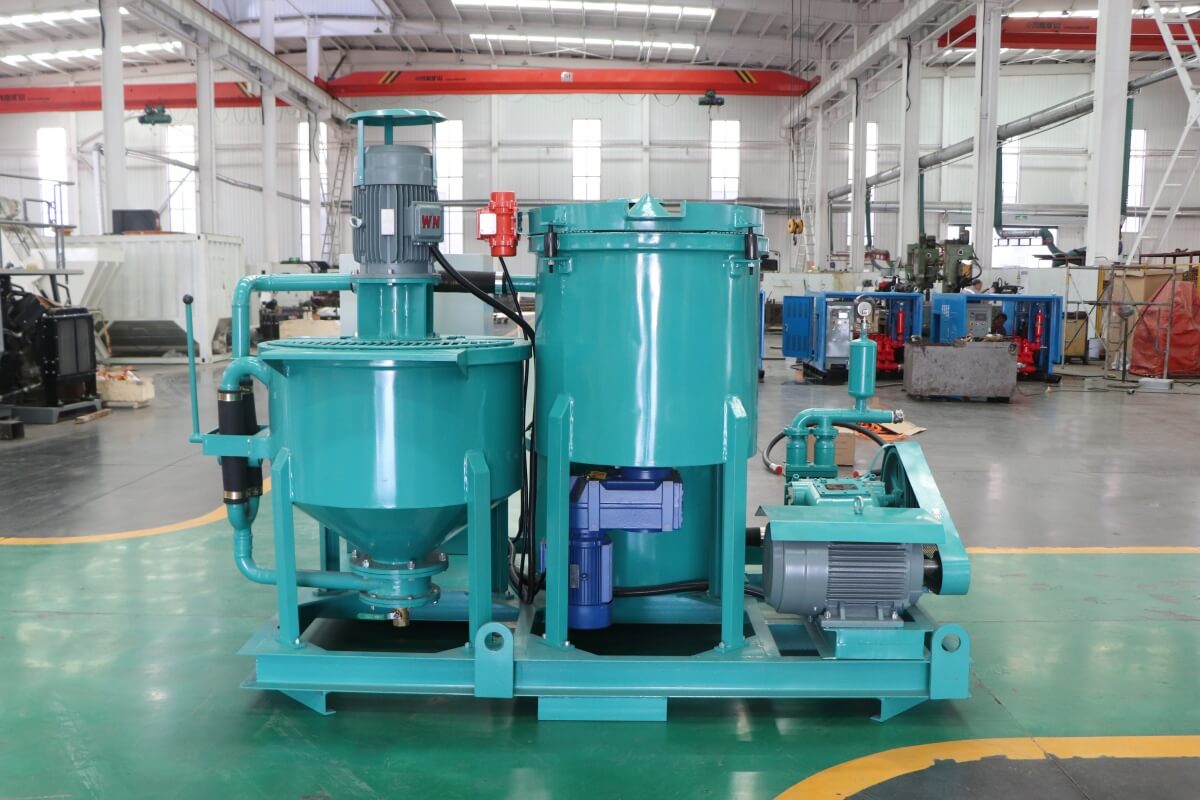

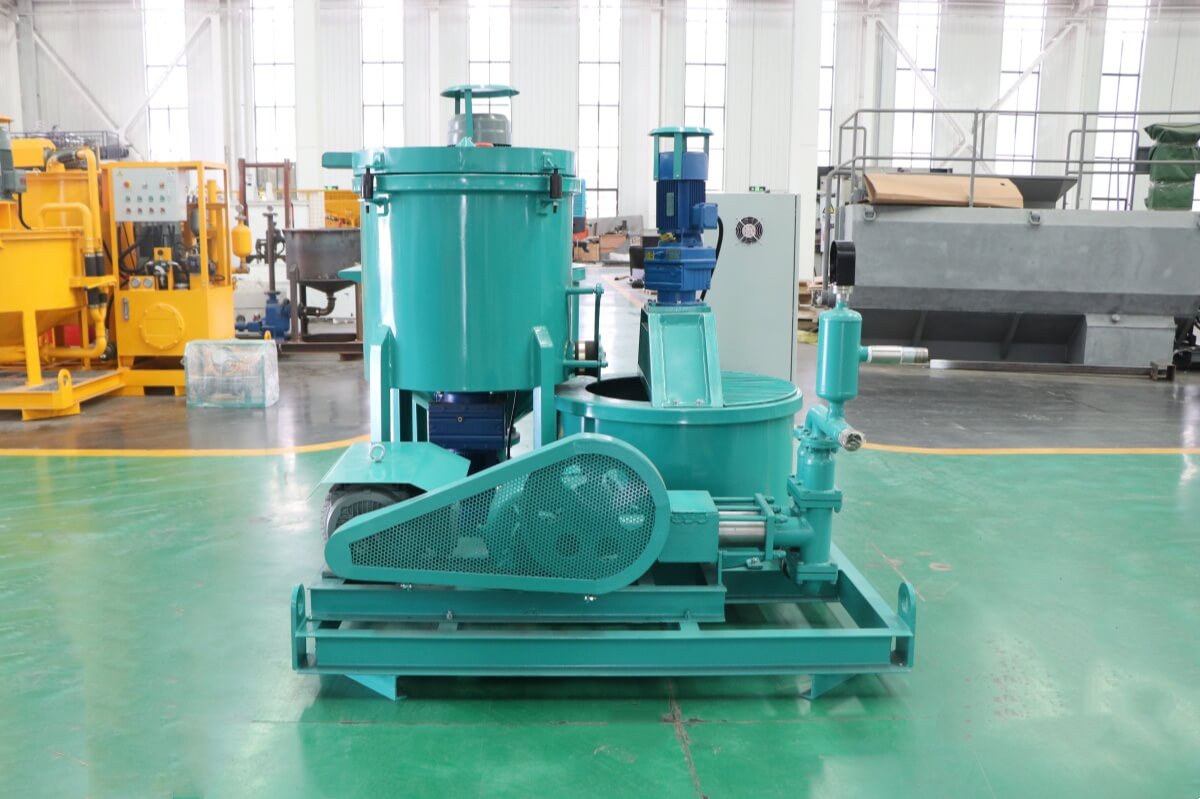

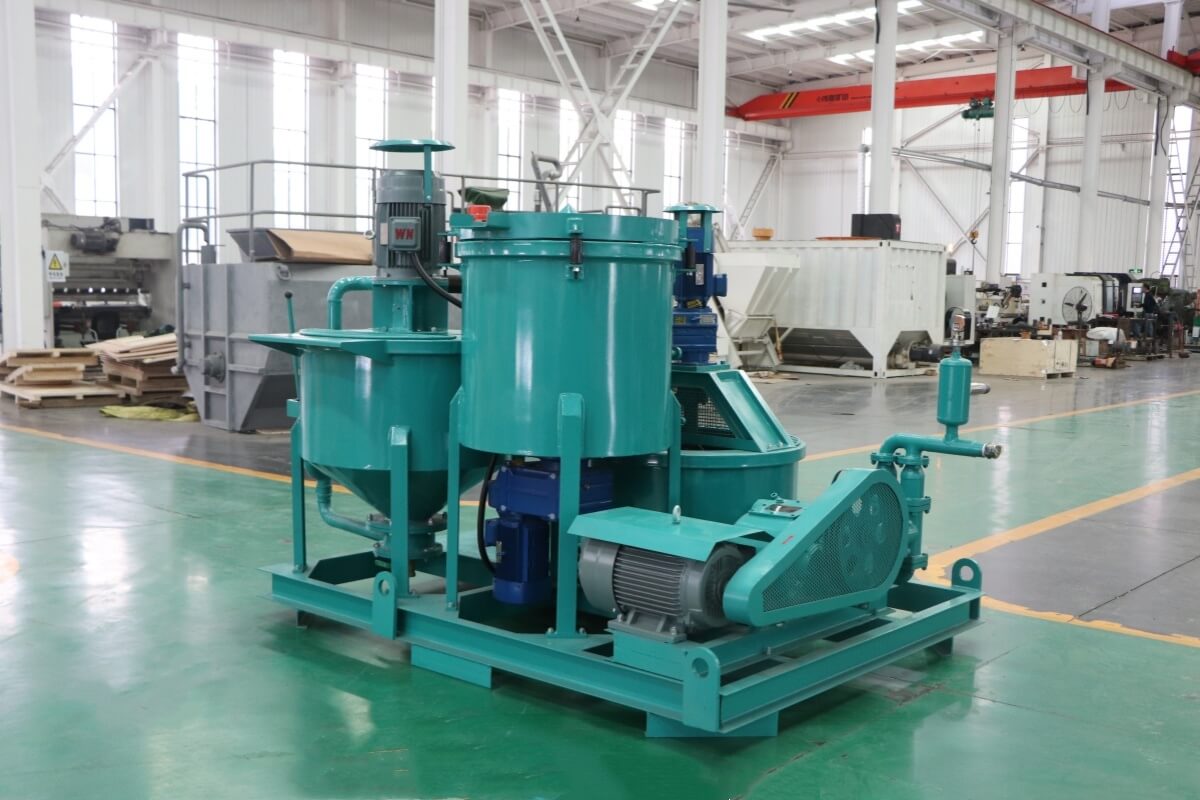

Simple compact structure grout plant

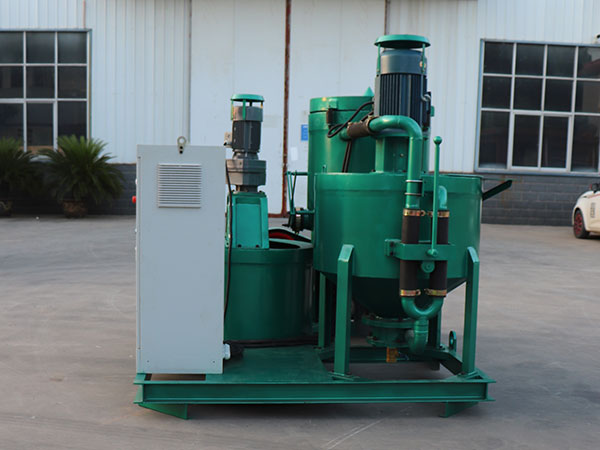

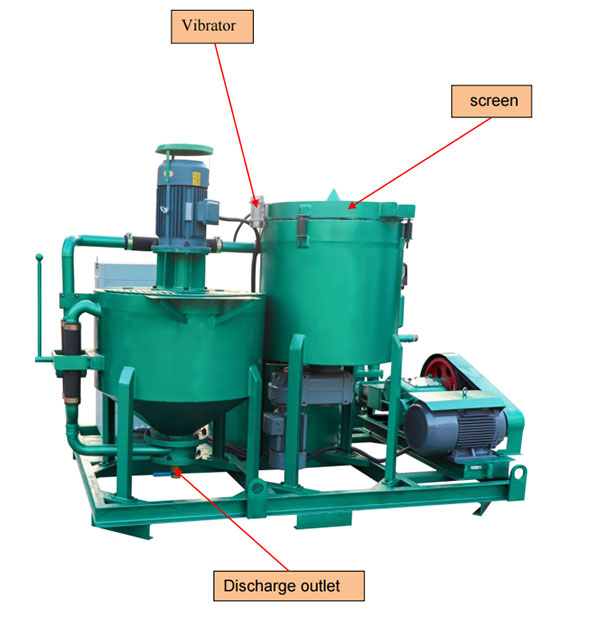

Discharge outlet

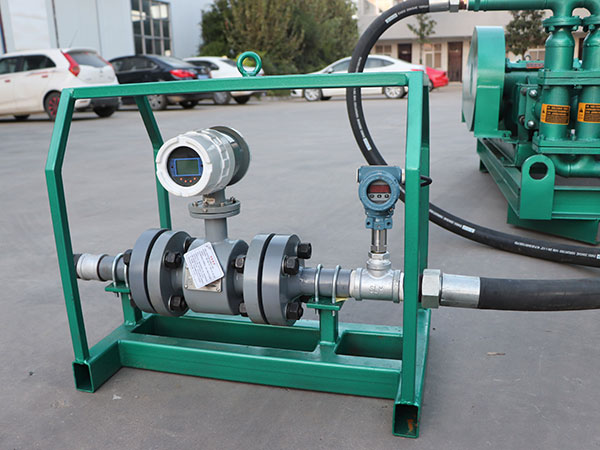

Electromagnetic flow meter

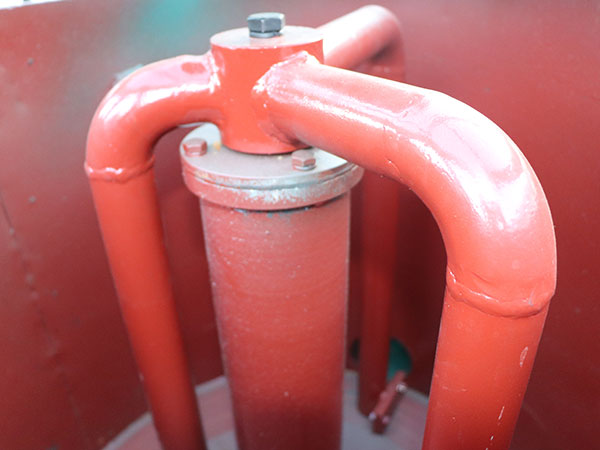

High speed mixer

Name		Data
Type		GGP300/300/300/70/80PI-E Mortar Grout Plant
Mixer	Capacity	300L
	W/C ratio	0.5~1
	Rate Rev.	1450 rpm
	Power	7.5Kw
NO.1 Agitator	Capacity	300L
	Rate Rev.	49 rpm
	Power	2.2Kw
NO.2 Agitator	Capacity	300L
	Rate Rev.	36 rpm
	Power	1.5Kw
Pump	Type	Mortar Pump
	Output	Max 70L/min
	Pressure	Max 8Mpa
	Power	11Kw
Power requirements		Voltage 3 Phase 380V,50Hz
Dimension		2800×1900×1650mm
Weight		1350Kg

We could also customize mortar cement slurry grout plant according to your demands.
