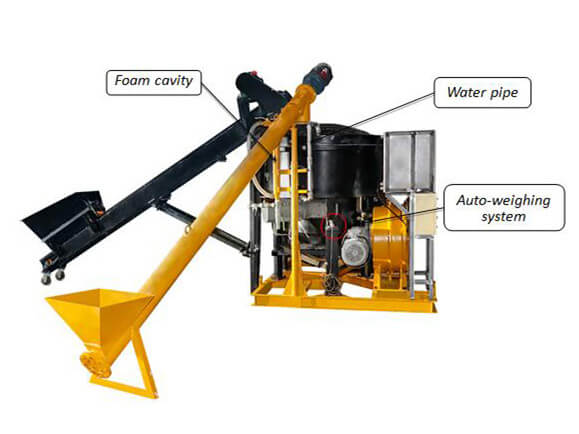

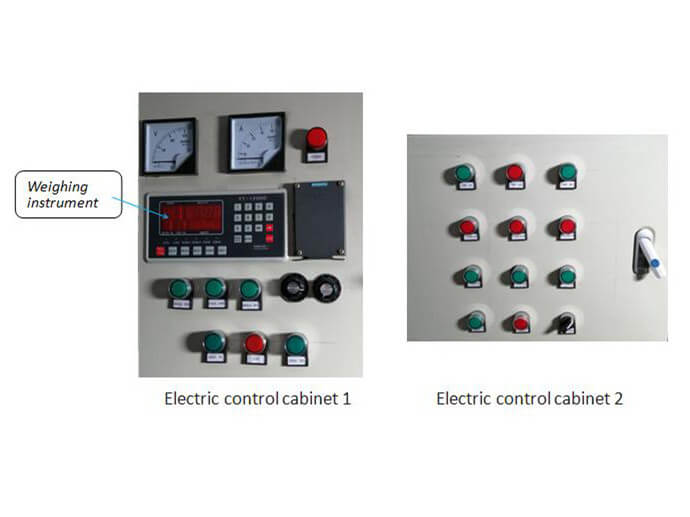

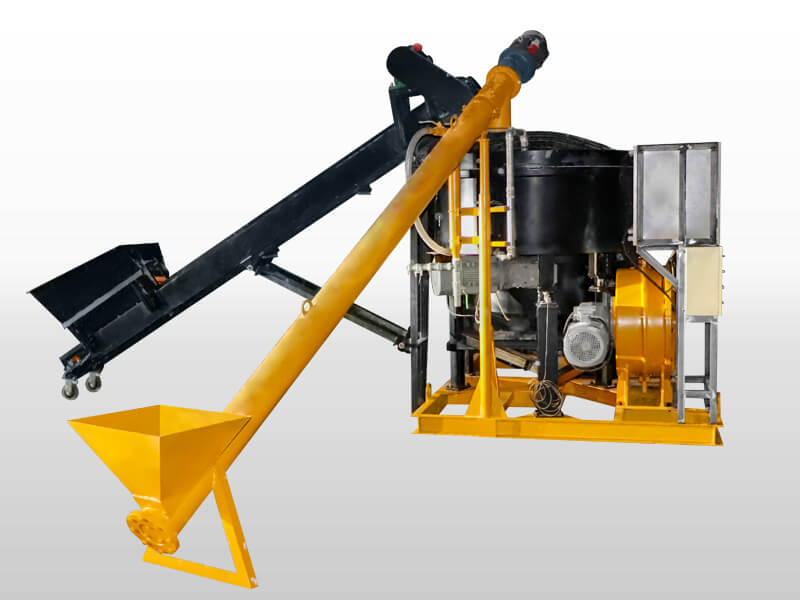

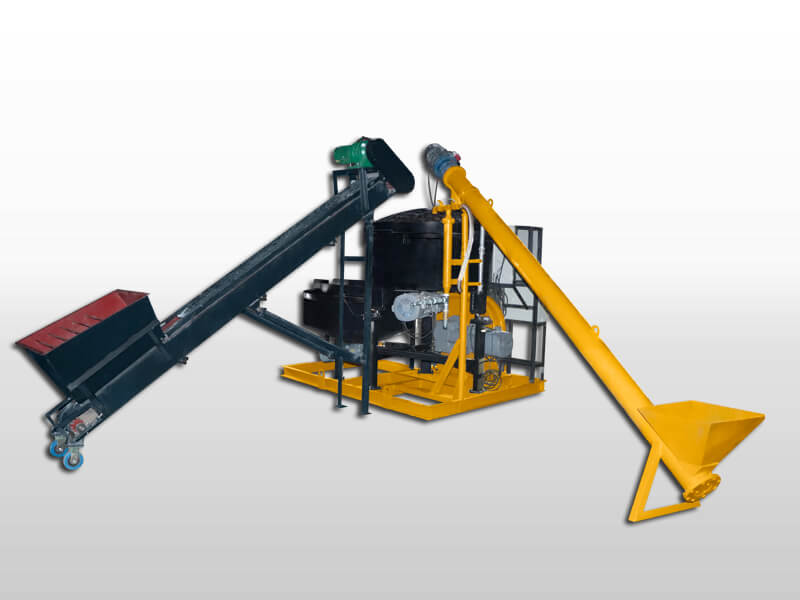

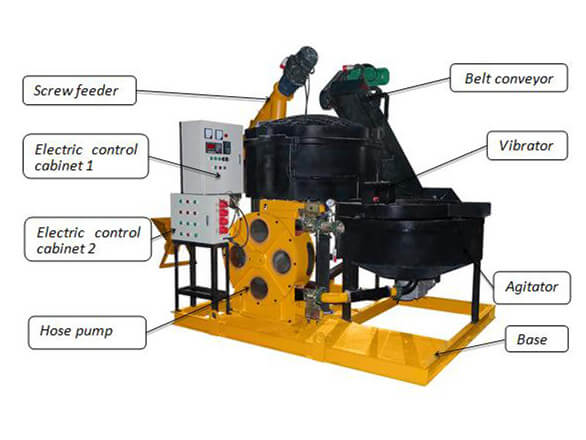

GFC1000-H 5 in 1 Foam cement machine for roof and floor insulation is a multi-function machine, composed of mixer, agitator, foam generator, hose pump, equipped with screw feeder, belt conveyor and submersible pump. The foam cement machine is equipped with a weighing sensor and automatic batching system, which can set each batching weight and realize automatic feeding and full mixing. The process is completely controlled by the auto-weighing system. After the preparation work is completed, press the automatic button to start the automatic working. The mixer is started to mixing. Sand, cement, water and foaming agent are loaded in turn and mixed quickly after reaching the set weight. After the mixing is even, open the discharge door. The mixture flow down into the lower screen of the agitator. The low speed mixing blades are equipped in this agitator. After the mixture completely flow down, close the door and continue the next batch mixing. At the same time, start the hose pump to pump the foam concrete mixture to the work site.

1. GFC1000-H Foam cement machine for roof and floor insulation.
2. Foam cement machine for laying bricks, tile works, repair works.
3. Foam cement machine is used fro infill reinforcement chipping concrete/ design mix into column/slab/wall.
4. Foam cement machine for spray plastering, conveying plaster mortar.
5. Foam cement machine for floor screeding (self-leveling concrete), water proofing, grouting.
6. Foam cement machine for infilling EPS foam concrete into solid internal wall. Solid partition wall.
7. Foam concrete machine for infilling foam concrete into formwork for solid external, internal wall/solid partition wall.

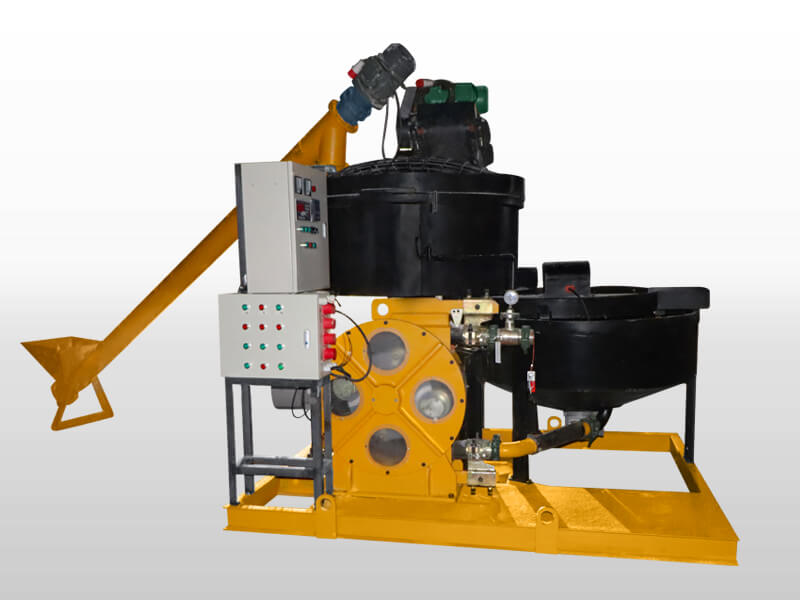

1. Foam concrete machine with auto batching system.
2. Material weight mixing ratio precise, simple operation, saving labor, great reliability.
3. Heavy duty and powerful mixer, easily to mix sand, cement, water and foam agent, as well as high efficiency to achieve continuous mixing and continuous work.
4. Powerful pumping system, up to 20bar high pumping pressure to meet high floor pumping requirement(up to 35 storeys ).
5. Foam agent can be added into the mixer continuously, high working efficiency.

Model	GFC1000-H foam concrete machine with auto-weighing system
Items	Specification
Mixer	Volume	600L
	Power	7.5Kw, 3 phase, 380V, 50Hz
	Speed	45rpm
Agitator	Volume	650L
	Power	1.5KW, 3 phase, 380V, 50Hz
High-tech pumping system	Output	8m³/h, 20bar pumping pressure
	Power	7.5Kw, 3 phase, 380V, 50Hz
	Pumping distance	Vertical: 130m; Horizontal:250m

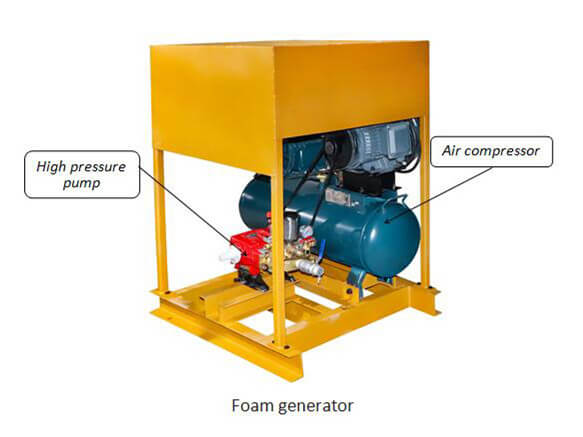

Foam generator	Foam output	600L/min
	Air pressure	6bar
Dimension	2400×1900×1960mm
Weight	1200kg

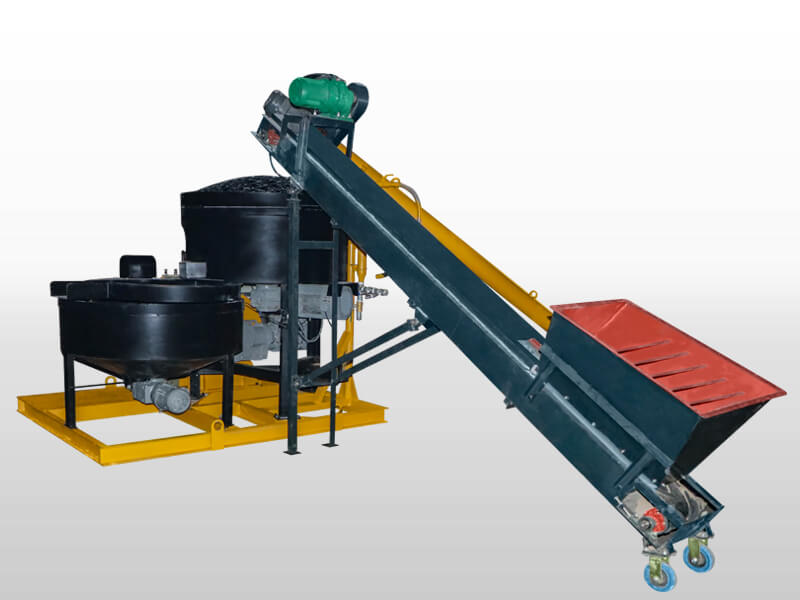

We also supply you with many types foam concrete machine, foam generator, foam agent and mold etc.
