GGP1000/4000/2x165/30PL-E Automatic grouting station / plant specification:

1. Two modes of operation: fully automatic mode and manual mode.
2. Automatic cleaning system.
3. The preparing of ternary or quaternary compound mixing is possible, with either one or two liquid components and one solid component.
4. Output and pressure can be step-less adjusting.
5. High reliability and low-maintenance operation with good accessibility to the wear parts.
6. It can be placed directly in the 40ft cabinet.

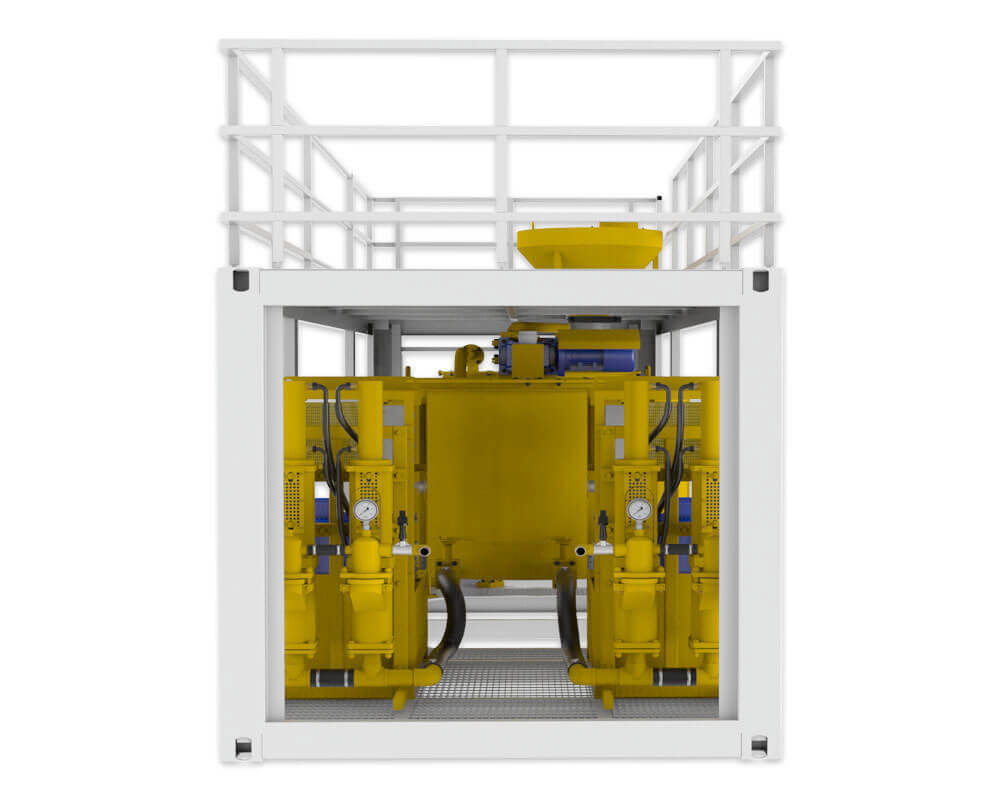

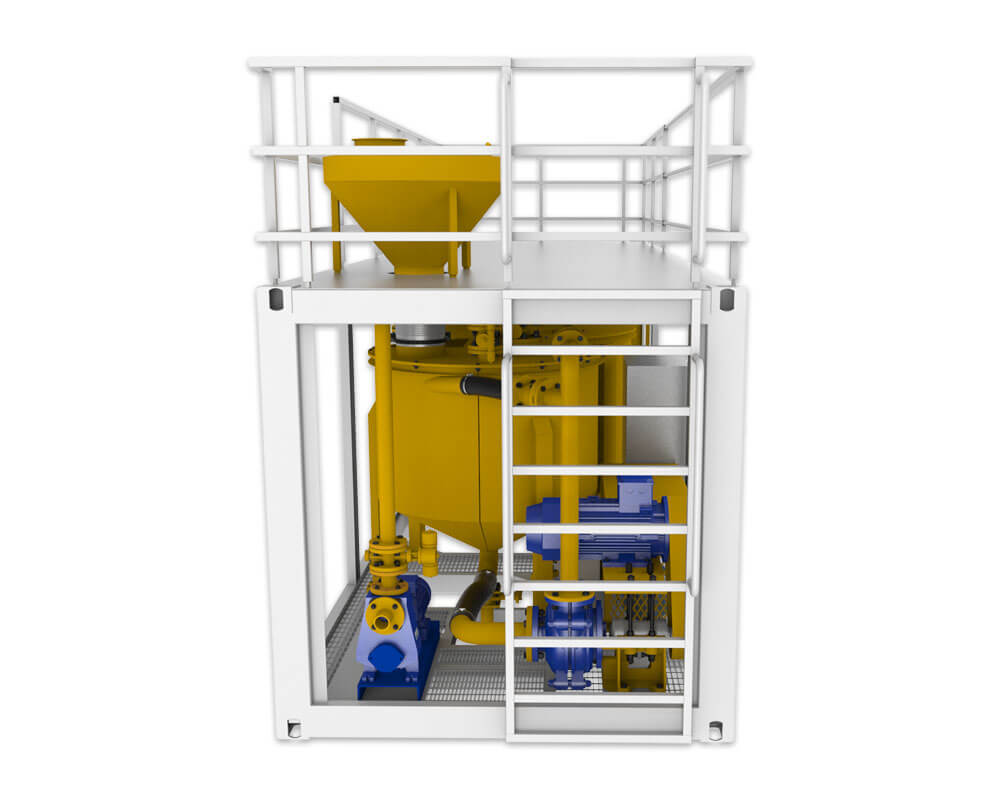

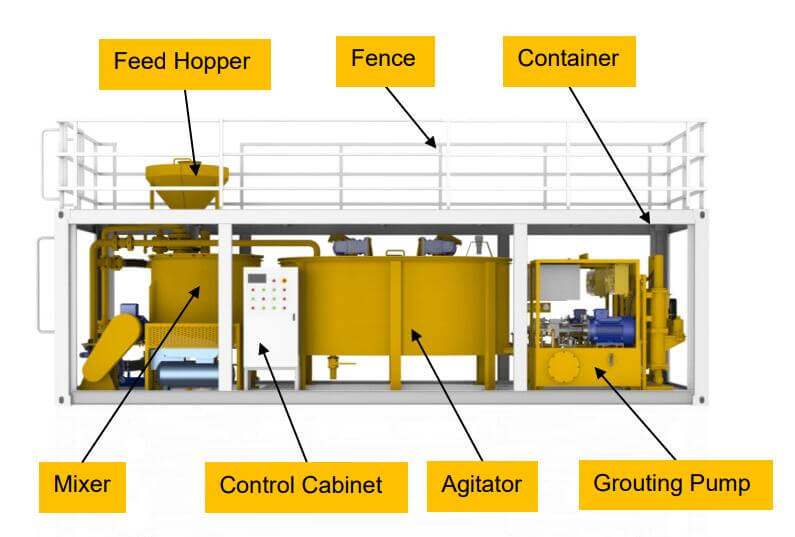

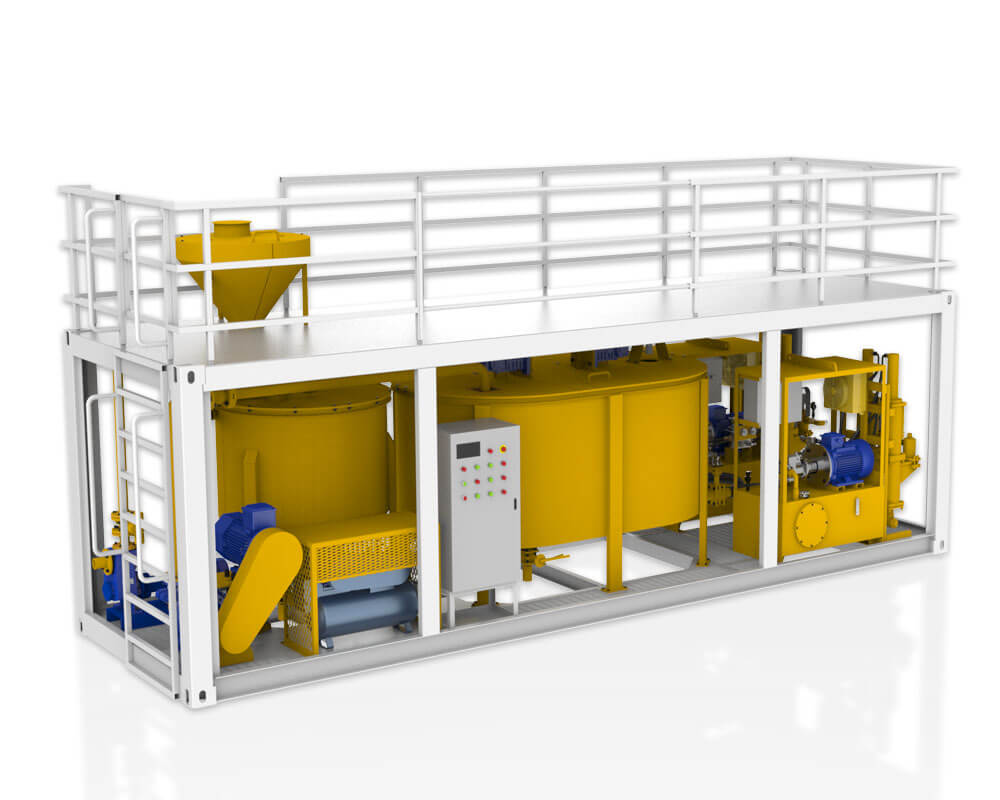

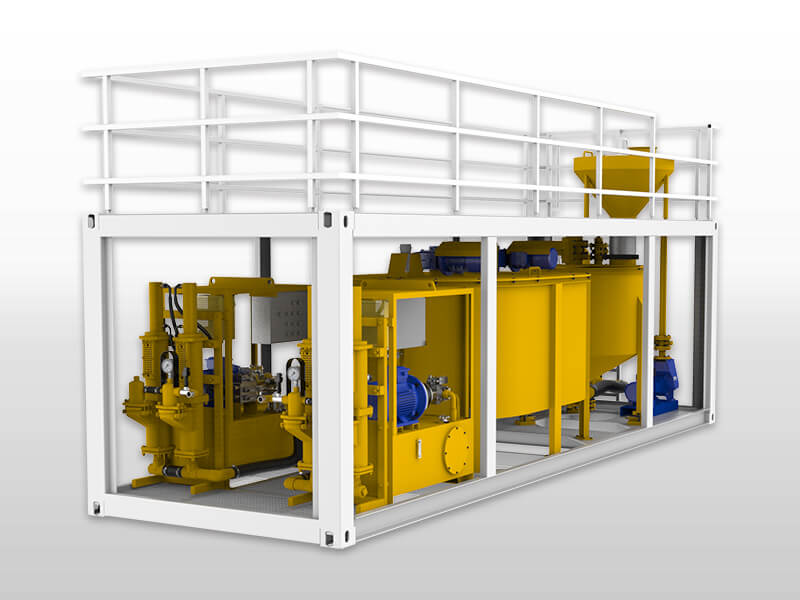

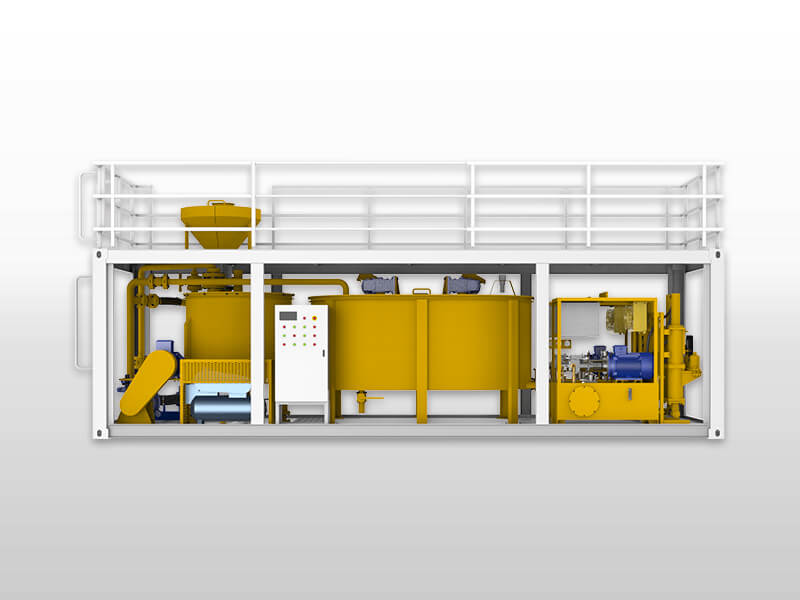

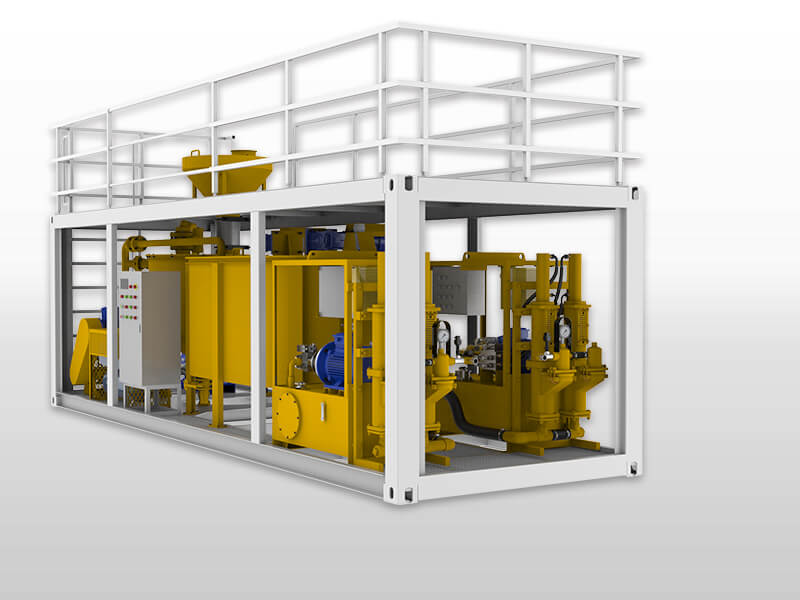

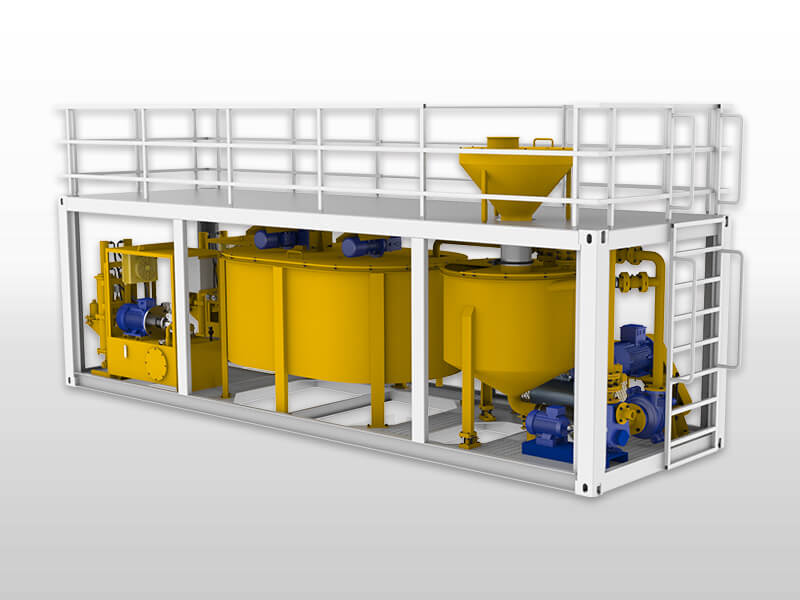

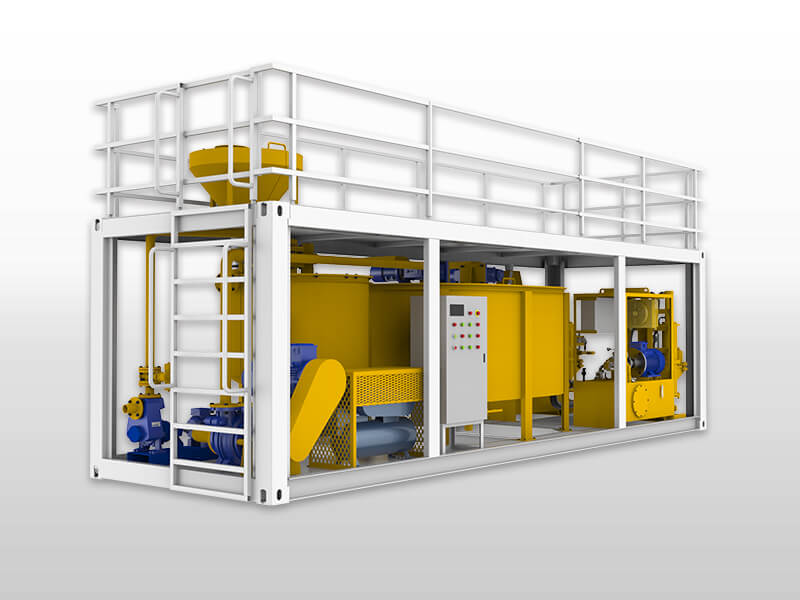

GGP1000/4000/2x165/30PL-E Automatic Grouting Station

Mixer

Agitator

Volume

1000L

Volume

4000L

Flow

1200L/min

Speed

36r/min

Max. output

20m³/h

Level sensor

Ultrasonic sensor

Power

15Kw

Power

2×3.0Kw

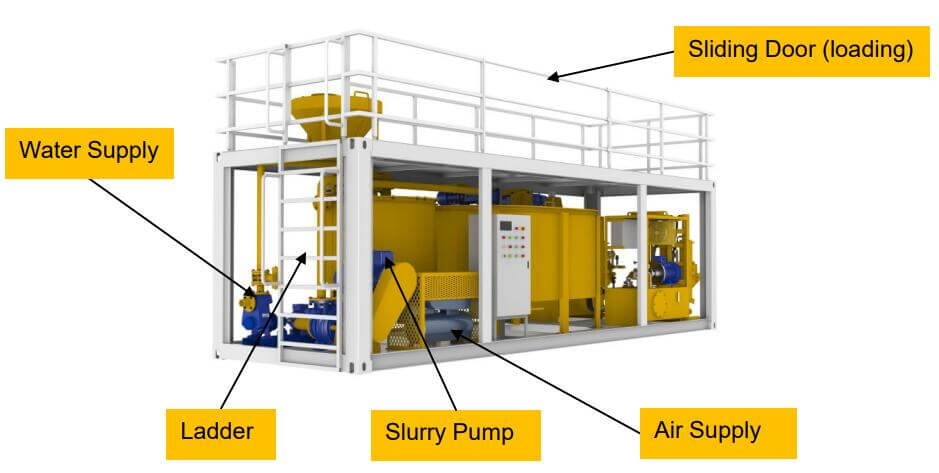

Air supply system

Water supply system

Flow

280L/min

Flow@Lift

5.6L/s@30m

Power

2.2Kw

Power

4.0Kw

Grout Pump

Pressure

0-3MPa

Plunger

120mm

Flow

2×(0-10m³/h)

Plunger stroke

200mm

Oil tank

2×180L

Cylinder bore

80mm

Power

2×15Kw

Cylinder rod dia.

45mm

Size@Weight

7200mm(L)×2200mm(W)×3160mm(H)@8.5t

Power supply

380V, 50Hz

Note: 1. All data are tested by water.
          2. We can customize Automatic grout equipment according to your requirements.
