GGP10/40-E grout pump is a customized mini type grouting pump, mainly used for injecting cement grout tubes, repairing damaged / dangerous structures, consolidating or weatherproofing walls, rocks, dams, and tunnels, pumping special products for anchoring and seals. This mini type grouting pump can also be used for teaching and research.

Mini type grouting pump is mainly used for injecting cement grout tubes, repairing damaged / dangerous structures, consolidating or weatherproofing walls, rocks, dams, and tunnels, pumping special products for anchoring and seals. It can also be used for teaching and research.

1. Grouting pressure, displacement is stepless adjustable;
2. Compact size, light weight and easy to maintain;
3. Low maintenance cost;
4. With counting function, it can record the reciprocating number of the injection pump;
5. Continuous output and small pulse;
6. Hydraulic driven and control.

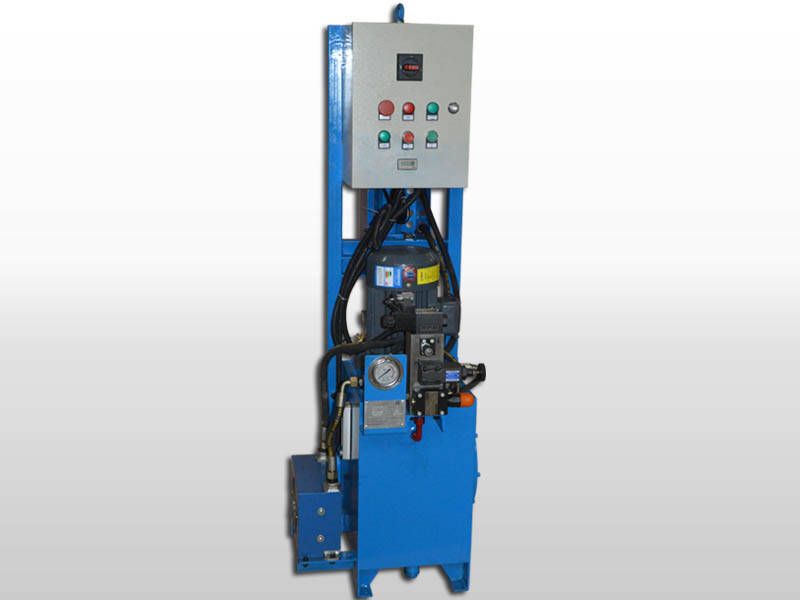

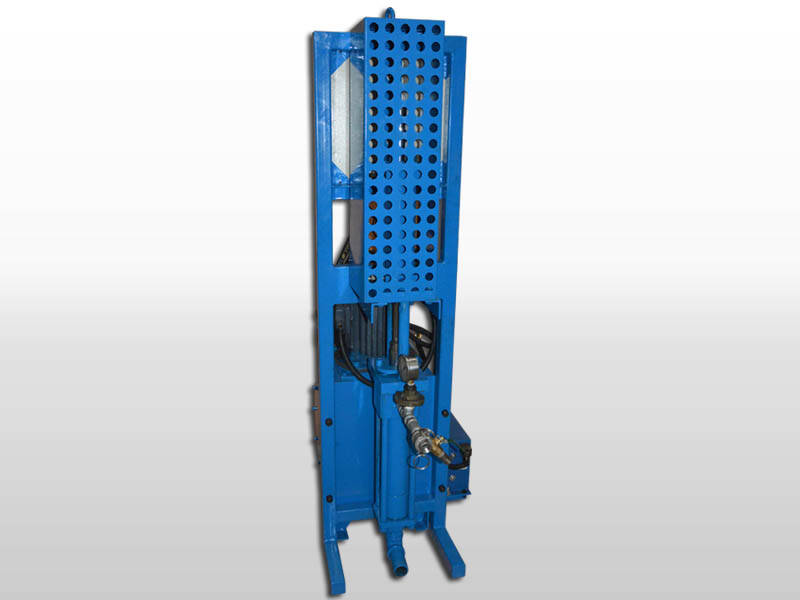

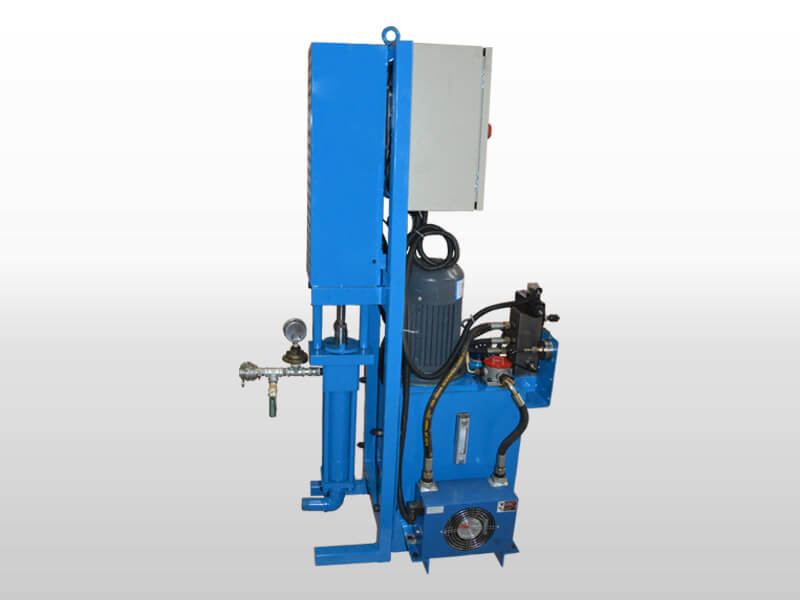

GGP10/40-E Grout pump
Adjustable pressure	0-40bar
Adjustable flow rate	0-10L/min
Cylinder diameter	63mm
Stroke	150mm
Power unit	3Kw
Oil tank	49L
Overall dimension	900*500*1450mm
Weight	199kg
