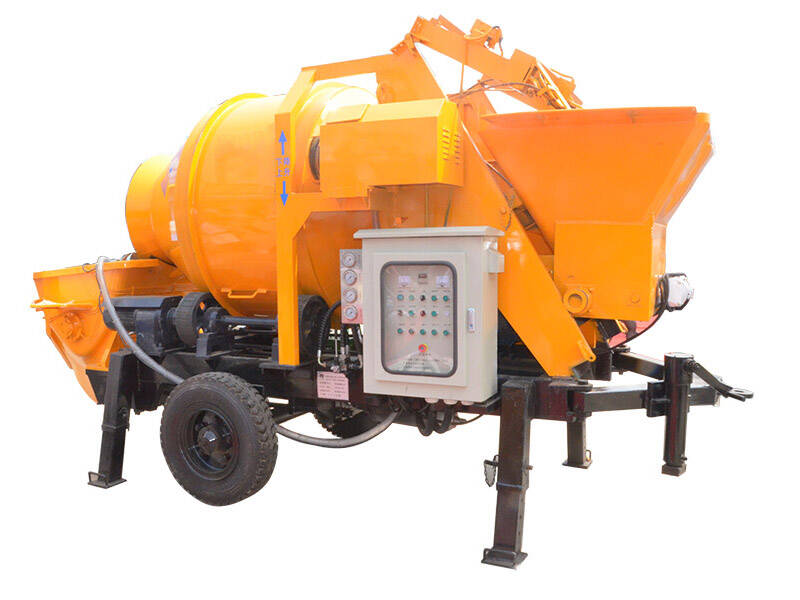

JBT40 P1 portable concrete mixer and pump is combined by the traditional concrete pump and the mixer together, to achieve full concrete construction process automation material, mixing, pumping in one of the small high pressure concrete pump, and this portable concrete mixer and pump is suitable for small and medium sized ground concrete transportation, such as playing a large village aggregate concrete, especially for a group of 12 layer floor, small bridges, wild place scattered site mixing of concrete construction projects. The concrete mixer and pump can be achieved without human or trailer transitions, greatly improved work efficiency.
JBT40 P1 portable concrete mixer and pump is a multi-function concrete mixing and pumping machine which can load raw materials (water, cement, sand, stone), mix raw materials and convey concrete to over 70m in height and 300m in length.
Small portable concrete pump with mixer is with a fully automated operating system, which set feeding, mixing and high pressure pumping as one of the portable concrete mixer pump.
This small portable concrete pump with mixer is widely used for the construction of civil architecture. The concrete mixing pump is easy operation, stable performance and easy to move.
Gaode Equipment Co., Ltd. is a portable concrete pump, portable concrete mixer and portable concrete mixer and pump manufacturer and supplier. We have well-equipped testing facilities and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in Construction and other industries. Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs. If you have any idea or request about the portable concrete pump, portable concrete mixer and portable concrete mixer and pump, please contact us, email address: info@gaodetec.com.

1. JBT40 P1 portable concrete mixer and pump can be widely used in water conservancy, roads, bridges, tunnels, slope protection, foundation, housing project, long distance concrete pouring project and so on.
2. Portable concrete mixer and pump for conveying floor heating lightweight foamed cement, mortar, fine aggregate concrete.
3. Portable concrete mixer and pump for conveying greening soil in ecological environment construction.
4. Portable concrete mixer and pump for conveying all kinds of engineering construction in the plain concrete, fiber concrete.
5. Portable concrete mixer and pump is most suitable for four to six floor buildings, especially in the group buildings, bridges and the small construction sites where need the concrete mixer at the scene.

1. The portable concrete mixer and pump construction operation system used in all automated, all material mixing, high pressure pumping.
2. Transfer concrete through pipeline. It is fast and safe.
3. Portable concrete pump has small size and suitable for more special environment.
4. New combination of concrete pump and concrete mixer in one machine. One machine has two functions: producing concrete and delivering concrete. It is cost saving, especially suitable for small towns and rural construction.
5. Portable concrete mixer saves labours, one operator is ok.
6. This concrete mixer and pump is easy to operate. Remote control is available, cement boom, wireless remote control.
7. Concrete pump overall reliability ensure pump strive foolproof work under harsh conditions. If the machine is operated properly, it can work properly more than 5 years.
8. The concrete pump with mixer machine has wheels, so it is mobile, flexible, convenient, efficient. We can use a car to tow it to another job site easily.

Parameters	JBT40 P1 portable concrete mixer and pump
Main oil pump	Domestic /Kawasaki 112
Mixer model	JZM 450
Main Oil Cylinder/Rod * stoke	100*70*800
The maximum theoretical delivery output	40m3/h
The maximum theoretical mix output	18m3/h
Vertical pumping distance	70m
Horizontal pumping distance	300m
Distribution valve type	S valve
Main motor	37kw
Outlet pressure	8Mpa
Hydraulic system	Open system
Oil Cylinder * Rod *Stroke	100*70*1000
Concrete cylinder * stroke	200*1000mm
Hopper capacity * feeding height	800*1000mm
Motor Rated Voltage	380V
Hoist motor	5.5kw
Mixing motor	4*2kw
Concrete Outlet Diameter	180mm
Max. aggregate size	Cobblestone 40mm; Gravel 30mm
Weight	5300kg
Dimension	4960*2100*2600mm
