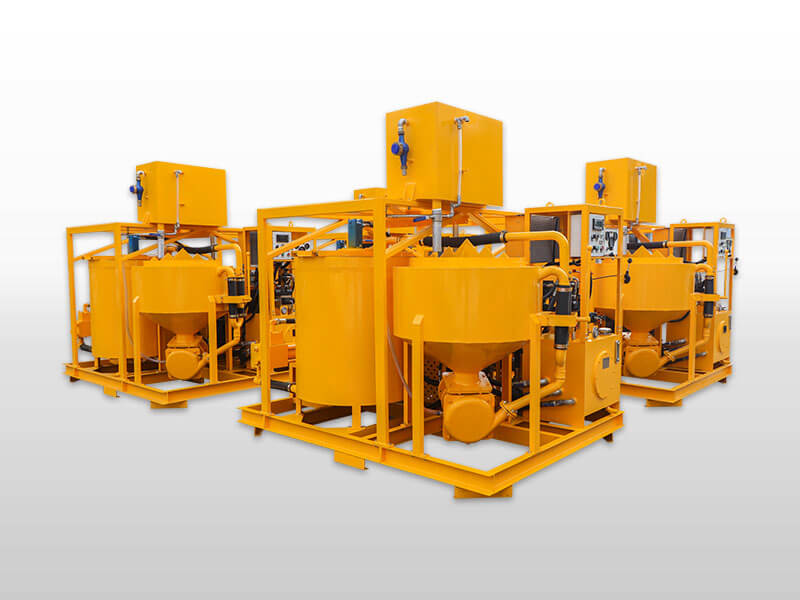

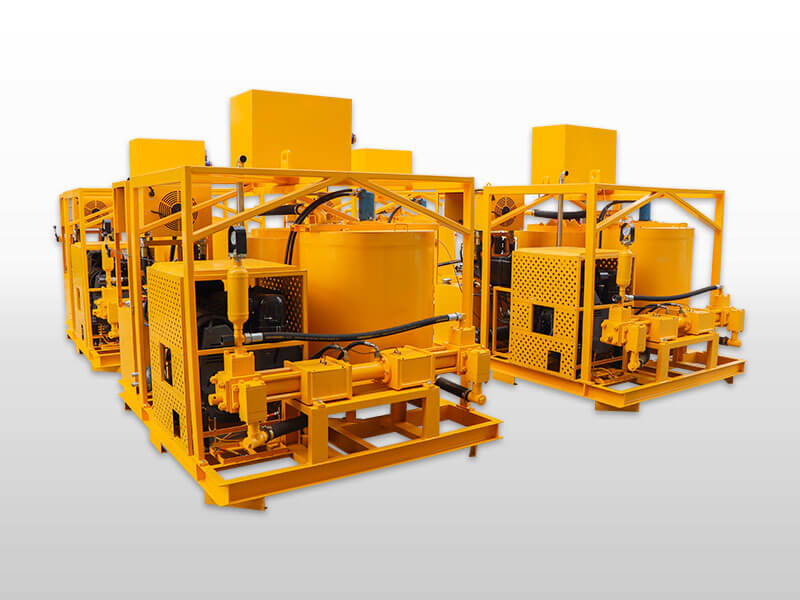

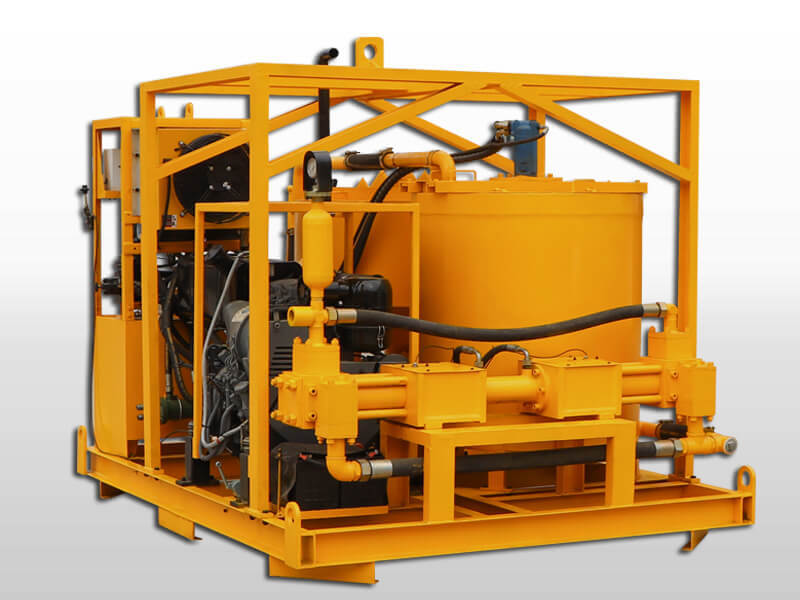

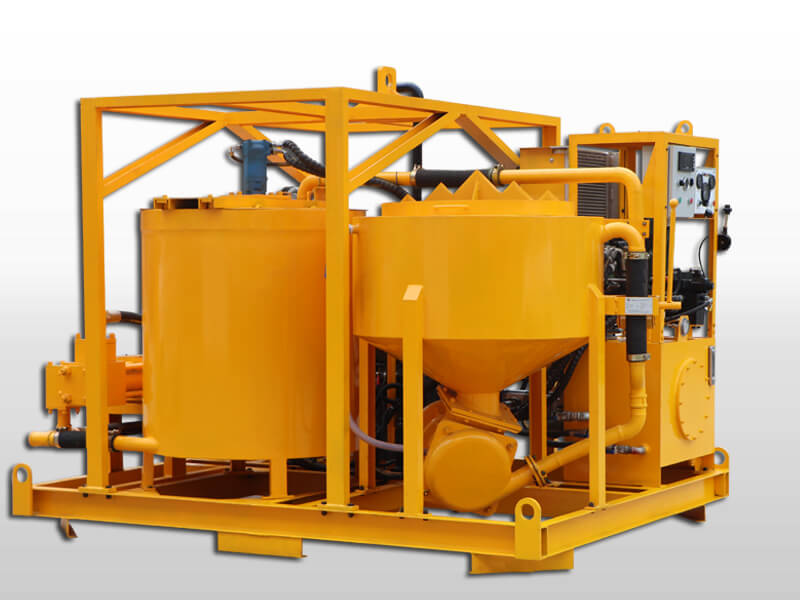

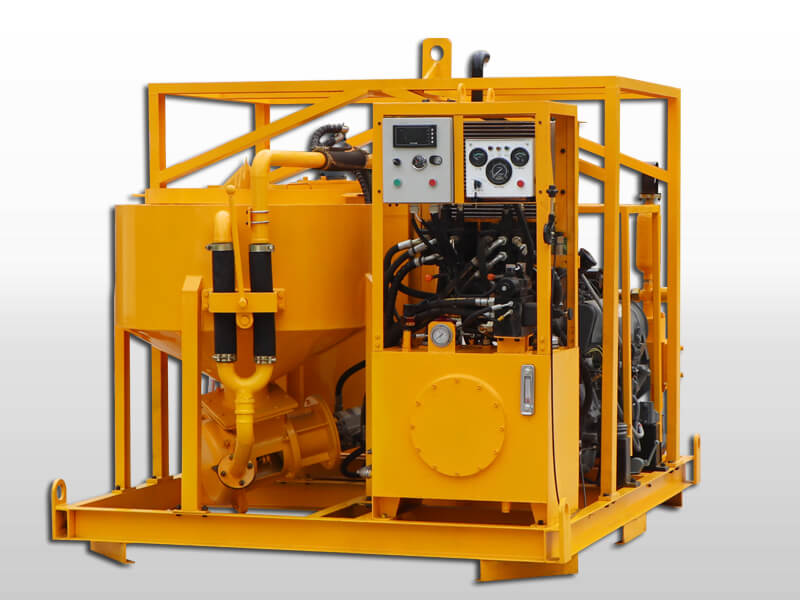

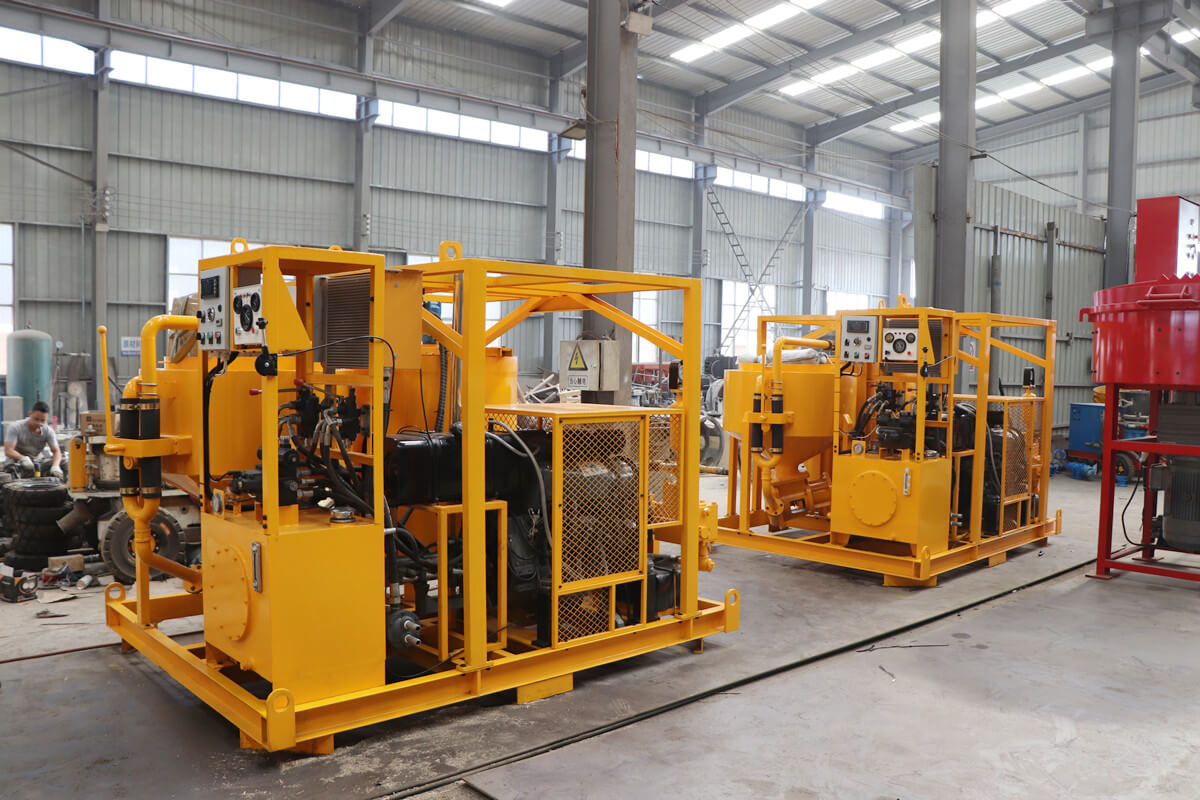

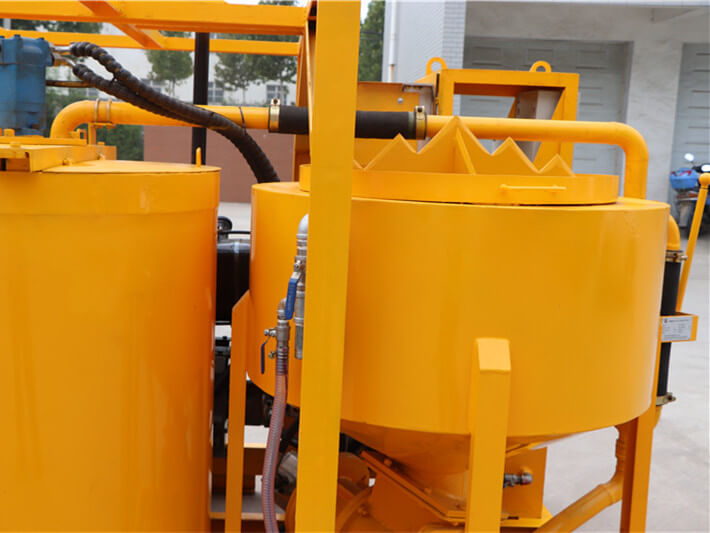

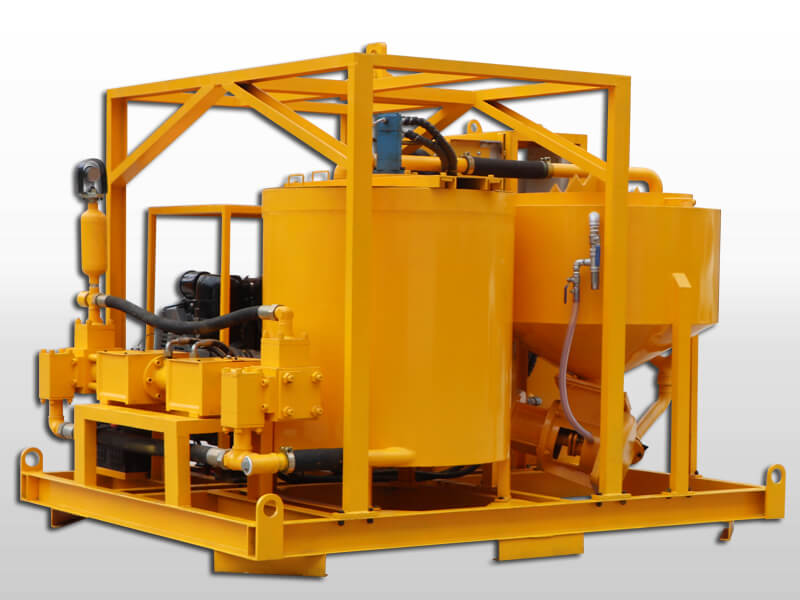

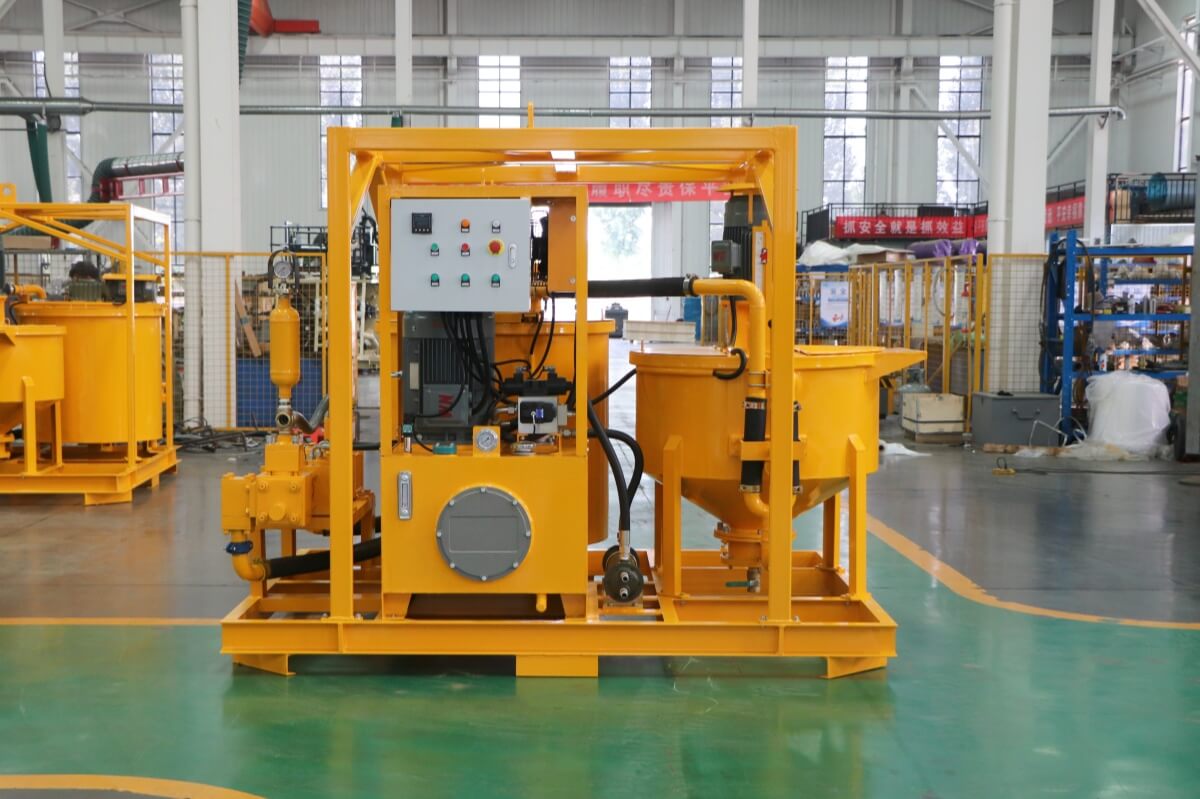

GGP400/700/80/100DPI-D Cement grout unit consist of a high shear grout mixer, a agitator and a double cylinders piston grout pump in one base frame. Gaodetec grout equipment is a best cement grout unit manufacturer and supplier in China, and have many years of experience in developing and manufacturing equipment specifically for use in ground and underground stabilization. Double cylinders piston injection pump of this cement grout unit is with injection pressure up to 100 bar and flow rates up to 80L/min. The pumps can easily cover all the main grouting applications such as micropiling or anchoring injections, permeation grouting, compensation grouting, grout transfer, drilling muds injections, and so on. High speed vortex mixer ensures mix quickly and evenly. Water, cement or bentonite is quickly mixed into a homogeneous slurry. Then the mixed slurry was delivered to the agitator. Grout pump injects from the mixing drum (storage tank). This ensures a continuous mixing and grouting operations. The grouting plant is hydraulic drive with electric motor. Grouting pressure and displacement is adjustable.

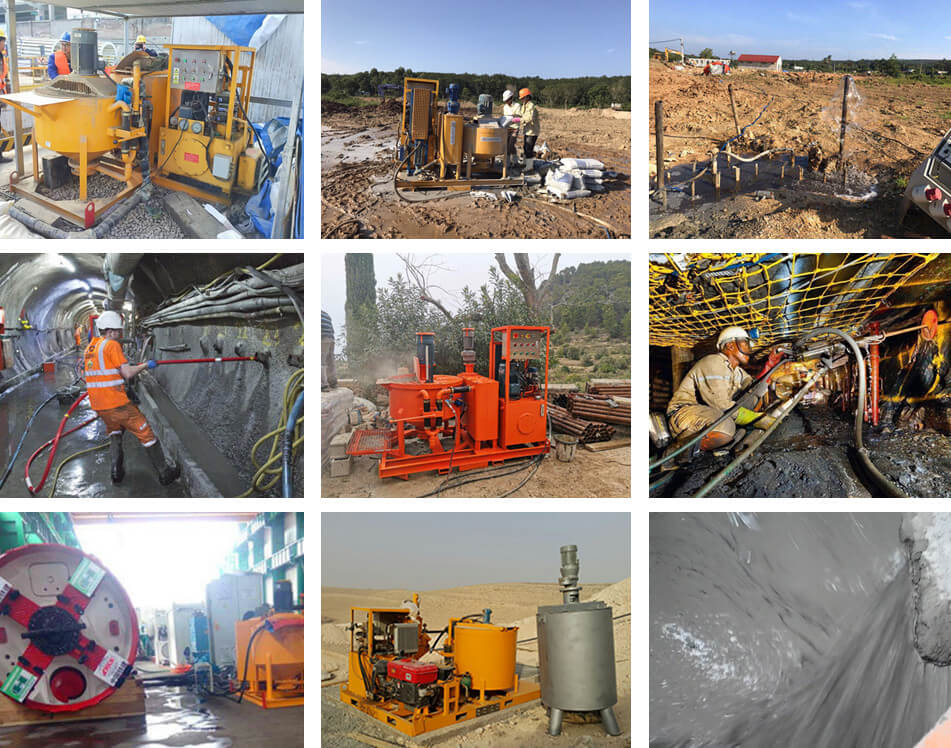

GGP400/700/80/100DPI-D Cement grout unit is suitable for all grouting applications with cement, ultra fine cement, bentonite slurry, cement slurry, etc., in the application highway, railway, hydropower, construction, mining and other ground and underground construction, bentonite suspensions for microtunnelling, pipe jacking and directional drilling etc.

1. Compact size cement grout unit and it is easy to operate. Ergonomic, it also takes up a small space.
2. Grouting pressure and displacement is adjustable.

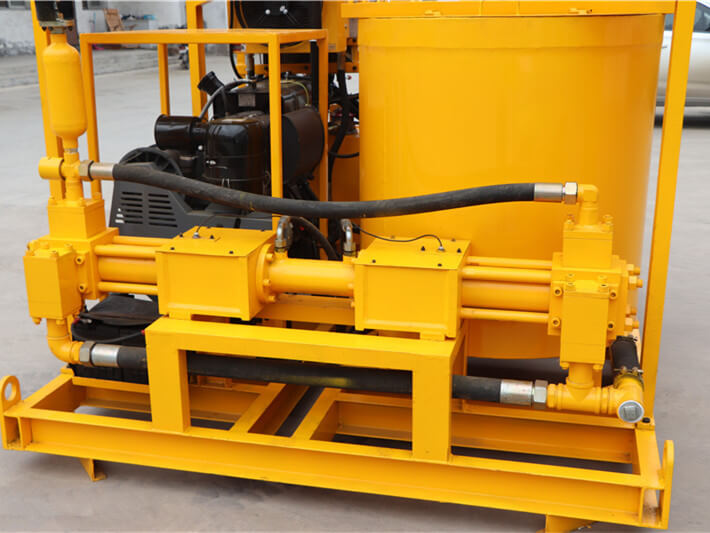

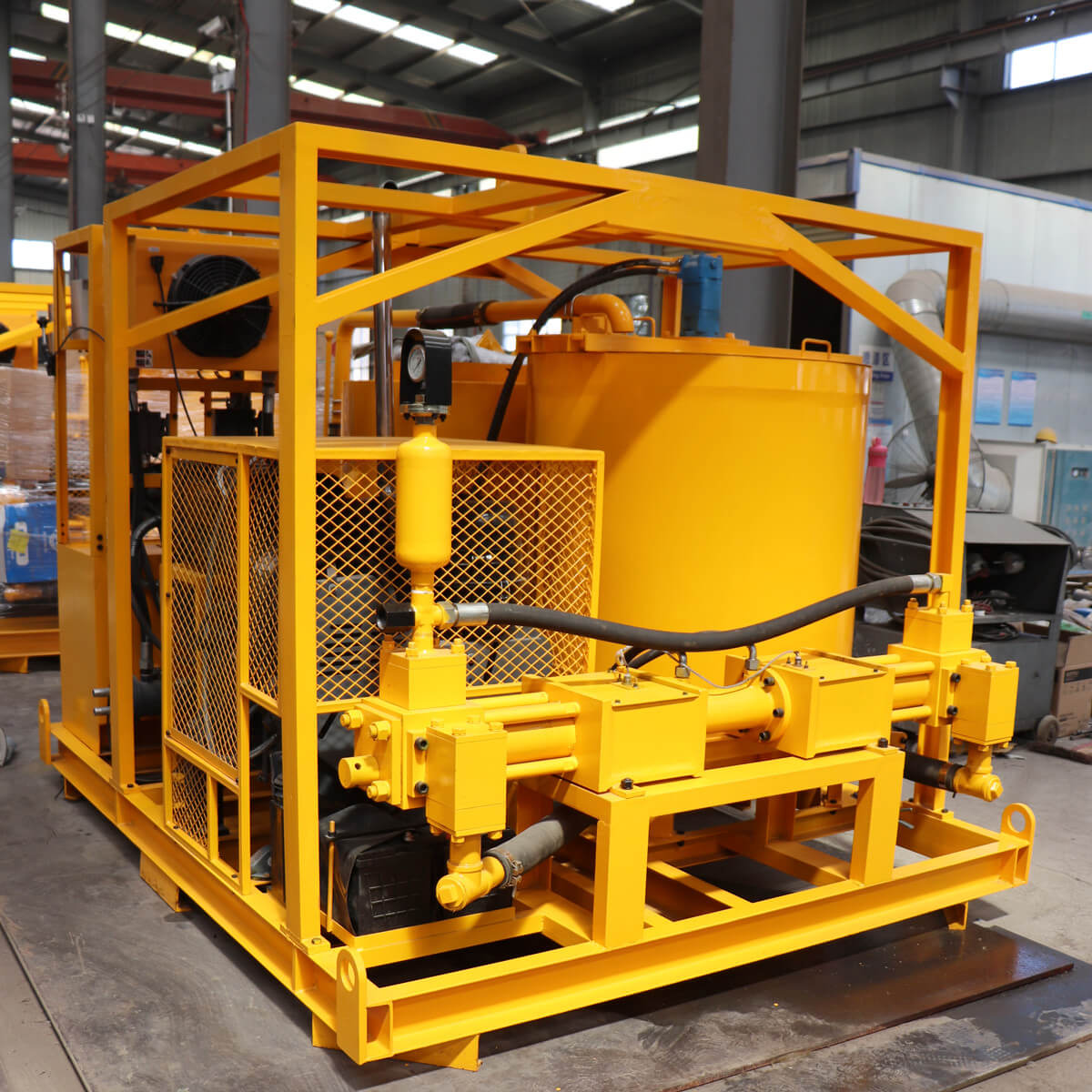

3. Double cylinders piston pump with single acting to ensure the continuous slurry flowing (small pulse) and not easily leaking compared with the double acting piston pump.

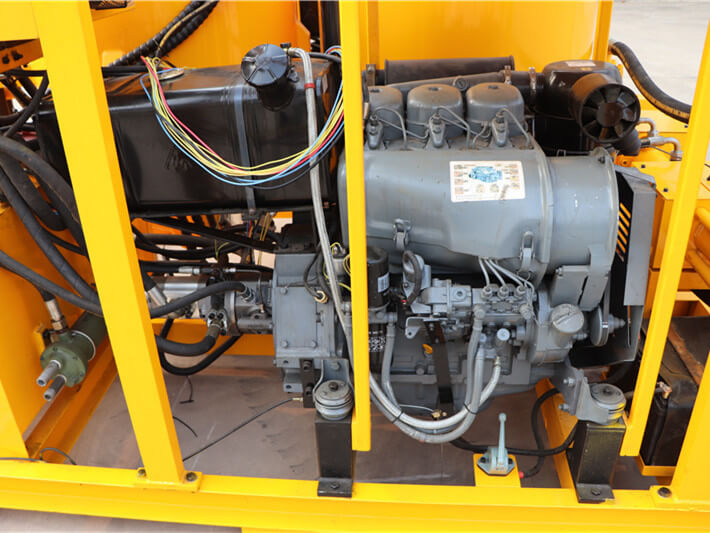

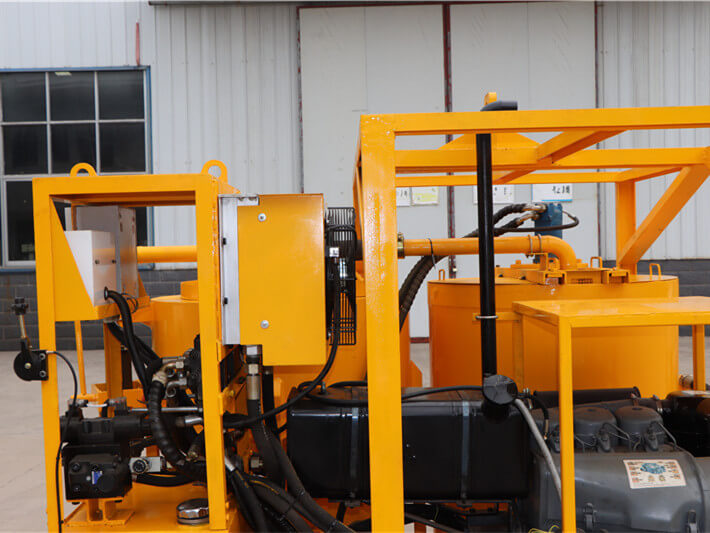

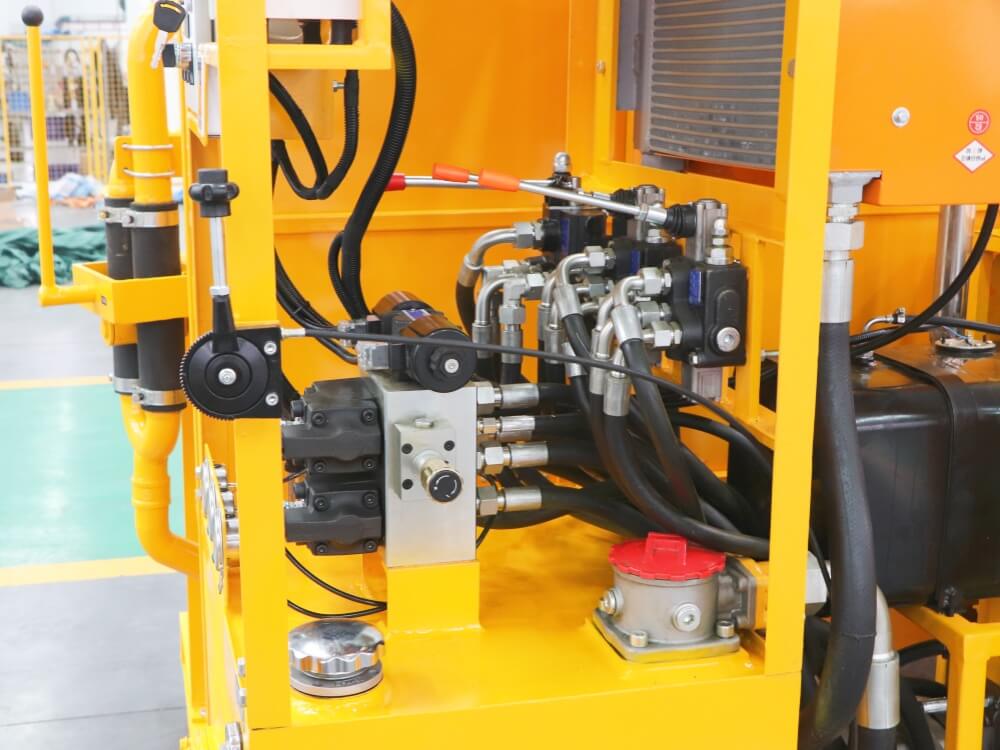

4. Full hydraulic drive, three cylinders air cooling diesel engine acted as universal grouting applications.
5. Up to 5mm particle size.
6. Air cooling and water cooling for the hydraulic.

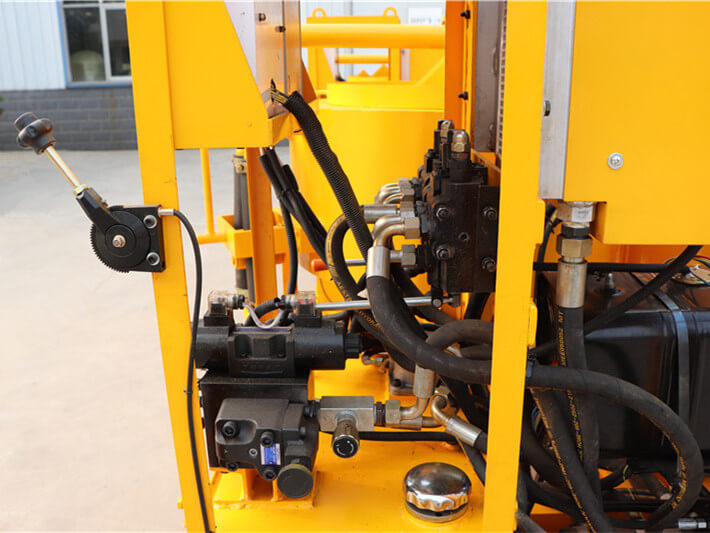

7. The function switch between mixer and pulping machine is realized by using squeeze switch.

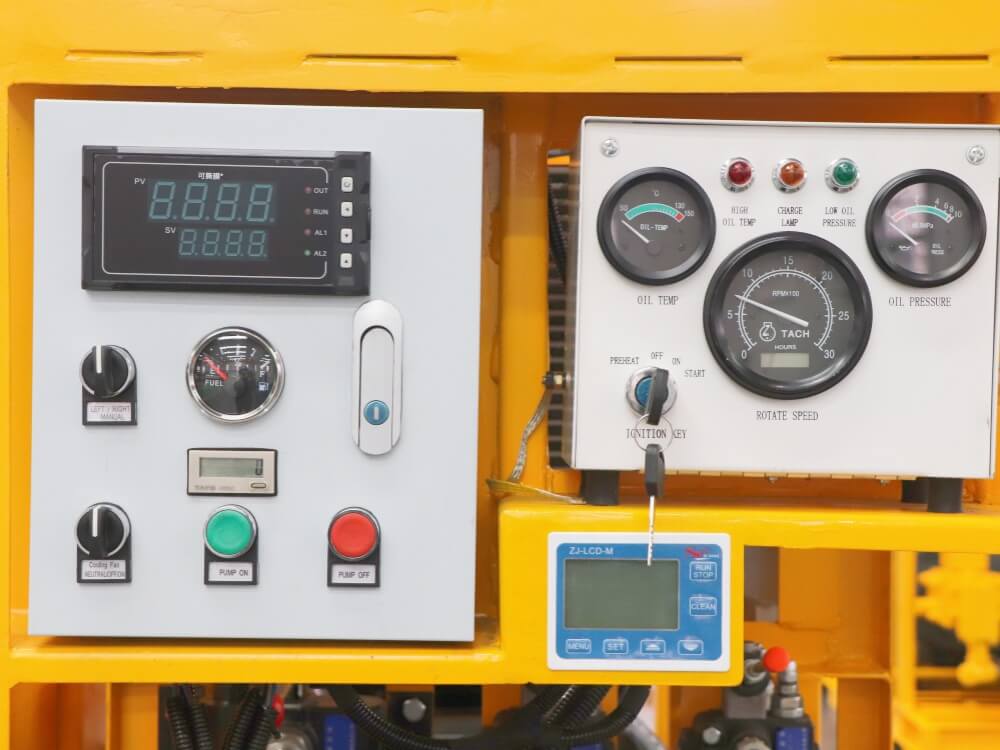

8. The oil thermometer can automatically control the cooling fan to work within the normal temperature range. If the temperature is too high, the machine will automatically stop working.
9. Gaodetec cement grout unit is easy to operate and maintain.

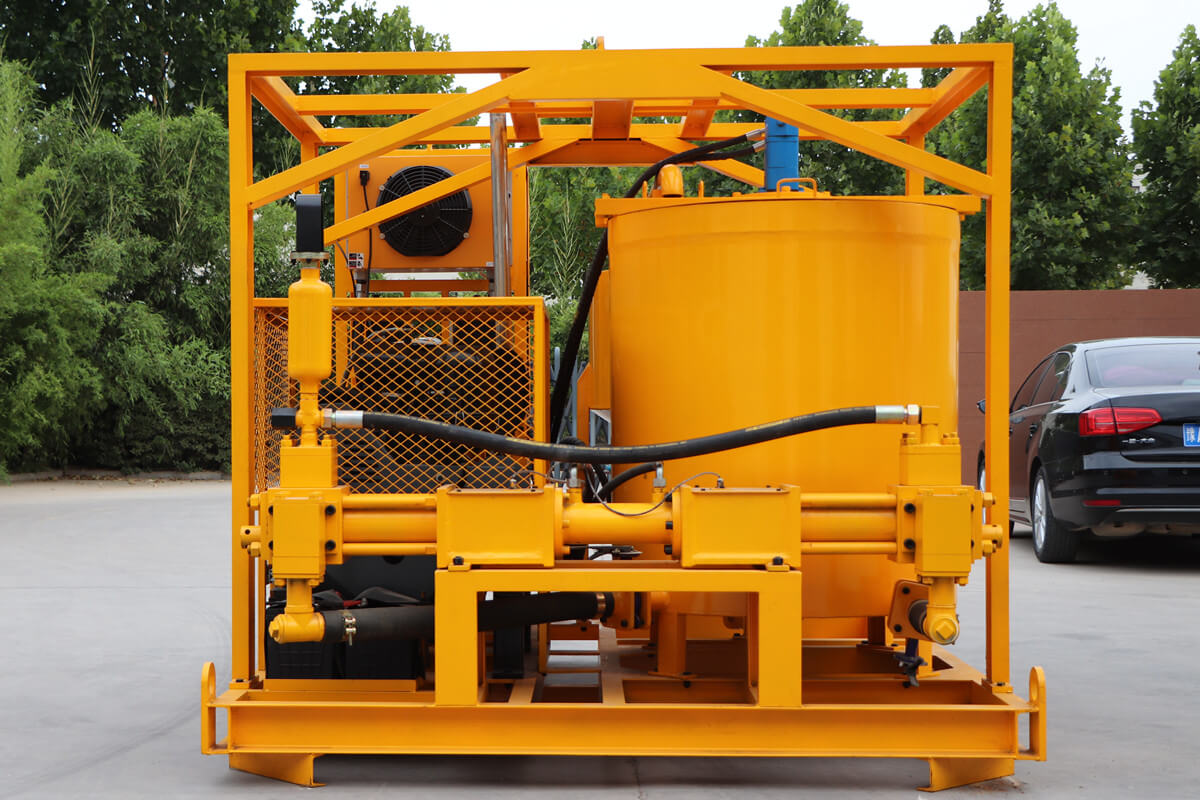

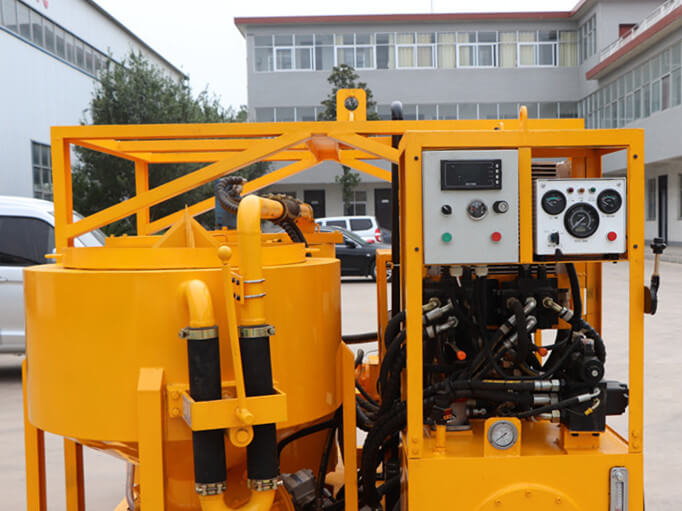

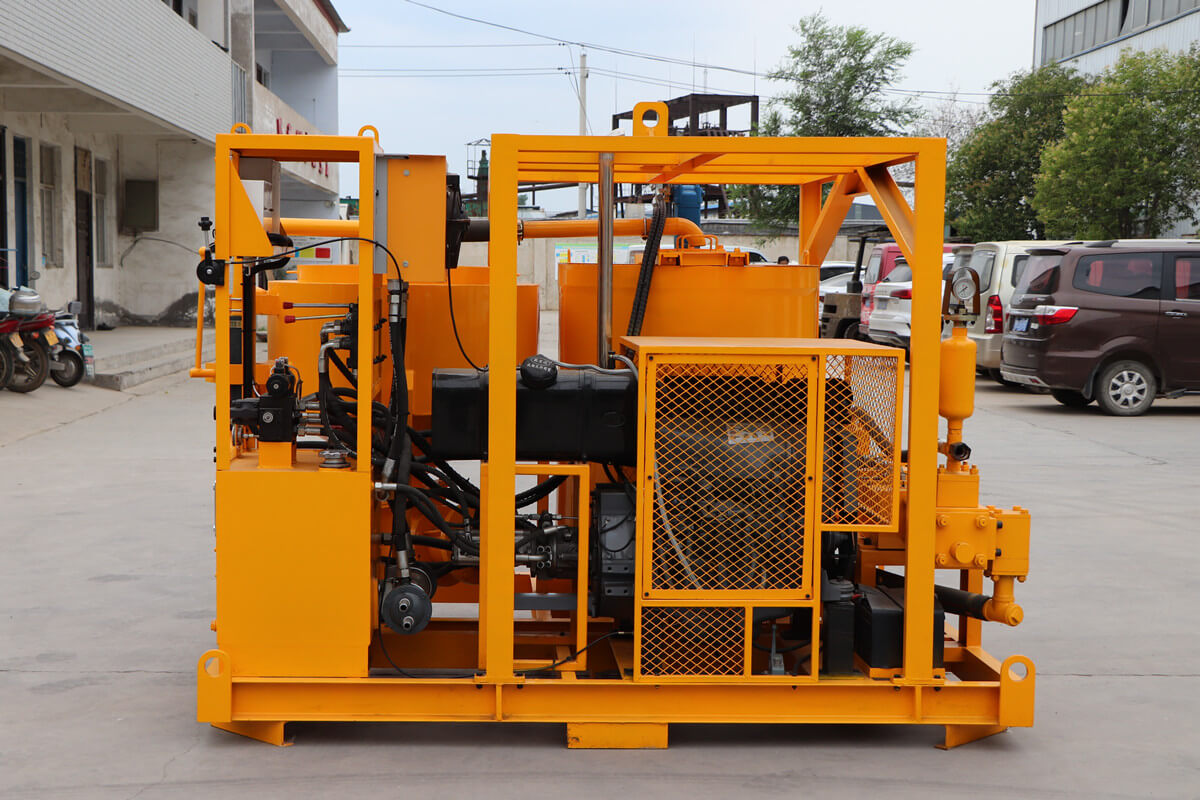

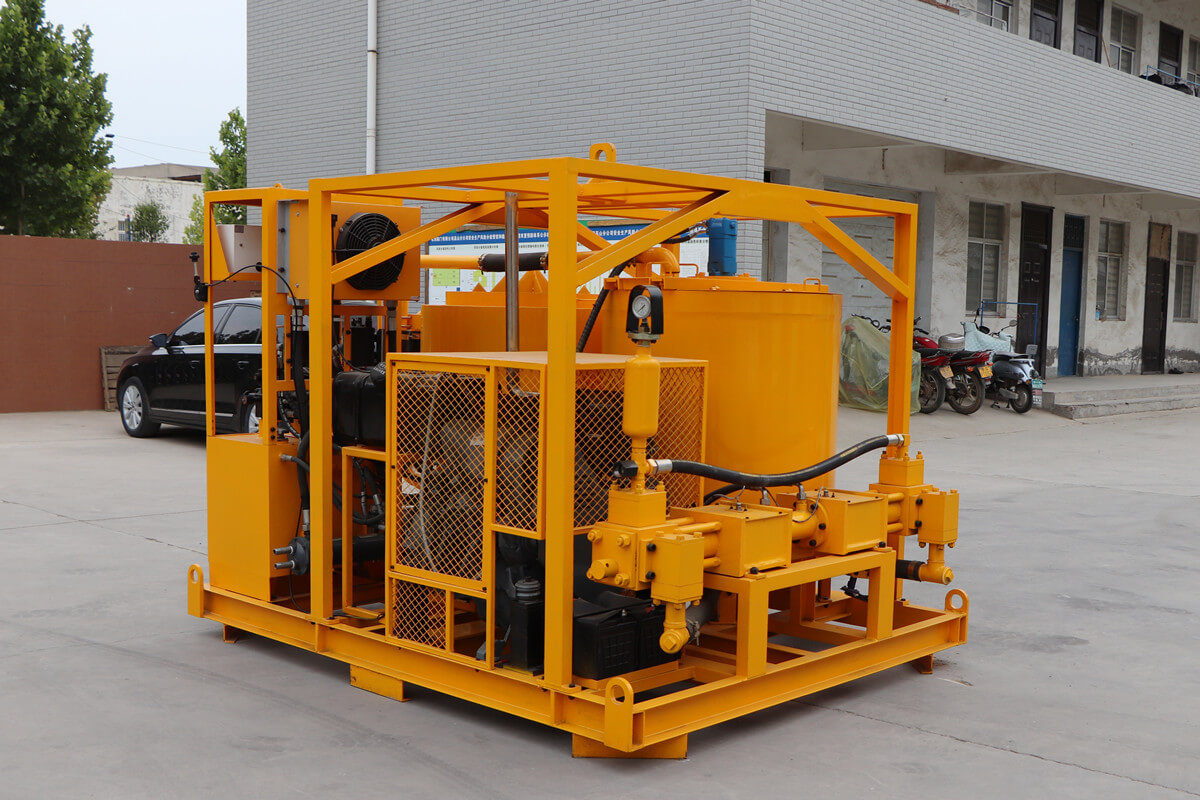

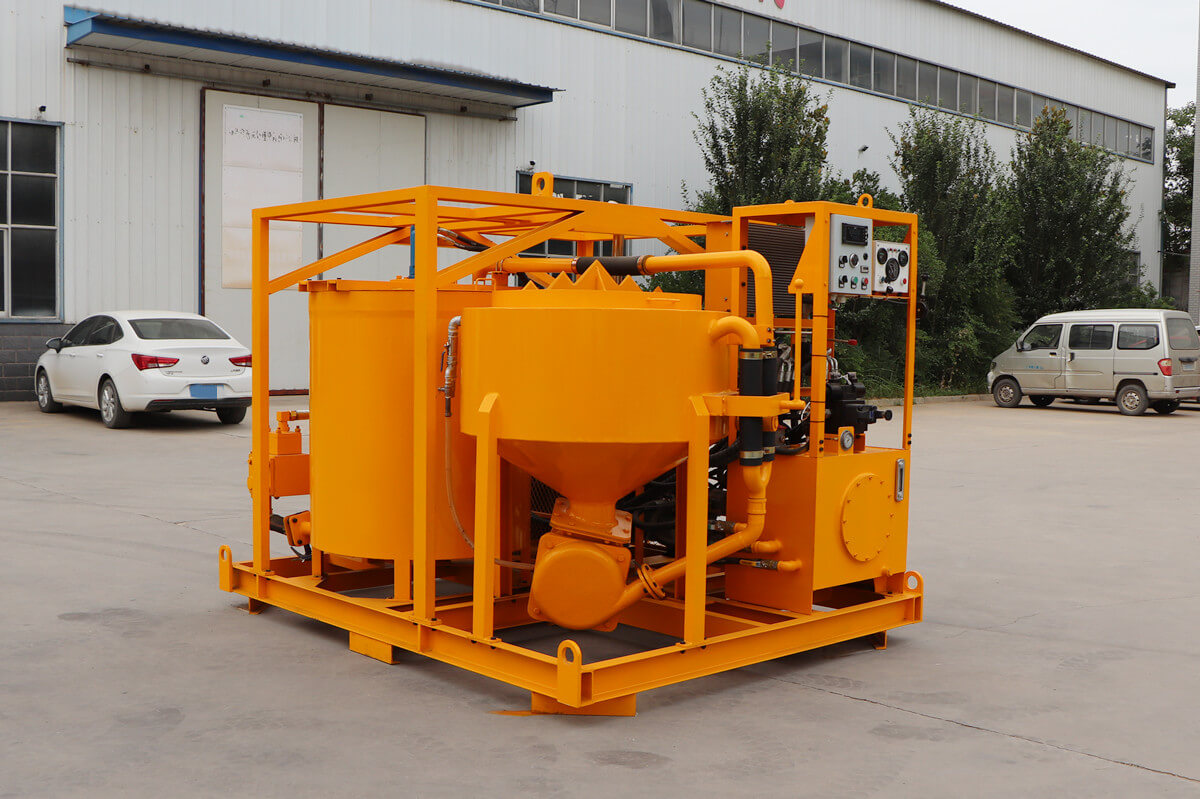

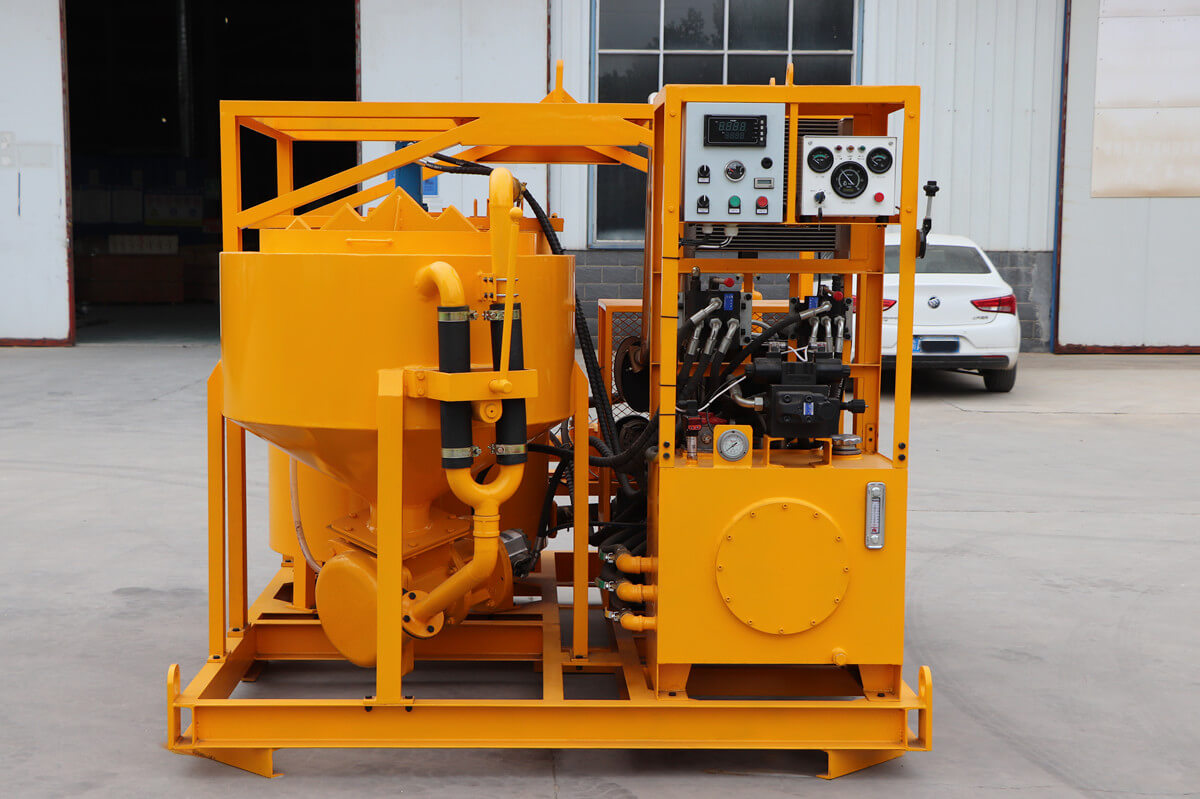

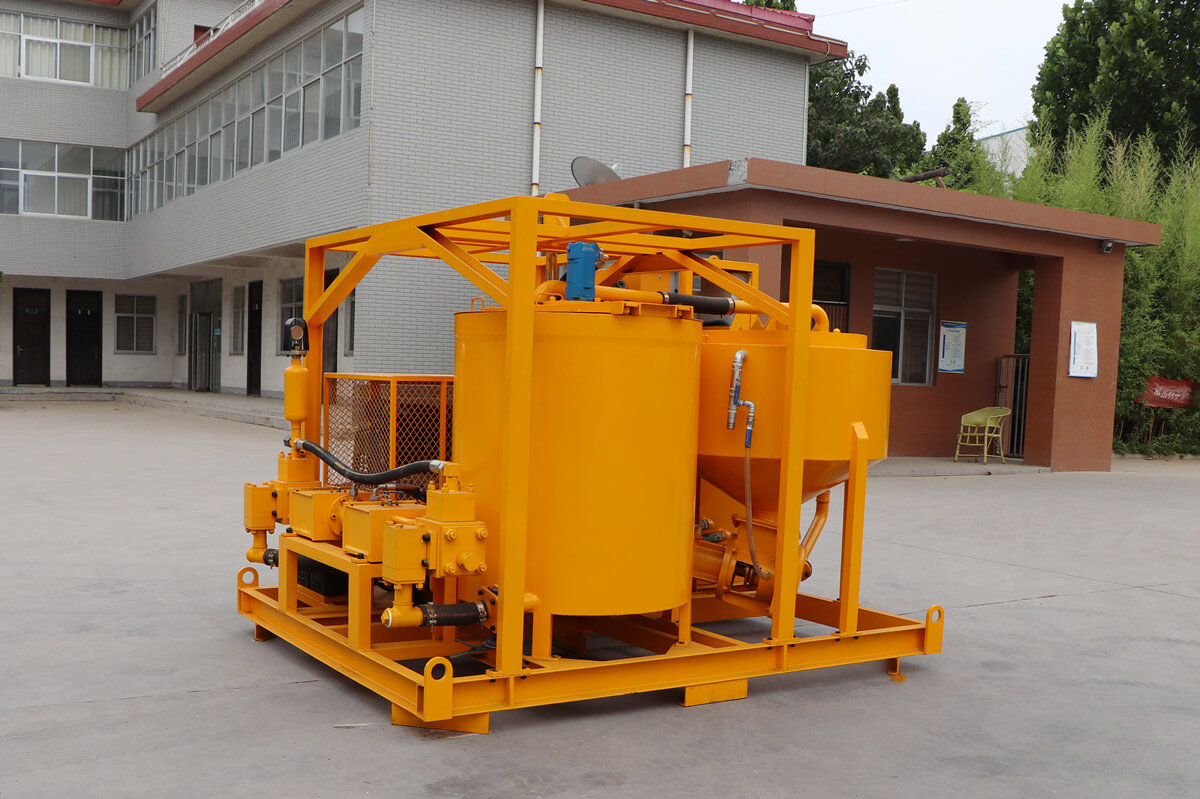

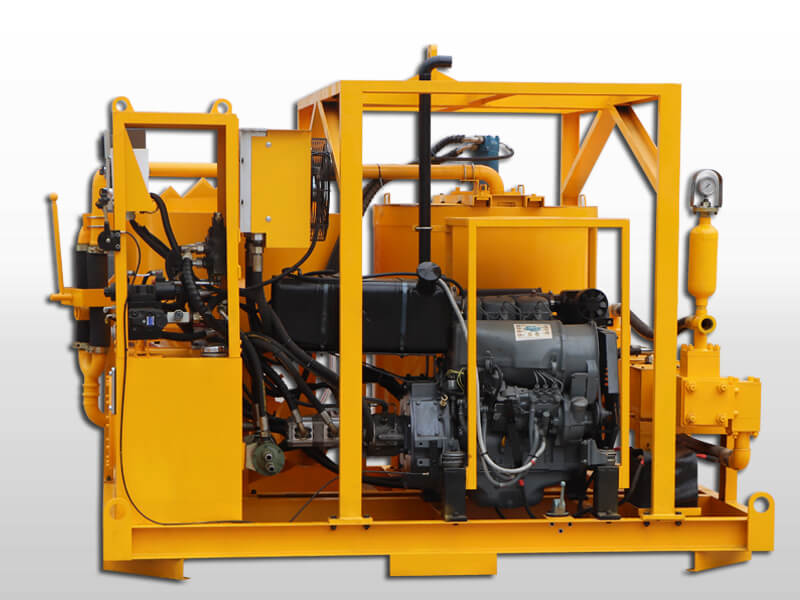

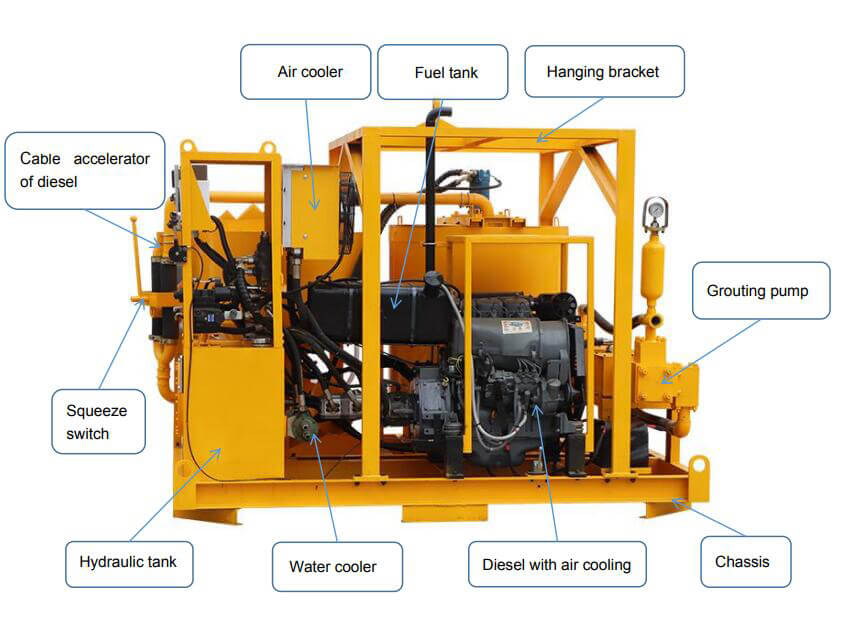

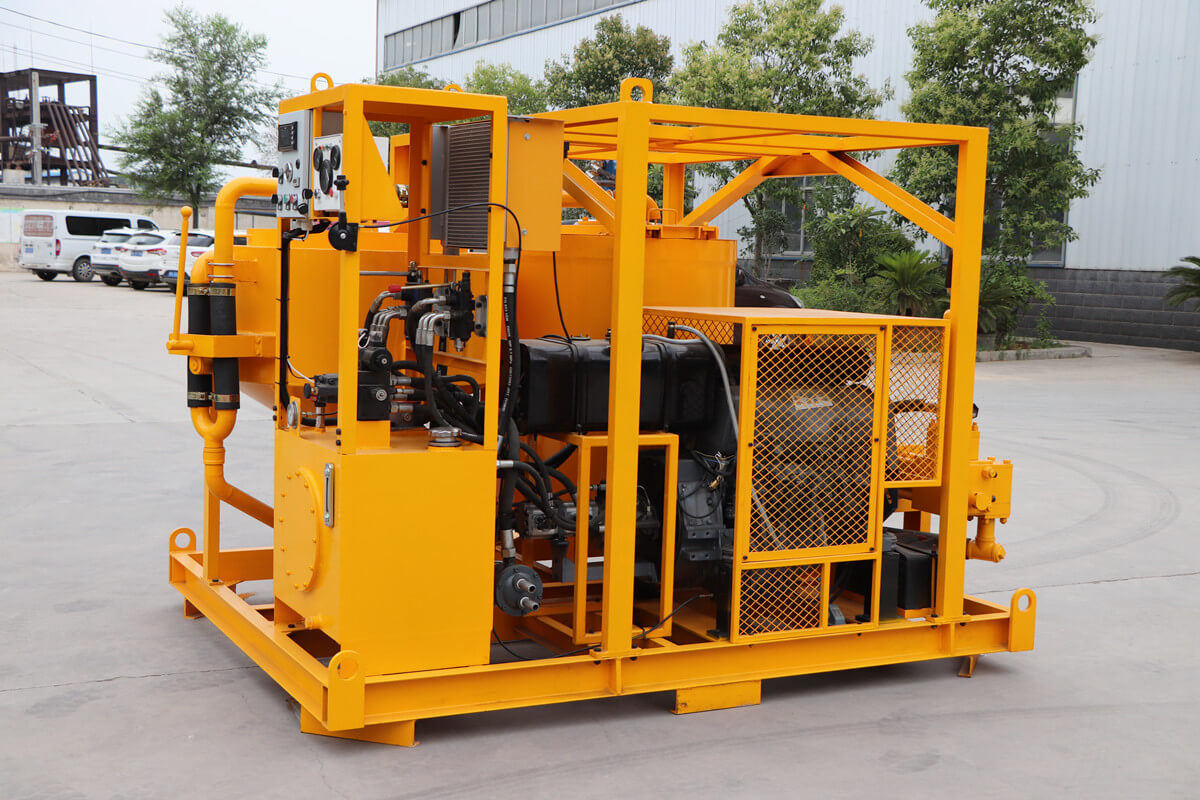

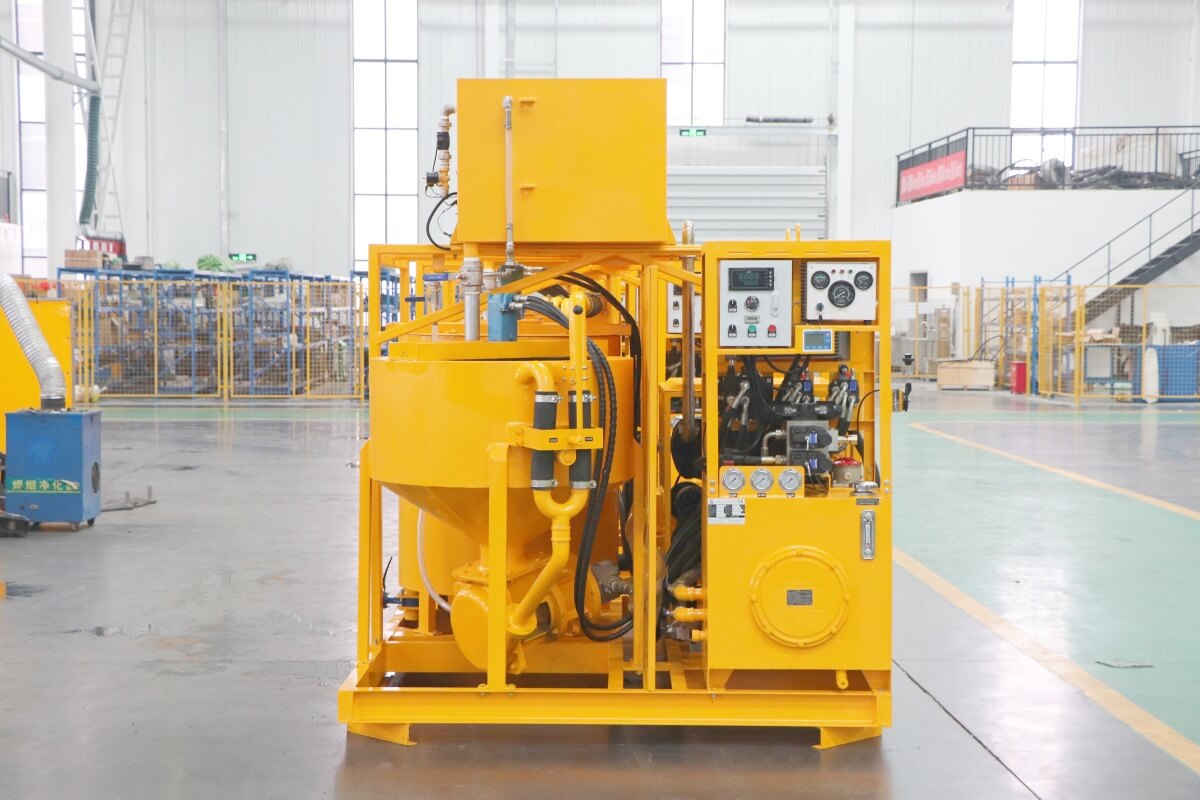

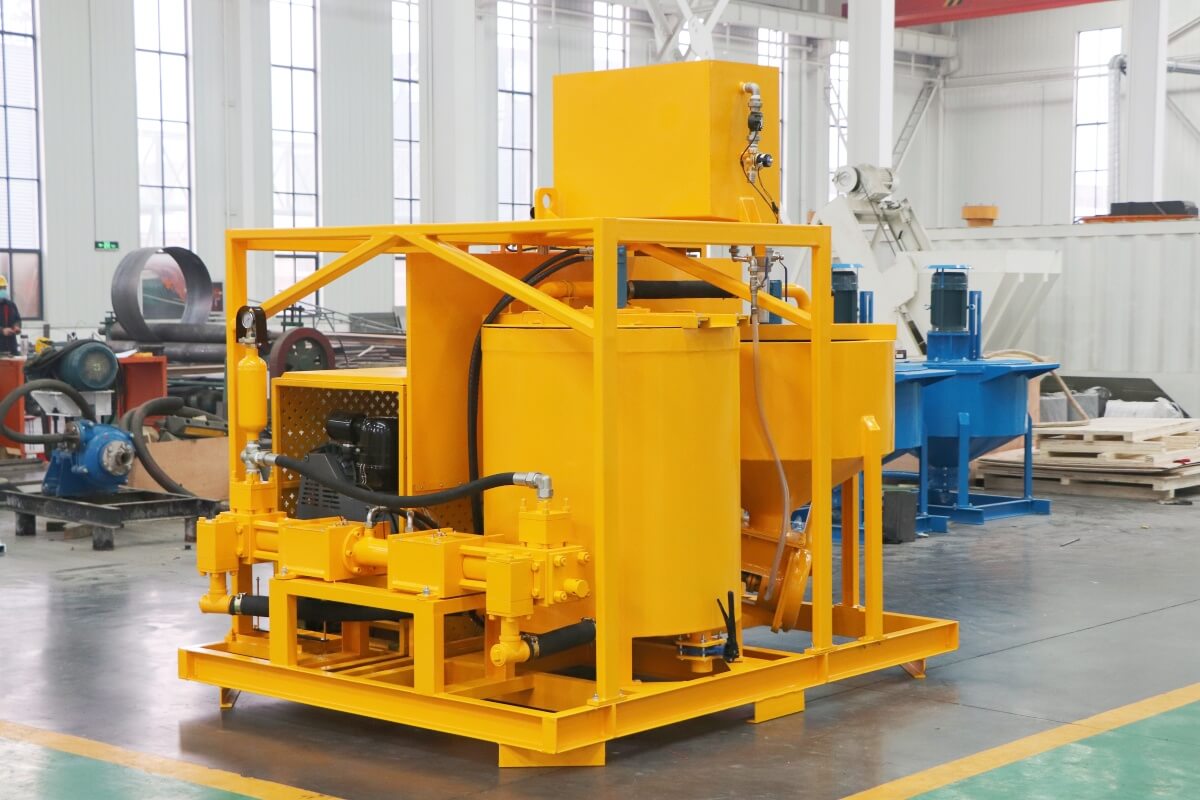

2024.11.22 Upgraded air-cooled diesel engine driven GGP400/700/80/100DPI-D colloidal cement grout unit:

Name		Data
Type		GGP400/700/80/100DPI-D Cement grout unit
Mixer	Volume	400L
	Speed	1500rpm
Agitator	Volume	700L
	Speed	36rpm
Grouting pump	Pump pressure and output	40bar@80L/min
		100bar@40L/min
Dimension	Dimension	2480×1960×1995mm
	Weight	1965kg

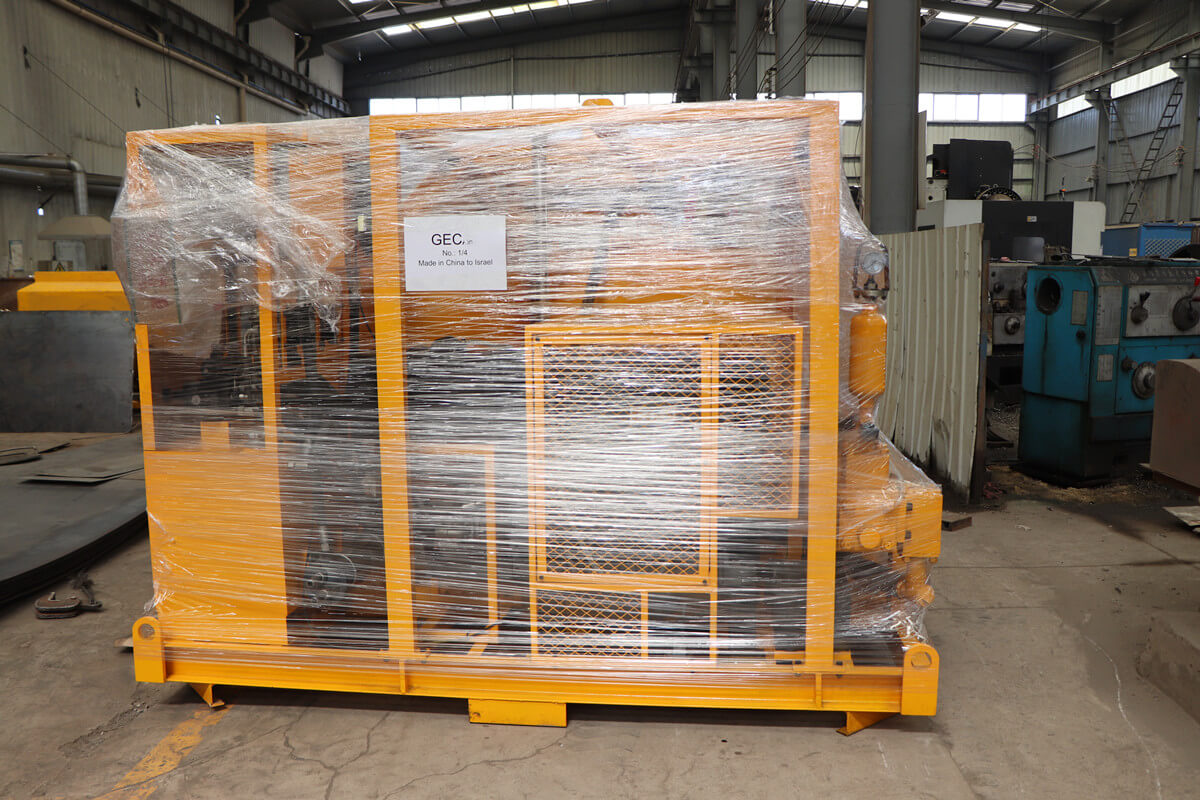

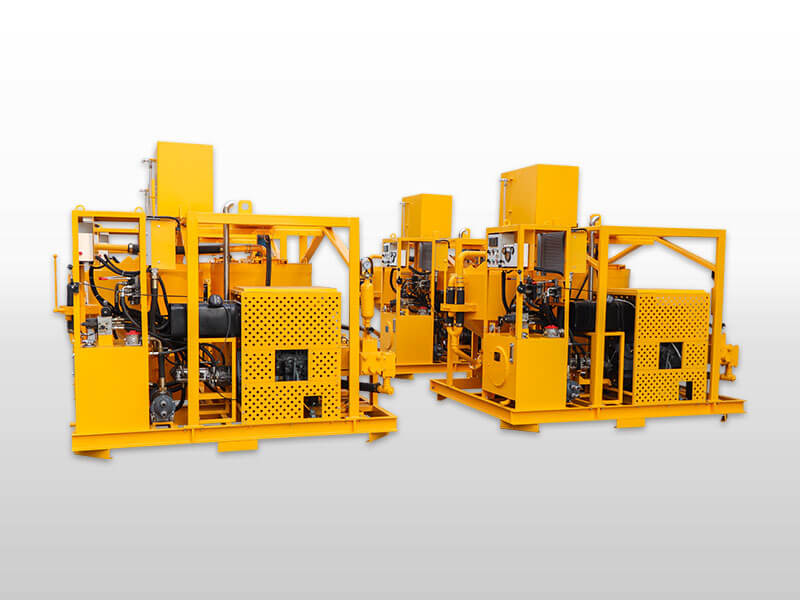

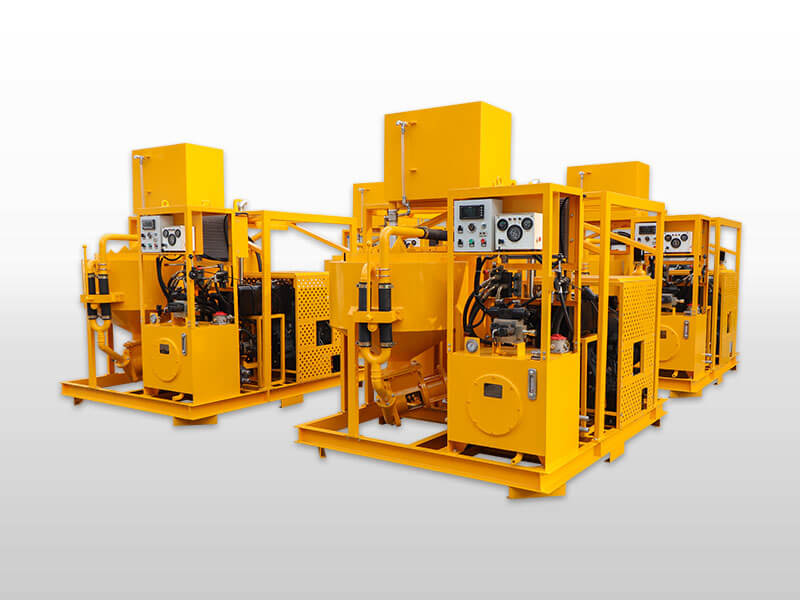

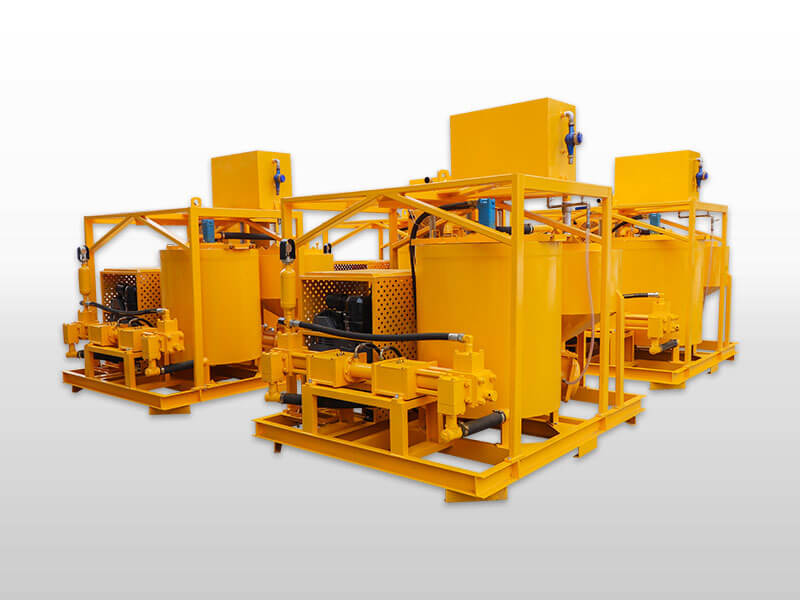

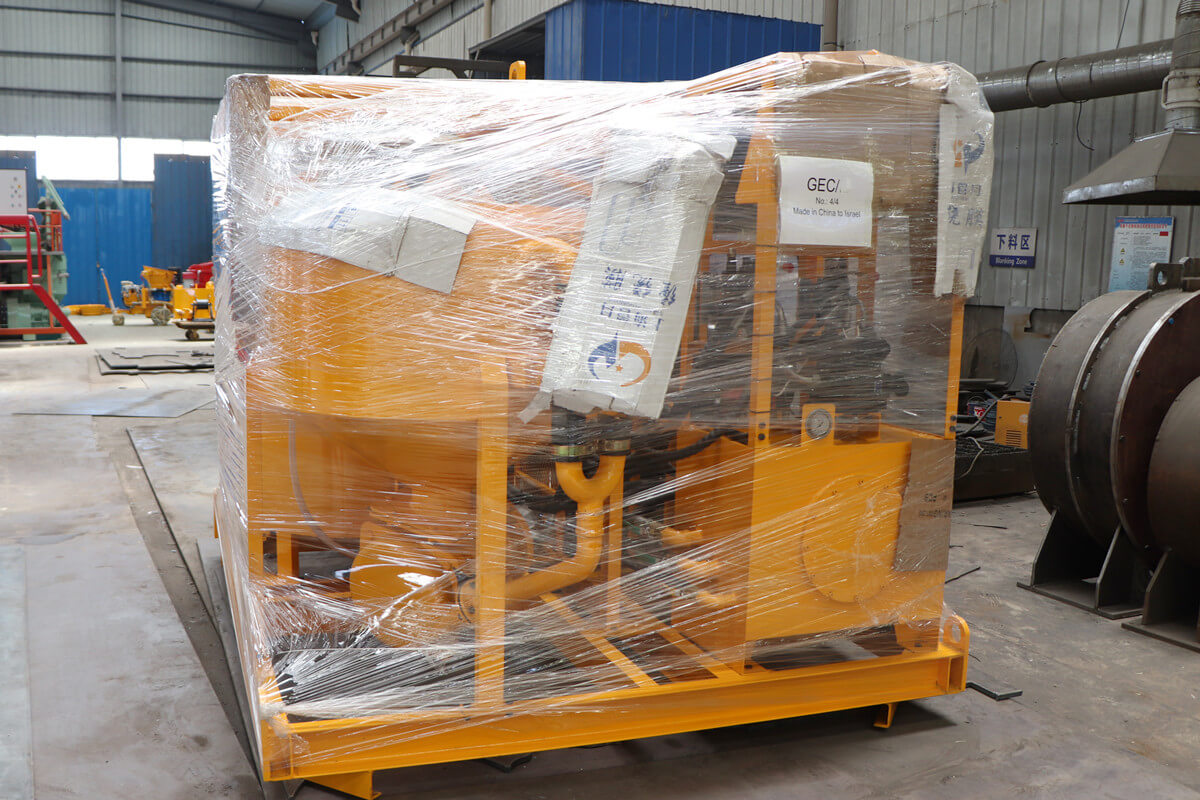

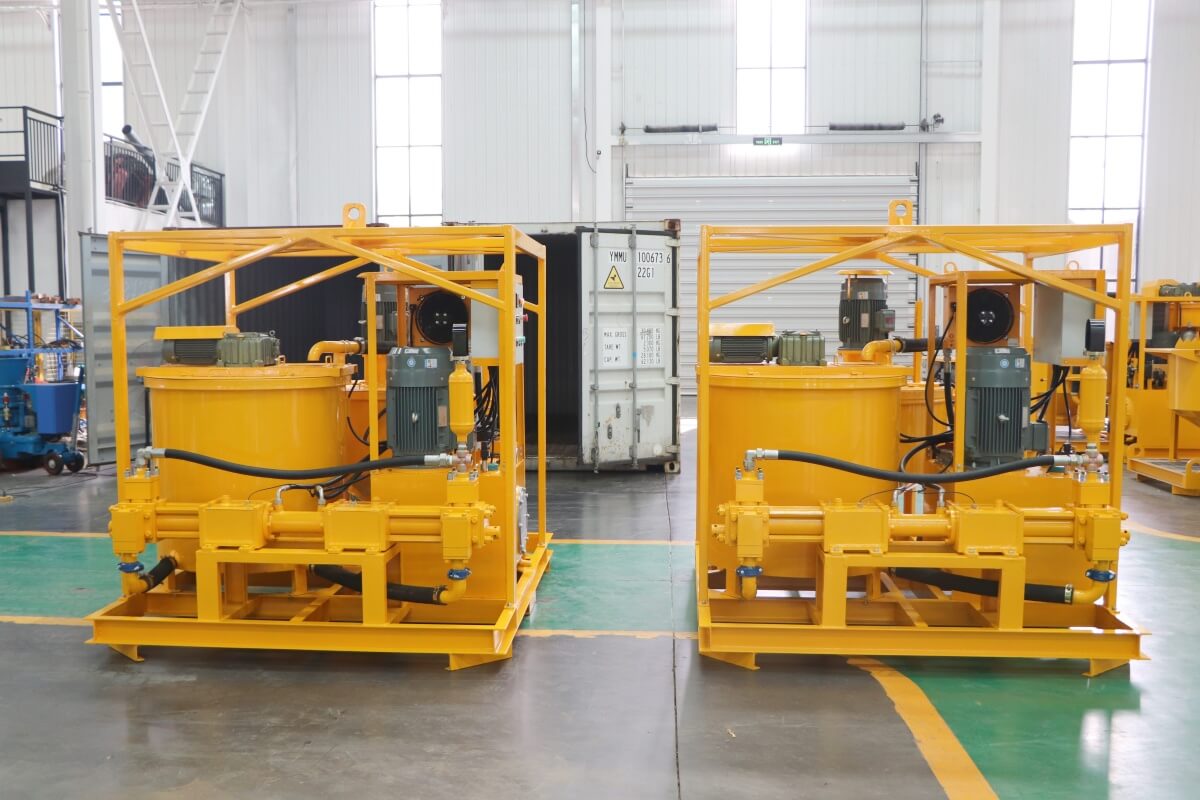

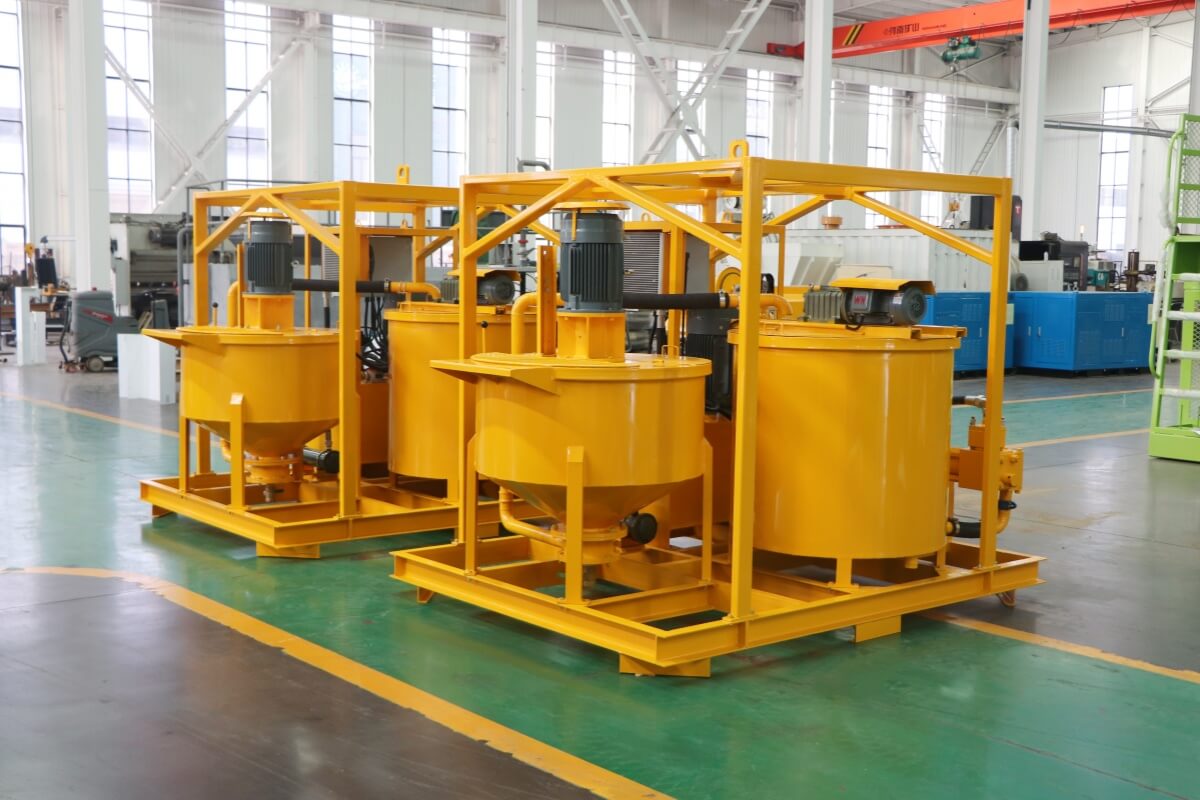

GGP400/700/80/100DPI-D Cement grout unit package and delivery:
