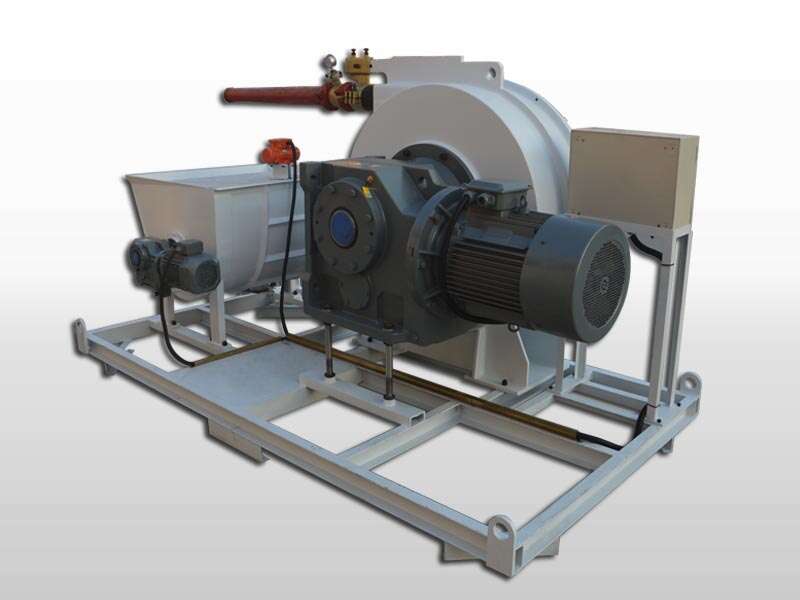

GCP40H-E hose type concrete pump is designed based on the squeeze hose pump, this hose concrete pump uses high pressure, resisting wear squeeze concrete hose with steel wire reinforcement layers, the working pressure is up to 25 bars.

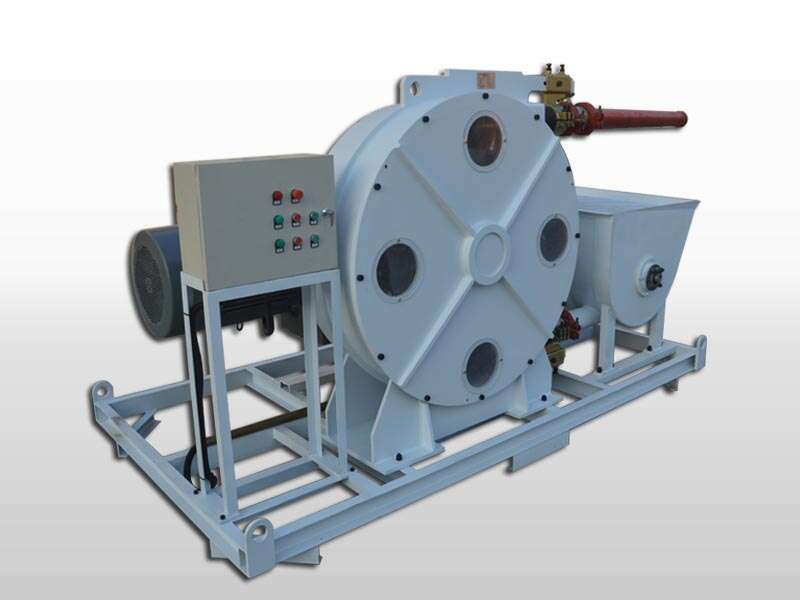

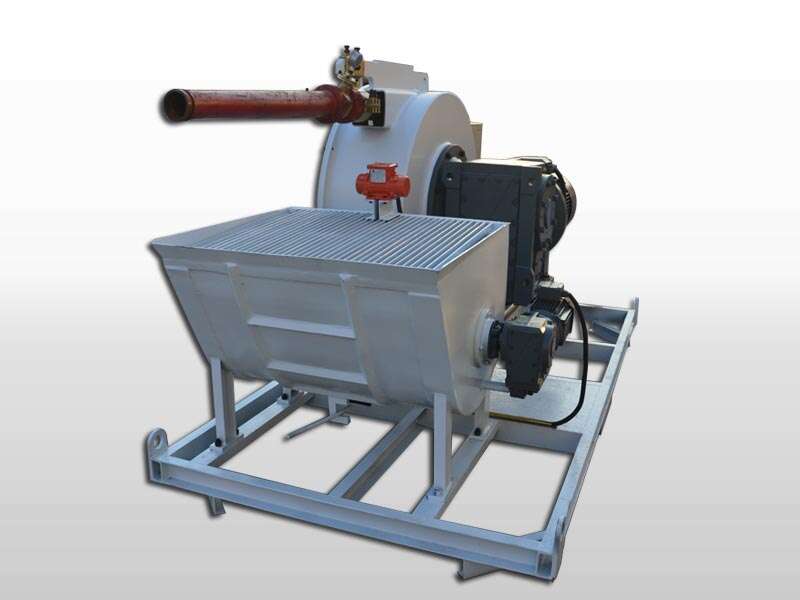

GCP40H-E electric concrete pump is more widely used for pumping foam concrete, lightweight form concrete, mortar and refractory materials. The electric hose concrete pump could be used for spraying concrete or refractory materials.

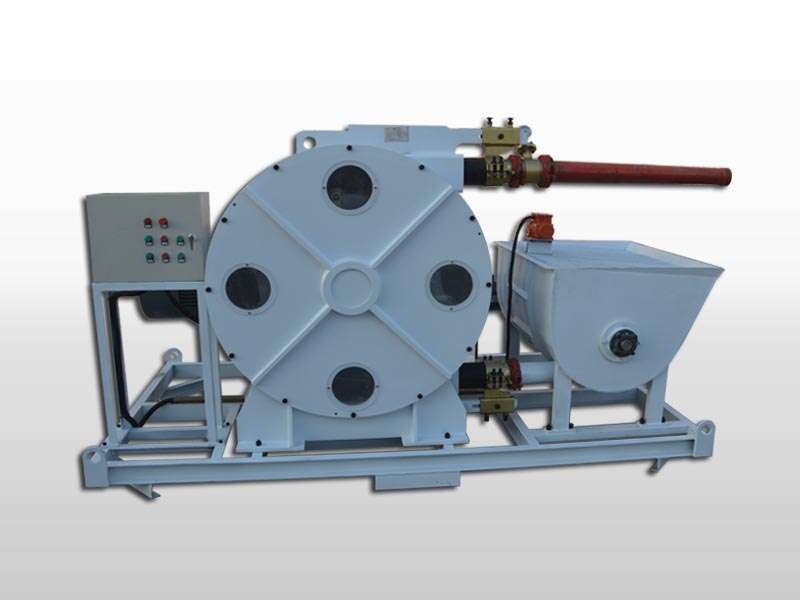

GCP40H-E concrete pump is used for pumping mortar foam concrete, lightweight form concrete and refractory materials. The squeeze concrete pump also could be used for spraying concrete or refractory materials.

1. Quiet pumping process.
2. Compact size: hopper with agitator, hose pump, power combined in a base frame.
3. Low wear: the squeeze hose is the only wear part of the pump and can be replaced very quickly.
4. Forwards and reverse, easily to removal the block.
5. Soft start: electric motor smoothly start and protect the motor.
6. Clean on the line: Quick and easy cleaning.
7. Delivers even the most difficult materials.
8. No residual concrete remains in the system.

Description	Parameter
Squeeze Pump	GH100-1050
Hose ID	100mm (Trelleborg Squeeze hose)
Pump Speed	39rpm
Rated Output	45m3/h
Pressure	2.5Mpa
Max. Aggregate size	<15mm
Concrete Slump	15-23cm
Hopper Capacity	400L
Hopper mixing speed	37rpm
Power Voltage	45KW  50HZ  IP55  3~380V
Overall Dimension	3080x1560x1730mm
Weight	2840kg
