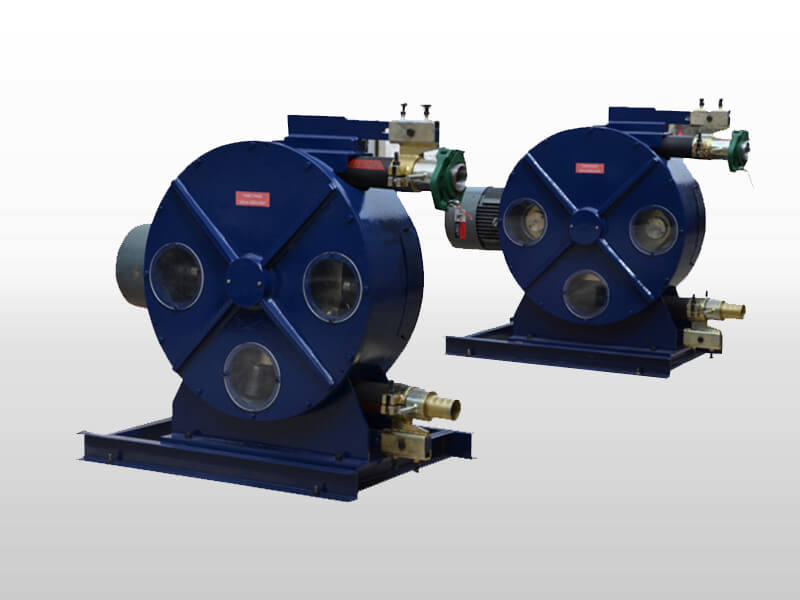

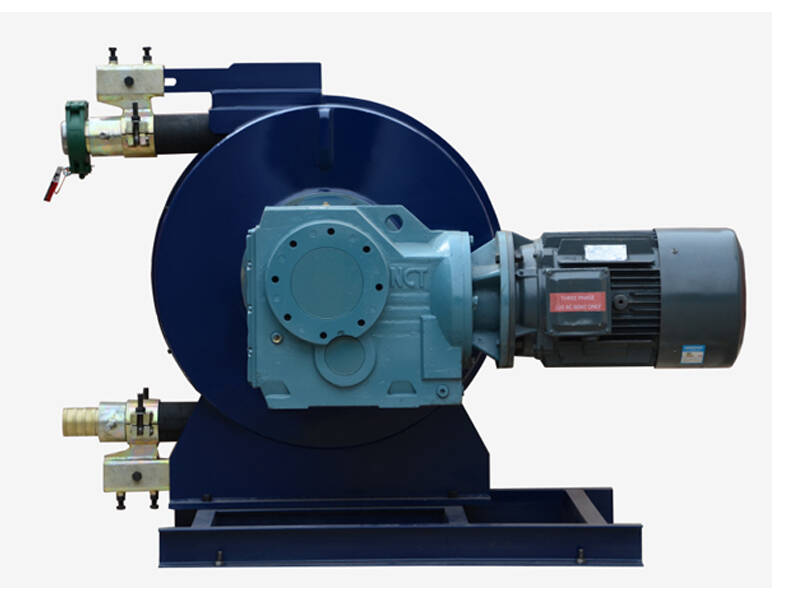

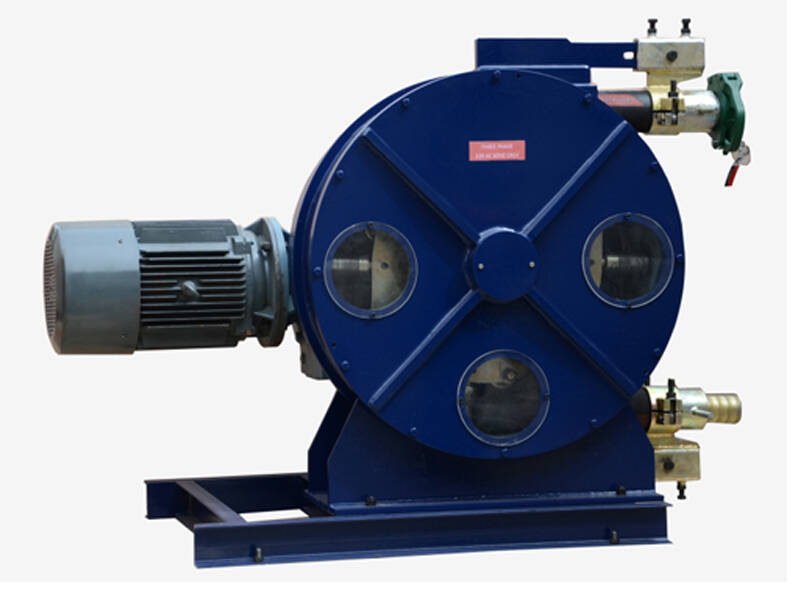

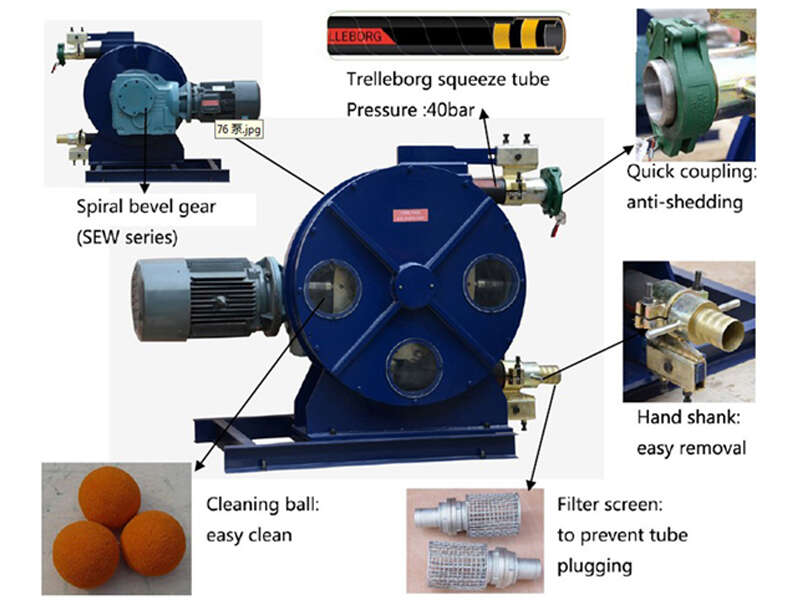

Customize GH76-770B Hose Pump consists mainly of pump house, rotor, roller, idle roller, squeeze tube and driving unit. The squeeze hose is U-shape in pump house, when rotor drives roller to rotate, hose is deformed. After the roller rotate, the deformed hose recover by its elasticity. Thus the negative pressure in this hose is generated, sucking slurries, and discharging through outlet under roller’s push, finally forms pressure conveying of slurries.

♦ GH series industrial hose pump are mainly applied in distant conveying, grouting and dosing of viscous slurries in construction, mining, food, papermaking, ceramic, etc.
♦ GEC industrial peristaltic pumps can be used in following field: Construction, pharmacy, textile mill, dye making, water treatment, paper making, mining, ceramic, brewery and beverage, underground engineering, etc. It’s perfect to pump corrosive, abrasives, shear sensitive fluids, high viscosity fluids, high density fluids, large solids, metering(±1%), high pressure(3Mpa).GH series industrial hose pump are mainly applied in distant conveying, grouting and dosing of viscous slurries in construction, mining, food, papermaking, ceramic, etc.

♦ No seals
♦ No valves
♦ Self -priming
♦ Only tube to replace
♦ Dry –running without damage
♦ Reversible
♦ No contact between product and mechanical parts
♦ Able to pump products with solid parts inside
♦ Easy maintenance, low-cost, short down time

Type	GH76-770B
Max. output	17m3/h
Rotation	35RPM
Squeeze hose ID	76mm
Working pressure	25bar
Voltage	3phase, 220V, 60HZ
Power	18.5KW
