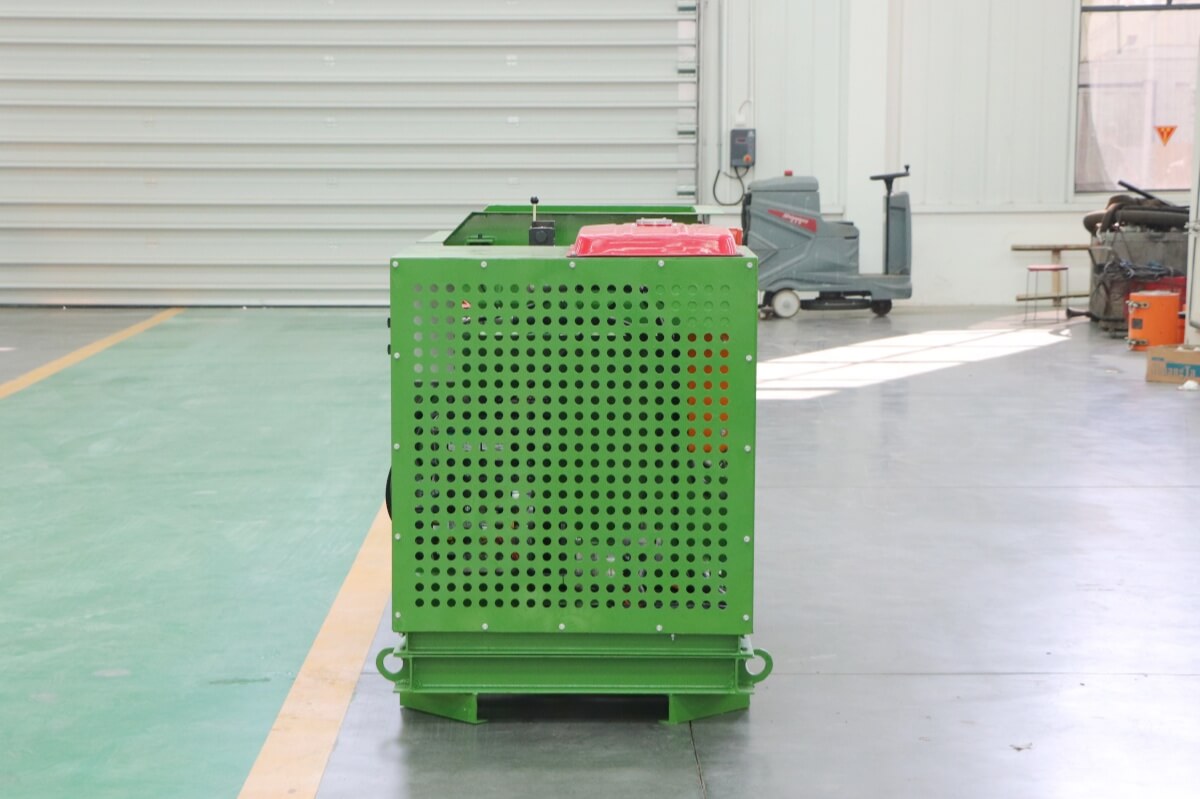

GDS1500 Wet Shotcrete Machine is a lightweight shotcrete pump run by a highly-reliable direct drive planetary gearbox and hydraulic power pack. This sturdy workhorse is made better with the added improvement of a direct drive to the carousel.

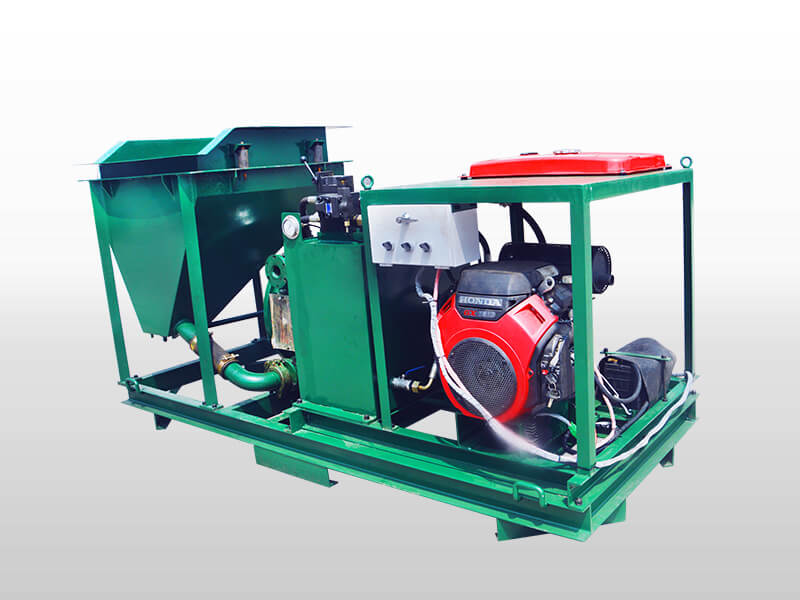

We have GDS1500 shotcrete pump with gasoline engine, electric motor and diesel engine for you option, and our GDS1500G direct drive uses a Honda GX390 power pack, is skid mounted. Gaodetec Equipment is a wet shotcrete machine supplier and manufacturer for more than 20 years. Any need about this wet shotcrete machine, all can contact us. Email address: info@gaodetec.com

GDS1500 Wet Shotcrete Machine is designed specifically for the dome-building process, swimming pool etc. It can be used for pumping, grouting and spraying normal concrete, and also can be used for pumping and spraying cellular light foam concrete.

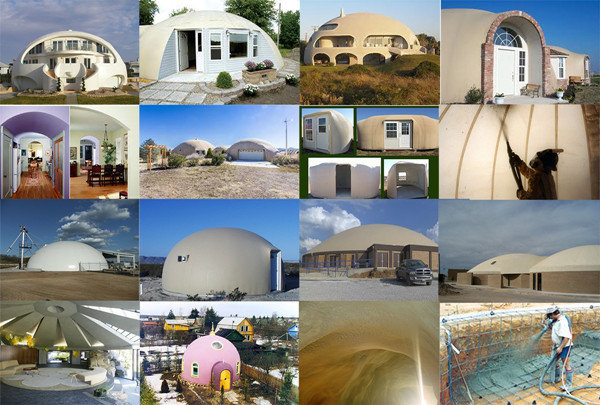

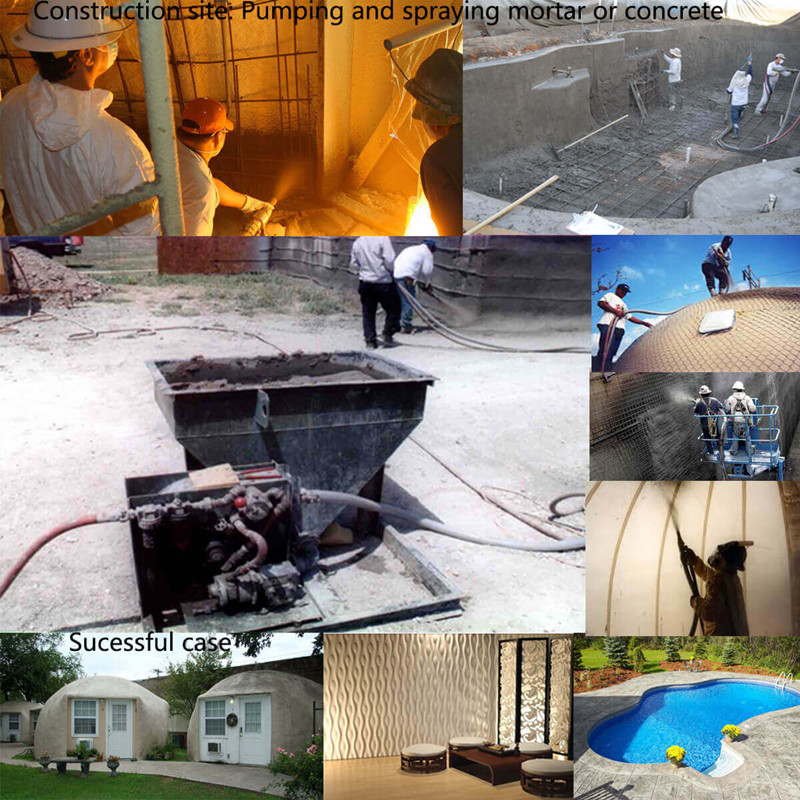

Shotcrete machine for swimming pool and dome building:

GDS1500 Wet Shotcrete Machine has other application:
1. Wet shotcrete machine for tunnel building.
2. Concrete spraying machine for mining operations.
3. Shotcrete machine for hydropower projects.
4. Shotcrete machine for hill side projects.
5. Gunite machine for swimming pool.
6. Shotcrete machine for concrete repair.
7. Concrete spraying machine for soil retention and retaining walls.
8. Shotcrete machine for underground excavation engineering etc.

GDS1500 Wet Shotcrete Machine Features:
1. GDS1500 wet shotcrete machine with highly reliable direct drive planetary gearbox;
2. Infinite speed variation;
3. GDS1500 shotcrete pump is easily operating on site work;

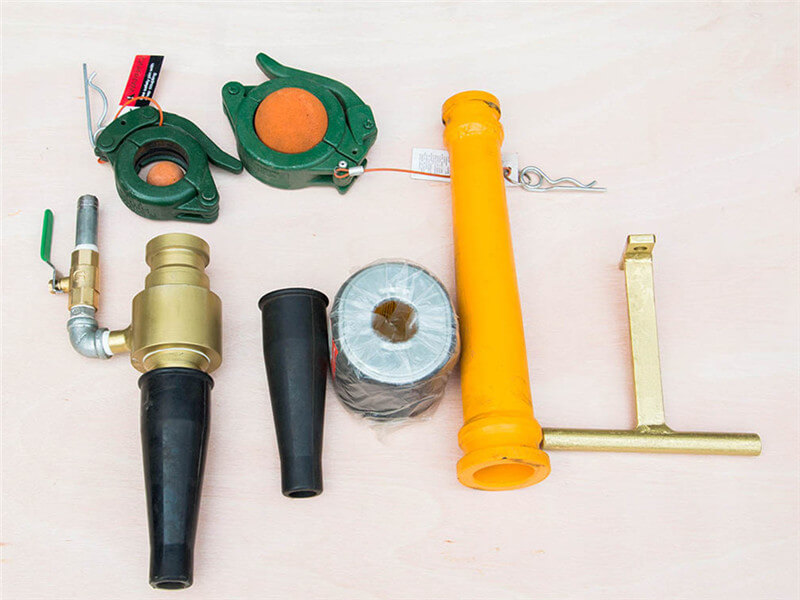

4. Standard spare part supply;
5. Skid mounted, transportable on a trailer;
6. GDS1500 shotcrete machine is power, compact and reliable.

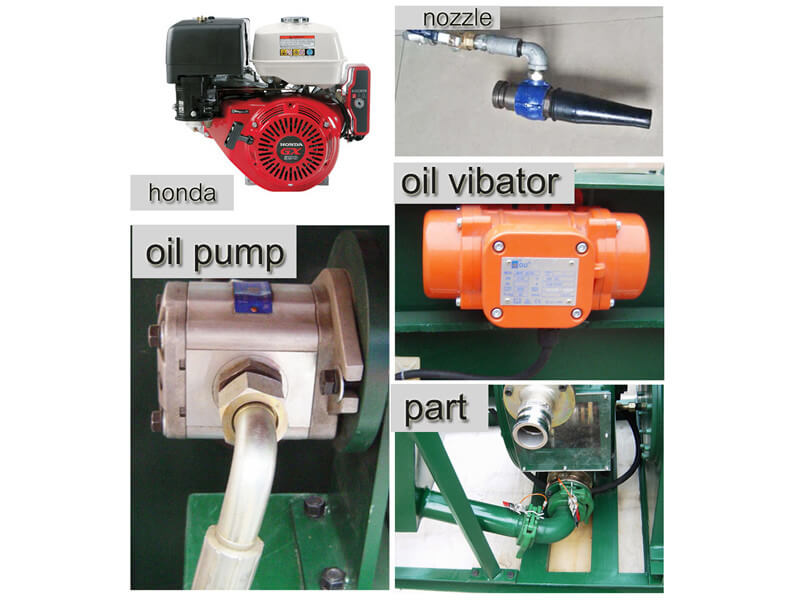

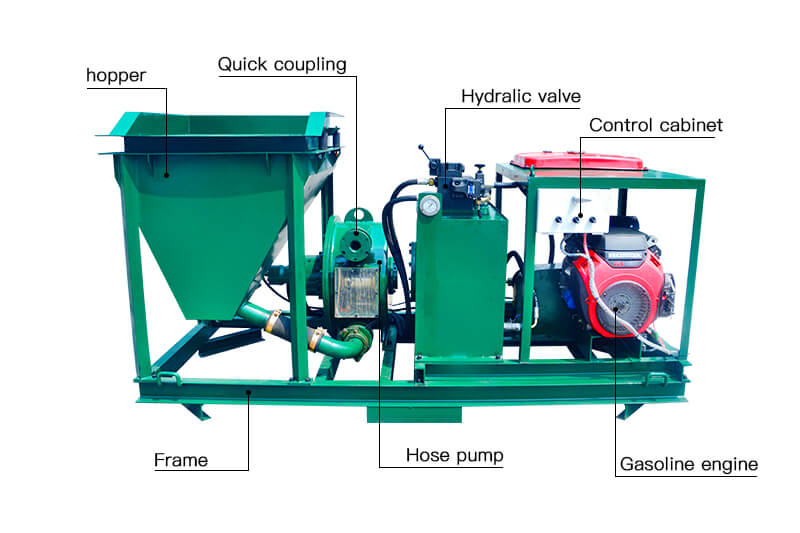

GDS1500 Wet Shotcrete Machine Details:

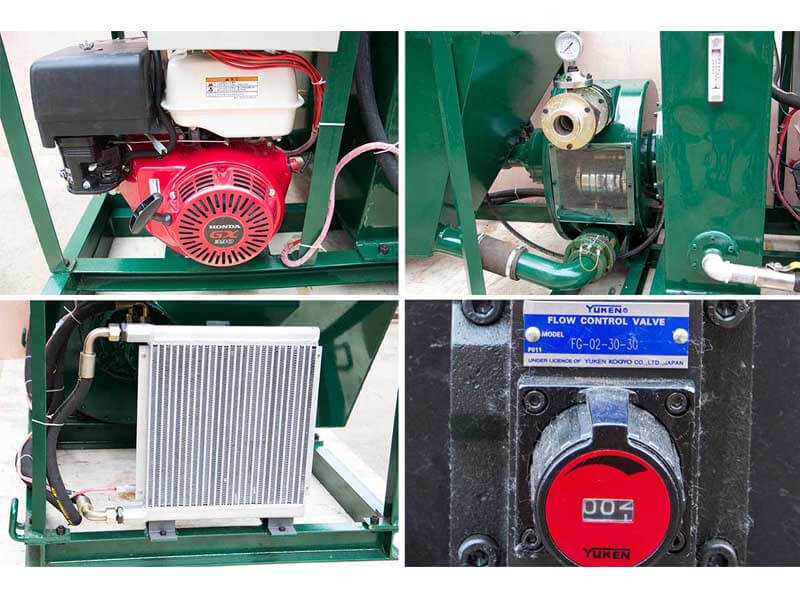

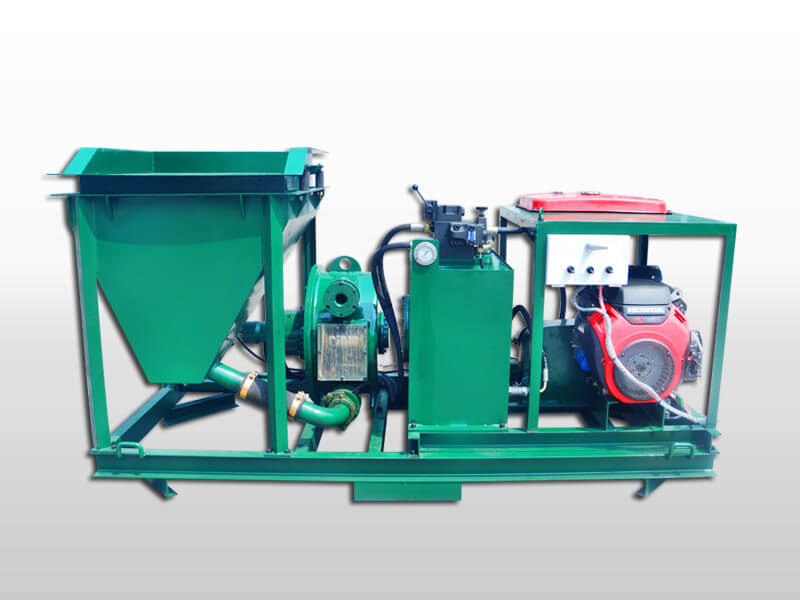

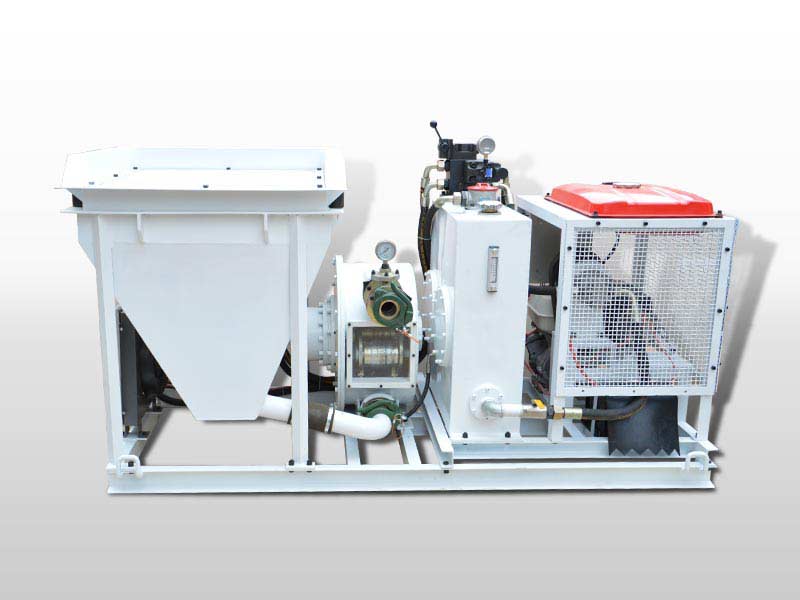

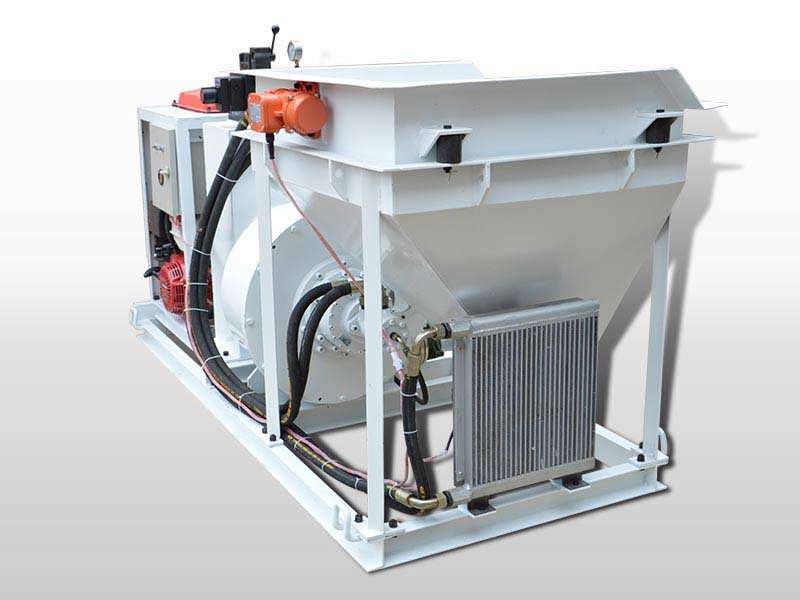

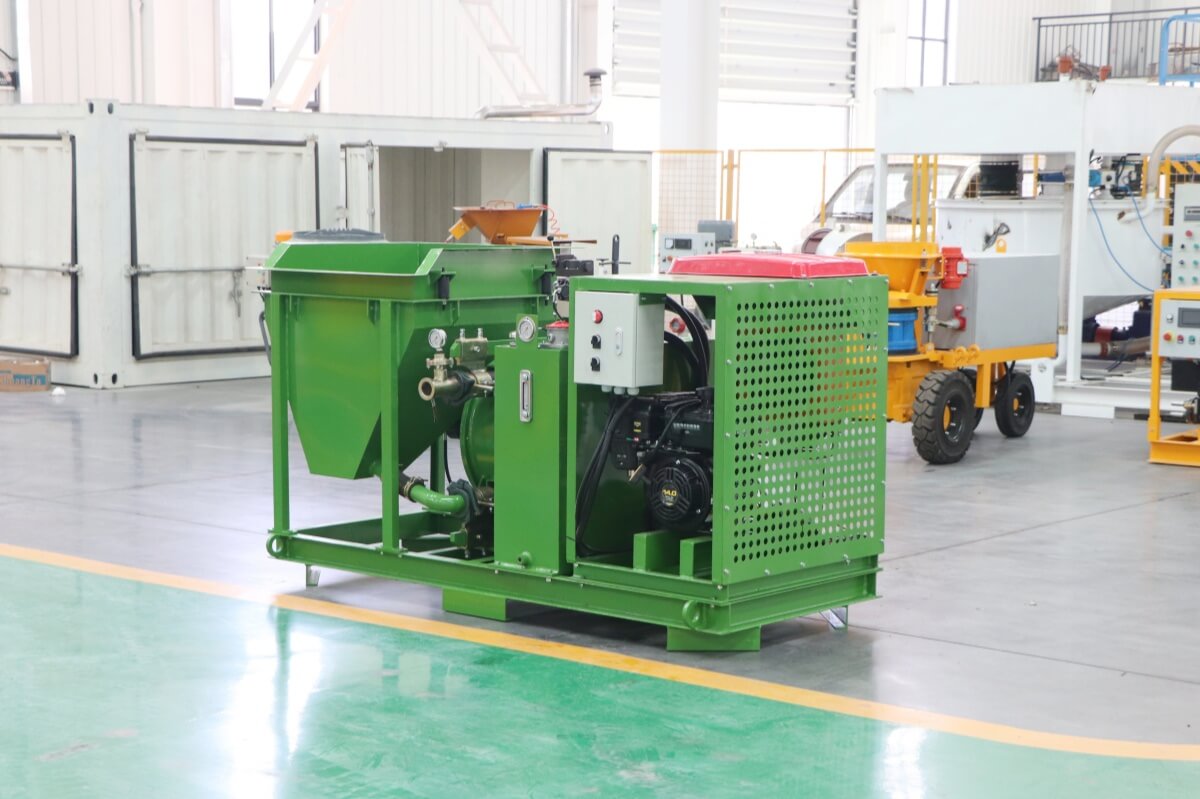

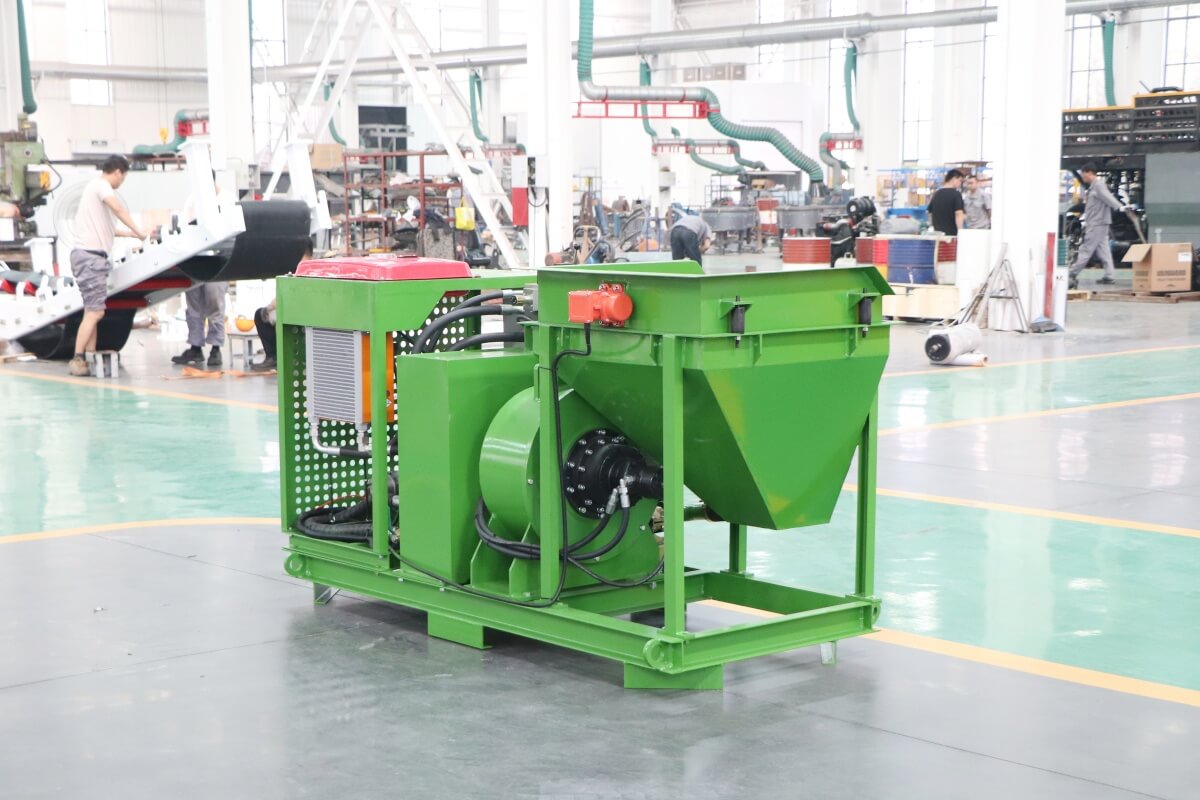

► GDS1500G Gasoline Engine Shotcrete Pump

Item	Description of Gasoline Engine Shotcrete Pump

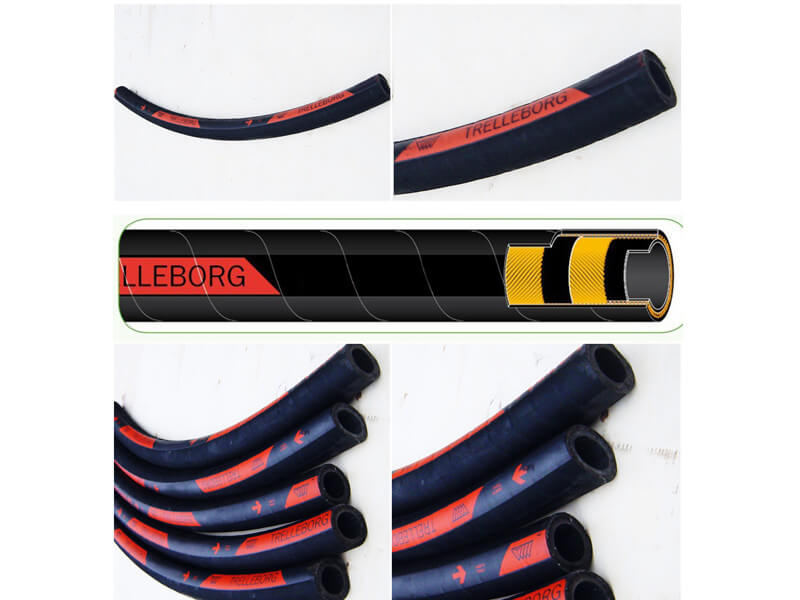

Pressure	1.5 Mpa ( Chinese squeeze hose )/2.5 Mpa ( Trelleborg squeeze hose )
Output	1.5-3m3/h
Max. Aggregate	10mm
The Squeeze Hose	ID 50mm
Conveying Hose	ID 38mm
Pump head	GH50-455
Power	Honda GX390 Gasoline engine
Overall Dimension	1900x850x1250mm
Hopper volume	200 Liter
Oil tank	120 Liter
Weight	610kg
Requested air compressor	3m3/min, 0.5Mpa Pressure
Vertical Conveying Distance	15 m ( Chinese squeeze hose )/30 m ( Trelleborg squeeze hose )
Horizontal Conveying Distance	40 m ( Chinese squeeze hose )/80 m ( Trelleborg squeeze hose )

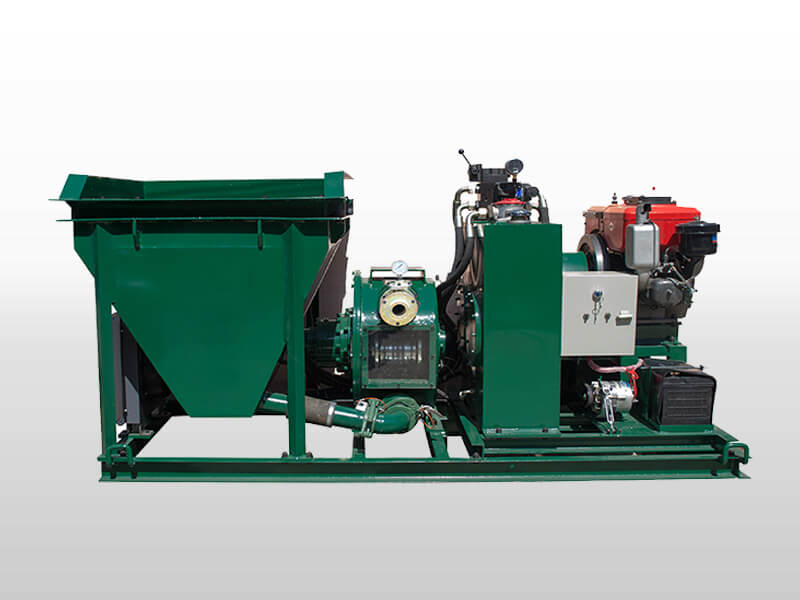

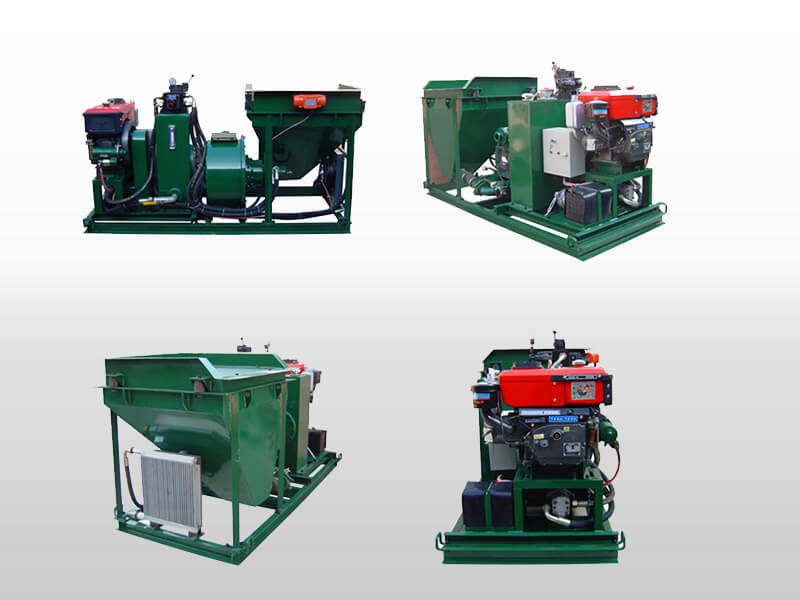

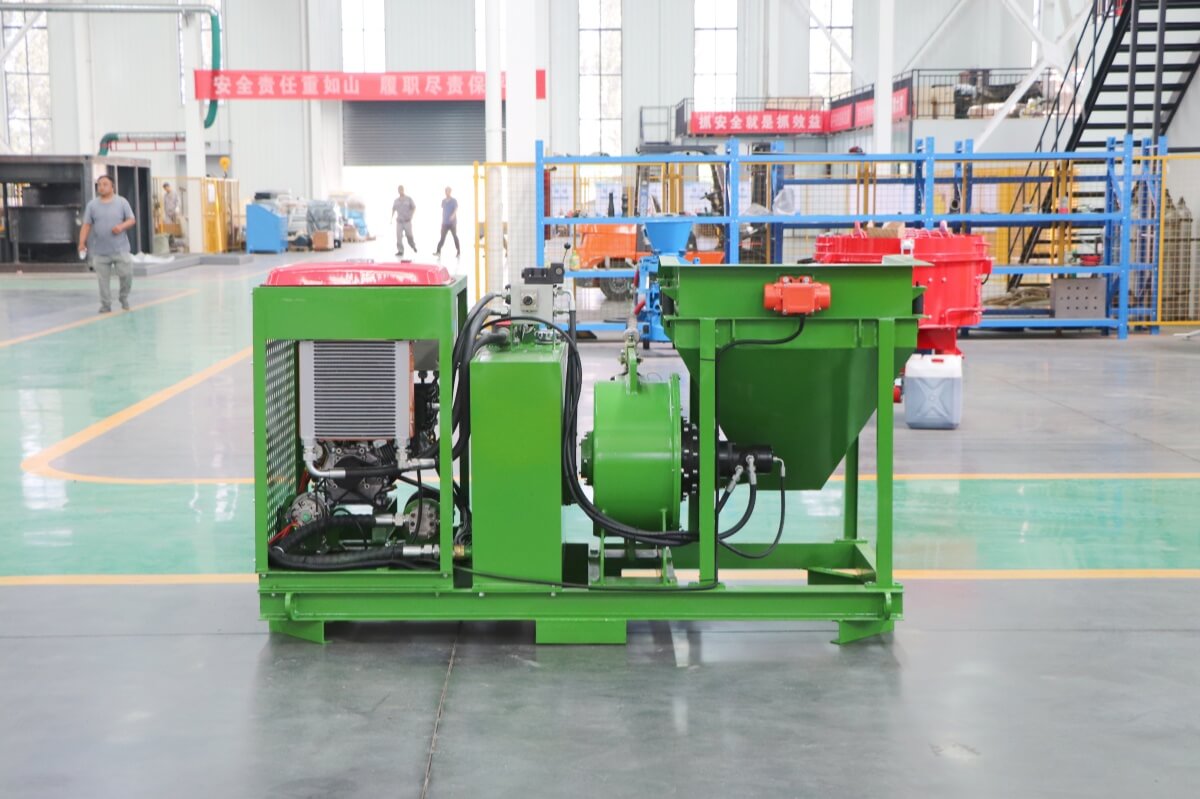

►GDS1500D Diesel Engine Shotcrete Pump

Item	Description of Diesel Engine Shotcrete Pump
Pressure	1.5 Mpa (Chinese squeeze hose)/2.5 Mpa (Trelleborg squeeze hose)
Output	1.5-3m3/h
Max. Aggregate	10mm
The Squeeze Hose	ID 50mm
Conveying Hose	ID 38mm
Pump head	GH50-455
Power	CFZ12 Diesel Engine, 10hp
Overall Dimension	2150x1100x1150mm
Hopper volume	130 Liter
Weight	660kg
Requested air compressor	3m3/min, 0.5Mpa Pressure
Vertical Conveying Distance	15 m (Chinese squeeze hose)/30 m (Trelleborg Hose)
Horizontal Conveying Distance	40 m (Chinese squeeze hose)/80 m (Trelleborg squeeze hose)

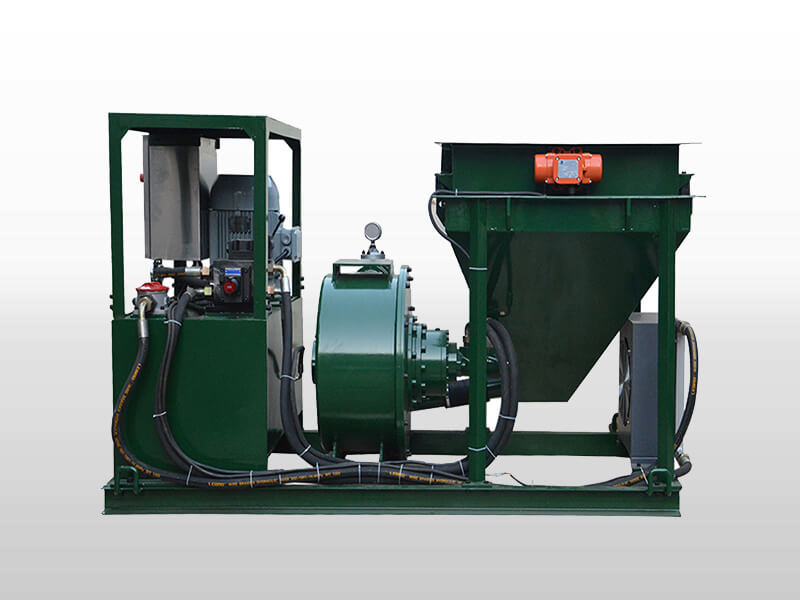

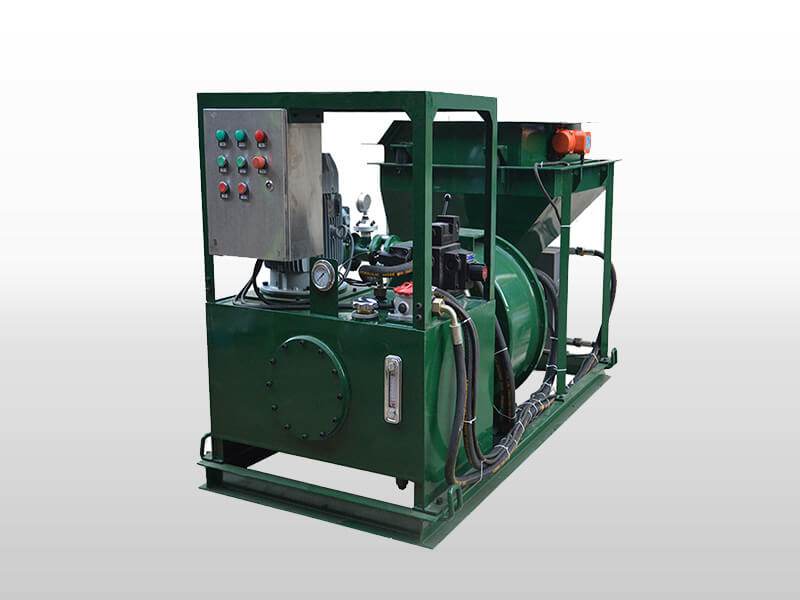

►GDS1500E Electric Motor Shotcrete Pump

Item	Description of Electric Motor Shotcrete Pump
Pressure	1.5 Mpa (Chinese squeeze hose)/ 2.5 Mpa (Trelleborg squeeze hose)
Output	1.5-3m3/h
Max. Aggregate	10mm
The Squeeze Hose	ID 50mm
Conveying Hose	ID 38mm
Pump head	GH50-455
Power	5.5kw, electric motor
Overall Dimension	1900x850x1250mm
Hopper volume	200 Liter
Weight	610kg
Requested air compressor	3m3/min, 0.5Mpa Pressure
Vertical Conveying Distance	15 m (Chinese squeeze hose)/30 m (Trelleborg squeeze hose)
Horizontal Conveying Distance	40 m (Chinese squeeze hose)/80 m (Trelleborg squeeze hose)
