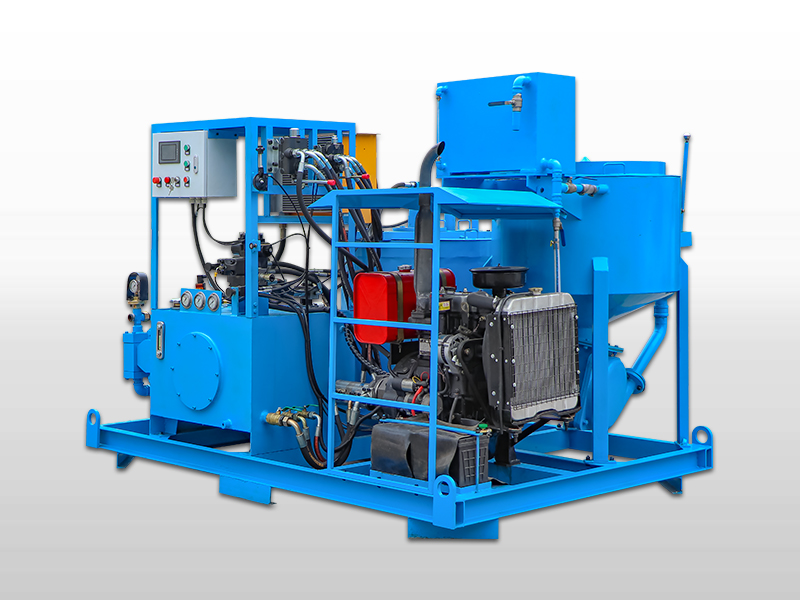

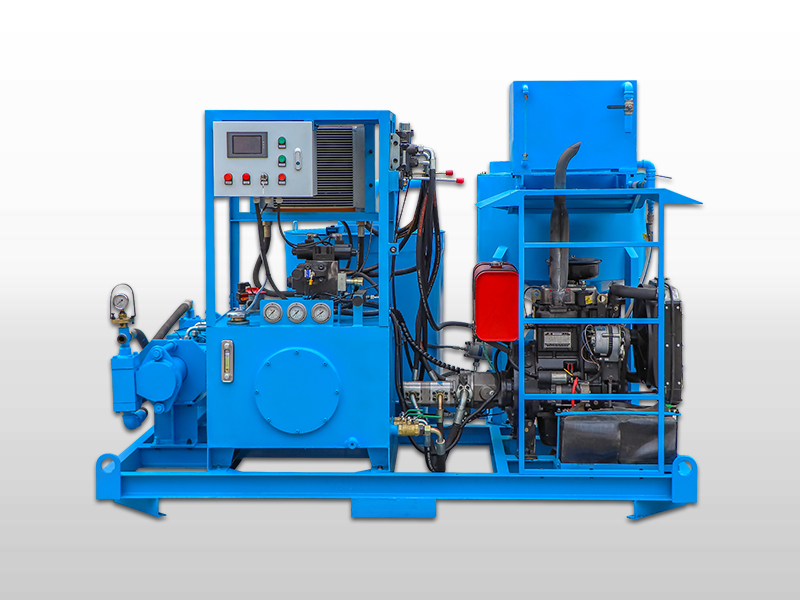

GGP250/350/100DPI-D Bentonite grout mixing plant is an updated machine, based on the existing grouting station, as well as, is a combination of grout mixer, agitator and grout pump in one base frame. It has compact size and it is easy to operate. It also takes up a small space.

The bentonite grouting mixing plant has the characteristics of high dispersion, mixing, pulping, and strong pumping ability. It is mainly used to be made bentonite slurry, cement slurry, etc., in the application highway, railway, hydropower, construction, mining and other ground and underground construction.

GGP250/350/100DPI-D Bentonite grout mixing plant is compared with ordinary grout mixing plant, it has the characteristics of fast pulping speed and uniform slurry mixing. In one word, the bentonite grout plant with simple structure, compact size, light weight, easy maintenance etc. features in one.

High-speed, high-shear colloidal mixer cause a vortex flow to ensure mix quickly and evenly. Water, cement or bentonite is quickly mixed into a homogeneous slurry. Then the mixed slurry was delivered to the agitator. Grout pump injects from the mixing drum (storage tank). This ensures a continuous mixing and grouting operations. The grouting plant is hydraulic drive with electric motor. Grouting pressure and displacement of this bentonite grout mixing plant is adjustable.

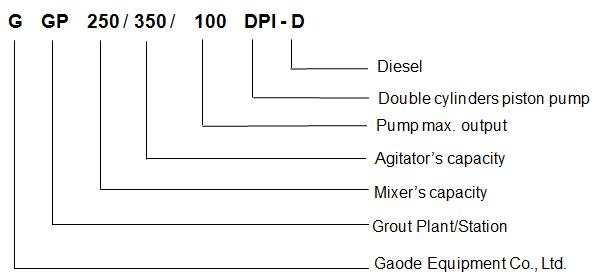

Model Definition of GGP250/350/100DPI-D Bentonite grout mixing plant:

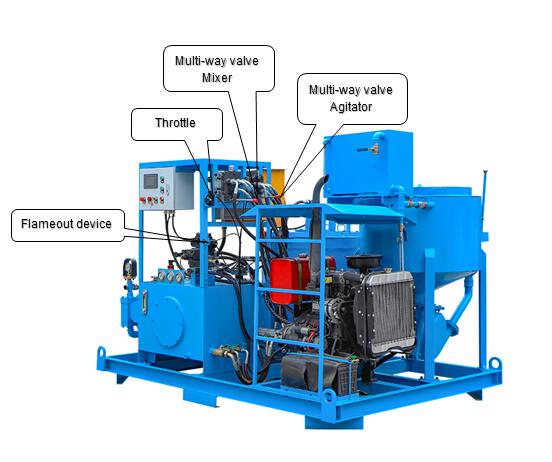

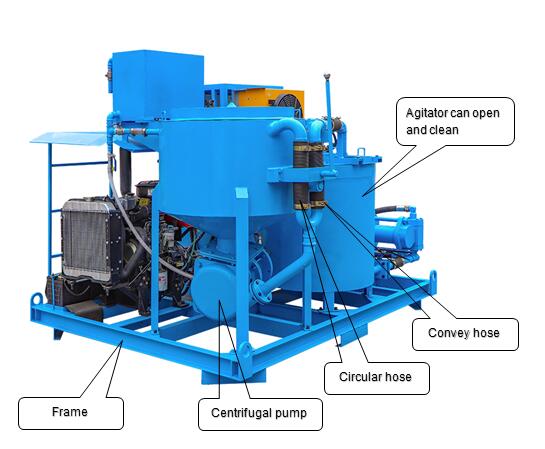

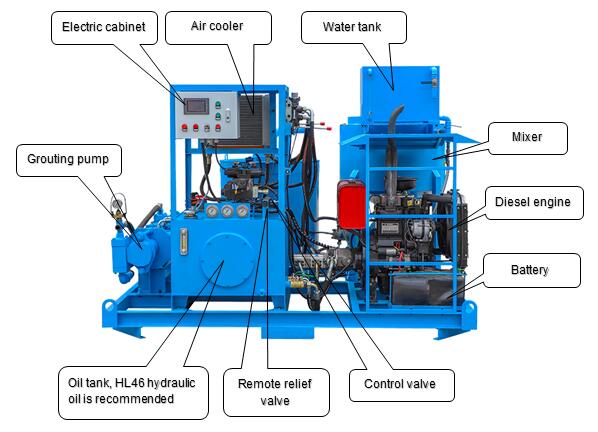

Main component of bentonite grout mixing plant:

GGP250/350/100DPI-D Bentonite grout mixing plant is a diesel engine grout plant with hydraulic two cylinder piston pump, it is specially designed for making bentonite slurry, cement slurry, etc., in the application highway, railway, hydropower, construction, mining and other ground and underground construction.

The high shear grout mixer volume is 250L, agitator volume is 350L. Grouting pressure and output of GGP250/350/100DPI-D Bentonite grout mixing plant are step-less adjustable, pump pressure of grouting pump is 0-100bar, pump output of grouting pump is 0-100L/min.

If you want to purchase a bentonite grout plant, and you don’t know which type bentonite mixing plant is suitable for your project, so contact us now for one suitable grout plant to mixing and pumping bentonite slurry. Please help us to confirm the following points:
1. How about the flow and pressure of the pump you want, please?
2. How about the water and cement ratio, does any sand in?
3. About the power: electric (voltage and frequency) or diesel bentonite grouting mixing plant?

Features of GGP250/350/100DPI-D Bentonite grout mixing plant:

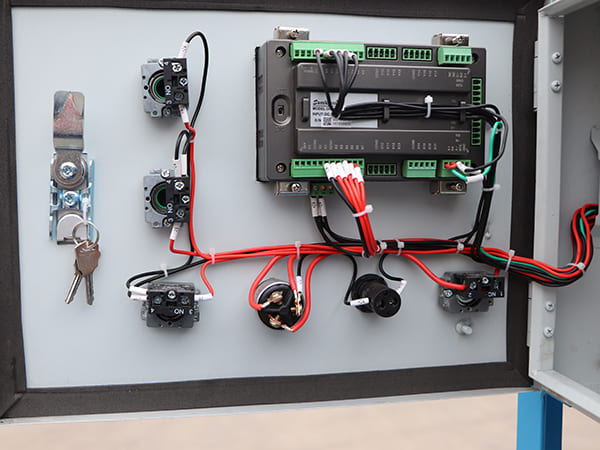

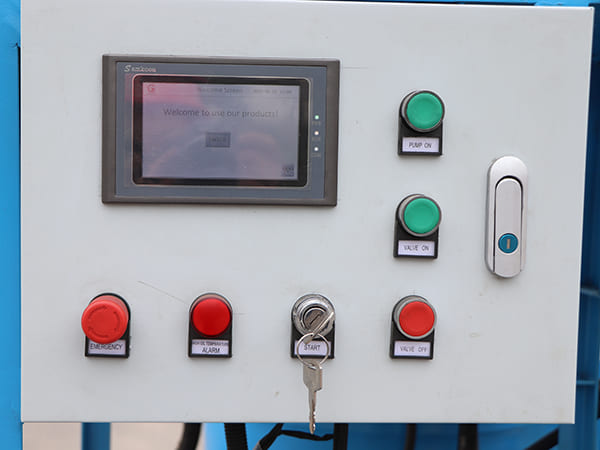

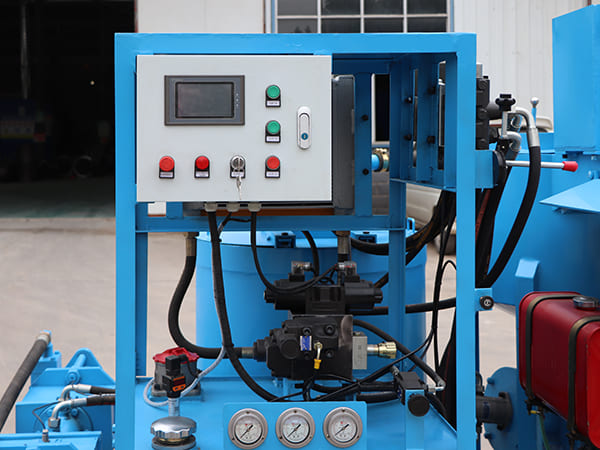

1. PLC and HMI control bentonite grout plant.
2. Over hydraulic oil temperature protection.

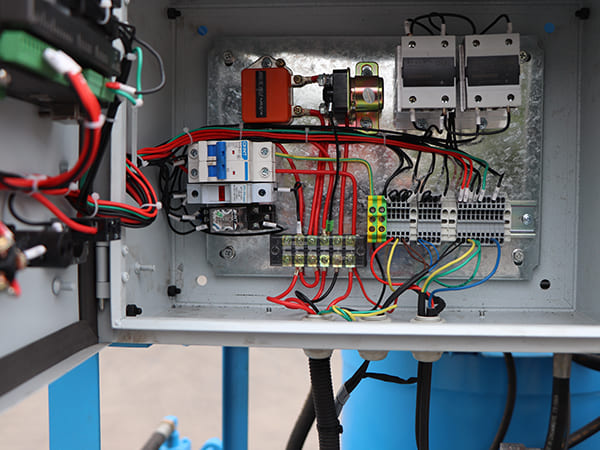

3. Solid State Relay.
4. Bentonite grouting mixing plant with function of record and display grouting pump reciprocating times by a counter.
5. Mixer and agitator switch is a squeeze handle that is easy to operate and reliable.
6. Grouting pressure and output of bentonite mixing plant are step-less adjustable.
7. Diesel and full hydraulic driven bentonite grout mixing plant.

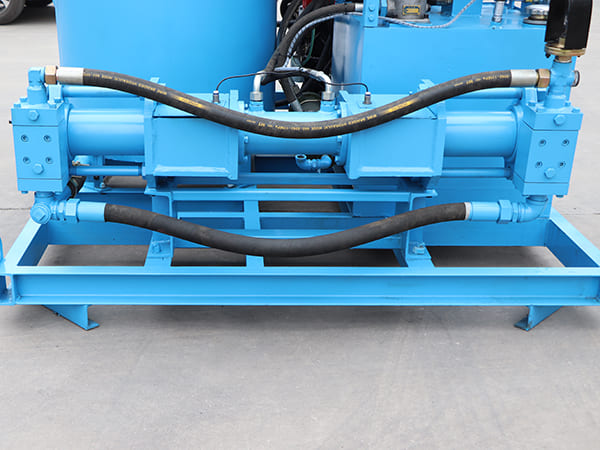

8. Double cylinders piston pump to ensure the continuous slurry flowing (small pulse) and not easily leaking compared with the double acting piston pump.

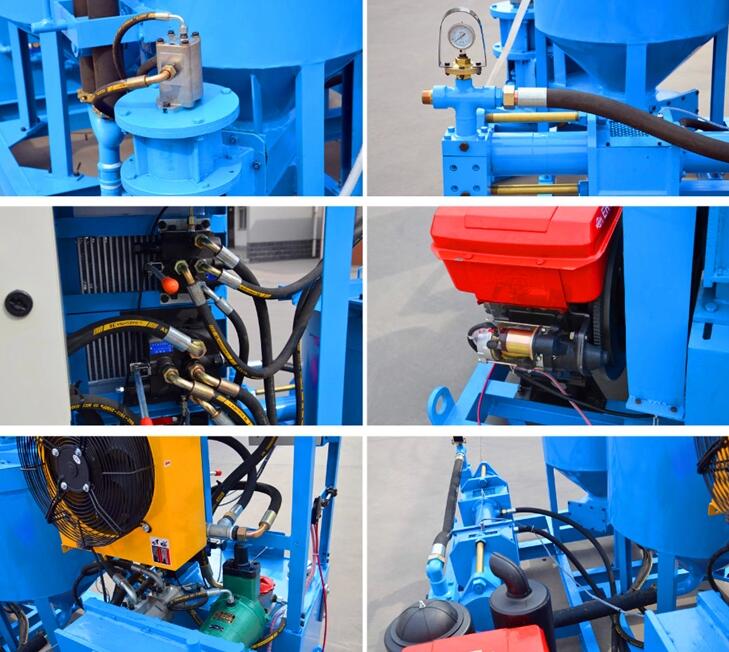

Details of GGP250/350/100DPI-D Bentonite grout mixing plant:

Name		Data
Type		GGP250/350/100DPI-D Bentonite grout mixing plant

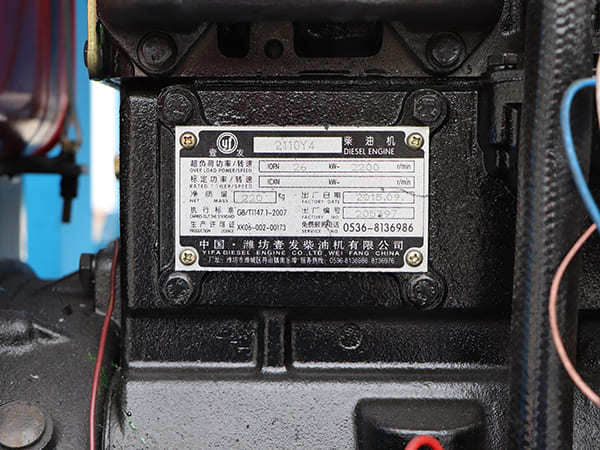

Diesel engine		25Kw@2200r/min
Mixer	Volume	250L
	Speed	1500rpm
Agitator	Volume	350L
	Speed	36rpm
Grouting pump	Type	Hydraulic Two Cylinder Piston Pump
	Pump pressure	0-100bar
	Pump output	0-100L/min
Dimension	Dimension	2500×2200×1820mm
	Weight	1550kg

We can also provide custom bentonite grout mixing plant services:
